华为ENSP：VRRP和上行链路跟踪的管理与配置

SWA为VLAN10、VLAN20的主网关、VLAN30、VLAN40的备份网关，SWB为VLAN30、VLAN40的主网关、VLAN10、VLAN20的备份网关。VLAN10、VLAN20、VLAN30、VLAN40的虚拟网关地址分别为192.168.10.254、192.168.20.254、192.168.30.254、192.168.40.254。VLAN10和VLAN20的主网关配置上行链路跟踪。

实现VRRP主备网关切换。

实施步骤概述

配置VLAN：在SWA和SWB上创建并配置VLAN10、VLAN20、VLAN30和VLAN40。
配置链路聚合：在SWA和SWB之间配置链路聚合，创建channel-group 1。
配置STP：设置SWA为根交换机，SWB为备份根交换机。
配置PortFast：将所有PC端口配置为PortFast端口。
配置VRRP：在SWA和SWB上为每个VLAN配置VRRP，设置主备网关。
配置上行链路跟踪：为VLAN10和VLAN20的主网关配置上行链路跟踪。

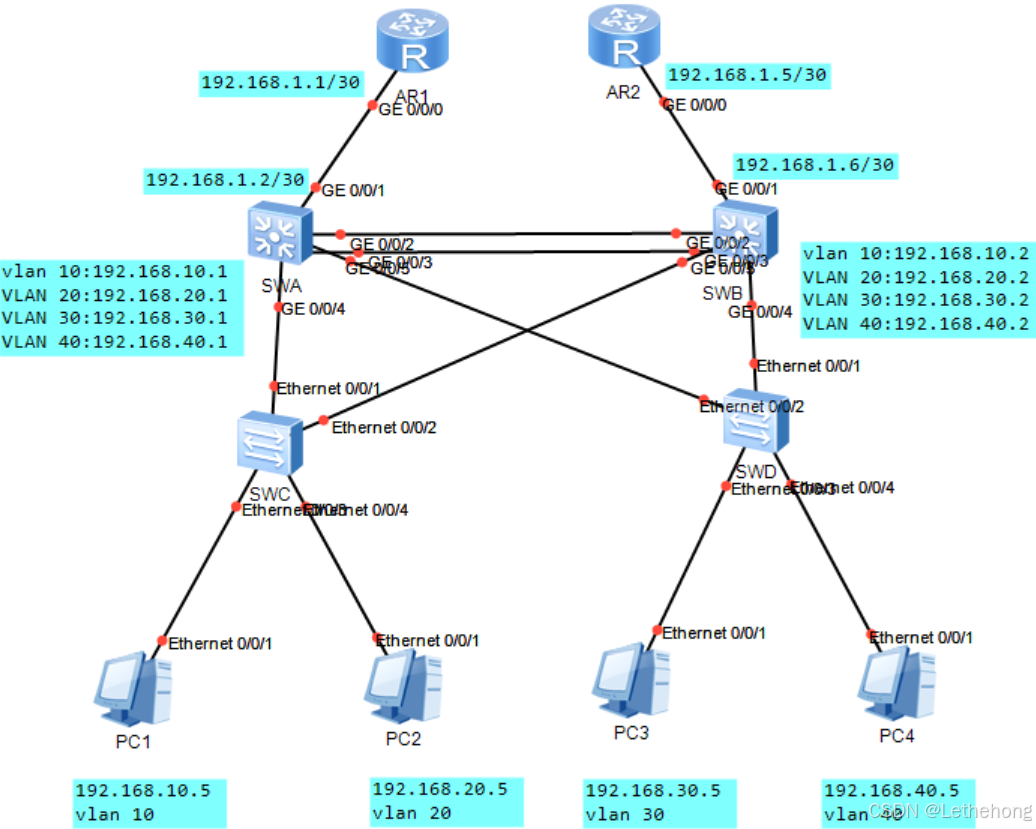

二、拓扑图

三、代码

AR1

[AR1]int GigabitEthernet0/0/0
[AR1-GigabitEthernet0/0/0]ip address 192.168.10.1 30

[AR1]ospf 1
[AR1-ospf-1]area 0.0.0.0
[AR1-ospf-1-area-0.0.0.0]network 192.168.10.0 0.0.0.3

AR2

[AR2]int GigabitEthernet0/0/0
[AR2-GigabitEthernet0/0/0]ip address 192.168.10.5 30

[AR2]ospf 1
[AR2-ospf-1]area 0.0.0.0
[AR2-ospf-1-area-0.0.0.0]network 192.168.10.4 0.0.0.3

SWA

[SWA]interface Vlan-interface10
[SWA-Vlanif10]ip add 192.168.10.1 255.255.255.0
[SWA-Vlanif10]vrrp vrid 10 virtual-ip 192.168.10.254
[SWA-Vlanif10]vrrp vrid 10 priority 120
[SWA-Vlanif10]vrrp vrid 10 preempt-mode timer delay 30

[SWA]interface Vlan-interface20
[SWA-Vlanif20]ip add 192.168.20.1 255.255.255.0
[SWA-Vlanif20]vrrp vrid 20 virtual-ip 192.168.20.254
[SWA-Vlanif20]vrrp vrid 20 priority 120
[SWA-Vlanif20]vrrp vrid 20 preempt-mode timer delay 30

[SWA]interface Vlan-interface30
[SWA-Vlanif30]ip add 192.168.30.1 255.255.255.0
[SWA-Vlanif30]vrrp vrid 30 virtual-ip 192.168.30.254
[SWA-Vlanif30]vrrp vrid 30 preempt-mode timer delay 30

[SWA]interface Vlan-interface40
[SWA-Vlanif40]ip add 192.168.40.1 255.255.255.0
[SWA-Vlanif40]vrrp vrid 40 virtual-ip 192.168.40.254
[SWA-Vlanif40]vrrp vrid 40 preempt-mode timer delay 30

[SWA]stp mode mstp                  //STP模式设置为MSTP（多生成树协议）
[SWA]stp region-configuration       //开始配置MSTP的区域设置
[SWA-mst-region]region-name hc                 //MSTP区域设置一个名称，这里设置为"hc"
[SWA-mst-region]revision-level 1               //设置MSTP区域的修订级别为1
[SWA-mst-region]instance 1 vlan 10 20          //将VLAN 10和VLAN 20映射到MSTP实例1
[SWA-mst-region]instance 2 vlan 30 40          //VLAN 30和VLAN 40映射到MSTP实例2
[SWA-mst-region]active region-configuration    //激活当前配置的MSTP区域设置

[SWA]stp instance 1 root primary    //设置为MSTP实例1的根交换机
[SWA]stp instance 2 root secondary  //设置为MSTP实例2的备份根交换机

[SWA]interface GigabitEthernet0/0/1
[SWA-GigabitEthernet0/0/1]ip address 192.168.10.2 30
[SWA-GigabitEthernet0/0/1]ospf enable 1              //启用OSPF（开放最短路径优先）协议，进程为1
[SWA-GigabitEthernet0/0/1]ospf timer hello 10        //设置了OSPF的Hello定时器为10秒
[SWA-GigabitEthernet0/0/1]ospf cost 10               //设置了该接口的OSPF开销值为10，开销值越低，路径越优先
[SWA-GigabitEthernet0/0/1]ospf authentication-mode md5 1 cipher huawei123     //OSPF协议配置了MD5加密认证。1是认证区域ID，cipher huawei123是用于加密认证的密码

[SWA]ospf 1
[SWA-ospf-1]area 0.0.0.0
[SWA-ospf-1-area-0.0.0.0]network 192.168.0.0 0.0.0.3
[SWA-ospf-1-area-0.0.0.0]network 192.168.10.0 0.0.0.255
[SWA-ospf-1-area-0.0.0.0]network 192.168.20.0 0.0.0.255
[SWA-ospf-1-area-0.0.0.0]network 192.168.30.0 0.0.0.255
[SWA-ospf-1-area-0.0.0.0]network 192.168.40.0 0.0.0.255

[SWA]int GigabitEthernet0/0/4
[SWA-GigabitEthernet0/0/4]port link-type trunk
[SWA-GigabitEthernet0/0/4]port trunk allow-pass vlan all
[SWA-GigabitEthernet0/0/4]q

[SWA]int Eth-Trunk 1
[SWA-Eth-Trunk1]port link-type trunk
[SWA-Eth-Trunk1]port trunk allow-pass vlan all
[SWA-Eth-Trunk1]bpdu enable
[SWA-Eth-Trunk1]mode lacp-static
[SWA-Eth-Trunk1]q
[SWA]int g0/0/2
[SWA-GigabitEthernet0/0/2]eth-trunk 1
Info: This operation may take a few seconds. Please wait for a moment...done.
[SWA-GigabitEthernet0/0/2]q
[SWA]int g0/0/3
[SWA-GigabitEthernet0/0/3]eth-trunk 1
Info: This operation may take a few seconds. Please wait for a moment...done.
[SWA-GigabitEthernet0/0/3]q

SWB

[SWB]interface Vlan-interface10
[SWB-Vlanif10]ip add 192.168.10.2 255.255.255.0
[SWB-Vlanif10]vrrp vrid 10 virtual-ip 192.168.10.254
[SWB-Vlanif10]vrrp vrid 10 preempt-mode timer delay 30

[SWB]interface Vlan-interface20
[SWB-Vlanif20]ip add 192.168.20.2 255.255.255.0
[SWB-Vlanif20]vrrp vrid 20 virtual-ip 192.168.20.254
[SWB-Vlanif20]vrrp vrid 20 preempt-mode timer delay 30

[SWB]interface Vlan-interface30
[SWB-Vlanif30]ip add 192.168.30.2 255.255.255.0
[SWB-Vlanif30]vrrp vrid 30 virtual-ip 192.168.30.254
[SWB-Vlanif30]vrrp vrid 30 priority 120
[SWB-Vlanif30]vrrp vrid 30 preempt-mode timer delay 30

[SWB]interface Vlan-interface40
[SWB-Vlanif40]ip add 192.168.40.2 255.255.255.0
[SWB-Vlanif40]vrrp vrid 40 virtual-ip 192.168.40.254
[SWB-Vlanif40]vrrp vrid 40 priority 120
[SWB-Vlanif40]vrrp vrid 40 preempt-mode timer delay 30

stp mode mstp
stp region-configuration
region-name hc
revision-level 1
instance 1 vlan 10 20
instance 2 vlan 30 40
active region-configuration

stp instance 2 root primary
stp instance 1 root secondary

[SWB]interface GigabitEthernet0/0/1
[SWB-GigabitEthernet0/0/1]ip address 192.168.10.6 30
[SWB-GigabitEthernet0/0/1]ospf enable 1
[SWB-GigabitEthernet0/0/1]ospf timer hello 10
[SWB-GigabitEthernet0/0/1]ospf cost 10
[SWB-GigabitEthernet0/0/1]ospf authentication-mode md5 1 cipher huawei123

[SWB]ospf 1
[SWB-ospf-1]area 0.0.0.0
[SWB-ospf-1-area-0.0.0.0]network 192.168.1.4 0.0.0.3
[SWB-ospf-1-area-0.0.0.0]network 192.168.10.0 0.0.0.255
[SWB-ospf-1-area-0.0.0.0]network 192.168.20.0 0.0.0.255
[SWB-ospf-1-area-0.0.0.0]network 192.168.30.0 0.0.0.255
[SWB-ospf-1-area-0.0.0.0]network 192.168.40.0 0.0.0.255

[SWB]int GigabitEthernet0/0/4
[SWB-GigabitEthernet0/0/4]port link-type trunk
[SWB-GigabitEthernet0/0/4]port trunk allow-pass vlan all
[SWB-GigabitEthernet0/0/4]q

[SWB]int Eth-Trunk 1
[SWB-Eth-Trunk1]port link-type trunk
[SWB-Eth-Trunk1]port trunk allow-pass vlan all
[SWB-Eth-Trunk1]bpdu enable
[SWB-Eth-Trunk1]mode lacp-static
[SWB-Eth-Trunk1]q
[SWB]int g0/0/2
[SWB-GigabitEthernet0/0/2]eth-trunk 1
Info: This operation may take a few seconds. Please wait for a moment...done.
[SWB-GigabitEthernet0/0/2]q
[SWB]int g0/0/3
[SWB-GigabitEthernet0/0/3]eth-trunk 1
Info: This operation may take a few seconds. Please wait for a moment...done.
[SWB-GigabitEthernet0/0/3]q

SWC

[SWC]vlan batch 10 20 30 40
[SWC]interface Ethernet0/0/3
[SWC-Ethernet0/0/3]port access vlan 10
[SWC]interface Ethernet0/0/4
[SWC-Ethernet0/0/4]port access vlan 20
[SWC]interface Ethernet0/0/1
[SWC-Ethernet0/0/1]port link-type trunk
[SWC-Ethernet0/0/1]port trunk allow-pass vlan all
[SWC]interface Ethernet0/0/2
[SWC-Ethernet0/0/2]port link-type trunk
[SWC-Ethernet0/0/2]port trunk allow-pass vlan all

SWD

[SWD]vlan batch 10 20 30 40
[SWD]interface Ethernet0/0/3
[SWD-Ethernet0/0/3]port access vlan 30
[SWD]interface Ethernet0/0/4
[SWD-Ethernet0/0/4]port access vlan 40
[SWD]interface Ethernet0/0/1
[SWD-Ethernet0/0/1]port link-type trunk
[SWD-Ethernet0/0/1]port trunk allow-pass vlan all
[SWD]interface Ethernet0/0/2
[SWD-Ethernet0/0/2]port link-type trunk
[SWD-Ethernet0/0/2]port trunk allow-pass vlan all

四、OSPF基本概念

路由协议：OSPF是一种内部网关协议（IGP），用于在单个自治系统（AS）内部交换路由信息。
链路状态：OSPF路由器通过交换链路状态信息来构建网络的完整拓扑图，然后使用迪杰斯特拉算法计算到达每个网络的最短路径。

这里配置提到了OSPF（最短路径优先协议），下一章会给大家讲解OSPF，这里先做一个铺垫。

五、总结

这篇文章主要介绍了华为ENSP（Enterprise Network Simulation Platform）中VRRP（Virtual Router Redundancy Protocol，虚拟路由器冗余协议）和上行链路跟踪的配置和管理。文章首先介绍了相关的网络理论知识，包括VLAN、链路聚合、STP（Spanning Tree Protocol，生成树协议）、PortFast和VRRP等。

文章的实施步骤概述部分，详细说明了如何在华为交换机上配置VLAN、链路聚合、STP、PortFast、VRRP和上行链路跟踪。通过具体的配置命令和步骤，展示了如何实现VRRP主备网关的切换和链路故障时的快速响应。

文章还提供了详细的配置代码，包括AR1、AR2、SWA、SWB、SWC和SWD的配置示例。这些代码展示了如何在华为交换机上设置VLAN、链路聚合组、VRRP虚拟路由器、STP区域配置等。

此外，文章还简要介绍了OSPF（Open Shortest Path First，开放最短路径优先）的基本概念，包括其作为内部网关协议的作用，以及如何通过交换链路状态信息来构建网络的完整拓扑图。

总体而言，这篇文章为读者提供了在华为ENSP平台上配置VRRP和上行链路跟踪的详细指导，对于学习和实践网络管理技术非常有帮助。
