H3C交换机基础配置

进入交换机：<H3C>system-view                        //< >仅可阅读 ，[ ] 配置模式，可配置命令

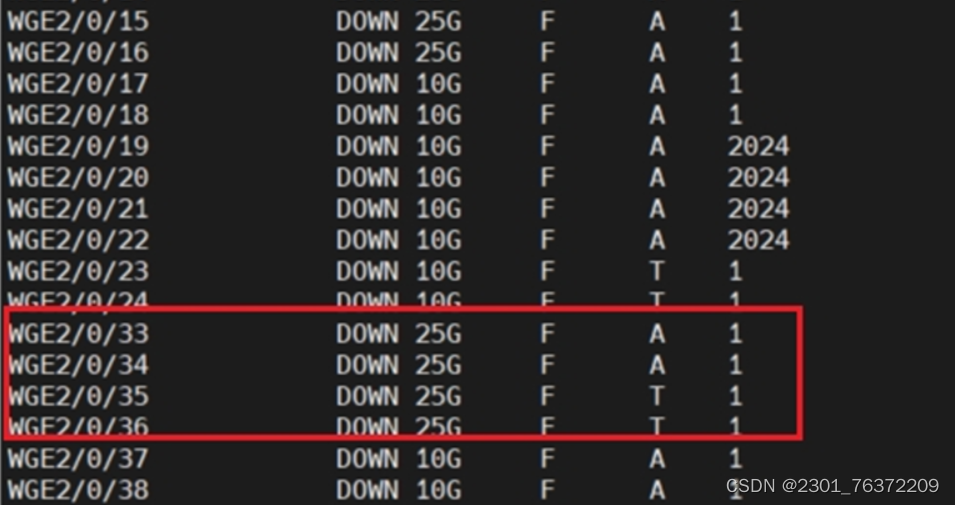

   [H3C]display interface brief                                 //先查看接口有哪些

一、配置交换机速率

进入接口：

[H3C]int WGE2/0/33                                         //[]为配置模式

[H3C-Twenty-FiveGigE2/0/33]speed ?

1000 Specify speed as 1000 Mbps

10000 Specify speed as 10000 Mbps

25000 Specify speed as 25000 Mbps

auto Enable port's speed negotiation automatically

[H3C-Twenty-FiveGigE2/0/33]speed 10000

This command will take effect on Twenty-FiveGigE2/0/33 to Twenty-FiveGigE2/0/36, which belong to a port group. Continue? [Y/N]:Y

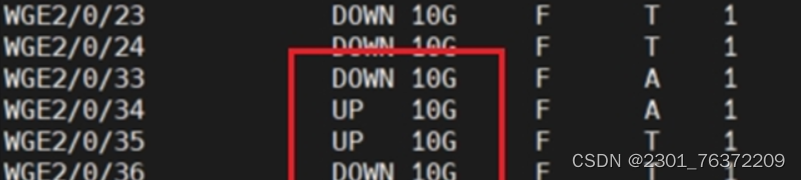

[H3C-Twenty-FiveGigE2/0/33]dis interface brief //检查配置

二、配置vlan并绑定接口

！！！一定要先创建vlan 再使用。

[H3C] vlan 2025

[H3C-vlan2025]exit

[H3C]int WGE2/0/33

[H3C-Twenty-FiveGigE2/0/33]port link-type?

access Set the link type to access

hybrid Set the link type to hybrid

trunk Set the link type to trunk

[H3C-Twenty-FiveGigE2/0/33]port link-type access

[H3C-Twenty-FiveGigE2/0/33]port access vlan 2025

[H3C-Twenty-FiveGigE2/0/33]display this

#

interface Twenty-FiveGigE2/0/33

port link-mode bridge

port access vlan 2025

speed 10000

priority-flow-control auto

priority-flow-control no-drop dot1p 1-5

#

return

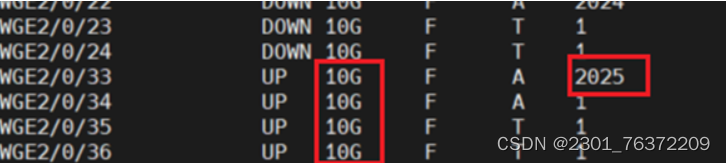

[H3C-Twenty-FiveGigE2/0/33] dis int brief

三、取消vlan绑定接口

[H3C]int WGE2/0/33

[H3C-Twenty-FiveGigE2/0/33]no port access vlan
