最小生成树

我们这里用普利姆算法实现。

普利姆算法的知识在以前文章中写过链接在下面：

http://t.csdn.cn/07L60

题目如下：

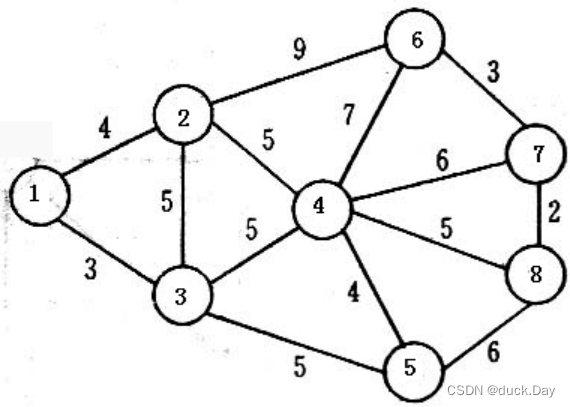

应用普里姆算法实现求带权联通图最小生成树的,对下图调用该算法(假设从顶点1出发)依次输出其最小生成树的各条边对应的顶点及权值。

代码如下：

#include<stdio.h>
#define MAXV 8
#define INF 32767
typedef char InforType;
typedef struct
{
	int no;//顶点编号
	InforType info;
}VertexType;

typedef struct
{
	int edges[MAXV][MAXV];//邻接矩阵数组
	int n,e;//顶点数，边数
	VertexType vexs[MAXV];//存放顶点信息
} MatGraph;//完整的图邻接矩阵类型

void CreateMat(MatGraph *G)//创建邻接矩阵
{
	int i,j;
	for(i=0;i<G->n;i++)
	{
		for(j=0;j<G->n;j++)
		{
			G->edges[i][j]=INF;
		}
	}
	for(i=0;i<G->n;i++)
	{
		j=i;
		G->edges[i][j]=0;
	}
	//给邻接矩阵赋值
	G->edges[0][1] = G->edges[1][0] = 4;
    G->edges[0][2] = G->edges[2][0] = 3;
    G->edges[1][2] = G->edges[2][1] = 5;
    G->edges[1][3] = G->edges[3][1] = 5;
    G->edges[2][3] = G->edges[3][2] = 5;
    G->edges[2][4] = G->edges[4][2] = 5;
    G->edges[3][4] = G->edges[4][3] = 4;
    G->edges[1][5] = G->edges[5][1] = 9;
    G->edges[3][5] = G->edges[5][3] = 7;
    G->edges[3][6] = G->edges[6][3] = 6;
    G->edges[5][6] = G->edges[6][5] = 3;
    G->edges[3][7] = G->edges[7][3] = 5;
    G->edges[4][7] = G->edges[7][4] = 6;
    G->edges[6][7] = G->edges[7][6] = 2;
    //给结点赋编号
    G->vexs[0].no=1;
	G->vexs[1].no=2;
	G->vexs[2].no=3;
	G->vexs[3].no=4;
	G->vexs[4].no=5;
	G->vexs[5].no=6;
	G->vexs[6].no=7;
	G->vexs[7].no=8;
}

void Prim(MatGraph *G,int v)//普里姆算法
{
	int lowcost[MAXV];
	int mindist;
	int closest[MAXV],i,j,k;
	for(i=0;i<G->n;i++)
	{
		lowcost[i]=G->edges[v][i];
		closest[i]=v;
	}
	for(i=1;i<G->n;i++)
	{
		mindist=INF;
		for(j=0;j<G->n;j++)
		   if(lowcost[j]!=0&&lowcost[j]<mindist)
		   {
		   	mindist=lowcost[j];
		   	k=j;
		   }
		printf("边(%d,%d)权为:%d\n",G->vexs[closest[k]],G->vexs[k],mindist);
		lowcost[k]=0;
		for(j=0;j<G->n;j++)
		  if(lowcost[j]!=0&&G->edges[k][j]<lowcost[j])
		  {
		  	lowcost[j]=G->edges[k][j];
		  	closest[j]=k;
		  }
	}
}

int main()
{
	MatGraph G;
	G.n=8;
	int i,j;
	CreateMat(&G);
	printf("邻接矩阵为:\n");
	for(i=0;i<G.n;i++)
	{
		for(j=0;j<G.n;j++)
		{
			if(G.edges[i][j]==32767)
			printf("INF ");
			else
			printf("%-3d ",G.edges[i][j]);
		}
		printf("\n");
	}
	printf("最小生成树为:\n");
	Prim(&G,0);
	return 0;
}

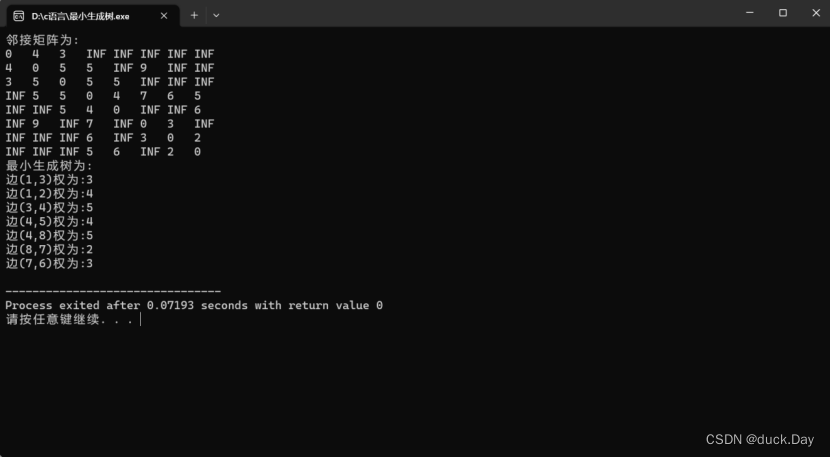

 运行结果：
