cmake使用详细教程(日常使用这一篇就足够了)

安装

linux

软件安装

sudo apt install cmake -y

源码安装

下载

wget https://cmake.org/files/v3.25/cmake-3.25.0-linux-aarch64.tar.gz

tar -xvzf cmake-3.25.0-linux-aarch64.tar.gz

编译

cd cmake-3.25.0-linux-aarch64 && mkdir build && cd build

# 配置编译环境
../bootstrap

# 编译安装
make && make install

查看cmake版本

cmake --version

开发

CMake是C/C++构建文件生成工具, 通过CMakeList.txt生成项目构建文件

编写

// Main.cpp
#include<iostream>
int main() {
    std::cout << "Hello World" << std::endl;
    return 0;
}

# CMakeList.txt
# 设置CMake的最低版本要求
cmake_minimum_required(VERSION 3.10)
# 设置项目名称
project(Main)

# 设置C++标准(C++11)
set(CMAKE_CXX_STANDARD 11)

# 定义可执行文件
add_executable(Main Main.cpp)

生成

cmake读取解析CMakeLists.txt, 检查系统环境、依赖库、编译器等设置, 生成对应平台构建文件

例如在Unix系统上会生成Makefile

命令

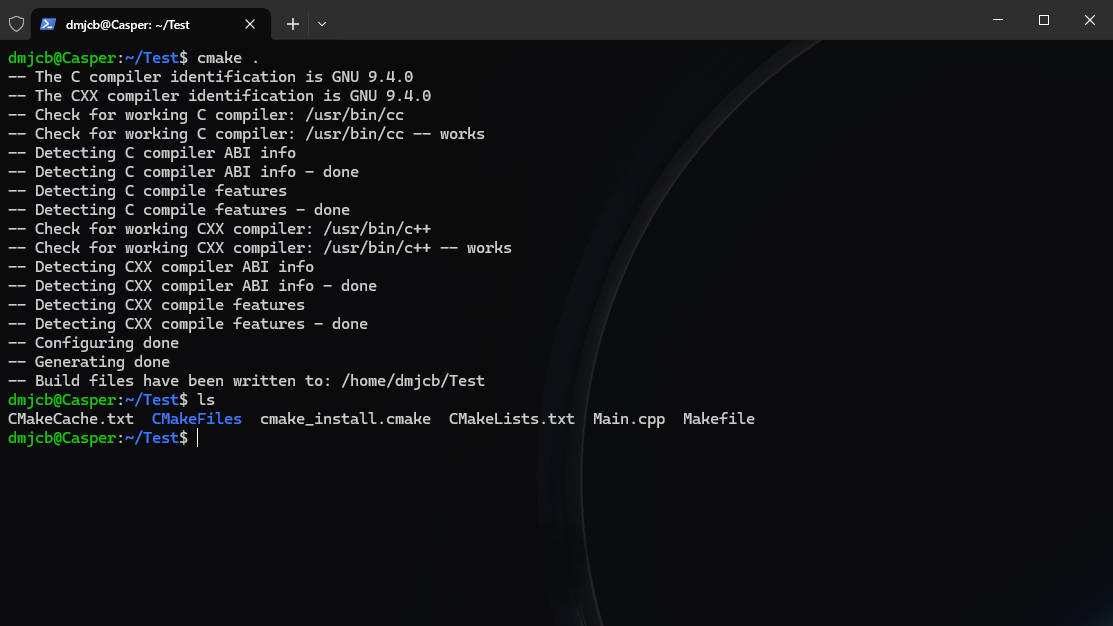

读取当前目录CMakeList.txt, 在当目录生成

该方法会在当前目录下产生大量中间文件, 不推荐

cmake .

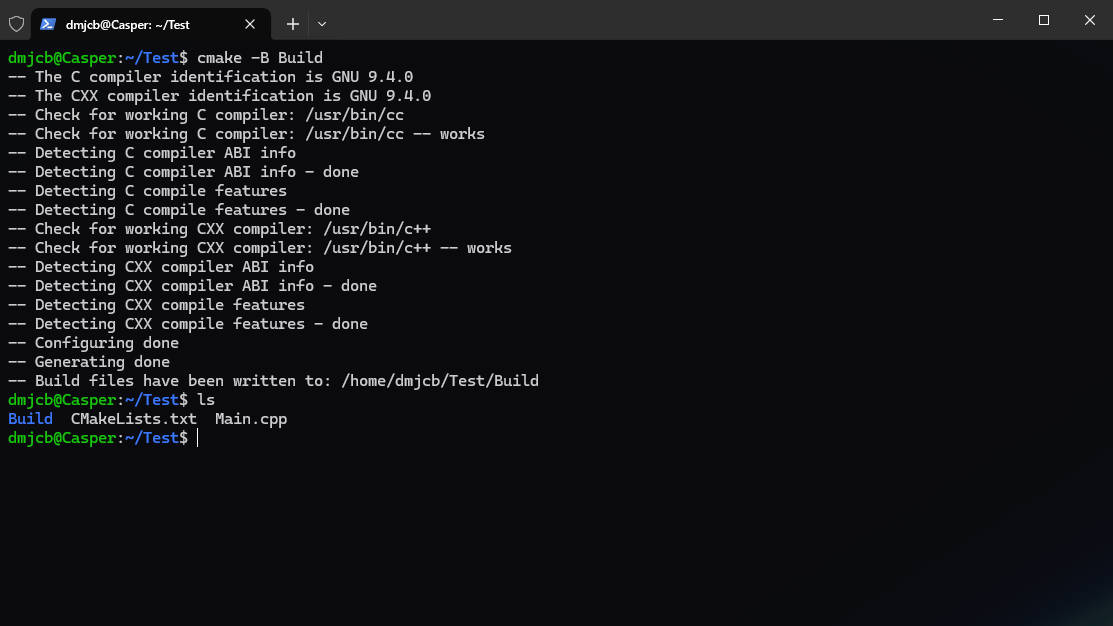

读取当前目录CMakeList.txt, 在Build/下生成

cmake -B Build

# 或者
cd Build
cmake . .

读取Source/CMakeList.txt, 在Build/下生成

cmake -S Source -B Build

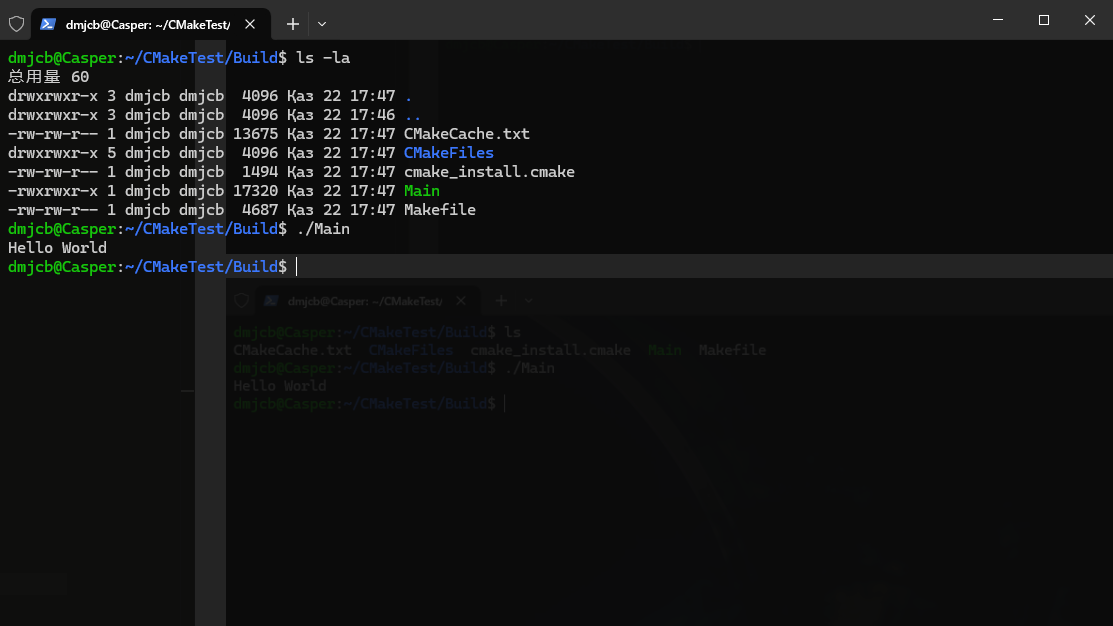

构建

构建工具(如make)调用构建文件进行编译和链接

命令

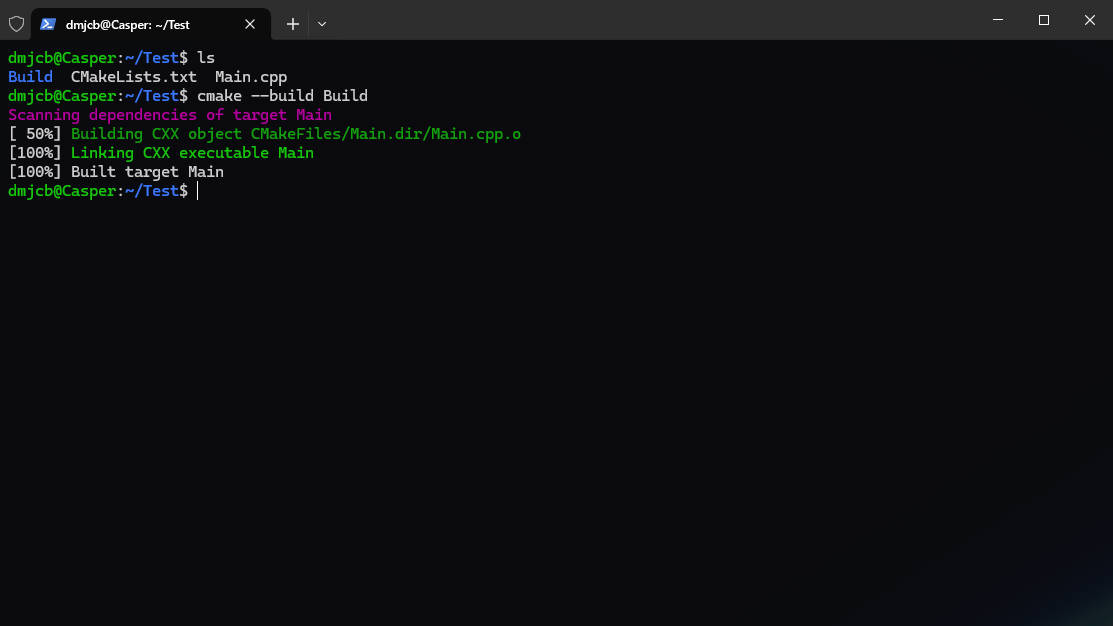

cmake --build 构建目录

cmake --build .

在Build/下构建

cmake --build Build

安装

cmake将构建产物安装CMakeLists.txt设置安装到指定位置

命令

cmake --install 构建目录 --prefix 安装路径

开发

单CMakeLists.txt

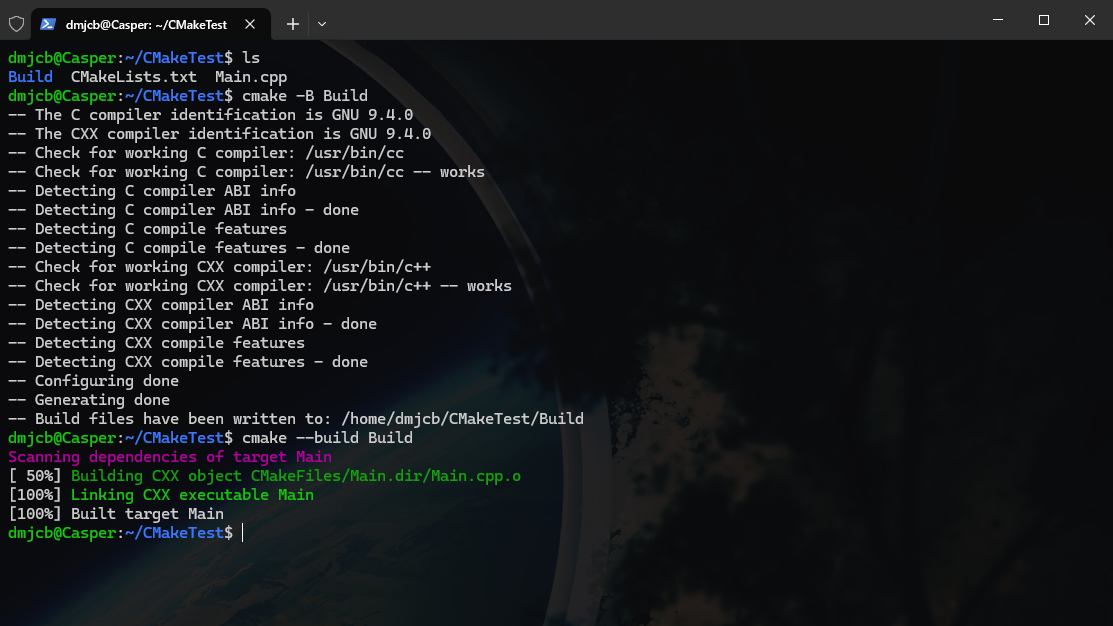

单文件

最简单情况, 将单个.cpp生成可执行文件

// Main.cpp
#include<iostream>
int main() {
    std::cout << "Hello World" << std::endl;
    return 0;
}

# CMakeLists.txt
# 最低版本号
cmake_minimum_required(VERSION 3.30)

# 项目名
project(Main)

# 生成可执行文件
add_executable(Main Main.cpp)

多目录

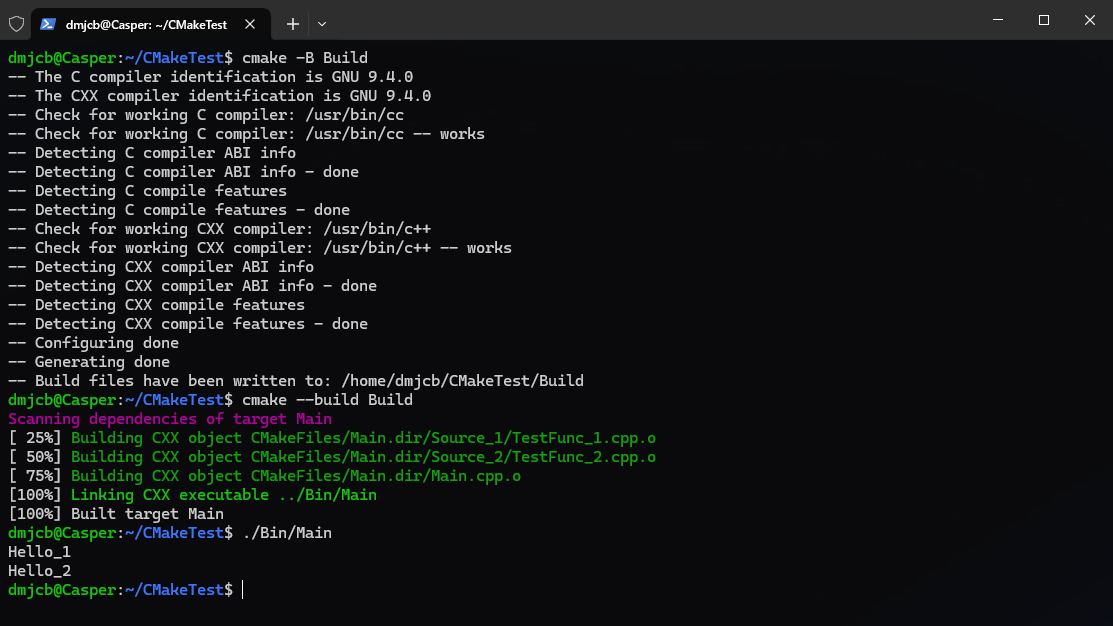

将多个目录下.cpp文件生成可执行文件

.
├── CMakeLists.txt
├── Include_1
│   └── TestFunc_1.hpp
├── Include_2
│   └── TestFunc_2.hpp
├── Main.cpp
├── Source_1
│   └── TestFunc_1.cpp
└── Source_2
    └── TestFunc_2.cpp

// Include_1/TestFunc_1.hpp
#include<iostream>
void Hello_1();

// Include_2/TestFunc_2.hpp
#include<iostream>
void Hello_2();

// Source_1/TestFunc_1.cpp
#include "TestFunc_1.hpp"
void Hello_1() {
    std::cout << "Hello_1" << std::endl;
}

// Source_2/TestFunc_2.cpp
#include "TestFunc_2.hpp"
void Hello_12() {
    std::cout << "Hello_2" << std::endl;
}

// Main.cpp
#include "TestFunc_1.hpp"
#include "TestFunc_2.hpp"
int main() {
    Hello_1();
    Hello_2();
    return 0;
}

# CMakeLists.txt
cmake_minimum_required(VERSION 3.16)
project(Main)

add_executable(${PROJECT_NAME} "")
# 添加可执行文件依赖头文件目录
target_include_directories(${PROJECT_NAME} PRIVATE
    ${CMAKE_SOURCE_DIR}/Include_1
    ${CMAKE_SOURCE_DIR}/Include_2
)
# 添加可执行文件依赖源文件
target_sources(${PROJECT_NAME} PRIVATE
    ${CMAKE_SOURCE_DIR}/Source_1/TestFunc_1.cpp
    ${CMAKE_SOURCE_DIR}/Source_2/TestFunc_2.cpp
    ${CMAKE_SOURCE_DIR}/Main.cpp
)

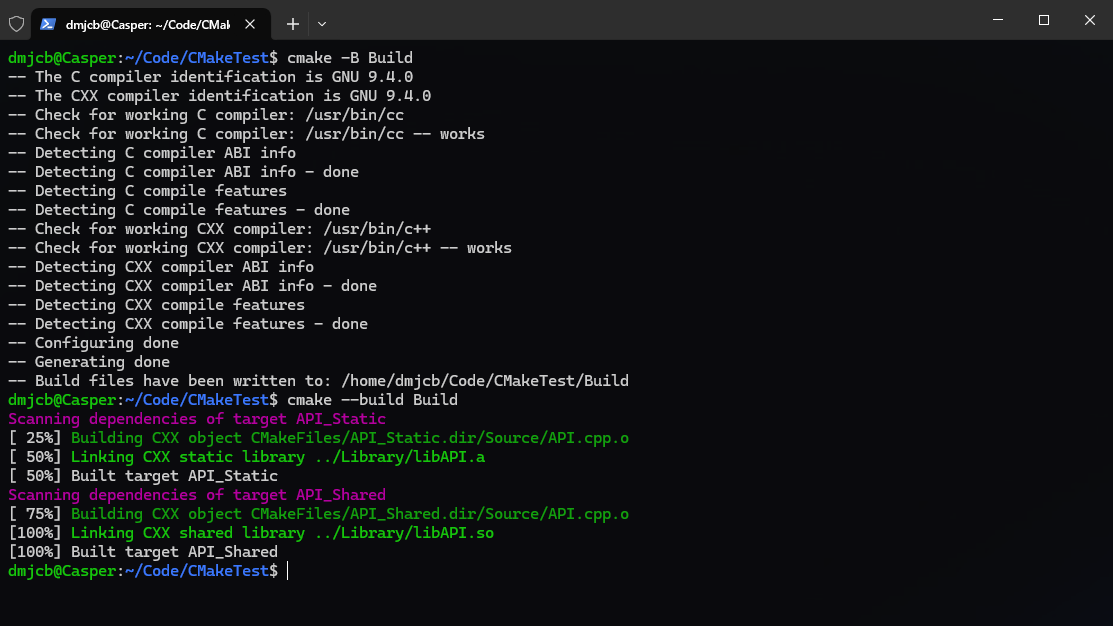

生成库

将目标.cpp生成库文件

.
├── CMakeLists.txt
├── Include
│   └── API.hpp
├── Main.cpp
└── Source
└── API.cpp

// Include/API.hpp
#ifndef __INCLUDE_API_HPP__
#define __INCLUDE_API_HPP__

#include<iostream>
#ifdef _WIN32
    #define __EXPORT __declspec(dllexport)
#else
    #define __EXPORT __attribute__((visibility("default")))
#endif

#ifdef __cplusplus
extern "C" {
#endif
    void Display();
    int Add(int x, int y);
#ifdef __cplusplus
}
#endif
#endif

// Source/API.cpp
#include "API.hpp"
void Display() {
    std::cout << "Print API success!" << std::endl;
}
int Add(int x, int y) {
    return x + y;
}

# CMakeLists.txt
cmake_minimum_required(VERSION 3.16)
project(API)

# 设置库生成目录为工程目录下Library
set(LIBRARY_OUTPUT_PATH ${PROJECT_SOURCE_DIR}/Library)

# 生成库文件
add_library(${PROJECT_NAME}_Shared SHARED "")
add_library(${PROJECT_NAME}_Static STATIC "")
# 将动态库与静态库名称存在LIB_NAME变量
foreach(LIB_NAME ${PROJECT_NAME}_Shared ${PROJECT_NAME}_Static)
    target_include_directories(${LIB_NAME} PRIVATE ${CMAKE_SOURCE_DIR}/Include)
    target_sources(            ${LIB_NAME} PRIVATE ${CMAKE_SOURCE_DIR}/Source/API.cpp)
    # 设置库依赖项, 将库名称设置为PROJECT_NAME值
    set_target_properties(     ${LIB_NAME} PROPERTIES OUTPUT_NAME ${PROJECT_NAME})
endforeach()

链接库

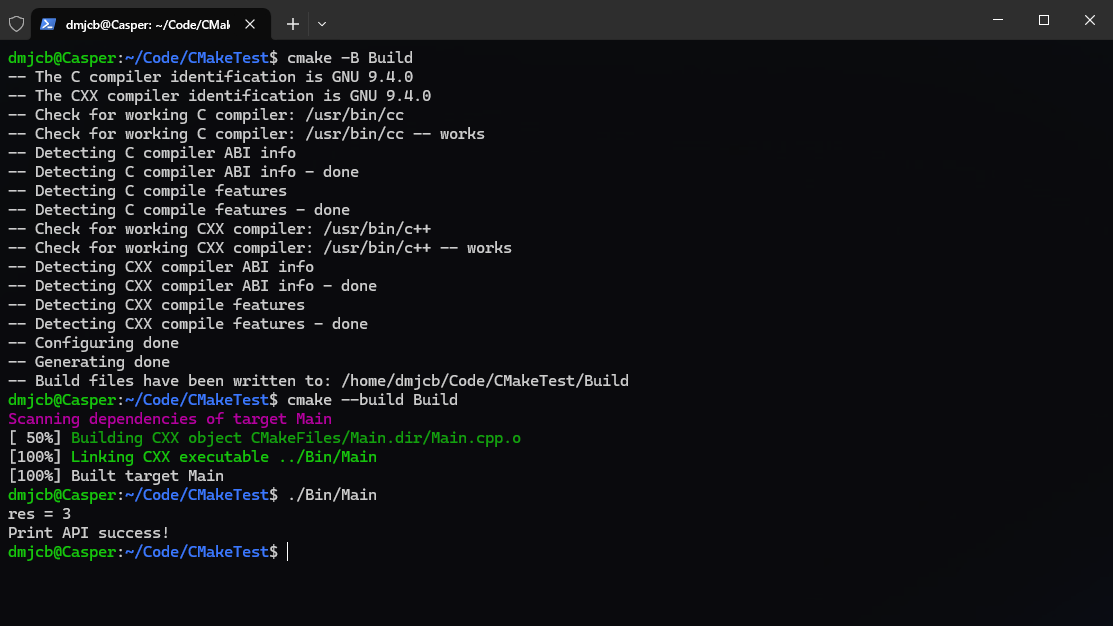

设Library/下已有libAPI库, Include/API.hpp是其头文件, 生成可执行文件并链接

// Main.cpp
#include "API.hpp"
int main(void) {
    int res = Add(1, 2);
    std::cout << "res = " << res << std::endl;
    Display();
    return 0;
}

# CMakeLists.txt
cmake_minimum_required(VERSION 3.16)
project(Main)

# 设置可执行文件生成目录
set(EXECUTABLE_OUTPUT_PATH ${PROJECT_SOURCE_DIR}/Bin)

# 将从Library目录中API库路径与名称值存储于FUNC_LIB
find_library(FUNC_LIB API ${PROJECT_SOURCE_DIR}/Library)

add_executable(${PROJECT_NAME} "")
target_include_directories(${PROJECT_NAME} PRIVATE ${CMAKE_SOURCE_DIR}/Include)
target_sources(${PROJECT_NAME} PRIVATE ${CMAKE_SOURCE_DIR}/Main.cpp )
# 链接库
target_link_libraries(${PROJECT_NAME} PRIVATE ${FUNC_LIB})

多CMakeLists.txt

生成库链接

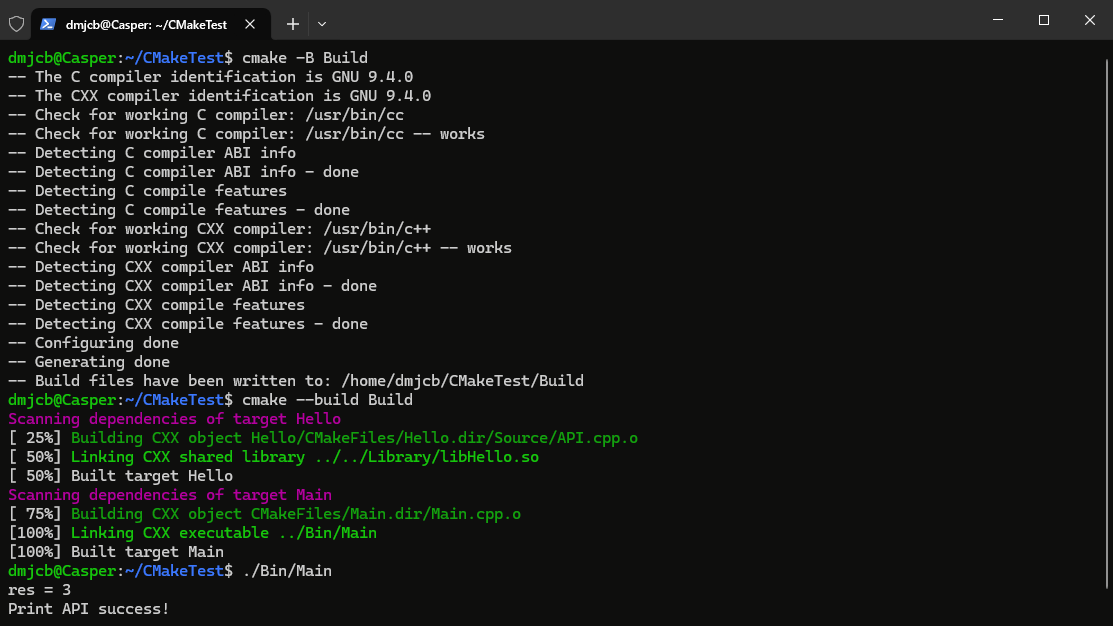

在Hello/ 中生成libAPI库, 并和根目录下Main.cpp生成可执行文件链接

.
├── CMakeLists.txt
├── Hello
│   ├── CMakeLists.txt
│   ├── Include
│   │   └── API.hpp
│   ├── Source
│   └── API.cpp
└── Main.cpp

# Hello/CMakeLists.txt
cmake_minimum_required(VERSION 3.16)
project(Hello)

set(LIBRARY_OUTPUT_PATH ${CMAKE_SOURCE_DIR}/Library)

# 生成动态库
add_library(${PROJECT_NAME} SHARED "")
# 添加目标文件所引用头文件
target_include_directories(${PROJECT_NAME} PRIVATE ${PROJECT_SOURCE_DIR}/Include)
# 添加目标文件所引用源文件
target_sources(${PROJECT_NAME} PRIVATE${PROJECT_SOURCE_DIR}/Source/API.cpp)

# CMakeLists.txt
cmake_minimum_required(VERSION 3.16)
project(Main)

# 设置可执行文件输出路径
set(EXECUTABLE_OUTPUT_PATH ${PROJECT_SOURCE_DIR}/Bin)
# 设置预链接库名称
set(EXTRA_LIBS ${EXTRA_LIBS} API)

# 添加子目录CMake执行
add_subdirectory(API)

# 生成可执行文件
add_executable(${PROJECT_NAME} "")
target_include_directories(${PROJECT_NAME} PRIVATE ${CMAKE_SOURCE_DIR}/API/Include)
target_sources(${PROJECT_NAME} PRIVATE ${CMAKE_SOURCE_DIR}/Main.cpp)
target_link_libraries(${PROJECT_NAME} ${EXTRA_LIBS})

三方库

源码编译

若三方库有CMake配置文件, 且能访问源码, 可直接添加到项目并用add_subdirectory编译

add_subdirectory(SomeLibrary)
target_link_libraries(MyExecutable PRIVATE SomeLibrary)

FetchContent

CMake 3.11及以上版本引入FetchContent模块, 可直接下载第三方库编译

例如编译fmt库, 可通过以下两种方式实现

方式一, 主CMakeLists.txt调用

.
├── CMakeLists.txt
├── Main.cpp
└── Extern

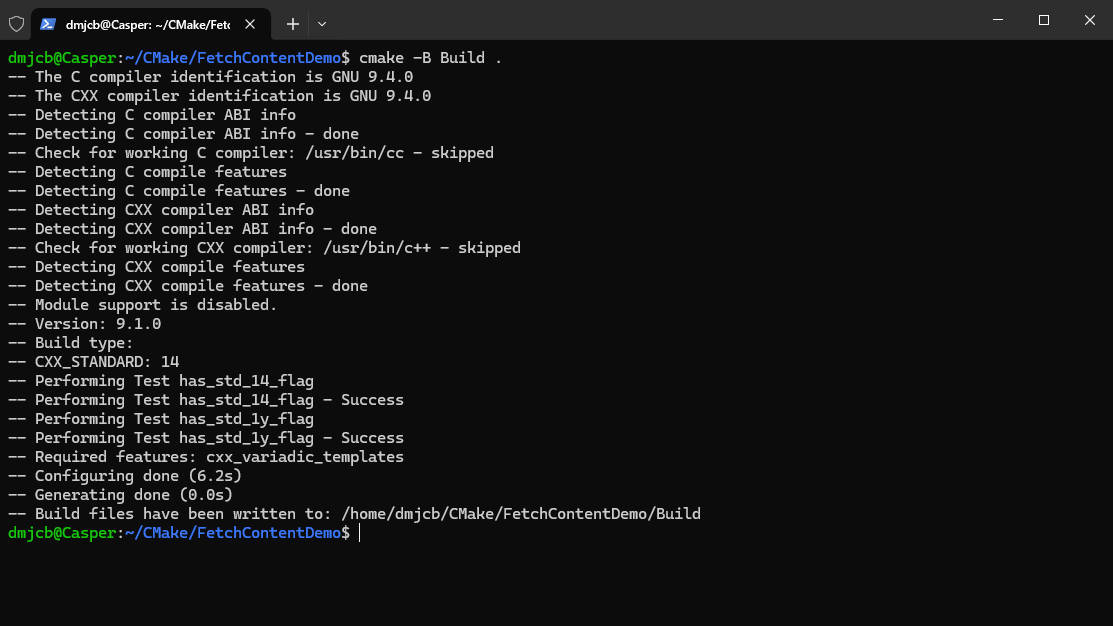

# CMakeLists.txt
cmake_minimum_required(VERSION 3.17)
project(Main)

set(CMAKE_CXX_STANDARD 14)

# 引入FetchContent
include(FetchContent)
FetchContent_Declare(fmt
    GIT_REPOSITORY https://github.com/fmtlib/fmt.git
    GIT_TAG 9.1.0
    # 源码存放位置
    SOURCE_DIR ${CMAKE_SOURCE_DIR}/Extern/fmt
)
# 构建库

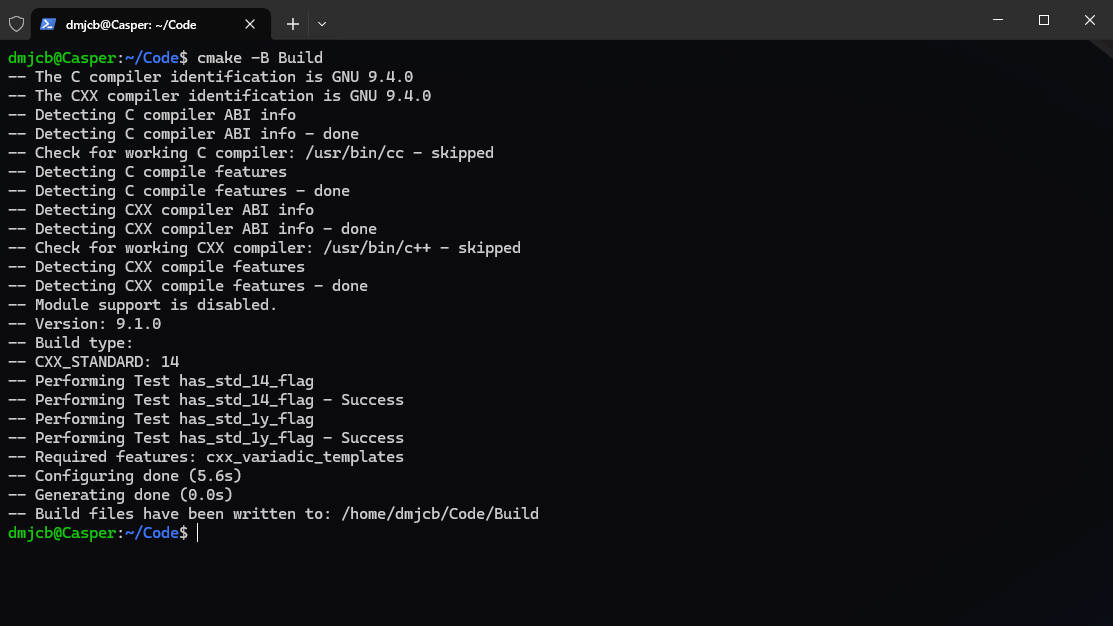

FetchContent_MakeAvailable(fmt)

add_executable(${PROJECT_NAME} "")
target_include_directories(${PROJECT_NAME} PRIVATE ${CMAKE_SOURCE_DIR}/Extern/fmt/include)
target_sources(            ${PROJECT_NAME} PUBLIC Main.cpp)
target_link_libraries(     ${PROJECT_NAME} PRIVATE fmt::fmt)

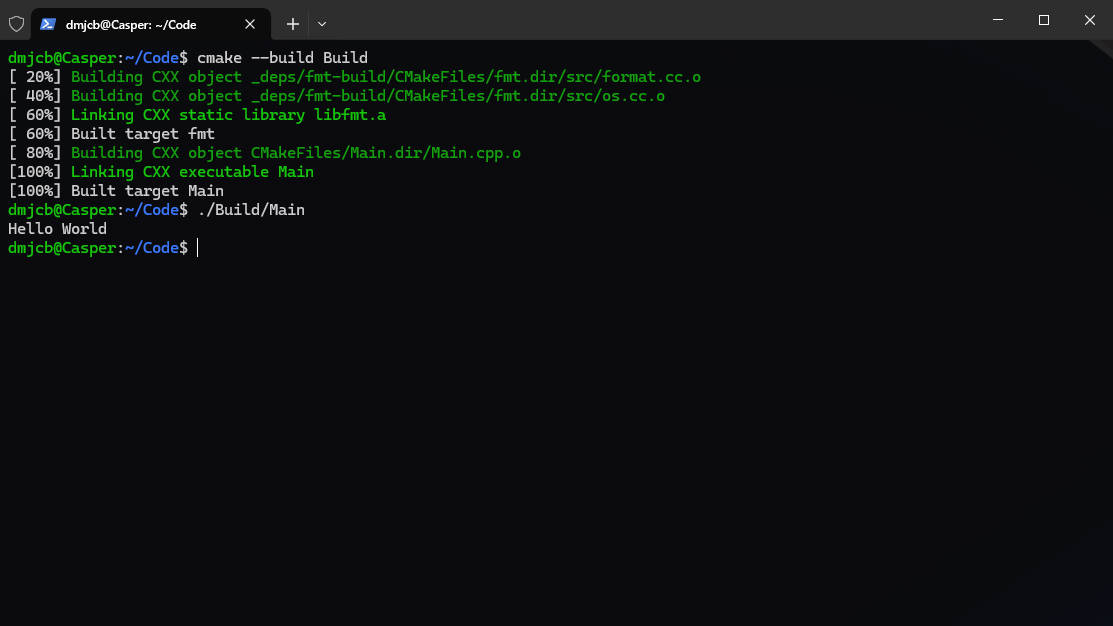

// Main.cpp
#include "fmt/core.h"
int main(){
    std::string world = fmt::format("Hello {0}", "World");
    fmt::print("{}\n", world);
}

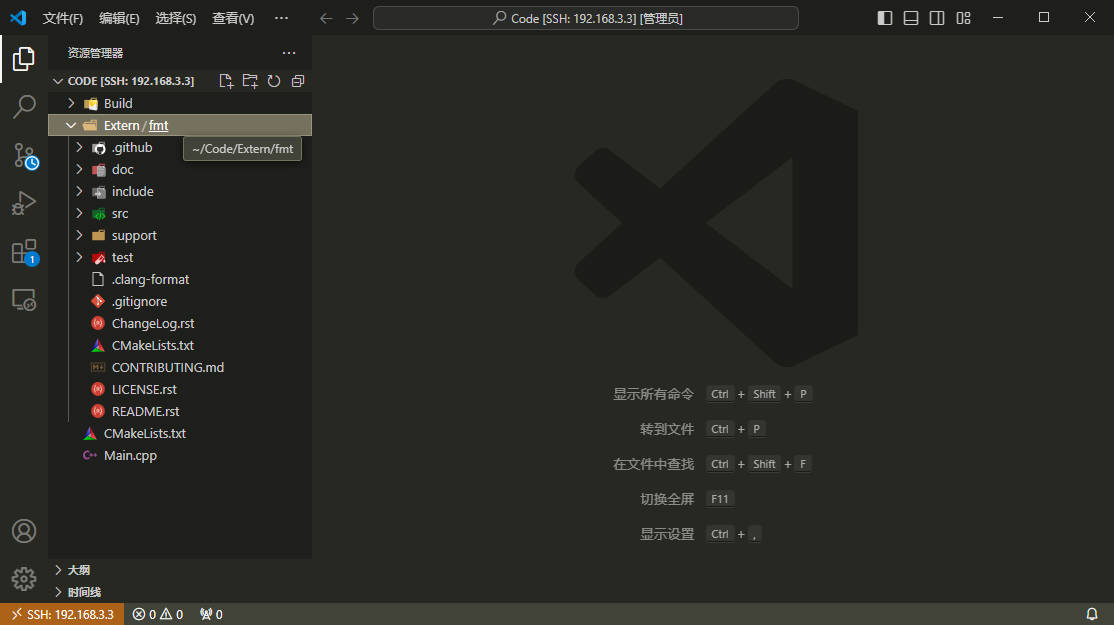

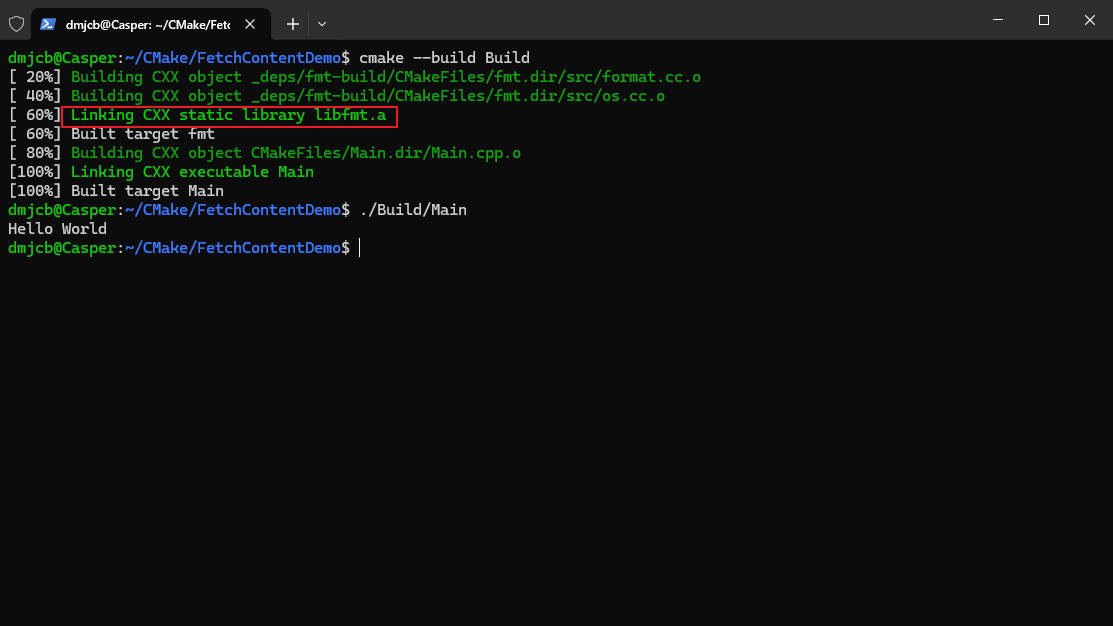

发现第三方库已经下载

方式二, .cmake模块调用

可新建CMake/FMT.cmake, 将fmt库安装逻辑与主CMakeLists.txt解耦

.
├── CMakeLists.txt
├── Main.cpp
├── CMake
│   └── FMT.cmake
└── Extern

# FMT.cmake
include(FetchContent)

set(FMT_LIB fmt)

FetchContent_Declare(${FMT_LIB}
    GIT_REPOSITORY https://github.com/fmtlib/fmt.git
    GIT_TAG 9.1.0
    SOURCE_DIR ${CMAKE_SOURCE_DIR}/Extern/${FMT_LIB}
)
FetchContent_MakeAvailable(${FMT_LIB})

# CMakeLists.txt
cmake_minimum_required(VERSION 3.17)
project(Main)

set(CMAKE_CXX_STANDARD 14)
set(CMAKE_MODULE_PATH ${CMAKE_SOURCE_DIR}/CMake)

# 导入FMT.cmake模块
include(FMT)

add_executable(${PROJECT_NAME} "")
target_include_directories(${PROJECT_NAME} PRIVATE ${CMAKE_SOURCE_DIR}/Extern/fmt/include)
target_sources(            ${PROJECT_NAME} PUBLIC ${CMAKE_SOURCE_DIR}/Main.cpp)
target_link_libraries(     ${PROJECT_NAME} PRIVATE ${FMT_LIB}::${FMT_LIB})
