淘宝

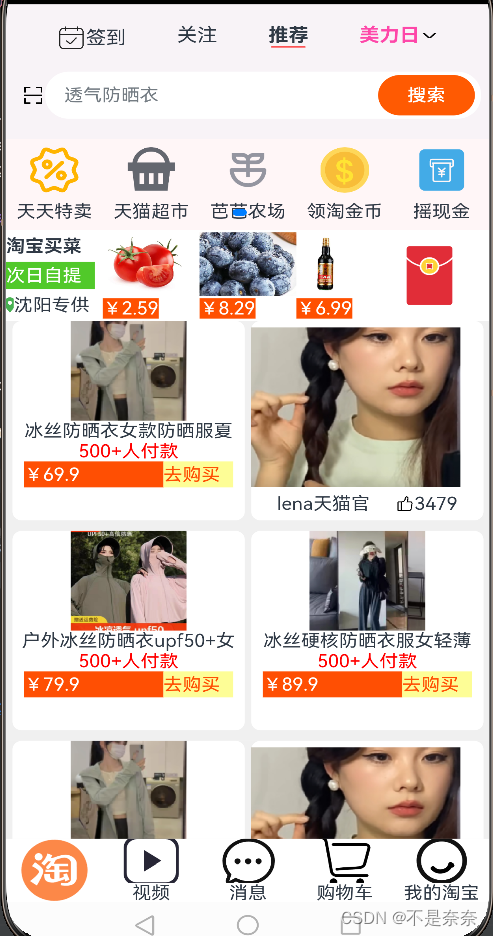

完成效果图:
顶部
顶部用一个大的flex套住,里面再分成两部分,一部分是签到,一部分是文本输入,小图标用阿里巴巴矢量图下载到本地,小图标名字不能用中文会报错
//顶部
Flex({ wrap: FlexWrap.Wrap, justifyContent: FlexAlign.SpaceEvenly,
direction: FlexDirection.Column }) {
//顶部导航
Row() {
Flex({ justifyContent: FlexAlign.SpaceEvenly }) {
Row() {
Image($r("app.media.qd")).width("6%").height("20%")
Text('签到').fontSize('17')
}
Text('关注').fontSize('17')
Column() {
Text('推荐').fontSize('17').fontWeight(FontWeight.Bold)
Divider().width("7%").color(Color.Red)
}
Row() {
Text('美力日').fontSize('17').fontWeight(FontWeight.Bold).fontColor("rgb(254,71,169)")
Image($r("app.media.down")).width("4%").height("4%")
}
}
}
//顶部搜索
Row() {
Image($r("app.media.239")).width("5%").height("17%")
TextInput({ placeholder: '透气防晒衣' })
.backgroundColor(Color.White)
.width('90%')
.height('35%')
Button('搜索')
.backgroundColor("rgb(255,90,2)")
.height("30%")
.width('20%')
.margin({ left: '-18%' })
}.width('100%').justifyContent(FlexAlign.Center)
}.width('100%').height('15%').backgroundColor(("rgb(248,243,247)"))
中间导航
中间导航用一个大的flex里面有5个flex,先写一个页面的flex,
大的flex宽设成100%,有5个flex,每个flex宽设为20%,左右滑动加一个swiper,swiper里面套两个大的flex
Flex({
direction: FlexDirection.Column,
alignItems: ItemAlign.Center,
justifyContent: FlexAlign.SpaceEvenly
}) {
Image($r("app.media.sale")).width("50%").height("50%")
Text('天天特卖')
}.width("20%")
这个是大的flex里面其中之一
Flex({ direction: FlexDirection.Row, justifyContent: FlexAlign.SpaceEvenly }) {
}.width("100%").height("13%").backgroundColor("rgb(255,246,247)")
这是一个大的flex
淘宝买菜
中间的淘宝买菜部分也分成5个部分,文字部分是垂直布局里有3行字
图片加文字也是是垂直布局
Flex({ direction: FlexDirection.Row, justifyContent: FlexAlign.Center }) {
//文字
Flex({ direction: FlexDirection.Column, justifyContent: FlexAlign.SpaceEvenly }) {
Text("淘宝买菜").fontWeight(FontWeight.Bold)
Row() {
Text("次日自提").fontColor(Color.White)
}
.width(75).backgroundColor("rgb(81,201,42)").height(25)
Row() {
Image($r("app.media.wz")).width("8%").height("17%")
Text("沈阳专供")
}
}.width("20%").height("100%")
//商品西红柿
Flex({ direction: FlexDirection.Column, justifyContent: FlexAlign.SpaceEvenly }) {
Image($r("app.media.tomato")).width("85%").height("70%")
Row() {
Text("¥2.59").fontColor(Color.White)
}.backgroundColor("rgb(255,80,0)")
}.width("20%")
//商品蓝莓
Flex({ direction: FlexDirection.Column, justifyContent: FlexAlign.SpaceEvenly }) {
Image($r("app.media.lm")).width("100%").height("70%")
Row() {
Text("¥8.29").fontColor(Color.White)
}.backgroundColor("rgb(255,80,0)")
}.width("20%")
//商品酱油
Flex({ direction: FlexDirection.Column, justifyContent: FlexAlign.SpaceEvenly }) {
Image($r("app.media.jy")).width("60%").height("70%")
Row() {
Text("¥6.99").fontColor(Color.White)
}.backgroundColor("rgb(255,80,0)")
}.width("20%")
//酱油
Flex({ direction: FlexDirection.Column, justifyContent: FlexAlign.Center }) {
Image($r("app.media.hb")).width("75%").height("70%")
}.width("20%")
}.width("100%").height("13%")
商品推荐
商品推荐,按每一行两个商品,都写在flex里面,
Flex({ direction: FlexDirection.Row, wrap:FlexWrap.Wrap,alignItems: ItemAlign.Start, justifyContent: FlexAlign.SpaceEvenly }) {
}.width("100%").height("30%").backgroundColor("rgb(240,240,240)")
一个商品里再用垂直布局,让字体加背景颜色需要再套一个row标签,改变row的背景色,宽高
Column() {
Image($r("app.media.one")).width("50%").height("50%")
Text('冰丝防晒衣女款防晒服夏')
Text('500+人付款').fontColor(Color.Red)
Row() {
Row() {
Text("¥69.9").fontColor(Color.White)
}.backgroundColor("rgb(255,79,3)").width("60%").height("13%")
Row() {
Text('去购买').fontColor("rgb(255,79,3)")
}.backgroundColor("rgb(253,253,150)").width("30%").height("13%")
}
}
.width("48%")
.height("95%")
.backgroundColor(Color.White)
.borderRadius(8)
Scroll
Scroll:可滚动的容器组件,当子组件的布局尺寸超过父组件的尺寸时,内容可以滚动
为显示更多内容可以滑动,写Scroll()但是他里面只能有一个标签存在,所以在里面套一个的Column,让什么内容滑动这两个组件就套到哪,Scroll要设制高度,内容超过这个高度也会显示,因为我不让顶部和底部导航不到,所以他们俩除这两个不套别的都套上
Scroll() {
Column() {
}
}.width("100%").height("78%")
底部导航
Flex({direction:FlexDirection.Row,justifyContent:FlexAlign.SpaceAround}){
Column(){
Image($r("app.media.tb")).width("80%").height("100%")
}.width("20%")
Column(){
Image($r("app.media.sp")).width("60%").height("70%")
Text("视频")
}.width("20%")
Column(){
Image($r("app.media.message")).width("60%").height("70%")
Text("消息")
}.width("20%")
Column(){
Image($r("app.media.gwc")).width("60%").height("70%")
Text("购物车")
}.width("20%")
Column(){
Image($r("app.media.wdtb")).width("60%").height("70%")
Text("我的淘宝")
}.width("20%")
}.width("100%").height("7%")
实现点击出现下拉框事件
Stack层叠让下拉框覆盖住哪里,就框住那里,我是让他把全部内容都框柱了
下拉框的zindex层数要比被他覆盖的部分高,所以设置了下拉框的zindex是2,剩下的一大部分都是zindex是1,还要保证下拉框和被覆盖全都是兄弟组件z序排列菜好使,在用相对定位让他脱离文本流
Column({ space: 5 }) {
Text('美力日')
Text('文玩节')
Text('采购节')
Text('家上新')
}
.backgroundColor(Color.White).width(90)
.height(100).borderRadius(10).zIndex(2)
.position({
x: 210, y: 40
})
.visibility(this.list)
Visibility:控制当前组件显示或隐藏
Visibility:显示
None:不显示,不站位
Hidden:不显示,站位
其次点击下箭头,让原本隐藏的下拉框显示,再次点击让显示的下拉框隐藏
给下箭头添加点击事件
@State list: Visibility = Visibility.Hidden
Row() {
Image(this.img).width("40%").height("30%")
}.width(30).height(20)
.onClick(()=>{
this.list=Visibility.Visible
})
.onClick(()=>{
if (this.list) {
this.list=Visibility.Visible
this.img=$r("app.media.up")
} else {
this.list=Visibility.Hidden
this.img=$r("app.media.down")
}
})
自动轮播图片
Swiper(){
Image($r("app.media.two")).width("90%").height("80%")
Image($r("app.media.one")).width("90%").height("80%")
Image($r("app.media.three")).width("90%").height("80%")
Image($r("app.media.four")).width("90%").height("80%")
}.interval(2000).autoPlay(true)
Swiper:滑块视图容器,提供子组件滑动轮播显示的能力
autoPlay:子组件是否自动播放
Interval:使用自动播放时播放的时间间隔,单位为毫秒
