esnp的AC+ap配置实验

简介：

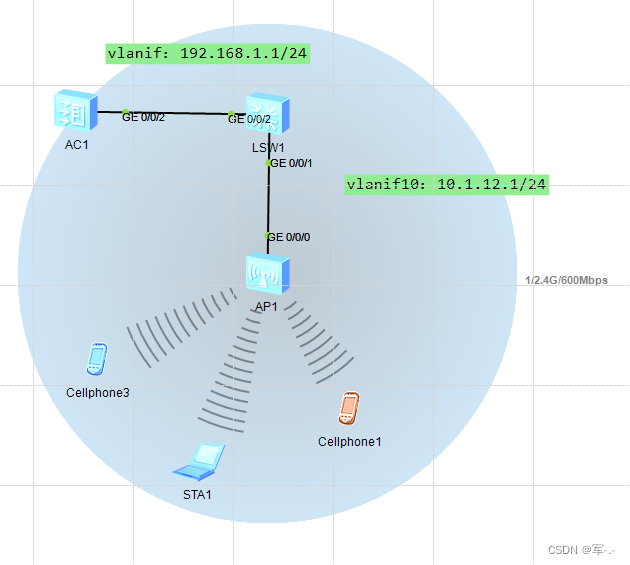

VLAN10作为业务VLAN；VLAN100作为AC管理AP的管理VLAN

基本配置：

LSW1:

[Huawei]sysname SW1
[SW1]undo info-center en  //关闭消息弹出
[SW1]vlan batch 10 100
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW1]int g0/0/1
[SW1-GigabitEthernet0/0/1]p l t
[SW1-GigabitEthernet0/0/1]port trunk pvid vlan 100	//将默认管理vlan设为vlan100，不设默认为vlan1
[SW1-GigabitEthernet0/0/1]port trunk allow-pass vlan 10 100
[SW1-GigabitEthernet0/0/1]q
[SW1]int g0/0/2
[SW1-GigabitEthernet0/0/2]p l t
[SW1-GigabitEthernet0/0/2]p t a v 10 100
[SW1-GigabitEthernet0/0/2]q
[SW1]int vlan10  //配置业务vlan10网关
[SW1-Vlanif10]ip add 10.1.12.1 24
[SW1-Vlanif10]q
[SW1]dhcp en  //开启dhcp服务
Info: The operation may take a few seconds. Please wait for a moment.done.
[SW1]int vlan10
[SW1-Vlanif10]dhcp		//接口下开启dhcp
[SW1-Vlanif10]dhcp select interface
[SW1-Vlanif10]q

AC1:

[AC6005]sysname AC1
[AC1]undo info-center en
Info: Information center is disabled.
[AC1]vlan batch 10 100
Info: This operation may take a few seconds. Please wait for a moment...done.
[AC1]int g0/0/2
[AC1-GigabitEthernet0/0/2]p l t
[AC1-GigabitEthernet0/0/2]p t a v 10 100
[AC1-GigabitEthernet0/0/2]q
[AC1]int vlan 100
[AC1-Vlanif100]ip add 192.168.1.1 24
[AC1-Vlanif100]q
[AC1]dhcp en
Info: The operation may take a few seconds. Please wait for a moment.done.
[AC1]int vlan 100
[AC1-Vlanif100]dhcp select interface
[AC1-Vlanif100]q

配置AC相关参数：

[AC1]capwap source interface Vlanif 100  //指定capwap协议的信令源地址
[AC1]wlan
[AC1-wlan-view]ap auth-mode mac-auth //指定AC的验证方式为MAC地址验证

//创建 AP-group，为的是后期对大量AP进行批量管理
[AC1-wlan-view]ap-group name bangong
Info: This operation may take a few seconds. Please wait for a moment.done.
[AC1-wlan-ap-group-bangong]q
//创建域文件，命名为default
[AC1-wlan-view]regulatory-domain-profile name default
[AC1-wlan-regulate-domain-default]q
[AC1-wlan-view]ap-g
[AC1-wlan-view]ap-group  name bangong	//将配置好的“域配置文件”关联到每一个 ap-group
[AC1-wlan-ap-group-bangong]regulatory-domain-profile default
Warning: Modifying the country code will clear channel, power and antenna gain c
onfigurations of the radio and reset the AP. Continue?[Y/N]:y
[AC1-wlan-ap-group-bangong]q

[AC1-wlan-view]ap-id 1 ap-mac 00E0-FCBA-2F30	//自己ap的mac地址，格式要与这个一致
[AC1-wlan-ap-1]ap-name AP1     //了区分，命名AP1
[AC1-wlan-ap-1]ap-group bangong    //为ap指定加入ap-group
Warning: This operation may cause AP reset. If the country code changes, it will
 clear channel, power and antenna gain configurations of the radio, Whether to c
ontinue? [Y/N]:y
Info: This operation may take a few seconds. Please wait for a moment.. done.
[AC1-wlan-ap-1]q
[AC1-wlan-view]display ap all  查看ap是否注册成功



//设置加密密码为a1234567
[AC1-wlan-view]security-profile name bangong
[AC1-wlan-sec-prof-bangong]security wpa2 psk pass-phrase a1234567 aes
[AC1-wlan-sec-prof-bangong]q
//设置ssid名称，为AP分配无线信号的名称
[AC1-wlan-view]ssid-profile name bangong
[AC1-wlan-ssid-prof-bangong]ssid bangong
Info: This operation may take a few seconds, please wait.done.
[AC1-wlan-ssid-prof-bangong]q


//创建无线客户端访问模板，关联以上三个参数;
[AC1-wlan-view]vap-profile name bangong
[AC1-wlan-vap-prof-bangong]service-vlan vlan-id 10
Info: This operation may take a few seconds, please wait.done.
[AC1-wlan-vap-prof-bangong]security-profile bangong
Info: This operation may take a few seconds, please wait.done.
[AC1-wlan-vap-prof-bangong]ssid-profile bangong
Info: This operation may take a few seconds, please wait.done.
[AC1-wlan-vap-prof-bangong]q

//开启ap无线信号

[AC1-wlan-view]ap-group name bangong
[AC1-wlan-ap-group-bangong]vap-profile bangong wlan 1 radio 0 //0表示ap发射的射频类型
Info: This operation may take a few seconds, please wait...done.
[AC1-wlan-ap-group-bangong]vap-profile bangong wlan 1 radio 1
Info: This operation may take a few seconds, please wait...done.
[AC1-wlan-ap-group-bangong]q

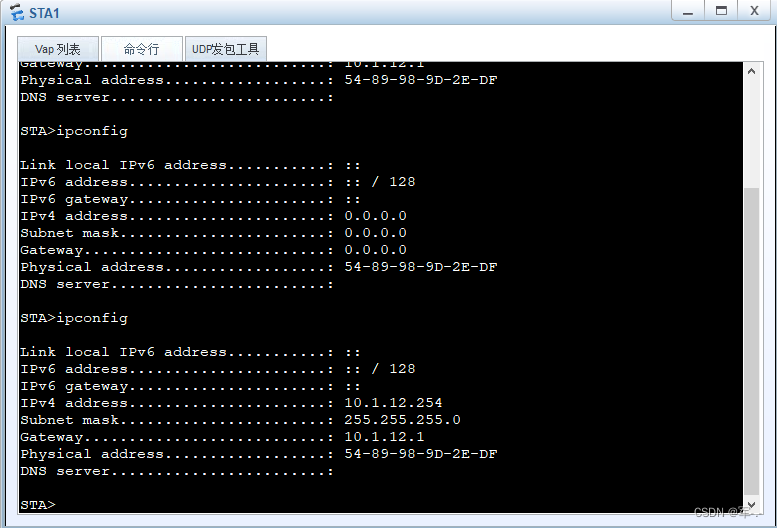

验证STA 1S是否可连接，获取到IP
