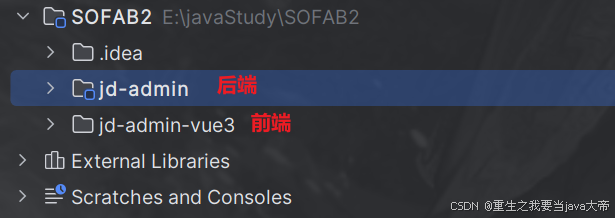

前言：创建一个根目录管理前端和后端的项目 比如 E:\javaStudy\SOFAB2

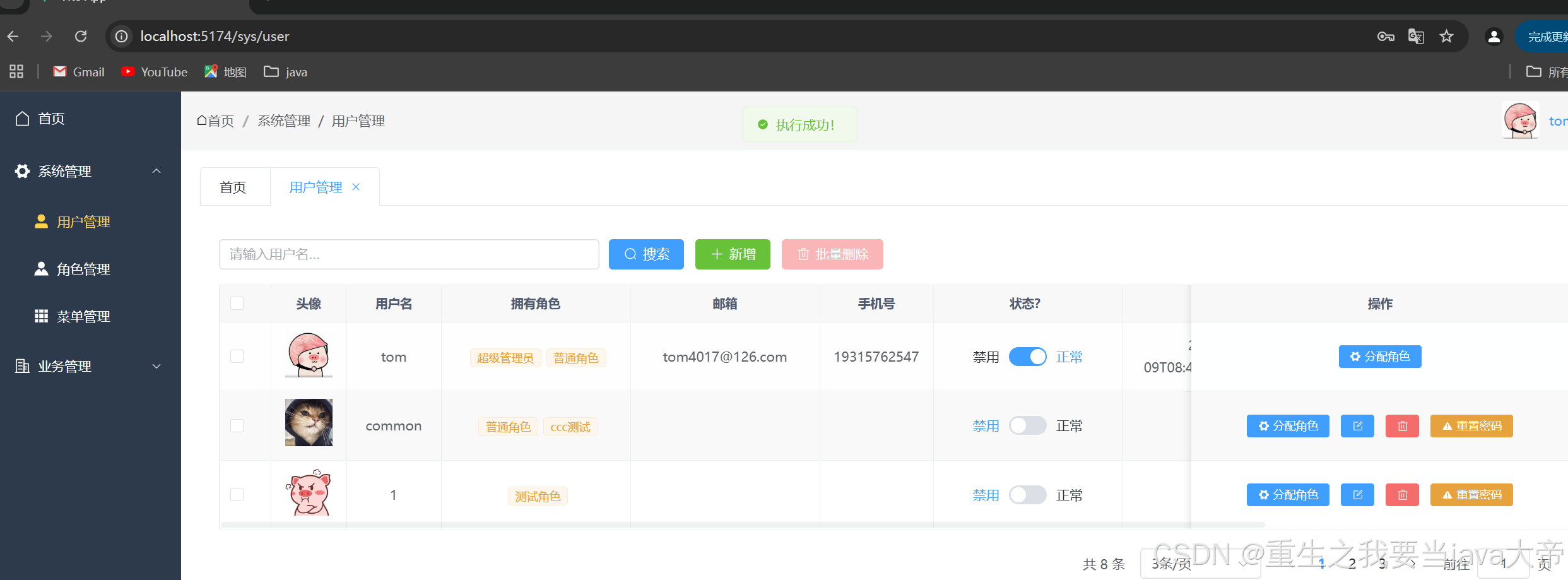

gitee仓库地址[项目完整代码都在里面了]:SOFAB: 权限管理系统
搭建后端系统架构

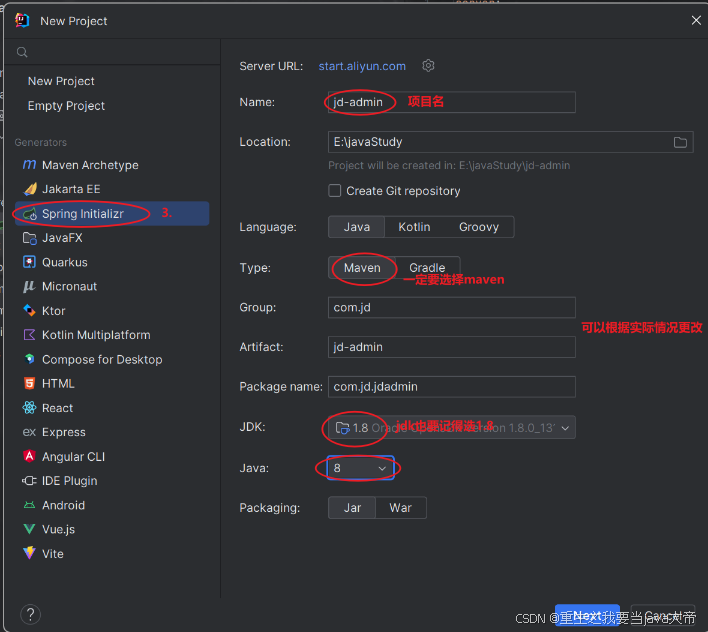

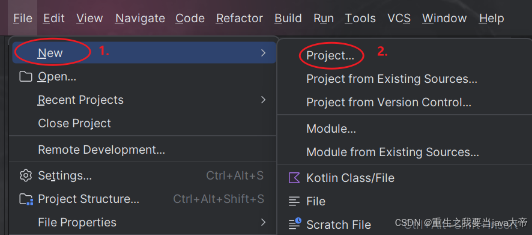

1.创建jd-admin项目
2.pom.xml 引入依赖
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.jd</groupId>
<artifactId>jd-admin</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>jd-admin</name>
<description>jd-admin</description>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.3.2.RELEASE</version>
</parent>
<properties>
<java.version>1.8</java.version>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
<spring-boot.version>2.3.2.RELEASE</spring-boot.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-devtools</artifactId>
<scope>runtime</scope>
<optional>true</optional>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<scope>runtime</scope>
</dependency>
<!--连接池-->
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid</artifactId>
<version>1.1.12</version>
</dependency>
<!--mp启动器-->
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-boot-starter</artifactId>
<version>3.4.3</version>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>1.2.40</version>
</dependency>
<!--jwt-->
<dependency>
<groupId>com.auth0</groupId>
<artifactId>java-jwt</artifactId>
<version>4.3.0</version>
</dependency>
<dependency>
<groupId>io.jsonwebtoken</groupId>
<artifactId>jjwt</artifactId>
<version>0.9.1</version>
</dependency>
<dependency>
<groupId>commons-io</groupId>
<artifactId>commons-io</artifactId>
<version>2.5</version>
</dependency>
<!--lombok-->
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>
<!--redis缓存-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-data-redis</artifactId>
</dependency>
<!--lettuce poll 缓存连接池-->
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-pool2</artifactId>
</dependency>
<!--hutool工具类-->
<dependency>
<groupId>cn.hutool</groupId>
<artifactId>hutool-all</artifactId>
<version>5.3.3</version>
</dependency>
</dependencies>
<dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-dependencies</artifactId>
<version>${spring-boot.version}</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>
<build>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.8.1</version>
<configuration>
<source>1.8</source>
<target>1.8</target>
<encoding>UTF-8</encoding>
</configuration>
</plugin>
</plugins>
</build>
</project>

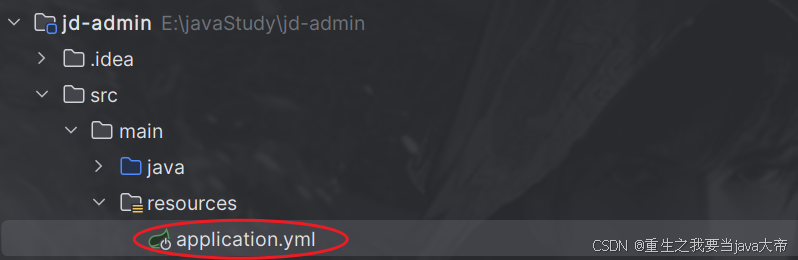

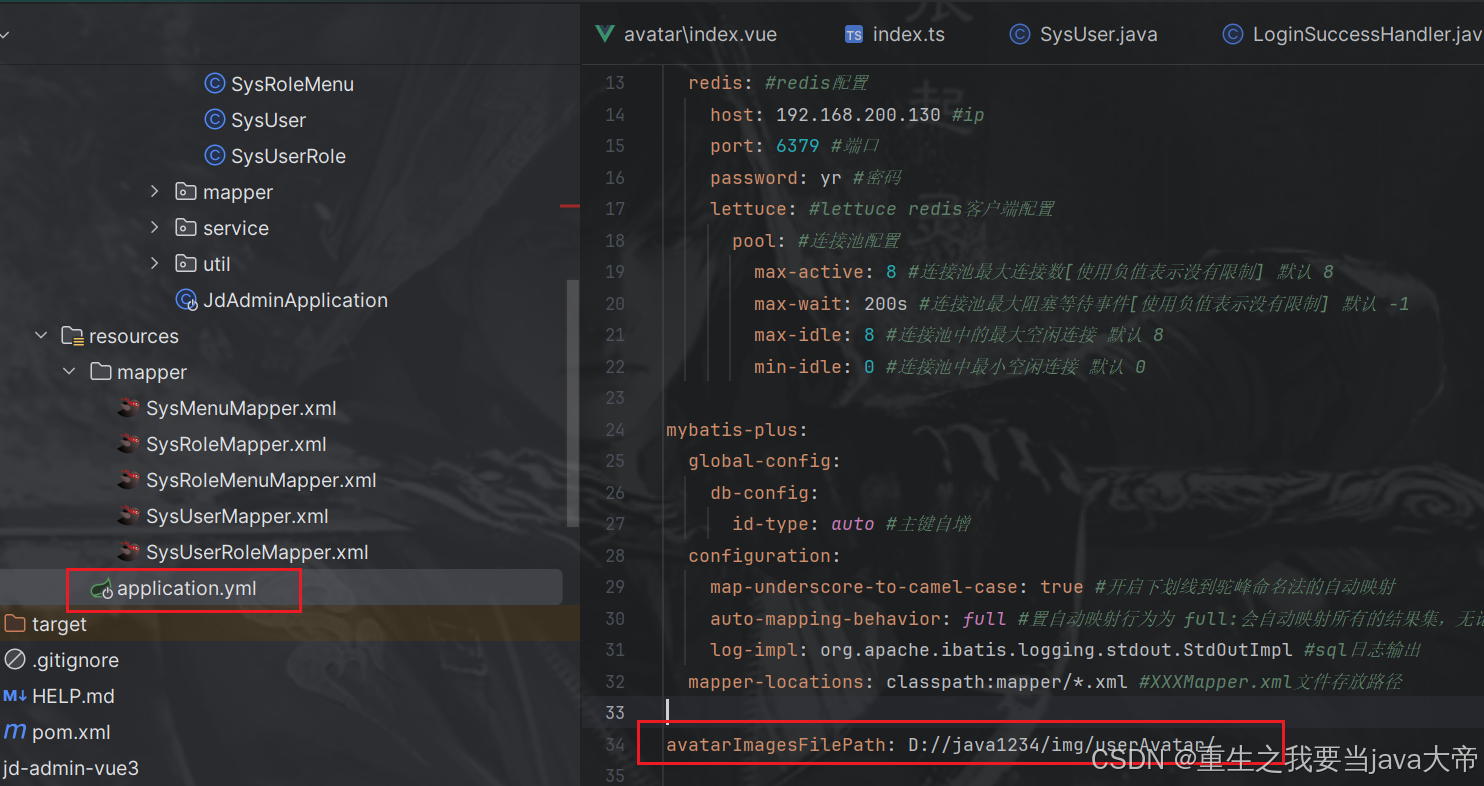

3.在resources目录下创建application.yml文件
server:
port: 81
servlet:
context-path: /
spring:
datasource: #mysql数据连接池配置
driver-class-name: com.mysql.jdbc.Driver
type: com.alibaba.druid.pool.DruidDataSource
url: jdbc:mysql://localhost:3306/db_admin?useUnicode=true&characterEncoding=utf-8&useSSL=true&serverTimezone=UTC
username: root
password: yr
redis: #redis配置
host: 192.168.200.130 #ip
port: 6379 #端口
password: yr #密码
lettuce: #lettuce redis客户端配置
pool: #连接池配置
max-active: 8 #连接池最大连接数[使用负值表示没有限制] 默认 8
max-wait: 200s #连接池最大阻塞等待事件[使用负值表示没有限制] 默认 -1
max-idle: 8 #连接池中的最大空闲连接 默认 8
min-idle: 0 #连接池中最小空闲连接 默认 0
mybatis-plus:
global-config:
db-config:
id-type: auto #主键自增
configuration:
map-underscore-to-camel-case: true #开启下划线到驼峰命名法的自动映射
auto-mapping-behavior: full #置自动映射行为为 full:会自动映射所有的结果集，无论是否有嵌套结果集映射
log-impl: org.apache.ibatis.logging.stdout.StdOutImpl #sql日志输出
mapper-locations: classpath:mapper/*.xml #XXXMapper.xml文件存放路径

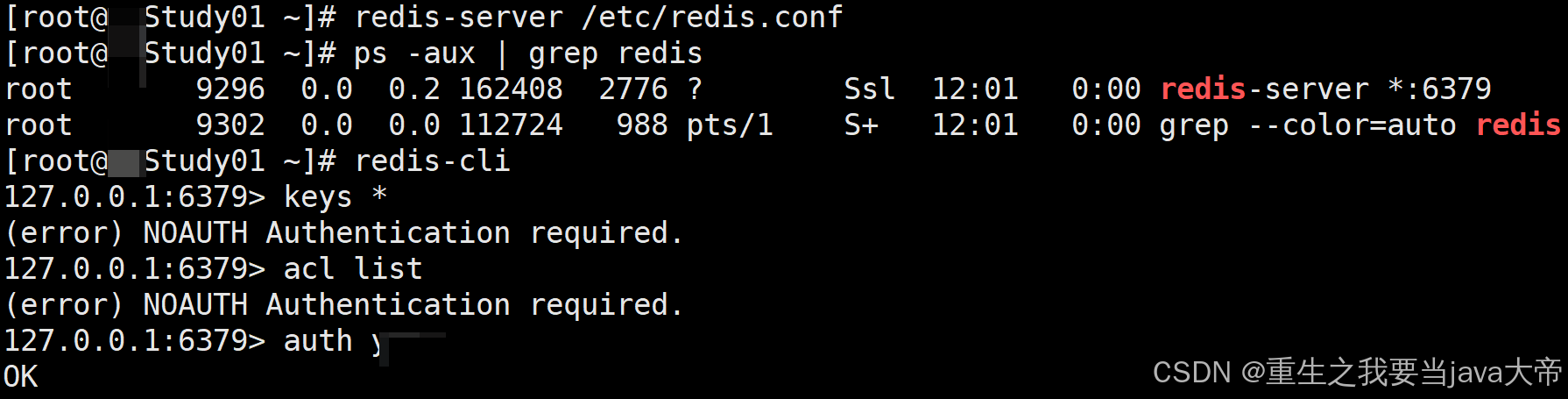

4.注意redis要启动 且ip是192.168.200.130[我是把redis安装在了linux虚拟机上 可以使用ip address查看ip]
5.创建数据库和表
# 新建数据库 db_admin
CREATE DATABASE jd_admin;
USE jd_admin;# 新建用户表
CREATE TABLE `sys_user` (
`id` BIGINT(20) NOT NULL PRIMARY KEY AUTO_INCREMENT COMMENT '用户Id',
username VARCHAR(100) DEFAULT NULL COMMENT '用户名',
`password` VARCHAR(100) DEFAULT NULL COMMENT '密码',
`avatar` VARCHAR(255) DEFAULT 'default.jpg' COMMENT '用户头像',
`email` VARCHAR(100) DEFAULT '' COMMENT '用户邮箱',
`phonenumber` VARCHAR(11) DEFAULT '' COMMENT '手机号码',
`login_date` DATETIME DEFAULT NULL COMMENT '最后登录时间',
`status` CHAR(1) DEFAULT '0' COMMENT '账号状态(0正常 1禁用)',
`create_time` DATETIME DEFAULT NULL COMMENT '创建时间',
`update_time` DATETIME DEFAULT NULL COMMENT '更新时间',
`remark` VARCHAR(500) DEFAULT NULL COMMENT '备注'
)ENGINE=INNODB CHARSET = utf8;#测试数据
INSERT INTO
`sys_user`(`id`,`username`,`password`,`avatar`,`email`,`phonenumber`,`login_date`,`status`,`create_time`,`update_time`,`remark`)
VALUES
(1,'tom','$2a$10$Kib4zuVhTzg3I1CoqJfd0unuY9G9ysI7cfbhyT3fi7k7Z/4pr3bGW','20220727112556000000325.jpg','caofeng4017@126.com','18862857417','2022-08-29 22:10:52','0','2022-06-09 08:47:52','2022-06-22 08:47:54','备注'),
(2,'common','$2a$10$tiArwm0GxChyEP5k0JGzsOuzyY15IKA.ZTl8S2aj3haYlKAfpwfl.','222.jpg','','','2022-08-22 21:34:39','0',NULL,NULL,NULL),
(3,'test','$2a$10$tiArwm0GxChyEP5k0JGzsOuzyY15IKA.ZTl8S2aj3haYlKAfpwfl.','333.jpg','','','2022-07-24 17:36:07','0',NULL,NULL,NULL),
(4,'1','$2a$10$lD0Fx7oMsFFmX9hVkmYy7eJteH8pBaXXro1X9DEMP5sbM.Z6Co55m','default.jpg','','',NULL,'1',NULL,NULL,NULL),
(5,'2',NULL,'default.jpg','','',NULL,'1',NULL,NULL,NULL),
(15,'fdsfs','$2a$10$AQVcp4hQ7REc5o7ztVnI7eX.sJdcYy3d1x2jm5CfrcCoMZMPacfpi','default.jpg','fdfa4@qq.com','18862851414','2022-08-02 02:22:45','1','2022-08-02 02:21:24','2022-08-01 18:23:16','fdfds4'),
(28,'sdfss2','$2a$10$7aNJxwVmefI0XAk64vrzYuOqeeImYJUQnoBrtKP9pLTGTWO2CXQ/y','default.jpg','dfds3@qq.com','18862857413',NULL,'1','2022-08-07 00:42:46','2022-08-06 16:43:04','ddd33'),
(29,'ccc','$2a$10$7cbWeVwDWO9Hh3qbJrvTHOn0E/DLYXxnIZpxZei0jY4ChfQbJuhi.','20220829080150000000341.jpg','3242@qq.com','18862584120','2022-08-29 19:52:27','0','2022-08-29 17:04:58',NULL,'xxx'),
(30,'ccc666','$2a$10$Tmw5VCM/K2vb837AZDYHQOqE3gPiRZKevxLsh/ozndpTSjdwABqaK','20220829100454000000771.jpg','fdafds@qq.com','18865259845','2022-08-29 22:05:18','0','2022-08-29 22:00:39',NULL,'ccc');

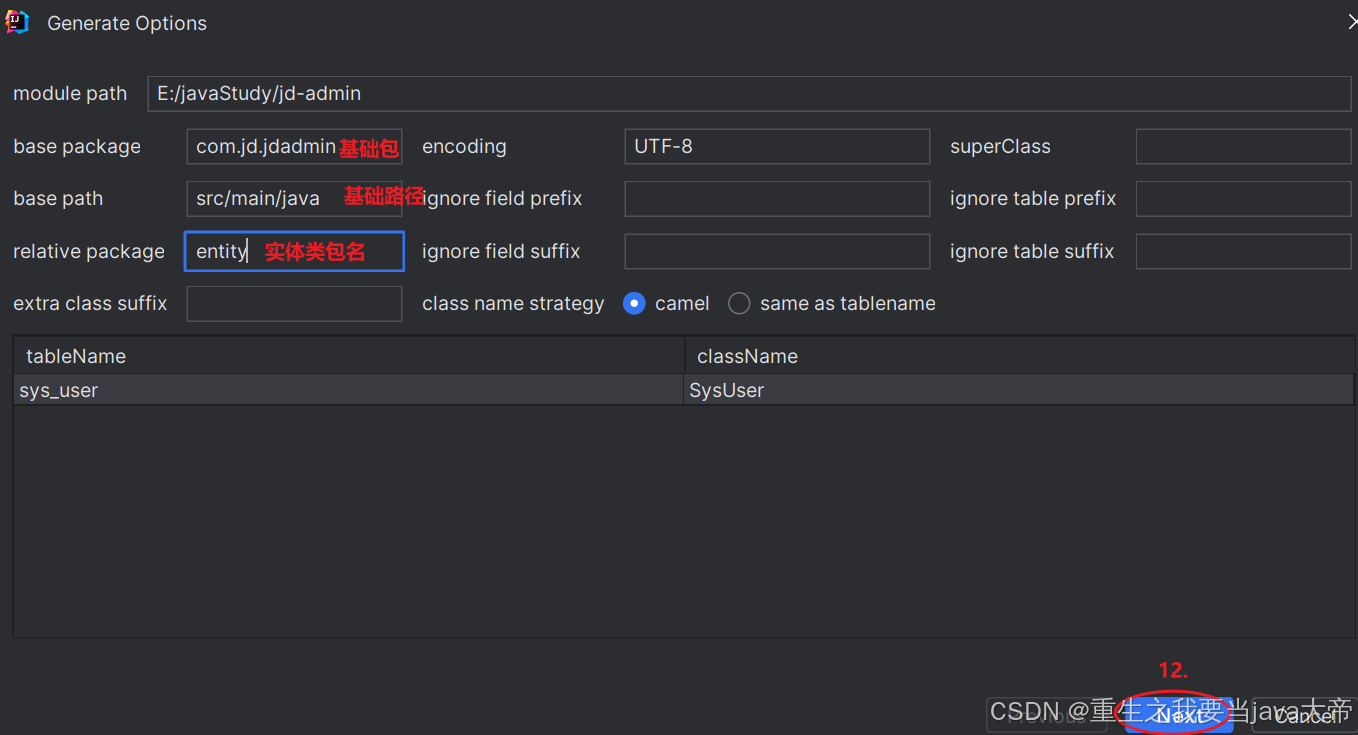

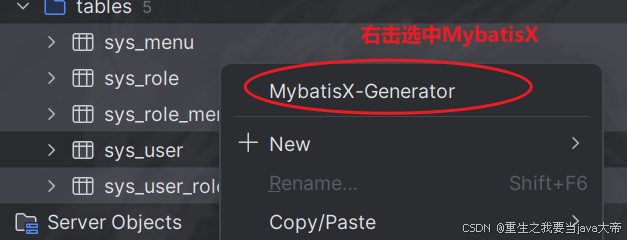

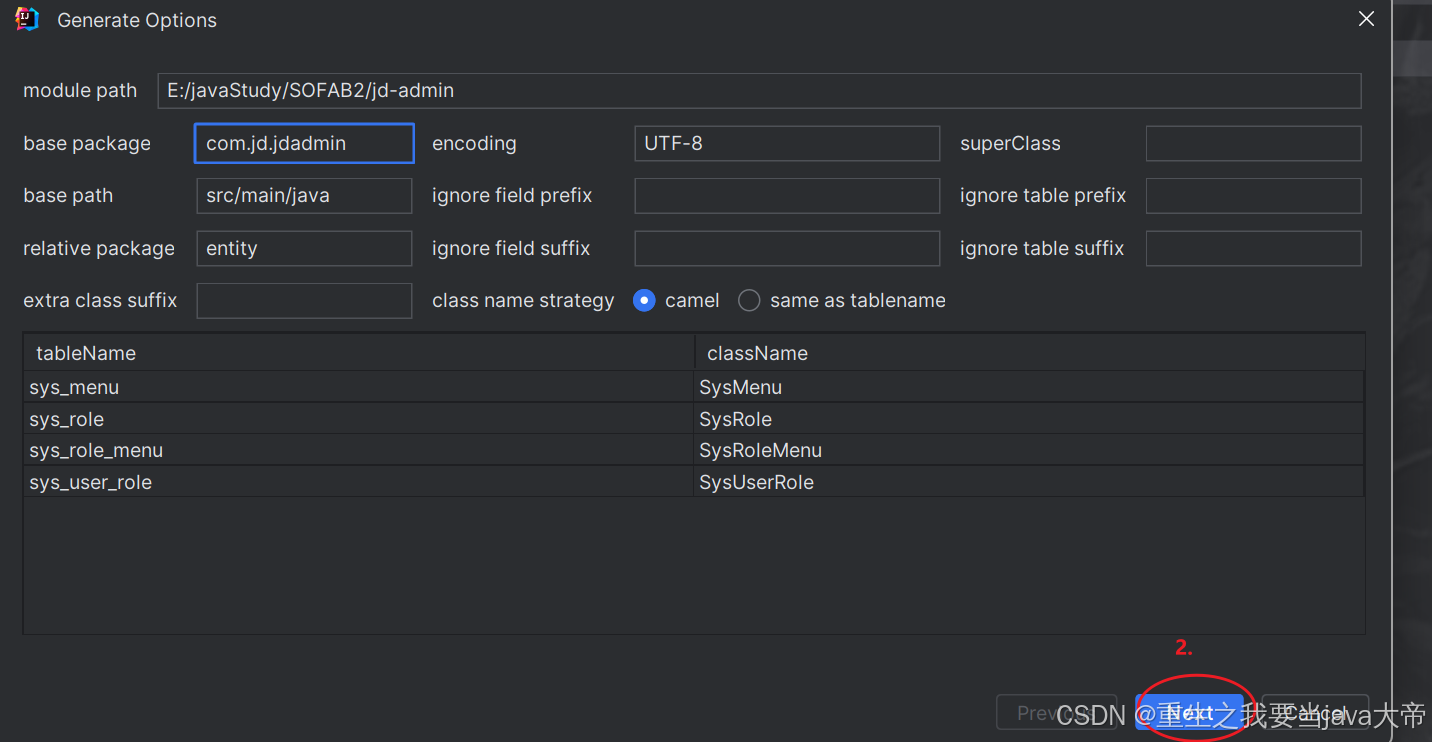

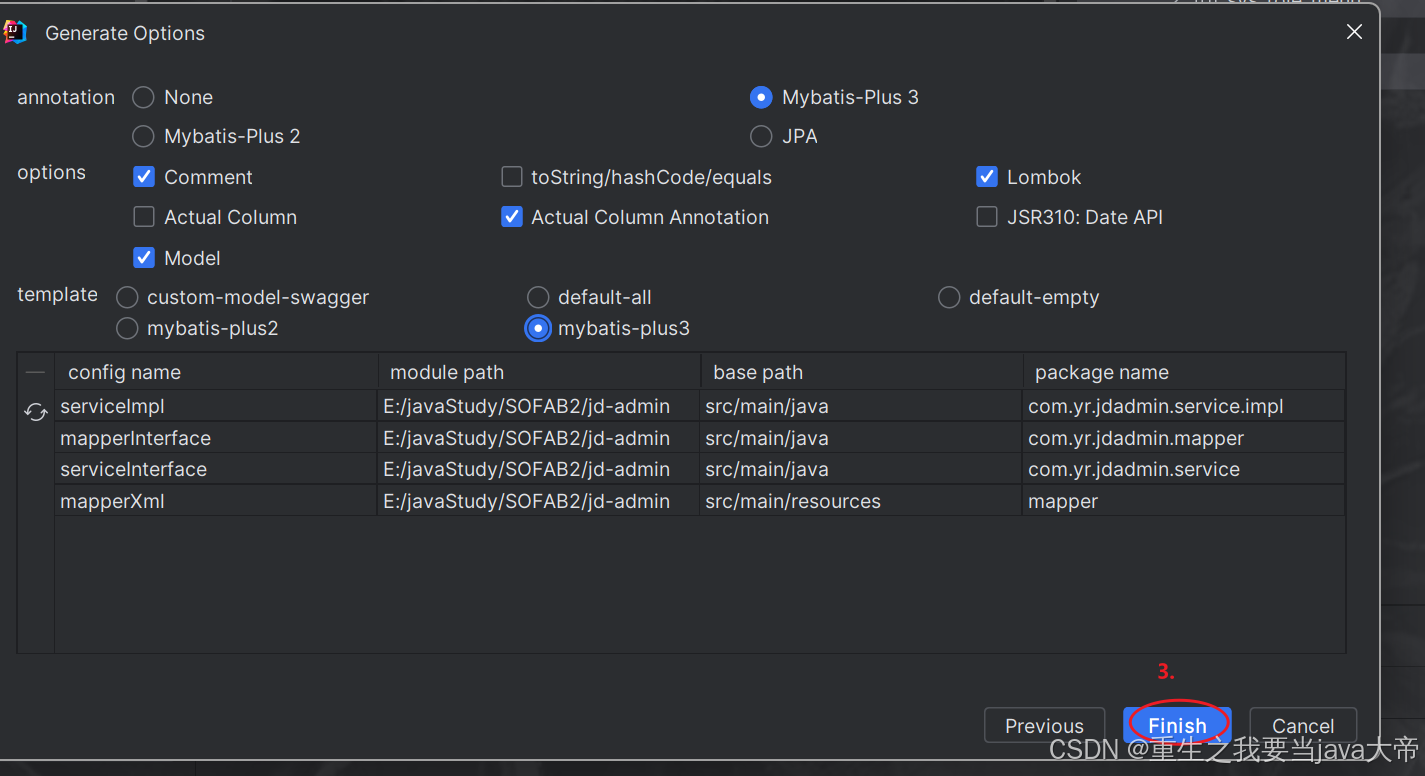

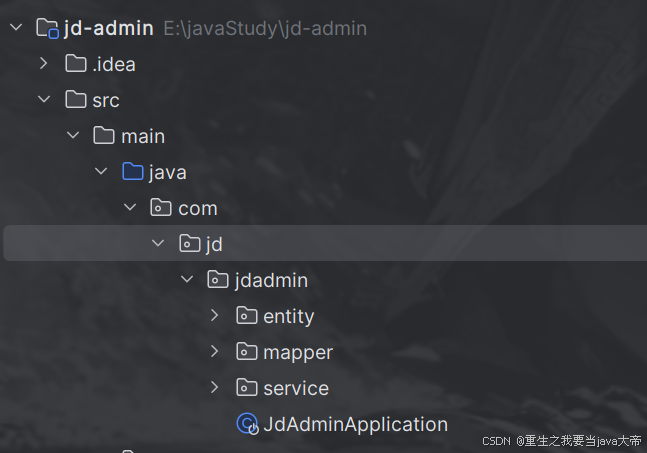

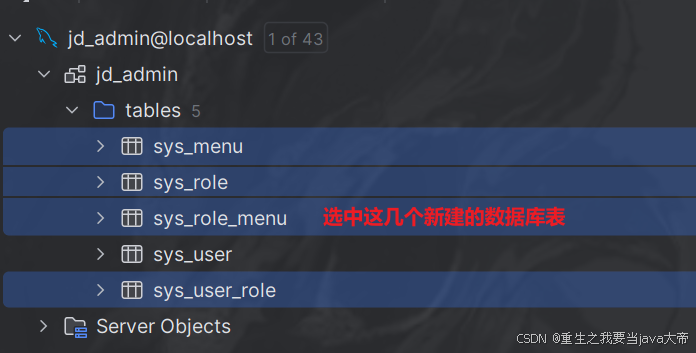

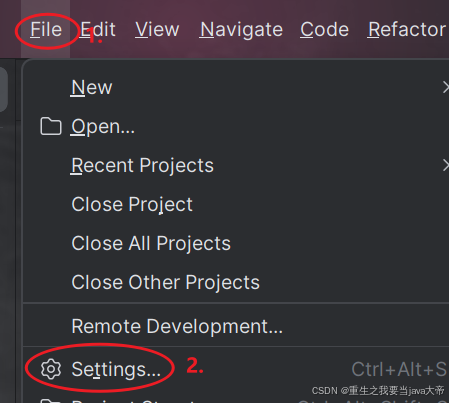

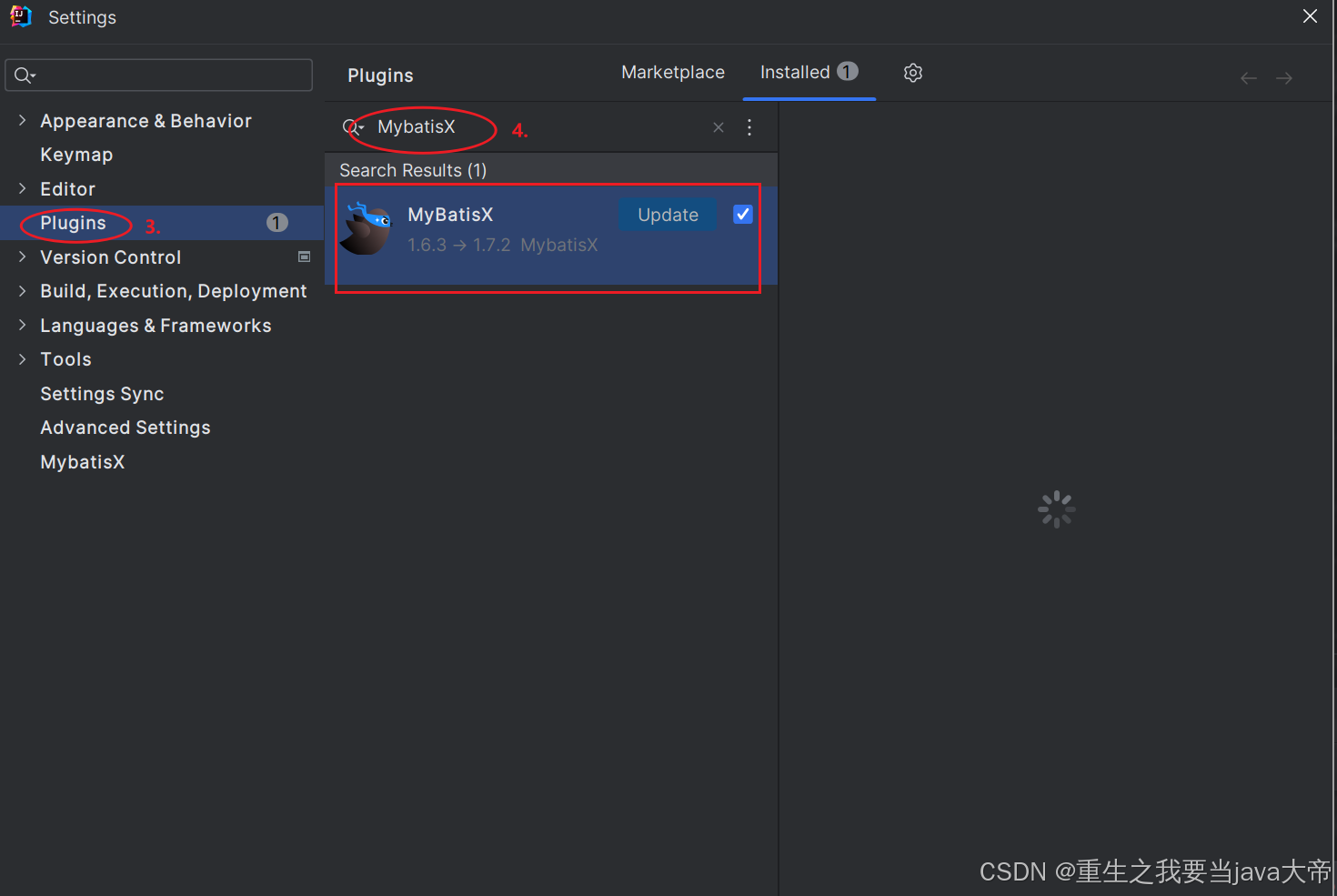

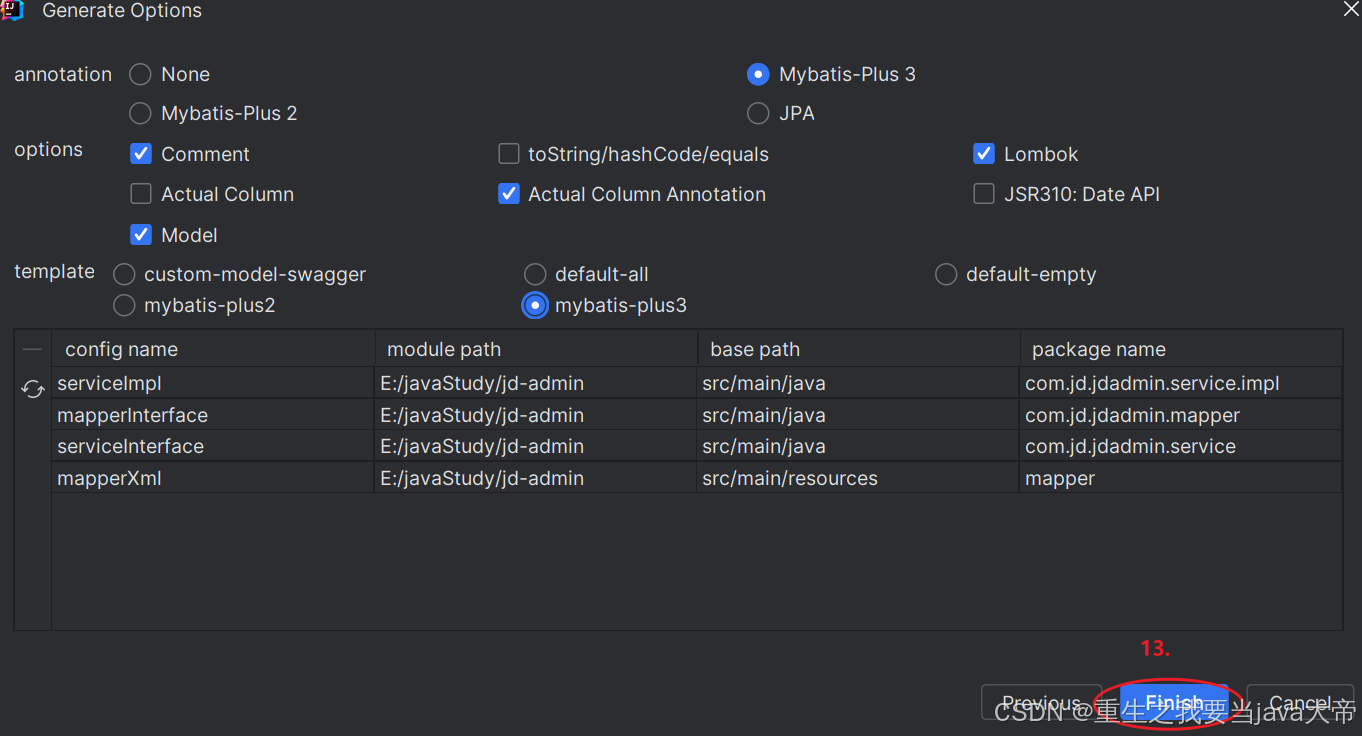

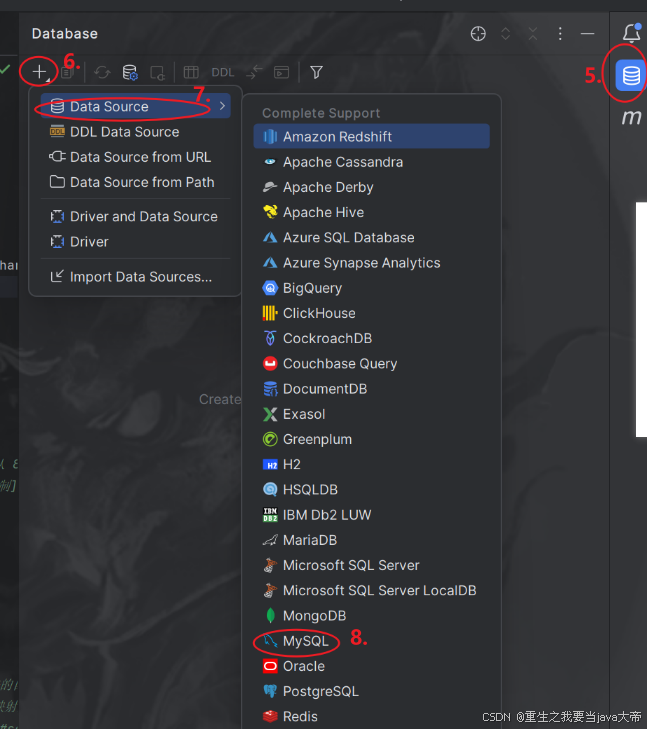

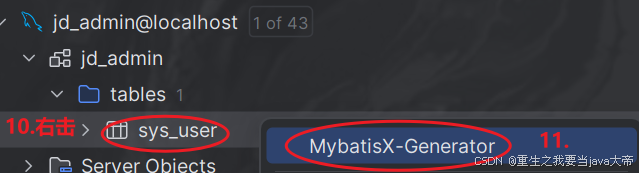

6.使用MybatisX插件快速生成 entity、mapper、service

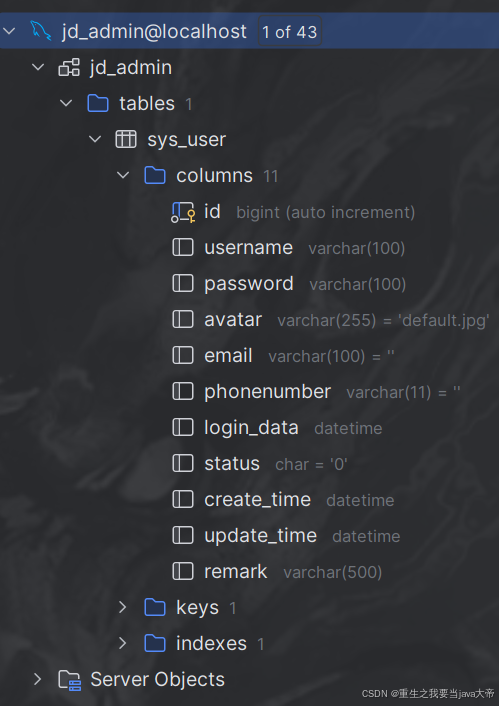

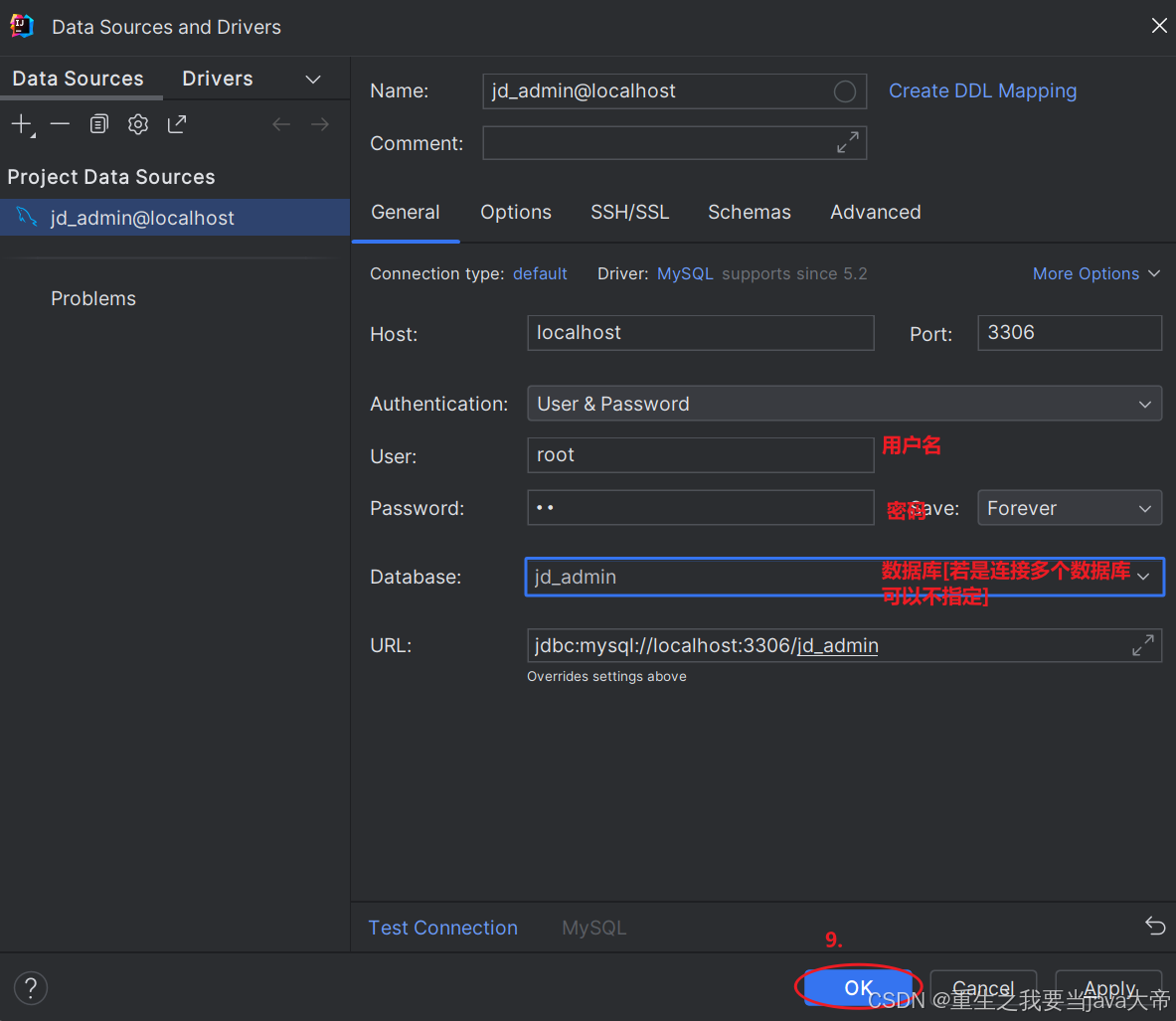

此时便可以看到该库下的表和字段了

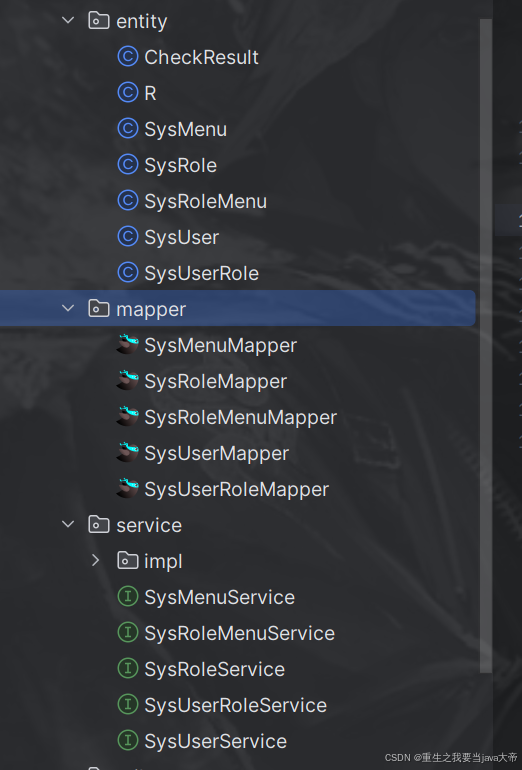

好啦生成完毕!
7.创建封装返回json的数据的通用类
package com.yr.java123admin.entity;
import lombok.Data;
import java.util.HashMap;
import java.util.Map;
/**
* @author java大帝
* @ClassName R
* @description 封装返回参数的类，用于统一处理应用程序的响应结果。
* 该类包含了消息、状态码和扩展数据等属性，以及一系列静态方法用于创建不同状态的响应对象。
* @date 2025年01月13日
* @version 1.0
*/
@Data
public class R {
// 消息
private String msg;
// 状态码
private Integer code;
// 数据
private Map<String, Object> data = new HashMap<>();
/**
* 创建一个表示成功的R对象，默认消息为 "success"，状态码为 200。
*
* @return 表示成功的R对象。
*/
public static R success() {
R r = new R();
r.setMsg("success");
r.setCode(200);
return r;
}
/**
* 创建一个表示成功的R对象，自定义成功消息，状态码为 200。
*
* @param msg 自定义的成功消息。
* @return 表示成功的R对象。
*/
public static R success(String msg) {
R r = new R();
r.setMsg(msg);
r.setCode(200);
return r;
}
/**
* 创建一个表示成功的R对象，带有扩展数据，默认消息为 "success"，状态码为 200。
*
* @param extend 包含扩展数据的Map。
* @return 表示成功的R对象。
*/
public static R success(Map<String, Object> extend) {
R r = new R();
r.setMsg("success");
r.setCode(200);
r.setData(extend);
return r;
}
/**
* 创建一个表示失败的R对象，默认消息为 "未知异常 请联系管理员!"，状态码为 500。
*
* @return 表示失败的R对象。
*/
public static R fail() {
R r = new R();
r.setMsg("未知异常 请联系管理员!");
r.setCode(500);
return r;
}
/**
* 创建一个表示失败的R对象，自定义失败消息，状态码为 500。
*
* @param msg 自定义的失败消息。
* @return 表示失败的R对象。
*/
public static R fail(String msg) {
R r = new R();
r.setMsg(msg);
r.setCode(500);
return r;
}
public static R fail(Integer code,String msg) {
R r = new R();
r.setMsg(msg);
r.setCode(code);
return r;
}
public R put(String key, Object val) {
this.data.put(key, val);
return this;
}
}
8.创建controlelr.TestController
package com.yr.java123admin.controller;
import com.yr.java123admin.entity.R;
import com.yr.java123admin.entity.SysUser;
import com.yr.java123admin.service.SysUserService;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import javax.annotation.Resource;
import java.util.HashMap;
import java.util.List;
/**
* @author java大帝
* @ClassName TestController
* @description: 测试包
* @date 2025年 01月 13日
* @version: 1.0
*/
@RestController
@RequestMapping("/test")
public class TestController {
@Resource
private SysUserService sysUserService;
@RequestMapping("list")
public R userList(){
HashMap<String, Object> resultMap = new HashMap<>();
List<SysUser> list = sysUserService.list();
resultMap.put("userList",list);
return R.success(resultMap);
}
}

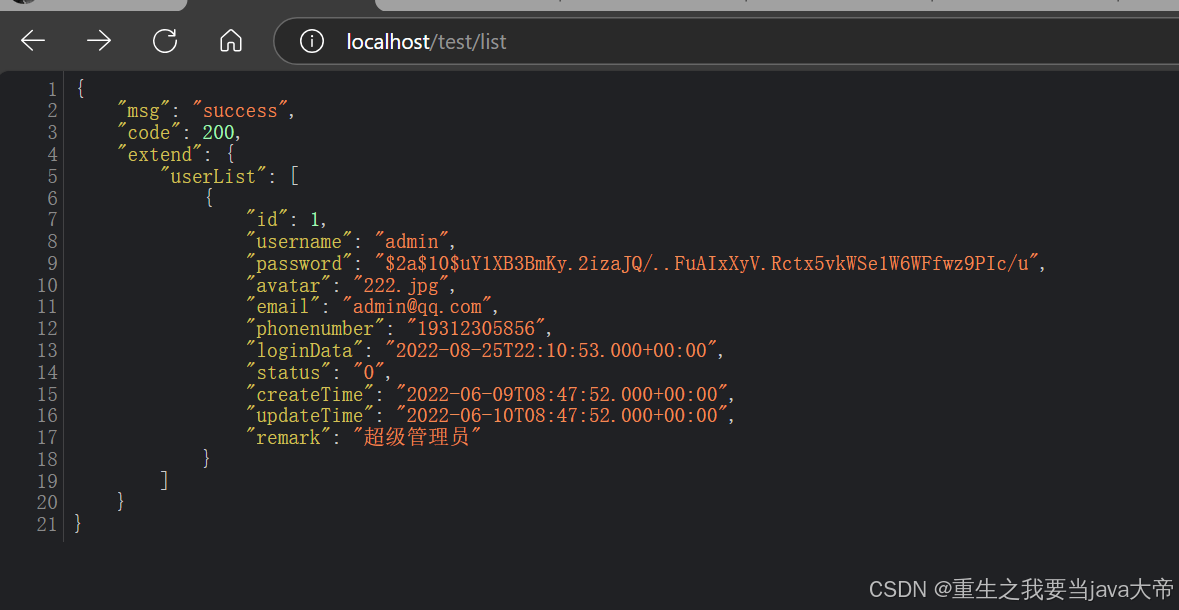

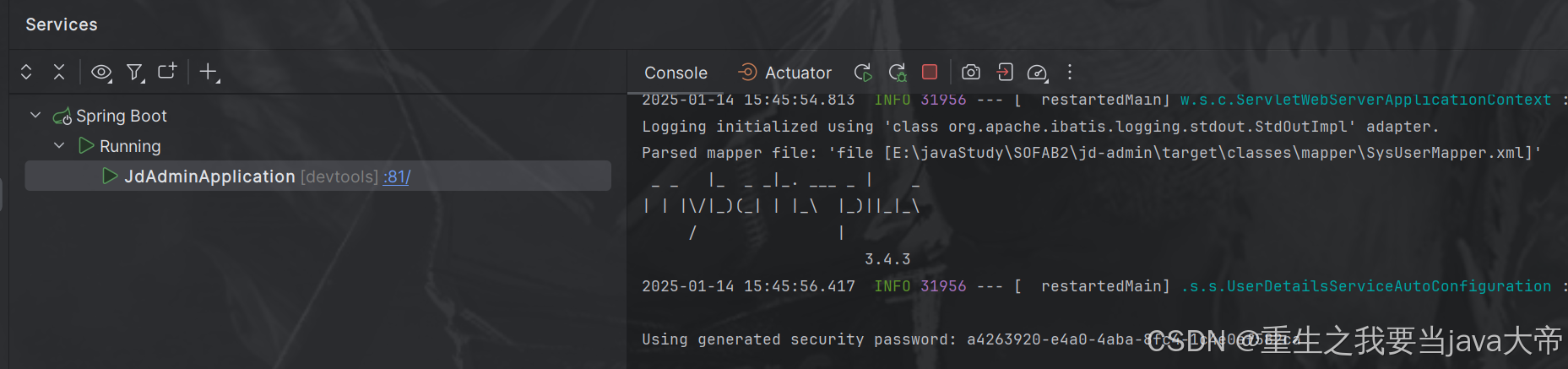

9.修改一下启动类并使用浏览器测试
package com.jd.jdadmin;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
@MapperScan("com.jd.jdadmin.mapper") //扫描XXXMapper类
public class JdAdminApplication {
public static void main(String[] args) {
SpringApplication.run(JdAdminApplication.class, args);
}
}
搭建前端系统架构

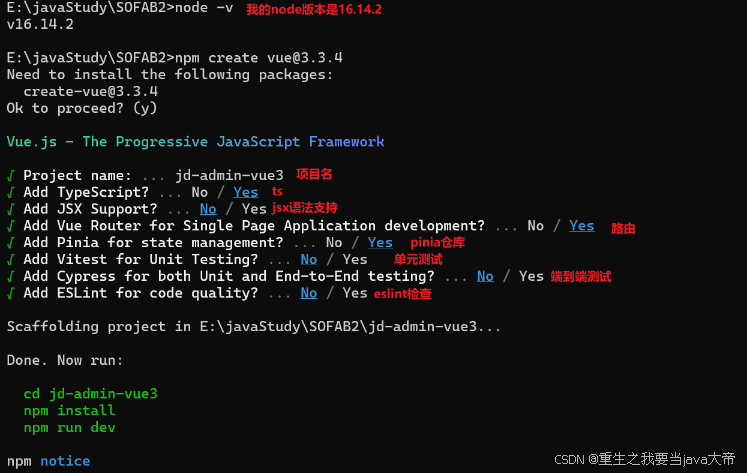

1.使用命令创建vue3
2.使用idea打开SOFAB2

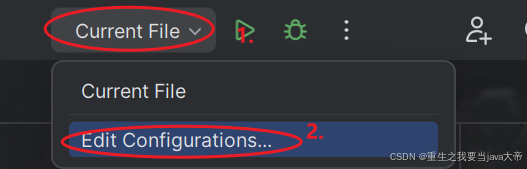

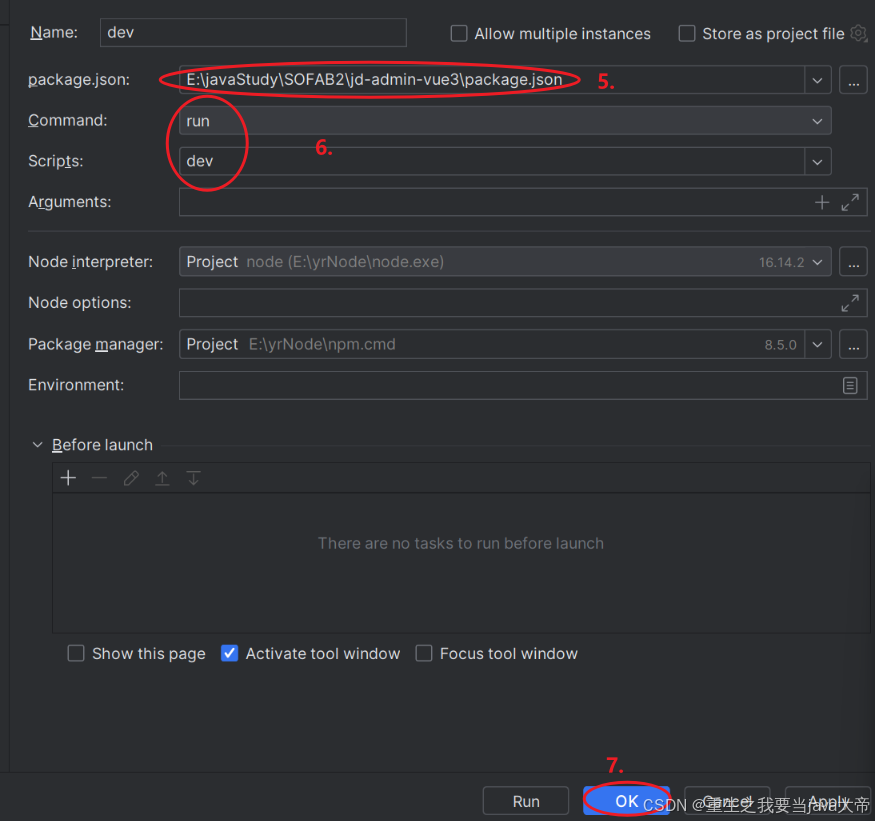

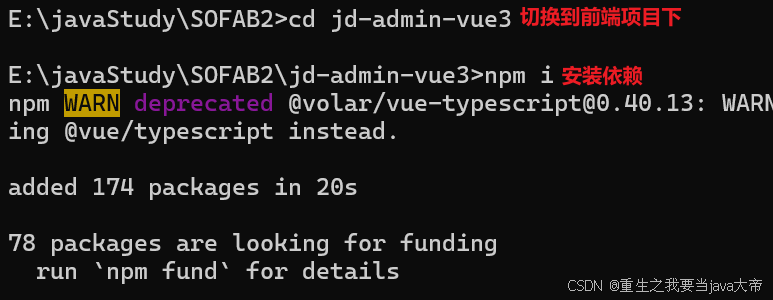

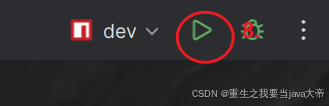

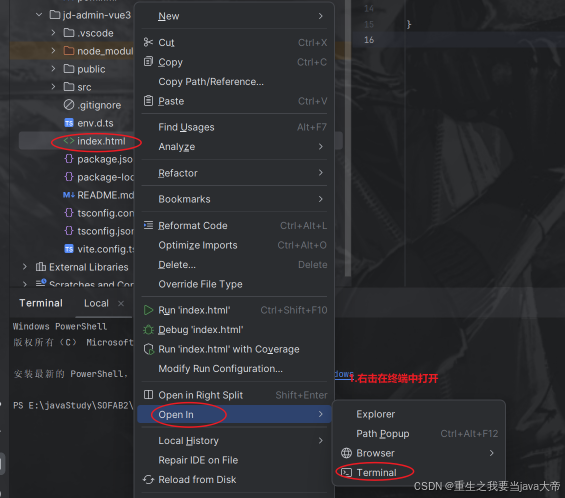

3.启动前端项目

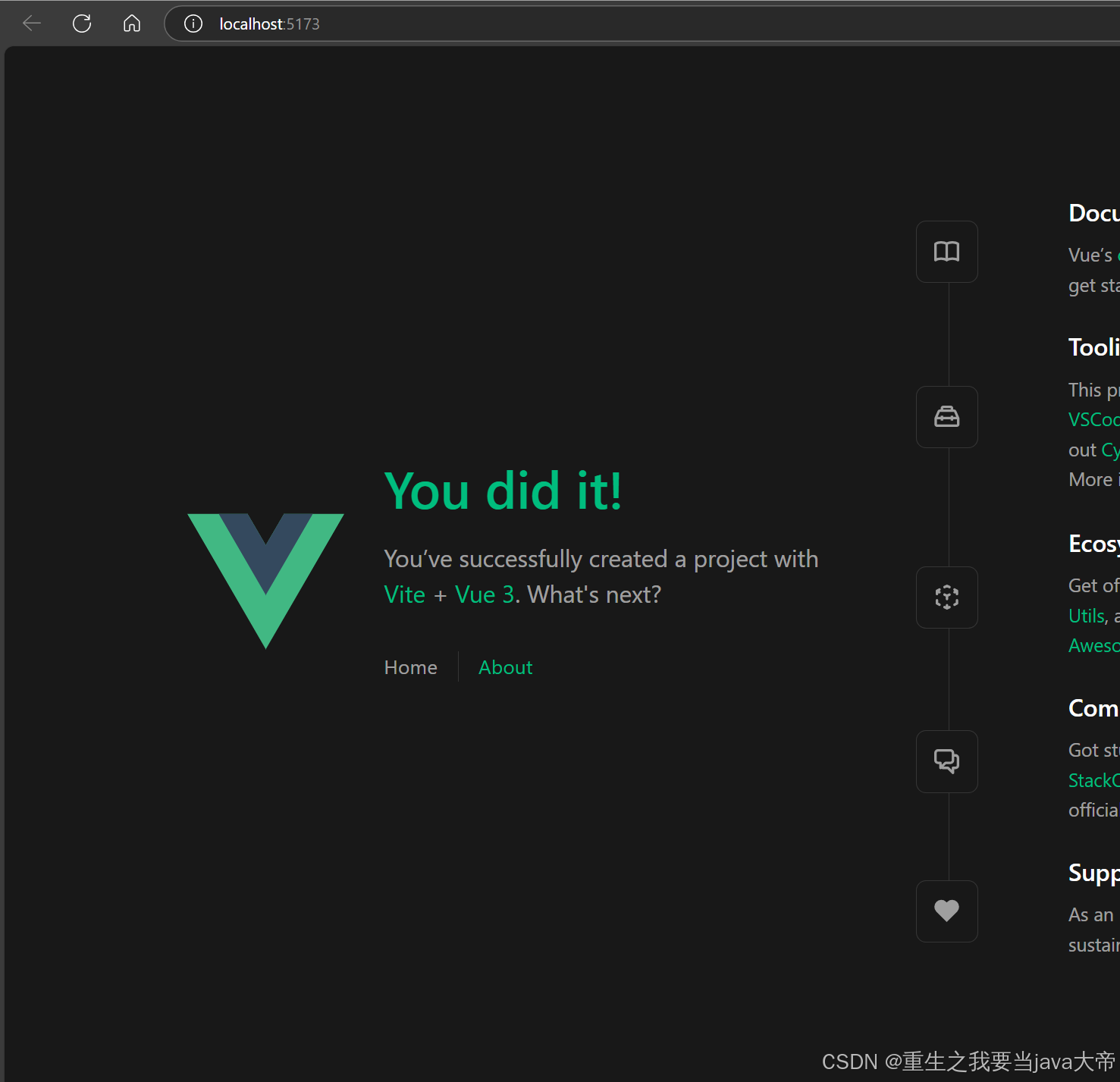

使用浏览器访问

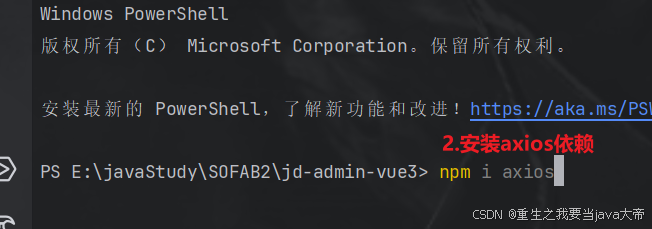

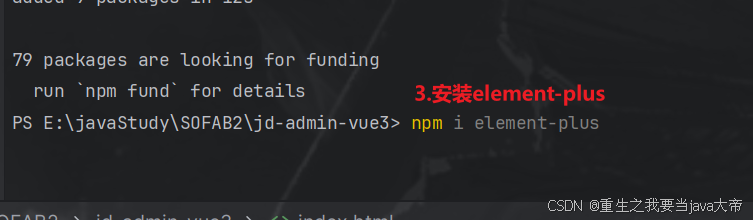

4.安装axios和elementPlus依赖
5.测试elementPlus是否安装成功

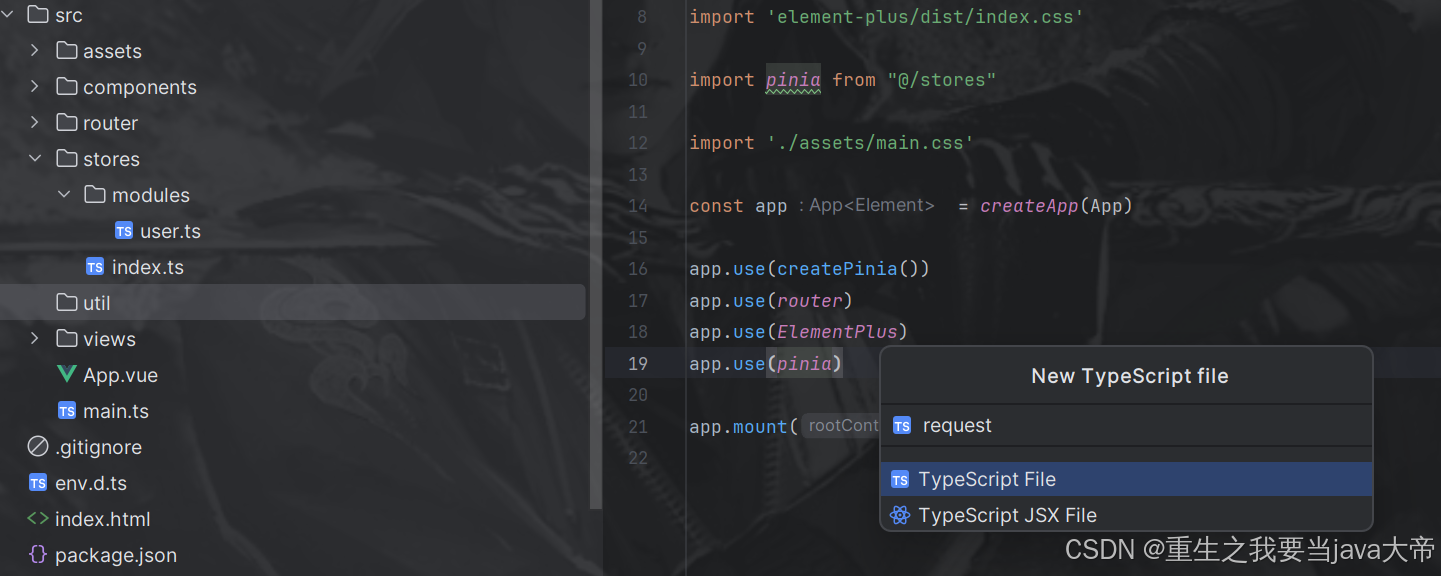

在main.ts中引入
import ElementPlus from 'element-plus' import 'element-plus/dist/index.css'app.use(ElementPlus)
在App.vue中使用elementPlus的按钮组件
<template>
<div>
<el-button type="danger">猜猜我是谁</el-button>
</div>
</template>
<script setup lang="ts">
</script>
<style scoped>
</style>

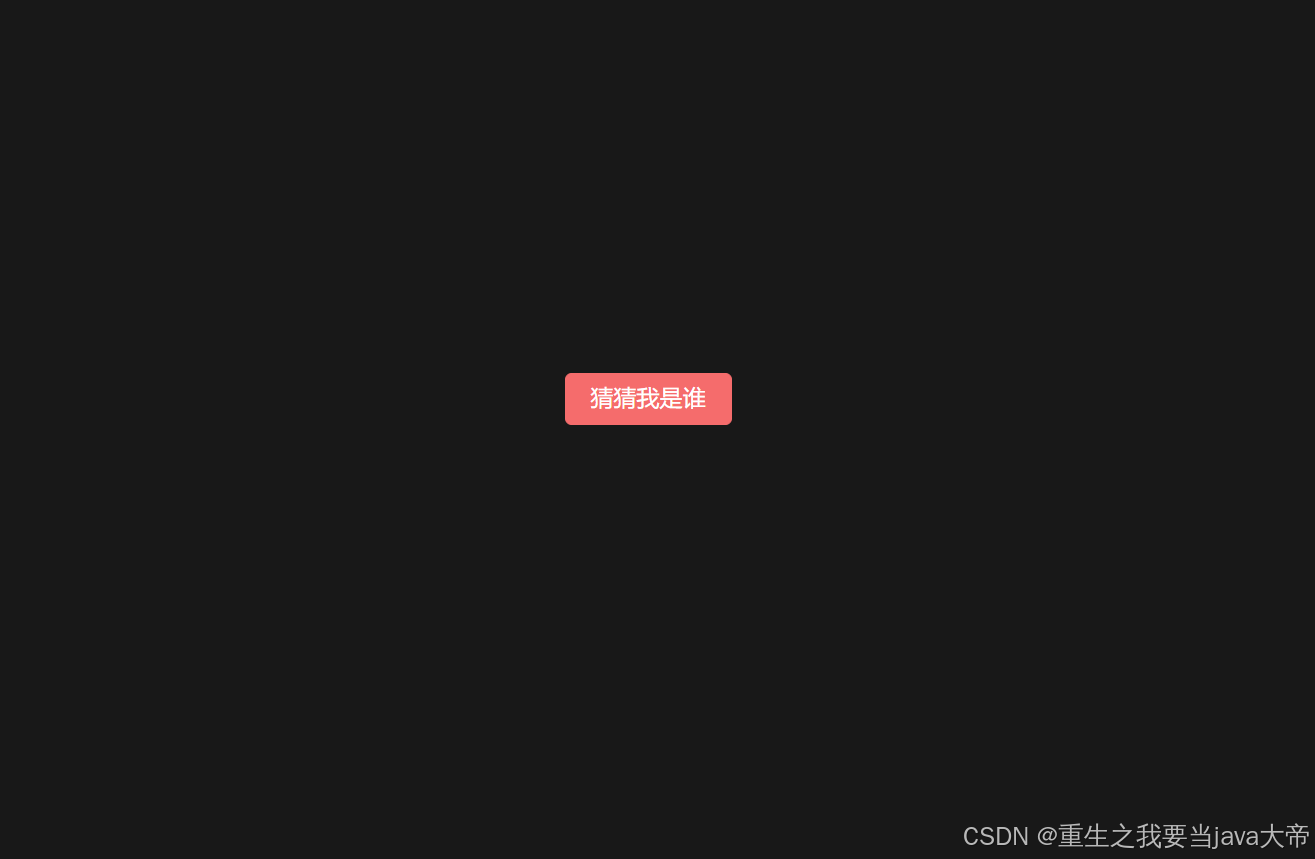

浏览器访问

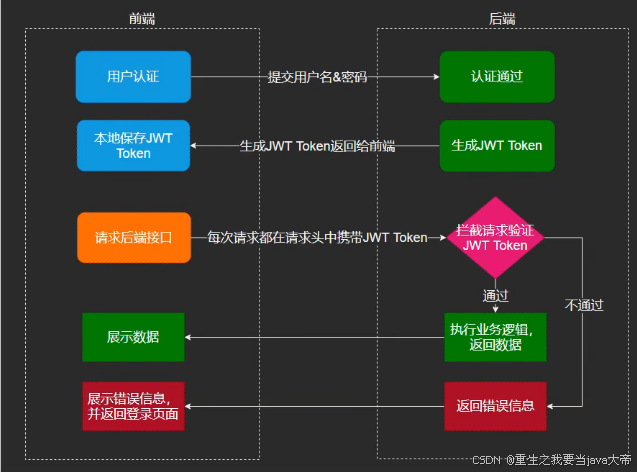

JWT前后端交互
Json Web Token(jwt),是为了在网络应用环境间传递声明而执行的一种基于JSON的开放标准(RFC 7519)
JWT就是一段字符串,用来进行用户身份认证的凭证,该字符串分成三段[头部、载荷、凭证]

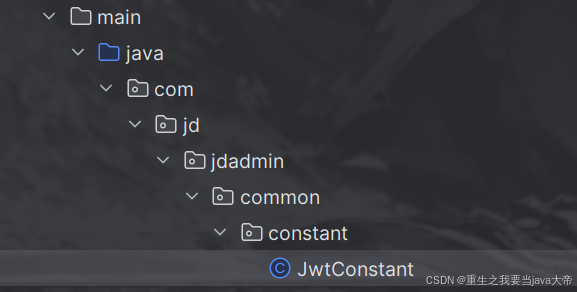

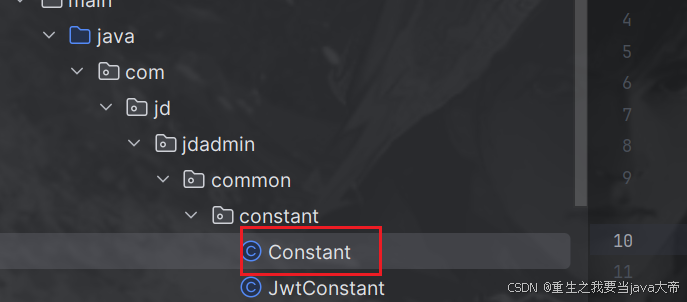

1.创建common.constant包 并创建JwtConstant类
package com.jd.jdadmin.common.constant; /** * @author java大帝 * @ClassName JwtConstant * @description: 常量类 * @date 2025年 01月 13日 * @version: 1.0 */ public class JwtConstant { /*token*/ public static final int JWT_ERRCODE_NULL = 4000; // token不存在 public static final int JWT_ERRCODE_EXPIRE = 4001; // token过期 public static final int JWT_ERRCODE_FAIL = 4002; // 认证不通过 /*jwt*/ public static final String JWT_SECERT = "1ba@842as45*74s?1p41-15a*s/dj;"; // 密钥 public static final long JWT_TTL = 24* 60 * 60 * 1000; // 24小时 }
2.在entity包下创建CheckResult类
package com.jd.jdadmin.entity;
import io.jsonwebtoken.Claims;
/**
* @author java大帝
* @ClassName CheckResult
* @description: 认证结果
* @date 2025年 01月 13日
* @version: 1.0
*/
public class CheckResult {
private int errCode;
private boolean success;
private Claims claims;
public int getErrCode() {
return errCode;
}
public void setErrCode(int errCode) {
this.errCode = errCode;
}
public boolean isSuccess() {
return success;
}
public void setSuccess(boolean success) {
this.success = success;
}
public Claims getClaims() {
return claims;
}
public void setClaims(Claims claims) {
this.claims = claims;
}
}
3.创建util包 并创建JwtUtils类
package com.jd.jdadmin.util;
import cn.hutool.core.codec.Base64;
import com.jd.jdadmin.common.constant.JwtConstant;
import com.jd.jdadmin.entity.CheckResult;
import io.jsonwebtoken.*;
import javax.crypto.SecretKey;
import javax.crypto.spec.SecretKeySpec;
import java.util.Date;
/**
* @author java大帝
* @ClassName JwtUtils
* @description: Jwt工具类
* @date 2025年 01月 13日
* @version: 1.0
*/
public class JwtUtils {
// 生成JWT
public static String createJWT(String id,String subject,long ttlMillis){
SignatureAlgorithm signatureAlgorithm = SignatureAlgorithm.HS256;
long nowMillis = System.currentTimeMillis();
Date now = new Date(nowMillis);
SecretKey secretKey = generalKey();
JwtBuilder jwtBuilder = Jwts.builder()
.setId(id)
.setSubject(subject) // 主体
.setIssuer("yr") // 签发者
.setIssuedAt(now) // 签发时间
.signWith(signatureAlgorithm, secretKey);// 签名算法以及密钥
if (ttlMillis >= 0){
long expMillis = nowMillis + ttlMillis;
Date expDate = new Date(expMillis);
jwtBuilder.setExpiration(expDate); //设置过期时间
}
return jwtBuilder.compact();
}
// 生成jwt token
public static String genJwtToken(String username){return createJWT(username,username,60 * 60 * 1000);}
// 验证JWT
public static CheckResult validateJWT(String jwtStr){
CheckResult checkResult = new CheckResult();
Claims claims = null;
try {
claims = parseJWT(jwtStr);
checkResult.setSuccess(true);
checkResult.setClaims(claims);
} catch (ExpiredJwtException e) {
checkResult.setErrCode(JwtConstant.JWT_ERRCODE_EXPIRE);
checkResult.setSuccess(false);
} catch (SignatureException e){
checkResult.setErrCode(JwtConstant.JWT_ERRCODE_FAIL);
checkResult.setSuccess(false);
} catch (Exception e) {
checkResult.setErrCode(JwtConstant.JWT_ERRCODE_FAIL);
checkResult.setSuccess(false);
}
return checkResult;
}
// 生成加密key
public static SecretKey generalKey(){
byte[] encodeKey = Base64.decode(JwtConstant.JWT_SECERT);
SecretKeySpec key = new SecretKeySpec(encodeKey, 0, encodeKey.length, "AES");
return key;
}
// 解析JWT字符串
public static Claims parseJWT(String jwt){
SecretKey secretKey = generalKey();
return Jwts.parser()
.setSigningKey(secretKey)
.parseClaimsJws(jwt)
.getBody();
}
public static void main(String[] args) {
// 小明失效 10s
String sc = createJWT("1", "小明", 60 * 60 * 1000);
System.out.println(sc);
System.out.println(validateJWT(sc).getErrCode());
System.out.println(validateJWT(sc).getClaims().getId());
System.out.println(validateJWT(sc).getClaims().getSubject());
System.out.println(validateJWT(sc).getClaims());
}
}

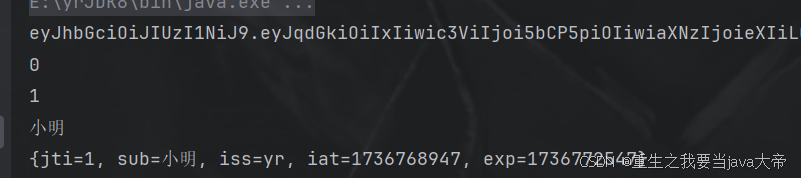

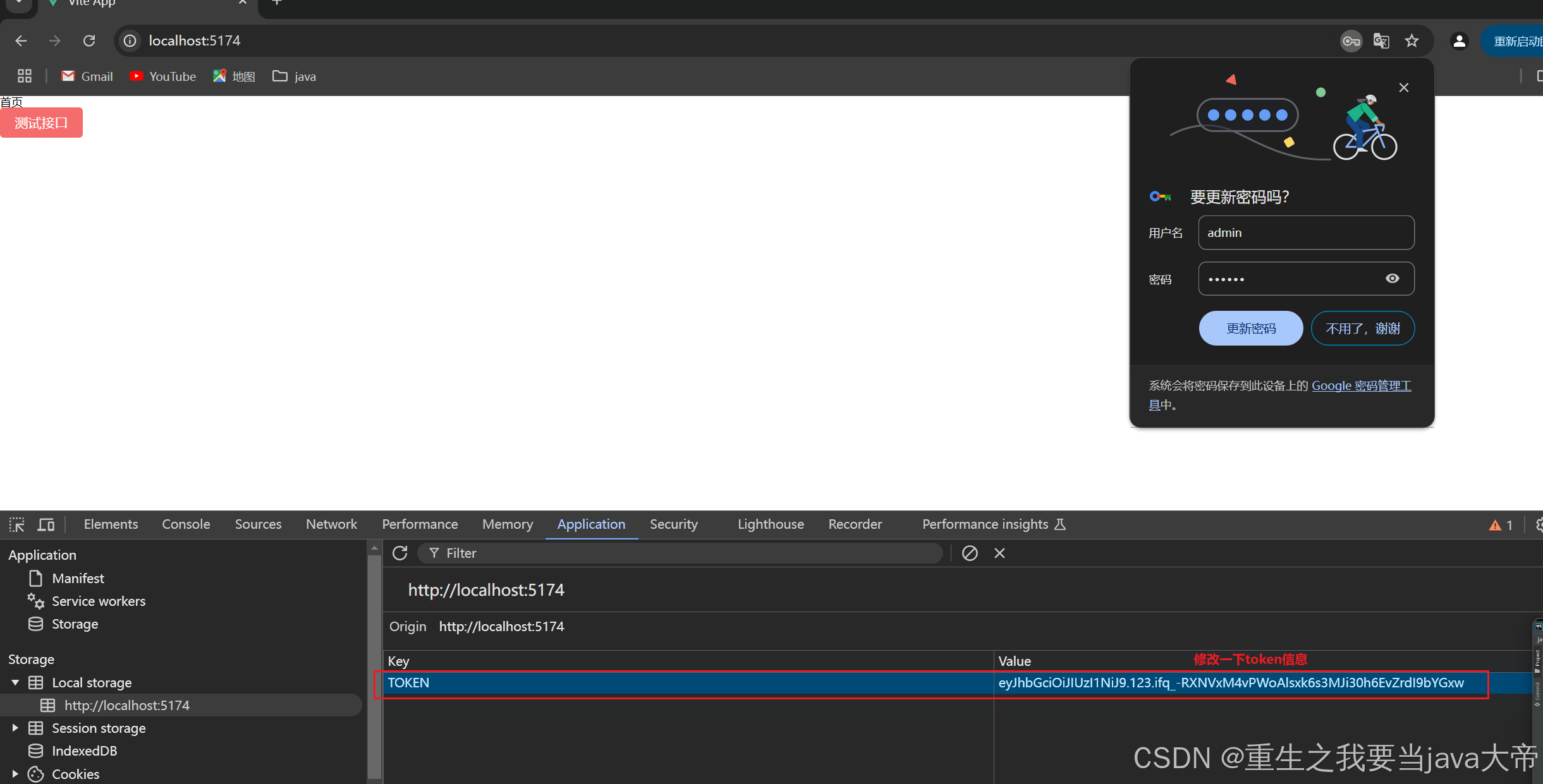

测试一下
3.发请求测试login登录返回token
3.1后端:创建测试类controller.TestController
@RestController
@RequestMapping("/test")
public class TestController {
@Resource
private SysUserService sysUserService;
@RequestMapping("list")
public R userList(@RequestHeader(required = false) String token){
if (StrUtil.isNotEmpty(token)){
HashMap<String, Object> resultMap = new HashMap<>();
List<SysUser> list = sysUserService.list();
resultMap.put("userList",list);
return R.success(resultMap);
}
return R.fail(401,"无权访问");
}
@RequestMapping("login")
public R login(){
String token = JwtUtils.genJwtToken("java123456");
return R.success().put("token",token);
}
}
3.2 后端:创建util.StrUtil字符串的工具类
package com.jd.jdadmin.util;
import java.util.ArrayList;
import java.util.List;
import java.util.Random;
/**
* @author java大帝
* @ClassName StrUtil
* @description: 字符串工具类
* @date 2025年 01月 13日
* @version: 1.0
*/
public class StrUtil {
/**
* 判断是否是空
* @param str
* @return
*/
public static boolean isEmpty(String str){
if(str==null||"".equals(str.trim())){
return true;
}else{
return false;
}
}
/**
* 判断是否不是空
* @param str
* @return
*/
public static boolean isNotEmpty(String str){
if((str!=null)&&!"".equals(str.trim())){
return true;
}else{
return false;
}
}
/**
* 格式化模糊查询
* @param str
* @return
*/
public static String formatLike(String str){
if(isNotEmpty(str)){
return "%"+str+"%";
}else{
return null;
}
}
/**
* 过滤掉集合里的空格
* @param list
* @return
*/
public static List<String> filterWhite(List<String> list){
List<String> resultList=new ArrayList<String>();
for(String l:list){
if(isNotEmpty(l)){
resultList.add(l);
}
}
return resultList;
}
/**
* 去除html标签
*/
public static String stripHtml(String content) {
// <p>段落替换为换行
content = content.replaceAll("<p .*?>", "\r\n");
// <br><br/>替换为换行
content = content.replaceAll("<br\\s*/?>", "\r\n");
// 去掉其它的<>之间的东西
content = content.replaceAll("\\<.*?>", "");
// 去掉空格
content = content.replaceAll(" ", "");
return content;
}
/**
* 生成六位随机数
* @return
*/
public static String genSixRandomNum(){
Random random = new Random();
String result="";
for (int i=0;i<6;i++)
{
result+=random.nextInt(10);
}
return result;
}
/**
* 生成由[A-Z,0-9]生成的随机字符串
* @param length 欲生成的字符串长度
* @return
*/
public static String getRandomString(int length){
Random random = new Random();
StringBuffer sb = new StringBuffer();
for(int i = 0; i < length; ++i){
int number = random.nextInt(2);
long result = 0;
switch(number){
case 0:
result = Math.round(Math.random() * 25 + 65);
sb.append(String.valueOf((char)result));
break;
case 1:
sb.append(String.valueOf(new Random().nextInt(10)));
break;
}
}
return sb.toString();
}
}
3.3前端:二次封装axios
// 引入axios
import axios from 'axios'
import {ElMessage} from "element-plus"
import useUserStore from "@/stores/modules/user"
//基础路径
export let baseUrl = 'http://localhost:81/'
const request = axios.create({
baseURL:baseUrl, // 基础路径
timeout:5000 // 超时时间
})
// 请求拦截器
request.interceptors.request.use(config => {
let userStore = useUserStore()
// 在发送请求之前做些什么 比如携带token请求头
config.headers.token = userStore.token
return config
},err => {
return Promise.reject(err)
})
// 响应拦截器
request.interceptors.response.use(resp => {
console.log(resp)
return resp.data
},err => {
//错误处理
let message = ''
let status = err.response.status
switch (status){
case 401:
message = 'token过期'
break
case 403:
message = '无权访问'
break
case 404:
message='请求地址有误'
break
case 500:
message = '服务器出错'
break
default:
message = '网络错误'
break
}
ElMessage({
type:'error',
message
})
})
export default request

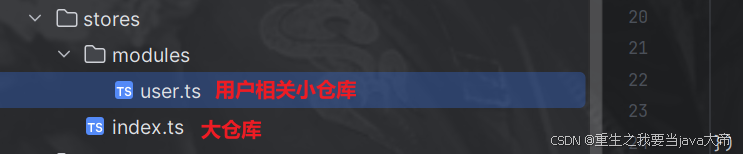

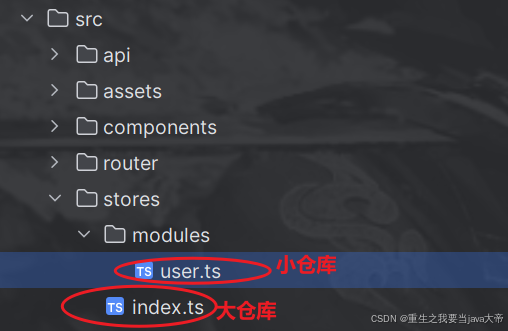

3.4前端:创建用户相关小仓库
大仓库
import {createPinia} from "pinia" let pinia = createPinia() export default pinia
在main.ts中引入大仓库并使用
import pinia from "@/stores" app.use(pinia)
小仓库
import { defineStore } from "pinia" import request from "@/util/request" import {GET_TOKEN, SET_TOKEN} from "@/util/token"; const useUserStore = defineStore('User',{ state(){ return { token:GET_TOKEN() } }, actions:{ async userLogin(){ let res = await request.get('test/login') if (res.code == 200){ SET_TOKEN(res.data.token) return 'ok' } else { return Promise.reject(res.msg) } } } }) export default useUserStore

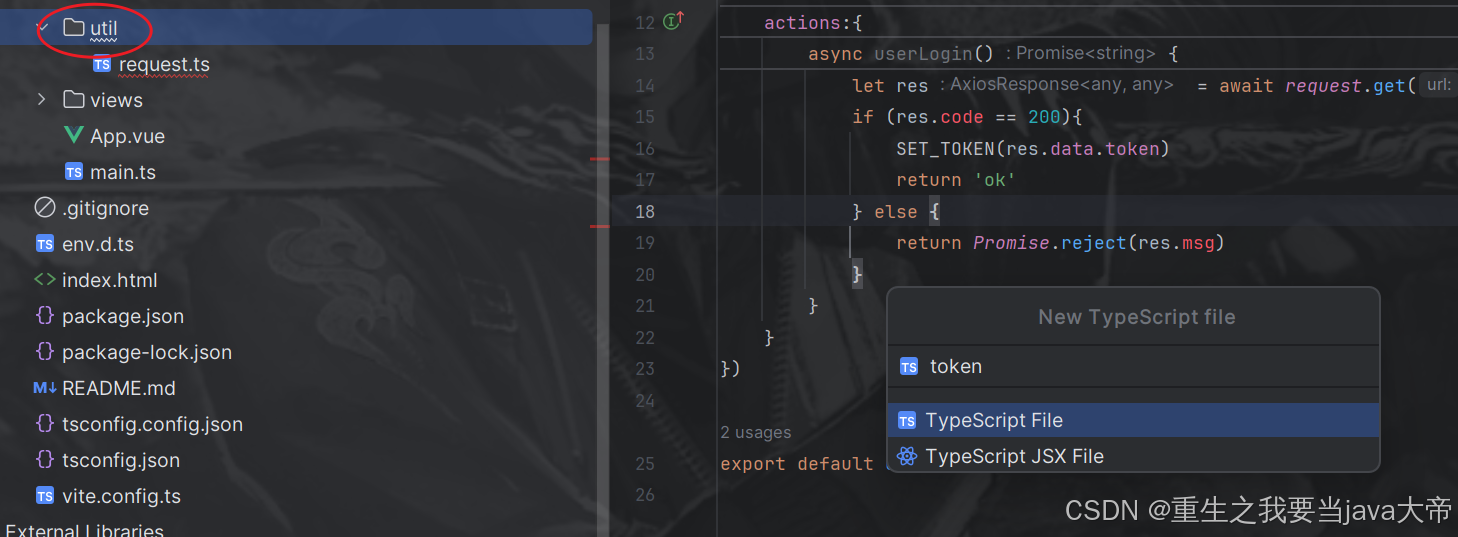

3.5 创建token工具类
export const SET_TOKEN = (token:string)=> {
localStorage.setItem("TOKEN",token)
}
export const GET_TOKEN = ()=> {
return localStorage.getItem("TOKEN")
}
export const REMOVE_TOKEN = ()=> {
return localStorage.removeItem("TOKEN")
}
3.6App.vue中写相关测试代码
<template>
<div>
<el-button type="danger" @click="handleLogin">测试登录</el-button>
<el-button type="primary" @click="handleUserList">测试获取用户请求</el-button>
</div>
</template>
<script setup lang="ts">
import useUserStore from "@/stores/modules/user"
import request from "@/util/request"
let userStore = useUserStore()
const handleLogin = async () => {
await userStore.userLogin()
}
const handleUserList = async () => {
let res = await request.get('test/list')
if (res.code == 200) {
console.log('userlist',res)
}
}
</script>
<style scoped>
</style>

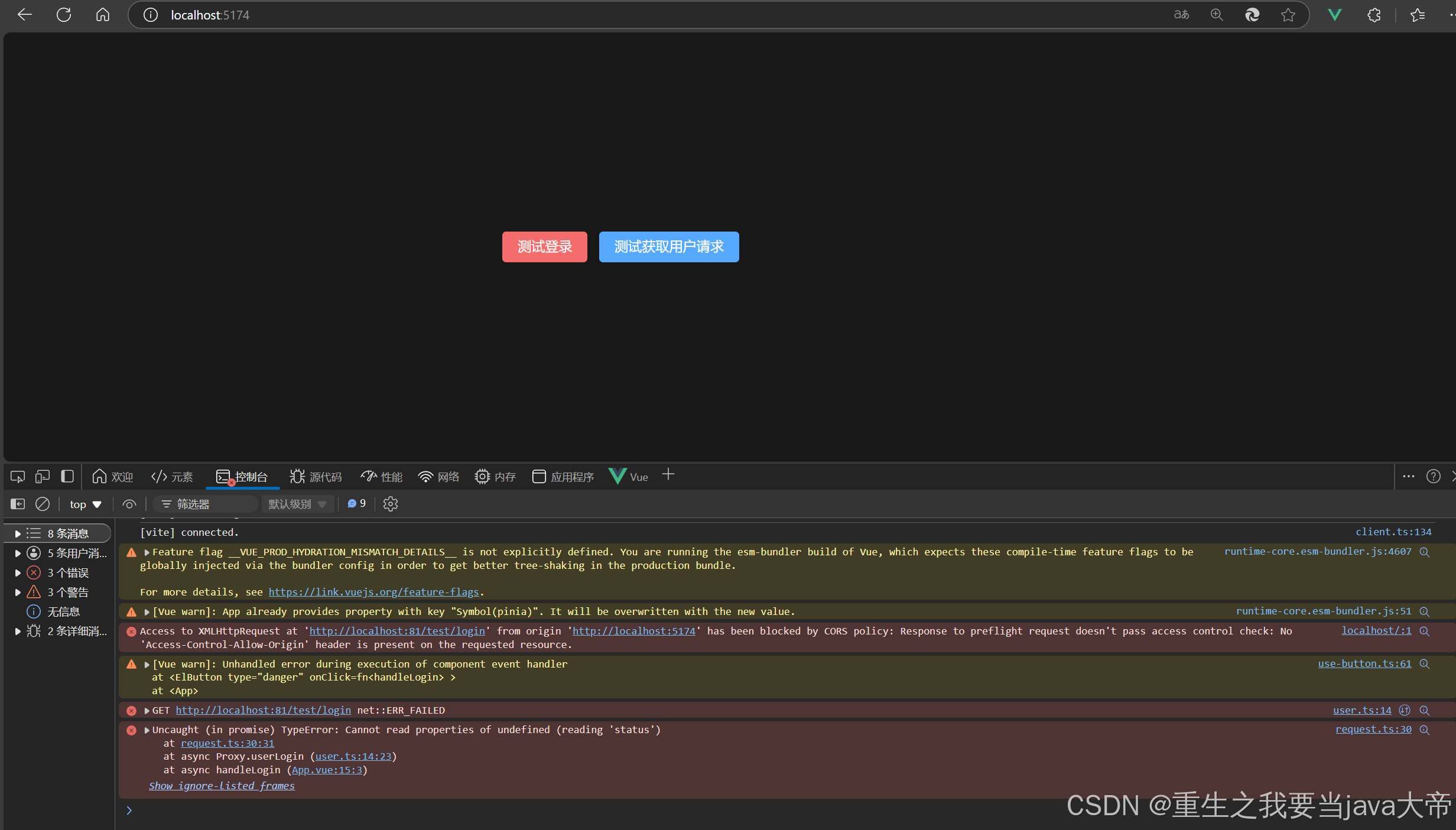

3.7浏览器访问出现跨域问题

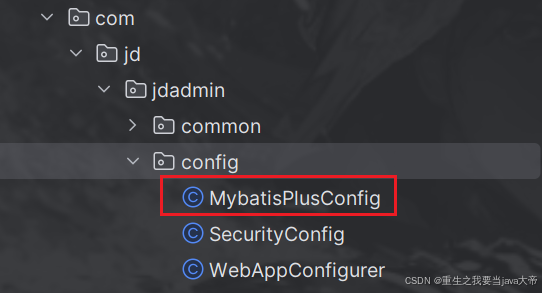

3.8创建config.WebAppConfigurer解决跨域
package com.jd.jdadmin.config; import org.springframework.context.annotation.Configuration; import org.springframework.web.servlet.config.annotation.CorsRegistry; import org.springframework.web.servlet.config.annotation.WebMvcConfigurer; /** * @author java大帝 * @ClassName WebAppConfigurer * @description: 跨域解决 * @date 2025年 01月 13日 * @version: 1.0 */ @Configuration public class WebAppConfigurer implements WebMvcConfigurer { @Override public void addCorsMappings(CorsRegistry registry) { registry .addMapping("/**") .allowedOrigins("*") .allowCredentials(true) .allowedMethods("GET","HEAD","POST","DELETE","OPTIONS") .maxAge(3600); } }

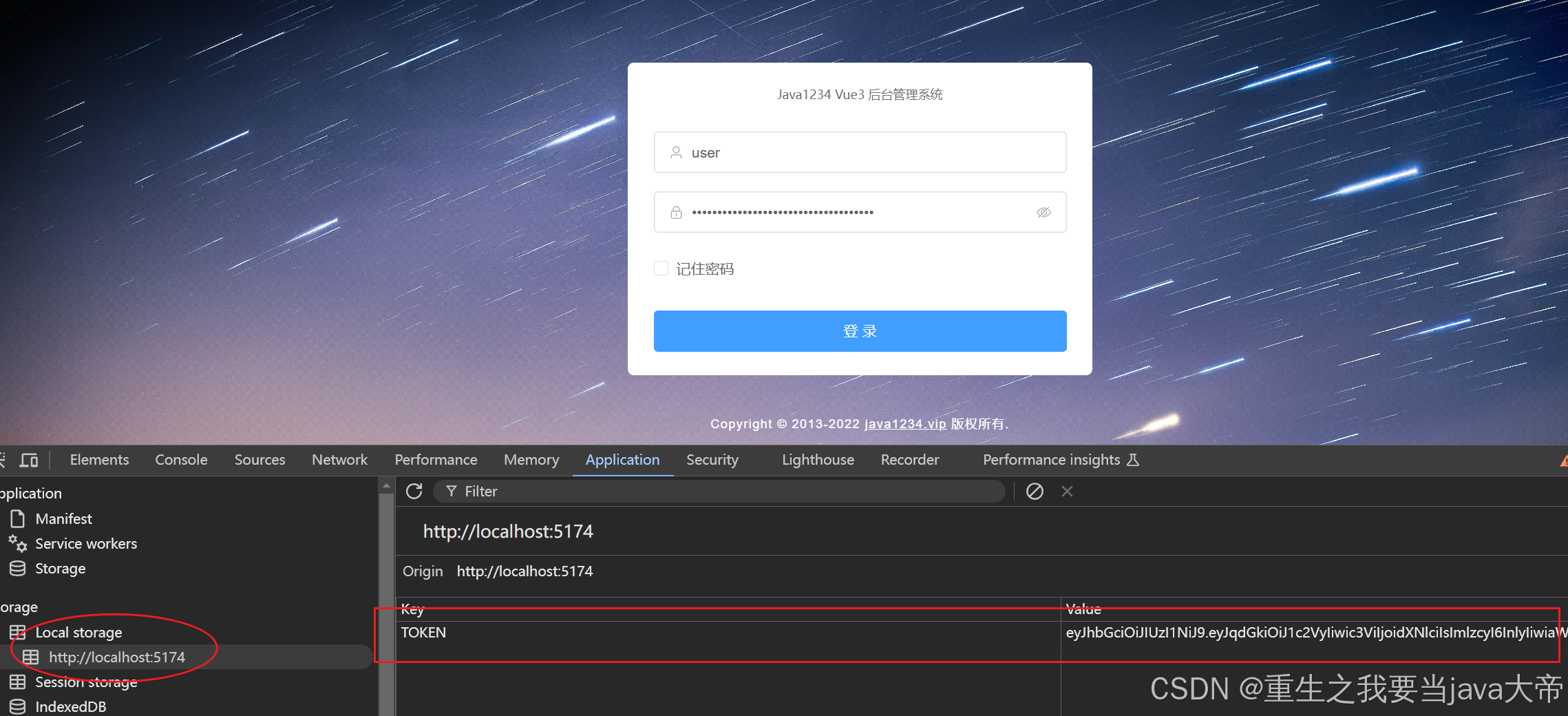

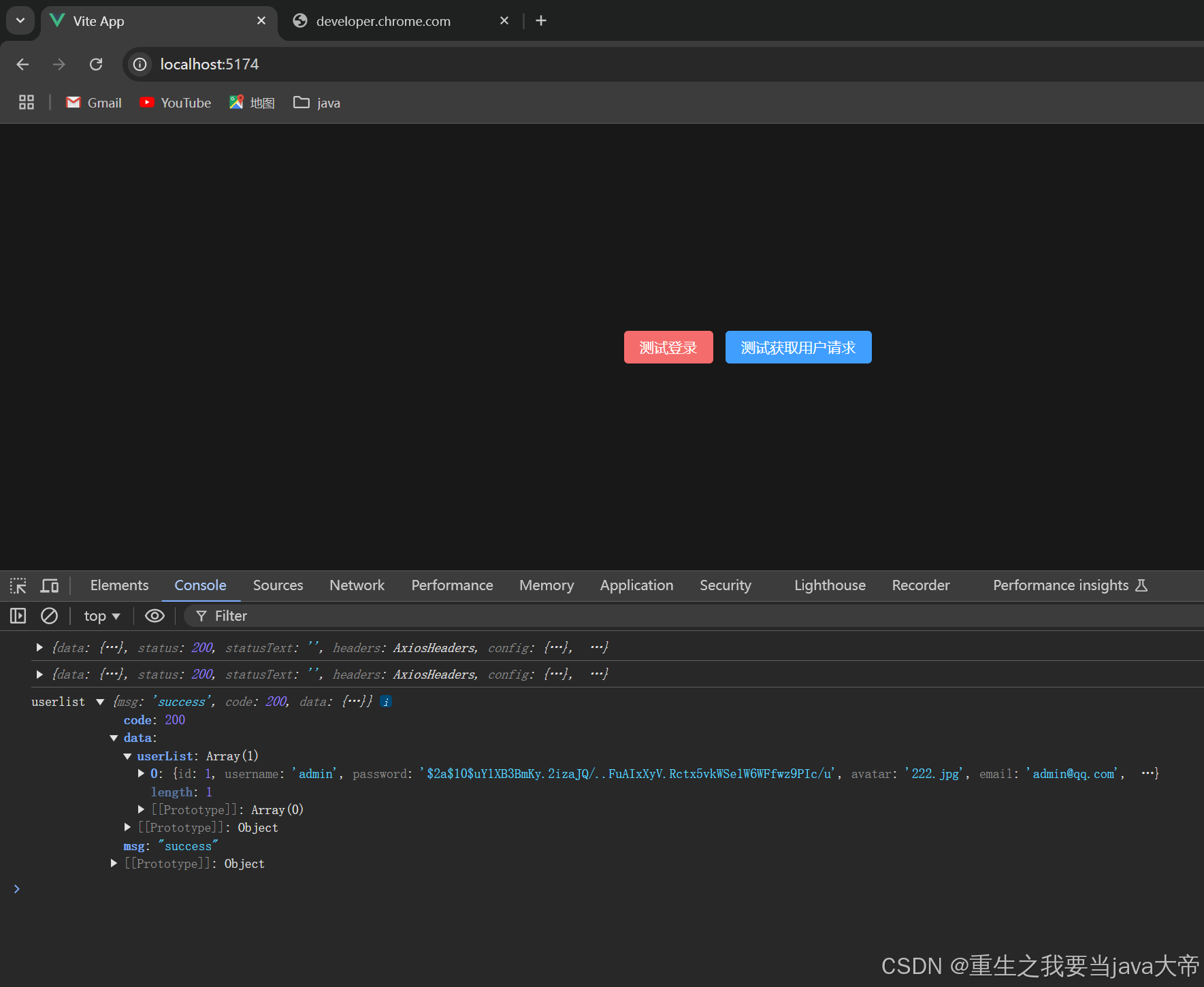

测试成功
登录功能实现
前端静态登录页面实现

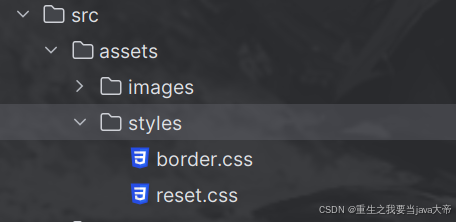

1.准备两个样式文件
border.css
@charset "utf-8"; .border, .border-top, .border-right, .border-bottom, .border-left, .border-topbottom, .border-rightleft, .border-topleft, .border-rightbottom, .border-topright, .border-bottomleft { position: relative; } .border::before, .border-top::before, .border-right::before, .border-bottom::before, .border-left::before, .border-topbottom::before, .border-topbottom::after, .border-rightleft::before, .border-rightleft::after, .border-topleft::before, .border-topleft::after, .border-rightbottom::before, .border-rightbottom::after, .border-topright::before, .border-topright::after, .border-bottomleft::before, .border-bottomleft::after { content: "\0020"; overflow: hidden; position: absolute; } /* border * 因，边框是由伪元素区域遮盖在父级 * 故，子级若有交互，需要对子级设置 * 定位 及 z轴 */ .border::before { box-sizing: border-box; top: 0; left: 0; height: 100%; width: 100%; border: 1px solid #eaeaea; transform-origin: 0 0; } .border-top::before, .border-bottom::before, .border-topbottom::before, .border-topbottom::after, .border-topleft::before, .border-rightbottom::after, .border-topright::before, .border-bottomleft::before { left: 0; width: 100%; height: 1px; } .border-right::before, .border-left::before, .border-rightleft::before, .border-rightleft::after, .border-topleft::after, .border-rightbottom::before, .border-topright::after, .border-bottomleft::after { top: 0; width: 1px; height: 100%; } .border-top::before, .border-topbottom::before, .border-topleft::before, .border-topright::before { border-top: 1px solid #eaeaea; transform-origin: 0 0; } .border-right::before, .border-rightbottom::before, .border-rightleft::before, .border-topright::after { border-right: 1px solid #eaeaea; transform-origin: 100% 0; } .border-bottom::before, .border-topbottom::after, .border-rightbottom::after, .border-bottomleft::before { border-bottom: 1px solid #eaeaea; transform-origin: 0 100%; } .border-left::before, .border-topleft::after, .border-rightleft::after, .border-bottomleft::after { border-left: 1px solid #eaeaea; transform-origin: 0 0; } .border-top::before, .border-topbottom::before, .border-topleft::before, .border-topright::before { top: 0; } .border-right::before, .border-rightleft::after, .border-rightbottom::before, .border-topright::after { right: 0; } .border-bottom::before, .border-topbottom::after, .border-rightbottom::after, .border-bottomleft::after { bottom: 0; } .border-left::before, .border-rightleft::before, .border-topleft::after, .border-bottomleft::before { left: 0; } @media (max--moz-device-pixel-ratio: 1.49), (-webkit-max-device-pixel-ratio: 1.49), (max-device-pixel-ratio: 1.49), (max-resolution: 143dpi), (max-resolution: 1.49dppx) { /* 默认值，无需重置 */ } @media (min--moz-device-pixel-ratio: 1.5) and (max--moz-device-pixel-ratio: 2.49), (-webkit-min-device-pixel-ratio: 1.5) and (-webkit-max-device-pixel-ratio: 2.49), (min-device-pixel-ratio: 1.5) and (max-device-pixel-ratio: 2.49), (min-resolution: 144dpi) and (max-resolution: 239dpi), (min-resolution: 1.5dppx) and (max-resolution: 2.49dppx) { .border::before { width: 200%; height: 200%; transform: scale(.5); } .border-top::before, .border-bottom::before, .border-topbottom::before, .border-topbottom::after, .border-topleft::before, .border-rightbottom::after, .border-topright::before, .border-bottomleft::before { transform: scaleY(.5); } .border-right::before, .border-left::before, .border-rightleft::before, .border-rightleft::after, .border-topleft::after, .border-rightbottom::before, .border-topright::after, .border-bottomleft::after { transform: scaleX(.5); } } @media (min--moz-device-pixel-ratio: 2.5), (-webkit-min-device-pixel-ratio: 2.5), (min-device-pixel-ratio: 2.5), (min-resolution: 240dpi), (min-resolution: 2.5dppx) { .border::before { width: 300%; height: 300%; transform: scale(.33333); } .border-top::before, .border-bottom::before, .border-topbottom::before, .border-topbottom::after, .border-topleft::before, .border-rightbottom::after, .border-topright::before, .border-bottomleft::before { transform: scaleY(.33333); } .border-right::before, .border-left::before, .border-rightleft::before, .border-rightleft::after, .border-topleft::after, .border-rightbottom::before, .border-topright::after, .border-bottomleft::after { transform: scaleX(.33333); } }
reset.css
/* http://meyerweb.com/eric/tools/css/reset/ v2.0 | 20110126 License: none (public domain) */ html, body, div, span, applet, object, iframe, h1, h2, h3, h4, h5, h6, p, blockquote, pre, a, abbr, acronym, address, big, cite, code, del, dfn, em, img, ins, kbd, q, s, samp, small, strike, strong, sub, sup, tt, var, b, u, i, center, dl, dt, dd, ol, ul, li, fieldset, form, label, legend, table, caption, tbody, tfoot, thead, tr, th, td, article, aside, canvas, details, embed, figure, figcaption, footer, header, hgroup, menu, nav, output, ruby, section, summary, time, mark, audio, video { margin: 0; padding: 0; border: 0; font-size: 100%; font: inherit; vertical-align: baseline; } /* HTML5 display-role reset for older browsers */ article, aside, details, figcaption, figure, footer, header, hgroup, menu, nav, section { display: block; } html{ font-size: 12px; } body { line-height: 1; } ol, ul { list-style: none; } blockquote, q { quotes: none; } blockquote:before, blockquote:after, q:before, q:after { content: ''; content: none; } table { border-collapse: collapse; border-spacing: 0; }

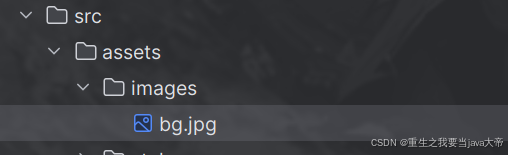

2.准备好背景图片
网址:The night sky over a mountain range with stars in the sky photo – Free Chamonix Image on Unsplash
3. 在main.ts中引入两个样式文件
// 引入样式文件 import '@/assets/styles/border.css' import '@/assets/styles/reset.css'
4. 修改router/index.ts
import { createRouter, createWebHistory } from 'vue-router'
const router = createRouter({
history: createWebHistory(import.meta.env.BASE_URL),
routes: [
{
path: '/',
name: 'home',
component: () => import('@/views/Home.vue')
},
{
path: '/login',
name: 'login',
component: () => import('@/views/Login.vue')
}
]
})
export default router
5.创建Login.vue
<script setup>
const handleLogin = () => {
}
</script>
<template>
<div class="login">
<el-form ref="loginRef" :model="loginForm" :rules="loginRules" class="login-form">
<h3 class="title">java大帝 Vue3 后台管理系统</h3>
<el-form-item prop="username">
<el-input
type="text"
size="large"
auto-complete="off"
placeholder="账号"
>
</el-input>
</el-form-item>
<el-form-item prop="password">
<el-input
type="password"
size="large"
auto-complete="off"
placeholder="密码"
@keyup.enter="handleLogin"
show-password
>
</el-input>
</el-form-item>
<el-checkbox style="margin:0px 0px 25px 0px;">记住密码</el-checkbox>
<el-form-item style="width:100%;">
<el-button
size="large"
type="primary"
style="width:100%;"
@click.prevent="handleLogin"
>
<span>登 录</span>
</el-button>
</el-form-item>
</el-form>
<!-- 底部 -->
<div class="el-login-footer">
<span>Copyright © 2013-2022 <a href="http://www.java1234.vip" target="_blank">java大帝.vip</a> 版权所有.</span>
</div>
</div>
</template>
<style lang="scss" scoped>
a{
color:white
}
.login {
display: flex;
justify-content: center;
align-items: center;
height: 100%;
background-image: url("../assets/images/bg.jpg");
background-size: cover;
}
.title {
margin: 0px auto 30px auto;
text-align: center;
color: #707070;
}
.login-form {
border-radius: 6px;
background: #ffffff;
width: 400px;
padding: 25px 25px 5px 25px;
.el-input {
height: 40px;
input {
display: inline-block;
height: 40px;
}
}
.input-icon {
height: 39px;
width: 14px;
margin-left: 0px;
}
}
.login-tip {
font-size: 13px;
text-align: center;
color: #bfbfbf;
}
.login-code {
width: 33%;
height: 40px;
float: right;
img {
cursor: pointer;
vertical-align: middle;
}
}
.el-login-footer {
height: 40px;
line-height: 40px;
position: fixed;
bottom: 0;
width: 100%;
text-align: center;
color: #fff;
font-family: Arial;
font-size: 12px;
letter-spacing: 1px;
}
.login-code-img {
height: 40px;
padding-left: 12px;
}
</style>
6.安装scss
npm install sass sass-loader --save-dev
7.修改App.vue
<template>
<router-view />
</template>
<script setup lang="ts">
</script>
<style>
html,body,#app {
height: 100%;
}
.app-container {
padding: 20px;
}
</style>

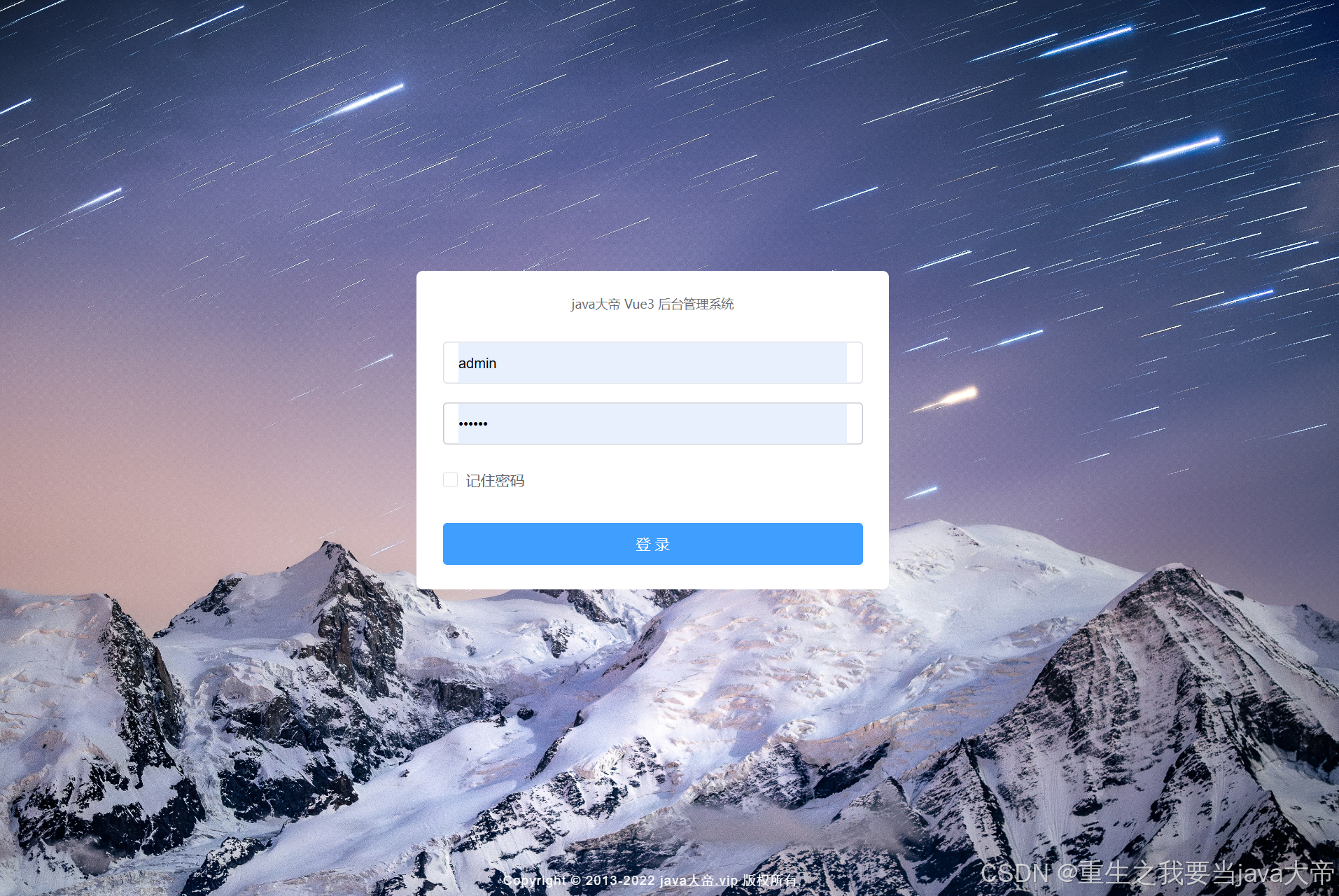

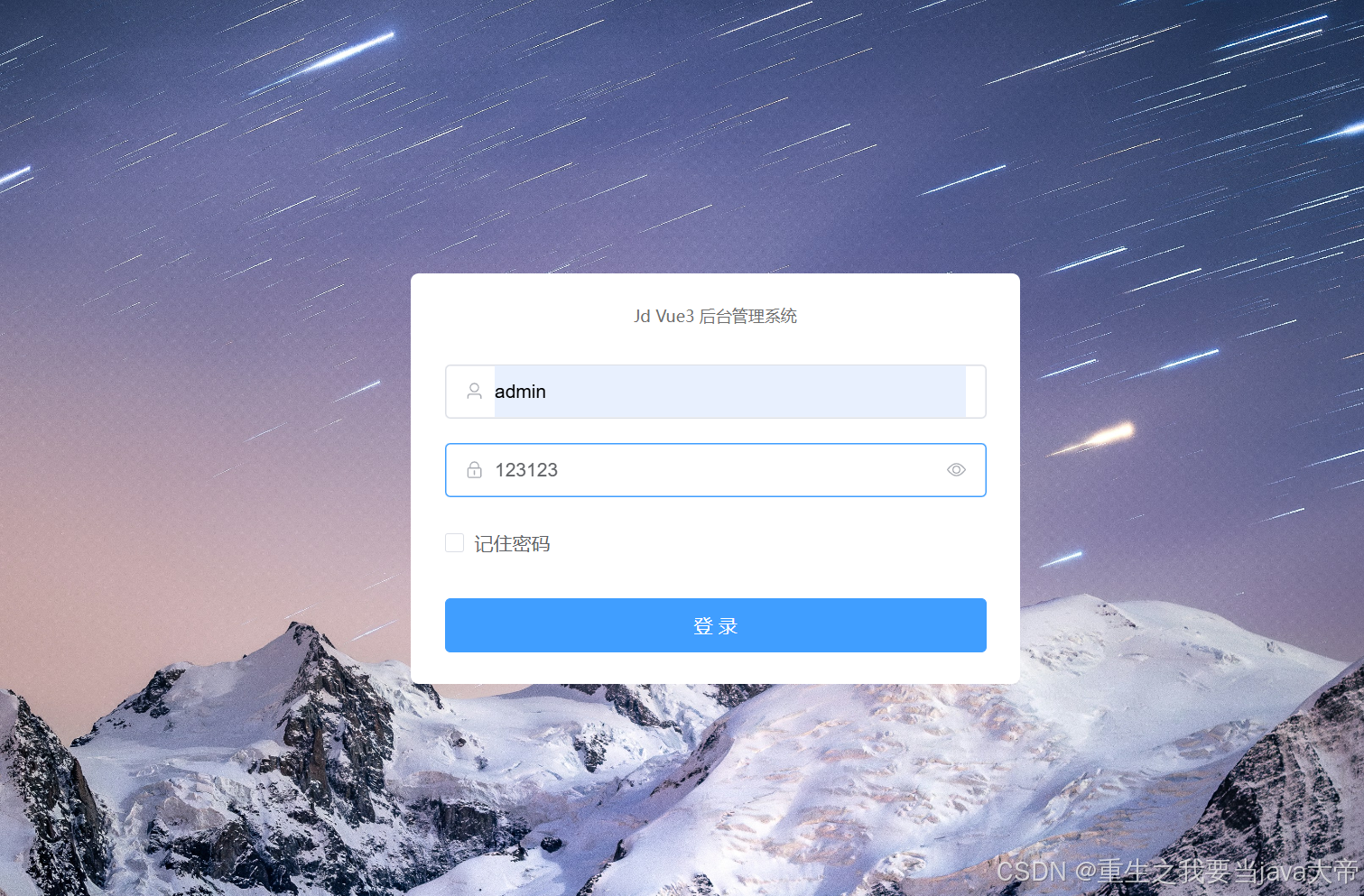

8.浏览器访问
全局注册Element-Plus的图标组件
1.安装element-plus icon
npm install @element-plus/icons-vue

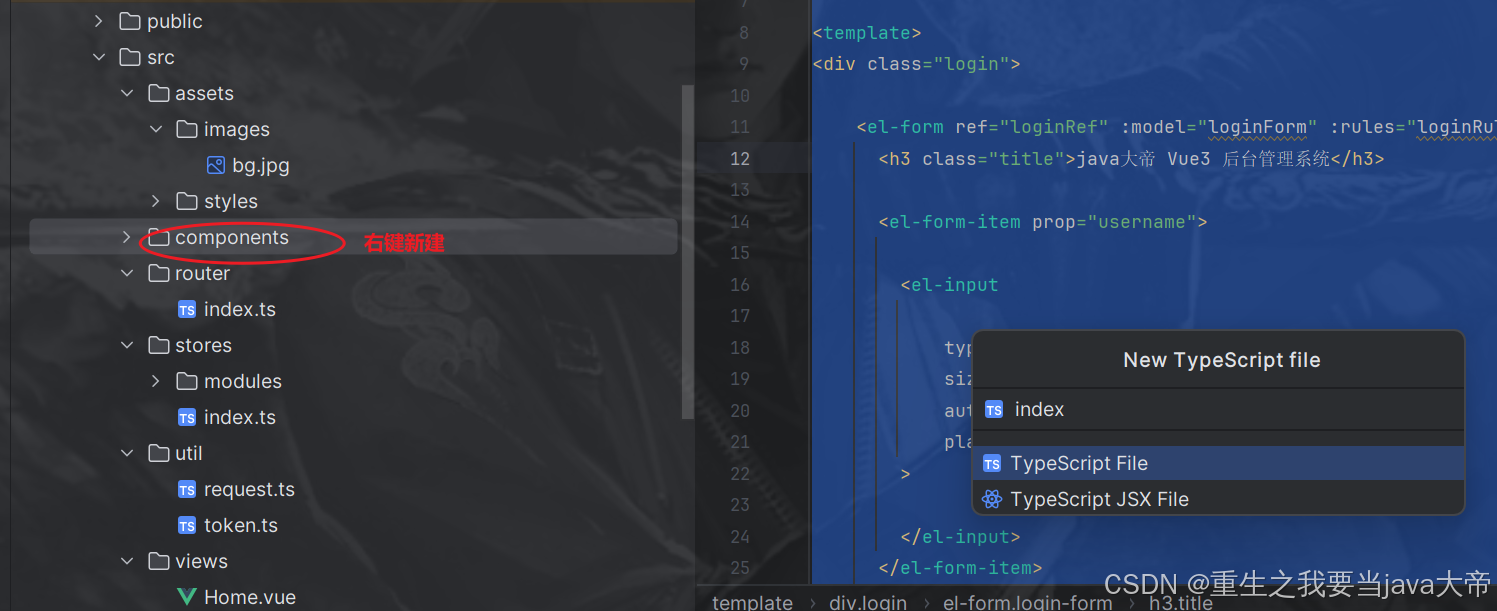

2.将其注册为全局组件
import * as ElementPlusIconsVue from '@element-plus/icons-vue'
export default {
install(app:any){
//@ts-ignore
for (const [key, component] of Object.entries(ElementPlusIconsVue)) {
app.component(key, component)
}
}
}
3.在main.ts中引入钩子并使用
// 引入钩子 import globalComponent from '@/components/index' app.use(globalComponent)
4.在Login.vue的表单项中使用
<el-form-item prop="username">
<el-input
prefix-icon="User"
type="text"
size="large"
auto-complete="off"
placeholder="账号"
>
</el-input>
</el-form-item>
<el-form-item prop="password">
<el-input
prefix-icon="Lock"
type="password"
size="large"
auto-complete="off"
placeholder="密码"
@keyup.enter="handleLogin"
show-password
>
</el-input>
</el-form-item>
SpringSecurity执行原理概述

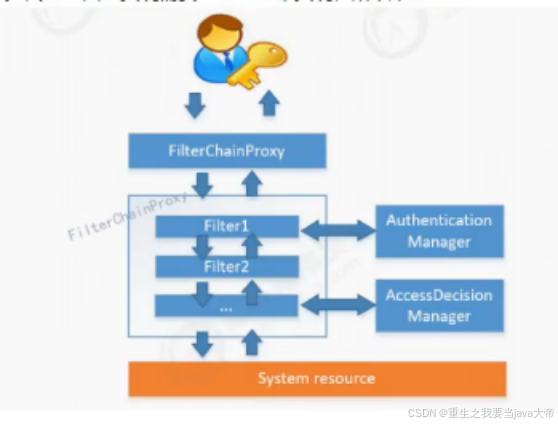

SpringSecurity简单原理
SpringSecurity有很多很多的拦截器 在执行流程里面主要有两个核心的拦截器
1.登录验证拦截器 AuthenticationProcessingFilter
2.资源管理拦截器AbstractSecurityInterceptor
但拦截器里面的实现需要一些组件来实现 所以就有了AuthenticationManager认证管理器、accessDecisionManager决策管理器等组件来支撑
FilterChainProxy是一个代理 真正起作用的是各个Filter,这些Filter作为Bean被Spring管理,是Spring Security的核心，各有各的职责 不直接处理认证和授权,交由认证管理器和决策管理器处理!

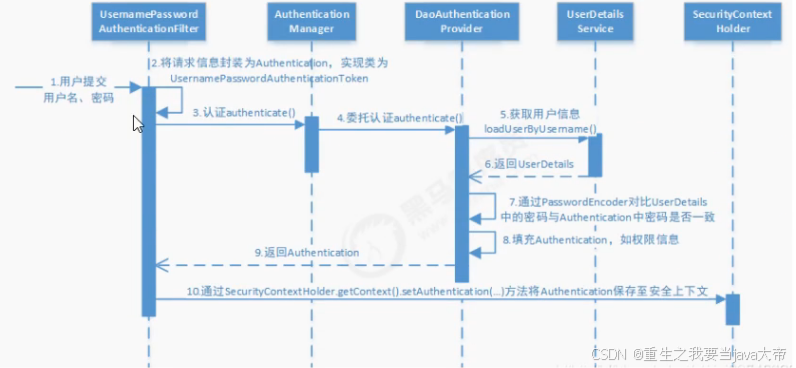

大概流程
认证管理
流程图解读:
1.用户提交用户名、密码被SecurityFilterChain中的UsernamePasswordAuthenticationFilter过滤器获取到,封装为请求Authentication,通常情况下是UsernamePasswordAuthenticationToken这个实现类.
2.然后过滤器将Authentication提交至认证管理器(AuthenticationManager)进行认证.
3.认证成功后,AuthenticationManager身份管理器返回一个被填充满了信息的(包括上面提到的权限信息、身份信息、细节信息,但密码通常会被移除)Authentication实例.
4.SecurityContextHolder安全上下文容器将第三步填充了信息的Authentication,通过SecurityContextHolder.getContext().setAuthentication(...)方法 设置到其中,可以看出AuthenticationManager接口(认证管理器)是认证相关的核心接口,也是发起认证的出发点,它的实现类为ProviderManager,而SpringSecurity支持多种认证方式,因此ProviderManager维护着一个List列表,存放多种认证方式,最终实际的认证工作是由AuthenticationProvider完成的,web表单对应的AuthenticationProvider实现类为DaoAuthenticationProvider,它的内部又维护着一个UserDetailsService负责UserDetails的获取,最终AuthenticationProvider将UserDetails填充至Authentication

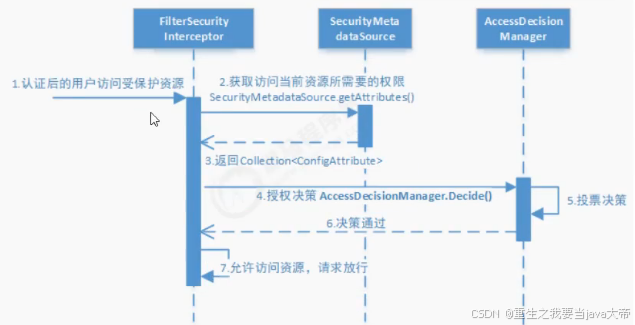

授权管理
访问资源(即授权管理),访问url时,会通过FilterSecurityInterceptor拦截器拦截,其中会调用SecurityMetadataSource的方法来获取被拦截url所需的全部权限,再调用授权管理器AccessDecisionManager,这个授权管理器会通过Spring的全局缓存SecurityContextHolder获取用户的权限信息,还会获取被拦截的url和被拦截url所需的全部权限,然后根据所配的投票策略(有:一票否定、一票决定、少数服从多数等),如果权限足够，则决策通过,返回访问资源,请求放行,否则跳转到403页面、自定义页面。

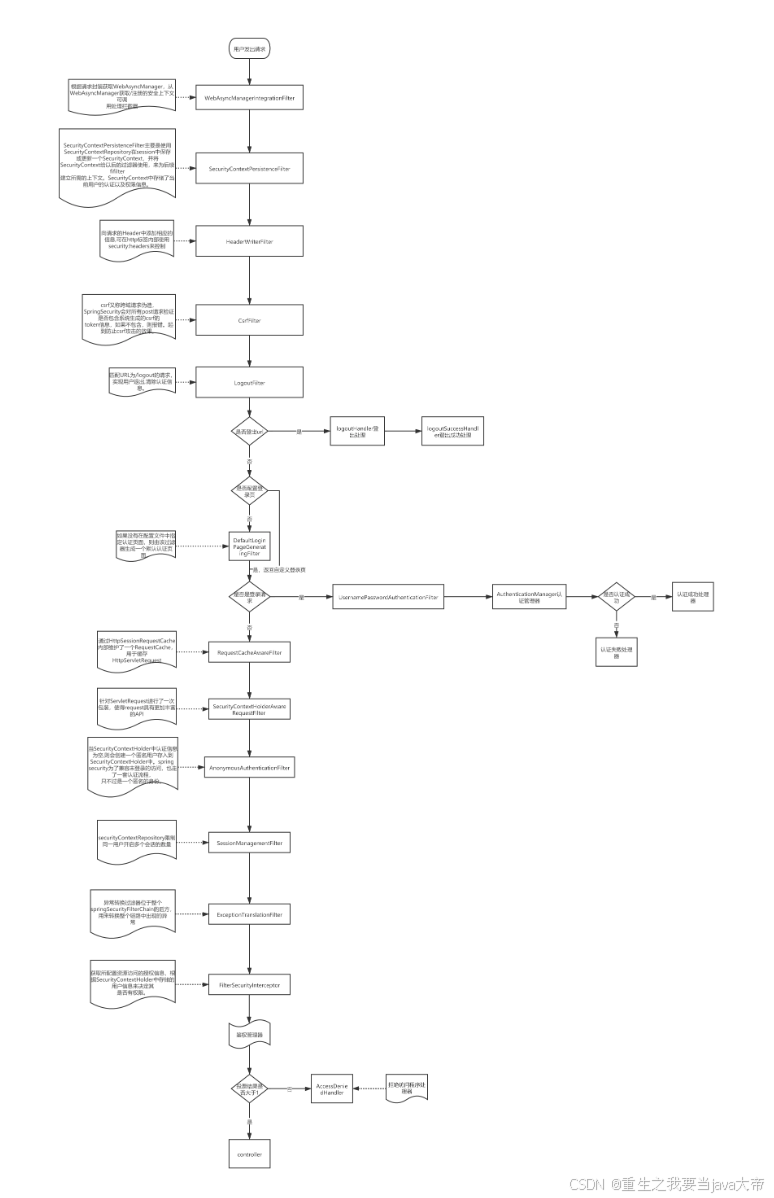

详细执行流程
项目整合SpringSecurity
1.在pom.xml中加入SpringSecurity依赖
<!--springsecurity-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-security</artifactId>
</dependency>
2.创建config.SecurityConfig类
package com.jd.jdadmin.config;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.http.SessionCreationPolicy;
/**
* @author java大帝
* @ClassName SecurityConfig
* @description: TODO
* @date 2025年 01月 14日
* @version: 1.0
*/
@Configuration
@EnableWebSecurity
@EnableGlobalMethodSecurity(prePostEnabled = true) // 启用了基于方法的安全性控制
public class SecurityConfig extends WebSecurityConfigurerAdapter {
private static final String URI_WHITELIST[] = {
"/login",
"/logout",
"captcha",
"/password",
"/image/**",
"/test/**"
};
@Override
protected void configure(HttpSecurity http) throws Exception {
// 开启跨域支持、关闭csrf支持、登录相关处理、退出登录、禁用 session配置、异常配置
http
.cors()
.and()
.csrf()
.disable()
.formLogin()
.and()
.sessionManagement()
.sessionCreationPolicy(SessionCreationPolicy.STATELESS) // 无状态
.and()
.authorizeRequests()
.antMatchers(URI_WHITELIST) // 白名单
.permitAll()
.anyRequest()
.authenticated();
}
@Override
protected void configure(AuthenticationManagerBuilder auth) throws Exception {
super.configure(auth); // 使用默认的用户名和密码[内置]
}
}

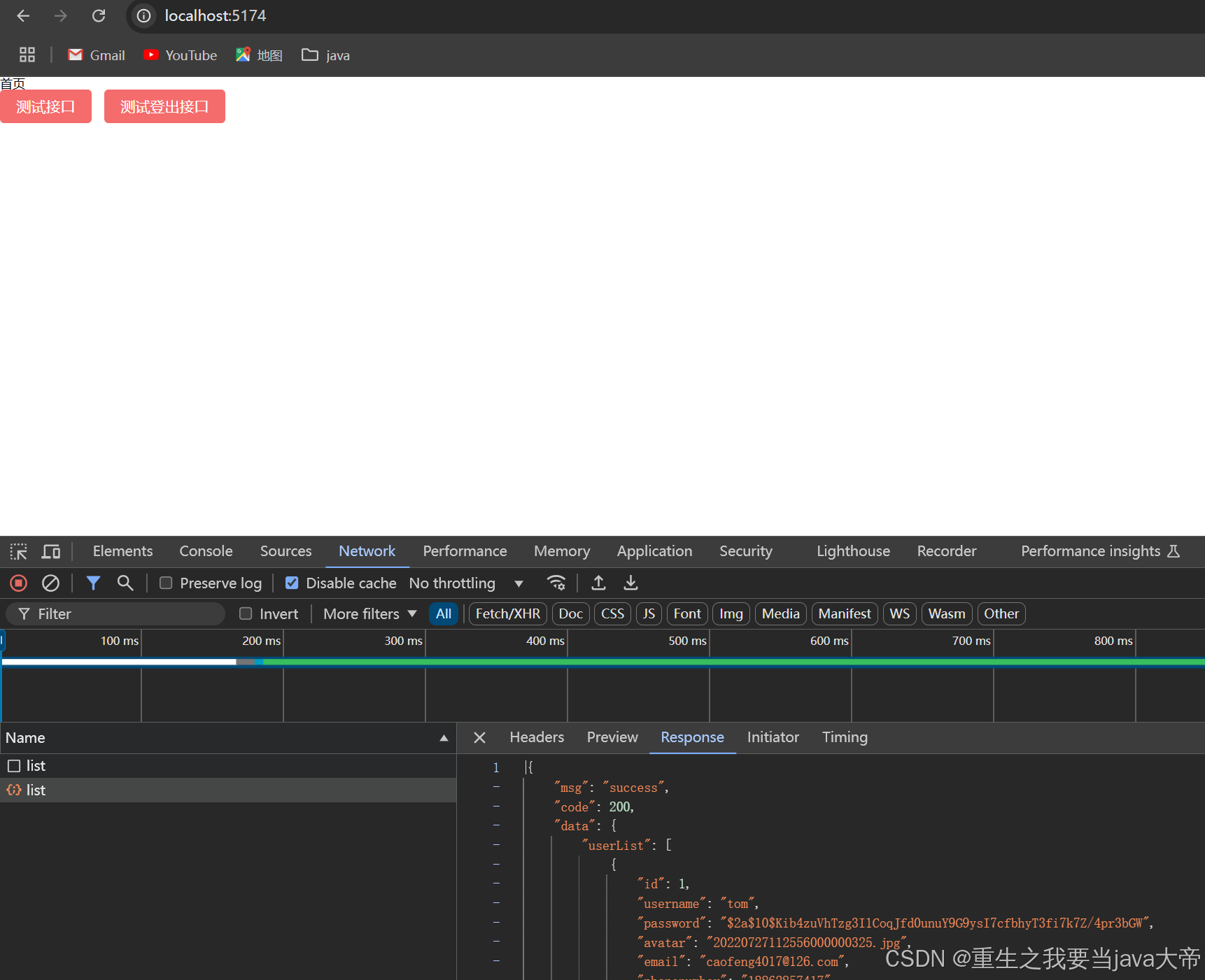

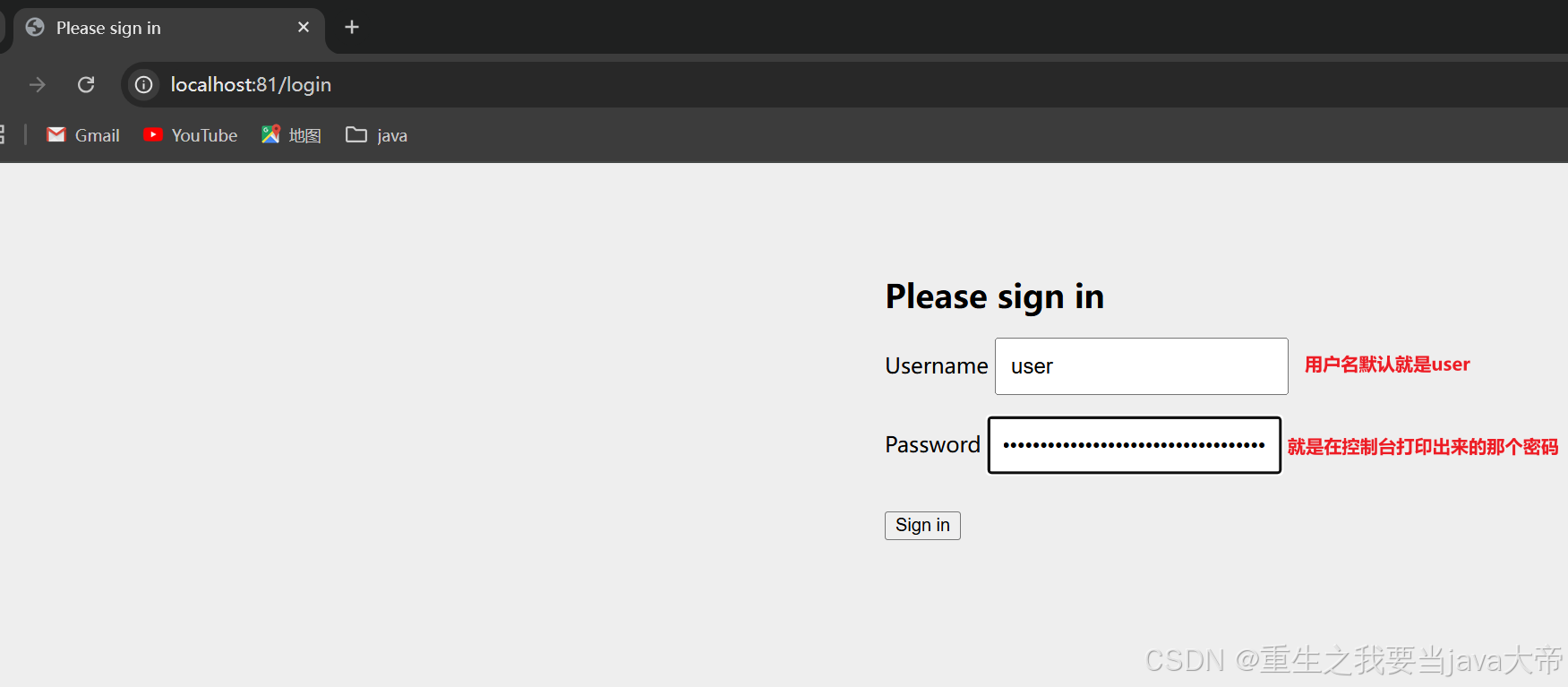

3.启动测试 此时浏览器访问http://localhost:81/test/list会报错 因为必须先登录
控制台会打印出密码
重写登录成功和登录失败处理器

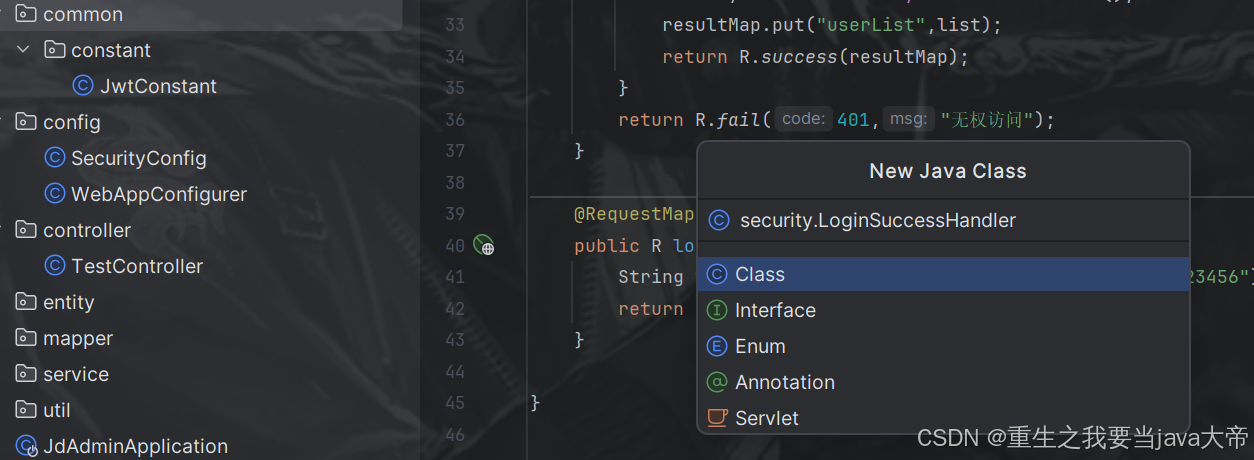

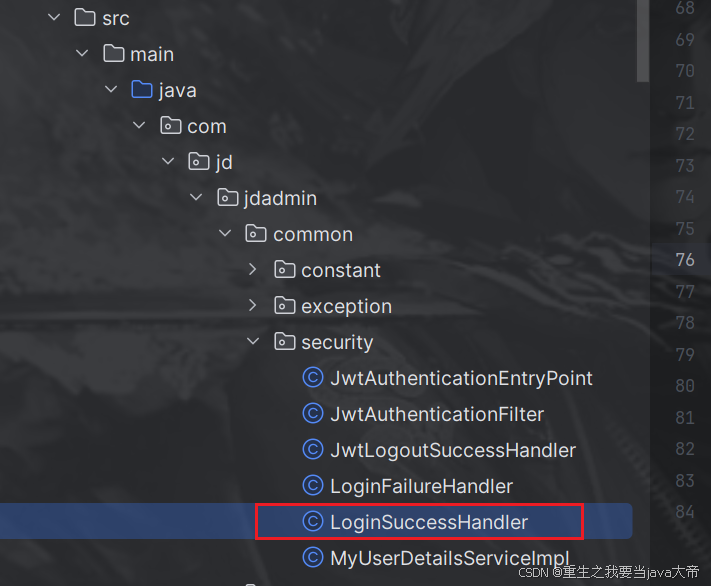

1.创建common.security包 和 LoginSuccessHandler类
package com.jd.jdadmin.common.security;
import cn.hutool.json.JSONUtil;
import com.jd.jdadmin.entity.R;
import com.jd.jdadmin.util.JwtUtils;
import org.springframework.security.core.Authentication;
import org.springframework.security.web.authentication.AuthenticationSuccessHandler;
import org.springframework.stereotype.Component;
import javax.servlet.ServletException;
import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
/**
* @author java大帝
* @ClassName LoginSuccessHandler
* @description: 登录成功后的处理器
* @date 2025年 01月 14日
* @version: 1.0
*/
@Component
public class LoginSuccessHandler implements AuthenticationSuccessHandler {
@Override
public void onAuthenticationSuccess(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse, Authentication authentication) throws IOException, ServletException {
// 设置返回的内容格式
httpServletResponse.setContentType("application/json;charset=UTF-8");
ServletOutputStream outputStream = httpServletResponse.getOutputStream();
// 目前使用SpringSecurity生成的user用户名
String username = "user";
String token = JwtUtils.genJwtToken(username);
outputStream.write(JSONUtil.toJsonStr(R.success().put("authorization",token)).getBytes());
outputStream.flush();
outputStream.close();
}
}
2.创建security.LoginFailureHandler类
package com.jd.jdadmin.common.security;
import cn.hutool.json.JSONUtil;
import com.jd.jdadmin.entity.R;
import org.springframework.security.authentication.BadCredentialsException;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.web.authentication.AuthenticationFailureHandler;
import org.springframework.stereotype.Component;
import javax.servlet.ServletException;
import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
/**
* @author java大帝
* @ClassName LoginSuccessHandler
* @description: 登录失败后的处理器
* @date 2025年 01月 14日
* @version: 1.0
*/
@Component
public class LoginFailureHandler implements AuthenticationFailureHandler {
@Override
public void onAuthenticationFailure(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse, AuthenticationException e) throws IOException, ServletException {
// 设置返回的内容格式
httpServletResponse.setContentType("application/json;charset=UTF-8");
ServletOutputStream outputStream = httpServletResponse.getOutputStream();
String message = e.getMessage();
if (e instanceof BadCredentialsException){
message = "用户名或密码错误!";
}
outputStream.write(JSONUtil.toJsonStr(R.fail(message)).getBytes("UTF-8"));
outputStream.flush();
outputStream.close();
}
}
3.在 SecurityConfig类中将登录成功和失败的处理器配置进去
package com.jd.jdadmin.config;
import com.jd.jdadmin.common.security.LoginFailureHandler;
import com.jd.jdadmin.common.security.LoginSuccessHandler;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.http.SessionCreationPolicy;
import javax.annotation.Resource;
/**
* @author java大帝
* @ClassName SecurityConfig
* @description: TODO
* @date 2025年 01月 14日
* @version: 1.0
*/
@Configuration
@EnableWebSecurity
@EnableGlobalMethodSecurity(prePostEnabled = true) // 启用了基于方法的安全性控制
public class SecurityConfig extends WebSecurityConfigurerAdapter {
@Resource
private LoginSuccessHandler loginSuccessHandler;
@Resource
private LoginFailureHandler loginFailureHandler;
...
@Override
protected void configure(HttpSecurity http) throws Exception {
// 开启跨域支持、关闭csrf支持、登录相关处理、退出登录、禁用 session配置、异常配置
http
.cors()
...
.formLogin()
.successHandler(loginSuccessHandler)
.failureHandler(loginFailureHandler)
...;
}
@Override
protected void configure(AuthenticationManagerBuilder auth) throws Exception {
super.configure(auth);
}
}

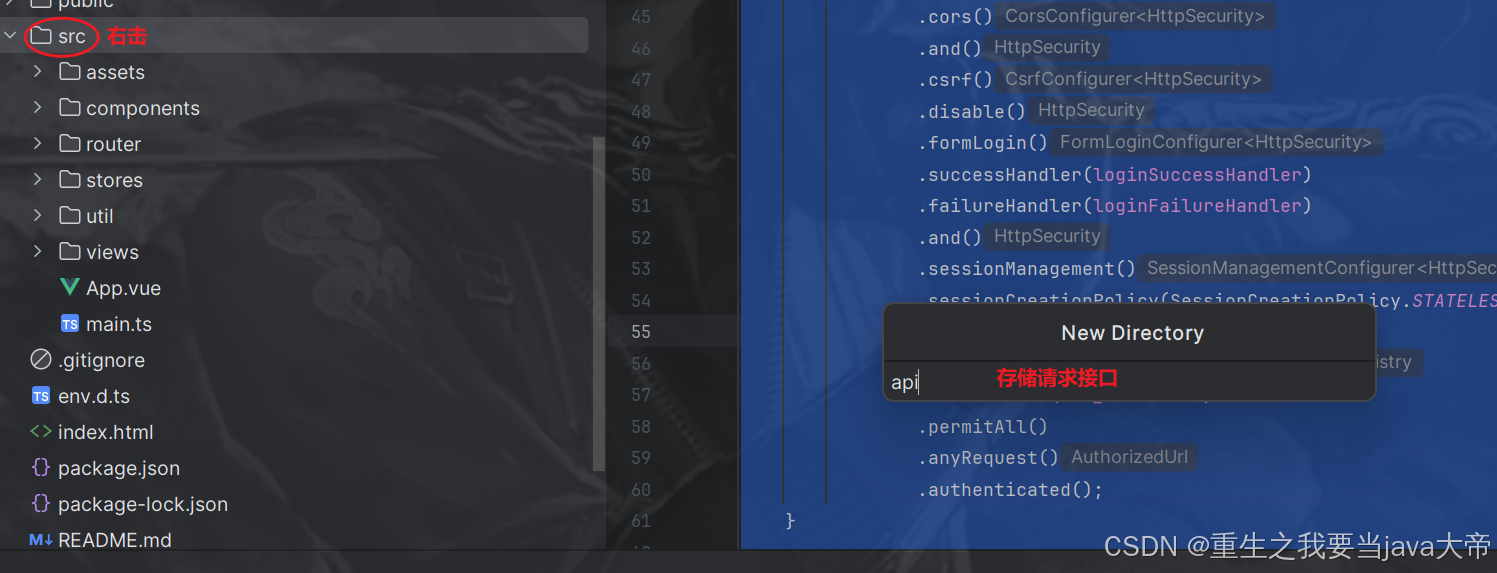

4.前台:创建api统一管理项目接口

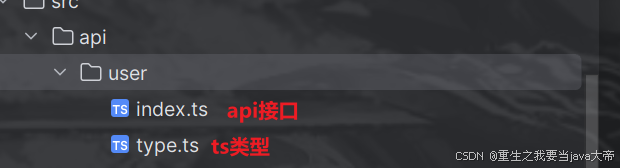

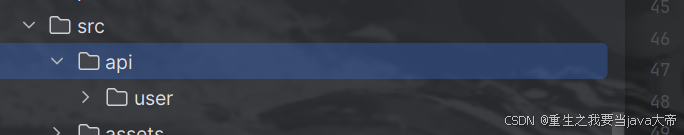

创建user文件夹 存储用户相关API接口
在user文件夹下创建index.ts和type.ts
index.ts
// 用户相关的API接口 import request from "@/util/request" import type {UserFormData, UserLoginResponseData} from "@/api/user/type" enum API { LOGIN_URL = 'login' } export const reqUserLogin = (data:UserFormData) => request.post<any,UserLoginResponseData>(API.LOGIN_URL + `?username=${data.username}&password=${data.password}`)
type.ts
export interface ResponseData { msg:string code:number } export interface UserFormData { username:string, password:string } export interface UserLoginResponseData extends ResponseData { data:{ authorization:string } }
5.在仓库中发登录请求[存储token]
import { defineStore } from "pinia"
import {GET_TOKEN, SET_TOKEN} from "@/util/token";
import {reqUserLogin} from "@/api/user";
import type {UserFormData} from "@/api/user/type";
const useUserStore = defineStore('User',{
state(){
return {
token:GET_TOKEN()
}
},
actions:{
async userLogin(data:UserFormData){
let res = await reqUserLogin(data)
if (res.code == 200){
this.token = res.data.authorization SET_TOKEN(res.data.authorization) // 存储token
return 'ok'
} else {
return Promise.reject(res.msg)
}
}
}
})
export default useUserStore
6. 修改Login.vue页面 测试登录请求
<script setup>
import { ref,reactive } from 'vue'
import useUserStore from "@/stores/modules/user"
import {ElMessage} from "element-plus";
import router from "@/router"
import Cookies from "js-cookie"
import { encrypt, decrypt } from "@/util/jsencrypt"
let userStore = useUserStore()
// el-form组件实例
let loginRef = ref()
// 收集表单数据
let loginForm = reactive({
username:'',
password:'',
rememberMe:false
})
// 验证对象
let loginRules = reactive({
username:[{required:true,trigger:'blur',message:'请输入您的账号'}],
password:[{required:true,trigger:'blur',message:'请输入您的密码'}]
})
const handleLogin = async () => {
await loginRef.value.validate()
//勾选了需要记住密码 设置在cookie中设置记住用户名和密码
if (loginForm.rememberMe){
Cookies.set('username',loginForm.username,{ expires: 30 })
Cookies.set('password',encrypt(loginForm.password),{ expires: 30 })
Cookies.set('rememberMe',loginForm.rememberMe,{ expires: 30 })
}else {
// 否则删除
Cookies.remove('username')
Cookies.remove('password')
Cookies.remove('rememberMe')
}
try {
await userStore.userLogin(loginForm)
console.log(1111)
router.push('/')
} catch (e) {
ElMessage.error("登录失败!")
}
}
function getCookie() {
const username = Cookies.get("username");
const password = Cookies.get("password");
const rememberMe = Cookies.get("rememberMe");
Object.assign(loginForm, {
username: username === undefined ? loginForm.username : username,
password: password === undefined ? loginForm.password : decrypt(password),
rememberMe: rememberMe === undefined ? false : Boolean(rememberMe)
});
}
// 获取cookie
getCookie();
</script>
<template>
<div class="login">
<el-form ref="loginRef" :model="loginForm" :rules="loginRules" class="login-form">
<h3 class="title">java大帝 Vue3 后台管理系统</h3>
<el-form-item prop="username">
<el-input
v-model="loginForm.username"
prefix-icon="User"
type="text"
size="large"
auto-complete="off"
placeholder="账号"
>
</el-input>
</el-form-item>
<el-form-item prop="password">
<el-input
v-model="loginForm.password"
prefix-icon="Lock"
type="password"
size="large"
auto-complete="off"
placeholder="密码"
@keyup.enter="handleLogin"
show-password
>
</el-input>
</el-form-item>
<el-checkbox v-model="loginForm.rememberMe" style="margin:0px 0px 25px 0px;">记住密码</el-checkbox>
<el-form-item style="width:100%;">
<el-button
size="large"
type="primary"
style="width:100%;"
@click.prevent="handleLogin"
>
<span>登 录</span>
</el-button>
</el-form-item>
</el-form>
<!-- 底部 -->
<div class="el-login-footer">
<span>Copyright © 2013-2022 <a href="https://blog.csdn.net/2302_80480374/article/details/145109271?spm=1001.2014.3001.5502" target="_blank">java大帝.vip</a> 版权所有.</span>
</div>
</div>
</template>
<style lang="scss" scoped>
a{
color:white
}
.login {
display: flex;
justify-content: center;
align-items: center;
height: 100%;
background-image: url("../assets/images/bg.jpg");
background-size: cover;
}
.title {
margin: 0px auto 30px auto;
text-align: center;
color: #707070;
}
.login-form {
border-radius: 6px;
background: #ffffff;
width: 400px;
padding: 25px 25px 5px 25px;
.el-input {
height: 40px;
input {
display: inline-block;
height: 40px;
}
}
.input-icon {
height: 39px;
width: 14px;
margin-left: 0px;
}
}
.login-tip {
font-size: 13px;
text-align: center;
color: #bfbfbf;
}
.login-code {
width: 33%;
height: 40px;
float: right;
img {
cursor: pointer;
vertical-align: middle;
}
}
.el-login-footer {
height: 40px;
line-height: 40px;
position: fixed;
bottom: 0;
width: 100%;
text-align: center;
color: #fff;
font-family: Arial;
font-size: 12px;
letter-spacing: 1px;
}
.login-code-img {
height: 40px;
padding-left: 12px;
}
</style>

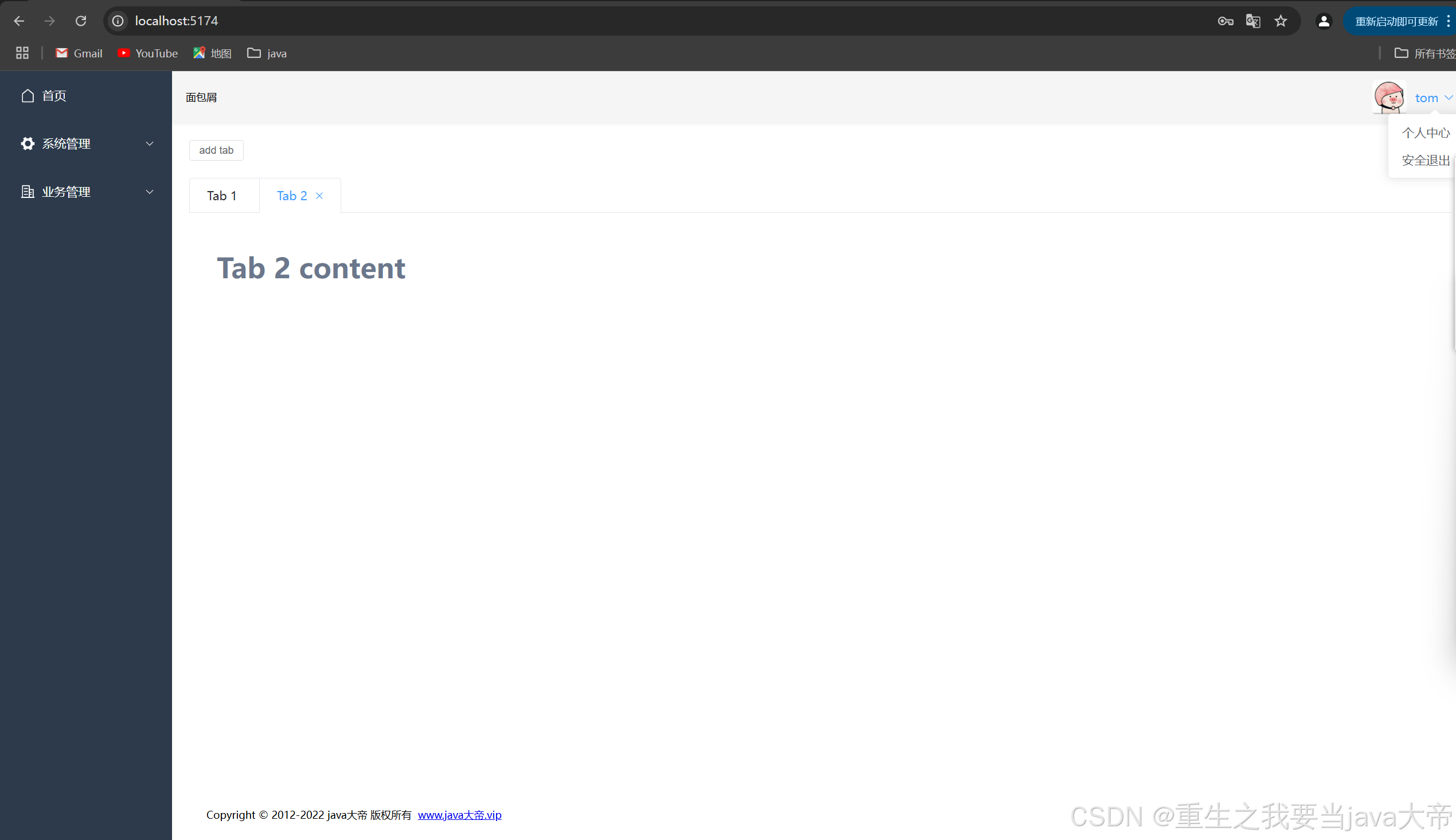

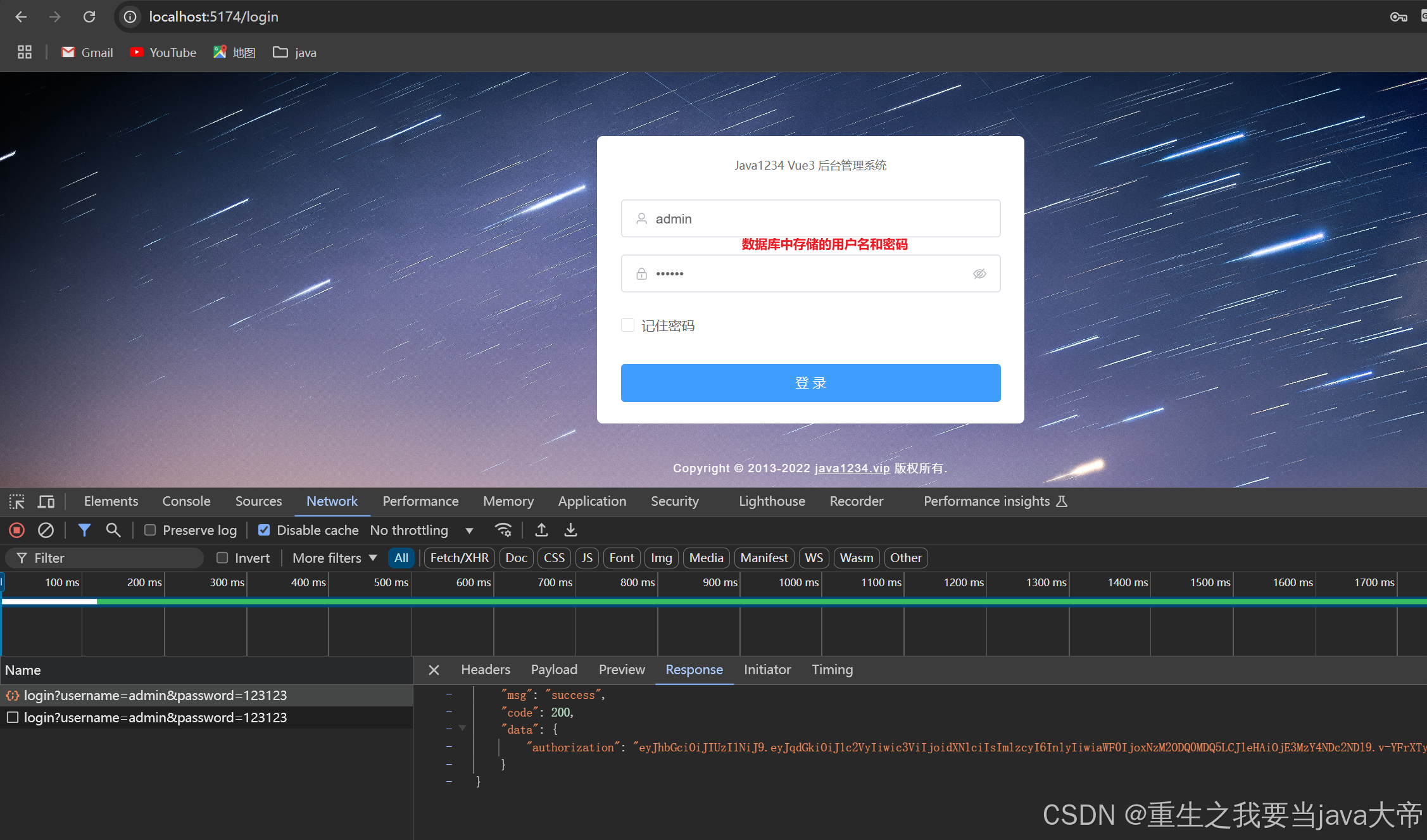

7.浏览器测试
用户登录SpringSecurity查库实现

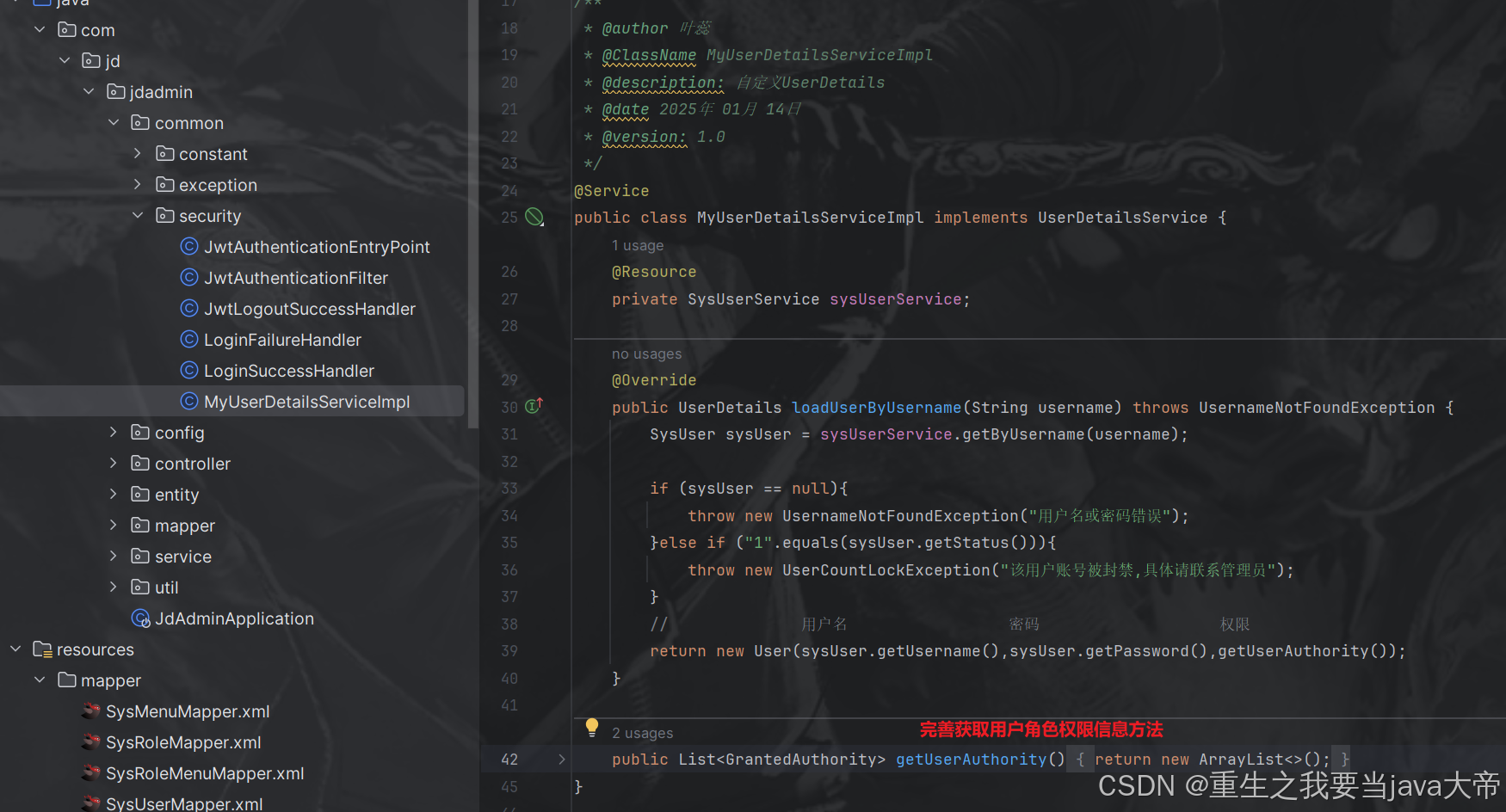

1.创建security.MyUserDetailsServiceImpl类
package com.jd.jdadmin.common.security;
import com.jd.jdadmin.common.exception.UserCountLockException;
import com.jd.jdadmin.entity.SysUser;
import com.jd.jdadmin.service.SysUserService;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;
import javax.annotation.Resource;
import java.util.ArrayList;
import java.util.List;
/**
* @author java大帝
* @ClassName MyUserDetailsServiceImpl
* @description: 自定义UserDetails
* @date 2025年 01月 14日
* @version: 1.0
*/
@Service
public class MyUserDetailsServiceImpl implements UserDetailsService {
@Resource
private SysUserService sysUserService;
@Override
public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
SysUser sysUser = sysUserService.getByUsername(username);
if (sysUser == null){
throw new UsernameNotFoundException("用户名或密码错误");
}else if ("1".equals(sysUser.getStatus())){
throw new UserCountLockException("该用户账号被封禁,具体请联系管理员");
}
// 用户名 密码 权限
return new User(sysUser.getUsername(),sysUser.getPassword(),getUserAuthority());
}
private List<GrantedAuthority> getUserAuthority() {
return new ArrayList<>();
}
}
2.创建common.exception.UserCountLockException异常类
package com.jd.jdadmin.common.exception;
import org.springframework.security.core.AuthenticationException;
/**
* @author java大帝
* @ClassName UserCountLockException
* @description: 账号被禁用异常
* @date 2025年 01月 14日
* @version: 1.0
*/
public class UserCountLockException extends AuthenticationException {
public UserCountLockException(String msg, Throwable t) {
super(msg, t);
}
public UserCountLockException(String msg) {
super(msg);
}
}
3.创建common.exception.GlobalExceptionHandler全局异常处理类
package com.jd.jdadmin.common.exception;
import com.jd.jdadmin.entity.R;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.RestControllerAdvice;
/**
* @author java大帝
* @ClassName GlobalException
* @description: 全局异常处理
* @date 2025年 01月 14日
* @version: 1.0
*/
@Slf4j
@RestControllerAdvice
public class GlobalExceptionHandler {
@ExceptionHandler(value = RuntimeException.class)
public R handler(RuntimeException e){
log.error("运行时异常:-----------------{}",e.getMessage());
return R.fail(e.getMessage());
}
}
4.在SysUserService中新增根据用户名查询SysUser方法
impl实现
@Override public SysUser getByUsername(String username) { return getOne(new QueryWrapper<SysUser>().eq("username",username)); }
5.在SecurityConfig中装配MyUserDetailsService类
@Resource
private MyUserDetailsServiceImpl myUserDetailsService;
// 加密因为密码就是使用的BCryptPasswordEncoder 加密存储的
@Bean
public BCryptPasswordEncoder bCryptPasswordEncoder(){
return new BCryptPasswordEncoder();
}
@Override
protected void configure(AuthenticationManagerBuilder auth) throws Exception {
auth.userDetailsService(myUserDetailsService);
}
6.重新启动 浏览器测试
实现JWT认证过滤器

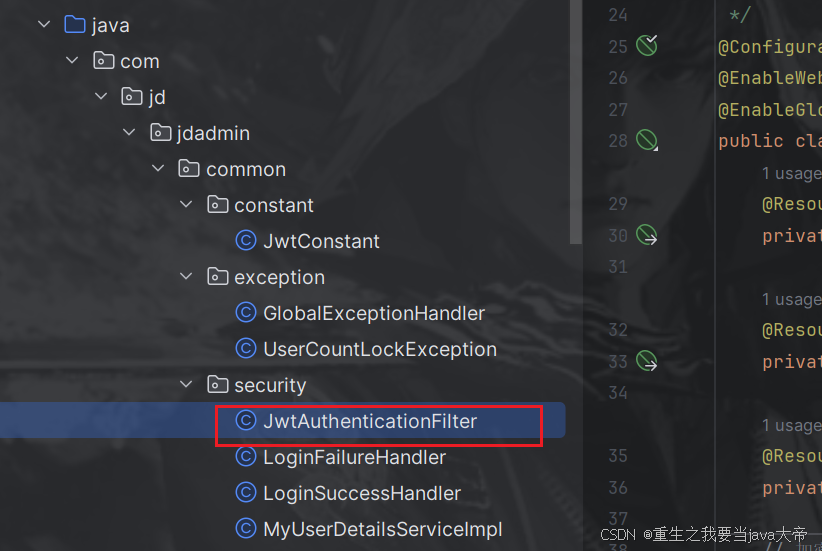

1.创建JwtAuthenticationFilter
package com.jd.jdadmin.common.security;
import com.jd.jdadmin.common.constant.JwtConstant;
import com.jd.jdadmin.entity.CheckResult;
import com.jd.jdadmin.entity.SysUser;
import com.jd.jdadmin.service.SysUserService;
import com.jd.jdadmin.util.JwtUtils;
import com.jd.jdadmin.util.StrUtil;
import io.jsonwebtoken.Claims;
import io.jsonwebtoken.JwtException;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.web.authentication.www.BasicAuthenticationFilter;
import javax.annotation.Resource;
import javax.servlet.FilterChain;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.util.ArrayList;
import java.util.Arrays;
/**
* @author java大帝
* @ClassName JwtAuthenticationFilter
* @description: Jwt认证
* @date 2025年 01月 14日
* @version: 1.0
*/
public class JwtAuthenticationFilter extends BasicAuthenticationFilter {
@Resource
private SysUserService sysUserService;
@Resource
private MyUserDetailsServiceImpl myUserDetailsService;
private static final String URI_WHITELIST[] = {
"/login",
"/logout",
"captcha",
"/password",
"/image/**"
};
public JwtAuthenticationFilter(AuthenticationManager authenticationManager) {
super(authenticationManager);
}
@Override
protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain chain) throws IOException, ServletException {
// 1.获取token请求头
String token = request.getHeader("token");
System.out.println("请求url" + request.getRequestURI());
// 2.判断token为空或uri在白名单里面 则放行
if (StrUtil.isEmpty(token) || new ArrayList<String>(Arrays.asList(URI_WHITELIST)).contains(request.getRequestURI())) {
chain.doFilter(request,response);
return;
}
// 3.否则验证token
CheckResult checkResult = JwtUtils.validateJWT(token);
if (checkResult.isSuccess()){
switch (checkResult.getErrCode()){
case JwtConstant.JWT_ERRCODE_NULL:
throw new JwtException("Token 不存在");
case JwtConstant.JWT_ERRCODE_FAIL:
throw new JwtException("Token 验证不通过");
case JwtConstant.JWT_ERRCODE_EXPIRE:
throw new JwtException("Token 过期");
}
}
// 获取主体信息
Claims claims = JwtUtils.parseJWT(token);
String username = claims.getSubject();
SysUser sysUser = sysUserService.getByUsername(username);
UsernamePasswordAuthenticationToken usernamePasswordAuthenticationToken = new UsernamePasswordAuthenticationToken(username,null,myUserDetailsService.getUserAuthority());
SecurityContextHolder.getContext().setAuthentication(usernamePasswordAuthenticationToken);// 将新创建的认证对象放入 SecurityContextHolder中，这样在整个请求链中都可以访问到当前认证的信息。
chain.doFilter(request,response);
}
}
2.在SecurityConfig类中装配
@Bean
public JwtAuthenticationFilter jwtAuthenticationFilter() throws Exception {
return new JwtAuthenticationFilter(authenticationManager());
}
@Override
protected void configure(HttpSecurity http) throws Exception {
// 开启跨域支持、关闭csrf支持、登录相关处理、退出登录、禁用 session配置、异常配置
http
...
.and()
.addFilter(jwtAuthenticationFilter()) // 过滤器
;
}
实现JWT认证异常处理器

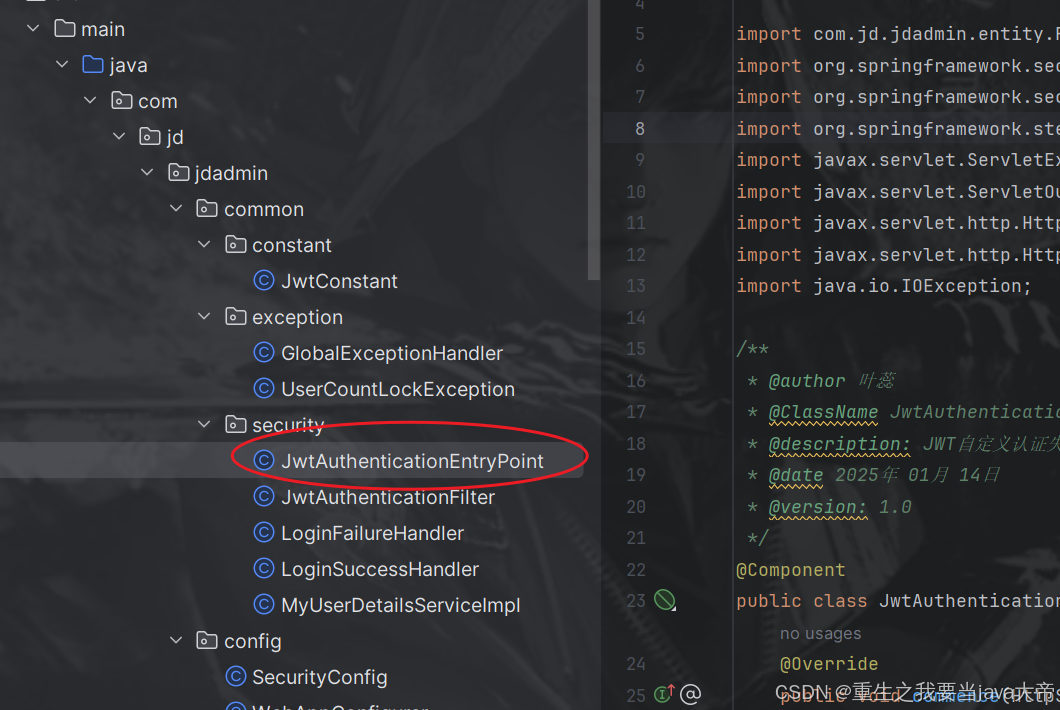

1.新建security.JwtAuthenticationEntryPoint类
package com.jd.jdadmin.common.security;
import cn.hutool.json.JSONUtil;
import com.jd.jdadmin.entity.R;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.web.AuthenticationEntryPoint;
import org.springframework.stereotype.Component;
import javax.servlet.ServletException;
import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
/**
* @author java大帝
* @ClassName JwtAuthenticationEntryPoint
* @description: JWT自定义认证失败后的处理
* @date 2025年 01月 14日
* @version: 1.0
*/
@Component
public class JwtAuthenticationEntryPoint implements AuthenticationEntryPoint {
@Override
public void commence(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse, AuthenticationException e) throws IOException, ServletException {
// 设置返回的内容格式
httpServletResponse.setContentType("application/json;charset=UTF-8");
ServletOutputStream outputStream = httpServletResponse.getOutputStream();
outputStream.write(JSONUtil.toJsonStr(R.fail(HttpServletResponse.SC_UNAUTHORIZED,"认证失败请登录!")).getBytes());
outputStream.flush();
outputStream.close();
}
}
2.在SecurityConfig中装配并设置
private static final String URI_WHITELIST[] = {
"/login",
"/logout",
"captcha",
"/password",
"/image/**"
};
@Resource
private JwtAuthenticationEntryPoint jwtAuthenticationEntryPoint;
@Override
protected void configure(HttpSecurity http) throws Exception {
// 开启跨域支持、关闭csrf支持、登录相关处理、退出登录、禁用 session配置、异常配置、自定义过滤器配置
http
...
.and()
.exceptionHandling()
.authenticationEntryPoint(jwtAuthenticationEntryPoint)
...
;
}
3.前端:修改一下Login.vue 实现登录成功后去往首页

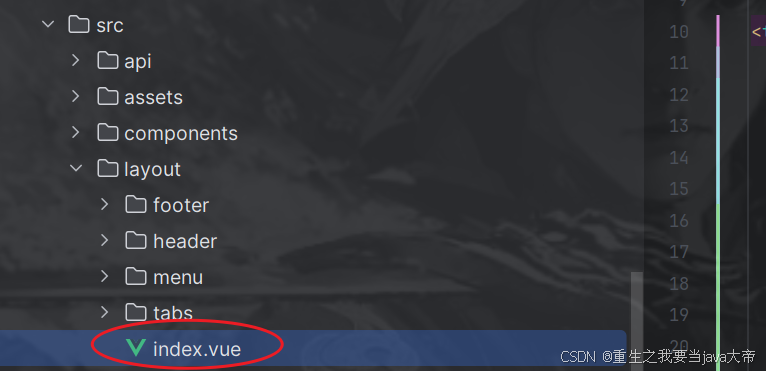

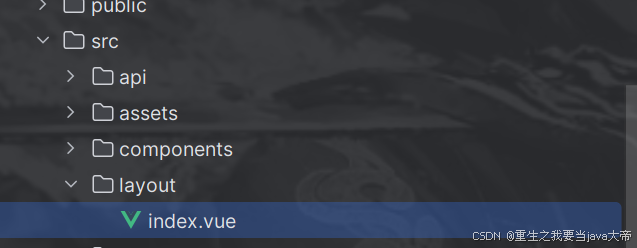

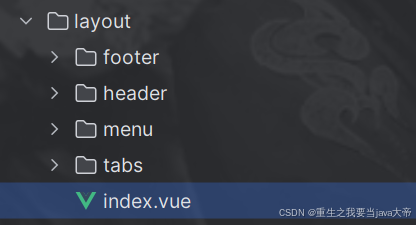

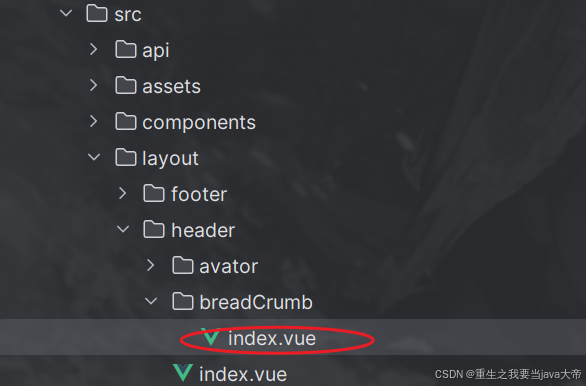

3.1创建src/layout文件夹 并新建index.vue
<script setup lang="ts">
import request from "@/util/request"
const testHandler = async () => {
let res = await request.get('test/list')
console.log(res)
}
</script>
<template>
<div>首页</div>
<el-button type="danger" @click="testHandler">测试接口</el-button>
</template>
<style scoped>
</style>
3.2在router/index.ts中配置
import { createRouter, createWebHistory } from 'vue-router'
const router = createRouter({
history: createWebHistory(import.meta.env.BASE_URL),
routes: [
{
path: '/',
name: '首页',
component: () => import('@/layout/index.vue')
},
{
path: '/login',
name: 'login',
component: () => import('@/views/Login.vue')
}
]
})
export default router
3.3修改views/Login.vue页面
<script setup>
import { ref,reactive } from 'vue'
import useUserStore from "@/stores/modules/user"
import {ElMessage} from "element-plus";
import router from "@/router"
let userStore = useUserStore()
// el-form组件实例
let loginRef = ref()
// 收集表单数据
let loginForm = reactive({
username:'',
password:''
})
// 验证对象
let loginRules = reactive({
username:[{required:true,trigger:'blur',message:'请输入您的账号'}],
password:[{required:true,trigger:'blur',message:'请输入您的密码'}]
})
const handleLogin = async () => {
await loginRef.value.validate()
try {
await userStore.userLogin(loginForm)
console.log(1111)
router.push('/')
} catch (e) {
ElMessage.error("登录失败!")
}
}
</script>
<template>
<div class="login">
<el-form ref="loginRef" :model="loginForm" :rules="loginRules" class="login-form">
<h3 class="title">Jd Vue3 后台管理系统</h3>
<el-form-item prop="username">
<el-input
v-model="loginForm.username"
prefix-icon="User"
type="text"
size="large"
auto-complete="off"
placeholder="账号"
>
</el-input>
</el-form-item>
<el-form-item prop="password">
<el-input
v-model="loginForm.password"
prefix-icon="Lock"
type="password"
size="large"
auto-complete="off"
placeholder="密码"
@keyup.enter="handleLogin"
show-password
>
</el-input>
</el-form-item>
<el-checkbox style="margin:0px 0px 25px 0px;">记住密码</el-checkbox>
<el-form-item style="width:100%;">
<el-button
size="large"
type="primary"
style="width:100%;"
@click.prevent="handleLogin"
>
<span>登 录</span>
</el-button>
</el-form-item>
</el-form>
<!-- 底部 -->
<div class="el-login-footer">
<span>Copyright © 2013-2022 <a href="http://www.java1234.vip" target="_blank">jd.vip</a> 版权所有.</span>
</div>
</div>
</template>
<style lang="scss" scoped>
...
</style>

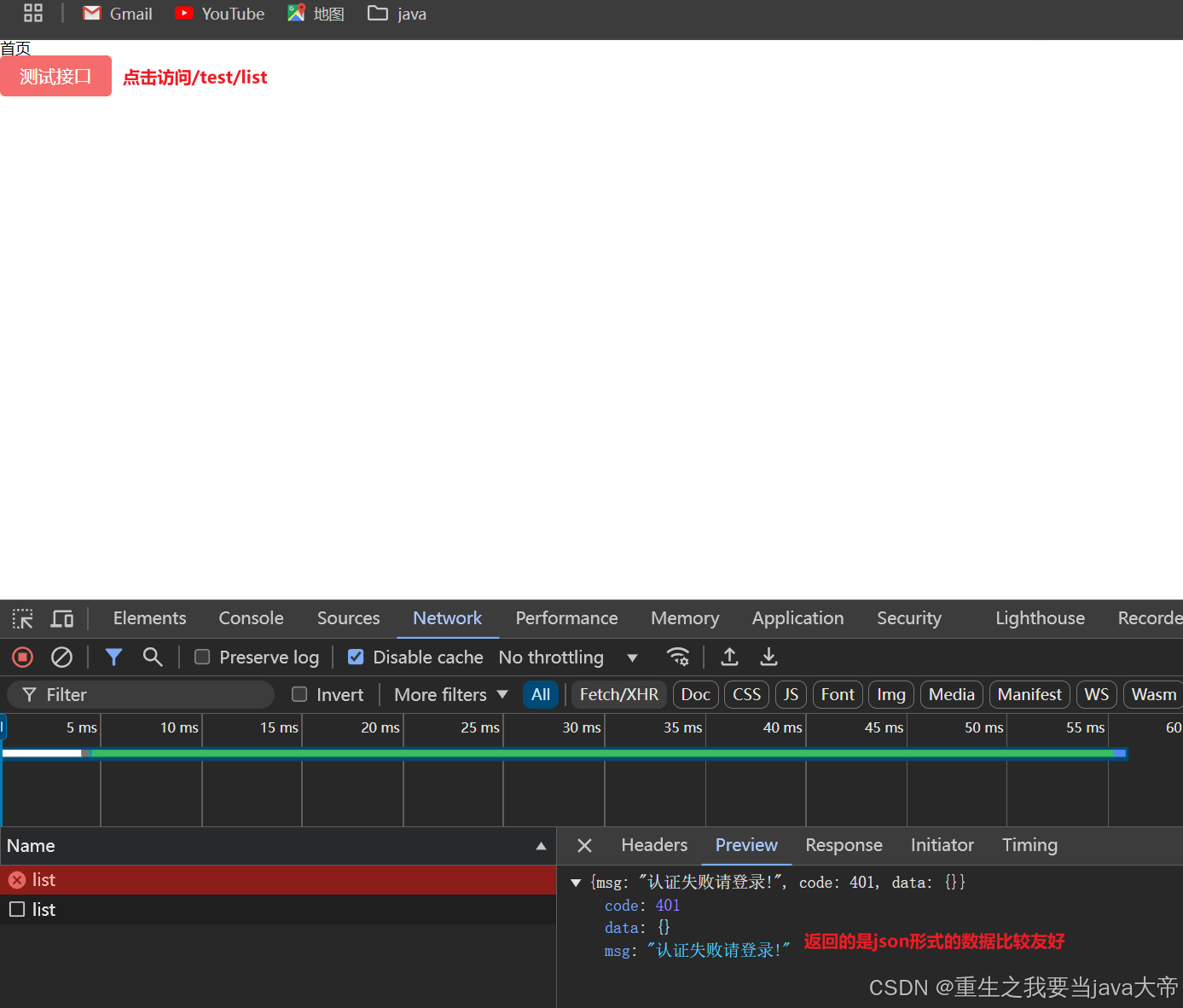

4.浏览器测试
实现自定义logout处理
默认logout请求实现是有状态的 返回到login请求页面 我们现在是前后端分离处理 所以需要自定义实现logout
1.新建security.JwtLogoutSuccessHandler
@Component
public class JwtLogoutSuccessHandler implements LogoutSuccessHandler {
@Override
public void onLogoutSuccess(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse, Authentication authentication) throws IOException, ServletException {
// 设置返回的内容格式
httpServletResponse.setContentType("application/json;charset=UTF-8");
ServletOutputStream outputStream = httpServletResponse.getOutputStream();
outputStream.write(JSONUtil.toJsonStr(R.success("登出成功")).getBytes());
outputStream.flush();
outputStream.close();
}
}
2.在SecurityConfig中配置
@Resource
private JwtLogoutSuccessHandler jwtLogoutSuccessHandler;
@Override
protected void configure(HttpSecurity http) throws Exception {
// 开启跨域支持、关闭csrf支持、登录相关处理、退出登录、禁用 session配置、异常配置
http
...
.and()
.logout()
.logoutSuccessHandler(jwtLogoutSuccessHandler)
...
;
}

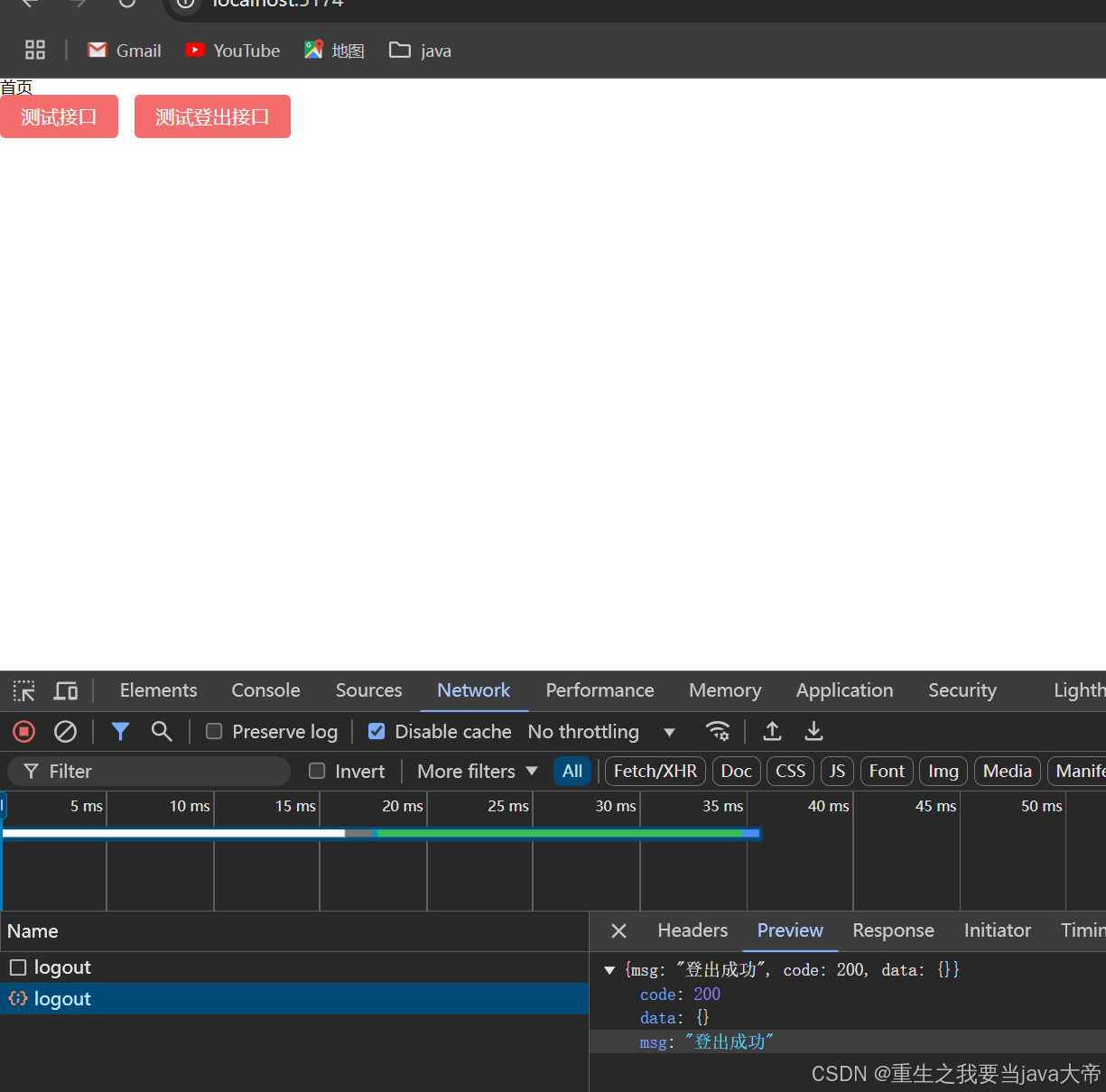

3.浏览器测试
*获取用户角色权限信息实现
springsecurity鉴权需要获取用户的角色权限系统 包括前端也需要这些信息
首先新建角色表 sys_role、菜单权限表sys_menu、用户角色关联表 sys_user_role、角色菜单权限关联表sys_role_menu
1.创建数据库表
# 角色表
CREATE TABLE `sys_role`(
`id` BIGINT(20) NOT NULL PRIMARY KEY AUTO_INCREMENT COMMENT '角色主键id',
`name` VARCHAR(30) DEFAULT NULL COMMENT '角色名称',
`code` VARCHAR(100) DEFAULT NULL COMMENT '角色权限字符串',
`create_time` DATETIME DEFAULT NULL COMMENT '创建时间',
`update_time` DATETIME DEFAULT NULL COMMENT '更新时间',
`remark` VARCHAR(500) DEFAULT NULL COMMENT '备注'
)ENGINE=INNODB CHARSET = utf8;# 测试数据
INSERT INTO `sys_role`(`id`,`name`,`code`,`create_time`,`update_time`,`remark`)
VALUES (1,'超级管理员','admin','2024-07-04 14:40:44','2024-07-04 14:40:47','拥有系统最高权限'),
(2,'普通角色','common','2024-07-04 14:41:56','2024-07-04 14:41:58','普通角色'),
(3,'测试角色','test','2024-07-04 14:42:24','2024-07-04 14:42:27','测试角色'),
(4,'2',NULL,NULL,NULL,NULL),(5,'3',NULL,NULL,NULL,NULL),
(6,'4',NULL,NULL,NULL,NULL),(7,'5',NULL,NULL,NULL,NULL),
(14,'6',NULL,NULL,NULL,NULL),(16,'8',NULL,NULL,NULL,NULL),
(17,'0',NULL,NULL,NULL,NULL),(19,'测2','cc2','2024-08-13 21:06:21','2024-08-13
13:06:27','eewew2'),(20,'ccc测试','test2','2024-08-29 17:10:33',NULL,'xxx'),
(21,'今天测试角色','todytest','2024-08-29 22:01:11',NULL,'ccc');# 菜单权限表
CREATE TABLE `sys_menu` (
`id` BIGINT(20) NOT NULL PRIMARY KEY AUTO_INCREMENT COMMENT '菜单主键id',
`name` VARCHAR(50) DEFAULT NULL COMMENT '菜单名称',
`icon` VARCHAR(100) DEFAULT '#' COMMENT '菜单图标',
`parent_id` BIGINT(20) DEFAULT NULL COMMENT '父菜单id',
`order_num` INT(11) DEFAULT '0' COMMENT '显示顺序',
`path` VARCHAR(200) DEFAULT '' COMMENT '路由地址',
`component` VARCHAR(255) DEFAULT NULL COMMENT '路由路径',
`menu_type` CHAR(1) DEFAULT '' COMMENT '菜单类型 M目录 C菜单 F按钮',
`perms` VARCHAR(100) DEFAULT '' COMMENT '权限标识',
`create_time` DATETIME DEFAULT NULL COMMENT '创建时间',
`update_time` DATETIME DEFAULT NULL COMMENT '更新时间',
`remark` VARCHAR(500) DEFAULT NULL COMMENT '备注'
)ENGINE=INNODB CHARSET = utf8;# 测试数据
INSERT INTO `sys_menu`(`id`,`name`,`icon`,`parent_id`,`order_num`,`path`,`component`,`menu_type`,`perms`,`create_time`,`update_time`,`remark`)
VALUES
(1,'系统管理','system',0,1,'/sys','','M','','2024-07-04 14:56:29','2024-07-04 14:56:31','系统管理目录'),
(2,'业务管理','monitor',0,2,'/bsns','','M','','2024-07-04 14:59:43','2024-07-04 14:59:45','业务管理目录'),
(3,'用户管理','user',1,1,'/sys/user','sys/user/index','C','system:user:list','2024-07-04 15:20:51','2024-07-04 15:20:53','用户管理菜单'),
(4,'角色管理','peoples',1,2,'/sys/role','sys/role/index','C','system:role:list','2024-07-04 15:23:35','2024-07-04 15:23:39','角色管理菜单'),
(5,'菜单管理','tree- table',1,3,'/sys/menu','sys/menu/index','C','system:menu:list','2024-07-04 15:23:41','2024-07-04 15:23:43','菜单管理菜单'),
(6,'部门管理','tree',2,1,'/bsns/department','bsns/Department','C','','2024-07-04 15:24:40','2024-07-04 15:24:44','部门管理菜单'),
(7,'岗位管理','post',2,2,'/bsns/post','bsns/Post','C','','2024-07-04 15:24:42','2024-07-04 15:24:46','岗位管理菜单'),
(8,'用户新增','#',3,2,'','','F','system:user:add','2024-07-04 15:24:42','2024-07-04 15:24:46','添加用户按钮'),
(9,'用户修改','#',3,3,'','','F','system:user:edit','2024-07-04 15:24:42','2024-07-04 15:24:46','修改用户按钮'),
(10,'用户删除','#',3,4,'','','F','system:user:delete','2024-07-04 15:24:42','2024-07-04 15:24:46','删除用户按钮'),
(11,'分配角色','#',3,5,'','','F','system:user:role','2024-07-04 15:24:42','2024-07-04 15:24:46','分配角色按钮'),
(12,'重置密码','#',3,6,'','','F','system:user:resetPwd','2024-07-04 15:24:42','2024-07-04 15:24:46','重置密码按钮'),
(13,'角色新增','#',4,2,'','','F','system:role:add','2024-07-04 15:24:42','2024-07-04 15:24:46','添加用户按钮'),
(14,'角色修改','#',4,3,'','','F','system:role:edit','2024-07-04 15:24:42','2024-07-04 15:24:46','修改用户按钮'),
(15,'角色删除','#',4,4,'',NULL,'F','system:role:delete','2024-07-04 15:24:42','2024-07-04 15:24:46','删除用户按钮'),
(16,'分配权限','#',4,5,'','','F','system:role:menu','2024-07-04 15:24:42','2024-07-04 15:24:46','分配权限按钮'),
(17,'菜单新增','#',5,2,'',NULL,'F','system:menu:add','2024-07-04 15:24:42','2024-07-04 15:24:46','添加菜单按钮'),
(18,'菜单修改','#',5,3,'',NULL,'F','system:menu:edit','2024-07-04 15:24:42','2024-07-04 15:24:46','修改菜单按钮'),
(19,'菜单删除','#',5,4,'',NULL,'F','system:menu:delete','2024-07-04 15:24:42','2024-07-04 15:24:46','删除菜单按钮'),
(20,'用户查询','#',3,1,'',NULL,'F','system:user:query','2024-07-04 15:24:42','2024-07-04 15:24:46','用户查询按钮'),
(21,'角色查询','#',4,1,'',NULL,'F','system:role:query','2024-07-04 15:24:42','2024-07-04 15:24:46','角色查询按钮'),
(22,'菜单查询','#',5,1,'',NULL,'F','system:menu:query','2024-07-04 15:24:42','2024-07-04 15:24:46','菜单查询按钮'),
(33,'测速22','122',3,3,'','34','M','33','2024-08-19 03:11:20','2024-08-18 19:11:33',NULL);# 用户角色关联表
CREATE TABLE `sys_user_role`(
`id` BIGINT(20) NOT NULL PRIMARY KEY AUTO_INCREMENT COMMENT '用户角色主键id',
`user_id` BIGINT(20) DEFAULT NULL COMMENT '用户id',
`role_id` BIGINT(20) DEFAULT NULL COMMENT '角色id'
)ENGINE=INNODB CHARSET = utf8;# 测试数据
INSERT INTO `sys_user_role`(`id`,`user_id`,`role_id`)
VALUES (1,1,1),(2,2,2),(4,1,2),(6,3,3),(7,3,2),(9,4,3),(10,5,3),(11,15,3),(16,28,2),(17,28,3),(20,29,20),(21,30,17),(22,30,21);# 角色菜单关联表
CREATE TABLE `sys_role_menu`(
`id` BIGINT(20) NOT NULL PRIMARY KEY AUTO_INCREMENT COMMENT '角色菜单主键id',
`role_id` BIGINT(20) DEFAULT NULL COMMENT '角色id',
`menu_id` BIGINT(20) DEFAULT NULL COMMENT '菜单id'
)ENGINE=INNODB CHARSET = utf8;# 测试数据
INSERT INTO `sys_role_menu`(`id`,`role_id`,`menu_id`)
VALUES
(8,2,1),(9,2,2),(10,2,3),(11,2,4),(12,2,5),(13,2,6),(14,2,7),(15,3,2),(16,3,6),(17,3,7),(21,7,1),(22,7,2),(23,7,6),(24,7,7),
(25,6,1),(26,6,3),(27,6,9),(28,6,10),(29,19,1),(30,19,3),(31,19,2),(32,19,6),(33,1,1),(34,1,3),(35,1,20),(36,1,8),(37,1,9),
(38,1,10),(39,1,11),(40,1,12),(41,1,4),(42,1,21),(43,1,13),(44,1,14),(45,1,15),(46,1,16),(47,1,23),(48,1,5),(49,1,22),(50,1,17),
(51,1,18),(52,1,19),(53,1,2),(54,1,6),(55,1,7),(208,20,1),(209,20,3),(210,20,20),(211,20,8),(212,20,9),(213,20,33),(214,20,10),
(215,20,11),(216,20,4),(217,20,21),(218,20,13),(219,20,5),(220,20,22),(221,20,17),(222,20,18),(223,20,2),(224,20,6),(225,20,7),
(232,21,1),(233,21,9),(234,21,4),(235,21,21),(236,21,2),(237,21,6),(238,21,7);
2.使用MybatisX快速生成entity、mapper、service
3.完善MyUserDetailsServiceImpl的getUserAuthority方法
// 在调用getUserAuthority方法的地方也要做相应修改 比如JwtAuthenticationFilter的方法
public List<GrantedAuthority> getUserAuthority(Long userId) {
String authority=sysUserService.getUserAuthorityInfo(userId);
return AuthorityUtils.commaSeparatedStringToAuthorityList(authority);
}
4.在SysUserService中定义方法
String getUserAuthorityInfo(Long userId);
5.在SysUserServiceImpl中做相应实现
package com.jd.jdadmin.service.impl;
import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.jd.jdadmin.entity.SysMenu;
import com.jd.jdadmin.entity.SysRole;
import com.jd.jdadmin.entity.SysUser;
import com.jd.jdadmin.mapper.SysMenuMapper;
import com.jd.jdadmin.mapper.SysRoleMapper;
import com.jd.jdadmin.service.SysUserService;
import com.jd.jdadmin.mapper.SysUserMapper;
import com.jd.jdadmin.util.StrUtil;
import org.springframework.stereotype.Service;
import javax.annotation.Resource;
import java.util.HashSet;
import java.util.List;
import java.util.Set;
import java.util.stream.Collectors;
/**
* @author java大帝
* @description 针对表【sys_user】的数据库操作Service实现
* @createDate 2025-01-13 15:41:51
*/
@Service
public class SysUserServiceImpl extends ServiceImpl<SysUserMapper, SysUser>
implements SysUserService{
@Resource
private SysRoleMapper sysRoleMapper;
@Resource
private SysMenuMapper sysMenuMapper;
@Override
public SysUser getByUsername(String username) {
return getOne(new QueryWrapper<SysUser>().eq("username",username));
}
// 返回格式: ROLE_admin,ROLE_common,system:user:resetPwd,system:role:delete,system:user:list,system:menu:query,system:menu:list 的字符串
@Override
public String getUserAuthorityInfo(Long userId) {
StringBuffer authority = new StringBuffer();
// 1.根据用户id获取所有的权限信息[通过用户角色关联表]
List<SysRole> roleList = sysRoleMapper.selectList(new QueryWrapper<SysRole>().inSql("id", "SELECT role_id FROM sys_user_role WHERE user_id = " + userId));
if (roleList.size() > 0){ // 长度大于0
String roleCodeStrs = roleList.stream().map(item -> "ROLE_" + item.getCode()).collect(Collectors.joining(","));
authority.append(roleCodeStrs);
}
// 2.遍历所有角色获取所有菜单权限而且不重复
// 使用set集合 避免重复
Set<String> menuCodeSet = new HashSet<>();
for (SysRole sysRole : roleList) {
List<SysMenu> menuList = sysMenuMapper.selectList(new QueryWrapper<SysMenu>().inSql("id", "SELECT menu_id FROM sys_role_menu WHERE role_id = " + sysRole.getId()));
// 遍历菜单列表 取出perms权限值
for (SysMenu sysMenu : menuList) {
String perms = sysMenu.getPerms();
if (StrUtil.isNotEmpty(perms)){
// 添加到set集合中
menuCodeSet.add(perms);
}
}
}
if (menuCodeSet.size() > 1 ){ // 默认就是1所以长度必须大于1
// 在角色字符串的后面加个,
authority.append(",");
String menuCodeStrs = menuCodeSet.stream().collect(Collectors.joining(","));
authority.append(menuCodeStrs);
}
System.out.println("authority=" + authority);
return authority.toString();
}
}
6.在TestController方法上使用PreAuthorize注解做相应权限校验
@PreAuthorize("hasRole('admin')") // 在校验时可以不带上ROLE_因为会自动拼接上,当存入进去的role值必须带ROLE_
@RequestMapping("list")
public R userList(@RequestHeader(required = false) String token){
if (StrUtil.isNotEmpty(token)){
HashMap<String, Object> resultMap = new HashMap<>();
List<SysUser> list = sysUserService.list();
resultMap.put("userList",list);
return R.success(resultMap);
}
return R.fail(401,"无权访问");
}
7.修改一下LoginSuccessHandler
package com.jd.jdadmin.common.security;
import cn.hutool.json.JSONUtil;
import com.jd.jdadmin.entity.R;
import com.jd.jdadmin.util.JwtUtils;
import org.springframework.security.core.Authentication;
import org.springframework.security.web.authentication.AuthenticationSuccessHandler;
import org.springframework.stereotype.Component;
import javax.servlet.ServletException;
import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
/**
* @author java大帝
* @ClassName LoginSuccessHandler
* @description: 登录成功后的处理器
* @date 2025年 01月 14日
* @version: 1.0
*/
@Component
public class LoginSuccessHandler implements AuthenticationSuccessHandler {
@Override
public void onAuthenticationSuccess(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse, Authentication authentication) throws IOException, ServletException {
// 设置返回的内容格式
httpServletResponse.setContentType("application/json;charset=UTF-8");
ServletOutputStream outputStream = httpServletResponse.getOutputStream();
String username = authentication.getName();
String token = JwtUtils.genJwtToken(username);
outputStream.write(JSONUtil.toJsonStr(R.success().put("authorization",token)).getBytes());
outputStream.flush();
outputStream.close();
}
}
8.浏览器测试 登录之后再测试
记住密码功能实现
记住密码 通过cookie实现 先安装'js-cookie'依赖
存储用户密码为了安全需要加密 获取密码解密 所以我们安装'jsencrypt'依赖
1.安装js-cookie和jsencrypt依赖
npm install js-cookie@3.0.1 jsencrypt@3.2.1
2.util下新建jsencrypt.ts
//@ts-ignore
import JSEncrypt from 'jsencrypt/bin/jsencrypt.min'
// 密钥对生成 http://web.chacuo.net/netrsakeypair
const publicKey = 'MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBAKoR8mX0rGKLqzcWmOzbfj64K8ZIgOdH\n' +
'nzkXSOVOZbFu/TJhZ7rFAN+eaGkl3C4buccQd/EjEsj9ir7ijT7h96MCAwEAAQ=='
const privateKey = 'MIIBVAIBADANBgkqhkiG9w0BAQEFAASCAT4wggE6AgEAAkEAqhHyZfSsYourNxaY\n' +
'7Nt+PrgrxkiA50efORdI5U5lsW79MmFnusUA355oaSXcLhu5xxB38SMSyP2KvuKN\n' + 'PuH3owIDAQABAkAfoiLyL+Z4lf4Myxk6xUDgLaWGximj20CUf+5BKKnlrK+Ed8gA\n' +
'kM0HqoTt2UZwA5E2MzS4EI2gjfQhz5X28uqxAiEA3wNFxfrCZlSZHb0gn2zDpWow\n' + 'cSxQAgiCstxGUoOqlW8CIQDDOerGKH5OmCJ4Z21v+F25WaHYPxCFMvwxpcw99Ecv\n' +
'DQIgIdhDTIqD2jfYjPTY8Jj3EDGPbH2HHuffvflECt3Ek60CIQCFRlCkHpi7hthh\n' + 'YhovyloRYsM+IS9h/0BzlEAuO0ktMQIgSPT3aFAgJYwKpqRYKlLDVcflZFCKY7u3\n' +
'UP8iWi1Qw0Y='
// 加密
export function encrypt(txt:string) {
const encryptor = new JSEncrypt()
encryptor.setPublicKey(publicKey)// 设置公钥
return encryptor.encrypt(txt) // 对数据进行加密
}
// 解密
export function decrypt(txt:string) {
const encryptor = new JSEncrypt()
encryptor.setPrivateKey(privateKey) // 设置私钥
return encryptor.decrypt(txt) // 对数据进行解密
}
3.修改登录页Login.vue
<script setup>
import { ref,reactive } from 'vue'
import useUserStore from "@/stores/modules/user"
import {ElMessage} from "element-plus"
import router from "@/router"
import Cookies from "js-cookie"
import { encrypt, decrypt } from "@/util/jsencrypt"
...
// 验证对象
let loginRules = reactive({
username:[{required:true,trigger:'blur',message:'请输入您的账号'}],
password:[{required:true,trigger:'blur',message:'请输入您的密码'}]
})
const handleLogin = async () => {
await loginRef.value.validate()
//勾选了需要记住密码 设置在cookie中设置记住用户名和密码
if (loginForm.rememberMe){
Cookies.set('username',loginForm.username,{ expires: 30 })
Cookies.set('password',encrypt(loginForm.password),{ expires: 30 })
Cookies.set('rememberMe',loginForm.rememberMe,{ expires: 30 })
}else {
// 否则删除
Cookies.remove('username')
Cookies.remove('password')
Cookies.remove('rememberMe')
}
try {
await userStore.userLogin(loginForm)
console.log(1111)
router.push('/')
} catch (e) {
ElMessage.error("登录失败!")
}
}
function getCookie() {
const username = Cookies.get("username");
const password = Cookies.get("password");
const rememberMe = Cookies.get("rememberMe");
Object.assign(loginForm, {
username: username === undefined ? loginForm.username : username,
password: password === undefined ? loginForm.password : decrypt(password),
rememberMe: rememberMe === undefined ? false : Boolean(rememberMe)
});
}
// 获取cookie
getCookie();
</script>
<template>
<div class="login">
<el-form ref="loginRef" :model="loginForm" :rules="loginRules" class="login-form">
...
<el-checkbox style="margin:0px 0px 25px 0px;" v-model="loginForm.rememberMe">记住密码</el-checkbox>
...
</el-form>
<!-- 底部 -->
<div class="el-login-footer">
<span>Copyright © 2013-2022 <a href="http://www.java1234.vip" target="_blank">jd.vip</a> 版权所有.</span>
</div>
</div>
</template>
<style lang="scss" scoped>
...
</style>
主页面功能实现
主页面布局实现
1.在layout目录下新建四个子目录[每个子目录下都要建index.vue] 分模块管理主页面
2.修改layout/index.vue
<script setup lang="ts">
import Menu from '@/layout/menu/index.vue'
import Header from '@/layout/header/index.vue'
import Tabs from '@/layout/tabs/index.vue'
import Footer from '@/layout/footer/index.vue'
</script>
<template>
<div class="app-wrapper">
<el-container>
<el-aside class="sidebar-container" width="200px">
<Menu />
</el-aside>
<el-container>
<el-header>
<Header />
</el-header>
<el-main>
<Tabs />
</el-main>
<el-footer>
<Footer />
</el-footer>
</el-container>
</el-container>
</div>
</template>
<style scoped>
.app-wrapper {
position: relative;
width: 100%;
height: 100%;
}
.sidebar-container {
background-color: #2d3a4b;
height: 100%;
}
.el-container {
height: 100%;
}
.el-header {
padding-left: 0;
padding-right: 0;
}
/*:deep深度选择器*/
:deep(ul,el-menu) {
border-right-width: 0;
}
</style>
3.修改footer/index.vue
<script setup>
</script>
<template>
<div class="footer"> Copyright © 2012-2022 java大帝 版权所有
<a href="https://blog.csdn.net/2302_80480374/article/details/145109271?spm=1001.2014.3001.5501" target="_blank">www.java大帝.vip</a>
</div>
</template>
<style lang="scss" scoped>
.footer{
padding: 20px; display: flex; align-items: center;
}
</style>
4.修改tabs/index.vue
<script lang="ts" setup>
import { ref } from 'vue'
let tabIndex = 2
const editableTabsValue = ref('2')
const editableTabs = ref([
{
title: 'Tab 1',
name: '1',
content: 'Tab 1 content',
},
{
title: 'Tab 2',
name: '2',
content: 'Tab 2 content',
},
])
const addTab = (targetName: string) => {
const newTabName = `${++tabIndex}`
editableTabs.value.push({
title: 'New Tab',
name: newTabName,
content: 'New Tab content',
})
editableTabsValue.value = newTabName
}
const removeTab = (targetName: string) => {
const tabs = editableTabs.value
let activeName = editableTabsValue.value
if (activeName === targetName) {
tabs.forEach((tab, index) => {
if (tab.name === targetName) {
const nextTab = tabs[index + 1] || tabs[index - 1]
if (nextTab) {
activeName = nextTab.name
}
}
})
}
editableTabsValue.value = activeName
editableTabs.value = tabs.filter((tab) => tab.name !== targetName)
}
</script>
<template>
<div style="margin-bottom: 20px">
<el-button size="small" @click="addTab(editableTabsValue)">
add tab
</el-button>
</div>
<el-tabs
v-model="editableTabsValue"
type="card"
class="demo-tabs"
closable
@tab-remove="removeTab"
>
<el-tab-pane
v-for="item in editableTabs"
:key="item.name"
:label="item.title"
:name="item.name"
>
{
{ item.content }}
</el-tab-pane>
</el-tabs>
</template>
<style>
.demo-tabs > .el-tabs__content {
padding: 32px;
color: #6b778c;
font-size: 32px;
font-weight: 600;
}
</style>
左侧动态权限菜单实现
1.后端: LoginSuccessHandler在登录成功处理器中做处理
package com.jd.jdadmin.common.security;
import cn.hutool.json.JSONUtil;
import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.jd.jdadmin.entity.R;
import com.jd.jdadmin.entity.SysMenu;
import com.jd.jdadmin.entity.SysRole;
import com.jd.jdadmin.entity.SysUser;
import com.jd.jdadmin.service.SysMenuService;
import com.jd.jdadmin.service.SysRoleService;
import com.jd.jdadmin.service.SysUserService;
import com.jd.jdadmin.util.JwtUtils;
import org.springframework.security.core.Authentication;
import org.springframework.security.web.authentication.AuthenticationSuccessHandler;
import org.springframework.stereotype.Component;
import javax.annotation.Resource;
import javax.servlet.ServletException;
import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.util.*;
/**
* @author java大帝
* @ClassName LoginSuccessHandler
* @description: 登录成功后的处理器
* @date 2025年 01月 14日
* @version: 1.0
*/
@Component
public class LoginSuccessHandler implements AuthenticationSuccessHandler {
@Resource
private SysUserService sysUserService;
@Resource
private SysRoleService sysRoleService;
@Resource
private SysMenuService sysMenuService;
@Override
public void onAuthenticationSuccess(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse, Authentication authentication) throws IOException, ServletException {
// 设置返回的内容格式
httpServletResponse.setContentType("application/json;charset=UTF-8");
ServletOutputStream outputStream = httpServletResponse.getOutputStream();
String username = authentication.getName();
String token = JwtUtils.genJwtToken(username);
// 当前登录用户
SysUser currentUser = sysUserService.getByUsername(username);
StringBuffer authority = new StringBuffer();
// 1.根据用户id获取所有的权限信息[通过用户角色关联表]
List<SysRole> roleList = sysRoleService.list(new QueryWrapper<SysRole>().inSql("id", "SELECT role_id FROM sys_user_role WHERE user_id = " + currentUser.getId()));
// 2.遍历所有角色获取所有菜单权限而且不重复
// 使用set集合 避免重复
Set<SysMenu> menuSet = new HashSet<>();
for (SysRole sysRole : roleList) {
List<SysMenu> menuList = sysMenuService.list(new QueryWrapper<SysMenu>().inSql("id", "SELECT menu_id FROM sys_role_menu WHERE role_id = " + sysRole.getId()));
// 遍历菜单列表 取出perms权限值
for (SysMenu sysMenu : menuList) {
menuSet.add(sysMenu);
}
}
List<SysMenu> sysMenuList = new ArrayList<>(menuSet);
// 排序
sysMenuList.sort(Comparator.comparing(SysMenu::getOrderNum));
// 生成菜单树
List<SysMenu> menuList = sysMenuService.buildTreeMenu(sysMenuList);
outputStream.write(JSONUtil.toJsonStr(R.success().put("authorization",token).put("currentUser",currentUser).put("menuList",menuList)).getBytes());
outputStream.flush();
outputStream.close();
}
}
2.后端:在SysMenuService中创建buildTreeMenu方法
List<SysMenu> buildTreeMenu(List<SysMenu> sysMenuList);
3.后端:在 SysMenuServiceImpl实现类中实现 处理成菜单树方法
package com.jd.jdadmin.service.impl;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.jd.jdadmin.entity.SysMenu;
import com.jd.jdadmin.service.SysMenuService;
import com.jd.jdadmin.mapper.SysMenuMapper;
import org.springframework.stereotype.Service;
import java.util.ArrayList;
import java.util.List;
/**
* @author java大帝
* @description 针对表【sys_menu】的数据库操作Service实现
* @createDate 2025-01-15 11:16:24
*/
@Service
public class SysMenuServiceImpl extends ServiceImpl<SysMenuMapper, SysMenu>
implements SysMenuService{
@Override
public List<SysMenu> buildTreeMenu(List<SysMenu> sysMenuList) {
List<SysMenu> resultMenuList = new ArrayList<>();
for (SysMenu sysMenu : sysMenuList) {
for (SysMenu menu : sysMenuList) {
if (menu.getParentId() == sysMenu.getId()){ // 寻找子节点
sysMenu.getChildren().add(menu);
}
}
if (sysMenu.getParentId() == 0L ){ // 若是一级菜单
resultMenuList.add(sysMenu); // 直接加入集合中
}
}
return resultMenuList;
}
}
4.后端:在SysMenu中新建字段存储子节点
/** * 子节点 * */ @TableField(exist = false) private List<SysMenu> children = new ArrayList<>();
5.前端:补全一下api/user/type.ts 类型
...
export interface UserLoginResponseData extends ResponseData {
data:{
authorization:string,
menuList: MenuInfo[],
currentUser:UserInfo
}
}
export interface UserInfo {
phonenumber: string,
loginDate: number,
updateTime: number,
remark: string,
avatar: string,
password: string,
createTime: number,
id: number,
email: string,
username: string,
status: string
}
export interface MenuInfo {
icon: string,
orderNum: number,
updateTime: number,
remark: string,
parentId: number,
path: string,
component: string,
children: MenuInfo[]
}
6.前端:在util下新建menu.ts 菜单相关的方法
import type { MenuInfo } from "@/api/user/type";
export const SET_MENU = (menuList:MenuInfo[])=> {
localStorage.setItem("MENU",JSON.stringify(menuList))
}
export const GET_MENU = ()=> {
return JSON.parse(localStorage.getItem("MENU") || "[]")
}
export const REMOVE_MENU = ()=> {
return localStorage.removeItem("MENU")
}
7.在用户仓库 登录请求发送完毕后存储一下后端返回的menuList数据
import { defineStore } from "pinia"
import {GET_TOKEN, SET_TOKEN} from "@/util/token";
import {reqUserLogin} from "@/api/user";
import type {UserFormData, UserLoginResponseData} from "@/api/user/type";
import {GET_MENU, SET_MENU} from "@/util/menu";
const useUserStore = defineStore('User',{
state(){
return {
token: GET_TOKEN(),
menuList: GET_MENU()
}
},
actions:{
async userLogin(data:UserFormData){
let res:UserLoginResponseData = await reqUserLogin(data)
if (res.code == 200){
SET_TOKEN(res.data.authorization)
SET_MENU(res.data.menuList)
return 'ok'
} else {
return Promise.reject(res.msg)
}
}
}
})
export default useUserStore
8.修改layout/menu/inedx.vue 动态渲染菜单
因为 只遍历两次所以不用害怕第三级按钮权限会显示出来、首页是每个用户都可以访问的所以直接写静态的了
<script setup lang="ts">
import { ref } from 'vue'
import useUserStore from "@/stores/modules/user"
let userStore = useUserStore()
</script>
<template>
<el-menu
active-text-color="#ffd04b"
background-color="#2d3a4b"
text-color="#fff"
router
>
<el-menu-item index="/index">
<el-icon>
<component is="House"/>
</el-icon>
<span>首页</span>
</el-menu-item>
<el-sub-menu :index="menu.path" v-for="menu in userStore.menuList">
<template #title>
<el-icon>
<component :is="menu.icon" />
</el-icon>
<span>{
{ menu.name }}</span>
</template>
<el-menu-item :index="item.path" v-for="item in menu.children">
<el-icon>
<component :is="item.icon" />
</el-icon>
<span>{
{ item.name }}</span>
</el-menu-item>
</el-sub-menu>
</el-menu>
</template>
<style scoped lang="scss">
</style>
9.浏览器访问 显示效果
右上角用户头像显示及退出登录实现
1.后端:在config.WebAppConfigurer类中添加addResourceHandlers方法
@Override
public void addResourceHandlers(ResourceHandlerRegistry registry) { // 虚拟路径映射
registry.addResourceHandler("/image/userAvatar/**").addResourceLocations("file:D:\\java1234\\img\\userAvatar\\");
}
2.前端:在util下新建user.ts用户相关方法
import type { UserInfo} from "@/api/user/type";
export const SET_USER = ((user:UserInfo)=> {
localStorage.setItem("USER",JSON.stringify(user))
})
export const GET_USER = ()=> {
return JSON.parse(localStorage.getItem("USER") || "{}")
}
export const REMOVE_USER = ()=> {
return localStorage.removeItem("USER")
}
3.前端:新建两个子组件 并在layout/header/index.vue中引入使用
<script setup lang="ts">
import Breadcrumb from './breadCrumb/index.vue'
import Avatar from './avator/index.vue'
</script>
<template>
<div class="navbar">
<Breadcrumb />
<div class="navbar-right">
<Avatar />
</div>
</div>
</template>
<style scoped lang="scss">
.navbar {
width: 100%;
height: 60px;
overflow: hidden;
background-color: #F5F5F5;
box-shadow: 0 1px 4px rgba(0, 21, 41, 0.08);
padding: 0 16px; display: flex;
align-items: center;
box-sizing: border-box;
position: relative;
.navbar-right {
flex: 1;
display: flex;
align-items: center;
justify-content: flex-end;
:deep(.navbar-item) {
display: inline-block;
margin-left: 18px;
font-size: 22px;
color: #5a5e66;
box-sizing: border-box;
cursor: pointer;
}
}
}
</style>
4.前端:在layout/header/avator/index.vue实现显示头像、退出登录
<script setup lang="ts">
import useUserStore from "@/stores/modules/user"
import { baseUrl } from '@/util/request'
import {ref} from "vue"
import user from "@/stores/modules/user"
import router from "@/router"
let userStore = useUserStore()
// 头像地址
let squareUrl = ref(baseUrl + 'image/userAvatar/' + userStore.userInfo.avatar)
const logout = async () => {
await userStore.userLogout()
router.replace('/login')
}
</script>
<template>
<el-avatar shape="square" :size="40" :src="squareUrl" style="margin-right: 10px"/>
<el-dropdown>
<span class="el-dropdown-link">
{
{ userStore.userInfo.username }}
<el-icon class="el-icon--right">
<arrow-down />
</el-icon>
</span>
<template #dropdown>
<el-dropdown-menu>
<el-dropdown-item>个人中心</el-dropdown-item>
<el-dropdown-item @click="logout">安全退出</el-dropdown-item>
</el-dropdown-menu>
</template>
</el-dropdown>
</template>
<style scoped>
.el-dropdown-link {
cursor: pointer;
color: var(--el-color-primary);
display: flex;
align-items: center;
}
</style>
5.前端:在api/user/index.ts中新建相关api接口
enum API {
...
LOGOUT_URL = 'logout'
}
export const reqUserLogout = () => request.get<any,any>(API.LOGOUT_URL)
6.前端:修改stores/modules/user.ts用户小仓库
import { defineStore } from "pinia"
import {GET_TOKEN, REMOVE_TOKEN, SET_TOKEN} from "@/util/token";
import {reqUserLogin, reqUserLogout} from "@/api/user";
import type {UserFormData, UserLoginResponseData} from "@/api/user/type";
import {GET_MENU, REMOVE_MENU, SET_MENU} from "@/util/menu";
import {GET_USER, REMOVE_USER, SET_USER} from "@/util/user";
const useUserStore = defineStore('User',{
state(){
return {
token: GET_TOKEN(),
menuList: GET_MENU(),
userInfo:GET_USER()
}
},
actions:{
async userLogin(data:UserFormData){
let res:UserLoginResponseData = await reqUserLogin(data)
if (res.code == 200){
this.token = res.data.authorization
SET_TOKEN(res.data.authorization) // 存储token
SET_MENU(res.data.menuList) // 存储菜单数据
SET_USER(res.data.currentUser) // 存储用户信息
return 'ok'
} else {
return Promise.reject(res.msg)
}
},
async userLogout(){ // 退出登录
let res:any = await reqUserLogout()
if (res.code == 200){
// 清空本地存储
window.localStorage.clear()
return 'ok'
} else {
return Promise.reject(res.msg)
}
}
}
})
export default useUserStore
7.浏览器测试
路由守卫功能实现
前端如果没有登录过 也就没有token 则自动跳转到登录页面 这个就是路由守卫
我们通过 router.beforeEach((to,from,next) => {}) 实现
1.router目录下新建permission.ts
import router from "@/router/index"
import useUserStore from "@/stores/modules/user"
router.beforeEach((to,from,next) => {
// 用户相关小仓库
const userStore = useUserStore()
// 白名单
const whiteList = ['/login']
if (userStore.token){
next()
} else {
if (whiteList.includes(to.path)){
next()
} else {
next('/login')
}
}
})
2.在main.ts中引入使用
// 引入路由鉴权文件 import '@/router/permission'
3.此时若是未登录则不能直接访问除/login之外的路由
动态路由实现
我们vue路由信息,需要通过后端查询的menuList 动态设置到router里面去
1.layout/index.vue加下<router-view/>
<template>
<div class="app-wrapper">
<el-container>
...
<el-main>
<Tabs />
<router-view />
</el-main>
...
</el-container>
</div>
</template>
2.在src/views下创建对应文件夹和文件
3.修改src/router/index.ts
import { createRouter, createWebHistory } from 'vue-router'
const router = createRouter({
history: createWebHistory(import.meta.env.BASE_URL),
routes: [
{
path: '/',
name: 'layout',
component: () => import('../layout/index.vue'),
redirect:'/index',
children:[ // 为动态添加路由做准备
{
path: '/index',
name: '首页',
component: () => import('../views/index/index.vue')
},
{
path: '/userCenter',
name: '用户中心',
component: () => import('../views/userCenter/index.vue')
}
]
},
{
path: '/login',
name: 'login',
component: () => import('../views/Login.vue')
}
]
})
export default router
4.在用户仓库中添加属性
...
const useUserStore = defineStore('User',{
state(){
return {
...
hasRoutes:false //标志着是否已经动态添加过路由了 只需动态添加一次就好了
}
},
actions:{
...
}
})
export default useUserStore
5.修改src/router/permission.ts
import router from "@/router/index" import useUserStore from "@/stores/modules/user" import type {MenuInfo} from "@/api/user/type" // 使用 import.meta.glob 预加载所有可能的组件 const components = import.meta.glob('../views/**/**/*.vue'); router.beforeEach((to,from,next) => { // 用户相关小仓库 const userStore = useUserStore() let menuList = userStore.menuList // 白名单 const whiteList = ['/login'] if (userStore.token){ next() } else { if (whiteList.includes(to.path)){ next() } else { next('/login') } } }) // 动态绑定路由 const bindRoute = (menuList:MenuInfo[]) => { let newRoutes = router.options.routes menuList.forEach(menu => { if (menu.children){ //是否有子组件 menu.children.forEach(m => { let route = menuToRoute(m,menu.name) //将子菜单对象转成路由对象 console.log(route) if (route){ // 若为空 则不动态添加 //@ts-ignore newRoutes[0].children.push(route) //将路由都添加到第一个路由的子路由中 } }) } }) // 重新添加到路由 newRoutes.forEach(route => { router.addRoute(route) }) } // 菜单对象转成路由对象 const menuToRoute = (menu:MenuInfo,parentName:string) => { if (!menu.component){ // 若没有组件信息字段 则直接返回null return null } else { const componentPath = `../views/${menu.component}.vue`; const component = components[componentPath]; let route ={ name:menu.name, path:menu.path, component, meta:{ parentName:parentName } } return route } }async function initializeRoutes() { const userStore = useUserStore(pinia); if (!userStore.hasRoutes && userStore.token) { await bindRoute(userStore.menuList); userStore.hasRoutes = true; } } initializeRoutes(); //为了避免重复添加路由，可以考虑在应用初始化时就执行一次bindRoute,而不是放在beforeEach守卫里。这样可以保证路由仅被添加一次，而不会因为页面刷新或其他原因重复添加
6.路由显示结果如下 都是在/下
动态标签页的实现
1.创建tabsStore 用于管理标签的相关数据[因为涉及到菜单组件和标签选项卡组件的通信]
import {defineStore} from "pinia"
const useTabsStore = defineStore('Tabs',{
state(){
return {
editableTabsValue:'/index', // 存储当前选中的可编辑选项卡的值
editableTabs:[ // 存储可编辑选项卡的列表
{
title:'首页',// 显示的标签名字
name:'/index' // 选项卡的唯一标识
}
]
}
},
actions:{
addTabs(tab:any){
if (this.editableTabs.findIndex(e => e.name === tab.path) === -1) {
this.editableTabs.push({
title: tab.name,
name: tab.path
})
}
this.editableTabsValue = tab.path
},
resetTabs(){
this.editableTabsValue = '/index'
this.editableTabs = [
{
title:'首页',// 显示的标签名字
name:'/index' //
}
]
}
}
})
export default useTabsStore
2. 修改src/layout/menu/index.vue 实现点击左侧菜单项 显示对应 标签选项卡
<script setup lang="ts">
...
import type {MenuInfo} from "@/api/user/type";
import useTabsStore from "@/stores/modules/tabs";
let tabsStore = useTabsStore()
let userStore = useUserStore()
const showTabs = (menu:MenuInfo) => {
tabsStore.addTabs(menu)
}
</script>
<template>
<el-menu
active-text-color="#ffd04b"
background-color="#2d3a4b"
text-color="#fff"
router
>
<el-menu-item index="/index">
<el-icon>
<component is="House"/>
</el-icon>
<span>首页</span>
</el-menu-item>
<el-sub-menu :index="menu.path" v-for="menu in userStore.menuList">
<template #title>
<el-icon>
<component :is="menu.icon" />
</el-icon>
<span>{
{ menu.name }}</span>
</template>
<el-menu-item :index="item.path" v-for="item in menu.children" @click="showTabs(item)">
<el-icon>
<component :is="item.icon" />
</el-icon>
<span>{
{ item.name }}</span>
</el-menu-item>
</el-sub-menu>
</el-menu>
</template>
<style scoped lang="scss">
</style>
3.修改src/layout/header/avator/index.vue 实现退出登录后将数据复原
import useTabsStore from "@/stores/modules/tabs" let tabsStore = useTabsStore()const logout = async () => { await userStore.userLogout() // 重置tab tabsStore.resetTabs() // 将控制是否动态加载路由的值复原 userStore.hasRoutes = false router.replace('/login') }
4.修改src/layout/tabs/index.vue 实现点击标签浏览器地址栏显示对应路径 选中对应菜单项
<script lang="ts" setup>
import { ref,watch } from 'vue'
import useTabsStore from "@/stores/modules/tabs"
import {useRouter} from "vue-router"
import router from "@/router";
let tabsStore = useTabsStore()
let $router = useRouter()
// 点击标签页
const tabClick = (target:any) => {
// 路由跳转
$router.push({name:target.props.label})
}
const removeTab = (targetName: string) => {
let tabs = tabsStore.editableTabs
let activeName = tabsStore.editableTabsValue
if (activeName === '/index'){ // 不能删除首页标签页
return
}
if (activeName === targetName) {
tabs.forEach((tab, index) => {
if (tab.name === targetName) {
const nextTab = tabs[index + 1] || tabs[index - 1]
if (nextTab) {
activeName = nextTab.name
}
}
})
}
// 过滤出除当前点击的标签页生成的数组
tabsStore.editableTabs = tabs.filter(i => i.name !== targetName)
router.push({path:activeName})
}
</script>
<template>
<el-tabs
v-model="tabsStore.editableTabsValue"
type="card"
class="demo-tabs"
closable
@tab-remove="removeTab"
@tab-click="tabClick"
>
<el-tab-pane
v-for="item in tabsStore.editableTabs"
:key="item.name"
:label="item.title"
:name="item.name"
>
</el-tab-pane>
</el-tabs>
</template>
<style>
.demo-tabs > .el-tabs__content {
padding: 32px;
color: #6b778c;
font-size: 32px;
font-weight: 600;
}
</style>
5.浏览器测试
动态面包屑实现
1.修改src/layout/header/breadCrumb/index.vue
<script setup lang="ts">
import {ref, watch} from "vue"
import {useRoute} from "vue-router"
let $route = useRoute()
let breadcrumbList = ref([])
let parentName = ref('')
const initBreadcrumbList = () => {
// 获取当前匹配的路由
//@ts-ignore
breadcrumbList.value = $route.matched
//@ts-ignore
parentName.value = $route.meta.parentName
}
// 深度监听
watch($route, ()=>{
initBreadcrumbList()
},{deep:true,immediate:true})
</script>
<template>
<el-icon>
<component is="House"/>
</el-icon>
<el-breadcrumb separator="/">
<el-breadcrumb-item v-for="(item,index) in breadcrumbList" :key="index">
<span v-if="parentName && index > 0">{
{parentName}} / </span>
<span>{
{ item.name }}</span>
</el-breadcrumb-item>
</el-breadcrumb>
</template>
<style scoped>
</style>
2.在views/index/index.vue中随便写点东西
<template>
<div class="home">
欢迎使用，java大帝 通用权限系统 ！
</div>
</template>
<script>
export default { name: "index" };
</script>
<style lang="scss" scoped>
</style>
3.浏览器测试
4.menu菜单默认激活菜单项
<script setup lang="ts">
...
import {useRoute} from "vue-router"
...
let $route = useRoute()
...
</script>
<template>
<el-menu
active-text-color="#ffd04b"
background-color="#2d3a4b"
text-color="#fff"
router
:default-active="$route.path"
>
...
</el-menu>
</template>
<style scoped lang="scss">
</style>
个人中心功能实现
路由与导航动态绑定实现
1.修改App.vue
<script setup lang="ts">
import { ref ,watch} from 'vue'
import { useRoute,useRouter } from 'vue-router'
import useTabsStore from "@/stores/modules/tabs"
let tabsStore = useTabsStore()
const route=useRoute()
const router=useRouter()
const whitePath=['/login','/index','/']
watch(() => route.path, (newPath) => {
if (whitePath.indexOf(newPath) === -1) {
let obj = {
name: route.name as string,
path: newPath
};
tabsStore.addTabs(obj);
}
}, { immediate: true });
</script>
2.修改 src/layout/header/avator/index.vue
<script setup lang="ts">
...
</script>
<template>
<el-avatar shape="square" :size="40" :src="squareUrl" style="margin-right: 10px"/>
<el-dropdown>
...
<template #dropdown>
<el-dropdown-menu>
<el-dropdown-item>
<router-link :to="{name:'个人中心'}" >个人中心</router-link>
</el-dropdown-item>
<el-dropdown-item @click="logout">安全退出</el-dropdown-item>
</el-dropdown-menu>
</template>
</el-dropdown>
</template>
<style scoped>
.el-dropdown-link {
...
</style>
个人中心页面构建实现
1.修改src/views/userCenter/index.vue
<script setup lang="ts">
import useUserStore from "@/stores/modules/user"
import {formatDate} from "@/util/formatDate"
import {ref} from "vue";
let userStore = useUserStore()
// 默认选中的标签页
let activeTab = ref('userinfo')
</script>
<template>
<div class="app-container">
<el-row :gutter="20">
<el-col :span="6">
<el-card class="box-card">
<template v-slot:header>
<div class="clearfix">
<span>个人信息</span>
</div>
</template>
<div>
<div class="text-center"> 修改头像 </div>
<ul class="list-group list-group-striped">
<li class="list-group-item">
<el-icon>
<component is="User"/>
</el-icon> 用户名称
<div class="pull-right">
{
{userStore.userInfo.username}}
</div>
</li>
<li class="list-group-item">
<el-icon>
<component is="Histogram"/>
</el-icon> 手机号码
<div class="pull-right">
{
{userStore.userInfo.phonenumber}}
</div>
</li>
<li class="list-group-item">
<el-icon>
<component is="Tickets"/>
</el-icon> 用户邮箱
<div class="pull-right">
{
{userStore.userInfo.email}}
</div>
</li>
<li class="list-group-item">
<el-icon>
<component is="Avatar"/>
</el-icon> 所属角色
<div class="pull-right">
{
{userStore.userInfo.roles}}
</div>
</li>
<li class="list-group-item">
<el-icon>
<component is="Timer"/>
</el-icon> 创建日期
<div class="pull-right">
{
{formatDate(userStore.userInfo.loginDate)}}
</div>
</li>
</ul>
</div>
</el-card>
</el-col>
<el-col :span="18">
<el-card class="box-card">
<template v-slot:header>
<div class="clearfix">
<span>修改密码</span>
</div>
</template>
<el-tabs v-model="activeTab">
<el-tab-pane label="基本资料" name="userinfo">
基本资料
</el-tab-pane>
<el-tab-pane label="修改密码" name="resetPwd">
修改密码
</el-tab-pane>
</el-tabs>
</el-card>
</el-col>
</el-row>
</div>
</template>
<style scoped lang="scss">
.list-group-striped>.list-group-item {
border-left: 0;
border-right: 0;
border-radius: 0;
padding-left: 0;
padding-right: 0;
}
.list-group-item {
border-bottom: 1px solid #e7eaec;
border-top: 1px solid #e7eaec;
margin-bottom: -1px; padding: 11px 0;
font-size: 13px;
}
.pull-right{
float: right!important;
}
::v-deep .el-card__body{
height:230px;
}
::v-deep .box-card{
height:450px;
}
</style>
2.创建格式化日期的工具方法
export function formatDate(val:string){
let date = new Date(Number(val))
let Y = date.getFullYear() + '-'
let M = (date.getMonth() + 1 < 10 ? "0" + (date.getMonth() + 1) : date.getMonth() + 1) + "-"
let D = date.getDate() + " "
let h = date.getHours() + ':'
let m = date.getMinutes() + ':'
let s = (date.getSeconds() < 10 ? "0" + (date.getSeconds()) : date.getSeconds())
return Y + M + D + h + m + s
}
3.浏览器显示效果
个人中心页面数据显示
1.抽取出来三个子组件 分别处理更换头像、重置密码、用户基本信息的业务
2.在src/views/userCenter/index.vue中引入三个子组件并使用
<script setup lang="ts"> ... import Avatar from './avatar/index.vue' import userInfo from './userInfo/index.vue' import resetPwd from './resetPwd/index.vue' ... </script> <template> <div class="app-container"> <el-row :gutter="20"> <el-col :span="6"> <el-card class="box-card"> <template v-slot:header> <div class="clearfix"> <span>个人信息</span> </div> </template> <div> <div class="text-center"> <avatar /> </div> <ul class="list-group list-group-striped"> ... </ul> </div> </el-card> </el-col> <el-col :span="18"> <el-card class="box-card"> <template v-slot:header> <div class="clearfix"> <span> 基本资料 </span> </div> </template> <el-tabs v-model="activeTab"> <el-tab-pane label="基本资料" name="userinfo"> <user-info/> </el-tab-pane> <el-tab-pane label="修改密码" name="resetPwd"> <reset-pwd/> </el-tab-pane> </el-tabs> </el-card> </el-col> </el-row> </div> </template> <style scoped lang="scss"> .... </style>
3.后端:修改SysUser实体类 添加roles属性 存储拥有的角色信息
/** * 角色信息 * 使用逗号分割的字符串 * */ @TableField(exist = false) private String roles;
4.后端:在LoginSuccessHandler中设置角色信息
...
@Component
public class LoginSuccessHandler implements AuthenticationSuccessHandler {
@Resource
private SysUserService sysUserService;
@Resource
private SysRoleService sysRoleService;
@Resource
private SysMenuService sysMenuService;
@Override
public void onAuthenticationSuccess(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse, Authentication authentication) throws IOException, ServletException {
...
for (SysRole sysRole : roleList) {
...
}
// 使用stream流式计算将角色列表处理成使用逗号间隔的字符串
String roleStr = roleList.stream().map(SysRole::getName).collect(Collectors.joining(","));
// 设置给当前用户
currentUser.setRoles(roleStr);
...
}
}
5.浏览器测试
基本资料修改功能实现
1.在父组件中将用户信息传递进去
<script setup lang="ts">
...
</script>
<template>
<div class="app-container">
<el-row :gutter="20">
...
<el-col :span="18">
<el-card class="box-card">
...
<el-tabs v-model="activeTab">
<el-tab-pane label="基本资料" name="userinfo">
<user-info :user="userStore.userInfo"/>
</el-tab-pane>
...
</el-tabs>
</el-card>
</el-col>
</el-row>
</div>
</template>
<style scoped lang="scss">
...
</style>
2.补齐views/userCenter/userInfo/index.vue
<script setup lang="ts">
import {ref} from "vue"
import {ElMessage} from "element-plus";
import {reqAddOrUpdate} from "@/api/user";
import useUserStore from "@/stores/modules/user";
let userStore = useUserStore()
let props = defineProps({
user:{
type:Object,
default:()=> {},
required:true
}
})
let form = ref({
id:-1,
phonenumber:'',
email:''
})
let userRef= ref()
let rules = ref({
email: [
{ required: true, message: "邮箱地址不能为空", trigger: "blur" },
{ type: "email", message: "请输入正确的邮箱地址", trigger: ["blur", "change"] }
],
phonenumber: [
{ required: true, message: "手机号码不能为空", trigger: "blur" },
{ pattern: /^1[3|4|5|6|7|8|9][0-9]\d{8}$/, message: "请输入正确的手机号码", trigger: "blur" }
],
})
form.value= props.user;
const handleSubmit= async ()=>{
await userRef.value.validate()
try {
let res = await reqAddOrUpdate(form.value)
if (res.code == 200){
ElMessage.success(form.value.id ? '修改成功' : '添加成功')
userStore.userInfo = form.value
}else {
ElMessage.error(form.value.id ? '修改失败' : '添加失败')
}
} catch (e) {
ElMessage.error((e as Error).message)
}
}
</script>
<template>
<el-form ref="userRef" :model="form" :rules="rules" label-width="100px" >
<el-form-item label="手机号码：" prop="phonenumber">
<el-input v-model="form.phonenumber" maxlength="11" />
</el-form-item>
<el-form-item label="用户邮箱：" prop="email">
<el-input v-model="form.email" maxlength="50" />
</el-form-item>
<el-form-item>
<el-button type="primary" @click="handleSubmit">保存</el-button>
</el-form-item>
</el-form>
</template>
<style scoped lang="scss">
</style>
3.在src/api/user/index.ts中新增相关API接口
// 用户相关的API接口
import request from "@/util/request"
import type {UserFormData, UserInfo, UserLoginResponseData} from "@/api/user/type"
enum API {
...
ADD_OR_UPDATE_URL = 'sys/user/saveOrUpdate'
}
...
export const reqAddOrUpdate = (data:UserInfo) => request.post<any,any>(API.ADD_OR_UPDATE_URL,data)
// 修改用户信息接口
export interface UserInfo {
phonenumber: string,
loginDate?: number,
updateTime?: number,
remark?: string,
avatar?: string,
password?: string,
createTime?: number,
id?: number,
email: string,
username?: string,
status?: string,
roles?:string
}
4.后端:新增controller/SysUserController.java
package com.jd.jdadmin.controller;
import com.jd.jdadmin.entity.R;
import com.jd.jdadmin.entity.SysUser;
import com.jd.jdadmin.service.SysUserService;
import org.springframework.security.access.prepost.PreAuthorize;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import javax.annotation.Resource;
import java.util.Date;
/**
* @author java大帝
* @ClassName SysUserController
* @description: 用户Controller控制器
* @date 2025年 01月 16日
* @version: 1.0
*/
@RestController
@RequestMapping("/sys/user")
public class SysUserController {
@Resource
private SysUserService sysUserService;
/**
* 添加或修改
* */
@RequestMapping("saveOrUpdate")
@PreAuthorize("hasAuthority('system:user:add')"+"||"+"hasAuthority('system:user :edit')")
public R saveOrUpdate(@RequestBody SysUser sysUser){
if (sysUser.getId() == null || sysUser.getId() == -1){
}else {
sysUser.setUpdateTime(new Date());
sysUserService.updateById(sysUser);
}
return R.success();
}
}
5.浏览器测试
修改密码功能实现
1.在父组件中将用户信息传递进去
<script setup lang="ts">
...
</script>
<template>
<div class="app-container">
<el-row :gutter="20">
...
<el-col :span="18">
<el-card class="box-card">
...
<el-tabs v-model="activeTab">
...
<el-tab-pane label="修改密码" name="resetPwd">
<reset-pwd :user="userStore.userInfo"/>
</el-tab-pane>
</el-tabs>
</el-card>
</el-col>
</el-row>
</div>
</template>
<style scoped lang="scss">
...
</style>
2.修改src/views/userCenter/resetPwd.vue
<script setup lang="ts">
import {defineProps, ref} from "vue"; import requestUtil from "@/util/request";
import { ElMessage } from 'element-plus'
import useUserStore from "@/stores/modules/user"
import {reqUpdatePwd} from "@/api/user";
let userStore = useUserStore()
const props = defineProps( {
user:{
type:Object,
default:()=>{},
required:true
}
})
const form = ref({
id:-1,
oldPassword:'',
newPassword:'',
confirmPassword:''
})
const pwdRef= ref()
form.value = props.user
const equalToPassword = (rule, value, callback) => {
if (form.value.newPassword !== value) {
callback(new Error("两次输入的密码不一致"));
} else {
callback()
}
}
const rules = ref({
oldPassword: [
{ required: true, message: "旧密码不能为空", trigger: "blur" }
],
newPassword: [
{ required: true, message: "新密码不能为空", trigger: "blur" },
{ min: 6, max: 20, message: "长度在 6 到 20 个字符", trigger: "blur" }
],
confirmPassword: [
{ required: true, message: "确认密码不能为空", trigger: "blur" },
{ required: true, validator: equalToPassword, trigger: "blur" }
]
})
const handleSubmit = async ()=> {
await pwdRef.value.validate()
let result = await reqUpdatePwd(form.value)
if (result.code == 200) {
ElMessage.success("密码修改成功，下一次登录生效！")
userStore.userInfo = form.value
}else{
ElMessage.error(result.msg)
}
}
</script>
<template>
<el-form ref="pwdRef" :model="form" :rules="rules" label-width="80px">
<el-form-item label="旧密码" prop="oldPassword">
<el-input v-model="form.oldPassword" placeholder="请输入旧密码" type="password" show-password />
</el-form-item>
<el-form-item label="新密码" prop="newPassword">
<el-input v-model="form.newPassword" placeholder="请输入新密码" type="password" show-password />
</el-form-item>
<el-form-item label="确认密码" prop="confirmPassword">
<el-input v-model="form.confirmPassword" placeholder="请确认密码" type="password" show-password/>
</el-form-item>
<el-form-item>
<el-button type="primary" @click="handleSubmit">保存</el-button>
</el-form-item>
</el-form>
</template>
<style scoped lang="scss">
</style>
3.在src/api/user/index.ts中新增相关API接口
// 用户相关的API接口
import request from "@/util/request"
import type {UserFormData, UserInfo, UserLoginResponseData} from "@/api/user/type"
enum API {
...
UPDATE_PWD_URL = 'sys/user/updateUserPwds'
}
...
export const reqUpdatePwd = (data:UserInfo) => request.post<any,any>(API.UPDATE_PWD_URL,data)
// 修改用户信息接口
export interface UserInfo {
...
oldPassword?:string,
newPassword?:string
}
4.后端:修改SysUser.java 添加两个oldPassword和newPassword字段
/** * 旧密码 * */ @TableField(exist = false) private String oldPassword; /** * 确认新密码 * */ @TableField(exist = false) private String newPassword;
5.在SysUserController中新增修改密码的接口
@Resource private BCryptPasswordEncoder bCryptPasswordEncoder;/** * 修改密码 * */ @RequestMapping("updateUserPwds") @PreAuthorize("hasAuthority('system:user:edit')") public R updateUserPwds(@RequestBody SysUser sysUser){ SysUser currentUser = sysUserService.getById(sysUser.getId()); // 比较旧密码是否与数据库中的一致 if (bCryptPasswordEncoder.matches(sysUser.getOldPassword(),currentUser.getPassword())){ currentUser.setPassword(bCryptPasswordEncoder.encode(sysUser.getNewPassword())); currentUser.setUpdateTime(new Date()); sysUserService.updateById(currentUser); return R.success(); }else{ return R.fail("输入旧密码错误"); } }
6.浏览器测试
头像更换功能实现
1.在父组件中将用户信息传递进去
<script setup lang="ts">
...
</script>
<template>
<div class="app-container">
<el-row :gutter="20">
<el-col :span="6">
<el-card class="box-card">
<template v-slot:header>
<div class="clearfix">
<span>个人信息</span>
</div>
</template>
<div>
<div class="text-center">
<avatar :user="userStore.userInfo"/>
</div>
<ul class="list-group list-group-striped">
...
</ul>
</div>
</el-card>
</el-col>
...
</el-row>
</div>
</template>
<style scoped lang="scss">
...
</style>
2.修改src/views/userCenter/resetPwd.vue
<script setup lang="ts">
import {defineProps, ref} from "vue";
import { ElMessage } from 'element-plus'
import useUserStore from "@/stores/modules/user"
import {baseUrl} from "@/util/request"
import {reqUpdateAvatar} from "@/api/user";
let userStore = useUserStore()
const props=defineProps( {
user:{
type:Object,
default:()=>{},
required:true
}
})
const headers= ref({ token:userStore.token })
const form=ref({ id:-1, avatar:'' })
const formRef=ref(null)
const imageUrl=ref("")
form.value = props.user;
imageUrl.value= baseUrl+'image/userAvatar/'+form.value.avatar
const handleAvatarSuccess= (res:any) =>{
console.log(res)
imageUrl.value= baseUrl+res.data.src
form.value.avatar=res.data.title;
}
const beforeAvatarUpload = (file:any) => {
const isJPG = file.type === 'image/jpeg'
const isLt2M = file.size / 1024 / 1024 < 2
if (!isJPG) {
ElMessage.error('图片必须是jpg格式')
}
if (!isLt2M) {
ElMessage.error('图片大小不能超过2M!')
}
return isJPG && isLt2M
}
const handleConfirm=async()=>{
let result = await reqUpdateAvatar(form.value)
if(result.code==200){
ElMessage.success("执行成功！")
}else{
ElMessage.error(result.msg);
}
}
</script>
<template>
<el-form ref="formRef" :model="form" label-width="100px" style="text-align: center;padding-bottom:10px" >
<!--
:action="baseUrl+'sys/user/uploadImage'" 图片上传
-->
<el-upload
:headers="headers" class="avatar-uploader"
:action="baseUrl+'sys/user/uploadImage'"
:show-file-list="false"
:on-success="handleAvatarSuccess"
:before-upload="beforeAvatarUpload">
<img v-if="imageUrl" :src="imageUrl" class="avatar" />
<el-icon v-else class="avatar-uploader-icon">
<component is="Plus"/>
</el-icon>
</el-upload>
<el-button @click="handleConfirm" >确认更换</el-button>
</el-form>
</template>
<style scoped lang="scss">
.avatar-uploader .el-upload {
border: 1px dashed #d9d9d9;
border-radius: 6px;
cursor: pointer;
position: relative;
overflow: hidden;
}
.avatar-uploader .el-upload:hover {
border-color: #409eff;
}
.el-icon.avatar-uploader-icon {
font-size: 28px;
color: #8c939d;
width: 178px;
height: 178px;
text-align: center;
}
.avatar {
width: 120px;
height: 120px;
display: block;
}
</style>
3.在src/api/user/index.ts中新增相关API接口
// 用户相关的API接口
import request from "@/util/request"
import type {UserFormData, UserInfo, UserLoginResponseData} from "@/api/user/type"
enum API {
...
UPDATE_AVATAR_URL = 'sys/user/updateAvatar'
}
...
export const reqUpdateAvatar = (data:any) => request.post<any,any>(API.UPDATE_AVATAR_URL,data)
4.后端: 在SysUserController中新增上传头像和修改用户头像的接口
@Value("${avatarImagesFilePath}") private String avatarImagesFilePath;/*** 上传用户头像图片 * * @param file * * @return * @throws Exception * */ @RequestMapping("/uploadImage") @PreAuthorize("hasAuthority('system:user:edit')") public Map<String,Object> uploadImage(MultipartFile file)throws Exception{ Map<String,Object> resultMap = new HashMap<>(); if(!file.isEmpty()){ // 获取文件名 String originalFilename = file.getOriginalFilename(); // 获取源文件的后缀 String suffixName=originalFilename.substring(originalFilename.lastIndexOf(".")); // 拼接新的文件名 防止名字重复 String newFileName= DateUtil.getCurrentDateStr()+suffixName; // 将文件拷贝到对应位置 FileUtils.copyInputStreamToFile(file.getInputStream(),new File(avatarImagesFilePath+newFileName)); resultMap.put("code",0); resultMap.put("msg","上传成功"); Map<String,Object> dataMap=new HashMap<>(); dataMap.put("title",newFileName); dataMap.put("src","image/userAvatar/"+newFileName); resultMap.put("data",dataMap); } return resultMap; } /** * 修改用户头像 * @param sysUser * @return * */ @RequestMapping("/updateAvatar") @PreAuthorize("hasAuthority('system:user:edit')") public R updateAvatar(@RequestBody SysUser sysUser){ SysUser currentUser = sysUserService.getById(sysUser.getId()); currentUser.setUpdateTime(new Date()); currentUser.setAvatar(sysUser.getAvatar()); sysUserService.updateById(currentUser); return R.success(); }
5.在application.yml中增加属性
avatarImagesFilePath: D://jd/img/userAvatar/
6. 在util下新增DateUtil.java
package com.jd.jdadmin.util;
import java.text.SimpleDateFormat;
import java.util.Date;
/**
* 日期工具类
* @author Administrator
*
*/
public class DateUtil {
/**
* 日期对象转字符串
* @param date
* @param format
* @return
*/
public static String formatDate(Date date,String format){
String result="";
SimpleDateFormat sdf=new SimpleDateFormat(format);
if(date!=null){
result=sdf.format(date);
}
return result;
}
/**
* 字符串转日期对象
* @param str
* @param format
* @return
* @throws Exception
*/
public static Date formatString(String str,String format) throws Exception{
if(StrUtil.isEmpty(str)){
return null;
}
SimpleDateFormat sdf=new SimpleDateFormat(format);
return sdf.parse(str);
}
public static String getCurrentDateStr(){
Date date=new Date();
SimpleDateFormat sdf=new SimpleDateFormat("yyyyMMddhhmmssSSSSSSSSS");
return sdf.format(date);
}
public static String getCurrentDatePath()throws Exception{
Date date=new Date();
SimpleDateFormat sdf=new SimpleDateFormat("yyyy/MM/dd/");
return sdf.format(date);
}
public static void main(String[] args) {
try {
System.out.println(getCurrentDateStr());
} catch (Exception e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
}
7.浏览器测试
用户管理实现
列表分页显示
1.创建entity/PageBean.java封装分页参数
package com.jd.jdadmin.entity;
/**
* @author java大帝
* @ClassName PageBean
* @description: 封装分页数据
* @date 2025年 01月 17日
* @version: 1.0
*/
public class PageBean {
// 第几页
private Integer pageNum;
// 每页记录数
private Integer pageSize;
// 起始页
private Integer start;
// 查询参数
private String query;
public PageBean() {
}
public PageBean(Integer pageNum, Integer pageSize, String query) {
this.pageNum = pageNum;
this.pageSize = pageSize;
this.query = query;
}
public Integer getStart() {
// 当前页码减一*一页显示多少条 比如 1 - 1 * 5 = 5 所以起始页是5
return (pageNum - 1) * pageSize;
}
public void setStart(Integer start) {
this.start = start;
}
public Integer getPageNum() {
return pageNum;
}
public void setPageNum(Integer pageNum) {
this.pageNum = pageNum;
}
public Integer getPageSize() {
return pageSize;
}
public void setPageSize(Integer pageSize) {
this.pageSize = pageSize;
}
public String getQuery() {
return query;
}
public void setQuery(String query) {
this.query = query;
}
}
2.装配分页拦截器
package com.jd.jdadmin.config;
import com.baomidou.mybatisplus.extension.plugins.MybatisPlusInterceptor;
import com.baomidou.mybatisplus.extension.plugins.inner.PaginationInnerInterceptor;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
/**
* @author java大帝
* @ClassName MybatisPlusConfig
* @description: 开启mp的分页功能
* @date 2025年 01月 17日
* @version: 1.0
*/
@Configuration
public class MybatisPlusConfig {
@Bean
public MybatisPlusInterceptor mybatisPlusInterceptor() {
MybatisPlusInterceptor interceptor = new MybatisPlusInterceptor();
// 添加分页拦截器
interceptor.addInnerInterceptor(new PaginationInnerInterceptor());
return interceptor;
}
}
3.在SysUserController中新增分页查询接口
/**
* 根据条件分页查询用户信息
*/
@PostMapping("/list")
@PreAuthorize("hasAuthority('system:user:query')")
public R list(@RequestBody PageBean pageBean){
Page<SysUser> sysUserPage = new Page<>(pageBean.getPageNum(), pageBean.getPageSize());
Page<SysUser> pageResult = sysUserService.page(sysUserPage);
// 数据集合
List<SysUser> userList = pageResult.getRecords();
Map<String,Object> resultMap = new HashMap<>();
resultMap.put("userList",userList);
resultMap.put("total",pageResult.getTotal());
return R.success(resultMap);
}
4.前端: 在src/api/user下创建相关接口和ts类型
src/api/user/index.ts
// 用户相关的API接口 ... enum API { ... QUERY_URL = 'sys/user/list' } ... export const reqQueryList = (data:QueryPageParams) => request.post<any,QueryResponse>(API.QUERY_URL,data)
src/api/user/type.ts
... export interface QueryPageParams { pageNum:number, pageSize:number, start?:number, query?:string } export interface QueryResponse extends ResponseData { data:{ total:number, userList:UserInfo[] } }
5.前端:修改src/views/sys/user/index.vue
<script setup lang="ts">
import {ref, onMounted, reactive} from "vue"
import type {QueryPageParams, QueryResponse, UserInfo} from "@/api/user/type";
import {reqQueryList} from "@/api/user";
let tableData = ref<UserInfo[]>([])
let queryForm = reactive<QueryPageParams>({
pageNum:1,
pageSize:3,
query:''
})
let total = ref(0)
const initUserList = async (pager=1)=>{
queryForm.pageNum = pager
let res:QueryResponse = await reqQueryList(queryForm)
if (res.code == 200){
tableData.value = res.data.userList
total.value = res.data.total
}
}
const handleSizeChange = () => {
initUserList()
}
onMounted(()=>{
initUserList()
})
</script>
<template>
<div class="app-container">
<el-table border :data="tableData" stripe style="width: 100%">
<el-table-column prop="username" label="用户名" width="180" />
</el-table>
<el-pagination
v-model:current-page="queryForm.pageNum"
v-model:page-size="queryForm.pageSize"
:page-sizes="[3, 5, 7, 10]"
layout="total, sizes, prev, pager, next, jumper"
:total="total"
@size-change="handleSizeChange"
@current-change="initUserList"
/>
</div>
</template>
<style lang="scss" scoped>
.header{
padding-bottom: 16px;
box-sizing: border-box;
}
.el-pagination{
float: right;
padding: 20px;
box-sizing: border-box;
}
::v-deep th.el-table__cell{
word-break: break-word;
background-color: #f8f8f9 !important;
color: #515a6e;
height: 40px;
font-size: 13px;
}
.el-tag--small {
margin-left: 5px;
}
</style>
6.element-plu国际化配置
main.ts
... import ElementPlus from 'element-plus' import 'element-plus/dist/index.css' import zhCn from 'element-plus/es/locale/lang/zh-cn' ... app.use(ElementPlus, { locale: zhCn, }) ...
7.浏览器显示效果
搜索功能实现
1.在SysUser中新增sysRoleList 存储角色列表[方便前端遍历显示]
/** * 所有角色集合 * */ @TableField(exist = false) public List<SysRole> sysRoleList;
2.修改SysUserController的list方法
@Resource private SysRoleService roleService;/** * 根据条件分页查询用户信息 */ @PostMapping("/list") @PreAuthorize("hasAuthority('system:user:query')") public R list(@RequestBody PageBean pageBean){ String query = pageBean.getQuery().trim(); LambdaQueryWrapper<SysUser> queryWrapper = new LambdaQueryWrapper<>(); if (StrUtil.isNotEmpty(query)){ queryWrapper.like(SysUser::getUsername,query); } Page<SysUser> sysUserPage = new Page<>(pageBean.getPageNum(), pageBean.getPageSize()); Page<SysUser> pageResult = sysUserService.page(sysUserPage,queryWrapper); // 数据集合 List<SysUser> userList = pageResult.getRecords(); for (SysUser sysUser : userList) { List<SysRole> roleList = roleService.list(new QueryWrapper<SysRole>().inSql("id", "select role_id from sys_user_role where user_id = " + sysUser.getId())); sysUser.setSysRoleList(roleList); } Map<String,Object> resultMap = new HashMap<>(); resultMap.put("userList",userList); resultMap.put("total",pageResult.getTotal()); return R.success(resultMap); }
3.前端: 在src/api/user下新增ts类型
src/api/user/type.tsexport interface UserInfo { phonenumber: string, loginDate?: number, updateTime?: number, remark?: string, avatar?: string, password?: string, createTime?: number, id?: number, email: string, username?: string, status?: string, roles?:string, oldPassword?:string, newPassword?:string, sysRoleList?:RoleInfo[] } export interface RoleInfo { id: number, createTime: string, updateTime: string, remark: string, name: string, code: string }
4.前端:修改src/views/sys/user/index.vue
<script setup lang="ts">
import {ref, onMounted, reactive} from "vue"
import type {QueryPageParams, QueryResponse, UserInfo} from "@/api/user/type";
import {reqQueryList} from "@/api/user";
import {baseUrl} from "@/util/request";
let tableData = ref<UserInfo[]>([])
let queryForm = reactive<QueryPageParams>({
pageNum:1,
pageSize:3,
query:''
})
let total = ref(0)
const initUserList = async (pager=1)=>{
queryForm.pageNum = pager
let res:QueryResponse = await reqQueryList(queryForm)
if (res.code == 200){
tableData.value = res.data.userList
total.value = res.data.total
}
}
const handleSizeChange = () => {
initUserList(queryForm.pageNum)
}
onMounted(()=>{
initUserList()
})
</script>
<template>
<div class="app-container">
<el-row :gutter="20" class="header">
<el-col :span="7">
<el-input placeholder="请输入用户名..." v-model="queryForm.query" clearable ></el-input>
</el-col>
<el-button type="primary" icon="Search" @click="initUserList(1)">搜索</el-button>
</el-row>
<el-table border :data="tableData" stripe style="width: 100%">
<el-table-column type="selection" width="55" />
<el-table-column prop="avatar" label="头像" width="80" align="center">
<template v-slot="scope">
<img :src="baseUrl+'image/userAvatar/'+scope.row.avatar" width="50" height="50"/>
</template>
</el-table-column>
<el-table-column prop="username" label="用户名" width="100" align="center"/>
<el-table-column prop="roles" label="拥有角色" width="200" align="center">
<template v-slot="scope">
<el-tag size="small" type="warning" v-for="item in scope.row.sysRoleList">
{
{item.name}}
</el-tag>
</template>
</el-table-column>
<el-table-column prop="email" label="邮箱" width="200" align="center"/>
<el-table-column prop="phonenumber" label="手机号" width="120" align="center"/>
<el-table-column prop="status" label="状态？" width="200" align="center">
<template v-slot="{row}" >
<el-switch v-model="row.status"
@change="statusChangeHandle(row)"
active-text="正常"
inactive-text="禁用"
active-value="0"
inactive-value="1">
</el-switch>
</template>
</el-table-column>
<el-table-column prop="createTime" label="创建时间" width="200" align="center"/>
<el-table-column prop="loginDate" label="最后登录时间" width="200" align="center"/>
<el-table-column prop="remark" label="备注" />
<el-table-column prop="action" label="操作" width="400" fixed="right" align="center">
<template v-slot="scope" >
<el-button type="primary" icon="Tools" >分配角色</el-button>
</template>
</el-table-column>
</el-table>
<el-pagination
v-model:current-page="queryForm.pageNum"
v-model:page-size="queryForm.pageSize"
:page-sizes="[3, 5, 7, 10]"
layout="total, sizes, prev, pager, next, jumper"
:total="total"
@size-change="handleSizeChange"
@current-change="initUserList"
/>
</div>
</template>
<style lang="scss" scoped>
...
</style>
5.浏览器显示效果
添加修改功能实现
1.在SysUserController修改saveOrUpdate接口和新增两个新的接口
/** * 添加或修改 * */ @RequestMapping("saveOrUpdate") @PreAuthorize("hasAuthority('system:user:add')"+"||"+"hasAuthority('system:user :edit')") public R saveOrUpdate(@RequestBody SysUser sysUser){ if (sysUser.getId() == null || sysUser.getId() == -1){ sysUser.setCreateTime(new Date()); sysUserService.save(sysUser); }else { sysUser.setUpdateTime(new Date()); sysUserService.updateById(sysUser); } return R.success(); }/** * 根据id查询 * */ @GetMapping("/{id}") @PreAuthorize("hasAuthority('system:user:query')") public R findById(@PathVariable("id") Integer id){ SysUser sysUser = sysUserService.getById(id); Map<String, Object> map = new HashMap<>(); map.put("sysUser",sysUser); return R.success(map); } /** * 验证用户名是否已经被占用了 * */ @PostMapping("/checkUserName") @PreAuthorize("hasAuthority('system:user:query')") public R checkUserName(@RequestBody SysUser sysUser){ if (sysUserService.getByUsername(sysUser.getUsername()) == null){ // 用户名没有被占用 返回成功 return R.success(); } return R.fail(); }
2. 前端:在src/api/user下新增两个接口
// 用户相关的API接口
...
enum API {
...
FIND_BY_ID_URL = 'sys/user/',
CHECK_USERNAME_URL = 'sys/user/checkUserName'
}
...
export const reqFindById = (id:number) => request.get<any,any>(API.FIND_BY_ID_URL + id)
export const reqCheckUserName = (data:UserInfo) => request.post<any,any>(API.CHECK_USERNAME_URL,data)
3.前端:在src/views/sys/user下新建子组件 用于显示添加/修改的对话框,并完成添加/修改用户
<script setup lang="ts">
import {defineEmits, defineProps,ref,watch } from "vue"
import { ElMessage } from 'element-plus'
import {reqAddOrUpdate, reqCheckUserName, reqFindById} from "@/api/user";
import type {UserInfo} from "@/api/user/type";
let props = defineProps( {
id:{
type:Number,
default:-1,
required:true
},
dialogTitle:{
type:String,
default:'',
required:true
},
dialogVisible:{
type:Boolean,
default:false,
required:true
}
})
let formRef = ref()
let form = ref<UserInfo>({
id:-1,
username:"",
password:"123456",
status:"0",
phonenumber:"",
email:"",
remark:""
})
const checkUsername = async (rule, value, callback) => {
if(form.value.id == -1){ // 新增用户
const res= await reqCheckUserName(form.value)
if (res.code==500) {
callback(new Error("用户名已存在！"));
} else {
callback();
}
}else{
callback();
}
}
let rules = ref({
username:[
{ required: true, message: '请输入用户名'},
{ required: true, validator: checkUsername, trigger: "blur" }
],
email: [
{ required: true, message: "邮箱地址不能为空", trigger: "blur" },
{ type: "email", message: "请输入正确的邮箱地址", trigger: ["blur", "change"] }
],
phonenumber: [
{ required: true, message: "手机号码不能为空", trigger: "blur" },
{ pattern: /^1[3|4|5|6|7|8|9][0-9]\d{8}$/, message: "请输入正确的手机号码", trigger: "blur" }
],
})
const initFormData = async (id:number) =>{
const res = await reqFindById(id)
form.value = res.data.sysUser;
}
watch(() => props.dialogVisible, () => {
if (formRef.value){ // 首次打开对话框时formRef暂未初始化
formRef.value.clearValidate('phonenumber')
formRef.value.clearValidate('email')
formRef.value.clearValidate('username')
}
let id = props.id;
if(id!=-1){
initFormData(id);
}else{
form.value= {
id:-1,
username:"",
password:"123456",
status:"0",
phonenumber:"",
email:"",
remark:""
}
}
})
const emits = defineEmits(['update:modelValue','initUserList'])
const handleClose = ()=>{ emits('update:modelValue',false) }
const handleConfirm = async ()=>{
await formRef.value.validate()
let res = await reqAddOrUpdate(form.value)
if(res.code==200){
ElMessage.success("执行成功！")
formRef.value.resetFields();
emits("initUserList")
handleClose();
}else{
ElMessage.error(res.msg);
}
}
</script>
<template>
<!--不要在 dialogVisible 上使用 v-model，因为它是一个 prop 需要使用v-on 和 v-bind[绑定dialogVisible]-->
<el-dialog :visible="dialogVisible" :title="dialogTitle" width="30%" @close="handleClose" >
<el-form ref="formRef" :model="form" :rules="rules" label-width="100px" >
<el-form-item label="用户名" prop="username">
<el-input v-model="form.username" :disabled="form.id==-1? false:'disabled'" />
<el-alert v-if="form.id==-1" title="默认初始密码：123456" :closable="false" style="line-height: 10px;" type="success" > </el-alert>
</el-form-item>
<el-form-item label="手机号" prop="phonenumber">
<el-input v-model="form.phonenumber" />
</el-form-item>
<el-form-item label="邮箱" prop="email">
<el-input v-model="form.email" />
</el-form-item>
<el-form-item label="状态" prop="status">
<el-radio-group v-model="form.status">
<el-radio :label="'0'">正常</el-radio>
<el-radio :label="'1'">禁用</el-radio>
</el-radio-group>
</el-form-item>
<el-form-item label="备注" prop="remark">
<el-input v-model="form.remark" type="textarea" :rows="4"/>
</el-form-item>
</el-form>
<template #footer>
<span class="dialog-footer">
<el-button type="primary" @click="handleConfirm">确认</el-button>
<el-button @click="handleClose" >取消</el-button >
</span>
</template>
</el-dialog>
</template>
<style scoped lang="scss">
</style>
4.前端:src/views/sys/user/index.vue中引入对话框子组件并显示添加修改按钮
<script setup lang="ts">
import {ref, onMounted, reactive} from "vue"
import type {QueryPageParams, QueryResponse, UserInfo} from "@/api/user/type"
import {reqQueryList} from "@/api/user"
import {baseUrl} from "@/util/request"
import Dialog from './components/index.vue'
let tableData = ref<UserInfo[]>([])
let queryForm = reactive<QueryPageParams>({
pageNum:1,
pageSize:3,
query:''
})
let total = ref(0)
let dialogVisible = ref(false)
let dialogTitle = ref("")
let id = ref(-1)
const initUserList = async (pager=1)=>{
queryForm.pageNum = pager
let res:QueryResponse = await reqQueryList(queryForm)
if (res.code == 200){
tableData.value = res.data.userList
total.value = res.data.total
}
}
const handleSizeChange = () => {
initUserList(queryForm.pageNum)
}
const handleDialogValue = (userId:number) => {
if(userId){
id.value = userId
dialogTitle.value = '修改用户'
} else {
id.value = -1
dialogTitle.value = '新增用户'
}
dialogVisible.value = true
}
onMounted(()=>{
initUserList()
})
</script>
<template>
<div class="app-container">
<el-row :gutter="20" class="header">
<el-col :span="7">
<el-input placeholder="请输入用户名..." v-model="queryForm.query" clearable ></el-input>
</el-col>
<el-button type="primary" icon="Search" @click="initUserList(1)">搜索</el-button>
<el-button type="success" icon="Plus" @click="handleDialogValue(0)">新增</el-button>
</el-row>
<el-table border :data="tableData" stripe style="width: 100%">
<el-table-column type="selection" width="55" />
<el-table-column prop="avatar" label="头像" width="80" align="center">
<template v-slot="scope">
<img :src="baseUrl+'image/userAvatar/'+scope.row.avatar" width="50" height="50"/>
</template>
</el-table-column>
<el-table-column prop="username" label="用户名" width="100" align="center"/>
<el-table-column prop="roles" label="拥有角色" width="200" align="center">
<template v-slot="scope">
<el-tag size="small" type="warning" v-for="item in scope.row.sysRoleList">
{
{item.name}}
</el-tag>
</template>
</el-table-column>
<el-table-column prop="email" label="邮箱" width="200" align="center"/>
<el-table-column prop="phonenumber" label="手机号" width="120" align="center"/>
<el-table-column prop="status" label="状态？" width="200" align="center">
<template v-slot="{row}" >
<el-switch v-model="row.status"
@change="statusChangeHandle(row)"
active-text="正常"
inactive-text="禁用"
active-value="0"
inactive-value="1">
</el-switch>
</template>
</el-table-column>
<el-table-column prop="createTime" label="创建时间" width="200" align="center"/>
<el-table-column prop="loginDate" label="最后登录时间" width="200" align="center"/>
<el-table-column prop="remark" label="备注" />
<el-table-column prop="action" label="操作" width="400" fixed="right" align="center">
<template v-slot="scope" >
<el-button type="primary" icon="Tools" >分配角色</el-button>
<el-button v-if="scope.row.username != 'tom'" type="primary" icon="Edit" @click="handleDialogValue(scope.row.id)">修改用户</el-button>
</template>
</el-table-column>
</el-table>
<el-pagination
v-model:current-page="queryForm.pageNum"
v-model:page-size="queryForm.pageSize"
:page-sizes="[3, 5, 7, 10]"
layout="total, sizes, prev, pager, next, jumper"
:total="total"
@size-change="handleSizeChange"
@current-change="initUserList"
/>
</div>
<Dialog v-model="dialogVisible" :dialog-visible="dialogVisible" :id="id" :dialog-title="dialogTitle" @initUserList="initUserList"/>
</template>
<style lang="scss" scoped>
.header{
padding-bottom: 16px;
box-sizing: border-box;
}
.el-pagination{
float: right;
padding: 20px;
box-sizing: border-box;
}
::v-deep th.el-table__cell{
word-break: break-word;
background-color: #f8f8f9 !important;
color: #515a6e;
height: 40px;
font-size: 13px;
}
.el-tag--small {
margin-left: 5px;
}
</style>
5.浏览器测试
删除或批量删除
1.在SysUserController新增删除接口
@Resource private SysUserRoleService sysUserRoleService;/** * 删除或批量删除 * 需要删除两个表的数据 * */ @Transactional @PostMapping("/delete") @PreAuthorize("hasAuthority('system:user:delete')") public R delete(@RequestBody Long[] ids){ sysUserService.removeByIds(Arrays.asList(ids)); sysUserRoleService.remove(new QueryWrapper<SysUserRole>().in("user_id",ids)); return R.success(); }
2. 前端:在src/api/user下新增一个接口
// 用户相关的API接口
...
enum API {
...
REMOVE_URL = 'sys/user/delete'
}
...
export const reqRemove = (ids:number[]) => request.post<any,any>(API.REMOVE_URL,ids)
3.修改src/views/sys/user/index.vue显示批量删除和单挑删除按钮及业务逻辑
<script setup lang="ts">
...
import {ElMessage} from "element-plus";
....
let multipleSelection = ref([])
...
const handleSelectionChange = (selection:any) => {
console.log(selection)
multipleSelection.value = selection
delBtnStatus.value = selection.length == 0
}
const handleDelete = async (id:any) =>{
let ids = []
if(id){
ids.push(id)
} else {
multipleSelection.value.forEach( row =>ids.push(row.id))
}
const res = await reqRemove(ids)
if(res.code==200){
ElMessage({ type: 'success', message: '执行成功!' })
initUserList();
}else{
ElMessage({ type: 'error', message: res.msg })
}
}
</script>
<template>
<div class="app-container">
<el-row :gutter="20" class="header">
<el-col :span="7">
<el-input placeholder="请输入用户名..." v-model="queryForm.query" clearable ></el-input>
</el-col>
<el-button type="primary" icon="Search" @click="initUserList(1)">搜索</el-button>
<el-button type="success" icon="Plus" @click="handleDialogValue(0)">新增</el-button>
<el-popconfirm title="您确定批量删除这些记录吗？" @confirm="handleDelete(null)">
<template #reference>
<el-button type="danger" :disabled="delBtnStatus" icon="Delete" >批量删除</el-button>
</template>
</el-popconfirm>
</el-row>
<el-table border :data="tableData" stripe style="width: 100%" @selection-change="handleSelectionChange">
...
<el-table-column prop="action" label="操作" width="250" fixed="right" align="center">
<template v-slot="scope" >
<el-button size="small" type="primary" icon="Tools" >分配角色</el-button>
<el-button size="small" v-if="scope.row.username != 'tom'" type="primary" icon="Edit" @click="handleDialogValue(scope.row.id)">修改用户</el-button>
<el-popconfirm v-if="scope.row.username!='tom'" title="您确定要删除这条记录 吗？" @confirm="handleDelete(scope.row.id)">
<template #reference>
<el-button size="small" type="danger" icon="Delete">删除用户</el-button>
</template>
</el-popconfirm>
</template>
</el-table-column>
</el-table>
...
</template>
<style lang="scss" scoped>
...
</style>
4.浏览器测试
重置密码和修改状态
1.在SysUserController新增重置密码和修改状态的接口
/**
* 重置密码
* */
@GetMapping("/resetPassword/{id}")
@PreAuthorize("hasAuthority('system:user:edit')")
public R resetPassword(@PathVariable("id")Integer id){
SysUser sysUser = sysUserService.getById(id);
sysUser.setPassword(bCryptPasswordEncoder.encode(Constant.DEFAULT_PASSWORD));
sysUser.setUpdateTime(new Date());
sysUserService.updateById(sysUser);
return R.success();
}
/**
* 更新status状态
* */
@GetMapping("/updateStatus/{id}/status/{status}")
@PreAuthorize("hasAuthority('system:user:edit')")
public R updateStatus(@PathVariable("id")Integer id,@PathVariable("status")String status){
SysUser sysUser = sysUserService.getById(id);
sysUser.setStatus(status);
sysUserService.saveOrUpdate(sysUser);
return R.success();
}
2.在common/constant/Constant.java存储默认密码
public class Constant {
// 默认密码
public final static String DEFAULT_PASSWORD = "123456";
}
3. 前端:在src/api/user下新增两个接口
// 用户相关的API接口
...
enum API {
...
RESET_PWD_URL = 'sys/user/resetPassword/',
UPDATE_STATUS_URL = 'sys/user/updateStatus/'
}
...
export const reqResetPwd = (id:number) => request.get<any,any>(API.RESET_PWD_URL + id)
export const reqUpdateStatus = (id:number,status:string) => request.get<any,any>(API.UPDATE_STATUS_URL + `${id}/status/${status}`)
4. 前端:修改src/views/sys/user/index.vue
<script setup lang="ts">
...
const handleResetPwd = async (id:number) => {
let res = await reqResetPwd(id)
if (res.code == 200){
ElMessage({
type:'success',
message:'执行成功'
})
} else {
ElMessage({
type:'error',
message:res.msg
})
}
}
const statusChangeHandle = async (row:any) => {
let res = await reqUpdateStatus(row.id,row.status)
if (res.code == 200){
ElMessage({
type:'success',
message:'执行成功'
})
} else {
ElMessage({
type:'error',
message:res.msg
})
}
}
onMounted(()=>{
initUserList()
})
</script>
<template>
<div class="app-container">
...
<el-table border :data="tableData" stripe style="width: 100%" @selection-change="handleSelectionChange">
...
<el-table-column prop="status" label="状态？" width="200" align="center">
<template v-slot="{row}" >
<el-switch v-model="row.status"
@change="statusChangeHandle(row)"
active-text="正常"
inactive-text="禁用"
active-value="0"
inactive-value="1">
</el-switch>
</template>
</el-table-column>
...
<el-table-column prop="action" label="操作" width="400" fixed="right" align="center">
<template v-slot="scope" >
<el-button size="small" type="primary" icon="Tools" >分配角色</el-button>
<el-button size="small" v-if="scope.row.username != 'tom'" type="primary" icon="Edit" @click="handleDialogValue(scope.row.id)"></el-button>
<el-popconfirm v-if="scope.row.username!='tom'" :title="`您确定要删除【${scope.row.username}】吗？`" @confirm="handleDelete(scope.row.id)">
<template #reference>
<el-button size="small" type="danger" icon="Delete"></el-button>
</template>
</el-popconfirm>
<el-popconfirm v-if="scope.row.username!='tom'" :title="`您确定要对这个用户重置密码吗？`" @confirm="handleResetPwd(scope.row.id)">
<template #reference>
<el-button size="small" type="warning" icon="WarnTriangleFilled">重置密码</el-button>
</template>
</el-popconfirm>
</template>
</el-table-column>
</el-table>
...
</template>
<style lang="scss" scoped>
...
</style>
5.浏览器测试
给用户分配角色
1.后端:在SysUserController新增分配角色接口
/**
* 分配角色
* */
@Transactional
@PostMapping("/grantRole/{userId}")
@PreAuthorize("hasAuthority('system:user:role')")
public R grantRole(@PathVariable("userId")Long userId,@RequestBody Long[] roleIds){
List<SysUserRole> userRoleList = new ArrayList<>();
Arrays.stream(roleIds).forEach(r -> {
SysUserRole sysUserRole = new SysUserRole();
sysUserRole.setRoleId(r);
sysUserRole.setUserId(userId);
userRoleList.add(sysUserRole);
});
// 先将当前用户关联的角色删除
sysUserRoleService.remove(new QueryWrapper<SysUserRole>().eq("user_id",userId));
// 再重新把新的管理的用户角色id设置进去
sysUserRoleService.saveBatch(userRoleList);
return R.success();
}
2.后端:新建controller/SysRoleController.java
package com.jd.jdadmin.controller;
import com.jd.jdadmin.entity.R;
import com.jd.jdadmin.entity.SysRole;
import com.jd.jdadmin.service.SysRoleService;
import org.springframework.security.access.prepost.PreAuthorize;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import javax.annotation.Resource;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
/**
* @author 叶蕊
* @ClassName SysRoleController
* @description: TODO
* @date 2025年 01月 17日
* @version: 1.0
*/
@RestController
@RequestMapping("/sys/role")
public class SysRoleController {
@Resource
private SysRoleService sysRoleService;
/*
* 查询所有角色信息
* */
@GetMapping("/listAll")
@PreAuthorize("hasAuthority('system:role:query')")
public R listAll(){
Map<String,Object> resultMap = new HashMap<>();
List<SysRole> roleList = sysRoleService.list();
resultMap.put("roleList",roleList);
return R.success(resultMap);
}
}
3.前端: 在src/api/user下新增两个接口
// 用户相关的API接口
...
...
enum API {
...
GRANT_ROLE_URL = 'sys/user/grantRole/',
ROLE_LIST_URL = 'sys/role/listAll'
}
...
export const reqGrantRole = (userId:number,roleIds:number[]) => request.post<any,any>(API.GRANT_ROLE_URL + userId,roleIds )
export const reqRoleList = () => request.get<any,any>(API.ROLE_LIST_URL)
4.前端:在src/views/sys/user/components下新增roleDialog.vue 显示分配角色的对话框
<script setup lang="ts">
import {defineEmits, defineProps, ref, watch} from "vue"
import { ElMessage } from 'element-plus'
import {reqGrantRole, reqRoleList} from "@/api/user";
const props = defineProps( {
id :{
type:Number,
default:-1,
required:true
},
roleDialogVisible:{
type:Boolean,
default:false,
required:true
},
sysRoleList :{
type:Array,
default:[],
required:true
}
})
const form=ref({
id:-1,
roleList:[],
checkedRoles:[]
})
const formRef=ref()
const initFormData=async(id:number)=>{
const res= await reqRoleList()
console.log(res)
form.value.roleList=res.data.roleList;
form.value.id=id;
}
watch(()=>props.roleDialogVisible, ()=>{
let id=props.id;
console.log("id="+id)
if(id!=-1){
form.value.checkedRoles=[]
props.sysRoleList.forEach(item => form.value.checkedRoles.push(item.id))
initFormData(id)
}
})
const emits=defineEmits(['update:modelValue','initUserList'])
const handleClose=()=>{ emits('update:modelValue',false) }
const handleConfirm = async ()=>{
await formRef.value.validate()
let res = await reqGrantRole(form.value.id,form.value.checkedRoles)
if(res.code==200){
ElMessage.success("执行成功！")
emits("initUserList")
handleClose();
}else{
ElMessage.error(res.msg);
}
}
</script>
<template>
<el-dialog :visible="roleDialogVisible" title="分配角色" width="30%" @close="handleClose" >
<el-form ref="formRef" :model="form" label-width="100px" >
<el-checkbox-group v-model="form.checkedRoles">
<el-checkbox v-for="role in form.roleList" :id="role.id" :key="role.id" :label="role.id" name="checkedRoles" >
{
{role.name}}
</el-checkbox>
</el-checkbox-group>
</el-form>
<template #footer>
<span class="dialog-footer">
<el-button type="primary" @click="handleConfirm">确认</el-button>
<el-button @click="handleClose">取消</el-button>
</span>
</template>
</el-dialog>
</template>
<style scoped lang="scss">
</style>
5.前端:在src/views/sys/user/index.vue引入RoleDialog子组件 实现点击分配角色显示对话框
<script setup lang="ts">
...
const handleRoleDialogValue = (userId:number,roleList:any) => {
console.log(userId)
id.value = userId
sysRoleList.value = roleList
roleDialogVisible.value = true
}
...
</script>
<template>
<div class="app-container">
...
<el-table border :data="tableData" stripe style="width: 100%" @selection-change="handleSelectionChange">
...
<el-table-column prop="action" label="操作" width="400" fixed="right" align="center">
<template v-slot="scope" >
<el-button size="small" type="primary" icon="Tools" @click="handleRoleDialogValue(scope.row.id,scope.row.sysRoleList)">分配角色</el-button>
...
</el-table-column>
</el-table>
...
<RoleDialog v-model="roleDialogVisible" :sysRoleList="sysRoleList" :roleDialogVisible="roleDialogVisible" :id="id" @initUserList="initUserList"/>
</template>
<style lang="scss" scoped>
...
</style>
6.浏览器测试
角色管理实现
列表分页显示[根据用户管理模块做相应修改即可]
1.前端:复制user下的文件及文件夹到role中
2.后端:复制SysUserController的分页查询接口到SysRoleController中 做相应处理即可
/**
* 根据条件分页查询角色信息
*/
@PostMapping("/list")
@PreAuthorize("hasAuthority('system:role:query')")
public R list(@RequestBody PageBean pageBean){
String query = pageBean.getQuery().trim();
LambdaQueryWrapper<SysRole> queryWrapper = new LambdaQueryWrapper<>();
if (StrUtil.isNotEmpty(query)){
queryWrapper.like(SysRole::getName,query);
}
Page<SysRole> sysUserPage = new Page<>(pageBean.getPageNum(), pageBean.getPageSize());
Page<SysRole> pageResult = sysRoleService.page(sysUserPage,queryWrapper);
// 数据集合
List<SysRole> roleList = pageResult.getRecords();
Map<String,Object> resultMap = new HashMap<>();
resultMap.put("roleList",roleList);
resultMap.put("total",pageResult.getTotal());
return R.success(resultMap);
}
3.前端:在src/api下创建role文件夹及index.ts和type.ts
index.ts
import request from "@/util/request"; import type {QueryPageParams, QueryResponse, RoleInfo} from "@/api/role/type"; enum API { QUERY_URL = 'sys/role/list' } export const reqQueryList = (data:QueryPageParams) => request.post<any,QueryResponse>(API.QUERY_URL,data)
type.ts
export interface ResponseData { msg:string code:number } export interface RoleInfo { id?: number, createTime?: string, updateTime?: string, remark?: string, name: string, code: string } export interface QueryPageParams { pageNum:number, pageSize:number, start?:number, query?:string } export interface QueryResponse extends ResponseData { data:{ total:number, roleList:RoleInfo[] } }
4.浏览器测试
添加或修改[根据用户管理模块做相应修改即可]
1.后端:复制SysUserController的添加或修改接口及根据id查询角色信息接口到SysRoleController中 做相应处理即可
/**
* 添加或修改
* */
@RequestMapping("saveOrUpdate")
@PreAuthorize("hasAuthority('system:role:add')"+"||"+"hasAuthority('system:role:edit')")
public R saveOrUpdate(@RequestBody SysRole sysRole){
if (sysRole.getId() == null || sysRole.getId() == -1){
sysRole.setCreateTime(new Date());
sysRoleService.save(sysRole);
}else {
sysRole.setUpdateTime(new Date());
sysRoleService.updateById(sysRole);
}
return R.success();
}
/**
* 根据id查询
* */
@GetMapping("/{id}")
@PreAuthorize("hasAuthority('system:role:query')")
public R findById(@PathVariable("id") Integer id){
SysRole sysRole = sysRoleService.getById(id);
Map<String, Object> map = new HashMap<>();
map.put("sysRole",sysRole);
return R.success(map);
}
2.前端:在src/api/role/index.ts中新增接口
...
enum API {
...
ADD_OR_UPDATE_URL = 'sys/role/saveOrUpdate',
FIND_BY_ID_URL = 'sys/role/'
}
...
export const reqQueryList = (data:QueryPageParams) => request.post<any,QueryResponse>(API.QUERY_URL,data)
export const reqRemove = (ids:number[]) => request.post<any,any>(API.REMOVE_URL,ids)
3.前端:修改src/views/role/components/index.vue
<script setup lang="ts">
import {defineEmits, defineProps,ref,watch } from "vue"
import { ElMessage } from 'element-plus'
import {reqAddOrUpdate,reqFindById} from "@/api/role";
import type {RoleInfo} from "@/api/role/type";
let props = defineProps( {
id:{
type:Number,
default:-1,
required:true
},
dialogTitle:{
type:String,
default:'',
required:true
},
dialogVisible:{
type:Boolean,
default:false,
required:true
}
})
let formRef = ref()
let form = ref<RoleInfo>({
id:-1,
name:"",
remark:"",
code:''
})
let rules = ref({
name:[ { required: true, message: '请输入角色名称'} ],
code:[ { required: true, message: '请输入权限字符'} ]
})
const initFormData = async (id:number) =>{
const res = await reqFindById(id)
form.value = res.data.sysRole;
}
watch(() => props.dialogVisible, () => {
if (formRef.value){ // 首次打开对话框时formRef暂未初始化
formRef.value.clearValidate('code')
formRef.value.clearValidate('name')
}
let id = props.id;
if(id!=-1){
initFormData(id);
}else{
form.value= {
id:-1,
name:"",
remark:"",
code:''
}
}
})
const emits = defineEmits(['update:modelValue','initRoleList'])
const handleClose = ()=>{ emits('update:modelValue',false) }
const handleConfirm = async ()=>{
await formRef.value.validate()
let res = await reqAddOrUpdate(form.value)
if(res.code==200){
ElMessage.success("执行成功！")
formRef.value.resetFields();
emits("initRoleList")
handleClose();
}else{
ElMessage.error(res.msg);
}
}
</script>
<template>
<!--不要在 dialogVisible 上使用 v-model，因为它是一个 prop 需要使用v-on 和 v-bind[绑定dialogVisible]-->
<el-dialog :visible="dialogVisible" :title="dialogTitle" width="30%" @close="handleClose" >
<el-form ref="formRef" :model="form" :rules="rules" label-width="100px" >
<el-form-item label="角色名称" prop="name">
<el-input v-model="form.name" :disabled="form.id==-1? false:'disabled'" />
</el-form-item>
<el-form-item label="权限字符" prop="code">
<el-input v-model="form.code" />
</el-form-item>
<el-form-item label="备注" prop="remark">
<el-input v-model="form.remark" type="textarea" :rows="4"/>
</el-form-item>
</el-form>
<template #footer>
<span class="dialog-footer">
<el-button type="primary" @click="handleConfirm">确认</el-button>
<el-button @click="handleClose" >取消</el-button >
</span>
</template>
</el-dialog>
</template>
<style scoped lang="scss">
</style>
4.浏览器测试
删除或批量删除[根据用户管理模块做相应修改即可]
1.后端:复制SysUserController的删除或批量删除接口到SysRoleController中 做相应处理即可
@Resource private SysUserRoleService sysUserRoleService;/** * 删除或批量删除 * 需要删除两个表的数据 * */ @Transactional @PostMapping("/delete") @PreAuthorize("hasAuthority('system:role:delete')") public R delete(@RequestBody Long[] ids){ sysRoleService.removeByIds(Arrays.asList(ids)); sysUserRoleService.remove(new QueryWrapper<SysUserRole>().in("role_id",ids)); return R.success(); }
2.前端:在src/api/role/index.ts中新增接口
...
enum API {
...
REMOVE_URL = 'sys/role/delete'
}
...
export const reqFindById = (id:number) => request.get<any,any>(API.FIND_BY_ID_URL + id)
3.前端:src/views/role/index.vue
<script setup lang="ts">
import {ref, onMounted, reactive} from "vue"
import type {QueryPageParams, QueryResponse, RoleInfo} from "@/api/role/type"
import {reqQueryList, reqRemove} from "@/api/role"
import Dialog from './components/index.vue'
import {ElMessage} from "element-plus"
import RoleDialog from "@/views/sys/role/components/roleDialog.vue"
let tableData = ref<RoleInfo[]>([])
let queryForm = reactive<QueryPageParams>({
pageNum:1,
pageSize:3,
query:''
})
let total = ref(0)
let dialogVisible = ref(false)
let dialogTitle = ref("")
let id = ref(-1)
let delBtnStatus = ref(true)
let multipleSelection = ref([])
let sysRoleList=ref([])
let roleDialogVisible=ref(false)
const initRoleList = async (pager=1)=>{
queryForm.pageNum = pager
let res:QueryResponse = await reqQueryList(queryForm)
if (res.code == 200){
tableData.value = res.data.roleList
total.value = res.data.total
}
}
const handleSizeChange = () => {
initRoleList(queryForm.pageNum)
}
const handleDialogValue = (roleId:number) => {
if(roleId){
id.value = roleId
dialogTitle.value = '修改角色'
} else {
id.value = -1
dialogTitle.value = '新增角色'
}
dialogVisible.value = true
}
const handleSelectionChange = (selection:any) => {
console.log(selection)
multipleSelection.value = selection
delBtnStatus.value = selection.length == 0
}
const handleDelete = async (id:any) =>{
let ids = []
if(id){
ids.push(id)
} else {
multipleSelection.value.forEach( row => ids.push(row.id))
}
const res = await reqRemove(ids)
if(res.code==200){
ElMessage({ type: 'success', message: '执行成功!' })
initRoleList();
}else{
ElMessage({ type: 'error', message: res.msg })
}
}
const handleRoleDialogValue = (roleId:number,roleList:any) => {
console.log(roleId)
id.value = roleId
sysRoleList.value = roleList
roleDialogVisible.value = true
}
onMounted(()=>{
initRoleList()
})
</script>
<template>
<div class="app-container">
<el-row :gutter="20" class="header">
<el-col :span="7">
<el-input placeholder="请输入角色名..." v-model="queryForm.query" clearable ></el-input>
</el-col>
<el-button type="primary" icon="Search" @click="initRoleList(1)">搜索</el-button>
<el-button type="success" icon="Plus" @click="handleDialogValue(0)">新增</el-button>
<el-popconfirm title="您确定批量删除这些记录吗？" @confirm="handleDelete(null)">
<template #reference>
<el-button type="danger" :disabled="delBtnStatus" icon="Delete" >批量删除</el-button>
</template>
</el-popconfirm>
</el-row>
<el-table border :data="tableData" stripe style="width: 100%" @selection-change="handleSelectionChange">
<el-table-column type="selection" width="55" />
<el-table-column prop="name" label="角色名" width="100" align="center"/>
<el-table-column prop="code" label="权限字符" width="200" align="center"/>
<el-table-column prop="createTime" label="创建时间" width="200" align="center"/>
<el-table-column prop="remark" label="备注" />
<el-table-column prop="action" label="操作" width="400" fixed="right" align="center">
<template v-slot="scope" >
<el-button size="small" type="primary" icon="Tools" @click="handleRoleDialogValue(scope.row.id,scope.row.sysRoleList)">分配权限</el-button>
<el-button size="small" v-if="scope.row.code != 'admin'" type="primary" icon="Edit" @click="handleDialogValue(scope.row.id)"></el-button>
<el-popconfirm v-if="scope.row.code!='admin'" :title="`您确定要删除【${scope.row.name}】吗？`" @confirm="handleDelete(scope.row.id)">
<template #reference>
<el-button size="small" type="danger" icon="Delete"></el-button>
</template>
</el-popconfirm>
</template>
</el-table-column>
</el-table>
<el-pagination
v-model:current-page="queryForm.pageNum"
v-model:page-size="queryForm.pageSize"
:page-sizes="[3, 5, 7, 10]"
layout="total, sizes, prev, pager, next, jumper"
:total="total"
@size-change="handleSizeChange"
@current-change="initRoleList"
/>
</div>
<Dialog v-model="dialogVisible" :dialog-visible="dialogVisible" :id="id" :dialog-title="dialogTitle" @initRoleList="initRoleList"/>
<RoleDialog v-model="roleDialogVisible" :sysRoleList="sysRoleList" :roleDialogVisible="roleDialogVisible" :id="id" @initRoleList="initRoleList"/>
</template>
<style lang="scss" scoped>
.header{
padding-bottom: 16px;
box-sizing: border-box;
}
.el-pagination{
float: right;
padding: 20px;
box-sizing: border-box;
}
::v-deep th.el-table__cell{
word-break: break-word;
background-color: #f8f8f9 !important;
color: #515a6e;
height: 40px;
font-size: 13px;
}
.el-tag--small {
margin-left: 5px;
}
</style>
4.浏览器测试
显示权限菜单树
1.后端:在controller下创建SysMenuController控制器并提供返回所有的菜单树的接口
@RestController
@RequestMapping("/sys/menu")
public class SysMenuController {
@Resource
private SysMenuService sysMenuService;
/**
* 返回所有的菜单树
* */
@RequestMapping("/treeList")
@PreAuthorize("hasAuthority('system:menu:query')")
public R treeList(){
List<SysMenu> menuList = sysMenuService.list(new QueryWrapper<SysMenu>().orderByAsc("order_num"));
List<SysMenu> treeMenu = sysMenuService.buildTreeMenu(menuList);
return R.success().put("treeMenu",sysMenuService.buildTreeMenu(treeMenu));
}
}
2.前端:在src/api/role 新增接口和接口类型
index.ts
...
enum API {
...
TREE_MENU_URL = 'sys/menu/treeList'
}
...
export const reqTreeMenu = () => request.get<any,TreeMenuData>(API.TREE_MENU_URL)
type.ts
export interface MenuInfo {
id:number,
name:string,
icon: string,
orderNum: number,
updateTime: number,
remark: string,
parentId: number,
path: string,
component: string,
children: MenuInfo[]
}
export interface TreeMenuData extends ResponseData {
data: {
treeMenu:MenuInfo[]
}
}
3.前端:修改src/views/role/index.vue
<script setup lang="ts">
import {ref, onMounted, reactive} from "vue"
import type {QueryPageParams, QueryResponse, RoleInfo} from "@/api/role/type"
import {reqQueryList, reqRemove} from "@/api/role"
import Dialog from './components/index.vue'
import {ElMessage} from "element-plus"
import MenuDialog from "@/views/sys/role/components/menuDialog.vue"
let tableData = ref<RoleInfo[]>([])
let queryForm = reactive<QueryPageParams>({
pageNum:1,
pageSize:3,
query:''
})
let total = ref(0)
let dialogVisible = ref(false)
let dialogTitle = ref("")
let id = ref(-1)
let delBtnStatus = ref(true)
let multipleSelection = ref([])
let menuDialogVisible=ref(false)
const initRoleList = async (pager=1)=>{
queryForm.pageNum = pager
let res:QueryResponse = await reqQueryList(queryForm)
if (res.code == 200){
tableData.value = res.data.roleList
total.value = res.data.total
}
}
const handleSizeChange = () => {
initRoleList(queryForm.pageNum)
}
const handleDialogValue = (roleId:number) => {
if(roleId){
id.value = roleId
dialogTitle.value = '修改角色'
} else {
id.value = -1
dialogTitle.value = '新增角色'
}
dialogVisible.value = true
}
const handleSelectionChange = (selection:any) => {
console.log(selection)
multipleSelection.value = selection
delBtnStatus.value = selection.length == 0
}
const handleDelete = async (id:any) =>{
let ids = []
if(id){
ids.push(id)
} else {
multipleSelection.value.forEach( row => ids.push(row.id))
}
const res = await reqRemove(ids)
if(res.code==200){
ElMessage({ type: 'success', message: '执行成功!' })
initRoleList();
}else{
ElMessage({ type: 'error', message: res.msg })
}
}
const handleMenuDialogValue = (userId:number) => {
console.log(userId)
id.value = userId
menuDialogVisible.value = true
}
onMounted(()=>{
initRoleList()
})
</script>
<template>
<div class="app-container">
<el-row :gutter="20" class="header">
<el-col :span="7">
<el-input placeholder="请输入角色名..." v-model="queryForm.query" clearable ></el-input>
</el-col>
<el-button type="primary" icon="Search" @click="initRoleList(1)">搜索</el-button>
<el-button type="success" icon="Plus" @click="handleDialogValue(0)">新增</el-button>
<el-popconfirm title="您确定批量删除这些记录吗？" @confirm="handleDelete(null)">
<template #reference>
<el-button type="danger" :disabled="delBtnStatus" icon="Delete" >批量删除</el-button>
</template>
</el-popconfirm>
</el-row>
<el-table border :data="tableData" stripe style="width: 100%" @selection-change="handleSelectionChange">
<el-table-column type="selection" width="55" />
<el-table-column prop="name" label="角色名" width="100" align="center"/>
<el-table-column prop="code" label="权限字符" width="200" align="center"/>
<el-table-column prop="createTime" label="创建时间" width="200" align="center"/>
<el-table-column prop="remark" label="备注" />
<el-table-column prop="action" label="操作" width="400" fixed="right" align="center">
<template v-slot="scope" >
<el-button size="small" type="primary" icon="Tools" @click="handleMenuDialogValue(scope.row.id)">分配权限</el-button>
<el-button size="small" v-if="scope.row.code != 'admin'" type="primary" icon="Edit" @click="handleDialogValue(scope.row.id)"></el-button>
<el-popconfirm v-if="scope.row.code!='admin'" :title="`您确定要删除【${scope.row.name}】吗？`" @confirm="handleDelete(scope.row.id)">
<template #reference>
<el-button size="small" type="danger" icon="Delete"></el-button>
</template>
</el-popconfirm>
</template>
</el-table-column>
</el-table>
<el-pagination
v-model:current-page="queryForm.pageNum"
v-model:page-size="queryForm.pageSize"
:page-sizes="[3, 5, 7, 10]"
layout="total, sizes, prev, pager, next, jumper"
:total="total"
@size-change="handleSizeChange"
@current-change="initRoleList"
/>
</div>
<Dialog v-model="dialogVisible" :dialog-visible="dialogVisible" :id="id" :dialog-title="dialogTitle" @initRoleList="initRoleList"/>
<MenuDialog v-model="menuDialogVisible" :menuDialogVisible="menuDialogVisible" :id="id" @initRoleList="initRoleList"/>
</template>
<style lang="scss" scoped>
.header{
padding-bottom: 16px;
box-sizing: border-box;
}
.el-pagination{
float: right;
padding: 20px;
box-sizing: border-box;
}
::v-deep th.el-table__cell{
word-break: break-word;
background-color: #f8f8f9 !important;
color: #515a6e;
height: 40px;
font-size: 13px;
}
.el-tag--small {
margin-left: 5px;
}
</style>
4.前端:修改src/views/role/components/menuDialog.vue
<script setup lang="ts">
import {defineEmits, defineProps, ref, watch} from "vue"
import { ElMessage } from 'element-plus'
import {reqTreeMenu} from "@/api/role";
let props = defineProps( {
id :{
type:Number,
default:-1,
required:true
},
menuDialogVisible:{
type:Boolean,
default:false,
required:true
}
})
let form=ref({
id:-1
})
let formRef=ref()
let treeData=ref([])
let defaultProps = {
children: 'children',
label: 'name'
}
let treeRef = ref()
const initFormData=async(id:number)=>{
const res= await reqTreeMenu()
console.log(res)
treeData.value = res.data.treeMenu
form.value.id=id;
}
watch(()=>props.menuDialogVisible, ()=>{
let id=props.id;
console.log("id="+id)
if(id!=-1){
initFormData(id)
}
})
const emits=defineEmits(['update:modelValue','initRoleList'])
const handleClose=()=>{ emits('update:modelValue',false) }
const handleConfirm = async ()=>{
await formRef.value.validate()
// let res = await reqGrantMenu(form.value.id,form.value.checkedMenus)
// if(res.code==200){
// ElMessage.success("执行成功！")
// emits("initRoleList")
// handleClose();
// }else{
// ElMessage.error(res.msg);
// }
}
</script>
<template>
<el-dialog :visible="menuDialogVisible" title="分配权限" width="30%" @close="handleClose" >
<el-form ref="formRef" :model="form" label-width="100px" >
<el-tree ref="treeRef" :data="treeData" :props="defaultProps" show-checkbox :default-expand-all="true" node-key="id" :check-strictly="true" />
</el-form>
<template #footer>
<span class="dialog-footer">
<el-button type="primary" @click="handleConfirm">确认</el-button>
<el-button @click="handleClose">取消</el-button>
</span>
</template>
</el-dialog>
</template>
<style scoped lang="scss">
</style>
5.浏览器测试
*分配权限的实现
1.后端:在SysMenuController提供根据id查询菜单权限列表的接口和给角色分配权限的接口
@Resource private SysRoleMenuService sysRoleMenuService;/** * 获取当前角色的权限菜单id集合[即当前角色拥有的权限] * */ @GetMapping("/menus/{id}") @PreAuthorize("hasAuthority('system:role:menu')") public R menus(@PathVariable("id") Long id){ List<SysRoleMenu> roleMenuList = sysRoleMenuService.list(new QueryWrapper<SysRoleMenu>().eq("role_id", id)); List<Long> menuIds = roleMenuList.stream().map(i -> i.getMenuId()).collect(Collectors.toList()); return R.success().put("menuIds",menuIds); } /** * 给角色分配权限 * */ @Transactional @PostMapping("/update/menus/{id}") @PreAuthorize("hasAuthority('system:role:menu')") public R updateMenus(@PathVariable("id")Long id,@RequestBody Long[] menuIds){ sysRoleMenuService.remove(new QueryWrapper<SysRoleMenu>().eq("role_id",id)); List<SysRoleMenu> sysRoleMenus = new ArrayList<>(); Arrays.stream(menuIds).forEach(menuId -> { SysRoleMenu sysRoleMenu = new SysRoleMenu(); sysRoleMenu.setRoleId(id); sysRoleMenu.setMenuId(menuId); sysRoleMenus.add(sysRoleMenu); }); sysRoleMenuService.saveBatch(sysRoleMenus); return R.success(); }
2.前端:在src/api/role/index.ts 新增接口
...
enum API {
...
HAS_MENU_URL = 'sys/role/menus/',
GRANT_MENU_URL = 'sys/role/update/menus/'
}
...
export const reqHasMenu = (id:number) => request.get<any,any>(API.HAS_MENU_URL + id)
export const reqGrantMenu = (id:number,menuIds:number[]) => request.post<any,any>(API.GRANT_MENU_URL + id,menuIds)
3.前端: 修改src/views/role/components/menuDialog.vue
<script setup lang="ts">
import {defineEmits, defineProps, ref, watch} from "vue"
import { ElMessage } from 'element-plus'
import {reqGrantMenu, reqHasMenu, reqTreeMenu} from "@/api/role";
let props = defineProps( {
id :{
type:Number,
default:-1,
required:true
},
menuDialogVisible:{
type:Boolean,
default:false,
required:true
}
})
let form=ref({
id:-1
})
let formRef=ref()
let treeData=ref([])
let defaultProps = {
children: 'children',
label: 'name'
}
let treeRef = ref()
const initFormData= async(id:number)=>{
let res= await reqTreeMenu()
treeData.value = res.data.treeMenu
form.value.id=id
let res2 = await reqHasMenu(id)
console.log(res2)
// 通过 key 设置某个节点的当前选中状态，使用此方法必须设置 node-key 属性
treeRef.value.setCheckedKeys(res2.data.menuIds)
}
watch(()=>props.menuDialogVisible, ()=>{
let id=props.id;
console.log("id="+id)
if(id!=-1){
initFormData(id)
}
})
const emits=defineEmits(['update:modelValue','initRoleList'])
const handleClose=()=>{ emits('update:modelValue',false) }
const handleConfirm = async ()=>{
await formRef.value.validate()
// 获取所有选中的节点的key[权限id]
let menuIds = treeRef.value.getCheckedKeys()
// 分配权限
let res = await reqGrantMenu(form.value.id,menuIds)
if(res.code==200){
ElMessage.success("执行成功！")
emits("initRoleList")
handleClose();
}else{
ElMessage.error(res.msg);
}
}
</script>
<template>
<el-dialog :visible="menuDialogVisible" title="分配权限" width="30%" @close="handleClose" >
<el-form ref="formRef" :model="form" label-width="100px" >
<el-tree ref="treeRef" :data="treeData" :props="defaultProps" show-checkbox :default-expand-all="true" node-key="id" :check-strictly="true" />
</el-form>
<template #footer>
<span class="dialog-footer">
<el-button type="primary" @click="handleConfirm">确认</el-button>
<el-button @click="handleClose">取消</el-button>
</span>
</template>
</el-dialog>
</template>
<style scoped lang="scss">
</style>
4.浏览器测试
菜单管理实现
树形表格菜单信息显示
1.前端:将src/views/sys/user下的文件夹及文件拷贝到menu中 将roleDialog.vue删除
2.前端: 修改src/views/sys/menu/index.ts
<script setup lang="ts">
import {ref, onMounted, reactive} from "vue"
import Dialog from './components/index.vue'
import {ElMessage} from "element-plus"
import {reqTreeMenu} from "@/api/role";
let tableData=ref([])
let dialogVisible=ref(false)
let dialogTitle=ref("")
let id=ref(-1)
const initMenuList= async()=>{
const res= await reqTreeMenu()
console.log()
tableData.value = res.data.treeMenu
}
const handleDialogValue=(userId:number)=>{
if(userId){
id.value=userId;
dialogTitle.value="用户修改"
}else{
id.value=-1;
dialogTitle.value="用户添加"
}
dialogVisible.value=true
}
const handleDelete=async (id:number)=>{
/*let ids = []
if(id){
ids.push(id)
}else{
multipleSelection.value.forEach(row=>{
ids.push(row.id)
})
}
const res=await requestUtil.post("sys/user/delete",ids)
if(res.data.code==200){
ElMessage({
type: 'success',
message: '执行成功!'
})
initMenuList();
}else{
ElMessage({
type: 'error',
message: res.data.msg
})
}*/
}
onMounted(()=>{
initMenuList()
})
</script>
<template>
<div class="app-container">
<el-row class="header">
<el-button type="success" icon="Plus" @click="handleDialogValue(0)">新增</el-button>
</el-row>
<el-table :data="tableData" row-key="id" stripe
style="width: 100%; margin-bottom: 20px;"
border default-expand-all
:tree-props="{ children: 'children', hasChildren: 'hasChildren' }">
<el-table-column prop="name" label="菜单名称" width="200"/>
<el-table-column prop="icon" label="图标" width="70" align="center">
<template v-slot="scope">
<el-icon v-if="scope.row.icon != '#'">
<component :is="scope.row.icon"/>
</el-icon>
</template>
</el-table-column>
<el-table-column prop="orderNum" label="排序" width="70" align="center"/>
<el-table-column prop="perms" label="权限标识" width="200"/>
<el-table-column prop="path" label="组件路径" width="180"/>
<el-table-column prop="menuType" label="菜单类型" width="120" align="center">
<template v-slot="scope">
<el-tag size="small" v-if="scope.row.menuType === 'M'" type="danger" effect="dark">目录</el-tag>
<el-tag size="small" v-else-if="scope.row.menuType === 'C'" type="success" effect="dark">菜单</el-tag>
<el-tag size="small" v-else-if="scope.row.menuType === 'F'" type="warning" effect="dark">按钮</el-tag>
</template>
</el-table-column>
<el-table-column prop="createTime" label="创建时间" align="center"/>
<el-table-column prop="action" label="操作" width="400" fixed="right" align="center">
<template v-slot="scope" >
<el-button type="primary" icon="Edit" @click="handleDialogValue(scope.row.id)" />
<el-popconfirm title="您确定要删除这条记录吗？" @confirm="handleDelete(scope.row.id)">
<template #reference>
<el-button type="danger" icon="Delete"/>
</template>
</el-popconfirm>
</template>
</el-table-column>
</el-table>
</div>
<Dialog v-model="dialogVisible" :dialog-visible="dialogVisible" :id="id" :dialog-title="dialogTitle" @initMenuList="initMenuList"/>
</template>
<style lang="scss" scoped>
.header{
padding-bottom: 16px;
box-sizing: border-box;
}
.el-pagination{
float: right;
padding: 20px;
box-sizing: border-box;
}
::v-deep th.el-table__cell{
word-break: break-word;
background-color: #f8f8f9 !important;
color: #515a6e;
height: 40px;
font-size: 13px;
}
.el-tag--small {
margin-left: 5px;
}
</style>
3.浏览器测试[因为后台已经写好了所以只需要改前端页面]
修改和添加功能
1.后端:在SysMenuController提供添加或修改接口及根据id查询菜单接口
/**
* 添加或修改
* */
@RequestMapping("saveOrUpdate")
@PreAuthorize("hasAuthority('system:menu:add')"+"||"+"hasAuthority('system:menu:edit')")
public R saveOrUpdate(@RequestBody SysMenu sysMenu){
if (sysMenu.getId() == null || sysMenu.getId() == -1){
sysMenu.setCreateTime(new Date());
sysMenuService.save(sysMenu);
}else {
sysMenu.setUpdateTime(new Date());
sysMenuService.updateById(sysMenu);
}
return R.success();
}
/**
* 根据id查询
* */
@GetMapping("/{id}")
@PreAuthorize("hasAuthority('system:menu:query')")
public R findById(@PathVariable("id") Integer id){
SysMenu sysMenu = sysMenuService.getById(id);
Map<String, Object> map = new HashMap<>();
map.put("sysMenu",sysMenu);
return R.success(map);
}
2.前端: 在src/api/menu/index.ts 新增接口
index.ts
import request from "@/util/request";
import type {MenuInfo} from "@/api/menu/type"
enum API {
ADD_OR_UPDATE_URL = 'sys/menu/saveOrUpdate',
FIND_BY_ID_URL = 'sys/menu/'
}
export const reqAddOrUpdate = (data:MenuInfo) => request.post<any,any>(API.ADD_OR_UPDATE_URL,data)
export const reqRemove = (id:number) => request.get<any,any>(API.REMOVE_URL + id)
type.ts
export interface MenuInfo {
id:number,
name:string,
icon: string,
orderNum: number,
updateTime: number,
remark: string,
parentId: number,
path: string,
component: string,
children: MenuInfo[]
}
3.前端: 修改src/views/sys/menu/components/index.vue
<script setup>
import {defineEmits, defineProps, ref, watch} from "vue"
import { ElMessage } from 'element-plus'
import {reqAddOrUpdate, reqFindById} from "@/api/menu";
const tableData=ref([])
const props= defineProps( {
id:{
type:Number,
default:-1,
required:true
},
dialogTitle:{
type:String,
default:'',
required:true
},
dialogVisible:{
type:Boolean,
default:false,
required:true
},
tableData:{
type:Array,
default:[],
required:true
}
})
const form=ref({ id:-1, parentId:'', menuType:"M", icon:'', name:'', perms:'', component:'', orderNum:1 })
const rules=ref({
parentId:[{ required: true, message: '请选择上级菜单'}],
name: [{ required: true, message: "菜单名称不能为空", trigger: "blur" }]
})
const formRef=ref(null)
const initFormData = async(id)=>{
const res = await reqFindById(id)
form.value = res.data.sysMenu
}
watch(()=>props.dialogVisible, ()=>{
let id=props.id
tableData.value = props.tableData
if(id!=-1){
initFormData(id)
}else{
form.value = {
id:-1,
parentId:'',
menuType:"M",
icon:'',
name:'',
perms:'',
component:'',
orderNum:1
}
}
})
const emits=defineEmits(['update:modelValue','initMenuList'])
const handleClose= ()=>{
emits('update:modelValue',false)
}
const handleConfirm=()=>{
formRef.value.validate(async(valid)=>{
if(valid){
let result=await reqAddOrUpdate(form.value)
if(result.code==200){
ElMessage.success("执行成功！")
formRef.value.resetFields()
emits("initMenuList")
handleClose()
}else {
ElMessage.error(result.msg);
}
}else{
console.log("fail")
}
})
}
</script>
<template>
<el-dialog model-value="dialogVisible" :title="dialogTitle" width="30%" @close="handleClose" >
<el-form ref="formRef" :model="form" :rules="rules" label-width="100px">
<el-form-item label="上级菜单" prop="parentId">
<el-select v-model="form.parentId" placeholder="请选择上级菜单">
<template v-for="item in tableData">
<el-option :label="item.name" :value="item.id"></el-option>
<template v-for="child in item.children">
<el-option :label="child.name" :value="child.id">
<span>{
{ " -- " + child.name }}</span>
</el-option>
</template>
</template>
</el-select>
</el-form-item>
<el-form-item label="菜单类型" prop="menuType" label-width="100px">
<el-radio-group v-model="form.menuType">
<el-radio :label="'M'">目录</el-radio>
<el-radio :label="'C'">菜单</el-radio>
<el-radio :label="'F'">按钮</el-radio>
</el-radio-group>
</el-form-item>
<el-form-item label="菜单图标" prop="icon">
<el-input v-model="form.icon" />
</el-form-item>
<el-form-item label="菜单名称" prop="name">
<el-input v-model="form.name" />
</el-form-item>
<el-form-item label="权限标识" prop="perms">
<el-input v-model="form.perms" /> </el-form-item>
<el-form-item label="组件路径" prop="component">
<el-input v-model="form.component" />
</el-form-item>
<el-form-item label="显示顺序" prop="orderNum">
<el-input-number v-model="form.orderNum" :min="1" label="显示顺序"></el-input-number>
</el-form-item>
</el-form>
<template #footer>
<span class="dialog-footer">
<el-button type="primary" @click="handleConfirm">确认</el-button>
<el-button @click="handleClose">取消</el-button>
</span>
</template>
</el-dialog>
</template>
<style scoped> </style>
4.前端:修改 src/views/sys/menu/index.vue
<script setup lang="ts">
import {ref, onMounted, reactive} from "vue"
import Dialog from './components/index.vue'
import {ElMessage} from "element-plus"
import {reqTreeMenu} from "@/api/role";
import {reqRemove} from "@/api/menu";
let tableData=ref([])
let dialogVisible=ref(false)
let dialogTitle=ref("")
let id=ref(-1)
const initMenuList= async()=>{
const res= await reqTreeMenu()
console.log()
tableData.value = res.data.treeMenu
}
const handleDialogValue=(userId:number)=>{
if(userId){
id.value=userId;
dialogTitle.value="用户修改"
}else{
id.value=-1;
dialogTitle.value="用户添加"
}
dialogVisible.value=true
}
const handleDelete=async (id:number)=>{
...
}
onMounted(()=>{
initMenuList()
})
</script>
<template>
<div class="app-container">
<el-row class="header">
<el-button type="success" icon="Plus" @click="handleDialogValue(0)">新增</el-button>
</el-row>
<el-table :data="tableData" row-key="id" stripe
style="width: 100%; margin-bottom: 20px;"
border default-expand-all
:tree-props="{ children: 'children', hasChildren: 'hasChildren' }">
<el-table-column prop="name" label="菜单名称" width="200"/>
<el-table-column prop="icon" label="图标" width="70" align="center">
<template v-slot="scope">
<el-icon v-if="scope.row.icon != '#'">
<component :is="scope.row.icon"/>
</el-icon>
</template>
</el-table-column>
<el-table-column prop="orderNum" label="排序" width="70" align="center"/>
<el-table-column prop="perms" label="权限标识" width="200"/>
<el-table-column prop="path" label="组件路径" width="180"/>
<el-table-column prop="menuType" label="菜单类型" width="120" align="center">
<template v-slot="scope">
<el-tag size="small" v-if="scope.row.menuType === 'M'" type="danger" effect="dark">目录</el-tag>
<el-tag size="small" v-else-if="scope.row.menuType === 'C'" type="success" effect="dark">菜单</el-tag>
<el-tag size="small" v-else-if="scope.row.menuType === 'F'" type="warning" effect="dark">按钮</el-tag>
</template>
</el-table-column>
<el-table-column prop="createTime" label="创建时间" align="center"/>
<el-table-column prop="action" label="操作" width="400" fixed="right" align="center">
<template v-slot="scope" >
<el-button type="primary" icon="Edit" @click="handleDialogValue(scope.row.id)" />
<el-popconfirm title="您确定要删除这条记录吗？" @confirm="handleDelete(scope.row.id)">
<template #reference>
<el-button type="danger" icon="Delete"/>
</template>
</el-popconfirm>
</template>
</el-table-column>
</el-table>
</div>
<Dialog v-model="dialogVisible" :tableData="tableData" :dialogVisible="dialogVisible" :id="id" :dialogTitle="dialogTitle" @initMenuList="initMenuList"/>
</template>
<style lang="scss" scoped>
.header{
padding-bottom: 16px;
box-sizing: border-box;
}
.el-pagination{
float: right;
padding: 20px;
box-sizing: border-box;
}
::v-deep th.el-table__cell{
word-break: break-word;
background-color: #f8f8f9 !important;
color: #515a6e;
height: 40px;
font-size: 13px;
}
.el-tag--small {
margin-left: 5px;
}
</style>
5.浏览器测试
删除功能
1.后端:在SysMenuController提供删除菜单接口
/**
* 删除
* 需要删除两个表的数据
* */
@GetMapping("/delete/{id}")
@PreAuthorize("hasAuthority('system:menu:delete')")
public R delete(@PathVariable("id") Long id){
int count = sysMenuService.count(new QueryWrapper<SysMenu>().eq("parent_id", id));
if (count > 0){// 若有子菜单则不能直接删除
return R.fail("请先删除子菜单");
}
sysMenuService.removeById(id);
return R.success();
}
2.前端:在src/api/menu/index.ts 新增接口
...
enum API {
REMOVE_URL = 'sys/menu/delete/'
}
...
export const reqFindById = (id:number) => request.get<any,any>(API.FIND_BY_ID_URL + id)
3.前端: 修改src/views/sys/menu/index.vue
<script setup lang="ts">
...
const handleDelete=async (id:number)=>{
const res=await reqRemove(id)
if(res.code==200){
ElMessage({
type: 'success',
message: '执行成功!'
})
initMenuList();
}else{
ElMessage({
type: 'error',
message: res.msg
})
}
}
onMounted(()=>{
initMenuList()
})
</script>
<template>
<div class="app-container">
...
<el-table :data="tableData" row-key="id" stripe
style="width: 100%; margin-bottom: 20px;"
border default-expand-all
:tree-props="{ children: 'children', hasChildren: 'hasChildren' }">
...
<el-table-column prop="action" label="操作" width="400" fixed="right" align="center">
<template v-slot="scope" >
<el-button type="primary" icon="Edit" @click="handleDialogValue(scope.row.id)" />
<el-popconfirm title="您确定要删除这条记录吗？" @confirm="handleDelete(scope.row.id)">
<template #reference>
<el-button type="danger" icon="Delete"/>
</template>
</el-popconfirm>
</template>
</el-table-column>
</el-table>
</div>
<Dialog v-model="dialogVisible" :tableData="tableData" :dialogVisible="dialogVisible" :id="id" :dialogTitle="dialogTitle" @initMenuList="initMenuList"/>
</template>
<style lang="scss" scoped>
...
</style>
4.浏览器测试
扫一扫
1134
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
