蓝桥杯Day7:DS1302时钟芯片

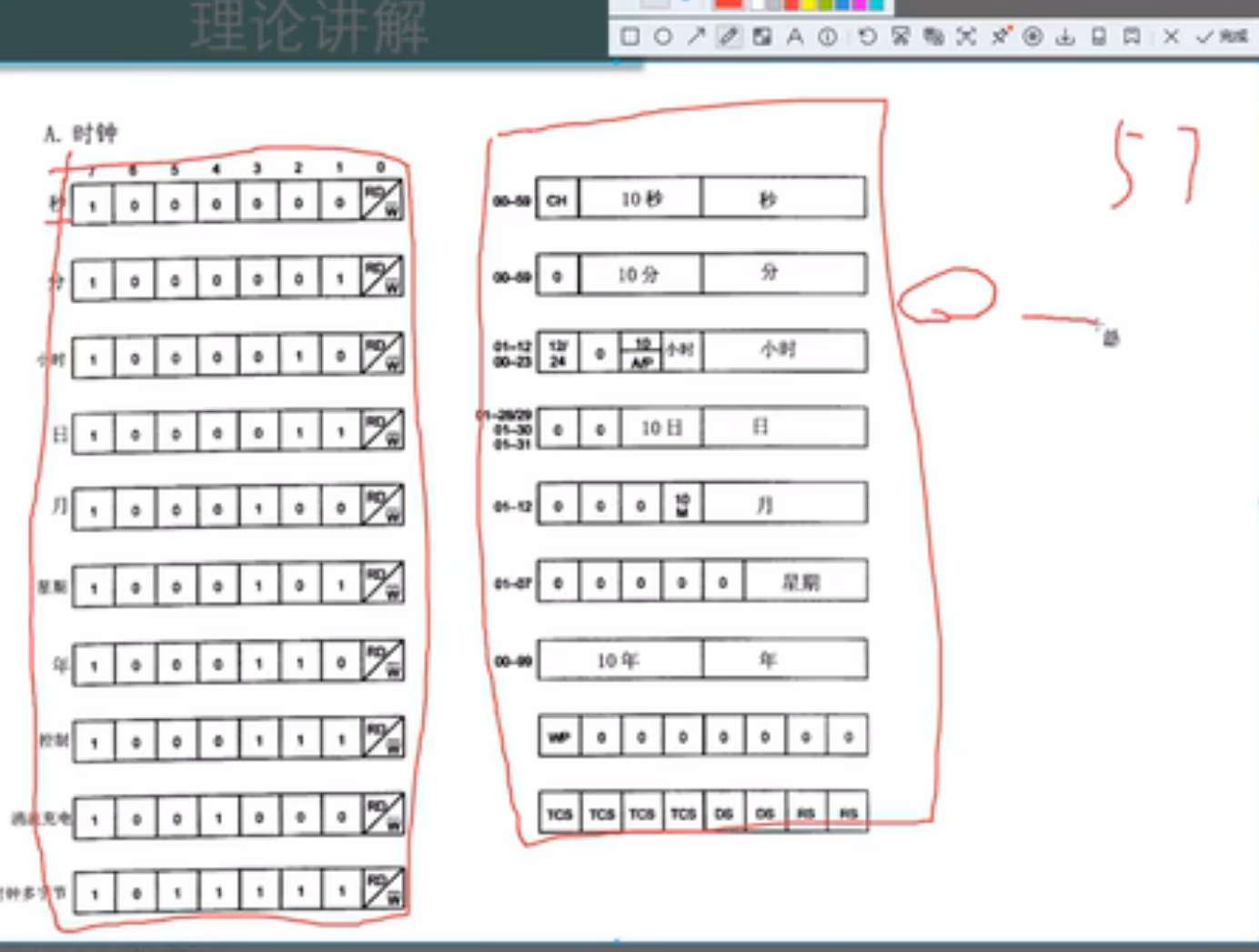

1、基本格式

需要访问的地址+写入的格式

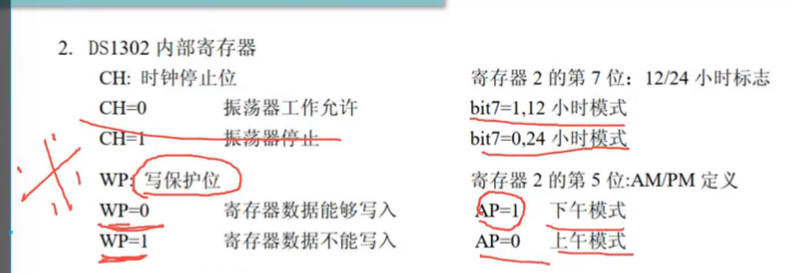

1、基本原理

2、代码展示

写入与读取数据

void Set_Rtc(unsigned char *ucRtc)
{
  unsigned char i;
  Write_Ds1302_Byte(0x8e, 0x00); // 禁止写保护
  Write_Ds1302_Byte(0x80, 0x80); // 停止时钟芯片
  for (i = 0; i < 3; i++)
    Write_Ds1302_Byte(0x84 - 2 * i, ucRtc[i] / 10 % 10 << 4 | ucRtc[i] % 10);
  Write_Ds1302_Byte(0x8e, 0x80);
}

void Read_Rtc(unsigned char *ucRtc)
{
  unsigned char i;
  unsigned temp;
  EA = 0; // 关闭总中断，防止时序错误
  for (i = 0; i < 3; i++)
  {
    temp = Read_Ds1302_Byte(0x85 - 2 * i);
    ucRtc[i] = temp / 16 * 10 + temp % 16;
  }
  EA = 1;
}
