51单片点亮LED1-4（LED1~LED8）

要求：

1，采用模块化编程，程序编码要求规范

2，每个LED点亮700ms

其实点亮LED灯也并不需要一定采用固定的方法 可以根据自己的思想去构造

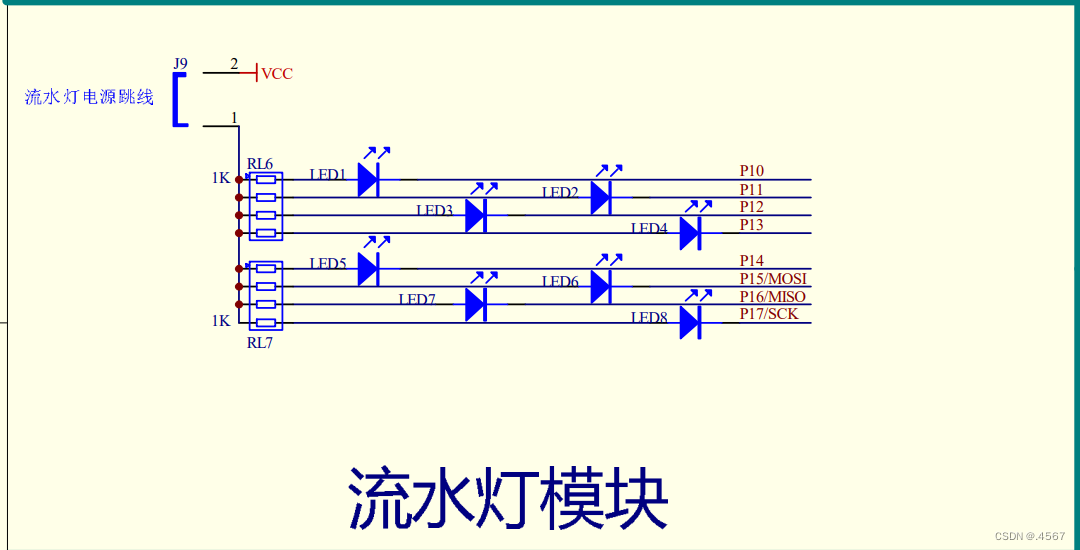

附原理图：

1.同样的我们还是先新建文件夹

2.声明定义我们需要的函数

3.编写我们所需要实现的功能 首先我们来新建App(app.c  app.h)

//...............................................
//文件名：app.c
//...............................................

#include"app.h"

//主函数main
void	main(void)
{
	//初始化LED
	Led_Init();

	while(TRUE)
	{
		Led1_On();
		DelayXms(700);
		Led1_Off();
		DelayXms(700);

		Led2_On();
		DelayXms(700);
		Led2_Off();
		DelayXms(700);

		Led3_On();
		DelayXms(700);
		Led3_Off();
		DelayXms(700);

		Led4_On();
		DelayXms(700);
		Led4_Off();
		DelayXms(700);

		Led5_On();
		DelayXms(700);
		Led5_Off();
		DelayXms(700);

		Led6_On();
		DelayXms(700);
		Led6_Off();
		DelayXms(700);

		Led7_On();
		DelayXms(700);
		Led7_Off();
		DelayXms(700);

		Led8_On();
		DelayXms(700);
		Led8_Off();
		DelayXms(700);
	}
}

我这个稍微有点太乱了，如果有自己的方法可以按照自己的方法来哦

//..........................................
//文件名：app.h
//...........................................

#ifndef		__APP_H__
	#define	__APP_H__

	#include"led.h"
	#include"common.h"

#endif

接下来我们就可以来写我们需要实现的功能了

新建Bsp(led.c        led.h)

//.....................................................
//文件名led.c
//....................................................

#include "led.h"

//初始化LED
//熄灭所有的LED:LED端口设置为输出,而且输出为全1
void	Led_Init(void)
{
	LED_PORT	=B11111111;
}

//点亮LED1函数
//LED1引脚输出低电平（输出0）
void	Led1_On(void)

{
	LED1=0;
}

//点亮LED2函数
void	Led2_On(void)
{
	LED2	=	0;
}

//点亮LED3函数
void	Led3_On(void)
{
	LED3	=	0;
}

//点亮LED4函数
void	Led4_On(void)
{
	LED4	=	0;
}

//点亮LED5函数
void	Led5_On(void)
{
	LED5	=	0;
}

//点亮LED6函数
void	Led6_On(void)
{
	LED6	=	0;
}

//点亮LED7函数
void	Led7_On(void)
{
	LED7	=	0;
}

//点亮LED8函数
void	Led8_On(void)
{
	LED8	=	0;
	DelayXms(800);
}

//熄灭LED1函数
//LED1引脚输出高电平（输出1）
void	Led1_Off(void)

{
	LED1	=1;
}

//熄灭LED2函数
void	Led2_Off(void)
{
	LED2	=1;
}

//熄灭LED3函数
void	Led3_Off(void)
{
	LED3	=1;
}

//熄灭LED4函数
void	Led4_Off(void)
{
	LED4	=1;
}

//熄灭LED5函数
void	Led5_Off(void)
{
	LED5	=1;
}

//熄灭LED6函数
void	Led6_Off(void)
{
	LED6	=1;
}

//熄灭LED7函数
void	Led7_Off(void)
{
	LED7 =1;
}

//熄灭LED8函数
void	Led8_Off(void)
{
	LED8	=1;
	DelayXms(200);
}

//.............................................
//文件名：led.h
//.............................................

#ifndef	__LED_H__
	#define	__LED_H__

	#include<reg52.h>
	#include"common.h"

	//定义LED端口LED_PORT
	#define		LED_PORT				P1
	//定义LED引脚LED1~LED8
	sbit		LED1=LED_PORT^0;
	sbit		LED2=LED_PORT^1;
	sbit		LED3=LED_PORT^2;
	sbit		LED4=LED_PORT^3;
	sbit		LED5=LED_PORT^4;
	sbit		LED6=LED_PORT^5;
	sbit		LED7=LED_PORT^6;
	sbit		LED8=LED_PORT^7;

	//声明初始化LED函数
	void	Led_Init(void);
	//声明点亮LED1~LED8函数
	void	Led1_On(void);
	void	Led2_On(void);
	void	Led3_On(void);
	void	Led4_On(void);
	void	Led5_On(void);
	void	Led6_On(void);
	void	Led7_On(void);
	void	Led8_On(void);
	//声明熄灭LED1~LED8函数
	void	Led1_Off(void);
	void	Led2_Off(void);
	void	Led3_Off(void);
	void	Led4_Off(void);
	void	Led5_Off(void);
	void	Led6_Off(void);
	void	Led7_Off(void);
	void	Led8_Off(void);

#endif

下面就是我们的延时函数（common.h是固定在里面的哦

//..............................................
//文件名：common.c
//............................................

#include"common.h"

//软件延时函数
//在晶振频率为11.0592MHz情况下
//调用该函数会产生约n毫秒的延时
void	DelayXms(u16	n)
{
	u16	i,j;

	for(i=0;	i < n; i++)
	{
		//下面for语句产生约1ms延时
		for(j = 0; j < 120; j++)
		{
			;
		}
	}

}

//.........................................................................
//文件名：common.h
//
//说明：定义数据类型等
//.........................................................................

#ifndef		__COMMON_H__
	#define	__COMMON_H__

	//定义表示真假的真值
	#define	TRUE					1
	#define	FALSE					0

	//定义数据类型
	typedef	unsigned char		u8;
	typedef	signed char			s8;
	typedef	unsigned int			u16;
	typedef	signed int				s16;
	typedef	unsigned long		u32;
	typedef	signed long			s32;

	//定义在C51中使用8bit二进制数据宏
	#define B00000000 0x00
	#define B00000001 0x01
	#define B00000010 0x02
	#define B00000011 0x03
	#define B00000100 0x04
	#define B00000101 0x05
	#define B00000110 0x06
	#define B00000111 0x07
	#define B00001000 0x08
	#define B00001001 0x09
	#define B00001010 0x0A
	#define B00001011 0x0B
	#define B00001100 0x0C
	#define B00001101 0x0D
	#define B00001110 0x0E
	#define B00001111 0x0F

	#define B00010000 0x10
	#define B00010001 0x11
	#define B00010010 0x12
	#define B00010011 0x13
	#define B00010100 0x14
	#define B00010101 0x15
	#define B00010110 0x16
	#define B00010111 0x17
	#define B00011000 0x18
	#define B00011001 0x19
	#define B00011010 0x1A
	#define B00011011 0x1B
	#define B00011100 0x1C
	#define B00011101 0x1D
	#define B00011110 0x1E
	#define B00011111 0x1F

	#define B00100000 0x20
	#define B00100001 0x21
	#define B00100010 0x22
	#define B00100011 0x23
	#define B00100100 0x24
	#define B00100101 0x25
	#define B00100110 0x26
	#define B00100111 0x27
	#define B00101000 0x28
	#define B00101001 0x29
	#define B00101010 0x2A
	#define B00101011 0x2B
	#define B00101100 0x2C
	#define B00101101 0x2D
	#define B00101110 0x2E
	#define B00101111 0x2F

	#define B00110000 0x30
	#define B00110001 0x31
	#define B00110010 0x32
	#define B00110011 0x33
	#define B00110100 0x34
	#define B00110101 0x35
	#define B00110110 0x36
	#define B00110111 0x37
	#define B00111000 0x38
	#define B00111001 0x39
	#define B00111010 0x3A
	#define B00111011 0x3B
	#define B00111100 0x3C
	#define B00111101 0x3D
	#define B00111110 0x3E
	#define B00111111 0x3F

	#define B01000000 0x40
	#define B01000001 0x41
	#define B01000010 0x42
	#define B01000011 0x43
	#define B01000100 0x44
	#define B01000101 0x45
	#define B01000110 0x46
	#define B01000111 0x47
	#define B01001000 0x48
	#define B01001001 0x49
	#define B01001010 0x4A
	#define B01001011 0x4B
	#define B01001100 0x4C
	#define B01001101 0x4D
	#define B01001110 0x4E
	#define B01001111 0x4F

	#define B01010000 0x50
	#define B01010001 0x51
	#define B01010010 0x52
	#define B01010011 0x53
	#define B01010100 0x54
	#define B01010101 0x55
	#define B01010110 0x56
	#define B01010111 0x57
	#define B01011000 0x58
	#define B01011001 0x59
	#define B01011010 0x5A
	#define B01011011 0x5B
	#define B01011100 0x5C
	#define B01011101 0x5D
	#define B01011110 0x5E
	#define B01011111 0x5F

	#define B01100000 0x60
	#define B01100001 0x61
	#define B01100010 0x62
	#define B01100011 0x63
	#define B01100100 0x64
	#define B01100101 0x65
	#define B01100110 0x66
	#define B01100111 0x67
	#define B01101000 0x68
	#define B01101001 0x69
	#define B01101010 0x6A
	#define B01101011 0x6B
	#define B01101100 0x6C
	#define B01101101 0x6D
	#define B01101110 0x6E
	#define B01101111 0x6F

	#define B01110000 0x70
	#define B01110001 0x71
	#define B01110010 0x72
	#define B01110011 0x73
	#define B01110100 0x74
	#define B01110101 0x75
	#define B01110110 0x76
	#define B01110111 0x77
	#define B01111000 0x78
	#define B01111001 0x79
	#define B01111010 0x7A
	#define B01111011 0x7B
	#define B01111100 0x7C
	#define B01111101 0x7D
	#define B01111110 0x7E
	#define B01111111 0x7F

	#define B10000000 0x80
	#define B10000001 0x81
	#define B10000010 0x82
	#define B10000011 0x83
	#define B10000100 0x84
	#define B10000101 0x85
	#define B10000110 0x86
	#define B10000111 0x87
	#define B10001000 0x88
	#define B10001001 0x89
	#define B10001010 0x8A
	#define B10001011 0x8B
	#define B10001100 0x8C
	#define B10001101 0x8D
	#define B10001110 0x8E
	#define B10001111 0x8F

	#define B10010000 0x90
	#define B10010001 0x91
	#define B10010010 0x92
	#define B10010011 0x93
	#define B10010100 0x94
	#define B10010101 0x95
	#define B10010110 0x96
	#define B10010111 0x97
	#define B10011000 0x98
	#define B10011001 0x99
	#define B10011010 0x9A
	#define B10011011 0x9B
	#define B10011100 0x9C
	#define B10011101 0x9D
	#define B10011110 0x9E
	#define B10011111 0x9F

	#define B10100000 0xA0
	#define B10100001 0xA1
	#define B10100010 0xA2
	#define B10100011 0xA3
	#define B10100100 0xA4
	#define B10100101 0xA5
	#define B10100110 0xA6
	#define B10100111 0xA7
	#define B10101000 0xA8
	#define B10101001 0xA9
	#define B10101010 0xAA
	#define B10101011 0xAB
	#define B10101100 0xAC
	#define B10101101 0xAD
	#define B10101110 0xAE
	#define B10101111 0xAF

	#define B10110000 0xB0
	#define B10110001 0xB1
	#define B10110010 0xB2
	#define B10110011 0xB3
	#define B10110100 0xB4
	#define B10110101 0xB5
	#define B10110110 0xB6
	#define B10110111 0xB7
	#define B10111000 0xB8
	#define B10111001 0xB9
	#define B10111010 0xBA
	#define B10111011 0xBB
	#define B10111100 0xBC
	#define B10111101 0xBD
	#define B10111110 0xBE
	#define B10111111 0xBF

	#define B11000000 0xC0
	#define B11000001 0xC1
	#define B11000010 0xC2
	#define B11000011 0xC3
	#define B11000100 0xC4
	#define B11000101 0xC5
	#define B11000110 0xC6
	#define B11000111 0xC7
	#define B11001000 0xC8
	#define B11001001 0xC9
	#define B11001010 0xCA
	#define B11001011 0xCB
	#define B11001100 0xCC
	#define B11001101 0xCD
	#define B11001110 0xCE
	#define B11001111 0xCF

	#define B11010000 0xD0
	#define B11010001 0xD1
	#define B11010010 0xD2
	#define B11010011 0xD3
	#define B11010100 0xD4
	#define B11010101 0xD5
	#define B11010110 0xD6
	#define B11010111 0xD7
	#define B11011000 0xD8
	#define B11011001 0xD9
	#define B11011010 0xDA
	#define B11011011 0xDB
	#define B11011100 0xDC
	#define B11011101 0xDD
	#define B11011110 0xDE
	#define B11011111 0xDF

	#define B11100000 0xE0
	#define B11100001 0xE1
	#define B11100010 0xE2
	#define B11100011 0xE3
	#define B11100100 0xE4
	#define B11100101 0xE5
	#define B11100110 0xE6
	#define B11100111 0xE7
	#define B11101000 0xE8
	#define B11101001 0xE9
	#define B11101010 0xEA
	#define B11101011 0xEB
	#define B11101100 0xEC
	#define B11101101 0xED
	#define B11101110 0xEE
	#define B11101111 0xEF

	#define B11110000 0xF0
	#define B11110001 0xF1
	#define B11110010 0xF2
	#define B11110011 0xF3
	#define B11110100 0xF4
	#define B11110101 0xF5
	#define B11110110 0xF6
	#define B11110111 0xF7
	#define B11111000 0xF8
	#define B11111001 0xF9
	#define B11111010 0xFA
	#define B11111011 0xFB
	#define B11111100 0xFC
	#define B11111101 0xFD
	#define B11111110 0xFE
	#define B11111111 0xFF

	//声明软件延时函数
	void DelayXms(u16);

#endif

模块化程序已经打完了接下来我们就要新建工程咯还是老样子，忘记建工程的朋友可以去看看我前面几篇，有写到,建好工程后我们就把我们的程序放进去开始进行编译

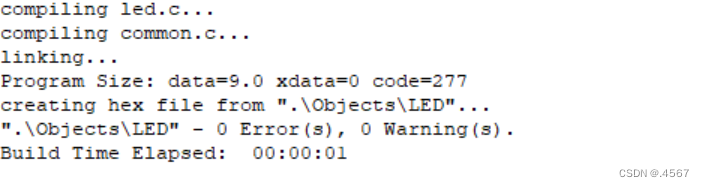

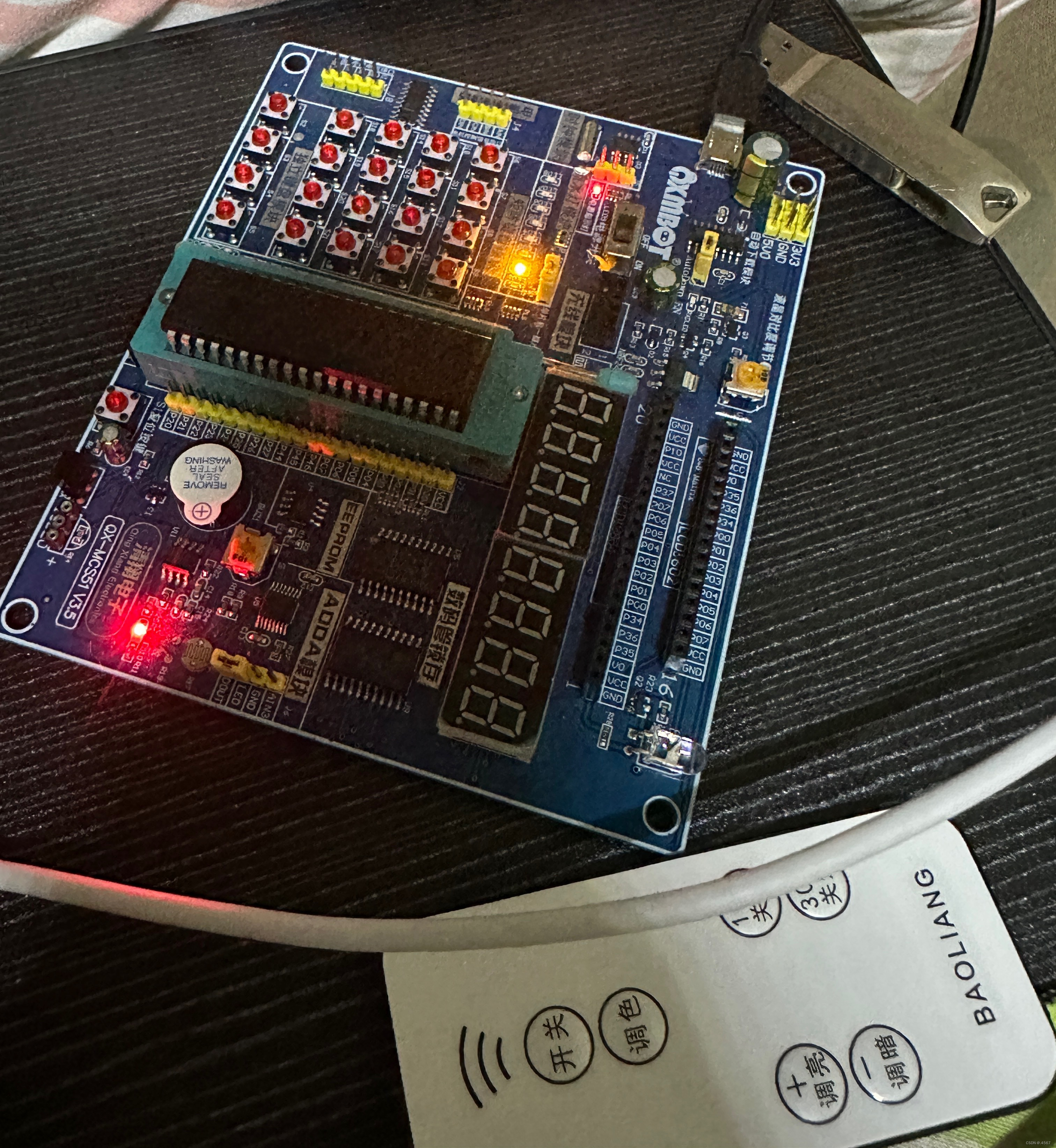

这样就是编译正确，然后我们就可以在实验板上实现了
