鸿蒙HarmonyOS项目实战开发:井字过三关小游戏_基于harmonyos的井字棋游戏开发

2

在入口组件(@Entry修饰的组件)中绘制布局,该布局使用Stack容器,展示文字,图片的堆叠效果,在容器中依次填入Image,Text,Image,Butto,Text组件,具体代码如下

build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Stack() {
        Image($r("app.media.bg"))
        Column() {
          Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
            Text('井字游戏大作战').fontSize(30).textAlign(TextAlign.Center).fontColor(Color.White)
          }.height('10%')

          Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Start }) {
            Stack() {
              Image($r("app.media.bg_start_game"))
              Column() {
                Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
                  Image($r("app.media.battles")).height(100).width(100)
                }.height('50%')

                Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
                  Button('开始游戏').height(50).width(200).backgroundColor('#32CD99').fontSize(20).onClick(() => {
                      this.startDialog.open()
                    })
                  Text("").height(20)
                  Text('游戏规则').fontSize(20).fontColor('#FF00FF').height(60).decoration({ type: TextDecorationType.Underline, color: Color.Red }).onClick(() => {
                      this.rulesDialog.open()
                    })
                }.height('40%')
              }
            }
          }.height('50%').width('90%')

          Flex() {
          }.height('30%')
        }
      }
    }.width('100%').height('100%')
  }

自定义弹窗

1.点击开始按钮的弹窗如下图所示,窗口从上到下由TextListButton组成,List中的子元素由Text和Radio组成,以下代码的省略号表示非UI相关的逻辑代码,具体实现参考源代码

3

@CustomDialog
struct gameStart {
  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
        //顶部标题
        Text('发现以下在线设备').fontColor(Color.Black).fontSize(30)
      }.width('100%').height('20%')

      Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Start }) {
       //使用List容器动态加载在线设备
       List() {
          ForEach(this.deviceName, (item) => {
            ListItem() {
              Row() {
                //Text组件显示设备名
                Text(item.deviceName).width('80%').fontSize(30).fontColor(Color.Black)
                //Radio组件显示单选框
                Radio({ value: '' }).checked(this.check[item.id]).onChange(() => {
                  //这里保证List里面点击了多个Radio组件时,只有当前点击的为选中状态
                  for (let i = 0; i < this.check.length; i++) {
                    this.check[i] = false
                  }
                  this.check[item.id] = true
                })
              }
            }
          }, item => item.id)
        }
        .height('80%')

        Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
          Button('确定').width(200).height(50).fontSize(30).onClick(() => {
           //......
            this.controller.close()
          })
        }.height('30%')

      }.width('100%').height('80%')
    }.height('100%').width('100%')
  }
}

点击游戏规则的弹窗由Text,Text,button组成,具体实现可以参考弹窗1,和源代码

2) 棋盘界面

4

棋盘界面由状态栏(左上图标表示当前由X或者O执行,右上表示自己本局使用X或者O),九宫格棋盘(Grid组件绘制),button按钮组成。

build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Row({ useAlign: HorizontalAlign.Start }) {
      //左上图标
        if (this.selfChess === EMPTY) {
          Image(this.current_X).height(150).width('30%')
        } else if (this.curChess === CIRCLE) {
          Image(this.current_O).height(150).width('30%')
        } else {
          Image(this.current_X).height(150).width('30%')
        }
        //填充空格
        Text("").width('40%')
        //右上图标
        if (this.selfChess === EMPTY) {
          Image(this.whiteBg).height(150).width('30%')
        } else {
          Image(this.selfChess === FORK ? this.self_X : this.self_O).height(150).width('30%')
        }
      }.height('30%')
      Flex() {
       //堆叠容器
        Stack() {
          //绘制九宫格
          Grid() {
            ForEach(this.gridVis, (item) => {
              GridItem() {
                //每个子格子当前需要填充的图片
                if (item.value === FORK) {
                  Image(this.fork).backgroundColor(Color.White)
                } else if (item.value === CIRCLE) {
                  Image(this.circle).backgroundColor(Color.White)
                } else {
                  Image(this.whiteBg)
                }
              }.onClick(() => {
                //点触格子触发事件
                this.dealPoint(item)
              })
            }, item => item.id)
          }.columnsTemplate('1fr 1fr 1fr').rowsTemplate('1fr 1fr 1fr').columnsGap(3).rowsGap(3).align(Alignment.Center).alignSelf(ItemAlign.Center).backgroundColor('#9F5F9F')

    //根据胜负状态显示图片
          if (result === YOU_WIN) {
            Image($r("app.media.game_win")).width(224).height(224)
          } else if (result === YOU_LOSE) {
            Image($r("app.media.game_fail")).width(224).height(224)
          } else if (result === TIE) {
            Image($r("app.media.game_tie")).width(224).height(224)
          }
        }
      }.height('50%')
      Row({ useAlign: HorizontalAlign.Center }) {
        Button('重新开始').width(200).height(50).fontSize(30).backgroundColor('#8E6B23').onClick(() => {
            this.initGame()
          })
      }.height('20%')
    }
  }
3.设备认证

设备认证是依赖DeviceManager组件来实现的,详细代码参考源码RemoteDeviceModel.ets

1.创建DeviceManager实例

 registerDeviceListCallback(callback) {
    if (typeof (this.#deviceManager) === 'undefined') {
      deviceManager.createDeviceManager('com.example.tictactoegame', (error, value) => {
        if (error) return
        this.#deviceManager = value;
        this.registerDeviceListCallback_(callback);
      });
    } else {
      this.registerDeviceListCallback_(callback);
    }
  }

2.查询可信设备列表

 var list = this.#deviceManager.getTrustedDeviceListSync();
    if (typeof (list) != 'undefined' && typeof (list.length) != 'undefined') {
      this.deviceList = list;
    }

3.注册设备上下线监听

this.#deviceManager.on('deviceStateChange', (data) => {
      switch (data.action) {
        case 0:
          this.deviceList[this.deviceList.length] = data.device;
          this.callback();
          if (this.authCallback != null) {
            this.authCallback();
            this.authCallback = null;
          }
          break;
        case 2:
          if (this.deviceList.length > 0) {
            for (var i = 0; i < this.deviceList.length; i++) {
              if (this.deviceList[i].deviceId === data.device.deviceId) {
                this.deviceList[i] = data.device;
                break;
              }
            }
          }
          this.callback();
          break;
        case 1:
          if (this.deviceList.length > 0) {
            var list = [];
            for (var i = 0; i < this.deviceList.length; i++) {
              if (this.deviceList[i].deviceId != data.device.deviceId) {
                list[i] = data.device;
              }
            }
            this.deviceList = list;
          }
          this.callback();
          break;
        default:
          break;
      }
    });

4.设备发现

this.#deviceManager.on('deviceFound', (data) => {
      for (let i = 0; i < this.discoverList.length; i++) {
        if (that.discoverList[i].deviceId === data.device.deviceId) {
          return;
        }
      }
      this.discoverList[this.discoverList.length] = data.device;
      this.callback();
    });

5.设备认证

authDevice(deviceInfo, callback){
    let extraInfo = {
      "targetPkgName": 'com.example.tictactoegame',
      "appName": 'com.example.tictactoegame',
      "appDescription": 'com.example.tictactoegame',
      "business": '0'
    };
    let authParam = {
      "authType": 1,
      "appIcon": '',
      "appThumbnail": '',
      "extraInfo": extraInfo
    };
    this.#deviceManager.authenticateDevice(deviceInfo, authParam, (err, data) => {
      if (err) {
        this.authCallback = null;
      } else {
        this.authCallback = callback;
      }
    });
  }
4.数据管理

分布式数据管理依赖@ohos.data.distributedData模块实现,详细参考源码RemoteDataManager.ets

1.导入该模块

import factory from '@ohos.data.distributedData';

2.创建KVManager实例,用于管理数据库对象

  registerDataListCallback(callback) {
    let that = this
    if (this.kvManager == null) {
      try {
        const config = {
          userInfo: {
            userId: '0',
            userType: 0
          },
          bundleName: 'com.example.tictactoegame'
        }
        factory.createKVManager(config).then((manager) => {
          that.kvManager = manager
          that.registerDataListCallback_(callback)
        }).catch((err) => {
        })
      } catch (e) {
      }
    } else {
      this.registerDataListCallback_(callback)
    }
  }

3.创建并获取KVStore数据库

registerDataListCallback_(callback) {
    let that = this
    if (that.kvManager == null) {
      callback()
      return
    }
    if (that.kvStore == null) {
      try {
        let options =
          {
            createIfMissing: true,
            encrypt: false,
            backup: false,
            autoSync: true,
            kvStoreType: 1,
            securityLevel: 3
          }
        this.kvManager.getKVStore(this.STORE_ID, options).then((store) => {
          that.kvStore = store
          that._registerDataListCallback_(callback)
        }).catch((err) => {
        })
      } catch (e) {
      }
    } else {
      this._registerDataListCallback_(callback)
    }
  }

4.订阅指定类型的数据变更通知

  _registerDataListCallback_(callback) {
    let that = this
    if (that.kvManager == null) {
      callback()
      return
    }
    this.kvStore.on('dataChange', 1, function(data) {
      if (data) {
         that.arr = data.updateEntries
        callback()
      }
    })
  }

5.添加指定类型键值对到数据库

  dataChange(key, value) {
    let that = this
      try {
        that.kvStore.put(JSON.stringify(key), JSON.stringify(value)).then((data) => {
        }).catch((err) => {
          prompt.showToast({message:'put err:'+JSON.stringify(value)})
        })

      } catch (e) {
      }
  }
5.远程拉起设备app

使用FeatureAbility模块的startAbility接口拉起远程设备app

  startAbilityContinuation(deviceId) {
    let wantValue = {
      bundleName: 'com.example.tictactoegame',
      abilityName: 'com.example.tictactoegame.MainAbility',
      deviceId: deviceId,
      parameters: {
        uri: 'pages/Fight'
      }
    };
    featureAbility.startAbility({ want: wantValue }).then(() => {
      router.replace({ uri: 'pages/Fight' })
    });
  }
6.棋局胜负判定

对于棋盘中的任一个格子只存在已落子和未落子两种状态,我们把这两种状态定义为1和0,则九宫格可以看成是一个只有9位的二进制数,胜利状态有八种情况如下,详细代码参考源码Chess.ets:

0b111000000
0b100100100
0b100010001
0b010010010
0b001001001
0b000111000
0b000000111
0b001010100

胜负判定实现如下

  isWin() {
    let x = this.result_X
    let o = this.result_O
    if (448 == (x & 448) || 292 == (x & 292) || 273 == (x & 273) || 146 == (x & 146) || 73 == (x & 73) || 56 == (x & 56) || 7 == (x & 7) || 84 == (x & 84)){
      this.allIsTrue()
      return FORK


**自我介绍一下,小编13年上海交大毕业,曾经在小公司待过,也去过华为、OPPO等大厂,18年进入阿里一直到现在。**

**深知大多数HarmonyOS鸿蒙开发工程师,想要提升技能,往往是自己摸索成长或者是报班学习,但对于培训机构动则几千的学费,着实压力不小。自己不成体系的自学效果低效又漫长,而且极易碰到天花板技术停滞不前!**

**因此收集整理了一份《2024年HarmonyOS鸿蒙开发全套学习资料》,初衷也很简单,就是希望能够帮助到想自学提升又不知道该从何学起的朋友,同时减轻大家的负担。**
![img](https://img-blog.csdnimg.cn/img_convert/a7a74da9a092022d2726414aaba0deda.png)
![img](https://img-blog.csdnimg.cn/img_convert/e430c5abb5ec90357a496f3003a6d0d9.png)
![img](https://img-blog.csdnimg.cn/img_convert/716d6a88d64ca2429a1b0ee0fe8ab3b8.png)

**既有适合小白学习的零基础资料,也有适合3年以上经验的小伙伴深入学习提升的进阶课程,基本涵盖了95%以上HarmonyOS鸿蒙开发知识点,真正体系化!**

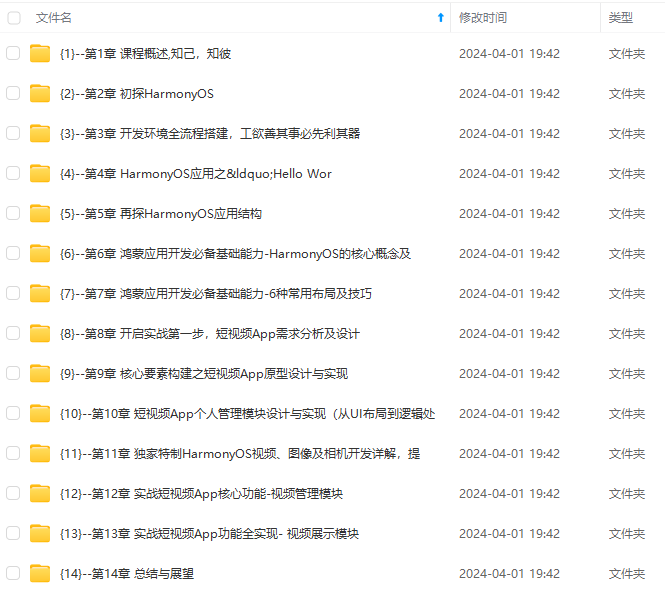

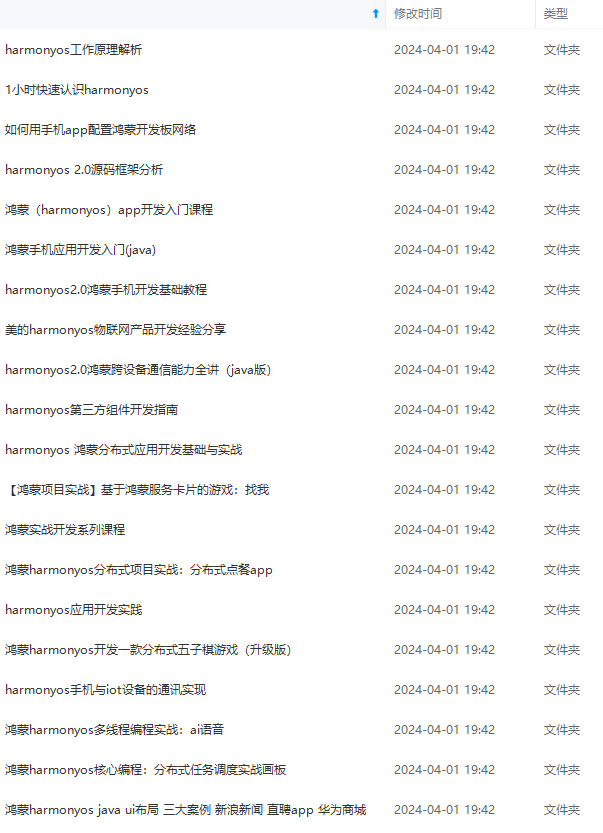

**由于文件比较大,这里只是将部分目录大纲截图出来,每个节点里面都包含大厂面经、学习笔记、源码讲义、实战项目、讲解视频,并且会持续更新**
