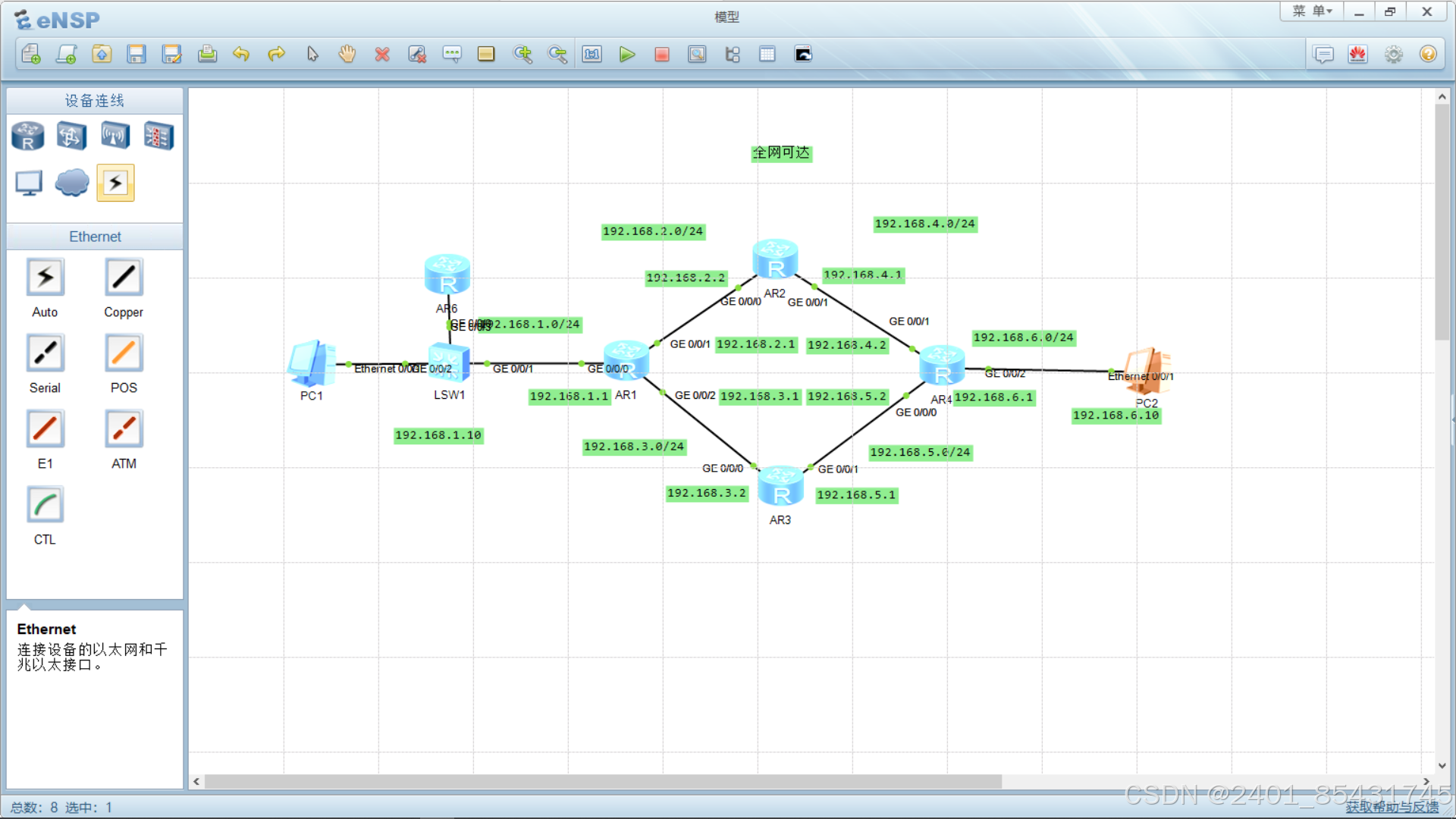

1.PC1和PC2通过DHCP分配地址 2.给Pc1和R1之间加一台交换机，再加一台路由器连在交换机，让我们的R6通过te1net远程登录R1 全网可达

沈千秋.

已于 2024-11-24 00:25:31 修改

阅读量1.5k

点赞数 26

文章标签：网络

于 2024-11-24 00:24:42 首次发布

本文链接：https://blog.csdn.net/2401_85431745/article/details/144001227

版权

一、全网可通

1.首先进入系统视图system-view

2.更改AR名称sysname

3.进入接口 interface g0/0/0

4.给接口配置ip地址 ip address 192.168.1.1

5.用下一跳来进行路由间连通ip route-static

6.查看路由表是否填写完整 display ip routing-table

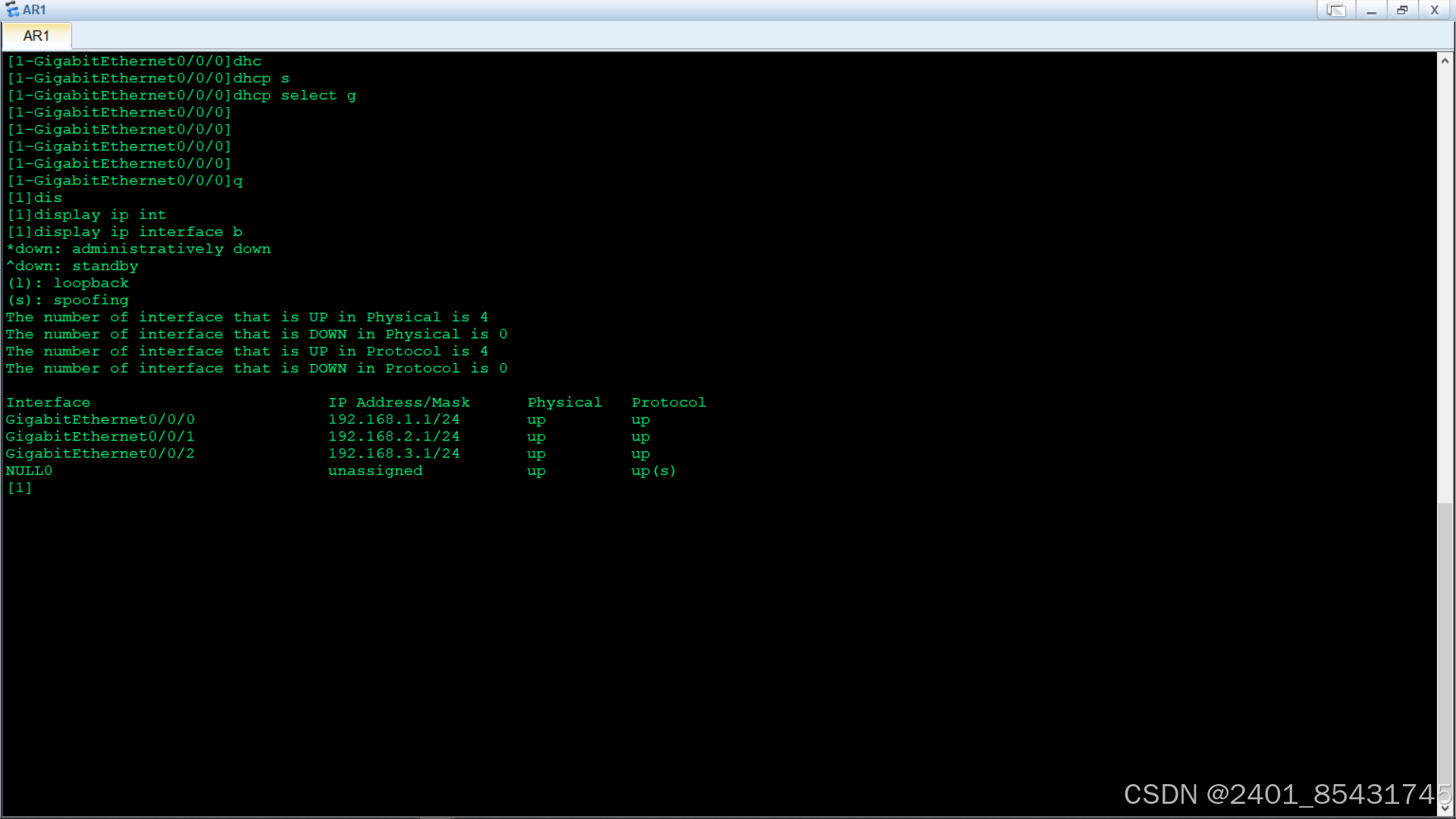

AR1

给接口配置ip

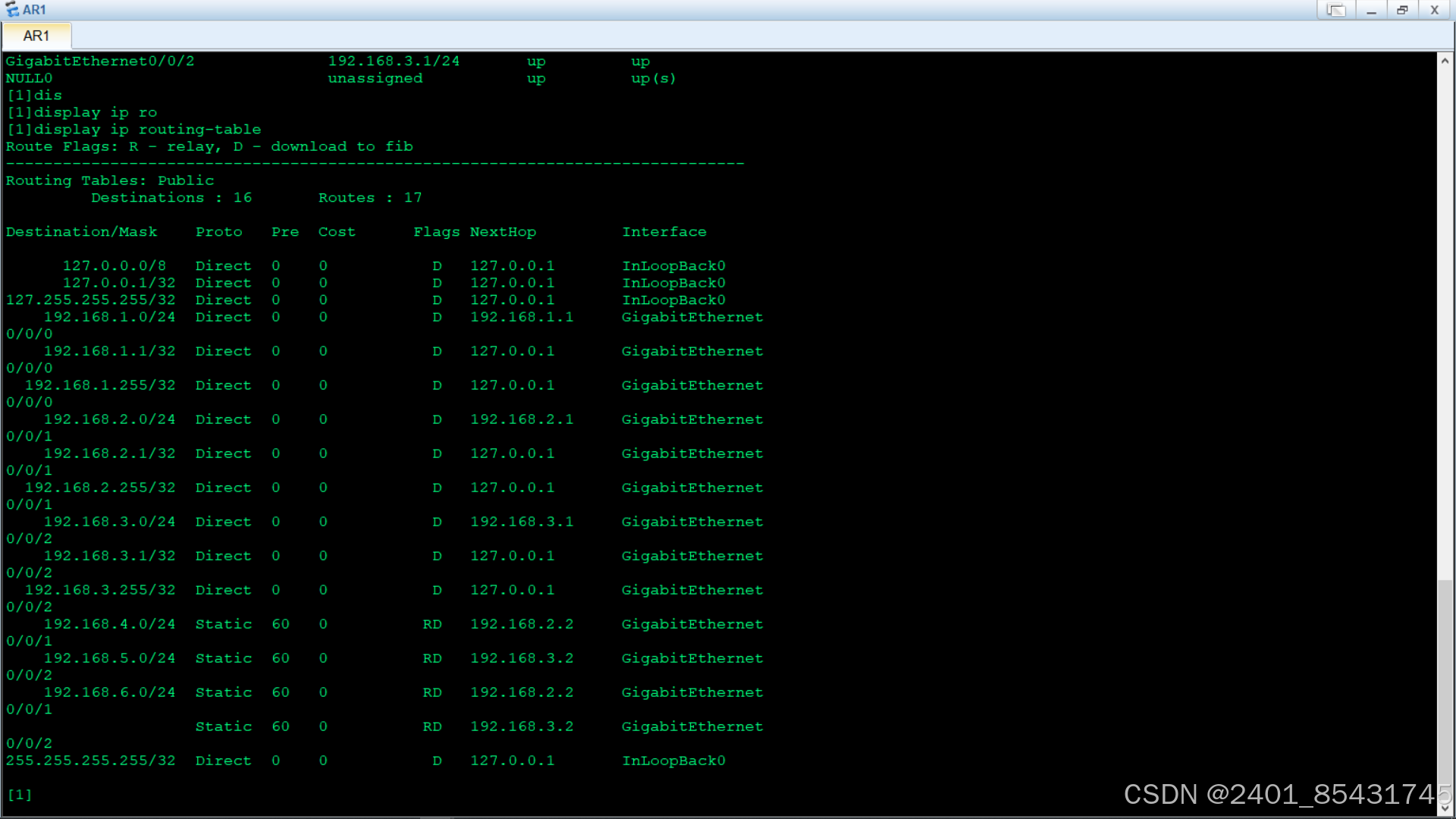

使用下一跳连通各网段

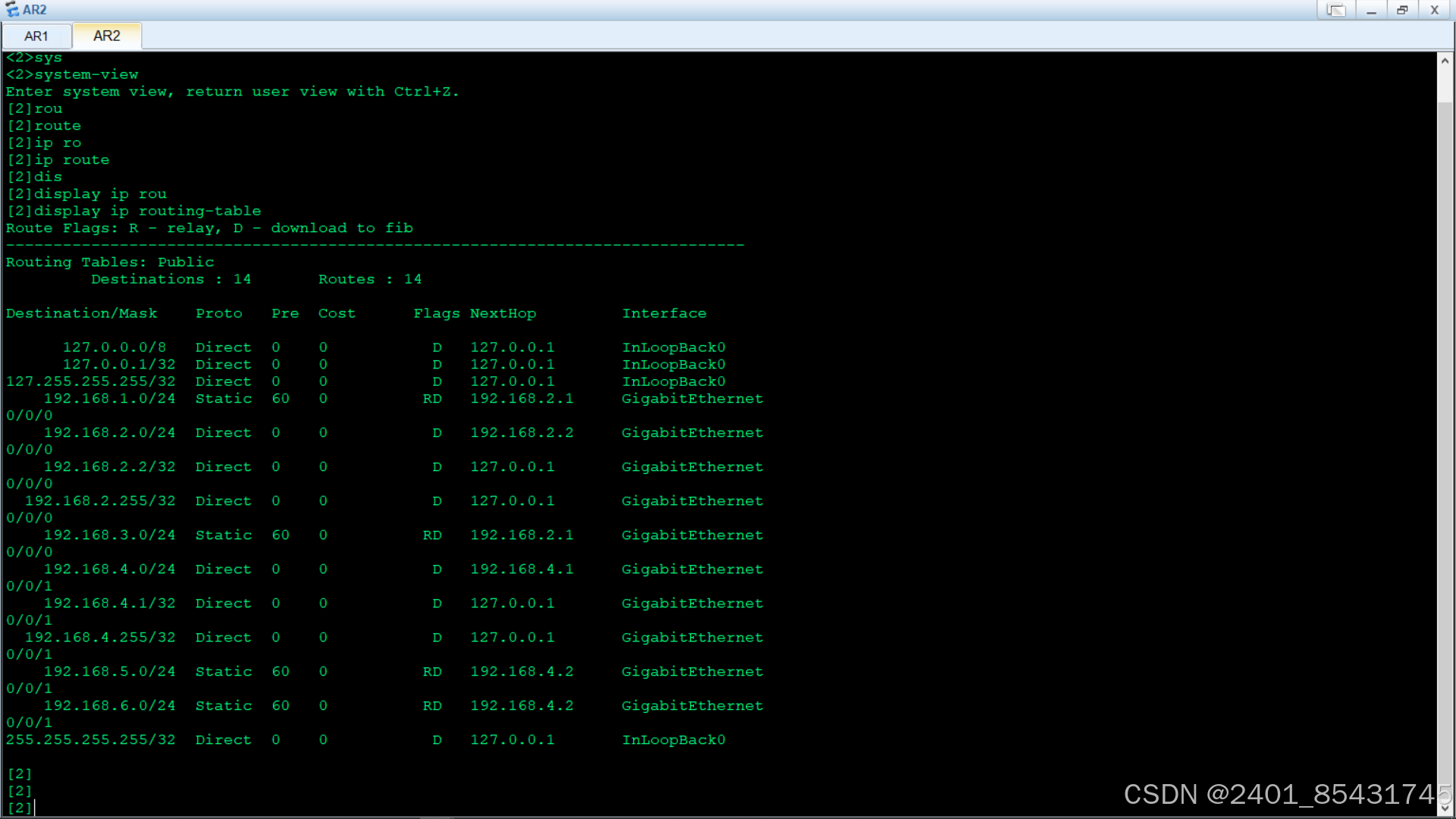

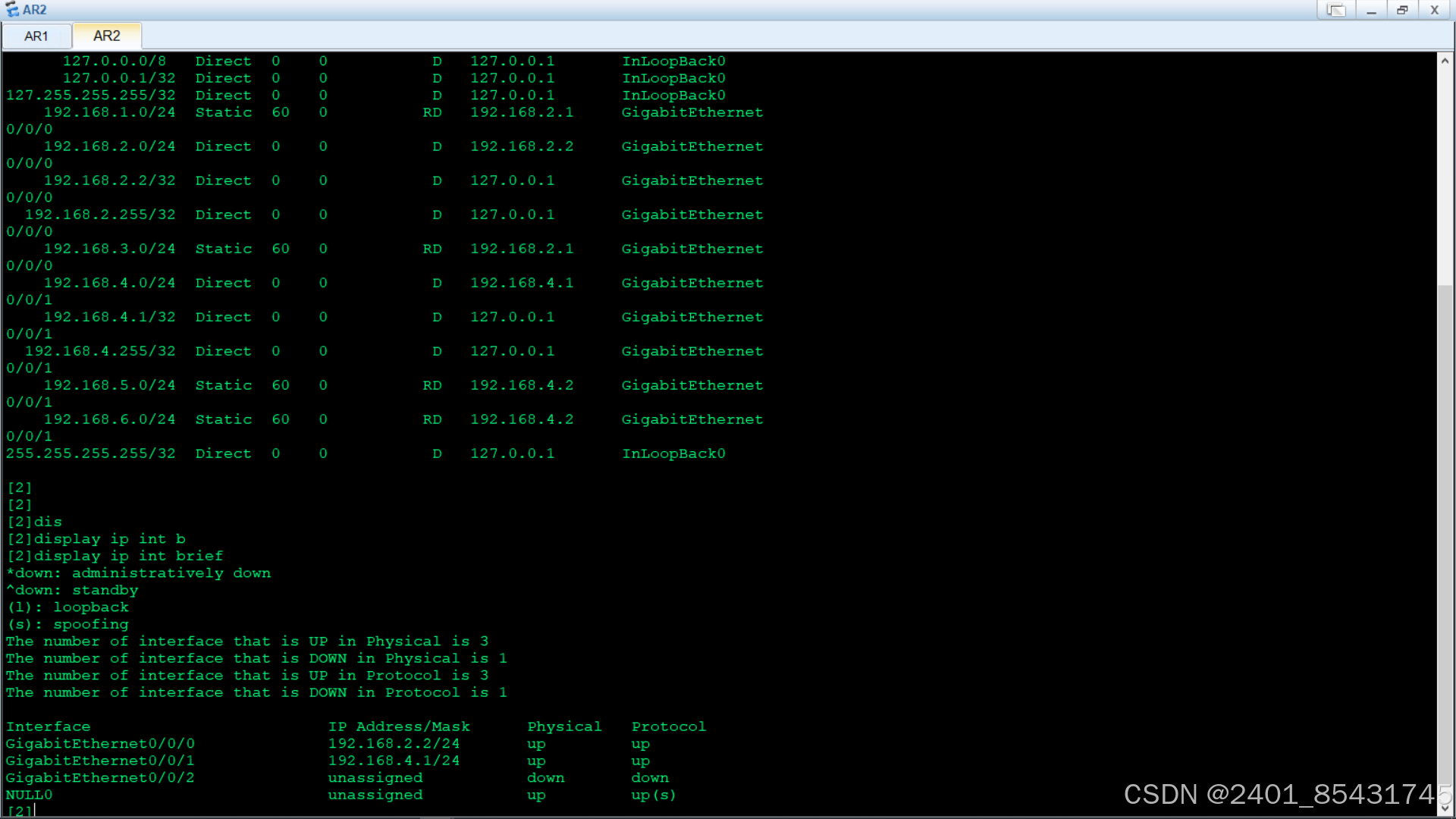

AR2

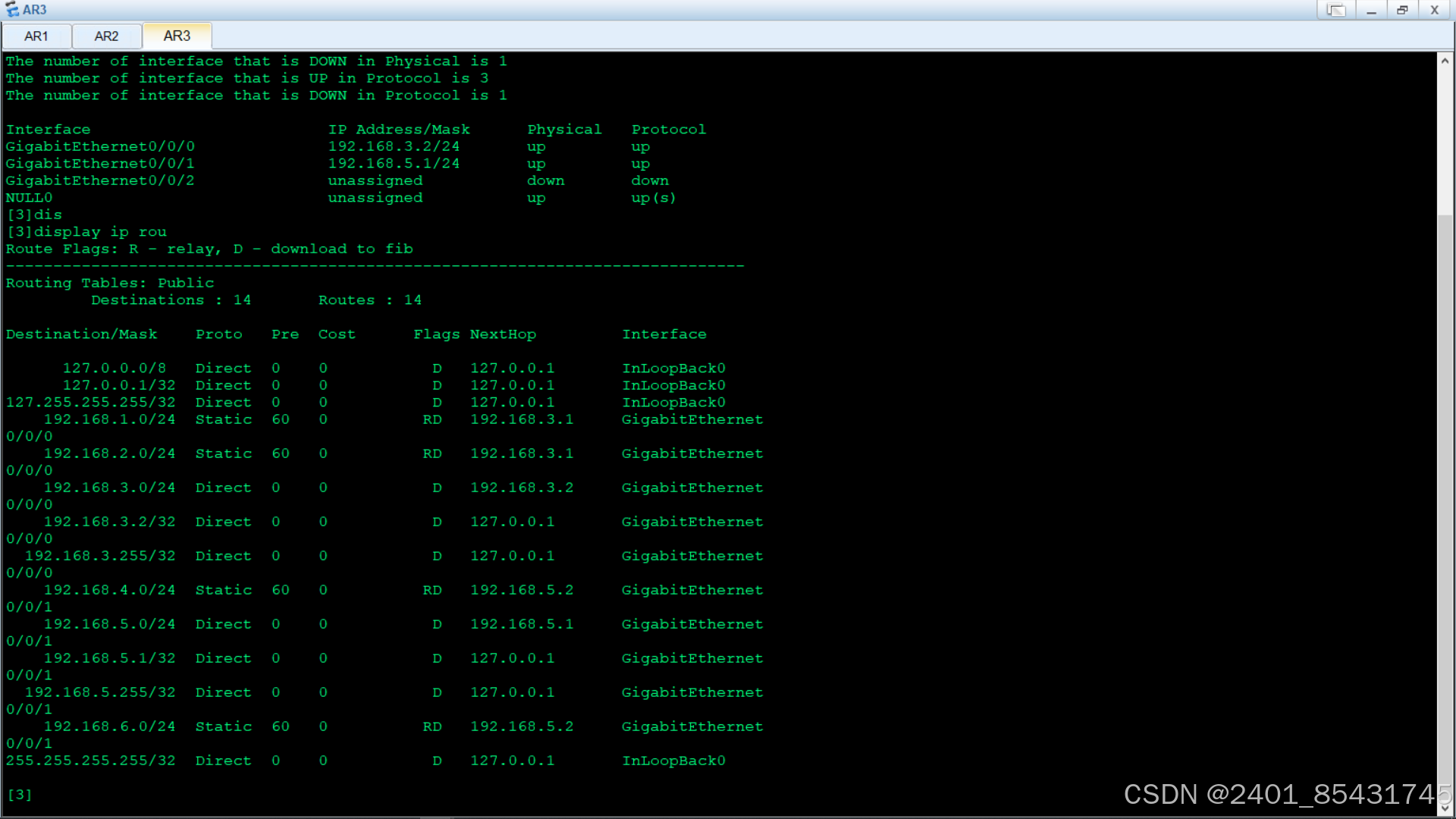

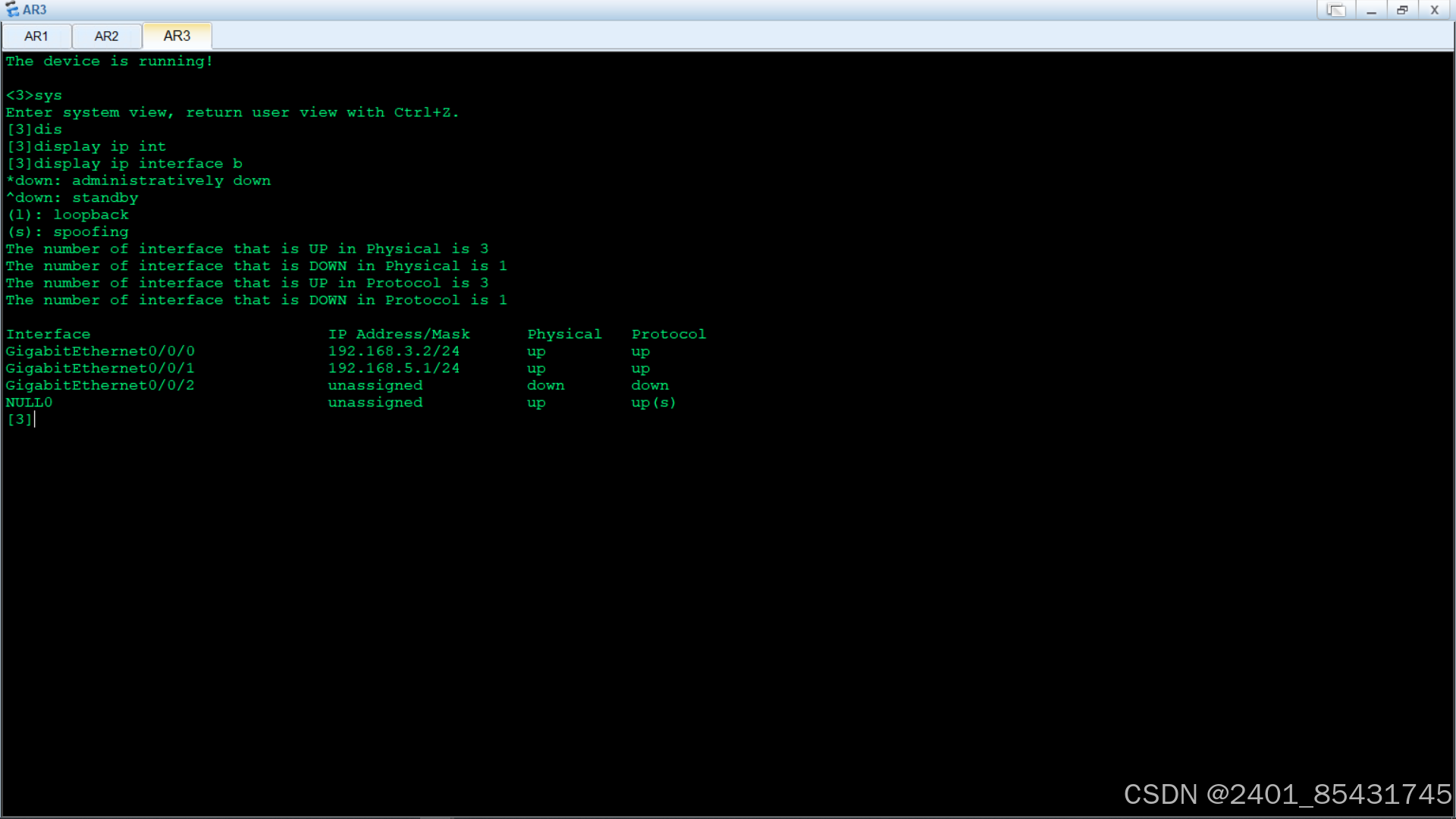

AR3

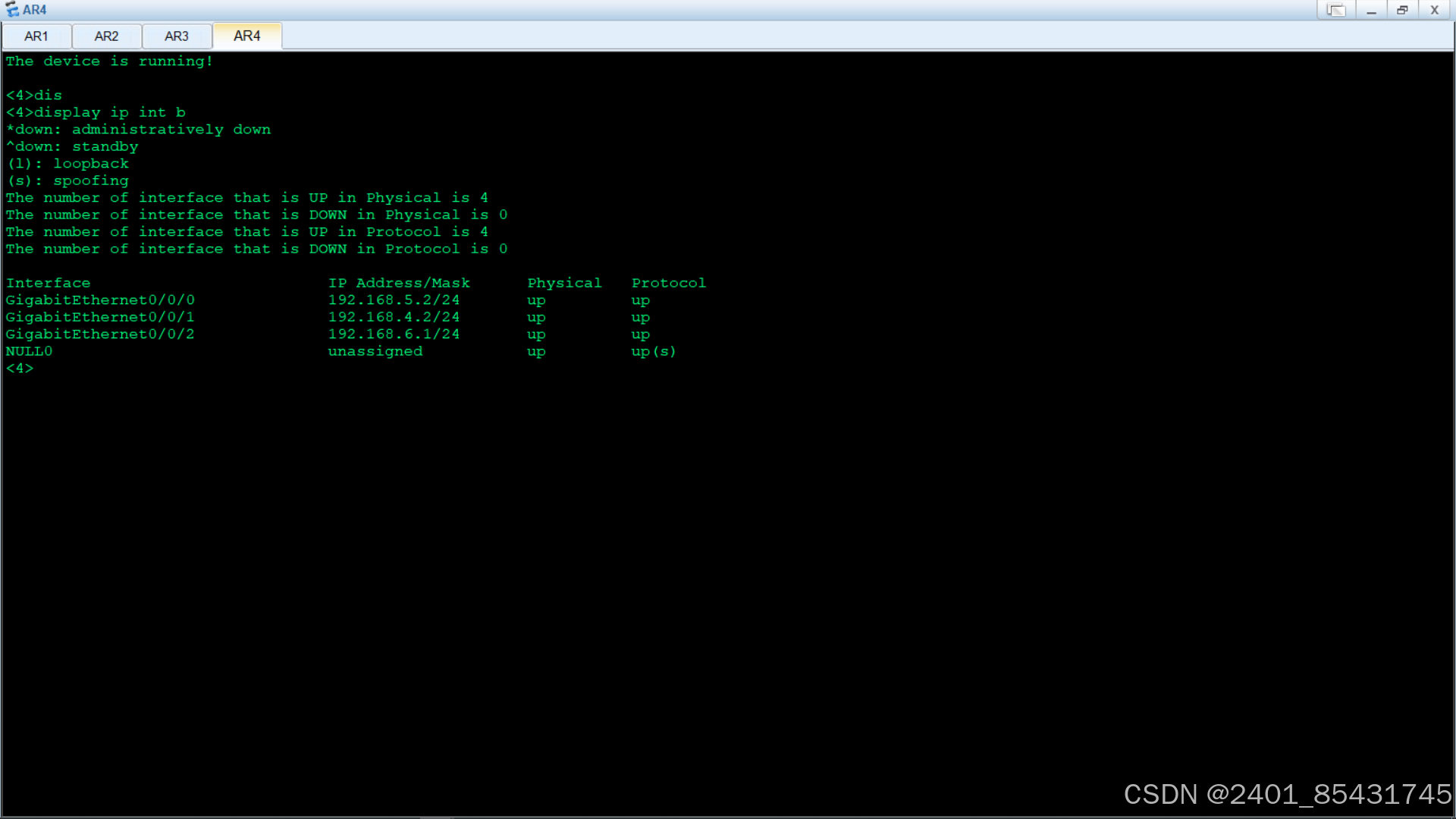

AR4

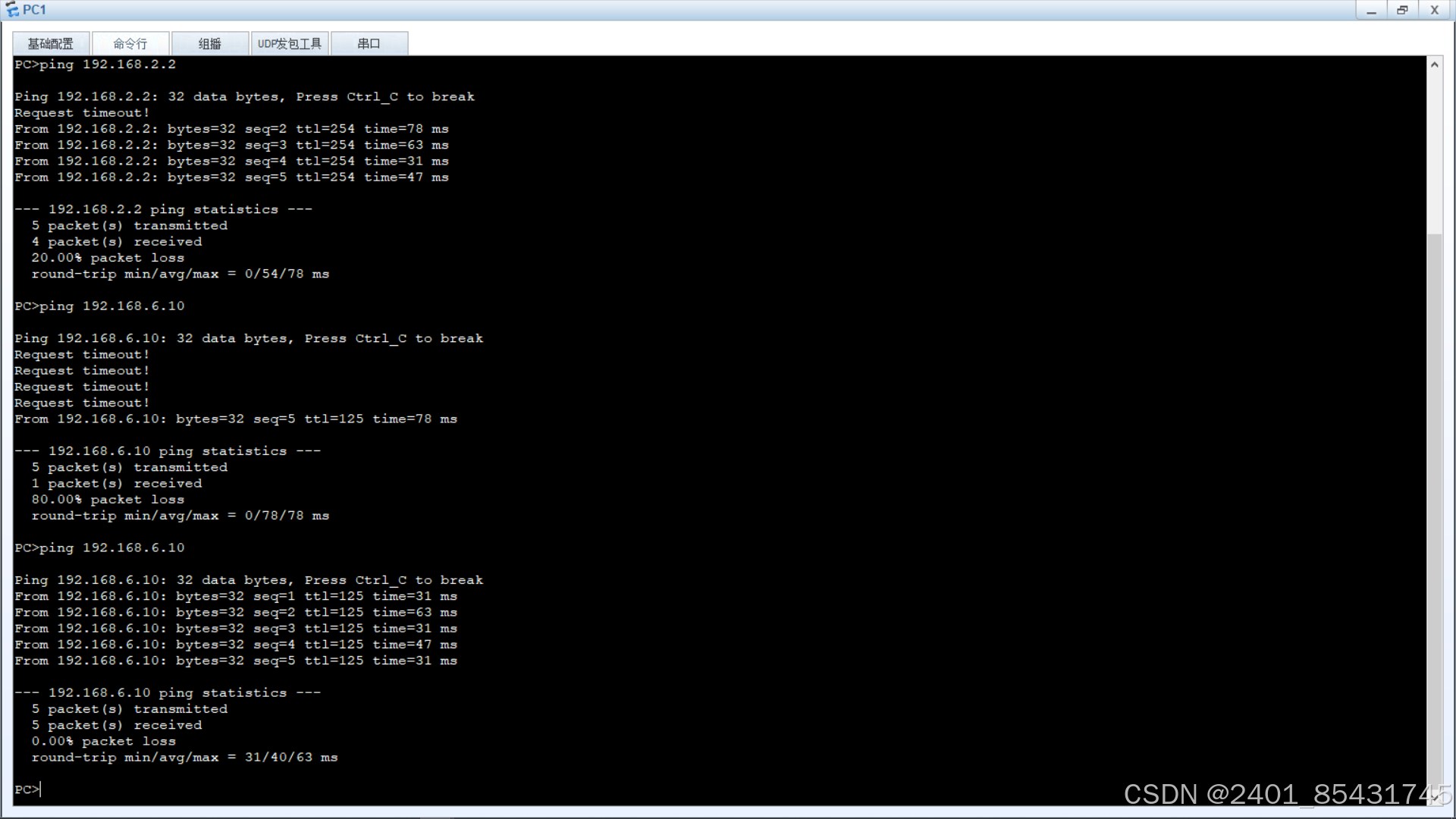

结果：

二、添加交换机和路由器，实现pc1和pc2通过dhcp分配地址和使AR6可以使用telnet远程登录到AR1

1.实现pc1和pc2通过dhcp分配地址

步骤：

1.在AR1和AR4中开启dhcp服务 dhcp enable

2.创建地址池 ip pool 1

3.给地址池中添加网段 network 192.168.1.0 mask 24

4.给地址池分配网关 gateway-list 192.168.1.1

5.设置dns ，dns-list 114.114.114.114

6.在接口处给接口分配地址池 dhcp select global

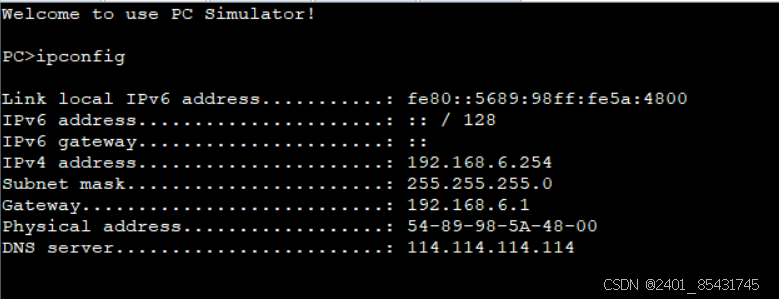

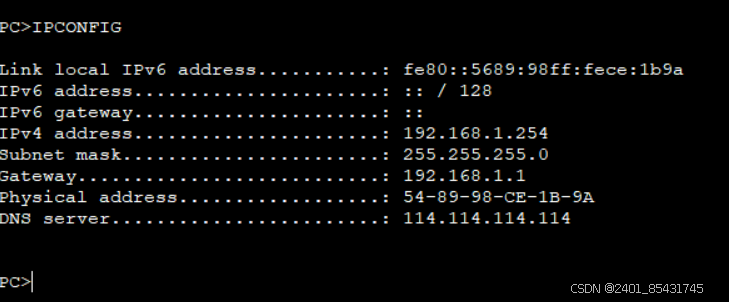

7.在pc上用ipconfig查看

PC1:

[1]dhcp enable
Info: The operation may take a few seconds. Please wait for a moment.done.
[1]ip pool 1
Info: It's successful to create an IP address pool.
[1-ip-pool-1]network 192.168.1.0 mask 24
[1-ip-pool-1]gateway-list 192.168.1.1
[1-ip-pool-1]dns-list 114.114.114.114
[1-ip-pool-1]q
[1]interface g0/0/0
[1-GigabitEthernet0/0/0]dhcp select global

PC2:

[4]dhcp enable
Info: The operation may take a few seconds. Please wait for a moment.done.
[4]ip pool 2
Info: It's successful to create an IP address pool.
[4-ip-pool-2]network 192.168.6.0 mask 24
[4-ip-pool-2]gateway-list 192.168.6.1
[4-ip-pool-2]dns-list 114.114.114.114
[4-ip-pool-2]q
[4]interface g0/0/2
[4-GigabitEthernet0/0/2]dhcp select global

2.使AR6可以使用telnet远程登录到AR1

1.在AR1上进入账户平台

2.创建账号liang权限等级15，设置密码并使其输出为乱码local-user liang privilege level 15 password cipher 123

3.给账号liang开启telnet服务 local-user liang service-type telnet

4.设置五台虚拟的登录端口 user-interface vty 0 4

5.关联aaa平台 authentication-mode aaa

6.在AR6上远程登录AR1

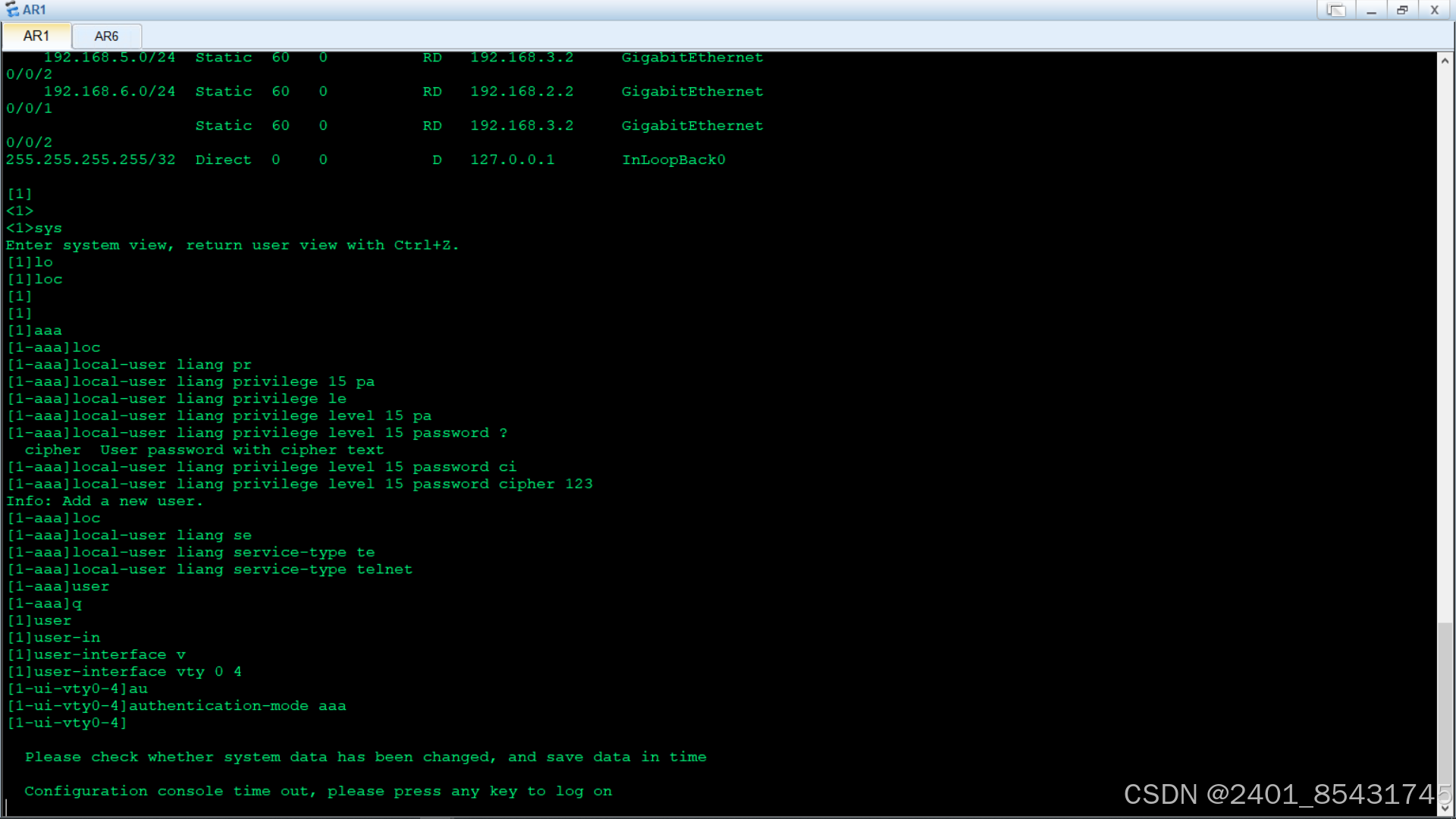

AR1

[1]aaa
[1-aaa]local-user liang privilege level 15 password cipher 123
Info: Add a new user.
[1-aaa]local-user liang service-type telnet
[1-aaa]q
[1]user-interface vty 0 4
[1-ui-vty0-4]authentication-mode aaa

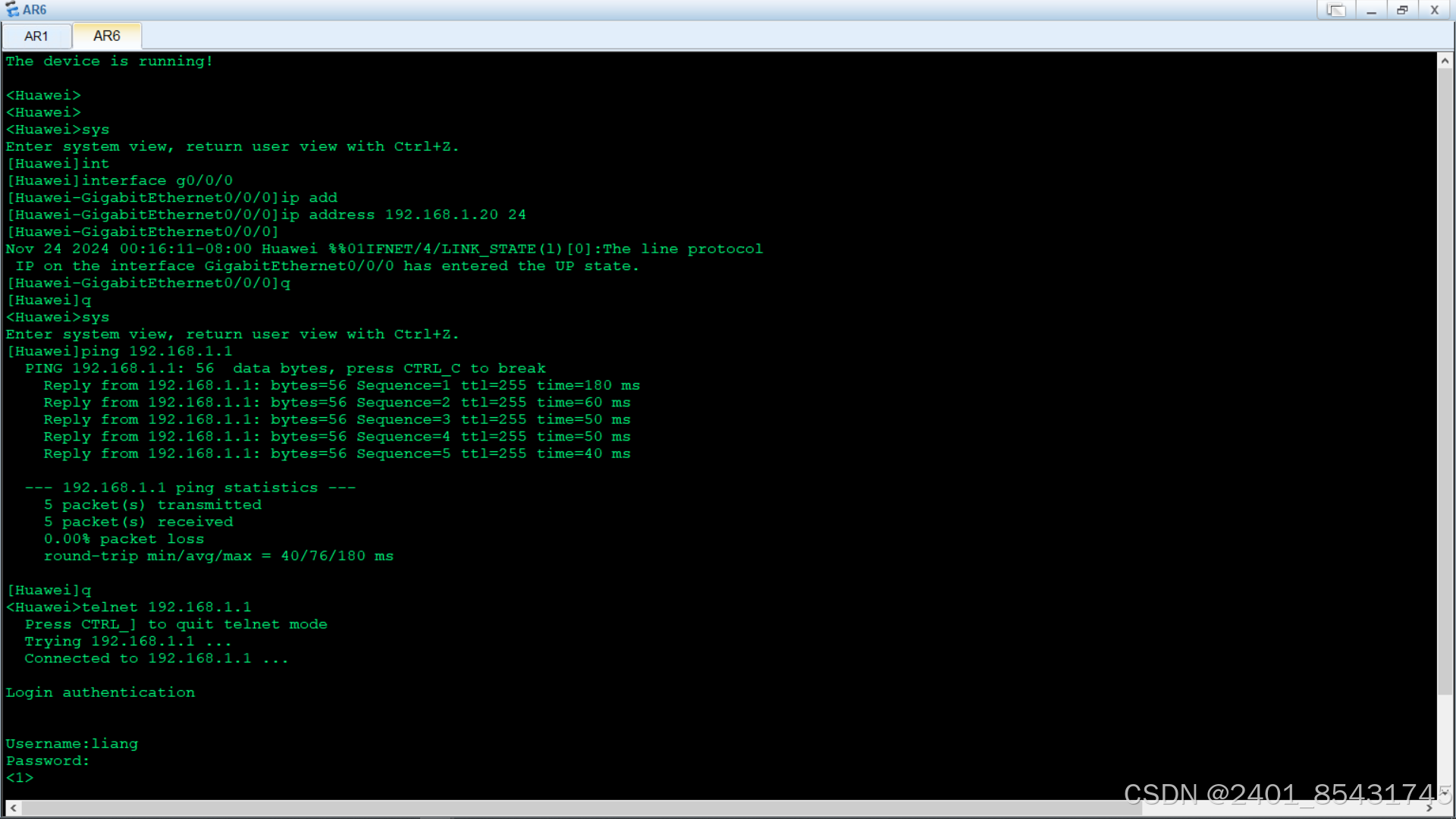

AR6
