IPSec隧道配置案例（手动模式）_win10 ike2 ipsec psk

2401_89758384

于 2024-12-20 23:11:55 发布

阅读量863

点赞数 28

文章标签：服务器运维

本文链接：https://blog.csdn.net/2401_89758384/article/details/144621712

版权

sys
sys SH
dhcp enable

acl 2000
rule permit so 192.168.20.0 0.0.0.255

int g0/0/1
ip add 192.168.20.254 24
dhcp sel int
int g0/0/0
ip add 23.0.0.3 24
nat outbound 2000

ip route-s 0.0.0.0 0 23.0.0.2

ISP公网

sys
sys ISP

int g0/0/0
ip add 12.0.0.2 24

int g0/0/1
ip add 23.0.0.2 24

int lo 2
ip add  2.2.2.2 32

PC1
在这里插入图片描述
PC2

IPSec VPN配置

青海分部

感兴趣流
acl 3000
 rule 5 permit ip source 192.168.10.0 0.0.0.255 destination 192.168.20.0 0.0.0.255

提议：
ipsec proposal QH2SH
 esp authentication-algorithm sha2-256
 esp encryption-algorithm aes-256

 策略：
ipsec policy QH2SH 1 manual
 security acl 3000
 proposal QH2SH
 tunnel local 12.0.0.1
 tunnel remote 23.0.0.3
 sa spi inbound esp 12345
 sa string-key inbound esp cipher huawei123
 sa spi outbound esp 12345
 sa string-key outbound esp cipher huawei123

 调用：
 ipsec policy QH2SH

上海总部

感兴趣流：
acl 3000
rule 5 permit ip source 192.168.20.0 0.0.0.255 destination 192.168.10.0 0.0.0.255

提议：
ipsec proposal SH2QH
 esp authentication-algorithm sha2-256
 esp encryption-algorithm aes-256

 策略：
ipsec policy SH2QH 1 manual
 security acl 3000
 proposal SH2QH
 tunnel local 23.0.0.3
 tunnel remote 12.0.0.1
 sa spi inbound esp 12345
 sa string-key inbound esp cipher huawei123
 sa spi outbound esp 12345
 sa string-key outbound esp cipher huawei123

 调用：
 ipsec policy SH2QH

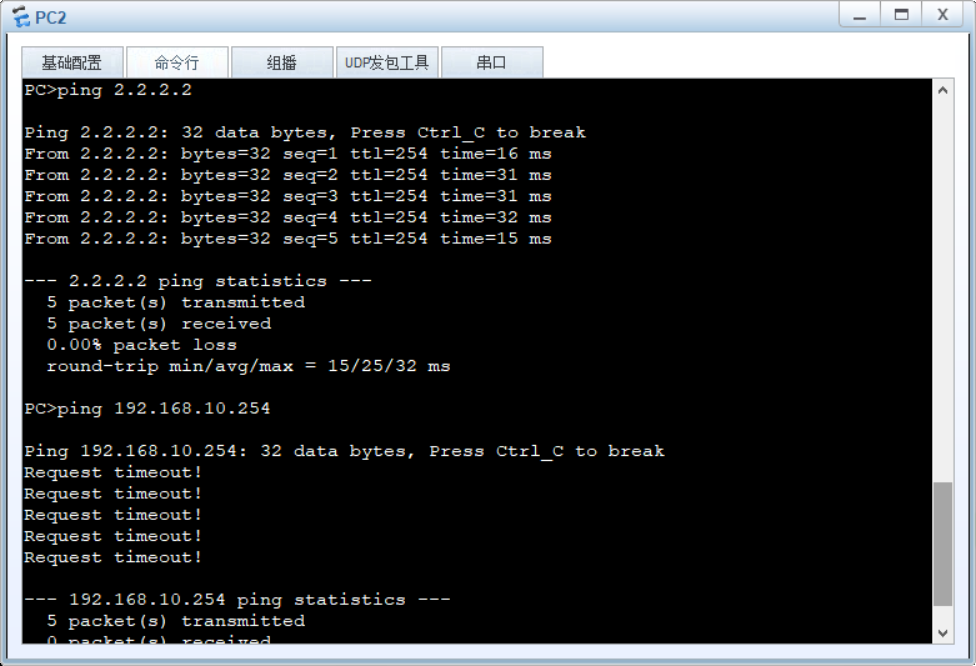

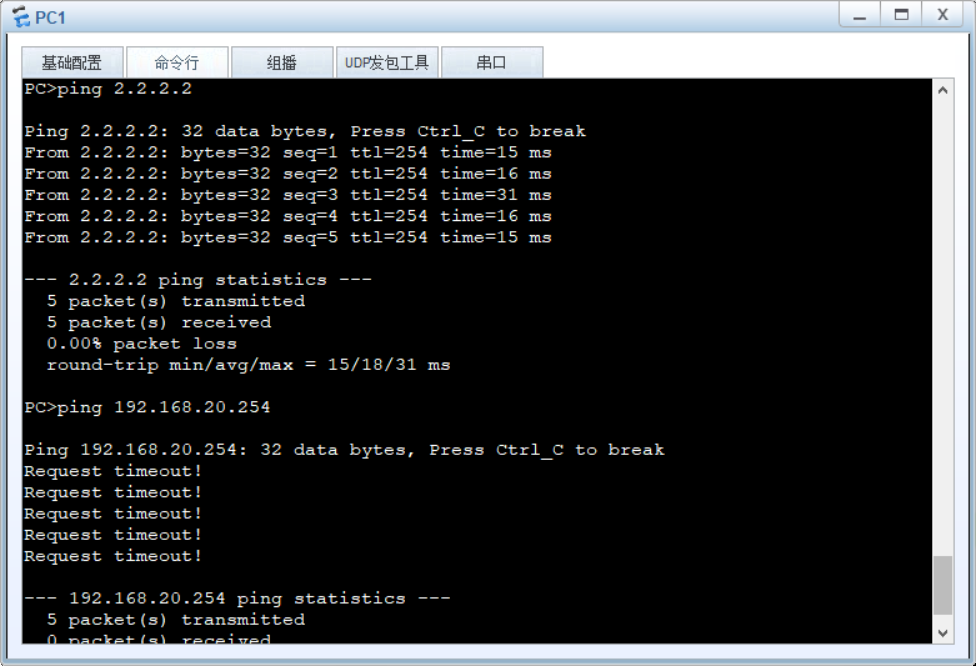

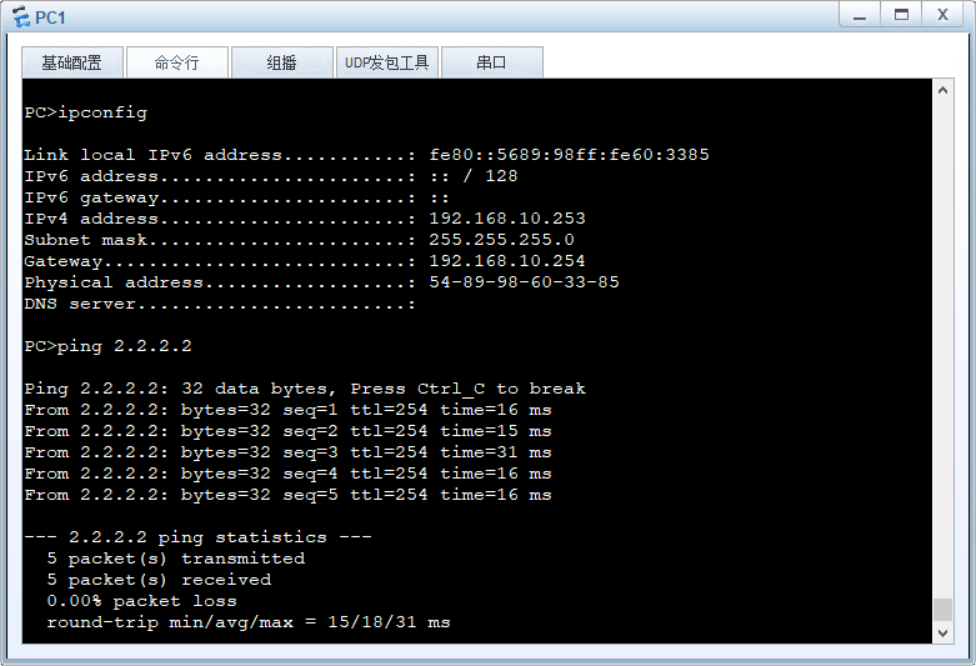

配置完成后发现PC1、PC2ping公网能通，PC1与PC2之间ping不通。

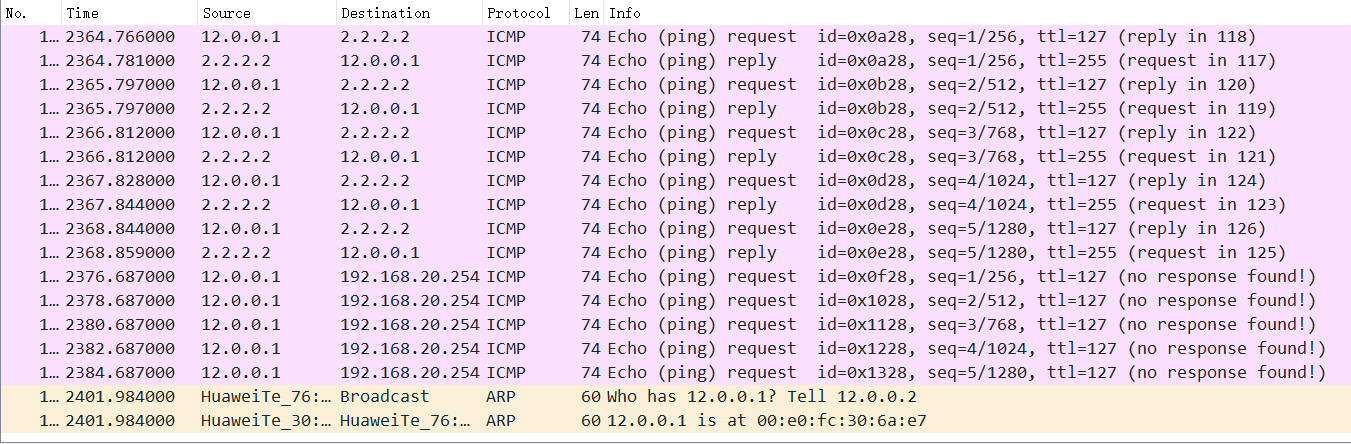

在这里插入图片描述
