西电微控个人项目——硬件演示

---

前言

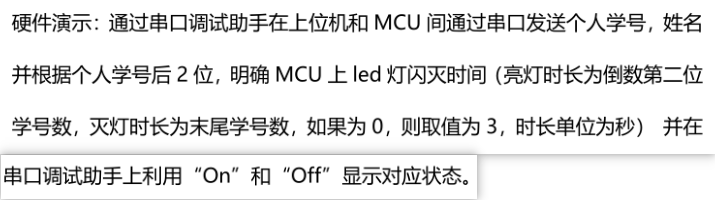

基于STM32CubeIDE与STM32F411RE的硬件仿真

---

一、STM32CubeIDE的安装

• 1. 与CubeMX安装方法一致，去官网下载即可
• 2. 百度网盘下载 解压码：gzip

需要注册MyST账号，但是既然都下载过CubeMX，应该都有

二、芯片配置

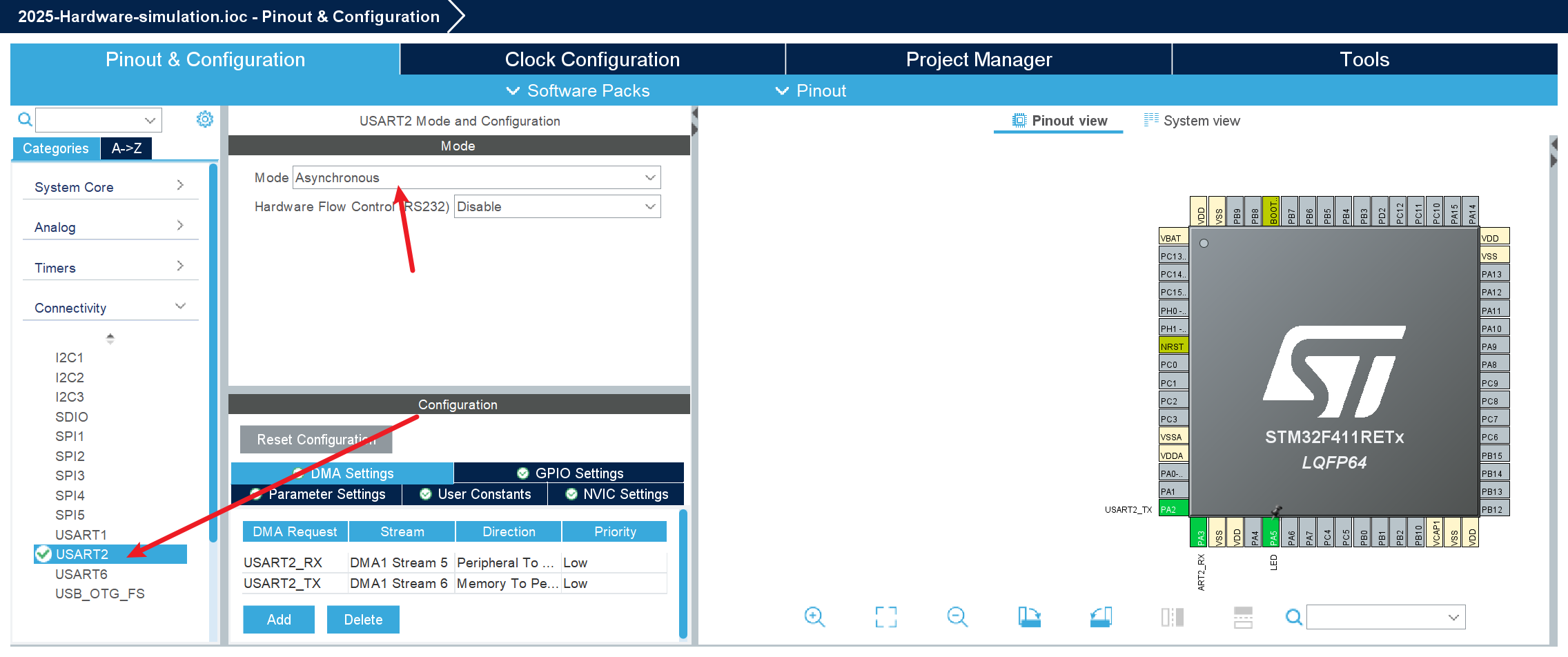

1.配置UART

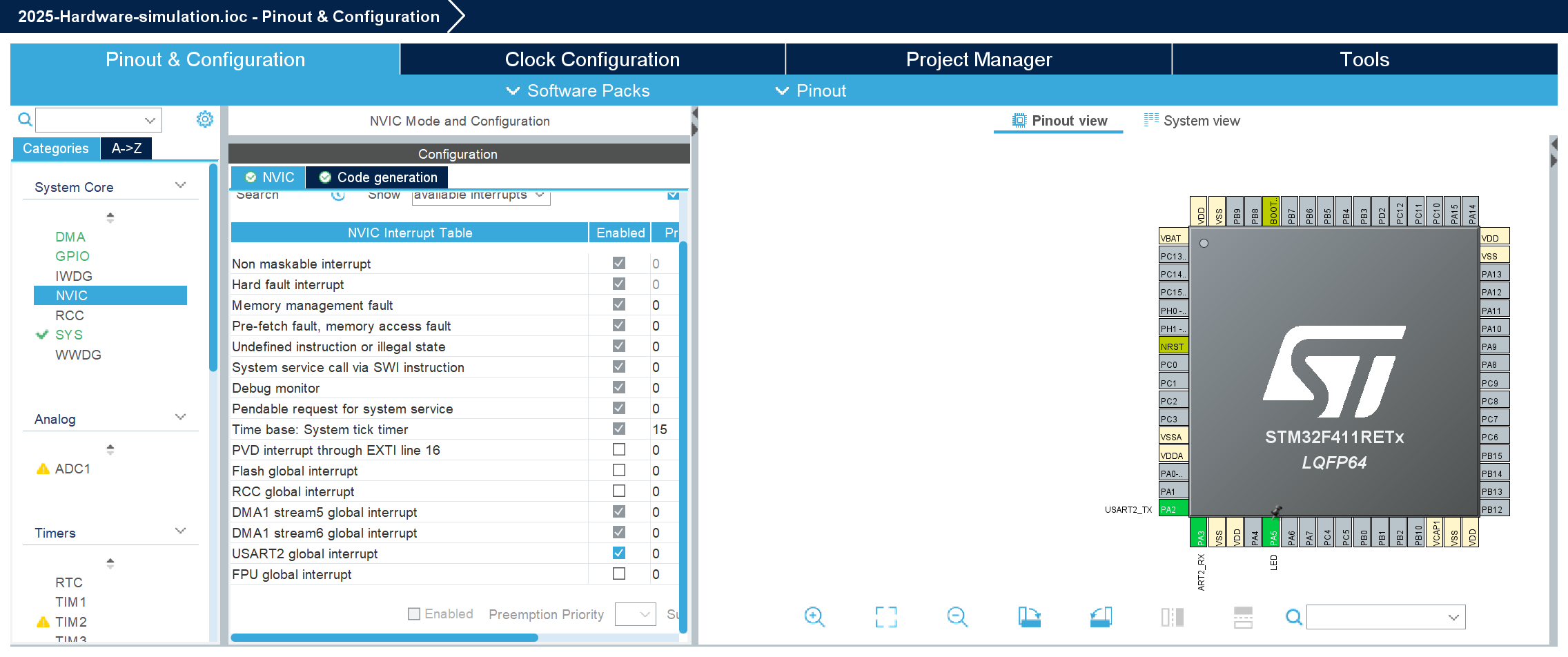

2.开启中断

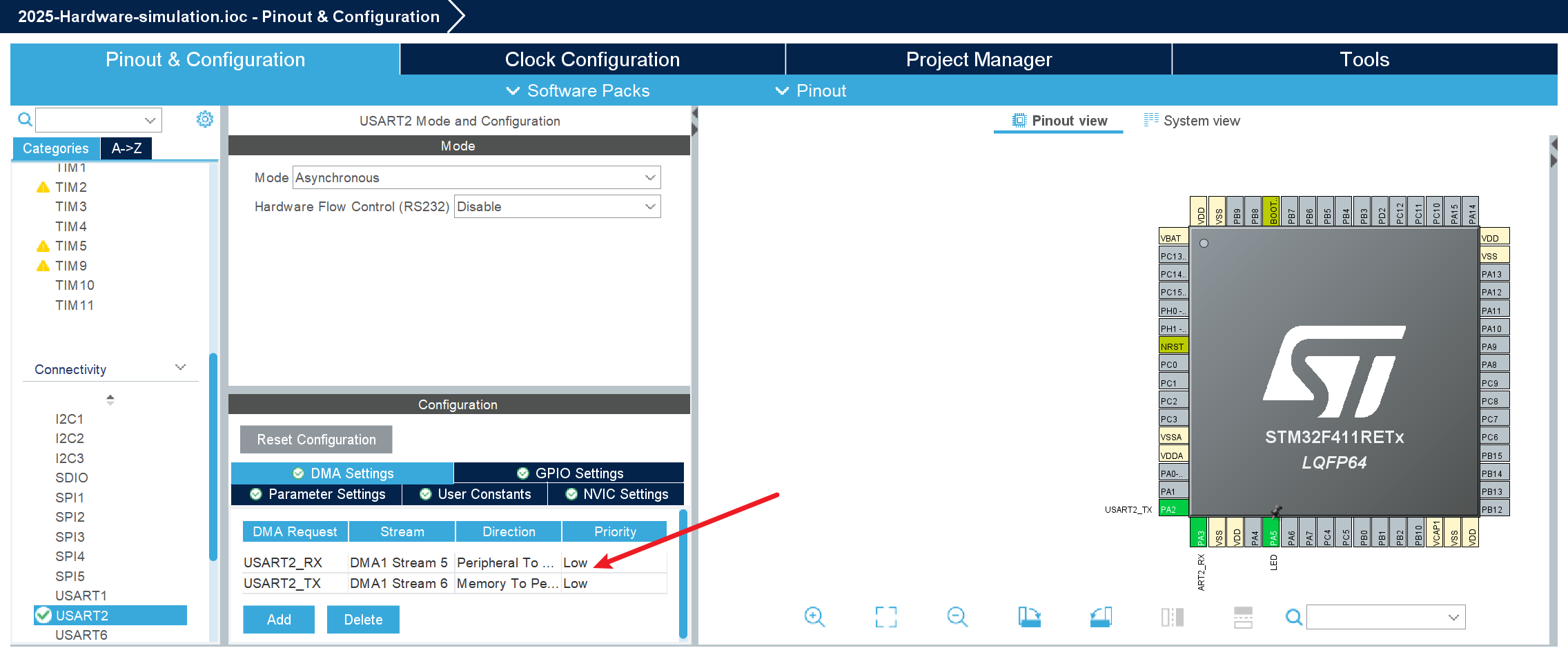

3.开启DMA（接收不定长）

Ctrl+S自动生成代码以后进入下一步

---

三、代码

/* USER CODE BEGIN PV */
uint8_t receive[50];
int on = -1;
int off = -1;
/* USER CODE END PV */
/* USER CODE BEGIN 0 */
void HAL_UARTEx_RxEventCallback(UART_HandleTypeDef *huart, uint16_t Size){
	if (huart == &huart2){
		on = (int)(receive[9]-'0');
		off = (int)(receive[10]-'0');
		on = on ? on : 3;
		off = off ? off : 3;
		on = on * 1000;
		off = off * 1000;


		HAL_UARTEx_ReceiveToIdle_DMA(&huart2, receive, sizeof(receive));
		__HAL_DMA_DISABLE_IT(&hdma_usart2_rx,DMA_IT_HT);
	}
}
/* USER CODE END 0 */

/* USER CODE BEGIN WHILE */
  while (1)
  {
	  HAL_UARTEx_ReceiveToIdle_DMA(&huart2, receive, sizeof(receive));
	  __HAL_DMA_DISABLE_IT(&hdma_usart2_rx,DMA_IT_HT);
	  if (on > 0 && off > 0){
		  HAL_UART_Transmit(&huart2, "on", 2, 100);
		  HAL_GPIO_WritePin(LED_GPIO_Port, LED_Pin, GPIO_PIN_SET);
		  HAL_Delay(on);
		  HAL_UART_Transmit(&huart2, "off", 2, 100);
		  HAL_GPIO_WritePin(LED_GPIO_Port, LED_Pin, GPIO_PIN_RESET);
		  HAL_Delay(off);
	  }
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */

总结

结束，发送格式：学号+空格+姓名
