基于大数据的干豆数据可视化分析系统介绍
基于大数据的干豆数据可视化分析系统演示视频
基于大数据的干豆数据可视化分析系统演示图片
基于大数据的干豆数据可视化分析系统代码展示
基于大数据的干豆数据可视化分析系统文档展示

基于大数据的干豆数据可视化分析系统介绍

本系统是一款基于大数据技术的干豆数据可视化分析平台，采用Hadoop分布式文件系统HDFS作为底层存储架构，利用Spark框架实现海量干豆数据的高效处理与分析。系统后端基于Django框架构建，前端采用Vue+ElementUI+Echarts技术栈实现交互式可视化界面。系统核心功能涵盖干豆数据管理、多维综合排名分析、数据质量分布分析、核心特征分布分析、几何形态特征分析、总体形状质量分析以及生产品种特征分析等多个模块。通过Spark SQL和Pandas进行数据清洗、转换与聚合运算，结合NumPy完成统计计算，最终以Echarts图表形式呈现分析结果。系统支持对干豆的外观特征、质量指标、形态参数等多维度属性进行深度挖掘，能够快速处理TB级别的干豆检测数据，为农产品质量评估、品种优选、生产决策提供数据支撑。整个系统实现了从数据采集、存储、计算到可视化展示的完整大数据处理流程，具备良好的扩展性和实用价值。

基于大数据的干豆数据可视化分析系统演示视频

【数据分析】基于大数据的干豆数据可视化分析系统 | 大数据毕设实战项目可视化分析大屏选题推荐文档指导运行部署 Hadoop SPark java

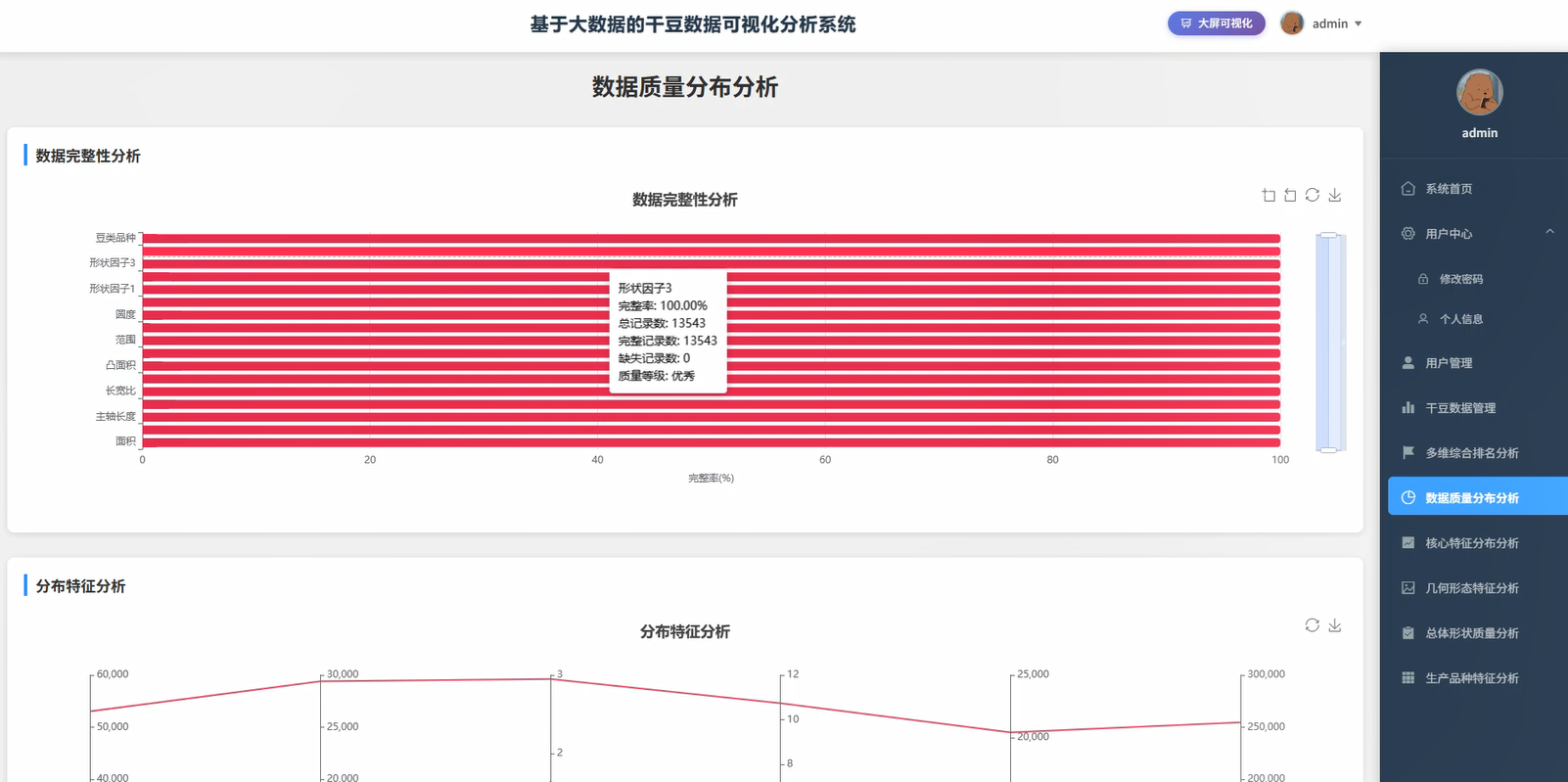

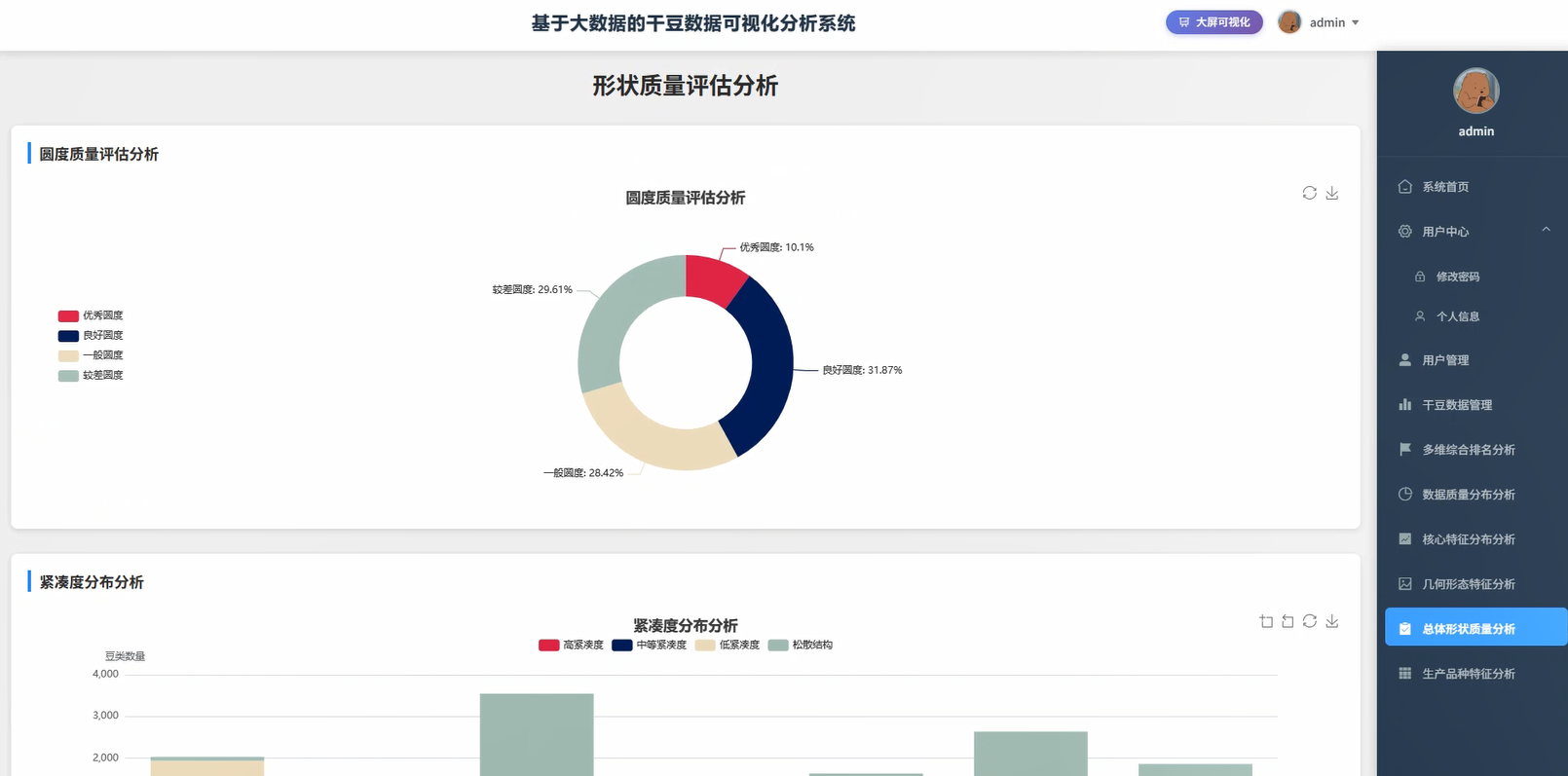

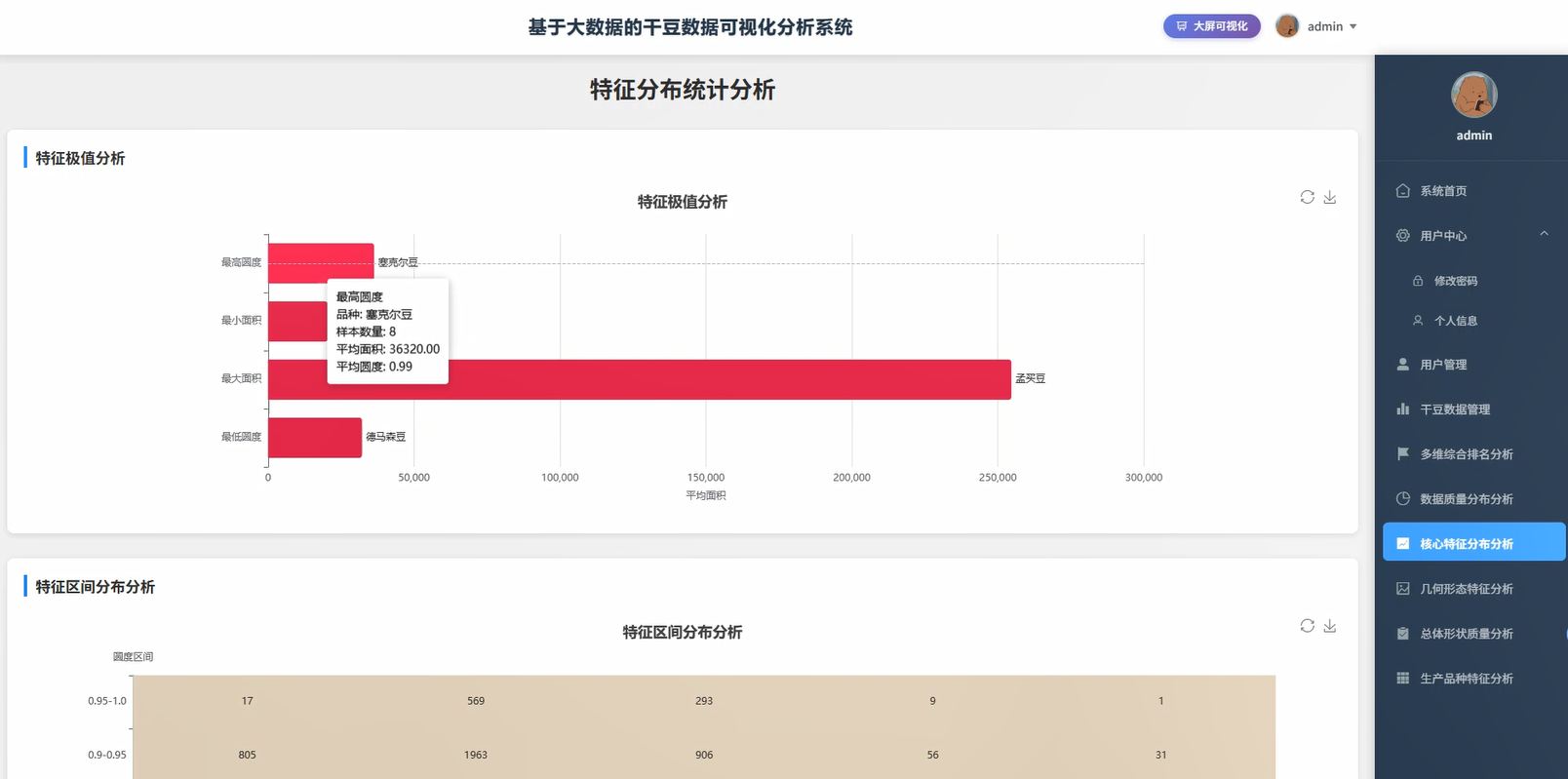

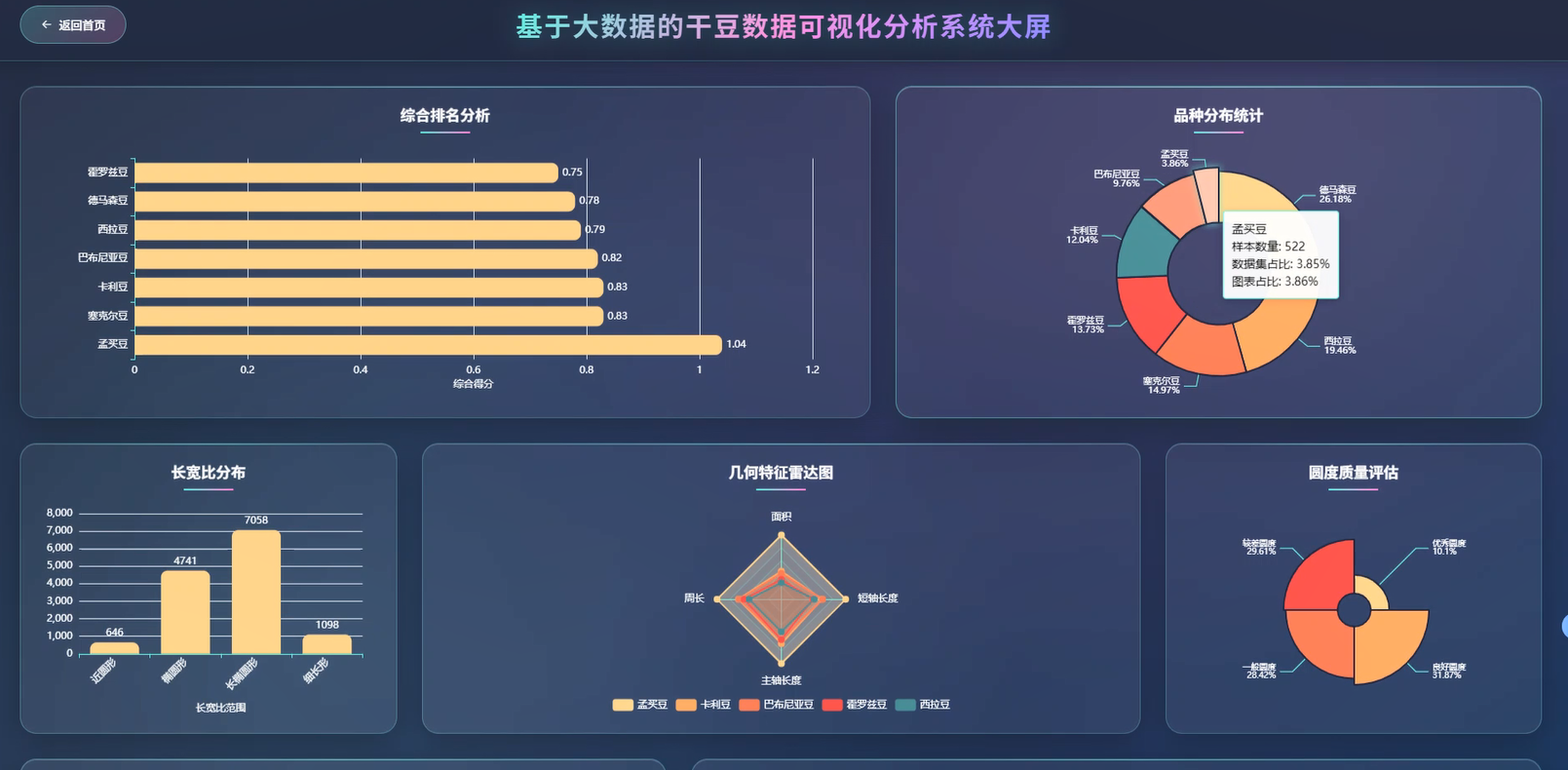

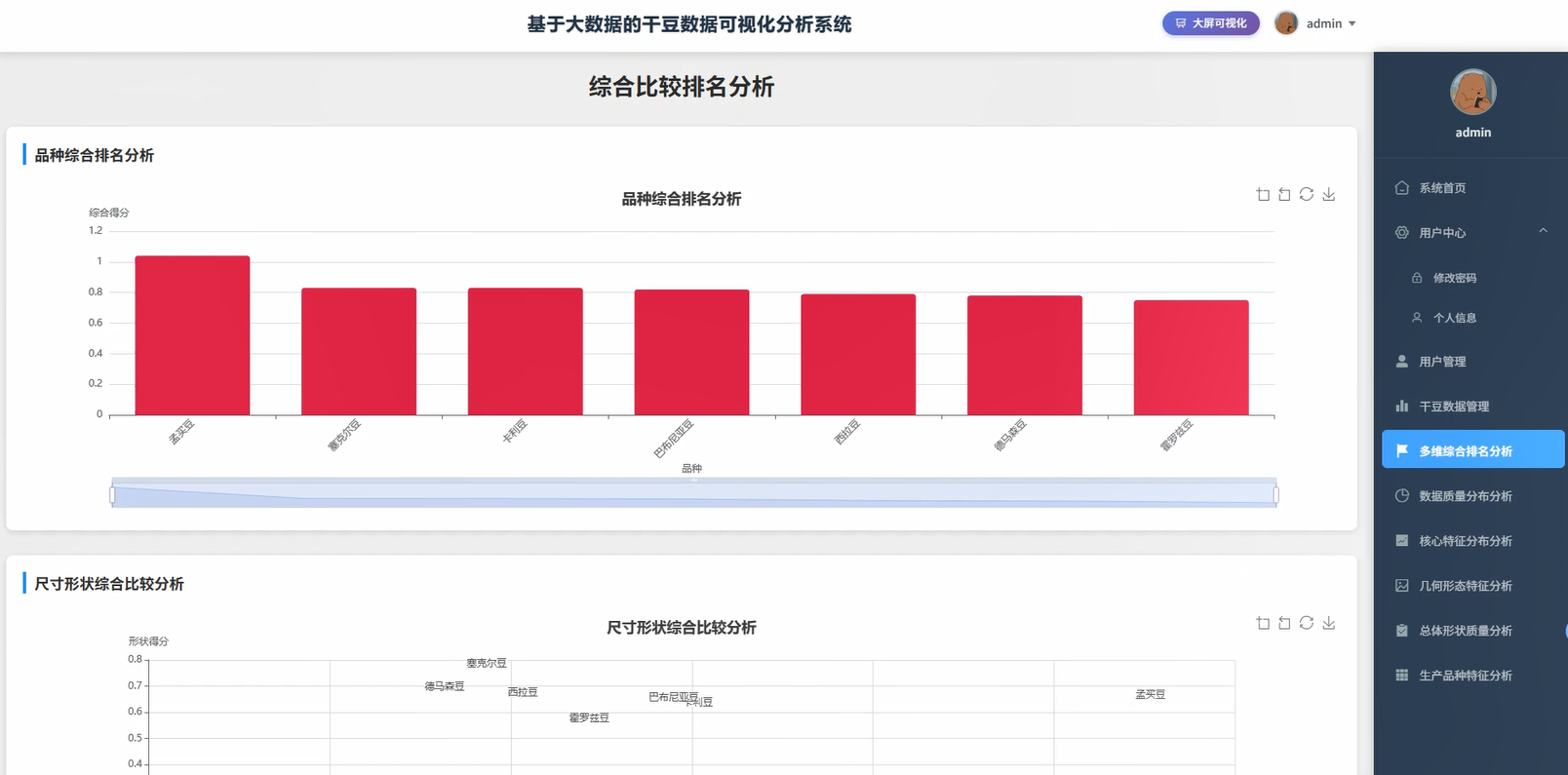

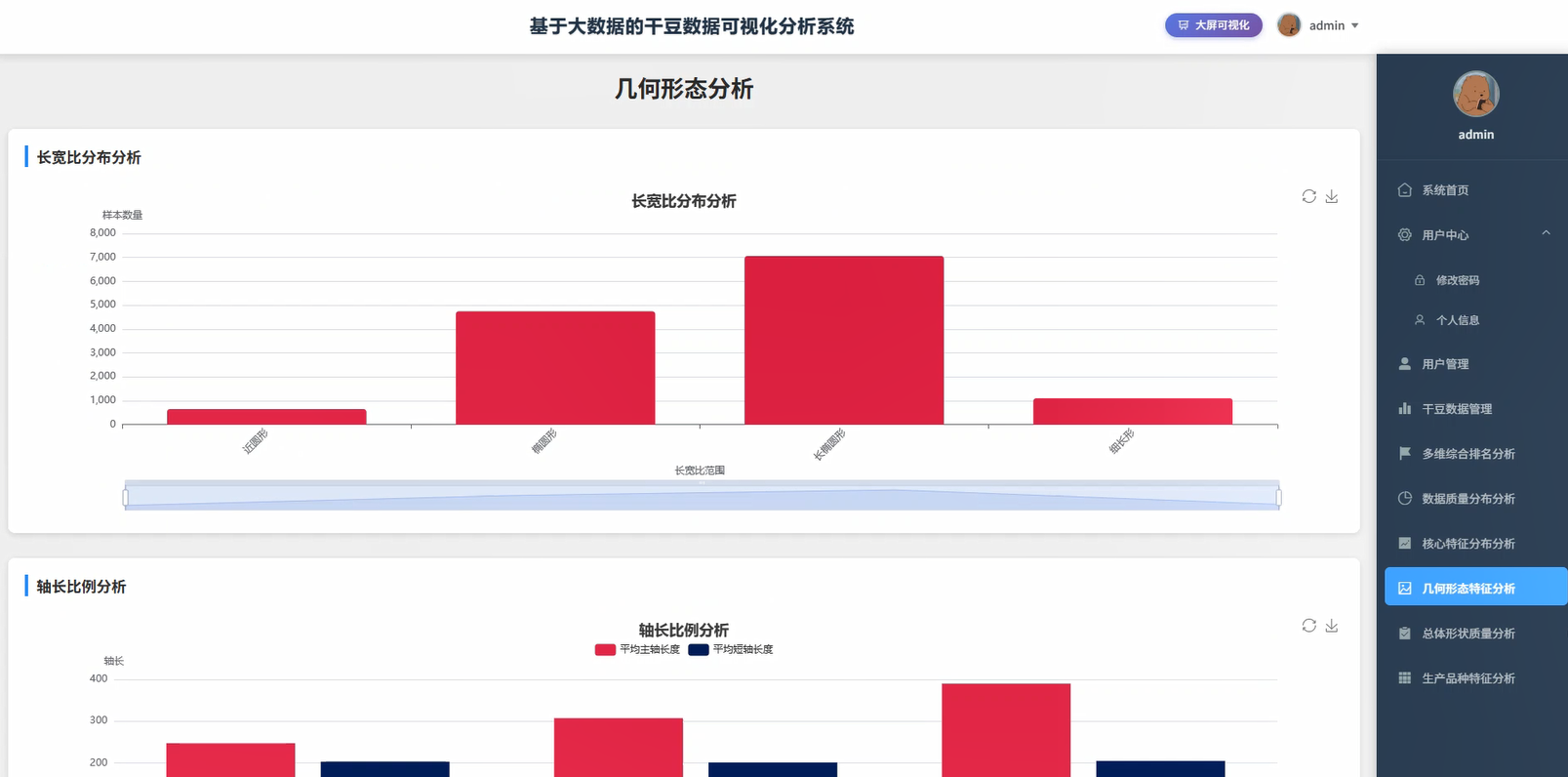

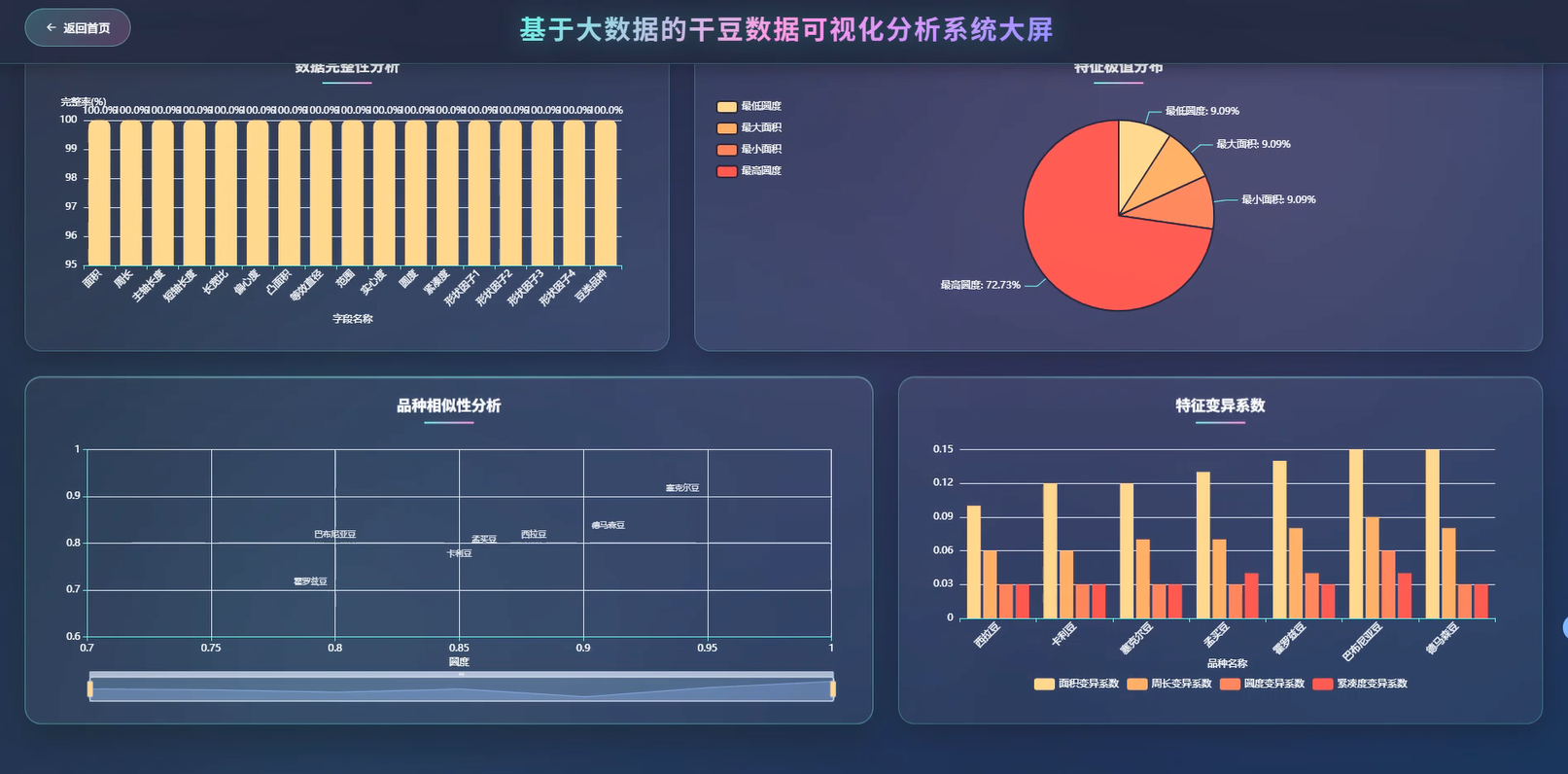

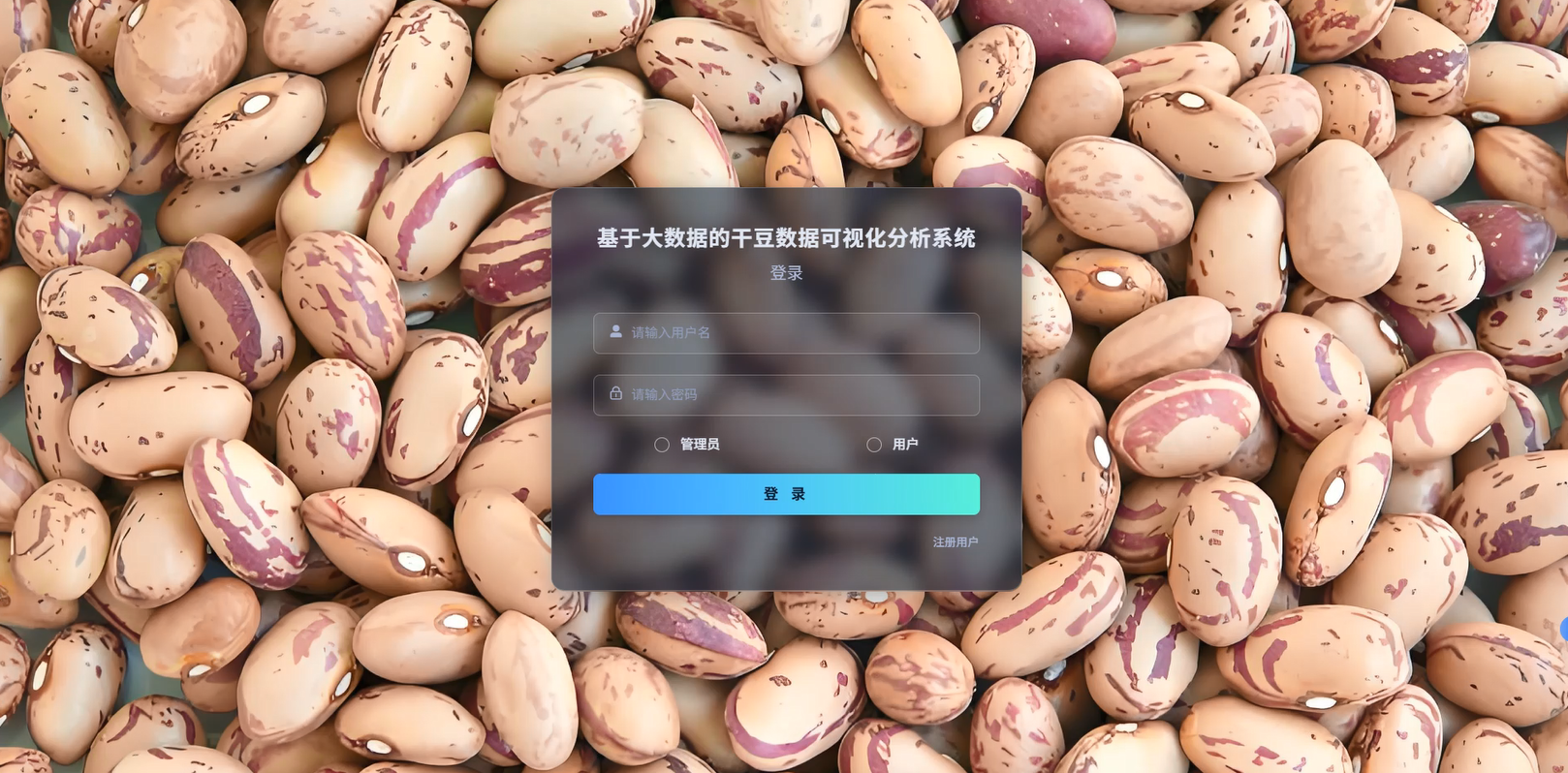

基于大数据的干豆数据可视化分析系统演示图片

在这里插入图片描述

基于大数据的干豆数据可视化分析系统代码展示

from pyspark.sql import SparkSession
from pyspark.sql.functions import col, avg, count, sum, stddev, min, max, rank, dense_rank, row_number, percentile_approx, when, round
from pyspark.sql.window import Window
from django.http import JsonResponse
from django.views import View
import json

spark = SparkSession.builder.appName("DryBeanAnalysis").config("spark.sql.warehouse.dir", "hdfs://localhost:9000/user/hive/warehouse").config("spark.executor.memory", "4g").config("spark.driver.memory", "2g").getOrCreate()

class MultiDimensionalRankingAnalysis(View):
    def post(self, request):
        params = json.loads(request.body)
        ranking_type = params.get('ranking_type', 'comprehensive')
        limit_num = params.get('limit', 100)
        df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/drybean_db").option("driver", "com.mysql.cj.jdbc.Driver").option("dbtable", "tb_drybean_data").option("user", "root").option("password", "123456").load()
        df_cleaned = df.na.drop(subset=["area", "perimeter", "major_axis", "minor_axis", "aspect_ratio", "eccentricity", "convex_area", "equiv_diameter", "extent", "solidity", "roundness", "compactness", "shape_factor1", "shape_factor2", "shape_factor3", "shape_factor4"])
        if ranking_type == 'comprehensive':
            df_normalized = df_cleaned.withColumn("area_norm", (col("area") - df_cleaned.agg(min("area")).collect()[0][0]) / (df_cleaned.agg(max("area")).collect()[0][0] - df_cleaned.agg(min("area")).collect()[0][0]))
            df_normalized = df_normalized.withColumn("roundness_norm", (col("roundness") - df_cleaned.agg(min("roundness")).collect()[0][0]) / (df_cleaned.agg(max("roundness")).collect()[0][0] - df_cleaned.agg(min("roundness")).collect()[0][0]))
            df_normalized = df_normalized.withColumn("compactness_norm", (col("compactness") - df_cleaned.agg(min("compactness")).collect()[0][0]) / (df_cleaned.agg(max("compactness")).collect()[0][0] - df_cleaned.agg(min("compactness")).collect()[0][0]))
            df_normalized = df_normalized.withColumn("solidity_norm", (col("solidity") - df_cleaned.agg(min("solidity")).collect()[0][0]) / (df_cleaned.agg(max("solidity")).collect()[0][0] - df_cleaned.agg(min("solidity")).collect()[0][0]))
            df_scored = df_normalized.withColumn("comprehensive_score", round((col("area_norm") * 0.25 + col("roundness_norm") * 0.3 + col("compactness_norm") * 0.25 + col("solidity_norm") * 0.2) * 100, 2))
            window_spec = Window.orderBy(col("comprehensive_score").desc())
            df_ranked = df_scored.withColumn("ranking", dense_rank().over(window_spec))
            result_df = df_ranked.select("id", "bean_type", "area", "roundness", "compactness", "solidity", "comprehensive_score", "ranking").limit(limit_num)
        elif ranking_type == 'quality':
            df_quality = df_cleaned.withColumn("quality_score", round((col("roundness") * 40 + col("compactness") * 35 + col("solidity") * 25), 2))
            window_spec = Window.orderBy(col("quality_score").desc())
            df_ranked = df_quality.withColumn("ranking", row_number().over(window_spec))
            result_df = df_ranked.select("id", "bean_type", "roundness", "compactness", "solidity", "quality_score", "ranking").limit(limit_num)
        elif ranking_type == 'shape':
            df_shape = df_cleaned.withColumn("shape_score", round((col("aspect_ratio") * 0.3 + col("eccentricity") * 0.25 + col("extent") * 0.25 + col("shape_factor1") * 0.2) * 100, 2))
            window_spec = Window.orderBy(col("shape_score").desc())
            df_ranked = df_shape.withColumn("ranking", dense_rank().over(window_spec))
            result_df = df_ranked.select("id", "bean_type", "aspect_ratio", "eccentricity", "extent", "shape_factor1", "shape_score", "ranking").limit(limit_num)
        result_list = result_df.collect()
        ranking_data = [row.asDict() for row in result_list]
        return JsonResponse({"code": 200, "message": "多维排名分析完成", "data": ranking_data})

class DataQualityDistributionAnalysis(View):
    def post(self, request):
        params = json.loads(request.body)
        quality_indicator = params.get('indicator', 'roundness')
        interval_num = params.get('interval', 10)
        df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/drybean_db").option("driver", "com.mysql.cj.jdbc.Driver").option("dbtable", "tb_drybean_data").option("user", "root").option("password", "123456").load()
        df_valid = df.filter(col(quality_indicator).isNotNull())
        stats = df_valid.agg(min(quality_indicator).alias("min_val"), max(quality_indicator).alias("max_val")).collect()[0]
        min_value = float(stats["min_val"])
        max_value = float(stats["max_val"])
        interval_width = (max_value - min_value) / interval_num
        distribution_data = []
        for i in range(interval_num):
            lower_bound = min_value + i * interval_width
            upper_bound = min_value + (i + 1) * interval_width
            if i == interval_num - 1:
                interval_df = df_valid.filter((col(quality_indicator) >= lower_bound) & (col(quality_indicator) <= upper_bound))
            else:
                interval_df = df_valid.filter((col(quality_indicator) >= lower_bound) & (col(quality_indicator) < upper_bound))
            interval_count = interval_df.count()
            interval_avg = interval_df.agg(avg(quality_indicator)).collect()[0][0]
            interval_label = f"[{lower_bound:.2f}, {upper_bound:.2f}]" if i < interval_num - 1 else f"[{lower_bound:.2f}, {upper_bound:.2f}]"
            distribution_data.append({"interval": interval_label, "count": interval_count, "avg_value": round(float(interval_avg) if interval_avg else 0, 4), "lower_bound": round(lower_bound, 2), "upper_bound": round(upper_bound, 2)})
        total_count = df_valid.count()
        for item in distribution_data:
            item["percentage"] = round((item["count"] / total_count) * 100, 2) if total_count > 0 else 0
        quality_stats = df_valid.agg(avg(quality_indicator).alias("mean"), stddev(quality_indicator).alias("std"), percentile_approx(quality_indicator, 0.25).alias("q1"), percentile_approx(quality_indicator, 0.5).alias("median"), percentile_approx(quality_indicator, 0.75).alias("q3")).collect()[0]
        statistics_summary = {"mean": round(float(quality_stats["mean"]), 4), "std": round(float(quality_stats["std"]), 4), "q1": round(float(quality_stats["q1"]), 4), "median": round(float(quality_stats["median"]), 4), "q3": round(float(quality_stats["q3"]), 4), "min": round(min_value, 4), "max": round(max_value, 4)}
        return JsonResponse({"code": 200, "message": "数据质量分布分析完成", "data": {"distribution": distribution_data, "statistics": statistics_summary, "total_samples": total_count}})

class ProductionVarietyCharacteristicAnalysis(View):
    def post(self, request):
        params = json.loads(request.body)
        analysis_dimensions = params.get('dimensions', ['area', 'perimeter', 'roundness', 'compactness'])
        df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/drybean_db").option("driver", "com.mysql.cj.jdbc.Driver").option("dbtable", "tb_drybean_data").option("user", "root").option("password", "123456").load()
        df_grouped = df.groupBy("bean_type")
        agg_exprs = []
        for dim in analysis_dimensions:
            agg_exprs.append(avg(dim).alias(f"{dim}_avg"))
            agg_exprs.append(stddev(dim).alias(f"{dim}_std"))
            agg_exprs.append(min(dim).alias(f"{dim}_min"))
            agg_exprs.append(max(dim).alias(f"{dim}_max"))
            agg_exprs.append(count(dim).alias(f"{dim}_count"))
        agg_exprs.append(count("*").alias("total_count"))
        variety_stats = df_grouped.agg(*agg_exprs)
        variety_list = variety_stats.collect()
        variety_data = []
        for row in variety_list:
            variety_info = {"bean_type": row["bean_type"], "total_count": row["total_count"], "characteristics": {}}
            for dim in analysis_dimensions:
                variety_info["characteristics"][dim] = {"average": round(float(row[f"{dim}_avg"]) if row[f"{dim}_avg"] else 0, 4), "std_dev": round(float(row[f"{dim}_std"]) if row[f"{dim}_std"] else 0, 4), "min_value": round(float(row[f"{dim}_min"]) if row[f"{dim}_min"] else 0, 4), "max_value": round(float(row[f"{dim}_max"]) if row[f"{dim}_max"] else 0, 4), "valid_count": row[f"{dim}_count"]}
            variety_data.append(variety_info)
        variety_comparison = {}
        for dim in analysis_dimensions:
            dim_values = [(v["bean_type"], v["characteristics"][dim]["average"]) for v in variety_data]
            dim_values_sorted = sorted(dim_values, key=lambda x: x[1], reverse=True)
            variety_comparison[dim] = {"ranking": [{"bean_type": item[0], "value": item[1]} for item in dim_values_sorted], "max_variety": dim_values_sorted[0][0] if dim_values_sorted else None, "min_variety": dim_values_sorted[-1][0] if dim_values_sorted else None, "difference": round(dim_values_sorted[0][1] - dim_values_sorted[-1][1], 4) if len(dim_values_sorted) > 1 else 0}
        correlation_analysis = {}
        for i in range(len(analysis_dimensions)):
            for j in range(i + 1, len(analysis_dimensions)):
                dim1, dim2 = analysis_dimensions[i], analysis_dimensions[j]
                corr_df = df.select(dim1, dim2).na.drop()
                corr_value = corr_df.stat.corr(dim1, dim2)
                correlation_analysis[f"{dim1}_vs_{dim2}"] = round(corr_value, 4) if corr_value else 0
        return JsonResponse({"code": 200, "message": "生产品种特征分析完成", "data": {"variety_statistics": variety_data, "variety_comparison": variety_comparison, "correlation_analysis": correlation_analysis}})

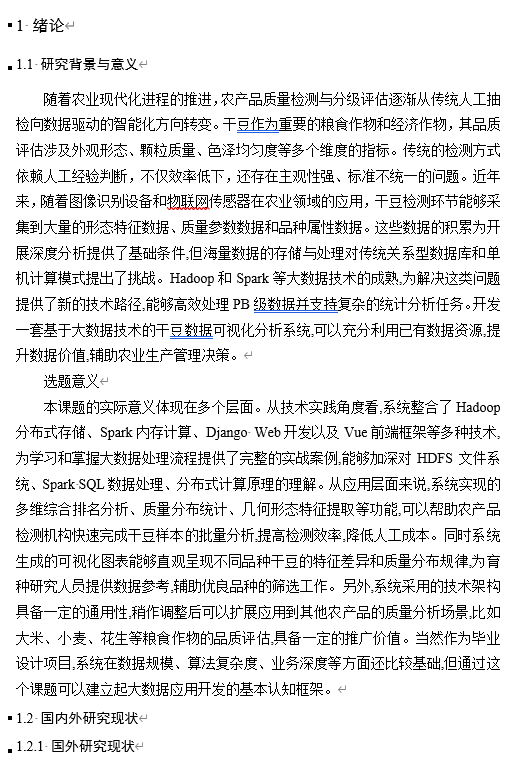

基于大数据的干豆数据可视化分析系统文档展示

在这里插入图片描述
