TextView文字上下移动

赵健zj

于 2022-07-14 10:11:59 发布

阅读量617

点赞数

文章标签： android java 开发语言

本文链接：https://blog.csdn.net/AdrianAndroid/article/details/125763465

版权

资料

Android setMovementMethod() 方法

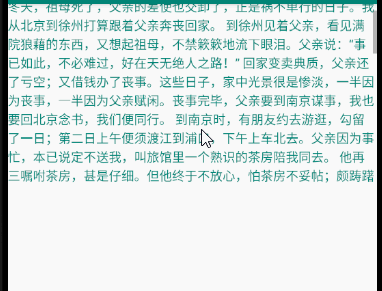

样子

  private TextView txt;
    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.login_activity_layout);
        txt = findViewById(R.id.textview);
        txt.setMovementMethod(ScrollingMovementMethod.getInstance());
    }

MovementMethod

**
 * Provides cursor positioning, scrolling and text selection functionality in a {@link TextView}.
 * <p>
 * The {@link TextView} delegates handling of key events, trackball motions and touches to
 * the movement method for purposes of content navigation.  The framework automatically
 * selects an appropriate movement method based on the content of the {@link TextView}.
 * </p><p>
 * This interface is intended for use by the framework; it should not be implemented
 * directly by applications.
 * </p>
 */
public interface MovementMethod {
    public void initialize(TextView widget, Spannable text);
    public boolean onKeyDown(TextView widget, Spannable text, int keyCode, KeyEvent event);
    public boolean onKeyUp(TextView widget, Spannable text, int keyCode, KeyEvent event);

    /**
     * If the key listener wants to other kinds of key events, return true,
     * otherwise return false and the caller (i.e. the widget host)
     * will handle the key.
     */
    public boolean onKeyOther(TextView view, Spannable text, KeyEvent event);

    public void onTakeFocus(TextView widget, Spannable text, int direction);
    public boolean onTrackballEvent(TextView widget, Spannable text, MotionEvent event);
    public boolean onTouchEvent(TextView widget, Spannable text, MotionEvent event);
    public boolean onGenericMotionEvent(TextView widget, Spannable text, MotionEvent event);

    /**
     * Returns true if this movement method allows arbitrary selection
     * of any text; false if it has no selection (like a movement method
     * that only scrolls) or a constrained selection (for example
     * limited to links.  The "Select All" menu item is disabled
     * if arbitrary selection is not allowed.
     */
    public boolean canSelectArbitrarily();
}

BaseMovementMethod

/*
 * Copyright (C) 2010 The Android Open Source Project
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package android.text.method;

import android.text.Layout;
import android.text.Spannable;
import android.view.InputDevice;
import android.view.KeyEvent;
import android.view.MotionEvent;
import android.widget.TextView;

/**
 * Base classes for movement methods.
 */
public class BaseMovementMethod implements MovementMethod {
    @Override
    public boolean canSelectArbitrarily() {
        return false;
    }

    @Override
    public void initialize(TextView widget, Spannable text) {
    }

    @Override
    public boolean onKeyDown(TextView widget, Spannable text, int keyCode, KeyEvent event) {
        final int movementMetaState = getMovementMetaState(text, event);
        boolean handled = handleMovementKey(widget, text, keyCode, movementMetaState, event);
        if (handled) {
            MetaKeyKeyListener.adjustMetaAfterKeypress(text);
            MetaKeyKeyListener.resetLockedMeta(text);
        }
        return handled;
    }

    @Override
    public boolean onKeyOther(TextView widget, Spannable text, KeyEvent event) {
        final int movementMetaState = getMovementMetaState(text, event);
        final int keyCode = event.getKeyCode();
        if (keyCode != KeyEvent.KEYCODE_UNKNOWN
                && event.getAction() == KeyEvent.ACTION_MULTIPLE) {
            final int repeat = event.getRepeatCount();
            boolean handled = false;
            for (int i = 0; i < repeat; i++) {
                if (!handleMovementKey(widget, text, keyCode, movementMetaState, event)) {
                    break;
                }
                handled = true;
            }
            if (handled) {
                MetaKeyKeyListener.adjustMetaAfterKeypress(text);
                MetaKeyKeyListener.resetLockedMeta(text);
            }
            return handled;
        }
        return false;
    }

    @Override
    public boolean onKeyUp(TextView widget, Spannable text, int keyCode, KeyEvent event) {
        return false;
    }

    @Override
    public void onTakeFocus(TextView widget, Spannable text, int direction) {
    }

    @Override
    public boolean onTouchEvent(TextView widget, Spannable text, MotionEvent event) {
        return false;
    }

    @Override
    public boolean onTrackballEvent(TextView widget, Spannable text, MotionEvent event) {
        return false;
    }

    @Override
    public boolean onGenericMotionEvent(TextView widget, Spannable text, MotionEvent event) {
        if ((event.getSource() & InputDevice.SOURCE_CLASS_POINTER) != 0) {
            switch (event.getAction()) {
                case MotionEvent.ACTION_SCROLL: {
                    final float vscroll;
                    final float hscroll;
                    if ((event.getMetaState() & KeyEvent.META_SHIFT_ON) != 0) {
                        vscroll = 0;
                        hscroll = event.getAxisValue(MotionEvent.AXIS_VSCROLL);
                    } else {
                        vscroll = -event.getAxisValue(MotionEvent.AXIS_VSCROLL);
                        hscroll = event.getAxisValue(MotionEvent.AXIS_HSCROLL);
                    }

                    boolean handled = false;
                    if (hscroll < 0) {
                        handled |= scrollLeft(widget, text, (int)Math.ceil(-hscroll));
                    } else if (hscroll > 0) {
                        handled |= scrollRight(widget, text, (int)Math.ceil(hscroll));
                    }
                    if (vscroll < 0) {
                        handled |= scrollUp(widget, text, (int)Math.ceil(-vscroll));
                    } else if (vscroll > 0) {
                        handled |= scrollDown(widget, text, (int)Math.ceil(vscroll));
                    }
                    return handled;
                }
            }
        }
        return false;
    }

    /**
     * Gets the meta state used for movement using the modifiers tracked by the text
     * buffer as well as those present in the key event.
     *
     * The movement meta state excludes the state of locked modifiers or the SHIFT key
     * since they are not used by movement actions (but they may be used for selection).
     *
     * @param buffer The text buffer.
     * @param event The key event.
     * @return The keyboard meta states used for movement.
     */
    protected int getMovementMetaState(Spannable buffer, KeyEvent event) {
        // We ignore locked modifiers and SHIFT.
        int metaState = MetaKeyKeyListener.getMetaState(buffer, event)
                & ~(MetaKeyKeyListener.META_ALT_LOCKED | MetaKeyKeyListener.META_SYM_LOCKED);
        return KeyEvent.normalizeMetaState(metaState) & ~KeyEvent.META_SHIFT_MASK;
    }

    /**
     * Performs a movement key action.
     * The default implementation decodes the key down and invokes movement actions
     * such as {@link #down} and {@link #up}.
     * {@link #onKeyDown(TextView, Spannable, int, KeyEvent)} calls this method once
     * to handle an {@link KeyEvent#ACTION_DOWN}.
     * {@link #onKeyOther(TextView, Spannable, KeyEvent)} calls this method repeatedly
     * to handle each repetition of an {@link KeyEvent#ACTION_MULTIPLE}.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @param event The key event.
     * @param keyCode The key code.
     * @param movementMetaState The keyboard meta states used for movement.
     * @param event The key event.
     * @return True if the event was handled.
     */
    protected boolean handleMovementKey(TextView widget, Spannable buffer,
            int keyCode, int movementMetaState, KeyEvent event) {
        switch (keyCode) {
            case KeyEvent.KEYCODE_DPAD_LEFT:
                if (KeyEvent.metaStateHasNoModifiers(movementMetaState)) {
                    return left(widget, buffer);
                } else if (KeyEvent.metaStateHasModifiers(movementMetaState,
                        KeyEvent.META_CTRL_ON)) {
                    return leftWord(widget, buffer);
                } else if (KeyEvent.metaStateHasModifiers(movementMetaState,
                        KeyEvent.META_ALT_ON)) {
                    return lineStart(widget, buffer);
                }
                break;

            case KeyEvent.KEYCODE_DPAD_RIGHT:
                if (KeyEvent.metaStateHasNoModifiers(movementMetaState)) {
                    return right(widget, buffer);
                } else if (KeyEvent.metaStateHasModifiers(movementMetaState,
                        KeyEvent.META_CTRL_ON)) {
                    return rightWord(widget, buffer);
                } else if (KeyEvent.metaStateHasModifiers(movementMetaState,
                        KeyEvent.META_ALT_ON)) {
                    return lineEnd(widget, buffer);
                }
                break;

            case KeyEvent.KEYCODE_DPAD_UP:
                if (KeyEvent.metaStateHasNoModifiers(movementMetaState)) {
                    return up(widget, buffer);
                } else if (KeyEvent.metaStateHasModifiers(movementMetaState,
                        KeyEvent.META_ALT_ON)) {
                    return top(widget, buffer);
                }
                break;

            case KeyEvent.KEYCODE_DPAD_DOWN:
                if (KeyEvent.metaStateHasNoModifiers(movementMetaState)) {
                    return down(widget, buffer);
                } else if (KeyEvent.metaStateHasModifiers(movementMetaState,
                        KeyEvent.META_ALT_ON)) {
                    return bottom(widget, buffer);
                }
                break;

            case KeyEvent.KEYCODE_PAGE_UP:
                if (KeyEvent.metaStateHasNoModifiers(movementMetaState)) {
                    return pageUp(widget, buffer);
                } else if (KeyEvent.metaStateHasModifiers(movementMetaState,
                        KeyEvent.META_ALT_ON)) {
                    return top(widget, buffer);
                }
                break;

            case KeyEvent.KEYCODE_PAGE_DOWN:
                if (KeyEvent.metaStateHasNoModifiers(movementMetaState)) {
                    return pageDown(widget, buffer);
                } else if (KeyEvent.metaStateHasModifiers(movementMetaState,
                        KeyEvent.META_ALT_ON)) {
                    return bottom(widget, buffer);
                }
                break;

            case KeyEvent.KEYCODE_MOVE_HOME:
                if (KeyEvent.metaStateHasNoModifiers(movementMetaState)) {
                    return home(widget, buffer);
                } else if (KeyEvent.metaStateHasModifiers(movementMetaState,
                        KeyEvent.META_CTRL_ON)) {
                    return top(widget, buffer);
                }
                break;

            case KeyEvent.KEYCODE_MOVE_END:
                if (KeyEvent.metaStateHasNoModifiers(movementMetaState)) {
                    return end(widget, buffer);
                } else if (KeyEvent.metaStateHasModifiers(movementMetaState,
                        KeyEvent.META_CTRL_ON)) {
                    return bottom(widget, buffer);
                }
                break;
        }
        return false;
    }

    /**
     * Performs a left movement action.
     * Moves the cursor or scrolls left by one character.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @return True if the event was handled.
     */
    protected boolean left(TextView widget, Spannable buffer) {
        return false;
    }

    /**
     * Performs a right movement action.
     * Moves the cursor or scrolls right by one character.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @return True if the event was handled.
     */
    protected boolean right(TextView widget, Spannable buffer) {
        return false;
    }

    /**
     * Performs an up movement action.
     * Moves the cursor or scrolls up by one line.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @return True if the event was handled.
     */
    protected boolean up(TextView widget, Spannable buffer) {
        return false;
    }

    /**
     * Performs a down movement action.
     * Moves the cursor or scrolls down by one line.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @return True if the event was handled.
     */
    protected boolean down(TextView widget, Spannable buffer) {
        return false;
    }

    /**
     * Performs a page-up movement action.
     * Moves the cursor or scrolls up by one page.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @return True if the event was handled.
     */
    protected boolean pageUp(TextView widget, Spannable buffer) {
        return false;
    }

    /**
     * Performs a page-down movement action.
     * Moves the cursor or scrolls down by one page.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @return True if the event was handled.
     */
    protected boolean pageDown(TextView widget, Spannable buffer) {
        return false;
    }

    /**
     * Performs a top movement action.
     * Moves the cursor or scrolls to the top of the buffer.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @return True if the event was handled.
     */
    protected boolean top(TextView widget, Spannable buffer) {
        return false;
    }

    /**
     * Performs a bottom movement action.
     * Moves the cursor or scrolls to the bottom of the buffer.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @return True if the event was handled.
     */
    protected boolean bottom(TextView widget, Spannable buffer) {
        return false;
    }

    /**
     * Performs a line-start movement action.
     * Moves the cursor or scrolls to the start of the line.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @return True if the event was handled.
     */
    protected boolean lineStart(TextView widget, Spannable buffer) {
        return false;
    }

    /**
     * Performs a line-end movement action.
     * Moves the cursor or scrolls to the end of the line.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @return True if the event was handled.
     */
    protected boolean lineEnd(TextView widget, Spannable buffer) {
        return false;
    }

    /** {@hide} */
    protected boolean leftWord(TextView widget, Spannable buffer) {
        return false;
    }

    /** {@hide} */
    protected boolean rightWord(TextView widget, Spannable buffer) {
        return false;
    }

    /**
     * Performs a home movement action.
     * Moves the cursor or scrolls to the start of the line or to the top of the
     * document depending on whether the insertion point is being moved or
     * the document is being scrolled.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @return True if the event was handled.
     */
    protected boolean home(TextView widget, Spannable buffer) {
        return false;
    }

    /**
     * Performs an end movement action.
     * Moves the cursor or scrolls to the start of the line or to the top of the
     * document depending on whether the insertion point is being moved or
     * the document is being scrolled.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @return True if the event was handled.
     */
    protected boolean end(TextView widget, Spannable buffer) {
        return false;
    }

    private int getTopLine(TextView widget) {
        return widget.getLayout().getLineForVertical(widget.getScrollY());
    }

    private int getBottomLine(TextView widget) {
        return widget.getLayout().getLineForVertical(widget.getScrollY() + getInnerHeight(widget));
    }

    private int getInnerWidth(TextView widget) {
        return widget.getWidth() - widget.getTotalPaddingLeft() - widget.getTotalPaddingRight();
    }

    private int getInnerHeight(TextView widget) {
        return widget.getHeight() - widget.getTotalPaddingTop() - widget.getTotalPaddingBottom();
    }

    private int getCharacterWidth(TextView widget) {
        return (int) Math.ceil(widget.getPaint().getFontSpacing());
    }

    private int getScrollBoundsLeft(TextView widget) {
        final Layout layout = widget.getLayout();
        final int topLine = getTopLine(widget);
        final int bottomLine = getBottomLine(widget);
        if (topLine > bottomLine) {
            return 0;
        }
        int left = Integer.MAX_VALUE;
        for (int line = topLine; line <= bottomLine; line++) {
            final int lineLeft = (int) Math.floor(layout.getLineLeft(line));
            if (lineLeft < left) {
                left = lineLeft;
            }
        }
        return left;
    }

    private int getScrollBoundsRight(TextView widget) {
        final Layout layout = widget.getLayout();
        final int topLine = getTopLine(widget);
        final int bottomLine = getBottomLine(widget);
        if (topLine > bottomLine) {
            return 0;
        }
        int right = Integer.MIN_VALUE;
        for (int line = topLine; line <= bottomLine; line++) {
            final int lineRight = (int) Math.ceil(layout.getLineRight(line));
            if (lineRight > right) {
                right = lineRight;
            }
        }
        return right;
    }

    /**
     * Performs a scroll left action.
     * Scrolls left by the specified number of characters.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @param amount The number of characters to scroll by.  Must be at least 1.
     * @return True if the event was handled.
     * @hide
     */
    protected boolean scrollLeft(TextView widget, Spannable buffer, int amount) {
        final int minScrollX = getScrollBoundsLeft(widget);
        int scrollX = widget.getScrollX();
        if (scrollX > minScrollX) {
            scrollX = Math.max(scrollX - getCharacterWidth(widget) * amount, minScrollX);
            widget.scrollTo(scrollX, widget.getScrollY());
            return true;
        }
        return false;
    }

    /**
     * Performs a scroll right action.
     * Scrolls right by the specified number of characters.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @param amount The number of characters to scroll by.  Must be at least 1.
     * @return True if the event was handled.
     * @hide
     */
    protected boolean scrollRight(TextView widget, Spannable buffer, int amount) {
        final int maxScrollX = getScrollBoundsRight(widget) - getInnerWidth(widget);
        int scrollX = widget.getScrollX();
        if (scrollX < maxScrollX) {
            scrollX = Math.min(scrollX + getCharacterWidth(widget) * amount, maxScrollX);
            widget.scrollTo(scrollX, widget.getScrollY());
            return true;
        }
        return false;
    }

    /**
     * Performs a scroll up action.
     * Scrolls up by the specified number of lines.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @param amount The number of lines to scroll by.  Must be at least 1.
     * @return True if the event was handled.
     * @hide
     */
    protected boolean scrollUp(TextView widget, Spannable buffer, int amount) {
        final Layout layout = widget.getLayout();
        final int top = widget.getScrollY();
        int topLine = layout.getLineForVertical(top);
        if (layout.getLineTop(topLine) == top) {
            // If the top line is partially visible, bring it all the way
            // into view; otherwise, bring the previous line into view.
            topLine -= 1;
        }
        if (topLine >= 0) {
            topLine = Math.max(topLine - amount + 1, 0);
            Touch.scrollTo(widget, layout, widget.getScrollX(), layout.getLineTop(topLine));
            return true;
        }
        return false;
    }

    /**
     * Performs a scroll down action.
     * Scrolls down by the specified number of lines.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @param amount The number of lines to scroll by.  Must be at least 1.
     * @return True if the event was handled.
     * @hide
     */
    protected boolean scrollDown(TextView widget, Spannable buffer, int amount) {
        final Layout layout = widget.getLayout();
        final int innerHeight = getInnerHeight(widget);
        final int bottom = widget.getScrollY() + innerHeight;
        int bottomLine = layout.getLineForVertical(bottom);
        if (layout.getLineTop(bottomLine + 1) < bottom + 1) {
            // Less than a pixel of this line is out of view,
            // so we must have tried to make it entirely in view
            // and now want the next line to be in view instead.
            bottomLine += 1;
        }
        final int limit = layout.getLineCount() - 1;
        if (bottomLine <= limit) {
            bottomLine = Math.min(bottomLine + amount - 1, limit);
            Touch.scrollTo(widget, layout, widget.getScrollX(),
                    layout.getLineTop(bottomLine + 1) - innerHeight);
            return true;
        }
        return false;
    }

    /**
     * Performs a scroll page up action.
     * Scrolls up by one page.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @return True if the event was handled.
     * @hide
     */
    protected boolean scrollPageUp(TextView widget, Spannable buffer) {
        final Layout layout = widget.getLayout();
        final int top = widget.getScrollY() - getInnerHeight(widget);
        int topLine = layout.getLineForVertical(top);
        if (topLine >= 0) {
            Touch.scrollTo(widget, layout, widget.getScrollX(), layout.getLineTop(topLine));
            return true;
        }
        return false;
    }

    /**
     * Performs a scroll page up action.
     * Scrolls down by one page.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @return True if the event was handled.
     * @hide
     */
    protected boolean scrollPageDown(TextView widget, Spannable buffer) {
        final Layout layout = widget.getLayout();
        final int innerHeight = getInnerHeight(widget);
        final int bottom = widget.getScrollY() + innerHeight + innerHeight;
        int bottomLine = layout.getLineForVertical(bottom);
        if (bottomLine <= layout.getLineCount() - 1) {
            Touch.scrollTo(widget, layout, widget.getScrollX(),
                    layout.getLineTop(bottomLine + 1) - innerHeight);
            return true;
        }
        return false;
    }

    /**
     * Performs a scroll to top action.
     * Scrolls to the top of the document.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @return True if the event was handled.
     * @hide
     */
    protected boolean scrollTop(TextView widget, Spannable buffer) {
        final Layout layout = widget.getLayout();
        if (getTopLine(widget) >= 0) {
            Touch.scrollTo(widget, layout, widget.getScrollX(), layout.getLineTop(0));
            return true;
        }
        return false;
    }

    /**
     * Performs a scroll to bottom action.
     * Scrolls to the bottom of the document.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @return True if the event was handled.
     * @hide
     */
    protected boolean scrollBottom(TextView widget, Spannable buffer) {
        final Layout layout = widget.getLayout();
        final int lineCount = layout.getLineCount();
        if (getBottomLine(widget) <= lineCount - 1) {
            Touch.scrollTo(widget, layout, widget.getScrollX(),
                    layout.getLineTop(lineCount) - getInnerHeight(widget));
            return true;
        }
        return false;
    }

    /**
     * Performs a scroll to line start action.
     * Scrolls to the start of the line.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @return True if the event was handled.
     * @hide
     */
    protected boolean scrollLineStart(TextView widget, Spannable buffer) {
        final int minScrollX = getScrollBoundsLeft(widget);
        int scrollX = widget.getScrollX();
        if (scrollX > minScrollX) {
            widget.scrollTo(minScrollX, widget.getScrollY());
            return true;
        }
        return false;
    }

    /**
     * Performs a scroll to line end action.
     * Scrolls to the end of the line.
     *
     * @param widget The text view.
     * @param buffer The text buffer.
     * @return True if the event was handled.
     * @hide
     */
    protected boolean scrollLineEnd(TextView widget, Spannable buffer) {
        final int maxScrollX = getScrollBoundsRight(widget) - getInnerWidth(widget);
        int scrollX = widget.getScrollX();
        if (scrollX < maxScrollX) {
            widget.scrollTo(maxScrollX, widget.getScrollY());
            return true;
        }
        return false;
    }
}

ScrollingMovementMethod

/*
 * Copyright (C) 2006 The Android Open Source Project
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package android.text.method;

import android.text.Layout;
import android.text.Spannable;
import android.view.MotionEvent;
import android.view.View;
import android.widget.TextView;

/**
 * A movement method that interprets movement keys by scrolling the text buffer.
 */
public class ScrollingMovementMethod extends BaseMovementMethod implements MovementMethod {
    @Override
    protected boolean left(TextView widget, Spannable buffer) {
        return scrollLeft(widget, buffer, 1);
    }

    @Override
    protected boolean right(TextView widget, Spannable buffer) {
        return scrollRight(widget, buffer, 1);
    }

    @Override
    protected boolean up(TextView widget, Spannable buffer) {
        return scrollUp(widget, buffer, 1);
    }

    @Override
    protected boolean down(TextView widget, Spannable buffer) {
        return scrollDown(widget, buffer, 1);
    }

    @Override
    protected boolean pageUp(TextView widget, Spannable buffer) {
        return scrollPageUp(widget, buffer);
    }

    @Override
    protected boolean pageDown(TextView widget, Spannable buffer) {
        return scrollPageDown(widget, buffer);
    }

    @Override
    protected boolean top(TextView widget, Spannable buffer) {
        return scrollTop(widget, buffer);
    }

    @Override
    protected boolean bottom(TextView widget, Spannable buffer) {
        return scrollBottom(widget, buffer);
    }

    @Override
    protected boolean lineStart(TextView widget, Spannable buffer) {
        return scrollLineStart(widget, buffer);
    }

    @Override
    protected boolean lineEnd(TextView widget, Spannable buffer) {
        return scrollLineEnd(widget, buffer);
    }

    @Override
    protected boolean home(TextView widget, Spannable buffer) {
        return top(widget, buffer);
    }

    @Override
    protected boolean end(TextView widget, Spannable buffer) {
        return bottom(widget, buffer);
    }

    @Override
    public boolean onTouchEvent(TextView widget, Spannable buffer, MotionEvent event) {
        return Touch.onTouchEvent(widget, buffer, event);
    }

    @Override
    public void onTakeFocus(TextView widget, Spannable text, int dir) {
        Layout layout = widget.getLayout();

        if (layout != null && (dir & View.FOCUS_FORWARD) != 0) {
            widget.scrollTo(widget.getScrollX(),
                            layout.getLineTop(0));
        }
        if (layout != null && (dir & View.FOCUS_BACKWARD) != 0) {
            int padding = widget.getTotalPaddingTop() +
                          widget.getTotalPaddingBottom();
            int line = layout.getLineCount() - 1;

            widget.scrollTo(widget.getScrollX(),
                            layout.getLineTop(line+1) -
                            (widget.getHeight() - padding));
        }
    }

    public static MovementMethod getInstance() {
        if (sInstance == null)
            sInstance = new ScrollingMovementMethod();

        return sInstance;
    }

    private static ScrollingMovementMethod sInstance;
}

View#onTouchEvent

    @Override
    public boolean onTouchEvent(MotionEvent event) {
        if (DEBUG_CURSOR) {
            logCursor("onTouchEvent", "%d: %s (%f,%f)",
                    event.getSequenceNumber(),
                    MotionEvent.actionToString(event.getActionMasked()),
                    event.getX(), event.getY());
        }
        final int action = event.getActionMasked();
        if (mEditor != null) {
            if (!isFromPrimePointer(event, false)) {
                return true;
            }

            mEditor.onTouchEvent(event);

            if (mEditor.mInsertionPointCursorController != null
                    && mEditor.mInsertionPointCursorController.isCursorBeingModified()) {
                return true;
            }
            if (mEditor.mSelectionModifierCursorController != null
                    && mEditor.mSelectionModifierCursorController.isDragAcceleratorActive()) {
                return true;
            }
        }

        final boolean superResult = super.onTouchEvent(event);
        if (DEBUG_CURSOR) {
            logCursor("onTouchEvent", "superResult=%s", superResult);
        }

        /*
         * Don't handle the release after a long press, because it will move the selection away from
         * whatever the menu action was trying to affect. If the long press should have triggered an
         * insertion action mode, we can now actually show it.
         */
        if (mEditor != null && mEditor.mDiscardNextActionUp && action == MotionEvent.ACTION_UP) {
            mEditor.mDiscardNextActionUp = false;
            if (DEBUG_CURSOR) {
                logCursor("onTouchEvent", "release after long press detected");
            }
            if (mEditor.mIsInsertionActionModeStartPending) {
                mEditor.startInsertionActionMode();
                mEditor.mIsInsertionActionModeStartPending = false;
            }
            return superResult;
        }

        final boolean touchIsFinished = (action == MotionEvent.ACTION_UP)
                && (mEditor == null || !mEditor.mIgnoreActionUpEvent) && isFocused();

        if ((mMovement != null || onCheckIsTextEditor()) && isEnabled()
                && mText instanceof Spannable && mLayout != null) {
            boolean handled = false;

            if (mMovement != null) {
                handled |= mMovement.onTouchEvent(this, mSpannable, event);
            }

            final boolean textIsSelectable = isTextSelectable();
            if (touchIsFinished && mLinksClickable && mAutoLinkMask != 0 && textIsSelectable) {
                // The LinkMovementMethod which should handle taps on links has not been installed
                // on non editable text that support text selection.
                // We reproduce its behavior here to open links for these.
                ClickableSpan[] links = mSpannable.getSpans(getSelectionStart(),
                    getSelectionEnd(), ClickableSpan.class);

                if (links.length > 0) {
                    links[0].onClick(this);
                    handled = true;
                }
            }

            if (touchIsFinished && (isTextEditable() || textIsSelectable)) {
                // Show the IME, except when selecting in read-only text.
                final InputMethodManager imm = getInputMethodManager();
                viewClicked(imm);
                if (isTextEditable() && mEditor.mShowSoftInputOnFocus && imm != null) {
                    imm.showSoftInput(this, 0);
                }

                // The above condition ensures that the mEditor is not null
                mEditor.onTouchUpEvent(event);

                handled = true;
            }

            if (handled) {
                return true;
            }
        }

        return superResult;
    }

Touch.java

/*
 * Copyright (C) 2008 The Android Open Source Project
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package android.text.method;

import android.text.Layout;
import android.text.Layout.Alignment;
import android.text.NoCopySpan;
import android.text.Spannable;
import android.view.KeyEvent;
import android.view.MotionEvent;
import android.view.ViewConfiguration;
import android.widget.TextView;

public class Touch {
    private Touch() { }

    /**
     * Scrolls the specified widget to the specified coordinates, except
     * constrains the X scrolling position to the horizontal regions of
     * the text that will be visible after scrolling to the specified
     * Y position.
     */
    public static void scrollTo(TextView widget, Layout layout, int x, int y) {
        final int horizontalPadding = widget.getTotalPaddingLeft() + widget.getTotalPaddingRight();
        final int availableWidth = widget.getWidth() - horizontalPadding;

        final int top = layout.getLineForVertical(y);
        Alignment a = layout.getParagraphAlignment(top);
        boolean ltr = layout.getParagraphDirection(top) > 0;

        int left, right;
        if (widget.getHorizontallyScrolling()) {
            final int verticalPadding = widget.getTotalPaddingTop() + widget.getTotalPaddingBottom();
            final int bottom = layout.getLineForVertical(y + widget.getHeight() - verticalPadding);

            left = Integer.MAX_VALUE;
            right = 0;

            for (int i = top; i <= bottom; i++) {
                left = (int) Math.min(left, layout.getLineLeft(i));
                right = (int) Math.max(right, layout.getLineRight(i));
            }
        } else {
            left = 0;
            right = availableWidth;
        }

        final int actualWidth = right - left;

        if (actualWidth < availableWidth) {
            if (a == Alignment.ALIGN_CENTER) {
                x = left - ((availableWidth - actualWidth) / 2);
            } else if ((ltr && (a == Alignment.ALIGN_OPPOSITE)) ||
                       (!ltr && (a == Alignment.ALIGN_NORMAL)) ||
                       (a == Alignment.ALIGN_RIGHT)) {
                // align_opposite does NOT mean align_right, we need the paragraph
                // direction to resolve it to left or right
                x = left - (availableWidth - actualWidth);
            } else {
                x = left;
            }
        } else {
            x = Math.min(x, right - availableWidth);
            x = Math.max(x, left);
        }

        widget.scrollTo(x, y);
    }

    /**
     * Handles touch events for dragging.  You may want to do other actions
     * like moving the cursor on touch as well.
     */
    public static boolean onTouchEvent(TextView widget, Spannable buffer,
                                       MotionEvent event) {
        DragState[] ds;

        switch (event.getActionMasked()) {
        case MotionEvent.ACTION_DOWN:
            ds = buffer.getSpans(0, buffer.length(), DragState.class);

            for (int i = 0; i < ds.length; i++) {
                buffer.removeSpan(ds[i]);
            }

            buffer.setSpan(new DragState(event.getX(), event.getY(),
                            widget.getScrollX(), widget.getScrollY()),
                    0, 0, Spannable.SPAN_MARK_MARK);
            return true;

        case MotionEvent.ACTION_UP:
            ds = buffer.getSpans(0, buffer.length(), DragState.class);

            for (int i = 0; i < ds.length; i++) {
                buffer.removeSpan(ds[i]);
            }

            if (ds.length > 0 && ds[0].mUsed) {
                return true;
            } else {
                return false;
            }

        case MotionEvent.ACTION_MOVE:
            ds = buffer.getSpans(0, buffer.length(), DragState.class);

            if (ds.length > 0) {
                if (ds[0].mFarEnough == false) {
                    int slop = ViewConfiguration.get(widget.getContext()).getScaledTouchSlop();

                    if (Math.abs(event.getX() - ds[0].mX) >= slop ||
                        Math.abs(event.getY() - ds[0].mY) >= slop) {
                        ds[0].mFarEnough = true;
                    }
                }

                if (ds[0].mFarEnough) {
                    ds[0].mUsed = true;
                    boolean cap = (event.getMetaState() & KeyEvent.META_SHIFT_ON) != 0
                            || MetaKeyKeyListener.getMetaState(buffer,
                                    MetaKeyKeyListener.META_SHIFT_ON) == 1
                            || MetaKeyKeyListener.getMetaState(buffer,
                                    MetaKeyKeyListener.META_SELECTING) != 0;

                    float dx;
                    float dy;
                    if (cap) {
                        // if we're selecting, we want the scroll to go in
                        // the direction of the drag
                        dx = event.getX() - ds[0].mX;
                        dy = event.getY() - ds[0].mY;
                    } else {
                        dx = ds[0].mX - event.getX();
                        dy = ds[0].mY - event.getY();
                    }
                    ds[0].mX = event.getX();
                    ds[0].mY = event.getY();

                    int nx = widget.getScrollX() + (int) dx;
                    int ny = widget.getScrollY() + (int) dy;

                    int padding = widget.getTotalPaddingTop() + widget.getTotalPaddingBottom();
                    Layout layout = widget.getLayout();

                    ny = Math.min(ny, layout.getHeight() - (widget.getHeight() - padding));
                    ny = Math.max(ny, 0);

                    int oldX = widget.getScrollX();
                    int oldY = widget.getScrollY();

                    scrollTo(widget, layout, nx, ny);

                    // If we actually scrolled, then cancel the up action.
                    if (oldX != widget.getScrollX() || oldY != widget.getScrollY()) {
                        widget.cancelLongPress();
                    }

                    return true;
                }
            }
        }

        return false;
    }

    /**
     * @param widget The text view.
     * @param buffer The text buffer.
     */
    public static int getInitialScrollX(TextView widget, Spannable buffer) {
        DragState[] ds = buffer.getSpans(0, buffer.length(), DragState.class);
        return ds.length > 0 ? ds[0].mScrollX : -1;
    }

    /**
     * @param widget The text view.
     * @param buffer The text buffer.
     */
    public static int getInitialScrollY(TextView widget, Spannable buffer) {
        DragState[] ds = buffer.getSpans(0, buffer.length(), DragState.class);
        return ds.length > 0 ? ds[0].mScrollY : -1;
    }

    private static class DragState implements NoCopySpan {
        public float mX;
        public float mY;
        public int mScrollX;
        public int mScrollY;
        public boolean mFarEnough;
        public boolean mUsed;

        public DragState(float x, float y, int scrollX, int scrollY) {
            mX = x;
            mY = y;
            mScrollX = scrollX;
            mScrollY = scrollY;
        }
    }
}
