TaskDispatcher源码解析

资料

github地址
git@github.com:AdrianAndroid/TaskDispatcher.git

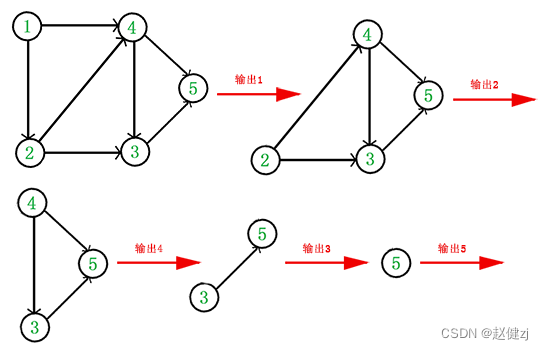

图论:有向无环图的排序——拓扑排序

用法

TaskDispatcher.init

    public static void init(Application context) {
        if (context != null) {
            sContext = context; // 保存上下文
            mApp = context; // 保存Application
            sHasInit = true; // 已经初始化
            sIsMainProcess = Utils.isMainProcess(sContext); // 是不是主进程
        }
    }

createInstance

    /**
     * 注意：每次获取的都是新对象
     *
     * @return
     */
    public static TaskDispatcher createInstance() {
        if (!sHasInit) {
            throw new RuntimeException("must call TaskDispatcher.init first");
        }
        return new TaskDispatcher();
    }

addTask & start & await

    void runTask() {
        Log.i("MyApp", "step 1");
        Debug.startMethodTracing("runTask" + System.currentTimeMillis());

        TaskDispatcher dispatcher = TaskDispatcher.createInstance();

        dispatcher
            .addTask(new InitStethoTask())
            .addTask(new InitUmengTask())
            .addTask(new GetDeviceIdTask())
            .start();

        Log.i("MyApp", "step 2");
        dispatcher.await();

        Log.i("MyApp", "step 3");

        DelayInitDispatcher delayInitDispatcher = new DelayInitDispatcher();
        delayInitDispatcher.addTask(new DelayInitTaskA())
            .addTask(new DelayInitTaskB())
            .start();


        Log.i("MyApp", "step 4");
        LaunchTimer.endRecord();

        Debug.stopMethodTracing();
    }

addTask(new InitStethoTask())

/**
 * 异步的Task
 */
public class InitStethoTask extends Task {

    @Override
    public boolean needWait() {
        return true;
    }

    @Override
    public void run() {

        Handler handler = new Handler(Looper.getMainLooper());
        Stetho.initializeWithDefaults(mContext);
        try {
            Thread.sleep(1300);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
        Log.i("MyApp", "InitStethoTask");
    }
}

addTask(new InitUmengTask())

/**
 * 需要在getDeviceId之后执行
 */
public class InitUmengTask extends Task {

    @Override
    public boolean needWait() {
        return super.needWait();
    }

    @Override
    public List<Class<? extends Task>> dependsOn() {
        List<Class<? extends Task>> task = new ArrayList<>();
        task.add(GetDeviceIdTask.class);
        return task;
    }

    @Override
    public void run() {
        UMConfigure.init(mContext, "58edcfeb310c93091c000be2", "umeng",
                UMConfigure.DEVICE_TYPE_PHONE, "1fe6a20054bcef865eeb0991ee84525b");
        Log.i("MyApp", "InitUmengTask");
    }
}

addTask(new GetDeviceIdTask())

public class GetDeviceIdTask extends Task {
    private String mDeviceId;

    @Override
    public boolean needWait() {
        return true;
    }

    @SuppressLint("MissingPermission")
    @Override
    public void run() {
        // 真正自己的代码
        TelephonyManager tManager = (TelephonyManager) mContext.getSystemService(
                Context.TELEPHONY_SERVICE);

//        MyApp app = (MyApp) mContext;
//        app.setDeviceId(mDeviceId);
        Log.i("MyApp", "GetDeviceIdTask");

    }
}

DelayInitDispatcher

        DelayInitDispatcher delayInitDispatcher = new DelayInitDispatcher();
        delayInitDispatcher.addTask(new DelayInitTaskA())
            .addTask(new DelayInitTaskB())
            .start();


/**
 * 延迟初始化分发器
 */
public class DelayInitDispatcher {
    private Queue<Task> mDelayTasks = new LinkedList<>();

    private MessageQueue.IdleHandler mIdleHandler = new MessageQueue.IdleHandler() {
        @Override
        public boolean queueIdle() {
            if(mDelayTasks.size()>0){
                Task task = mDelayTasks.poll();
                new DispatchRunnable(task).run();
            }
            return !mDelayTasks.isEmpty();
        }
    };

    public DelayInitDispatcher addTask(Task task){
        mDelayTasks.add(task);
        return this;
    }

    public void start(){
        Looper.myQueue().addIdleHandler(mIdleHandler);
    }
}

DelayInitTaskA

public class DelayInitTaskA extends MainTask {

    @Override
    public void run() {
        Log.i("MyApp", "DelayInitTaskA");
        // 模拟一些操作
        try {
            Thread.sleep(100);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
        Log.i("DelayInitTaskA finished", "");
    }
}

MainTask

public abstract class MainTask extends Task {

    @Override
    public boolean runOnMainThread() {
        return true;
    }

}

源码解析

addTask

addTask

    public TaskDispatcher addTask(Task task) {
        if (task != null) {
            collectDepends(task);
            mAllTasks.add(task);
            mClsAllTasks.add(task.getClass());
            // 非主线程且需要wait的，主线程不需要CountDownLatch也是同步的
            if (ifNeedWait(task)) {
                mNeedWaitTasks.add(task);
                mNeedWaitCount.getAndIncrement();
            }
        }
        return this;
    }

collectDepends(task);

    private void collectDepends(Task task) {
        if (task.dependsOn() != null && task.dependsOn().size() > 0) {
            for (Class<? extends Task> cls : task.dependsOn()) {
                if (mDependedHashMap.get(cls) == null) {
                    mDependedHashMap.put(cls, new ArrayList<Task>());
                }
                mDependedHashMap.get(cls).add(task);
                if (mFinishedTasks.contains(cls)) {
                    task.satisfy();
                }
            }
        }
    }

start

    @UiThread
    public void start() {
        mStartTime = System.currentTimeMillis();
        if (Looper.getMainLooper() != Looper.myLooper()) {
            throw new RuntimeException("must be called from UiThread");
        }
        if (mAllTasks.size() > 0) {
            mAnalyseCount.getAndIncrement();
            printDependedMsg();
            mAllTasks = TaskSortUtil.getSortResult(mAllTasks, mClsAllTasks);
            mCountDownLatch = new CountDownLatch(mNeedWaitCount.get());

            sendAndExecuteAsyncTasks();

            DispatcherLog.i("task analyse cost " + (System.currentTimeMillis() - mStartTime) + "  begin main ");
            executeTaskMain();
        }
        DispatcherLog.i("task analyse cost startTime cost " + (System.currentTimeMillis() - mStartTime));
    }

getSortResult

    public static synchronized List<Task> getSortResult(List<Task> originTasks,
        List<Class<? extends Task>> clsLaunchTasks) {
        long makeTime = System.currentTimeMillis();

        Set<Integer> dependSet = new ArraySet<>();
        Graph graph = new Graph(originTasks.size());
        for (int i = 0; i < originTasks.size(); i++) {
            Task task = originTasks.get(i);
            if (task.isSend() || task.dependsOn() == null || task.dependsOn().size() == 0) {
                continue;
            }
            for (Class cls : task.dependsOn()) {
                int indexOfDepend = getIndexOfTask(originTasks, clsLaunchTasks, cls);
                if (indexOfDepend < 0) {
                    throw new IllegalStateException(task.getClass().getSimpleName() +
                        " depends on " + cls.getSimpleName() + " can not be found in task list ");
                }
                dependSet.add(indexOfDepend);
                graph.addEdge(indexOfDepend, i);
            }
        }
        List<Integer> indexList = graph.topologicalSort();
        List<Task> newTasksAll = getResultTasks(originTasks, dependSet, indexList);

        DispatcherLog.i("task analyse cost makeTime " + (System.currentTimeMillis() - makeTime));
        printAllTaskName(newTasksAll);
        return newTasksAll;
    }

拓扑排序

初始化线程堵塞

        mCountDownLatch = new CountDownLatch(mNeedWaitCount.get());

开始执行任务

    /**
     * 发送去并且执行异步任务
     */
    private void sendAndExecuteAsyncTasks() {
        for (Task task : mAllTasks) {
            if (task.onlyInMainProcess() && !sIsMainProcess) {
                markTaskDone(task);
            } else {
                sendTaskReal(task);
            }
            task.setSend(true);
        }
    }

markTaskDone

    public void markTaskDone(Task task) {
        if (ifNeedWait(task)) {
            mFinishedTasks.add(task.getClass());
            mNeedWaitTasks.remove(task);
            mCountDownLatch.countDown();
            mNeedWaitCount.getAndDecrement();
        }
    }

sendTaskReal

    /**
     * 发送任务
     */
    private void sendTaskReal(final Task task) {
        if (task.runOnMainThread()) {
            mMainThreadTasks.add(task);
            if (task.needCall()) {
                task.setTaskCallBack(new TaskCallBack() {
                    @Override
                    public void call() {
                        TaskStat.markTaskDone();
                        task.setFinished(true);
                        satisfyChildren(task);
                        markTaskDone(task);
                        DispatcherLog.i(task.getClass().getSimpleName() + " finish");
                        Log.i("testLog", "call");
                    }
                });
            }
        } else {
            // 直接发，是否执行取决于具体线程池
            Future future = task.runOn().submit(new DispatchRunnable(task, this));
            mFutures.add(future);
        }
    }

executeTaskMain

    private void executeTaskMain() {
        mStartTime = System.currentTimeMillis();
        for (Task task : mMainThreadTasks) {
            long time = System.currentTimeMillis();
            new DispatchRunnable(task, this).run();
            DispatcherLog.i("real main " + task.getClass().getSimpleName() + " cost   " +
                    (System.currentTimeMillis() - time));
        }
        DispatcherLog.i("maintask cost " + (System.currentTimeMillis() - mStartTime));
    }

    @Override
    public void run() {
        TraceCompat.beginSection(mTask.getClass().getSimpleName());
        DispatcherLog.i(mTask.getClass().getSimpleName()
                + " begin run" + "  Situation  " + TaskStat.getCurrentSituation());

        Process.setThreadPriority(mTask.priority());

        long startTime = System.currentTimeMillis();

        mTask.setWaiting(true);
        mTask.waitToSatisfy();

        long waitTime = System.currentTimeMillis() - startTime;
        startTime = System.currentTimeMillis();

        // 执行Task
        mTask.setRunning(true);
        mTask.run();

        // 执行Task的尾部任务
        Runnable tailRunnable = mTask.getTailRunnable();
        if (tailRunnable != null) {
            tailRunnable.run();
        }

        if (!mTask.needCall() || !mTask.runOnMainThread()) {
            printTaskLog(startTime, waitTime);

            TaskStat.markTaskDone();
            mTask.setFinished(true);
            if (mTaskDispatcher != null) {
                mTaskDispatcher.satisfyChildren(mTask);
                mTaskDispatcher.markTaskDone(mTask);
            }
            DispatcherLog.i(mTask.getClass().getSimpleName() + " finish");
        }
        TraceCompat.endSection();
    }
