前言

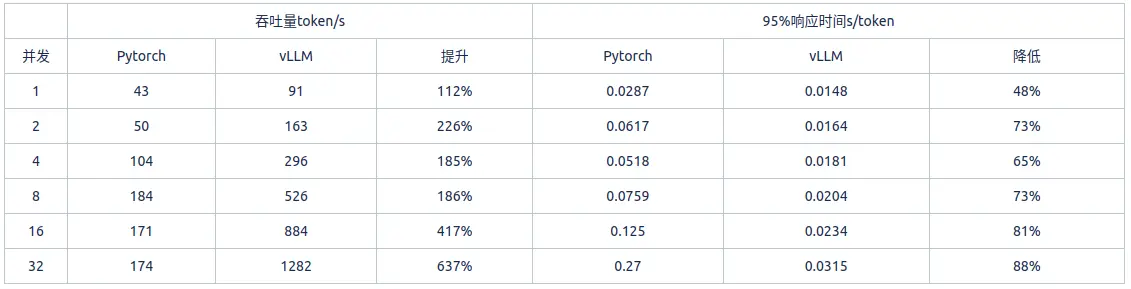

在前文《AI模型部署：Triton Inference Server部署ChatGLM3-6B实践》中介绍了使用Triton+Python后端部署ChatGLM3-6B的案例，本质上后端采用的是PyTorch来做推理，本文介绍专用于大模型推理的部署框架vLLM，实现更高效和更高吞吐的部署服务。
基础知识说明
Triton是NVIDIA推出的模型推理服务器，vLLM是伯克利大学推出的大模型推理引擎。
一般而言，Triton主要负责调度策略来提高服务的吞度，比如动态批处理、多实例并发等，配合TensorRT、ONNX等后端来联合使用，后者负责推理内核来降低延迟；而在Triton+vLLM的组合中，Triton不会做任何的调度处理，而是将请求全部打给vLLM，让vLLM根据PagedAttention和异步API自行处理请求，vLLM的调度策略更适配大语言模型decode场景的KV-Cache，提高GPU的利用率，因此在Triton+vLLM的组合中，由vLLM来负责调度，而Triton负责辅助vLLM的推理过程，添加前后处理，以及部署为服务，暴露对应的HTTP和GRPC接口。
vLLM承包了推理的调度策略和推理后端，其中推理后端vLLM提供了FlashAttention，XFormers等框架配合PagedAttention作为推理内核。

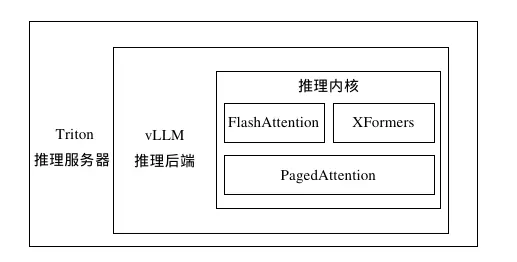

Triton+vLLM的部署各部分功能介绍
部署服务环境搭建
笔者的机器环境为显卡driver版本为535.154.05，该驱动最高支持的cuda版本为12.2。
下载Triton的Docker镜像，到NVIDIA官网查看符合cuda版本的镜像
Triton镜像版本
下载23.10版本的Triton镜像，该镜像提供了推理服务器环境，是模型服务的基础镜像，该镜像的Python3版本为3.10
docker pull nvcr.io/nvidia/tritonserver:23.08-py3
启动容器，在容器中通过pip安装vLLM
pip install vllm -i https://pypi.tuna.tsinghua.edu.cn/simple
将容器commit为新镜像
docker commit xxxx tritonserver:vllm_env
服务端模型目录结构设置
本案例以qwen1.5-1.8b-chat模型作为部署对象，读者可以根据自身机器的情况选择qwen1.5其他尺寸的模型，部署方案不变。
和Triton的一般使用一样，创建一个model_repository，在其下创建一个模型文件vllm_qwen1.5-1.8b-chat，该目录下设置后端逻辑代码model.py，模型配置文件model.json以及服务配置文件config.pbtxt，模型文件等内容，结构如下
(vllm) [xxx@xxx vllm_qwen1.5-1.8b-chat]$ tree
.
├── 1
│ ├── model.json
│ ├── model.py
│ └── vllm_qwen1.5-1.8b-chat
│ ├── config.json
│ ├── configuration.json
│ ├── generation_config.json
│ ├── generation_config.json.bak
│ ├── LICENSE
│ ├── merges.txt
│ ├── model.safetensors
│ ├── README.md
│ ├── tokenizer_config.json
│ ├── tokenizer.json
│ └── vocab.json
└── config.pbtxt
其中1代表版本号，默认Triton会启动最大的一个版本号为服务，config.pbtxt为模型服务的配置文件，内容如下
name: "vllm_qwen1.5-1.8b-chat"
backend: "python"
max_batch_size: 0
input [
{name: "prompt", data_type: TYPE_STRING, dims: [1]},
{name: "stream", data_type: TYPE_BOOL, dims: [1], optional: True},
{name: "sampling_parameters", data_type: TYPE_STRING, dims: [1], optional: True}
]
output [
{name: "response", data_type: TYPE_STRING, dims: [-1]}
]
model_transaction_policy { decoupled: True}
instance_group [
{
count: 1
kind: KIND_GPU
gpus: [ 0 ]
}
]
其中重点设置说明如下
- backend：后端backend为python，实际上是使用python脚本调用vLLM的API来实现后端
- max_batch_size：一次推理最大接受的batch大小，若Trtion配合vLLM来使用，Triton的max_batch_size必须设置为0，Triton不需要自己做任何batch操作，直接将每条请求发给vLLM让其自行处理
- input/output：设置了输入输出的名称，维度尺寸，数据类型
- model_transaction_policy：模型事务策略，若采用流式输出stream的形式，model_transaction_policy的decoupled必须设置为True，默认为False，这个属性只有一个解耦（decoupled）与否的选项。使用解耦意味着模型生成的响应的数量可能与发出的请求的数量不同，并且响应可能与请求的顺序无关。
- instance_group：执行实例设置，本来例采用0号GPU，部署一个实例
在模型版本1目录下，model.json设置了vLLM读取模型文件时的配置，内容如下
{
"model": "vllm_qwen1.5-1.8b-chat",
"tokenizer": "vllm_qwen1.5-1.8b-chat",
"disable_log_requests": "true",
"gpu_memory_utilization": 0.7,
"enforce_eager": "true",
"dtype": "half",
"tensor_parallel_size": 1
}
其中model，tokenizer指定了模型和分词器的路径，tensor_parallel_size代表使用的GPU数量，gpu_memory_utilization表示允许模型的权重以及KV-Cache所占据的GPU显存的比率。model.py为后端逻代码，将在下一节单独说明。
服务端逻辑model.py实现
model.py使用Python脚本实现了后端对请求的处理，内容如下
import asyncio
import json
import os
import threading
from typing import Dict, List
from copy import deepcopy
import logging
import numpy as np
from transformers import AutoTokenizer
import triton_python_backend_utils as pb_utils
from vllm.engine.arg_utils import AsyncEngineArgs
from vllm.engine.async_llm_engine import AsyncLLMEngine
from vllm.lora.request import LoRARequest
from vllm.sampling_params import SamplingParams
from vllm.utils import random_uuid
_VLLM_ENGINE_ARGS_FILENAME = "model.json"
logging.basicConfig(format='%(asctime)s - %(filename)s[line:%(lineno)d] - %(levelname)s: %(message)s',
level=logging.INFO)
os.environ["CUDA_VISIBLE_DEVICES"] = '0'
class TritonPythonModel:
def initialize(self, args):
self.logger = logging
self.model_config = json.loads(args["model_config"])
# assert are in decoupled mode. Currently, Triton needs to use
# decoupled policy for asynchronously forwarding requests to
# vLLM engine.
# TODO 确认decoupled模式打开
self.using_decoupled = pb_utils.using_decoupled_model_transaction_policy(self.model_config)
assert self.using_decoupled, "vLLM Triton backend must be configured to use decoupled model transaction policy"
# TODO vllm模型启动配置文件
engine_args_filepath = os.path.join(pb_utils.get_model_dir(), _VLLM_ENGINE_ARGS_FILENAME)
assert os.path.isfile(engine_args_filepath), \
f"'{_VLLM_ENGINE_ARGS_FILENAME}' containing vllm engine args must be provided in '{pb_utils.get_model_dir()}'"
with open(engine_args_filepath) as file:
vllm_engine_config = json.load(file)
vllm_engine_config["model"] = os.path.join(pb_utils.get_model_dir(), vllm_engine_config["model"])
vllm_engine_config["tokenizer"] = os.path.join(pb_utils.get_model_dir(), vllm_engine_config["tokenizer"])
# Create an AsyncLLMEngine from the config from JSON
# TODO 读取模型和分词器
self.llm_engine = AsyncLLMEngine.from_engine_args(AsyncEngineArgs(**vllm_engine_config))
self.tokenizer = AutoTokenizer.from_pretrained(vllm_engine_config["tokenizer"], resume_download=True)
output_config = pb_utils.get_output_config_by_name(self.model_config, "response")
self.output_dtype = pb_utils.triton_string_to_numpy(output_config["data_type"])
# Counter to keep track of ongoing request counts
self.ongoing_request_count = 0
# Starting asyncio event loop to process the received requests asynchronously.
self._loop = asyncio.get_event_loop()
self._loop_thread = threading.Thread(target=self.engine_loop, args=(self._loop,))
self._shutdown_event = asyncio.Event()
self._loop_thread.start()
def create_task(self, coro):
"""
Creates a task on the engine's event loop which is running on a separate thread.
"""
assert (
self._shutdown_event.is_set() is False
), "Cannot create tasks after shutdown has been requested"
return asyncio.run_coroutine_threadsafe(coro, self._loop)
def engine_loop(self, loop):
"""
Runs the engine's event loop on a separate thread.
"""
asyncio.set_event_loop(loop)
self._loop.run_until_complete(self.await_shutdown())
async def await_shutdown(self):
"""
Primary coroutine running on the engine event loop. This coroutine is responsible for
keeping the engine alive until a shutdown is requested.
"""
# first await the shutdown signal
while self._shutdown_event.is_set() is False:
await asyncio.sleep(5)
# Wait for the ongoing_requests
while self.ongoing_request_count > 0:
self.logger.info(
"[vllm] Awaiting remaining {} requests".format(
self.ongoing_request_count
)
)
await asyncio.sleep(5)
for task in asyncio.all_tasks(loop=self._loop):
if task is not asyncio.current_task():
task.cancel()
self.logger.info("[vllm] Shutdown complete")
def get_sampling_params_dict(self, params_json):
"""
This functions parses the dictionary values into their
expected format.
"""
params_dict = json.loads(params_json)
# Special parsing for the supported sampling parameters
bool_keys = ["ignore_eos", "skip_special_tokens", "use_beam_search"]
for k in bool_keys:
if k in params_dict:
params_dict[k] = bool(params_dict[k])
float_keys = [
"frequency_penalty",
"length_penalty",
"presence_penalty",
"temperature", # TODO 如果要greedy search,temperature设置为0
"top_p",
]
for k in float_keys:
if k in params_dict:
params_dict[k] = float(params_dict[k])
int_keys = ["best_of", "max_tokens", "min_tokens", "n", "top_k"]
for k in int_keys:
if k in params_dict:
params_dict[k] = int(params_dict[k])
return params_dict
def create_response(self, vllm_output):
"""
Parses the output from the vLLM engine into Triton
response.
"""
text_outputs = [
output.text.encode("utf-8") for output in vllm_output.outputs
]
triton_output_tensor = pb_utils.Tensor(
"response", np.asarray(text_outputs, dtype=self.output_dtype)
)
return pb_utils.InferenceResponse(output_tensors=[triton_output_tensor])
def create_stream_response(self, vllm_output, previous_outputs_lengths):
"""
Parses the output from the vLLM engine, extracts only newly generated
text and packs it into Triton response.
"""
if previous_outputs_lengths is None:
return self.create_response(vllm_output)
text_outputs = [
(output.text[prev_output_length:]).encode("utf-8")
for output, prev_output_length in zip(
vllm_output.outputs, previous_outputs_lengths
)
]
triton_output_tensor = pb_utils.Tensor(
"response", np.asarray(text_outputs, dtype=self.output_dtype)
)
return pb_utils.InferenceResponse(output_tensors=[triton_output_tensor])
def build_message(self, prompt: str, history: List[Dict] = None):
history = deepcopy(history)
if len(history or []) == 0:
history = [{"role": "system", "content": "You are a helpful assistant."}]
history.append({"role": "user", "content": prompt})
return history
async def generate(self, request):
"""
Forwards single request to LLM engine and returns responses.
"""
response_sender = request.get_response_sender()
self.ongoing_request_count += 1
try:
request_id = random_uuid()
prompt = pb_utils.get_input_tensor_by_name(
request, "prompt"
).as_numpy()[0]
if isinstance(prompt, bytes):
prompt = prompt.decode("utf-8")
stream = pb_utils.get_input_tensor_by_name(request, "stream")
if stream:
stream = stream.as_numpy()[0]
else:
stream = False
# Request parameters are not yet supported via
# BLS. Provide an optional mechanism to receive serialized
# parameters as an input tensor until support is added
parameters_input_tensor = pb_utils.get_input_tensor_by_name(
request, "sampling_parameters"
)
if parameters_input_tensor:
parameters = parameters_input_tensor.as_numpy()[0].decode("utf-8")
else:
parameters = request.parameters()
sampling_params_dict = self.get_sampling_params_dict(parameters)
sampling_params = SamplingParams(**sampling_params_dict)
prev_outputs = None
# TODO 构造最终的prompt
message = self.build_message(prompt)
message_template = self.tokenizer.apply_chat_template(
message,
tokenize=False,
add_generation_prompt=True
)
model_inputs = self.tokenizer(message_template).input_ids
async for output in self.llm_engine.generate(
prompt=prompt, sampling_params=sampling_params, request_id=request_id,
prompt_token_ids=model_inputs
):
if response_sender.is_cancelled():
self.logger.info("[vllm] Cancelling the request")
await self.llm_engine.abort(request_id)
self.logger.info("[vllm] Successfully cancelled the request")
break
if stream:
prev_outputs_lengths = None
if prev_outputs is not None:
prev_outputs_lengths = [
len(prev_output.text)
for prev_output in prev_outputs.outputs
]
if output.finished:
response_sender.send(
self.create_stream_response(output, prev_outputs_lengths),
flags=pb_utils.TRITONSERVER_RESPONSE_COMPLETE_FINAL,
)
else:
response_sender.send(
self.create_stream_response(output, prev_outputs_lengths)
)
prev_outputs = output
# TODO 最后一次输出是完整的text
last_output = output
if not stream:
response_sender.send(
self.create_response(last_output),
flags=pb_utils.TRITONSERVER_RESPONSE_COMPLETE_FINAL,
)
except Exception as e:
self.logger.info(f"[vllm] Error generating stream: {e}")
error = pb_utils.TritonError(f"Error generating stream: {e}")
triton_output_tensor = pb_utils.Tensor(
"text_output", np.asarray(["N/A"], dtype=self.output_dtype)
)
response = pb_utils.InferenceResponse(
output_tensors=[triton_output_tensor], error=error
)
response_sender.send(
response, flags=pb_utils.TRITONSERVER_RESPONSE_COMPLETE_FINAL
)
raise e
finally:
self.ongoing_request_count -= 1
def verify_loras(self, request):
# We will check if the requested lora exists here, if not we will send a
# response with `LoRA not found` information. In this way we may avoid
# further processing.
verified_request = None
lora_error = None
lora_name = None
parameters_input_tensor = pb_utils.get_input_tensor_by_name(
request, "sampling_parameters"
)
if parameters_input_tensor:
parameters = parameters_input_tensor.as_numpy()[0].decode("utf-8")
sampling_params_dict = self.get_sampling_params_dict(parameters)
lora_name = sampling_params_dict.pop("lora_name", None)
if lora_name is not None:
if not self.enable_lora:
lora_error = pb_utils.TritonError("LoRA feature is not enabled.")
self.logger.info(
"[vllm] LoRA is not enabled, please restart the backend with LoRA enabled."
)
elif lora_name not in self.supported_loras:
lora_error = pb_utils.TritonError(
f"LoRA {lora_name} is not supported, we currently support {self.supported_loras}"
)
self.logger.info(f"[vllm] LoRA {lora_name} not found.")
if lora_error is not None:
output_tensor = pb_utils.Tensor(
"text_output",
np.asarray(["[Error] Unsupported LoRA."], dtype=self.output_dtype),
)
response = pb_utils.InferenceResponse(
output_tensors=[output_tensor], error=lora_error
)
response_sender = request.get_response_sender()
response_sender.send(
response, flags=pb_utils.TRITONSERVER_RESPONSE_COMPLETE_FINAL
)
else:
verified_request = request
return verified_request
def execute(self, requests):
"""
Triton core issues requests to the backend via this method.
When this method returns, new requests can be issued to the backend. Blocking
this function would prevent the backend from pulling additional requests from
Triton into the vLLM engine. This can be done if the kv cache within vLLM engine
is too loaded.
We are pushing all the requests on vllm and let it handle the full traffic.
"""
for request in requests:
request = self.verify_loras(request)
if request is not None:
self.create_task(self.generate(request))
return None
def finalize(self):
"""
Triton virtual method; called when the model is unloaded.
"""
self.logger.info("[vllm] Issuing finalize to vllm backend")
self._shutdown_event.set()
if self._loop_thread is not None:
self._loop_thread.join()
self._loop_thread = None
以上代码对Triton Inference Server的vLLM后端的github项目实例代码做了一定的修改。
只需要关注generate在其中加入一定的前处理，比如prompt格式构造，分词编码，再调用异步vLLM引擎llm_engine.generate进行推理即可，结果返回可以修改create_response进行定义返回。
服务启动
采用Docker启动tritonserver:vllm_env服务，命令如下
docker run --gpus all --rm --rm \
-p18999:8000 -p18998:8001 -p18997:8002 \
--shm-size=1G -e PYTHONIOENCODING=utf-8 \
--ulimit memlock=-1 --ulimit stack=67108864 \
-v /home/model_repository/:/models tritonserver:vllm_env\
tritonserver --model-repository=/models \
--model-control-mode explicit \
--load-model vllm_qwen1.5-1.8b-chat
暴露三个端口，其中8000对应HTTP请求，8001对应GRPC请求，可自行设置端口映射，将宿主机上的模型路径model_repository映射到容器，采用explicit摸索启动模型，手动指定启动vllm_qwen1.5-1.8b-chat，其和model_repository下的模型文件名保持一致，启动日志如下
I0429 09:29:09.299653 1 model_lifecycle.cc:461] loading: vllm_qwen1.5-1.8b-chat:1
I0429 09:29:14.111038 1 python_be.cc:2199] TRITONBACKEND_ModelInstanceInitialize: vllm_qwen1.5-1.8b-chat_0_0 (GPU device 0)
WARNING 04-29 09:29:17 config.py:1011] Casting torch.bfloat16 to torch.float16.
INFO 04-29 09:29:17 llm_engine.py:98] Initializing an LLM engine (v0.4.1) with config: model='/models/vllm_qwen1.5-1.8b-chat/1/vllm_qwen1.5-1.8b-chat', speculative_config=None, tokenizer='/models/vllm_qwen1.5-1.8b-chat/1/vllm_qwen1.5-1.8b-chat', skip_tokenizer_init=False, tokenizer_mode=auto, revision=None, tokenizer_revision=None, trust_remote_code=False, dtype=torch.float16, max_seq_len=8192, download_dir=None, load_format=auto, tensor_parallel_size=1, disable_custom_all_reduce=False, quantization=None, enforce_eager=true, kv_cache_dtype=auto, quantization_param_path=None, device_config=cuda, decoding_config=DecodingConfig(guided_decoding_backend='outlines'), seed=0)
Special tokens have been added in the vocabulary, make sure the associated word embeddings are fine-tuned or trained.
INFO 04-29 09:29:17 utils.py:608] Found nccl from library /root/.config/vllm/nccl/cu12/libnccl.so.2.18.1
INFO 04-29 09:29:17 selector.py:65] Cannot use FlashAttention backend for Volta and Turing GPUs.
INFO 04-29 09:29:17 selector.py:33] Using XFormers backend.
INFO 04-29 09:29:21 model_runner.py:173] Loading model weights took 3.4594 GB
INFO 04-29 09:29:22 gpu_executor.py:119] # GPU blocks: 856, # CPU blocks: 1365
...
I0429 09:29:25.895005 1 server.cc:662]
+------------------------+---------+--------+
| Model | Version | Status |
+------------------------+---------+--------+
| vllm_qwen1.5-1.8b-chat | 1 | READY |
+------------------------+---------+--------+
...
I0429 09:29:25.930286 1 grpc_server.cc:2513] Started GRPCInferenceService at 0.0.0.0:8001
I0429 09:29:25.930826 1 http_server.cc:4497] Started HTTPService at 0.0.0.0:8000
I0429 09:29:25.973064 1 http_server.cc:270] Started Metrics Service at 0.0.0.0:8002
客户端请求和流式输出测试
使用curl直接请求，给定一个prompt，让大模型进行回答，以generate作为请求路由入口
(vllm) [xxx@xxx]$ curl -X POST localhost:18999/v2/models/vllm_qwen1.5-1.8b-chat/generate -d '{"prompt": "逻辑回归是什么?", "stream": false, "sampling_parameters": "{\"temperature\": 0.7, \"top_p\": 0.95, \"max_tokens\": 1024}"}'
{"model_name":"vllm_qwen1.5-1.8b-chat","model_version":"1","response":"逻辑回归是一种机器学习算法，它是一种二分类模型，用于预测一个连续变量（如二分类问题）的输出值，其目的是在给定一组特征数据（称为输入变量）的情况下，确定一个或多个变量（称为输出变量）的值。逻辑回归的基本思想是，通过建立一个函数来描述输入变量和输出变量之间的关系，然后通过拟合这个函数来预测输出变量的值。\n\n逻辑回归的基本步骤如下：\n\n1. 数据预处理：首先，需要对输入数据进行预处理，包括缺失值处理、异常值处理、特征缩放等，以确保数据的平稳性和一致性。\n\n2. 构建逻辑回归模型：逻辑回归模型通常由两个部分组成：一个逻辑函数（也称为逻辑门）和一个损失函数。逻辑函数用于将输入变量的特征映射到输出变量的类别，例如二分类问题中的二元逻辑函数（如sigmoid或ReLU函数）；损失函数用于评估模型预测的准确性和泛化能力，通常使用均方误差（MSE）或交叉熵损失函数（Categorical Crossentropy）。\n\n3. 拟合逻辑回归模型：使用训练数据对逻辑回归模型进行拟合，通过优化损失函数的参数，使模型的预测结果与实际输出变量的类别最接近。常用的优化方法包括梯度下降、随机梯度下降、Adam优化器等。\n\n4. 模型评估和预测：在训练完成后，使用测试数据对拟合后的逻辑回归模型进行评估，通常使用准确率、精确率、召回率、F1分数等指标来评估模型的性能。然后，使用训练好的逻辑回归模型对新的输入数据进行预测，预测结果与实际输出变量的类别最接近的预测值即为最佳预测。\n\n逻辑回归在许多实际应用中都有广泛的应用，例如分类问题（如垃圾邮件分类、情感分析等）、回归问题（如房价预测、销售预测等）等。通过构建合适的逻辑回归模型，可以有效地解决这些复杂的问题，并在实际应用中发挥其预测和决策支持作用。"}
其中stream代表是否采用流式输出，sampling_parameters指定了generate的配置参数，包括温度系数temperature，top_p，最大生成token数1024等。
如果想要流式输出，使用generate_stream作为入口，设置stream为true
(vllm) [xxx@xxx]$ curl -X POST localhost:18999/v2/models/vllm_qwen1.5-1.8b-chat/generate_stream -d '{"prompt": "逻辑回归是什么?", "history": "[]", "stream": true, "sampling_parameters": "{\"temperature\": 0.7,\"top_p\": 0.95, \"max_tokens\": 20}"}'
data: {"model_name":"vllm_qwen1.5-1.8b-chat","model_version":"1","response":"逻辑"}
data: {"model_name":"vllm_qwen1.5-1.8b-chat","model_version":"1","response":"回归"}
data: {"model_name":"vllm_qwen1.5-1.8b-chat","model_version":"1","response":"是一种"}
data: {"model_name":"vllm_qwen1.5-1.8b-chat","model_version":"1","response":"统计"}
data: {"model_name":"vllm_qwen1.5-1.8b-chat","model_version":"1","response":"学习"}
data: {"model_name":"vllm_qwen1.5-1.8b-chat","model_version":"1","response":"方法"}
data: {"model_name":"vllm_qwen1.5-1.8b-chat","model_version":"1","response":"，"}
data: {"model_name":"vllm_qwen1.5-1.8b-chat","model_version":"1","response":"用于"}
data: {"model_name":"vllm_qwen1.5-1.8b-chat","model_version":"1","response":"解决"}
data: {"model_name":"vllm_qwen1.5-1.8b-chat","model_version":"1","response":"分类"}
data: {"model_name":"vllm_qwen1.5-1.8b-chat","model_version":"1","response":"和"}
data: {"model_name":"vllm_qwen1.5-1.8b-chat","model_version":"1","response":"回归"}
data: {"model_name":"vllm_qwen1.5-1.8b-chat","model_version":"1","response":"问题"}
data: {"model_name":"vllm_qwen1.5-1.8b-chat","model_version":"1","response":"。"}
data: {"model_name":"vllm_qwen1.5-1.8b-chat","model_version":"1","response":"它"}
data: {"model_name":"vllm_qwen1.5-1.8b-chat","model_version":"1","response":"是一种"}
data: {"model_name":"vllm_qwen1.5-1.8b-chat","model_version":"1","response":"监督"}
data: {"model_name":"vllm_qwen1.5-1.8b-chat","model_version":"1","response":"学习"}
data: {"model_name":"vllm_qwen1.5-1.8b-chat","model_version":"1","response":"算法"}
data: {"model_name":"vllm_qwen1.5-1.8b-chat","model_version":"1","response":"，"}
此时一个请求会对用多个输出，每次输出一次推理的结果，最终的回答是所有输出的拼接合并
压测性能前后对比
本次压测考察推理服务在一段时间不间断不同并发数的请求下，推理成功的吞吐量和95%响应时间，具体解释如下
- 并发数：分别取并发数为1, 2, 4, 16, 32
- 一段时间：取1分钟，1分钟连续不间断请求
- 吞吐量：单位为每秒能推理出的token数，token / s
- 95%延迟时间：推理出一个token的响应时间的95%分位数，就是说95%的响应时间应该小于这个值
笔者的环境为一块GTX 2080ti的GPU，显存11G，忽略网络延迟。推理的大模型是qwen1.5-1.8b-chat，只部署一块GPU下一个实例，分别对比PyTorch作为后端部署和vLLM作为后端部署的各项压测指标，推理服务器采用Triton，压测结果如下
性能测试对比
当并发为1时，vLLM的预测延迟是Pytorch的一半，吞吐提升1倍，推理后端FlashAttention/XFormers相比于torch的sqpa效率更高，随着并发的增大，vLLM的处理异步请求和PagedAttention的优势开始体现，当并发为32时，vLLM的吞吐达到Pytorch的6倍，延迟依旧能够维持在较低水平，相比于Pytorch降低88%。简单而言，单句推理vLLM是Pytorch性能的2倍，在并发和跑批的场景下vLLM是Pytorch性能的至少6倍以上。
最后的最后
感谢你们的阅读和喜欢，我收藏了很多技术干货，可以共享给喜欢我文章的朋友们，如果你肯花时间沉下心去学习，它们一定能帮到你。
因为这个行业不同于其他行业，知识体系实在是过于庞大，知识更新也非常快。作为一个普通人，无法全部学完，所以我们在提升技术的时候，首先需要明确一个目标，然后制定好完整的计划，同时找到好的学习方法，这样才能更快的提升自己。
这份完整版的大模型 AI 学习资料已经上传CSDN，朋友们如果需要可以微信扫描下方CSDN官方认证二维码免费领取【保证100%免费】
## 大模型知识脑图
为了成为更好的 AI大模型 开发者，这里为大家提供了总的路线图。它的用处就在于，你可以按照上面的知识点去找对应的学习资源，保证自己学得较为全面。
经典书籍阅读
阅读AI大模型经典书籍可以帮助读者提高技术水平，开拓视野，掌握核心技术，提高解决问题的能力，同时也可以借鉴他人的经验。对于想要深入学习AI大模型开发的读者来说，阅读经典书籍是非常有必要的。
实战案例
光学理论是没用的，要学会跟着一起敲，要动手实操，才能将自己的所学运用到实际当中去，这时候可以搞点实战案例来学习。
面试资料
我们学习AI大模型必然是想找到高薪的工作，下面这些面试题都是总结当前最新、最热、最高频的面试题，并且每道题都有详细的答案，面试前刷完这套面试题资料，小小offer，不在话下
640套AI大模型报告合集
这套包含640份报告的合集，涵盖了AI大模型的理论研究、技术实现、行业应用等多个方面。无论您是科研人员、工程师，还是对AI大模型感兴趣的爱好者，这套报告合集都将为您提供宝贵的信息和启示。
这份完整版的大模型 AI 学习资料已经上传CSDN，朋友们如果需要可以微信扫描下方CSDN官方认证二维码免费领取【保证100%免费】
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
