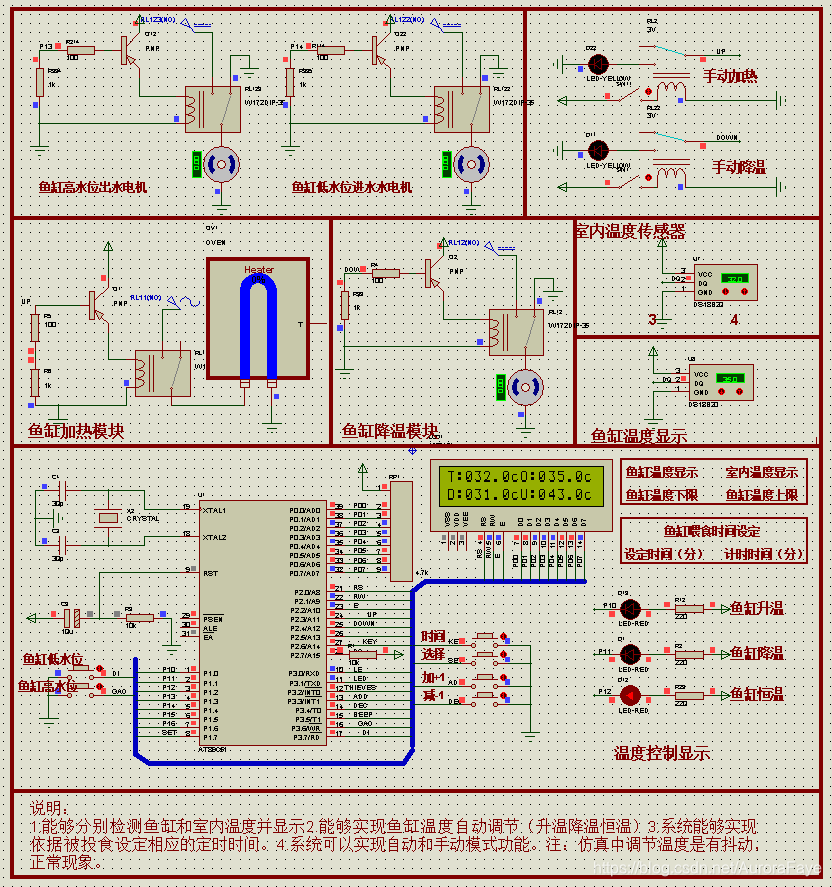

基于单片机智能鱼缸系统仿真设计-资料

百度网盘下载地址(1131)：点击下载

说明：
1.能够分别检测鱼缸和室内温度并显示2.能够实现鱼缸温度自动调节（升温降温恒温）3.系统能够实现
依据被投食设定相应的定时时间。4.系统可以实现自动和手动模式功能。注：仿真中调节温度是有抖动，
正常现象。

#include <REGX51.H>
#include "1602.H"
#include "DS18B20.h"
extern void DelayMs( unsigned char t );


unsigned int		Temp[5];                                                                /* 温度值温度放大10倍 */
int			DS18B20DATA[3];                                                         /* DS18B20读到的16位数据 */
code unsigned char	DecimalNum[16] = { 0, 1, 1, 2, 3, 3, 4, 4, 5, 6, 6, 7, 8, 8, 9, 9 };    /* DS18B20小数部分对应的数 */
unsigned char code	DuanMa[] = { 0x3f, 0x06, 0x5b, 0x4f, 0x66, 0x6d, 0x7d, 0x07, 0x7f, 0x6f };
sbit			LED = P3 ^ 1;                                                           /* LED报警 */

sbit	LE	= P3 ^ 0;
sbit	Key	= P2 ^ 6;

sbit	SET	= P1 ^ 7;                                                                       /* 设置键 */
sbit	ADD	= P3 ^ 3;                                                                       /* 加++1 */
sbit	DEC	= P3 ^ 4;                                                                       /* 减--1 */

sbit	UP	= P2 ^ 3;
sbit	DOWN	= P2 ^ 4;
sbit	LED1	= P1 ^ 0;
sbit	LED2	= P1 ^ 1;
sbit	LED3	= P1 ^ 2;

sbit    GAO     = P3^6;
sbit    DI      = P3^7;
sbit    CHU     = P1^3;
sbit    JIN     = P1^4;
sbit    WEI     = P1^5;

unsigned char	flag = 1;
unsigned char	CurID;          /* 路数ID */
unsigned int	s	= 430;  /* 温度上限 放大十倍 */
unsigned int	t	= 310;  /* 温度下限 放大十倍 */
unsigned int	a	= 1200; /* 温度上限 放大十倍 */
unsigned int	num	= 0;    /* 50ms */
unsigned int	time	= 0;

/* 显示段码值01234567 */
unsigned char LCDbuf[16];


bit	display		= 0;
bit	timeFlag	= 0;

/* DS18B20温度读取 */
void DS18B20Read()
{
	gettemp( DS18B20DATA );
	Temp[2] = (DS18B20DATA[0] >> 4) * 10 + DecimalNum[DS18B20DATA[0] & 0x0f];
