Portable ADS-B Receiver Mode-S Beast Receiver

本文链接：https://blog.csdn.net/AvionixTech/article/details/139514187

目录 Introduction Specifications Driver Installation Data Format Introduction

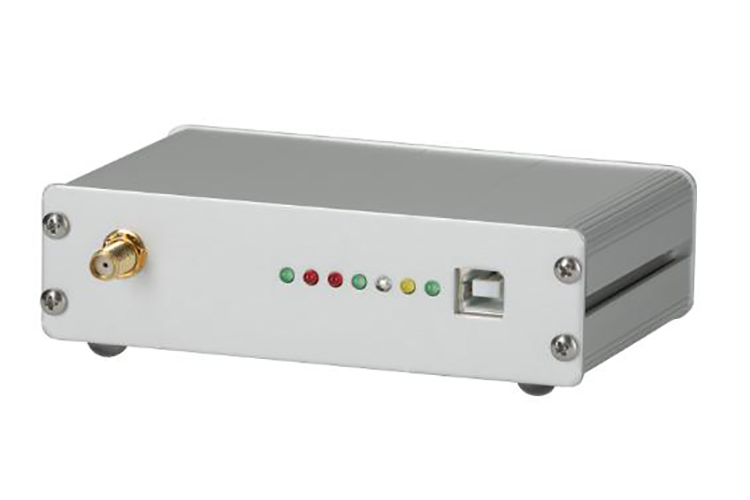

Mode-S Beast Receiver is a high-performance portable ADS-B receiver made of Mode-S Beast ADS-B receiver board. Mode-S Beast Receiver can receive and decode ADS-B, Mode-S and Mode-A/C signals. The Mode-S Beast Receiver allows you to receive the positions of the aircraft up to 400 km (220 nm) away. In addition, all you need is an antenna and a PC with freely available software for graphical representation. The device is powered by USB. The binary formats are supported by a variety of software, such as PlanePlotter and adsbscope.

Introduction

Mode-S Beast Receiver is a high-performance portable ADS-B receiver made of Mode-S Beast ADS-B receiver board. Mode-S Beast Receiver can receive and decode ADS-B, Mode-S and Mode-A/C signals.
The Mode-S Beast Receiver allows you to receive the positions of the aircraft up to 400 km (220 nm) away. In addition, all you need is an antenna and a PC with freely available software for graphical representation.
The device is powered by USB.
The binary formats are supported by a variety of software, such as PlanePlotter and adsbscope.

Multi-Target ADS-B Signal Simulator ADSB-SIM600

Specifications
• Output DF17 & DF18 data • Output Mode A/C/S transponder data • Provide data format for customer development • Output data with timestamp. But please note that this timestamp is internal 12MHz clock, rather than GPS time. So not OK for MLAT. • USB for power and data output. • Physical size: 113 x 81 x 31 mm

Specifications

• Output DF17 & DF18 data
• Output Mode A/C/S transponder data
• Provide data format for customer development
• Output data with timestamp. But please note that this timestamp is internal 12MHz clock, rather than GPS time. So not OK for MLAT.
• USB for power and data output.
• Physical size: 113 x 81 x 31 mm

Driver Installation
When connected with computer, Mode-S Beast Receiver will automatically install drivers. If not, please download fdti drivers here. VCP Drivers - FTDI

Driver Installation

When connected with computer, Mode-S Beast Receiver will automatically install drivers. If not, please download fdti drivers here.
VCP Drivers - FTDI

Data Format
The receiver can provide raw data in the so-called "AVR format", as showed below.

Data Format

The receiver can provide raw data in the so-called "AVR format", as showed below.
