Android(12)自定义 Preference(二)

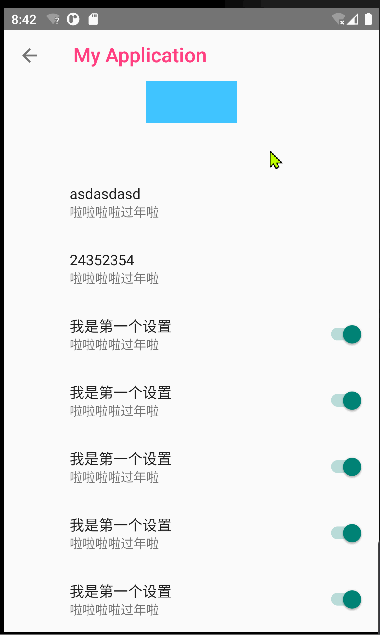

简单的效果效果演示:
[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-apgIG18e-1643643122163)(C:\Users\Yansw1\Desktop\效果演示1.gif)]
使用到的控件(原生):
CoordinatorLayout
CollapsingToolbarLayout
AppBarLayout
Toolbar
NestedScrollView
FragmentContainerView
准备动手!
-
自定义的
Preference
:MyPreference
-
首先看一下它的朴实无华的布局文件:
R.layout.mycus
<?xml version="1.0" encoding="utf-8"?> <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="200dp"> <ImageView android:id="@+id/image" android:layout_width="100dp" android:layout_height="100dp" android:background="#40C4FF" android:layout_centerInParent="true" /> </RelativeLayout>
-
塞到
MyPreference
里,并让这个布局里的ImageView
无线旋转class MyPreference( context: Context, attributeSet: AttributeSet ): Preference(context, attributeSet) { init { // 将刚刚写好的布局赋值给 layoutResource layoutResource = R.layout.mycus } override fun onBindViewHolder(holder: PreferenceViewHolder) { super.onBindViewHolder(holder) // 找到自己定义的view val imageView = holder.findViewById(R.id.image) // 做个朴实无华的运动 ValueAnimator.ofFloat(0f, 360f).apply { duration = 2000 repeatMode = ValueAnimator.RESTART repeatCount = ValueAnimator.INFINITE addUpdateListener { imageView.rotation = it.animatedValue as Float } start() } } }
-
OKKKK,
MyPreference
塞好了就可以在xml
文件中用了:<?xml version="1.0" encoding="utf-8"?> <PreferenceScreen xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto"> // 这里就可以使用了,包括原生的属性 <com.example.myapplication.MyPreference android:key="a" app:title="我是第一个设置" app:summary="啦啦啦啦过年啦" /> <Preference android:key="c" app:title="24352354" app:summary="啦啦啦啦过年啦" /> <SwitchPreference android:key="d" app:title="我是第一个设置" app:summary="啦啦啦啦过年啦" /> </PreferenceScreen>
-
OKKKKKK,在上一篇中,我们知道这个页面xml文件需要配合
PreferenceFragmentCompat
使用:朴实无华
class MyFragment: PreferenceFragmentCompat() { override fun onCreatePreferences(savedInstanceState: Bundle?, rootKey: String?) { setPreferencesFromResource(R.xml.settings, rootKey) } }
-
有了
Fragment
,现在就是搞那个协调联动的效果了,就是非常非常普通的CoordinatorLayout
+AppBarLayout
+Toolbar
+CollapsingToolbarLayout
用法,这里就贴一个布局了:<?xml version="1.0" encoding="utf-8"?> <androidx.coordinatorlayout.widget.CoordinatorLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" xmlns:app="http://schemas.android.com/apk/res-auto"> <com.google.android.material.appbar.AppBarLayout android:id="@+id/appbar_layout" android:layout_width="match_parent" android:layout_height="wrap_content" android:background="@null" app:elevation="0dp"> <com.google.android.material.appbar.CollapsingToolbarLayout android:id="@+id/collapsing_toolbar" android:layout_width="match_parent" android:layout_height="178dp" android:clipToPadding="false" app:forceApplySystemWindowInsetTop="false" app:layout_scrollFlags="scroll|exitUntilCollapsed|snap" app:expandedTitleTextAppearance="@style/CollapsingToolbarTitle.Expanded" app:collapsedTitleTextAppearance="@style/CollapsingToolbarTitle.Collapsed" app:maxLines="3" app:scrimAnimationDuration="50" app:scrimVisibleHeightTrigger="137dp" app:titleCollapseMode="scale" app:toolbarId="@id/toolbar" android:background="@null"> <androidx.appcompat.widget.Toolbar android:id="@+id/toolbar" android:layout_width="match_parent" android:layout_height="?android:actionBarSize" app:layout_collapseMode="pin" /> </com.google.android.material.appbar.CollapsingToolbarLayout> </com.google.android.material.appbar.AppBarLayout> <androidx.core.widget.NestedScrollView android:layout_width="match_parent" android:layout_height="wrap_content" android:fillViewport="true" app:layout_behavior="@string/appbar_scrolling_view_behavior"> <androidx.fragment.app.FragmentContainerView android:id="@+id/setting_fragment_container" android:layout_width="match_parent" android:layout_height="wrap_content"> </androidx.fragment.app.FragmentContainerView> </androidx.core.widget.NestedScrollView> </androidx.coordinatorlayout.widget.CoordinatorLayout>
-
上面的布局就是
Activity
的布局了,上代码:class MainActivity : AppCompatActivity() { protected var actionBar: ActionBar? = null protected lateinit var toolBar: Toolbar protected var collapsingToolbarLayout: CollapsingToolbarLayout? = null protected var appBarLayout: AppBarLayout? = null override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) setContentView(R.layout.activity_main) // 设置协调布局和toolbar toolBar = findViewById(R.id.toolbar) setSupportActionBar(toolBar) actionBar = supportActionBar // 设置返回键是否可用(系统内置的) actionBar?.let { it.setDisplayHomeAsUpEnabled(true) it.setHomeButtonEnabled(true) it.setDisplayShowTitleEnabled(true) } // 有时返回键会失效 toolBar.apply { setNavigationOnClickListener { finishAndRemoveTask() } } collapsingToolbarLayout = findViewById(R.id.collapsing_toolbar) appBarLayout = findViewById(R.id.appbar_layout) // 设置标题,可用在title是读取的AndroidManifest中的lable节点,我们自己可以接受Intent的 collapsingToolbarLayout?.let { it.title = title } // 设置根 Fragment,就是上面的 PreferenceFragmentCompat拉 supportFragmentManager .beginTransaction() .replace( R.id.setting_fragment_container, supportFragmentManager.fragmentFactory.instantiate( this.classLoader, MyFragment::class.java.name ) ).commit() } }
好啦,简单的自定义就是这样的,可以根据业务的复杂程度去自定义了!
-
