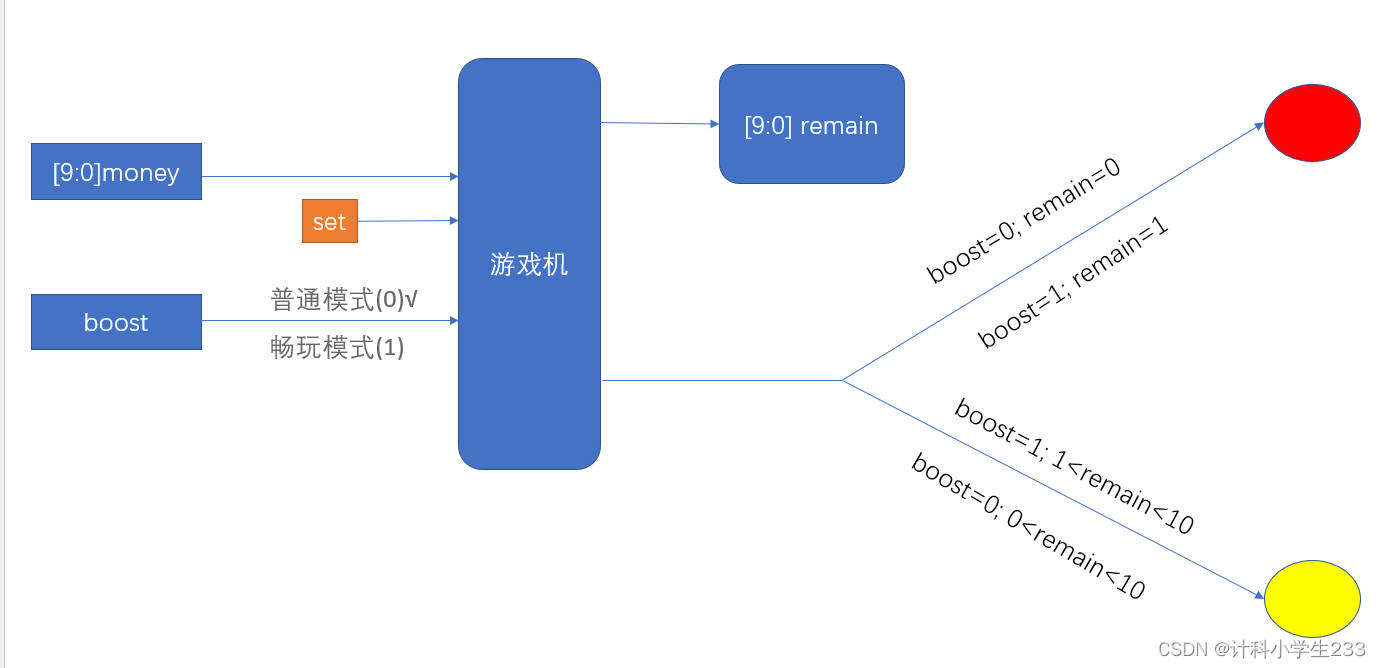

结构如图所示：

抛开时钟和复位信号，结合题目叙述，这里的模块就很清晰
在这里插入图片描述

代码：

`timescale 1ns/1ns

module game_count
    (
		input rst_n, //异位复位信号，低电平有效
        input clk, 	//时钟信号
        input [9:0]money,
        input set,
		input boost,

		output reg[9:0]remain,
		output reg yellow,
		output reg red
    );

    always @(posedge clk or negedge rst_n)begin
          if(~rst_n)begin
            remain <= 9'b0;
          end
          else begin
            if(set == 1)begin
                remain <= money+remain;
            end
            else begin
                if(remain == 0)
                    remain <= 0;
                else if(boost == 0 )
                    remain <= remain - 1;
                else if(boost == 1 )
                    remain <= remain -2;
            end
         end
    end


    always @(posedge clk or negedge rst_n)begin
         if(~rst_n)begin
            yellow <= 0;
            red <= 1;
        end
        else begin

            if(remain >1 &&remain <=10  )begin
                 yellow <= 1;
                 red <=0;
            end
            else if(remain<=1 &&boost == 1)begin
                red <=1;
                yellow <= 0;
             end
            else if(remain==0 && boost == 0)begin
                 yellow <= 0;
                 red <=1;
            end
            else begin
                yellow <= 0;
                red <= 0;
            end


        end
    end





endmodule

测试

`timescale 1ns/1ns

module testbench();

	reg clk,rst_n;
	reg set,boost;
	reg [9:0]money;
	wire red,yellow;
	wire [9:0]remain;

	real         CYCLE_50MHz = 20 ;
    always begin
        clk = 0 ; #(CYCLE_50MHz/2) ;
        clk = 1 ; #(CYCLE_50MHz/2) ;
    end


    initial begin
        rst_n = 0;set = 0;boost = 0; #20;
        rst_n = 1; #20;
        money = 9'd15;set = 1;#20;
        set = 0;#320;
        money = 9'd50;set = 1;#20;
        set = 0;#200;
        boost = 1 ;#200;
        money = 9'd20;set = 1;#20;
         set = 0;#850;
         $stop;
    end


game_count dut
    (
		.rst_n(rst_n),
        .clk(clk),
        .set(set),
		.money(money),
        .boost(boost),
		.red(red),
		.yellow(yellow),
		.remain(remain)
    );

endmodule
