引言
Android 事件详细总结。
该文章基于android-28，仅分析Framework java层代码逻辑，仅供参考，不敢保证百分百正确无误。
一、Android 事件分发概述
一般说来当用户触摸屏幕或者按键操作，首次触发的是底层硬件驱动，驱动收到事件后并将该相应事件写入到输入设备节点， 便产生最原生态的内核事件。接着，输入（Input）系统取出原生态的事件再经过层层封装后成为KeyEvent或者MotionEvent ，最后交付给相应的目标窗口(Window)来消费该输入事件。其中Input模块的主要组成有：
- Native层的InputReader负责从EventHub取出事件并处理，再交给InputDispatcher；
- Native层的InputDispatcher接收来自InputReader的输入事件，并记录WMS（WindowManagerService）的窗口信息，用于派发事件到合适的窗口；
- Java层的InputManagerService跟WMS交互，WMS记录所有窗口信息，并同步更新到IMS，为InputDispatcher正确派发事件到ViewRootImpl提供保障。
简而言之，Android 中事件传递按照从上到下进行层级传递，事件处理从 Activity 开始到 ViewGroup 再到 View。事件传递方法包括dispatchTouchEvent、onTouchEvent、onInterceptTouchEvent，其中前两个是 View 和 ViewGroup 都有的，最后一个是只有 ViewGroup 才有的方法。其中onTouch 方法要先于 onClick 触发执行，onTouch 在 dispatchTouchEvent 中被调用，而 onClick 在 onTouchEvent 方法中被调用，因此onTouchEvent 要后于 dispatchTouchEvent 方法的调用。
二、Touch事件分发的对象MotionEvent
MotionEvent 继承自InputEvent并实现Parcelable接口，作为事件分发机制的核心对象，在Android中当用户触摸屏幕上的View 或 ViewGroup（及其子View），将产生点击事件（Touch事件）并根据Touch事件的发生时触摸的位置、时间、类型等相关细节封装不同类型的MotionEvent对象进行传递，该对象用于记录所有与移动相关的事件信息（事件分发和处理由Activity去调用native层完成），比较典型的有以上四种：
| 事件ACTION | 触发场景 | 单次事件流中触发的次数 |
|---|---|---|
| MotionEvent.ACTION_DOWN | 在屏幕被按下时（所有事件的源头） | 1次 |
| MotionEvent.ACTION_MOVE | 在屏幕上进行滑动时 | 0次或者多次 |
| MotionEvent.ACTION_UP | 从屏幕上抬起时 | 0次或者1次 |
| MotionEvent.ACTION_CANCEL | 结束事件（非人为原因） | 0或者1次 |
所以一次完整的MotionEvent事件，是从用户触摸屏幕到离开屏幕。整个过程的动作序列：ACTION_DOWN(1次) —> ACTION_MOVE(N次) -> ACTION_UP(1次)。
而对于多点触摸，每一个触摸点Pointer会有一个id和index。对于多指操作，通过pointerindex来获取指定Pointer的触屏位置。比如单点操作时通过getX()获取x坐标，而多点操作时通过getX(pointerindex)获取x坐标。
MotionEvent 还有很多的ACTION类型，MotionEvent需要继承native 层InputEvent（其实是内核层的Input机制），因为Android Framework 通过JNI 进行处理，同时需要跨进程因而MotionEvent实现了Parcelable序列化接口。
三、分发事件的核心对象及方法
1、分发事件的核心对象
-
Activity——作为Android四大基本组件之一，当手指触摸到屏幕时，屏幕硬件逐行不断地扫描每个像素点，获取到触摸事件后，从底层产生中断上报。再通过native层调用Java层InputEventReceiver中的dispatchInputEvent方法。最后经过层层调用交由Activity的dispatchTouchEvent方法来处理。
-
View——作为所有视图对象的父类，实现了Drawable.Callback（动画相关的接口）、KeyEvent.Callback（按键相关的接口）和AccessibilityEventSource（交互相关的接口）。
-
ViewGroup——ViewGroup是一个继承了View并实现了ViewParent（用于与父视图交互的接口）， ViewManager（用于添加、删除、更新子视图到Activity的接口）的抽象类，作为盛放其他View的容器，可以包含View和ViewGroup，是所有布局的父类或间接父类。
2、事件分发的核心方法
Touch事件都源自按下屏幕里Activity中的View或者ViewGroup（及其子View），所以事件的处理都是由Activity、View或ViewGroup对象完成的，换言之，只在Activity、View或ViewGroup里拥有处理事件系列方法如下表所示：

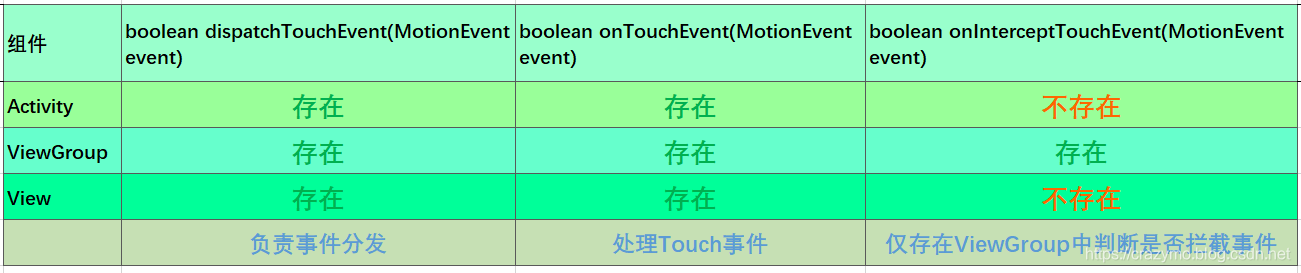

从源码中可以得知在Activity、 ViewGroup 和View中都存在 dispatchTouchEvent 和 onTouchEvent 方法（但是在 ViewGroup 中还有一个 onInterceptTouchEvent 方法），他们都接受了一个MotionEvent类型的参数用于标记各种动作事件且返回值都是boolean型，true则代表不往下传递，false则表示继续往下传递，那么这些方法有何功能的呢？
-
boolean dispatchTouchEvent(MotionEvent event)——负责Touch事件的分发，Android 中所有的事件都必须经过此方法的分发，然后决定是自身消费当前事件还是继续往下分发给子View返回 true 则表示不继续分发，反之返回 false 则继续往下分发；而如果ViewGroup 则是先分发给 onInterceptTouchEvent 进行判断是否拦截该事件。
-
boolean onTouchEvent(MotionEvent event)—— 负责Touch事件的处理，返回 true 则表示消费当前事件，反之返回 false 则不处理交给子View继续进行分发。
-
boolean onInterceptTouchEvent(MotionEvent event)—— 负责Touch事件的拦截 返回 true 则表示拦截当前事件就不继续往下分发，交给自身的 onTouchEvent 进行处理；而返回 false 则不拦截，继续往下传。这是 ViewGroup 特有的方法，因为 ViewGroup 作为容器可以存放其他子 View，而View 则不能，换言之，只有 ViewGroup才有拦截事件的能力。
事件分发的核心流程都是围绕这些方法进行的，由不同的对象直接或者间接调用进行处理。
四、Touch事件分发的流程

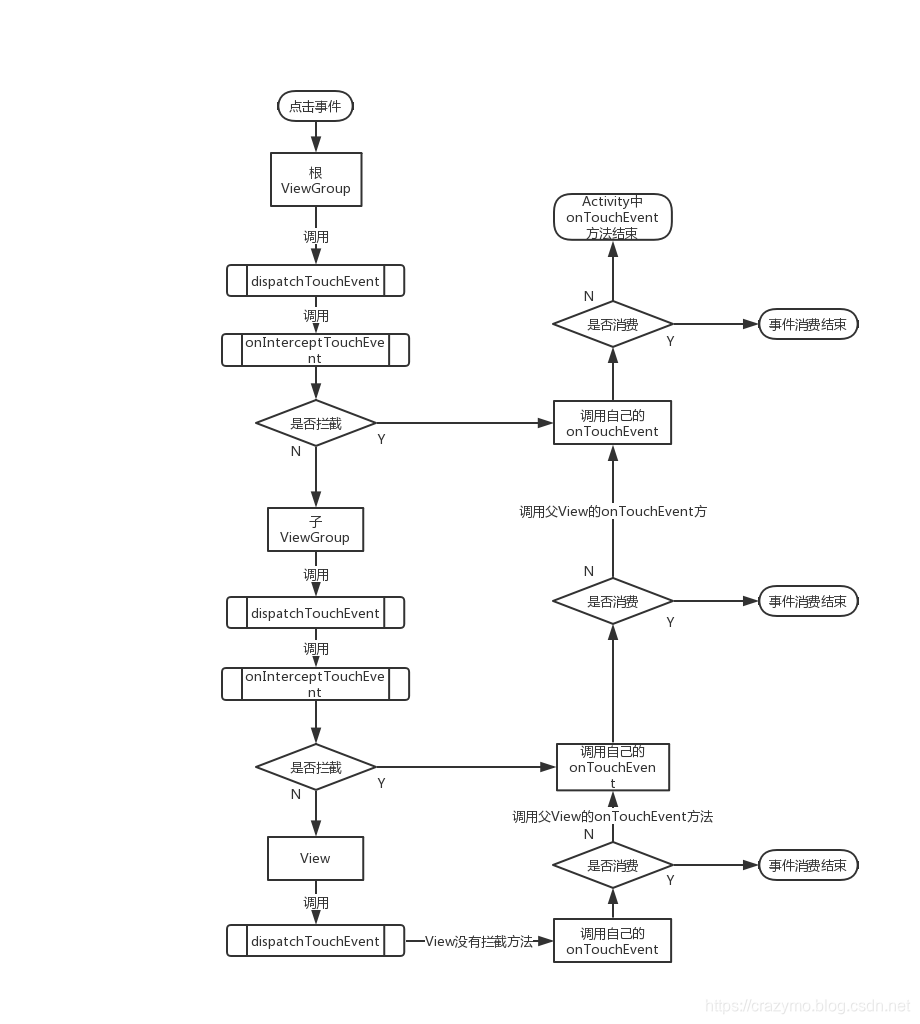

事件分发有多种类型, 以下是Touch相关的事件分发大致流程：
Activity——>Window（PhoneWindow）——>DecorView——>ViewGroup——>View。
1、Activity的事件处理流程
事件的分发是由Activity开始的，当用户点击屏幕的时候首先接触到的就是Activity，从而触发Activity#dispatchTouchEvent方法，
/**
* android.app.Activity#dispatchTouchEvent
* Called to process touch screen events. You can override this to
* intercept all touch screen events before they are dispatched to the
* window. Be sure to call this implementation for touch screen events
* that should be handled normally.
* @param ev The touch screen event.
* @return boolean Return true if this event was consumed.
*/
public boolean dispatchTouchEvent(MotionEvent ev) {
//如果是DOWN类型则说明是一个全新的事件
if (ev.getAction() == MotionEvent.ACTION_DOWN) {
//默认为空实现，可以被重写，如果你想要知道用户已经与Activity进行交互
onUserInteraction();
}
//调用Window的dispatchTouchEvent方法,并把事件分发至PhoneWindow（获取当前Activity的顶层窗口是PhoneWindow），返回false表示当前事件没有被消费。
if (getWindow().superDispatchTouchEvent(ev)) {
return true;
}
//如果PhoneWindow消费了事件则把事件分发至Activity的onTouchEvent
return onTouchEvent(ev);
}

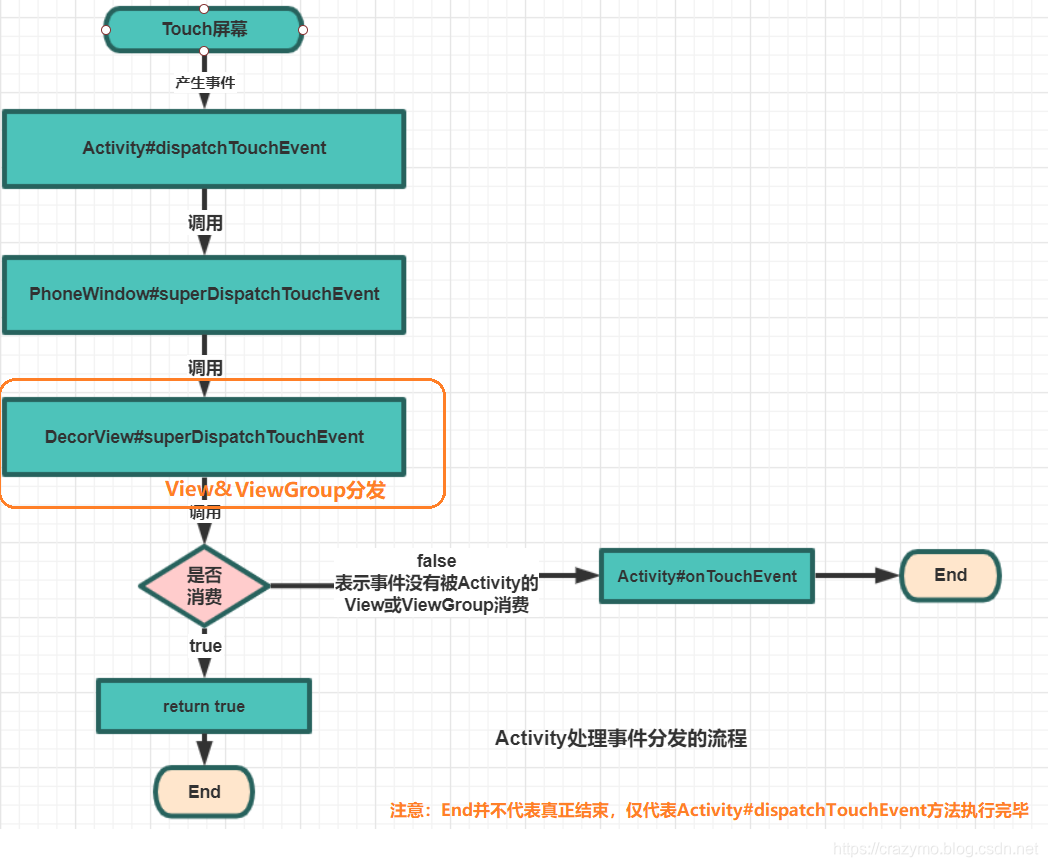

Activity#dispatchTouchEvent返回结果之前，会先分发到ViewGroup&View，而最终的执行分为两个分支（抛开中间细节）：
- getWindow().superDispatchTouchEvent(ev)返回flase时，代表当前事件没有被Activity中的任何View或者ViewGroup处理（即DecorView #dispatchTouchEvent方法返回false），则此次事件最终是由Activity#onTouchEvent 去处理的。
/**
* android.app.Activity#onTouchEvent
* Called when a touch screen event was not handled by any of the views
* under it. This is most useful to process touch events that happen
* outside of your window bounds, where there is no view to receive it.
* @param event The touch screen event being processed.
* @return Return true if you have consumed the event, false if you haven't.
* The default implementation always returns false.
*/
public boolean onTouchEvent(MotionEvent event) {
//判断是否屏幕出界，比如说点击到屏幕的非有效区域时，当窗口需要关闭时，消费掉当前event
if (mWindow.shouldCloseOnTouch(this, event)) {
finish();
return true;
}
return false;
}
- getWindow().superDispatchTouchEvent(ev)返回true时，代表事件已被Activity中的View或者ViewGroup消费了。
再回到分发流程，Activity#dispatchTouchEvent执行后，接着会通过getWindow()方法得到当前Activity的顶层窗口（即PhoneWindow）并调用它的superDispatchTouchEvent方法把事件分发到PhoneWindow，执行PhoneWindow#superDispatchTouchEvent方法传入到DecorView（根ViewGroup）…
DecorView继承自 FrameLayout 并实现了RootViewSurfaceTaker和WindowCallbacks接口，是当前界面的最外（顶）层容器，即setContentView方法所设置的View的父容器根ViewGroup。
//com.android.internal.policy.PhoneWindow#superDispatchTouchEvent
@Override
public boolean superDispatchTouchEvent(MotionEvent event) {
//分发至DecorView
return mDecor.superDispatchTouchEvent(event);
}
分发到DecorView，再通过DecorView#superDispatchTouchEvent方法
//com.android.internal.policy.DecorView#superDispatchTouchEvent
public boolean superDispatchTouchEvent(MotionEvent event) {
return super.dispatchTouchEvent(event);//实际上调用的是ViewGroup#dispatchTouchEvent
}
接下来分发到了ViewGroup中，ViewGroup的分发流程比较复杂，篇幅有限会省略部分逻辑。
2、ViewGroup&View的事件分发流程

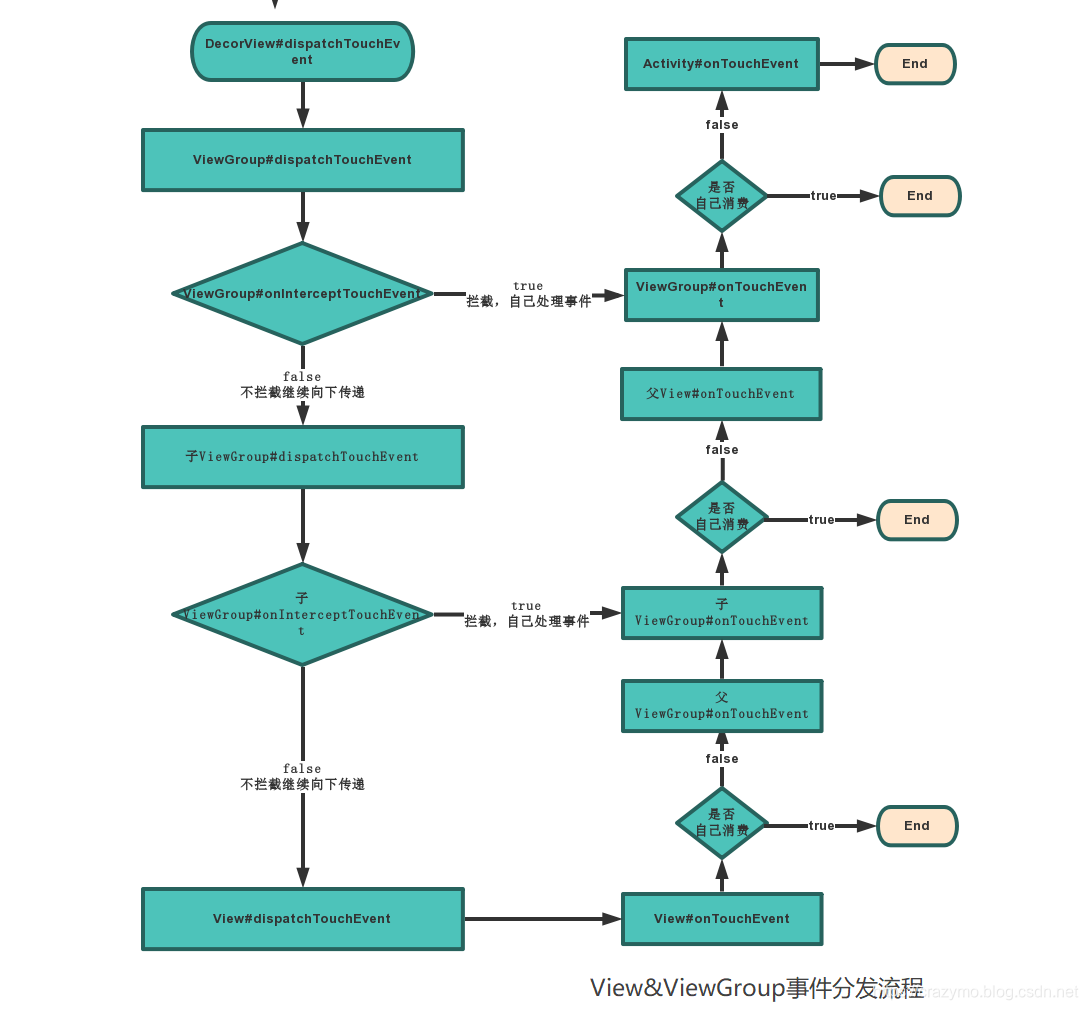

ViewGroup&View的事件分发流程的起点是从PhoneWindow#superDispatchTouchEvent开始的，首先分发至根ViewGroup（DecorView）并执行ViewGroup#dispatchTouchEvent方法。
//android.view.ViewGroup#dispatchTouchEvent
public boolean dispatchTouchEvent(MotionEvent ev) {
//辅助功能跨进程调用，是当前应用与系统层进行交互的，模拟的点击事件
if (mInputEventConsistencyVerifier != null) {
mInputEventConsistencyVerifier.onTouchEvent(ev, 1);
}
...
//是否消费了当前事件的标识，最终的返回值
boolean handled = false;
//根据隐私策略而来决定是否过滤本次触摸事件,相当于是检测当前事件，功能类似检测操作UI时是否在主线程中
if (onFilterTouchEventForSecurity(ev)) {
final int action = ev.getAction();
final int actionMasked = action & MotionEvent.ACTION_MASK;
if (actionMasked == MotionEvent.ACTION_DOWN) {
// 发生ACTION_DOWN事件, 则取消并清除之前所有的触摸targets，可能是由于App切换、ANR或者其他原因抛弃了上一次的UP或者CANCEL，需要取消并移除所有目标
cancelAndClearTouchTargets(ev);
resetTouchState(); // 重置触摸状态为下一次循环做准备
}
// 发生ACTION_DOWN事件或者已经发生过ACTION_DOWN;才进入此区域，主要功能是拦截器
//第一次触摸屏幕时是DOWN，只有发生过ACTION_DOWN事件，则mFirstTouchTarget != null;
final boolean intercepted;
if (actionMasked == MotionEvent.ACTION_DOWN
|| mFirstTouchTarget != null) {
//可以通过在其子View中去调用父ViewGroup的requestDisallowInterceptTouchEvent方法设置是否允许拦截，让父View是否拦截事件
final boolean disallowIntercept = (mGroupFlags & FLAG_DISALLOW_INTERCEPT) != 0;
//判断是否允许调用拦截器
if (!disallowIntercept) {
//！！调用拦截逻辑的方法！！
intercepted = onInterceptTouchEvent(ev);
ev.setAction(action);
} else {
intercepted = false;
}
} else {
// 当没有触摸targets，且不是down事件时，开始持续拦截触摸。
intercepted = true;
}
...
//不取消事件，同时不拦截事件, 并且是Down事件时
if (!canceled && !intercepted) {
//把事件分发给所有的子视图，寻找可以获取焦点的视图。
View childWithAccessibilityFocus = ev.isTargetAccessibilityFocus()
? findChildWithAccessibilityFocus() : null;
if (actionMasked == MotionEvent.ACTION_DOWN
|| (split && actionMasked == MotionEvent.ACTION_POINTER_DOWN)
|| actionMasked == MotionEvent.ACTION_HOVER_MOVE) {
final int actionIndex = ev.getActionIndex(); // down事件等于0
final int idBitsToAssign = split ? 1 << ev.getPointerId(actionIndex)
: TouchTarget.ALL_POINTER_IDS;
removePointersFromTouchTargets(idBitsToAssign); //清空早先的触摸对象
final int childrenCount = mChildrenCount;
//第一次down事件，同时子视图不会空时
if (newTouchTarget == null && childrenCount != 0) {
final float x = ev.getX(actionIndex);
final float y = ev.getY(actionIndex);
// Find a child that can receive the event. Scan children from front to back.
//创建可以接收事件的子View，并按照z轴值对子View进行排序，因为子View可能存在相互重叠的部分，从顶层到底层排序
final ArrayList<View> preorderedList = buildTouchDispatchChildList();
final boolean customOrder = preorderedList == null
&& isChildrenDrawingOrderEnabled();
//当前ViewGroup 中所有的子View数组
final View[] children = mChildren;
/* 倒序遍历，从底层到顶层，从最底层的父视图开始遍历， ** 找寻newTouchTarget，并赋予view与 pointerIdBits； ** 如果已经存在找寻newTouchTarget，说明正在接收触摸事件，则跳出循环。 */
for (int i = childrenCount - 1; i >= 0; i--) {
final int childIndex = getAndVerifyPreorderedIndex(
childrenCount, i, customOrder);
//获取当前ViewGroup中的子View
final View child = getAndVerifyPreorderedView(
preorderedList, children, childIndex);
// 如果当前视图无法获取用户焦点，则跳过本次循环
if (childWithAccessibilityFocus != null) {
if (childWithAccessibilityFocus != child) {
continue;
}
childWithAccessibilityFocus = null;
i = childrenCount - 1;
}
//如果view不可见或正在执行动画，或者触摸的坐标点不在view的范围内，则跳过本次循环
if (!canViewReceivePointerEvents(child)
|| !isTransformedTouchPointInView(x, y, child, null)) {
ev.setTargetAccessibilityFocus(false);
continue;
}
//获取当前的View的包装对象
newTouchTarget = getTouchTarget(child);
// 已经开始接收触摸事件,并退出整个循环。
if (newTouchTarget != null) {
newTouchTarget.pointerIdBits |= idBitsToAssign;
break;
}
//重置取消或抬起标志位
resetCancelNextUpFlag(child);
//如果触摸位置在child的区域内，则把事件分发给子View或ViewGroup，开始事件分发，child为null时传递到View#dispatchTouchEvent,而child不为null时则调用child自身的dispatchTouchEvent
if (dispatchTransformedTouchEvent(ev, false, child, idBitsToAssign)) { // [见小节2.4.4]
// 获取TouchDown的时间点
mLastTouchDownTime = ev.getDownTime();
// 获取TouchDown的Index
if (preorderedList != null) {
for (int j = 0; j < childrenCount; j++) {
if (children[childIndex] == mChildren[j]) {
mLastTouchDownIndex = j;
break;
}
}
} else {
mLastTouchDownIndex = childIndex;
}
//获取TouchDown的x,y坐标
mLastTouchDownX = ev.getX();
mLastTouchDownY = ev.getY();
//添加TouchTarget,则mFirstTouchTarget != null，给mFirstTouchTarget赋值
newTouchTarget = addTouchTarget(child, idBitsToAssign);
//表示以及分发给NewTouchTarget
alreadyDispatchedToNewTouchTarget = true;
break;
}
ev.setTargetAccessibilityFocus(false);
}
// 清除视图列表
if (preorderedList != null) preorderedList.clear();
}
if (newTouchTarget == null && mFirstTouchTarget != null) {
//将mFirstTouchTarget的链表最后的touchTarget赋给newTouchTarget
newTouchTarget = mFirstTouchTarget;
while (newTouchTarget.next != null) {
newTouchTarget = newTouchTarget.next;
}
newTouchTarget.pointerIdBits |= idBitsToAssign;
}
}
}///#endif if (!canceled && !intercepted)
//ViewGroup进行事件拦截之后直接越过前面的逻辑，执行到这里，mFirstTouchTarget赋值是在通过addTouchTarget方法获取的；
// 只有处理ACTION_DOWN事件，才会进入addTouchTarget方法。这也正是当View没有消费ACTION_DOWN事件，则不会接收其他MOVE,UP等事件的原
if (mFirstTouchTarget == null) {
//没有触摸target,则由当前ViewGroup来处理
handled = dispatchTransformedTouchEvent(ev, canceled, null,
TouchTarget.ALL_POINTER_IDS);
} else {
//如果View消费ACTION_DOWN事件，那么MOVE,UP等事件相继开始执行
TouchTarget predecessor = null;
TouchTarget target = mFirstTouchTarget;
while (target != null) {
final TouchTarget next = target.next;
if (alreadyDispatchedToNewTouchTarget && target == newTouchTarget) {
handled = true;
} else {
final boolean cancelChild = resetCancelNextUpFlag(target.child)
|| intercepted;
if (dispatchTransformedTouchEvent(ev, cancelChild,
target.child, target.pointerIdBits)) {
handled = true;
}
if (cancelChild) {
if (predecessor == null) {
mFirstTouchTarget = next;
} else {
predecessor.next = next;
}
target.recycle();
target = next;
continue;
}
}
predecessor = target;
target = next;
}
}
//当发生抬起或取消事件，更新触摸targets
if (canceled|| actionMasked == MotionEvent.ACTION_UP|| actionMasked == MotionEvent.ACTION_HOVER_MOVE) {
resetTouchState();
} else if (split && actionMasked == MotionEvent.ACTION_POINTER_UP) {
final int actionIndex = ev.getActionIndex();
final int idBitsToRemove = 1 << ev.getPointerId(actionIndex);
removePointersFromTouchTargets(idBitsToRemove);
}
} //此处大括号，是if (onFilterTouchEventForSecurity(ev))的结尾
//通知verifier由于当前时间未处理，那么该事件其余的都将被忽略
if (!handled && mInputEventConsistencyVerifier != null) {
mInputEventConsistencyVerifier.onUnhandledEvent(ev, 1);
}
return handled;
}
在ViewGroup每次调用ViewGroup#dispatchTouchEvent方法时，当requestDisallowInterceptTouchEvent方法返回true时则说明允许事件拦截，就会先执行ViewGroup#onInterceptTouchEvent判断是否进行事件拦截，
/**
* Implement this method to intercept all touch screen motion events.
*
* @param ev The motion event being dispatched down the hierarchy.
* @return Return true to steal motion events from the children and have
* them dispatched to this ViewGroup through onTouchEvent().
* The current target will receive an ACTION_CANCEL event, and no further
* messages will be delivered here.
*/
public boolean onInterceptTouchEvent(MotionEvent ev) {
if (ev.isFromSource(InputDevice.SOURCE_MOUSE)
&& ev.getAction() == MotionEvent.ACTION_DOWN
&& ev.isButtonPressed(MotionEvent.BUTTON_PRIMARY)
&& isOnScrollbarThumb(ev.getX(), ev.getY())) {
return true;
}
return false;
}
返回true则进行拦截，就会越过 if (!canceled && !intercepted)分支，直接执行ViewGroup#dispatchTransformedTouchEvent方法
/**
* Transforms a motion event into the coordinate space of a particular child view,
* filters out irrelevant pointer ids, and overrides its action if necessary.
* If child is null, assumes the MotionEvent will be sent to this ViewGroup instead.
* ViewGroup 真正分发事件的逻辑
* @param child null则调用View#dispatchTouchEvent;反之则调用child里的dispatchTouchEvent方法
*/
private boolean dispatchTransformedTouchEvent(MotionEvent event, boolean cancel,
View child, int desiredPointerIdBits) {
final boolean handled;
// Canceling motions is a special case. We don't need to perform any transformations
// or filtering. The important part is the action, not the contents.
final int oldAction = event.getAction();
if (cancel || oldAction == MotionEvent.ACTION_CANCEL) {
event.setAction(MotionEvent.ACTION_CANCEL);
if (child == null) {
handled = super.dispatchTouchEvent(event);
} else {
handled = child.dispatchTouchEvent(event);
}
event.setAction(oldAction);
return handled;
}
// Calculate the number of pointers to deliver.
final int oldPointerIdBits = event.getPointerIdBits();
final int newPointerIdBits = oldPointerIdBits & desiredPointerIdBits;
// If for some reason we ended up in an inconsistent state where it looks like we
// might produce a motion event with no pointers in it, then drop the event.
if (newPointerIdBits == 0) {
return false;
}
// If the number of pointers is the same and we don't need to perform any fancy
// irreversible transformations, then we can reuse the motion event for this
// dispatch as long as we are careful to revert any changes we make.
// Otherwise we need to make a copy.
final MotionEvent transformedEvent;
if (newPointerIdBits == oldPointerIdBits) {
if (child == null || child.hasIdentityMatrix()) {
if (child == null) {
handled = super.dispatchTouchEvent(event);
} else {
final float offsetX = mScrollX - child.mLeft;
final float offsetY = mScrollY - child.mTop;
event.offsetLocation(offsetX, offsetY);
handled = child.dispatchTouchEvent(event);
event.offsetLocation(-offsetX, -offsetY);
}
return handled;
}
transformedEvent = MotionEvent.obtain(event);
} else {
transformedEvent = event.split(newPointerIdBits);
}
// Perform any necessary transformations and dispatch.
if (child == null) {
// 第一次触发Touch事件时执行到这里，去调用父类的dispatchTouchEvent
handled = super.dispatchTouchEvent(transformedEvent);
} else {
final float offsetX = mScrollX - child.mLeft;
final float offsetY = mScrollY - child.mTop;
transformedEvent.offsetLocation(offsetX, offsetY);
if (! child.hasIdentityMatrix()) {
transformedEvent.transform(child.getInverseMatrix());
}
handled = child.dispatchTouchEvent(transformedEvent);
}
// Done.
transformedEvent.recycle();
return handled;
}
其核心逻辑取决于传入的child，当child =null则调用View#dispatchTouchEvent;反之则调用child自身（有可能是View或ViewGroup）的dispatchTouchEvent方法，假设调用的是View#dispatchTouchEvent方法
/**
* Pass the touch screen motion event down to the target view, or this view if it is the target.
* @param event The motion event to be dispatched.
* @return True if the event was handled by the view, false otherwise.
*/
public boolean dispatchTouchEvent(MotionEvent event) {
// If the event should be handled by accessibility focus first.
if (event.isTargetAccessibilityFocus()) {
// We don't have focus or no virtual descendant has it, do not handle the event.
if (!isAccessibilityFocusedViewOrHost()) {
return false;
}
// We have focus and got the event, then use normal event dispatch.
event.setTargetAccessibilityFocus(false);
}
//是否消费此事件标识，最终的返回值
boolean result = false;
if (mInputEventConsistencyVerifier != null) {
mInputEventConsistencyVerifier.onTouchEvent(event, 0);
}
final int actionMasked = event.getActionMasked();
if (actionMasked == MotionEvent.ACTION_DOWN) {
// Defensive cleanup for new gesture
stopNestedScroll();
}
if (onFilterTouchEventForSecurity(event)) {
if ((mViewFlags & ENABLED_MASK) == ENABLED && handleScrollBarDragging(event)) {
result = true;
}
//ListenerInfo（可从View#getListenerInfo方法获取）为所有View的事件监听封装类，包含了所有常见事件的监听接口
ListenerInfo li = mListenerInfo;
//如果外部调用了setOnTouchListener方法时，会先执行OnTouchListener#onTouch，当onTouch返回true时则不会执行View#onTouchEvent方法
if (li != null && li.mOnTouchListener != null
&& (mViewFlags & ENABLED_MASK) == ENABLED
&& li.mOnTouchListener.onTouch(this, event)) {
result = true;
}
if (!result && onTouchEvent(event)) {
result = true;
}
}
if (!result && mInputEventConsistencyVerifier != null) {
mInputEventConsistencyVerifier.onUnhandledEvent(event, 0);
}
// Clean up after nested scrolls if this is the end of a gesture; also cancel it if we tried an ACTION_DOWN but we didn't want the rest of the gesture.
if (actionMasked == MotionEvent.ACTION_UP ||
actionMasked == MotionEvent.ACTION_CANCEL ||
(actionMasked == MotionEvent.ACTION_DOWN && !result)) {
stopNestedScroll();
}
return result;
}
如果外部调用了setOnTouchListener方法时设置onTouchListener监听时，会先执行View$$OnTouchListener#onTouch，当OnTouchListener#onTouch返回true时则不会执行View#onTouchEvent方法;反之还会去调用View#onTouchEvent方法
/**
* Implement this method to handle touch screen motion events.
*
* @param event The motion event.
* @return True if the event was handled, false otherwise.
*/
public boolean onTouchEvent(MotionEvent event) {
final float x = event.getX();
final float y = event.getY();
final int viewFlags = mViewFlags;
final int action = event.getAction();
// 是否可点击的标志
final boolean clickable = ((viewFlags & CLICKABLE) == CLICKABLE
|| (viewFlags & LONG_CLICKABLE) == LONG_CLICKABLE)
|| (viewFlags & CONTEXT_CLICKABLE) == CONTEXT_CLICKABLE;
if ((viewFlags & ENABLED_MASK) == DISABLED) {
if (action == MotionEvent.ACTION_UP && (mPrivateFlags & PFLAG_PRESSED) != 0) {
setPressed(false);
}
mPrivateFlags3 &= ~PFLAG3_FINGER_DOWN;
// A disabled view that is clickable still consumes the touch
// events, it just doesn't respond to them.
return clickable;
}
if (mTouchDelegate != null) {
if (mTouchDelegate.onTouchEvent(event)) {
return true;
}
}
if (clickable || (viewFlags & TOOLTIP) == TOOLTIP) {
switch (action) {
case MotionEvent.ACTION_UP:
mPrivateFlags3 &= ~PFLAG3_FINGER_DOWN;
if ((viewFlags & TOOLTIP) == TOOLTIP) {
handleTooltipUp();
}
if (!clickable) {
removeTapCallback();
removeLongPressCallback();
mInContextButtonPress = false;
mHasPerformedLongPress = false;
mIgnoreNextUpEvent = false;
break;
}
boolean prepressed = (mPrivateFlags & PFLAG_PREPRESSED) != 0;
if ((mPrivateFlags & PFLAG_PRESSED) != 0 || prepressed) {
// take focus if we don't have it already and we should in
// touch mode.
boolean focusTaken = false;
if (isFocusable() && isFocusableInTouchMode() && !isFocused()) {
focusTaken = requestFocus();
}
if (prepressed) {
// The button is being released before we actually
// showed it as pressed. Make it show the pressed
// state now (before scheduling the click) to ensure
// the user sees it.
setPressed(true, x, y);
}
if (!mHasPerformedLongPress && !mIgnoreNextUpEvent) {
// This is a tap, so remove the longpress check
removeLongPressCallback();
// Only perform take click actions if we were in the pressed state
if (!focusTaken) {
// Use a Runnable and post this rather than calling
// performClick directly. This lets other visual state
// of the view update before click actions start.
if (mPerformClick == null) {
//PerformClick实现了Runnable接口
mPerformClick = new PerformClick();
}
if (!post(mPerformClick)) {
//在该方法内处理Click事件触发OnClickListener.onClick方法
performClickInternal();
}
}
}
if (mUnsetPressedState == null) {
mUnsetPressedState = new UnsetPressedState();
}
if (prepressed) {
postDelayed(mUnsetPressedState,
ViewConfiguration.getPressedStateDuration());
} else if (!post(mUnsetPressedState)) {
// If the post failed, unpress right now
mUnsetPressedState.run();
}
removeTapCallback();
}
mIgnoreNextUpEvent = false;
break;
case MotionEvent.ACTION_DOWN:
if (event.getSource() == InputDevice.SOURCE_TOUCHSCREEN) {
mPrivateFlags3 |= PFLAG3_FINGER_DOWN;
}
mHasPerformedLongPress = false;
if (!clickable) {
checkForLongClick(0, x, y);
break;
}
if (performButtonActionOnTouchDown(event)) {
break;
}
// Walk up the hierarchy to determine if we're inside a scrolling container.
boolean isInScrollingContainer = isInScrollingContainer();
// For views inside a scrolling container, delay the pressed feedback for
// a short period in case this is a scroll.
if (isInScrollingContainer) {
mPrivateFlags |= PFLAG_PREPRESSED;
if (mPendingCheckForTap == null) {
mPendingCheckForTap = new CheckForTap();
}
mPendingCheckForTap.x = event.getX();
mPendingCheckForTap.y = event.getY();
postDelayed(mPendingCheckForTap, ViewConfiguration.getTapTimeout());
} else {
// Not inside a scrolling container, so show the feedback right away
setPressed(true, x, y);
//处理OnLongClickListener.onLongClick方法
checkForLongClick(0, x, y);
}
break;
case MotionEvent.ACTION_CANCEL:
if (clickable) {
setPressed(false);
}
removeTapCallback();
removeLongPressCallback();
mInContextButtonPress = false;
mHasPerformedLongPress = false;
mIgnoreNextUpEvent = false;
mPrivateFlags3 &= ~PFLAG3_FINGER_DOWN;
break;
case MotionEvent.ACTION_MOVE:
if (clickable) {
drawableHotspotChanged(x, y);
}
// Be lenient about moving outside of buttons
if (!pointInView(x, y, mTouchSlop)) {
// Outside button
// Remove any future long press/tap checks
removeTapCallback();
removeLongPressCallback();
if ((mPrivateFlags & PFLAG_PRESSED) != 0) {
setPressed(false);
}
mPrivateFlags3 &= ~PFLAG3_FINGER_DOWN;
}
break;
}
return true;
}
return false;
}
所以基本就是在View#onTouchEvent方法的处理onClickListener
private final class PerformClick implements Runnable {
@Override
public void run() {
performClickInternal();
}
}
public boolean performClick() {
// We still need to call this method to handle the cases where performClick() was called
// externally, instead of through performClickInternal()
notifyAutofillManagerOnClick();
final boolean result;
final ListenerInfo li = mListenerInfo;
if (li != null && li.mOnClickListener != null) {
playSoundEffect(SoundEffectConstants.CLICK);
//处理OnClickListener接口
li.mOnClickListener.onClick(this);
result = true;
} else {
result = false;
}
sendAccessibilityEvent(AccessibilityEvent.TYPE_VIEW_CLICKED);
notifyEnterOrExitForAutoFillIfNeeded(true);
return result;
}
onLongClickListener等其他监听接口也类似。
五、事件分发的应用
1、事件拦截
拦截事件可以通过两种形式：
-
继承ViewGroup或其子类重写onInterceptTouchEvent方法并返回true。
-
在子View中调用父ViewGroup的requestDisallowInterceptTouchEvent方法并返回true。
扫一扫
332
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
