GUI编程
组件:窗口,弹窗,面板,文本框,列表框,按钮,图片,监听事件,鼠标事件,键盘事件,破解工具。
1、简介
GUI(图形用户界面)的核心技术:Swing,AWT。
不流行:界面不美观,需要jre环境。
学习GUI:可以写一些小工具,维护swing的界面,了解MVC架构,了解监听。
2、AWT(抽象的窗口工具)
AWT简介
1.包含了很多类和接口
2.元素:窗口,按钮,文本框
3.java.awt
1、Frame的使用:
import java.awt.*;
public class Solution {
public static void main(String[] args) {
//Frame.JDK 看源码
Frame frame = new Frame("我的第一个Java图形界面窗口");
//需要设置可见性
frame.setVisible(true);
//设置窗口大小
frame.setSize(400, 400);
//设置背景颜色
frame.setBackground(new Color(104, 42, 42));
//弹出初始位置
frame.setLocation(200,400);
//设置窗口大小固定
frame.setResizable(false);
}
}
问题:窗口无法关闭

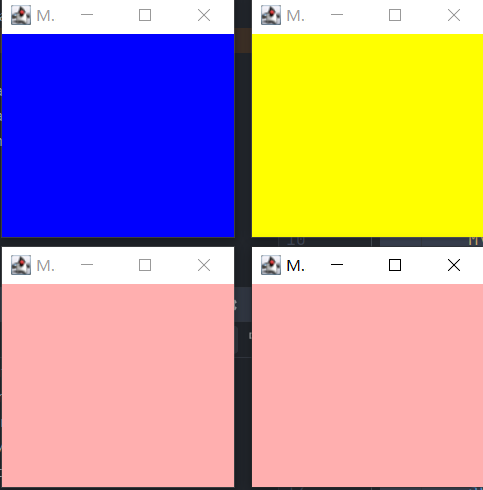

设置多个窗口:
import java.awt.*;
public class Solution {
public static void main(String[] args) {
MyFrame myFrame1 = new MyFrame(100, 100, 200, 200, Color.blue);
MyFrame myFrame2 = new MyFrame(300, 100, 200, 200, Color.yellow);
MyFrame myFrame3 = new MyFrame(100, 300, 200, 200, Color.pink);
MyFrame myFrame4= new MyFrame(300, 300, 200, 200, Color.pink);
}
}
class MyFrame extends Frame {
static int id = 0;
public MyFrame(int x, int y, int w, int h, Color color) {
super("MyFrame" + (++id));
setBounds(x, y, w, h);
setBackground(color);
setVisible(true);
}
}
2、面板 panel
在容器里边,不能单独存在,需要放在frame上。
import java.awt.*;
public class Solution {
public static void main(String[] args) {
Frame frame = new Frame();
//布局的概念
Panel panel = new Panel();
//设置布局
frame.setLayout(null);
frame.setBounds(300, 300, 400, 400);
//frame.setBackground(new Color(239, 217, 7, 119));
//panel设置坐标,相对于Frame
panel.setBounds(50, 50, 200, 200);
panel.setBackground(new Color(199, 20, 20));
frame.add(panel);
frame.setVisible(true);
}
}
监听事件关闭:退出
import java.awt.*;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
public class Solution {
public static void main(String[] args) {
Frame frame = new Frame();
//布局的概念
Panel panel = new Panel();
//设置布局
frame.setLayout(null);
frame.setBounds(300, 300, 400, 400);
//frame.setBackground(new Color(239, 217, 7, 119));
//panel设置坐标,相对于Frame
panel.setBounds(50, 50, 200, 200);
panel.setBackground(new Color(199, 20, 20));
frame.add(panel);
frame.setVisible(true);
//关闭事件
frame.addWindowListener(new WindowAdapter() {
@Override
public void windowClosing(WindowEvent e) {
System.exit(0);
}
});
}
}
3、布局管理器
3.1 流式布局
import java.awt.*;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
public class Solution {
public static void main(String[] args) {
Frame frame = new Frame();
Button button1 = new Button("button1");
Button button2 = new Button("button2");
Button button3 = new Button("button3");
//设置为流式布局
//frame.setLayout(new FlowLayout());
frame.setLayout(new FlowLayout(FlowLayout.LEFT));
frame.setBounds(200, 200, 300, 300);
//把按钮添加进去
frame.add(button1);
frame.add(button2);
frame.add(button3);
frame.setVisible(true);
frame.addWindowListener(new WindowAdapter() {
@Override
public void windowClosing(WindowEvent e) {
System.exit(1);
}
});
}
}

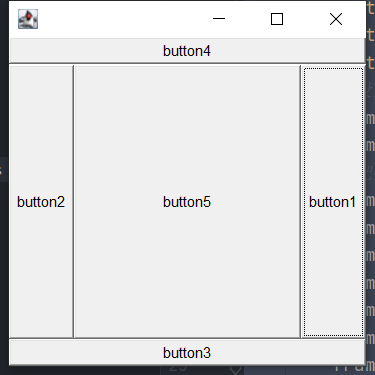

3.2 东西南北中
package demopacket;
import java.awt.*;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
public class Solution {
public static void main(String[] args) {
Frame frame = new Frame();
Button button1 = new Button("button1");
Button button2 = new Button("button2");
Button button3 = new Button("button3");
Button button4 = new Button("button4");
Button button5 = new Button("button5");
//设置为东西南北中布局
frame.setLayout(new BorderLayout());
frame.setBounds(200, 200, 300, 300);
//把按钮添加进去
frame.add(button1,BorderLayout.EAST);
frame.add(button2,BorderLayout.WEST);
frame.add(button3,BorderLayout.SOUTH);
frame.add(button4,BorderLayout.NORTH);
frame.add(button5,BorderLayout.CENTER);
frame.setVisible(true);
frame.addWindowListener(new WindowAdapter() {
@Override
public void windowClosing(WindowEvent e) {
System.exit(1);
}
});
}
}
3.3 表格布局
package demopacket;
import java.awt.*;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
public class Solution {
public static void main(String[] args) {
Frame frame = new Frame();
Button button1 = new Button("button1");
Button button2 = new Button("button2");
Button button3 = new Button("button3");
Button button4 = new Button("button4");
Button button5 = new Button("button5");
//设置为表格布局
frame.setLayout(new GridLayout(3, 2));
frame.setBounds(200, 200, 300, 300);
//把按钮添加进去
frame.add(button1);
frame.add(button2);
frame.add(button3);
frame.add(button4);
frame.add(button5);
//frame.pack();//java函数:作用 自动布局,选择一个最好的
frame.setVisible(true);
frame.addWindowListener(new WindowAdapter() {
@Override
public void windowClosing(WindowEvent e) {
System.exit(1);
}
});
}
}
4、事件监听
当事情发生的时候,需要干什么?
package demopacket;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
public class Solution {
public static void main(String[] args) {
Frame frame = new Frame();
Button button = new Button("button");
button.addActionListener(new MyAction());
frame.setLayout(new BorderLayout());
frame.add(button, BorderLayout.CENTER);
frame.pack();
frame.setVisible(true);
frame.addWindowListener(new WindowAdapter() {
@Override
public void windowClosing(WindowEvent e) {
System.exit(0);
}
});
}
}
class MyAction implements ActionListener {
@Override
public void actionPerformed(ActionEvent e) {
System.out.println("000");
}
}
按下会打印000。
5、文本框(TextField)的监听
package demopacket;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
public class Solution {
public static void main(String[] args) {
MyFrame myFrame = new MyFrame();
}
}
class MyFrame extends Frame {
public MyFrame() {
TextField textField = new TextField();
add(textField);
//监听这个文本框的文字,按下enter就会触发这个输入框的事件
textField.addActionListener(new MyActionListener());
//设置替换编码,隐藏输入内容
textField.setEchoChar('*');
setVisible(true);
pack();
}
}
class MyActionListener implements ActionListener {
@Override
public void actionPerformed(ActionEvent e) {
TextField source =(TextField) e.getSource(); //获得资源,返回一个对象
System.out.println(source.getText());
source.setText(""); //null,enter后清空文本内容
}
}
6、制作简易计算器
package demopacket;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
public class Solution {
public static void main(String[] args) {
MyFrame myFrame = new MyFrame();
}
}
class MyFrame extends Frame {
public MyFrame() {
TextField textField1 = new TextField(10);
TextField textField2 = new TextField(10);
TextField textField3 = new TextField(20);
Button button = new Button("=");
Label label = new Label("+");
button.addActionListener(new MyActionListener(textField1, textField2, textField3));
setLayout(new FlowLayout());
add(textField1);
add(label);
add(textField2);
add(button);
add(textField3);
setVisible(true);
pack();
}
}
class MyActionListener implements ActionListener {
private TextField textField1, textField2, textField3;
public MyActionListener(TextField textField1, TextField textField2, TextField textField3) {
this.textField1 = textField1;
this.textField2 = textField2;
this.textField3 = textField3;
}
@Override
public void actionPerformed(ActionEvent e) {
int a = Integer.parseInt(textField1.getText());
int b = Integer.parseInt(textField2.getText());
textField3.setText("" + (a + b));
textField1.setText("");
textField2.setText("");
}
}
7、画笔
package demopacket;
import java.awt.*;
public class Solution {
public static void main(String[] args) {
MyPrint myPrint = new MyPrint();
myPrint.loadFrame();
}
}
class MyPrint extends Frame {
public void loadFrame() {
setBounds(200, 200, 300, 300);
setVisible(true);
}
//画笔
@Override
public void paint(Graphics g) {
//画笔需要有颜色,画笔可以画画
g.setColor(Color.blue);
g.fillOval(100, 100, 100, 100);
}
}

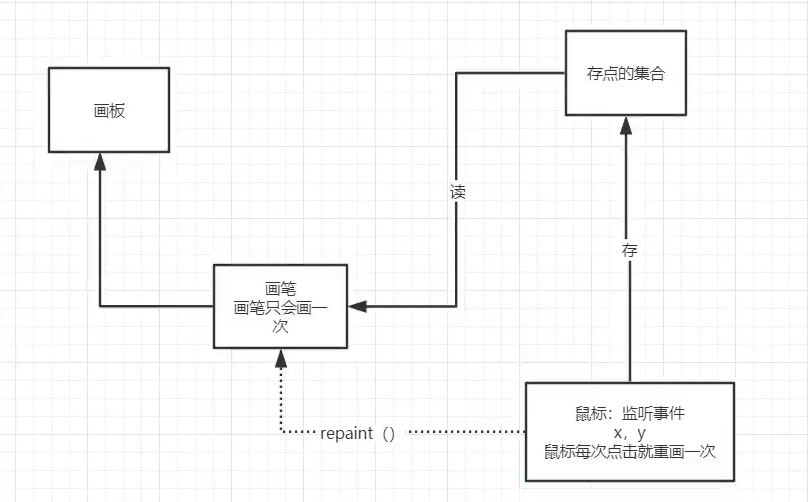

8、鼠标监听
package demopacket;
import java.awt.*;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;
import java.util.ArrayList;
import java.util.Iterator;
public class Solution {
public static void main(String[] args) {
MyPrint myPrint = new MyPrint("画图");
}
}
class MyPrint extends Frame {
ArrayList points;
public MyPrint(String title) {
super(title);
setBounds(200, 200, 300, 300);
points = new ArrayList<>();
//鼠标监听器,针对的是这个窗口
this.addMouseListener(new MyMouseListener());
setVisible(true);
}
//画笔
@Override
public void paint(Graphics g) {
//画笔需要有颜色,画笔可以画画,需要监听鼠标
Iterator iterator = points.iterator();
while (iterator.hasNext()) {
Point point = (Point) iterator.next();
g.setColor(Color.blue);
g.fillOval(point.x, point.y, 10, 10);
}
}
public void addPaint(Point point) {
points.add(point);
}
private class MyMouseListener extends MouseAdapter {
@Override
public void mousePressed(MouseEvent e) {
MyPrint source = (MyPrint) e.getSource();
source.addPaint(new Point(e.getX(), e.getY()));
source.repaint();
}
}
}
9、窗口监听
package demopacket;
import java.awt.*;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
public class Solution {
public static void main(String[] args) {
WindowFrame windowFrame = new WindowFrame();
}
static class WindowFrame extends Frame {
public WindowFrame() {
setBounds(100, 100, 200, 200);
setBackground(Color.blue);
setVisible(true);
//addWindowListener(new MyWindowListener());
this.addWindowListener(new WindowAdapter() {
@Override
public void windowClosing(WindowEvent e) {
System.out.println("你点击了X");
System.exit(0);
}
});
}
/*class MyWindowListener extends WindowAdapter {
@Override
public void windowClosing(WindowEvent e) {
System.exit(0);
}
}*/
}
}
10、键盘监听
package demopacket;
import java.awt.*;
import java.awt.event.KeyAdapter;
import java.awt.event.KeyEvent;
public class Solution {
public static void main(String[] args) {
KeyFrame windowFrame = new KeyFrame();
}
static class KeyFrame extends Frame {
public KeyFrame() {
setBounds(100, 100, 200, 200);
setBackground(Color.blue);
setVisible(true);
this.addKeyListener(new KeyAdapter() {
@Override
public void keyPressed(KeyEvent e) {
System.out.println(e.getKeyCode());
}
});
}
}
}
3、Swing
1、窗口,面板
package demopacket;
import javax.swing.*;
public class Solution {
public static void init() {
JFrame jFrame = new JFrame("这是一个窗口");
jFrame.setVisible(true);
jFrame.setBounds(100, 100, 200, 200);
JLabel jLabel = new JLabel("你好!!!");
jFrame.add(jLabel);
jLabel.setHorizontalAlignment(0);//居中
jFrame.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);//关闭事件
}
public static void main(String[] args) {
init();
}
}
2、弹窗
package demopacket;
import javax.swing.*;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
public class Solution extends JFrame {
public Solution() {
this.setVisible(true);
this.setBounds(100, 100, 200, 200);
this.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);//关闭
//JFrame 放东西需要一个容器
Container container = this.getContentPane();
//绝对布局
container.setLayout(null);
JButton jButton = new JButton("点击弹出一个对话框");
jButton.setBounds(30, 30, 100, 50);
//点击这个按钮的时候弹出一个弹窗
container.add(jButton);
jButton.addActionListener(new ActionListener() {//监听器
@Override
public void actionPerformed(ActionEvent e) {
MyDialog myDialog = new MyDialog();
}
});
}
public static void main(String[] args) {
Solution solution = new Solution();
}
}
class MyDialog extends JDialog {
public MyDialog() {
this.setVisible(true);
this.setBounds(200, 200, 200, 200);
Container container = this.getContentPane();//JFrame 放东西需要一个容器
container.setLayout(null);
JLabel jLabel = new JLabel("你好!!!");
jLabel.setBounds(50, 50, 150, 150);
container.add(jLabel);
}
}
3、标签
package demopacket;
import javax.swing.*;
import java.awt.*;
public class Solution extends JFrame implements Icon {
private int width;
private int height;
public Solution() {
}
public void init() {
Solution solution = new Solution(15, 15);
//图标可以放在标签上,按钮上
JLabel jLabel = new JLabel("hello", solution, SwingConstants.CENTER);
Container container = getContentPane();
container.add(jLabel);
this.setVisible(true);
this.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
}
public Solution(int width, int height) {
this.width = width;
this.height = height;
}
public static void main(String[] args) {
new Solution().init();
}
@Override
public void paintIcon(Component c, Graphics g, int x, int y) {
g.fillOval(x, y, width, height);
}
@Override
public int getIconWidth() {
return this.width;
}
@Override
public int getIconHeight() {
return this.height;
}
}
4、面板
package demopacket;
import javax.swing.*;
import java.awt.*;
public class Solution extends JFrame {
public Solution() {
Container container = this.getContentPane();
JTextArea textArea = new JTextArea(20, 30);
textArea.setText("你好!!!");
//scroll面板
JScrollPane scrollPane = new JScrollPane(textArea);
container.add(scrollPane);
this.setVisible(true);
this.setBounds(100, 100, 200, 200);
this.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
}
public static void main(String[] args) {
new Solution();
}
}
