基于STM32F103C8T6的单片机降压电路

一、任务
实验三的电路采用TL494内部的误差放大器实现电压的稳定，叫做硬件闭环控制，优点是控制快速，但缺点是电路复杂，改变PID参数不方便。用软件也可以实现电压的调节，即软件闭环控制，采用单片机产生PWM波驱动，同时在电源输出端采样，进入单片机AD端做比较，当输出电压偏高时，则PWM波占空比减小，使输出电压降低，反之亦然。
按下图设计并制作如图所示的降压（BUCK）开关电源控制电路。

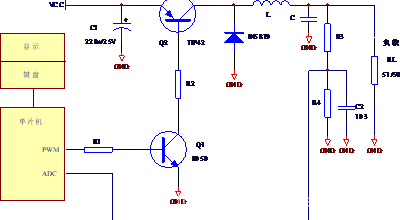

在这里插入图片描述

二、基本要求
1、输入电压VCC为15V，负载51Ω/5W情况下，输出电压调节范围：6～12V，并显示；
2、输出电压可按0.5V的间隔设定，输出电压精度为±0.5V；
3、完成总结报告（4-5页，不含程序）。
三、发挥部分
1、进一步提高输出电压稳定度（输入电压在12～18V范围内改变，输出需保持稳定）；
2、进一步提高输出功率，例如达到4W以上；
3、其他。
四、说明
1、不能采用任何专用芯片制作；
2、单片机输出PWM频率在5～10KHz左右，具体数值看实验效果；
3、在输入电压变化情况下，为了保证输出电压稳定不变（发挥部分），需采用反馈控制，通过采集输出电压，并结合一定的控制算法，调节单片机PWM宽度，从而使输出电压达到稳定；
4、制作时应考虑方便测试，合理设置测试点；
5、开关电源设计参考“集成开关电源的设计制作调试与维修”一书。

code part below

main.c

/*****************************************
 * @hardware STM32F103C8T6
 * @author   CJLU_fmix
 * @version  V1.0
 * @date     2021/04/14
 *****************************************
 */
/* Includes ------------------------------------*/
#include "delay.h"
#include "sys.h"
#include "oled.h"
#include "key.h"
#include "usart.h"

/* Includes ------------------------------------*/
u16 set_zkb = 8999;
float n = 20.0;
float v_real,v_set = 0;

/* CON -----------------------------------------*/
void CON(void)
{
	if(v_set > v_real)
	{
		if(v_set - v_real > 2000)
			n = n + 5.0;
		else if(v_set - v_real > 400)
			n = n + 2.0;
		else if(v_set - v_real > 150)
		  n = n + 0.1;
		else
			n = n + 0.05;
	}
	else if(v_set < v_real)
			 {
					if(v_real - v_set > 2000)
						n = n - 5.0;
					else if(v_real - v_set > 400)
						n = n - 2.0;
					else if(v_real - v_set > 150)
						n = n - 0.1;
					else
						n = n - 0.05;
			 }
			 else
				 n = n;
}

void n_limit(void)
{
	if(n>100.0)
		n = 100.0;
}

/* TIM_PWM -------------------------------------*/
void TIM1_PWM_Init(u16 arr,u16 psc)
{
	 GPIO_InitTypeDef GPIO_InitStructure;
	TIM_TimeBaseInitTypeDef  TIM_TimeBaseStructure;
	TIM_OCInitTypeDef  TIM_OCInitStructure;

	RCC_APB2PeriphClockCmd(RCC_APB2Periph_TIM1, ENABLE);
 	RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA , ENABLE);

	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_8; //TIM_CH1
	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP;
	GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
	GPIO_Init(GPIOA, &GPIO_InitStructure);


	TIM_TimeBaseStructure.TIM_Period = arr;
	TIM_TimeBaseStructure.TIM_Prescaler =psc;
	TIM_TimeBaseStructure.TIM_ClockDivision = 0;
	TIM_TimeBaseStructure.TIM_CounterMode = TIM_CounterMode_Up;
	TIM_TimeBaseInit(TIM1, &TIM_TimeBaseStructure);


	TIM_OCInitStructure.TIM_OCMode = TIM_OCMode_PWM2;
	TIM_OCInitStructure.TIM_OutputState = TIM_OutputState_Enable;
	TIM_OCInitStructure.TIM_Pulse = 0;
	TIM_OCInitStructure.TIM_OCPolarity = TIM_OCPolarity_High;
	TIM_OC1Init(TIM1, &TIM_OCInitStructure);

  TIM_CtrlPWMOutputs(TIM1,ENABLE);

	TIM_OC1PreloadConfig(TIM1, TIM_OCPreload_Enable);

	TIM_ARRPreloadConfig(TIM1, ENABLE);

	TIM_Cmd(TIM1, ENABLE);

}

/* ExtiSet -------------------------------------*/
void EXTIX_Init(void)
{
  EXTI_InitTypeDef EXTI_InitStructure;
 	NVIC_InitTypeDef NVIC_InitStructure;

  RCC_APB2PeriphClockCmd(RCC_APB2Periph_AFIO,ENABLE);

	B8_Init();
    //GPIOB.0
  GPIO_EXTILineConfig(GPIO_PortSourceGPIOB,GPIO_PinSource0);

  EXTI_InitStructure.EXTI_Line=EXTI_Line0;
  EXTI_InitStructure.EXTI_Mode = EXTI_Mode_Interrupt;
  EXTI_InitStructure.EXTI_Trigger = EXTI_Trigger_Falling;
  EXTI_InitStructure.EXTI_LineCmd = ENABLE;
  EXTI_Init(&EXTI_InitStructure);

	//GPIOB.15
  GPIO_EXTILineConfig(GPIO_PortSourceGPIOB,GPIO_PinSource15);

  EXTI_InitStructure.EXTI_Line=EXTI_Line15;
  EXTI_InitStructure.EXTI_Mode = EXTI_Mode_Interrupt;
  EXTI_InitStructure.EXTI_Trigger = EXTI_Trigger_Falling;
  EXTI_InitStructure.EXTI_LineCmd = ENABLE;
  EXTI_Init(&EXTI_InitStructure);

	NVIC_InitStructure.NVIC_IRQChannel = EXTI0_IRQn;
  NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority = 0x02;
  NVIC_InitStructure.NVIC_IRQChannelSubPriority = 0x02;
  NVIC_InitStructure.NVIC_IRQChannelCmd = ENABLE;
  NVIC_Init(&NVIC_InitStructure);

  NVIC_InitStructure.NVIC_IRQChannel = EXTI15_10_IRQn;
  NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority = 0x02;
  NVIC_InitStructure.NVIC_IRQChannelSubPriority = 0x00;
  NVIC_InitStructure.NVIC_IRQChannelCmd = ENABLE;
  NVIC_Init(&NVIC_InitStructure);

}

void EXTI0_IRQHandler(void)
{
	delay_ms(10);
  if(B0 ==0)
	{
		v_set -= 500;
		n = (v_set/1000.0) / 15.0 * 100;
	}

	EXTI_ClearITPendingBit(EXTI_Line0);
}
void EXTI15_10_IRQHandler(void)
{
  delay_ms(10);
  if(B15==0)
	{
		/*Vafter+=5;
		if(Vafter==10)
		{
			Vafter=0;
			Vbefore++;
		}*/
		v_set += 500;
		n = (v_set/1000.0) / 15.0 * 100;
	}

	EXTI_ClearITPendingBit(EXTI_Line15);
}

/* ADC_Init ------------------------------------*/
void  Adc_Init(void)
{
	ADC_InitTypeDef ADC_InitStructure;
	GPIO_InitTypeDef GPIO_InitStructure;

	RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA |RCC_APB2Periph_ADC1	, ENABLE );


	RCC_ADCCLKConfig(RCC_PCLK2_Div6);   //14M

	//PA0
	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_0;
	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AIN;
	GPIO_Init(GPIOA, &GPIO_InitStructure);

	ADC_DeInit(ADC1);  //ADC1

	ADC_InitStructure.ADC_Mode = ADC_Mode_Independent;
	ADC_InitStructure.ADC_ScanConvMode = DISABLE;
	ADC_InitStructure.ADC_ContinuousConvMode = DISABLE;
	ADC_InitStructure.ADC_ExternalTrigConv = ADC_ExternalTrigConv_None;
	ADC_InitStructure.ADC_DataAlign = ADC_DataAlign_Right;
	ADC_InitStructure.ADC_NbrOfChannel = 1;
	ADC_Init(ADC1, &ADC_InitStructure);


	ADC_Cmd(ADC1, ENABLE);

	ADC_ResetCalibration(ADC1);

	while(ADC_GetResetCalibrationStatus(ADC1));

	ADC_StartCalibration(ADC1);

	while(ADC_GetCalibrationStatus(ADC1));

//	ADC_SoftwareStartConvCmd(ADC1, ENABLE);

}
//ch: 0~3
u16 Get_Adc(u8 ch)
{

	ADC_RegularChannelConfig(ADC1, ch, 0, ADC_SampleTime_239Cycles5 );

	ADC_SoftwareStartConvCmd(ADC1, ENABLE);

	while(!ADC_GetFlagStatus(ADC1, ADC_FLAG_EOC ));

	return ADC_GetConversionValue(ADC1);
}

u16 Get_Adc_Average(u8 ch,u8 times)
{
	u32 temp_val=0;
	u16 t;
	for(t=0;t<times;t++)
	{
		temp_val+=Get_Adc(ch);
		delay_ms(5);
	}
	return temp_val/times;
}

/* Main ----------------------------------------*/
int main(void)
{
	u16 adcx;

	float temp,volt;

	NVIC_PriorityGroupConfig(NVIC_PriorityGroup_2);

	delay_init();

	KEY_Init();
	KEYSet();
	EXTIX_Init();

	Adc_Init();

	OLED_Init();	//OLED
	OLED_Clear();

	TIM1_PWM_Init(8999,0);

	OLED_ShowString(10,0," O L E D",24);
	OLED_ShowString(10,25,"R E A D Y",24);
  OLED_Refresh_Gram();
	delay_ms(1000);
	OLED_Clear(); //START UI

	//list of parameter;
	OLED_ShowString(6,0,"adcx:",12);
	OLED_ShowString(60,0,"/4096",12);//adcx
	OLED_ShowString(6,13,"Vt:",12);
	OLED_ShowString(60,13,"mV",12);//adc mv
	OLED_ShowString(6,25,"Real:",12);
	OLED_ShowString(72,25,"mV",12);//real volt
	OLED_ShowString(6,37,"Vset:",12);
	OLED_ShowString(72,37,"mV",12);//set volt

 	while(1)
	{
		set_zkb=(int)((100.0-n)*8999/100.0);
		TIM_SetCompare1(TIM1,set_zkb);
		delay_ms(10);

		adcx=Get_Adc_Average(ADC_Channel_0,10);

		OLED_ShowNum(36,0,adcx,4,12);
		temp=(float)adcx*(3.3/4096);
		volt =temp*1000;
		OLED_ShowNum(36,13,volt,4,12);//v adc
		v_real=4.93*volt;
		OLED_ShowNum(36,25,v_real,6,12);//v real
		OLED_ShowNum(36,37,v_set,6,12);//v set
		OLED_ShowNum(36,49,n*100,6,12);//n
		OLED_Refresh_Gram();

		CON();
		n_limit();
	}
}
