在《Rockchip RK3566 - orangepi-build编译》我们介绍了SDK的编译流程，本节将会对编译脚本进行深入的分析。
----------------------------------------------------------------------------------------------------------------------------
开发板 ：Orange Pi 3B开发板eMMC ：32GBLPDDR4 ：8GB
显示屏 ：15.6英寸HDMI接口显示屏u-boot ：2017.09linux ：5.10
----------------------------------------------------------------------------------------------------------------------------
一、build.sh分析
orangepi-build编译命令是由build.sh脚本实现的，其脚本相对来说比较长，这里我们去掉一些非重点代码(比如docker)，内容如下：
点击查看代码
# 获取当前脚本所在的目录路径
SRC="$(dirname "$(realpath "${BASH_SOURCE[0]}")")"
# check for whitespace in ${SRC} and exit for safety reasons 空字符串检验
grep -q "[[:space:]]" <<<"${SRC}" && { echo "\"${SRC}\" contains whitespace. Not supported. Aborting." >&2 ; exit 1 ; }
cd "${SRC}" || exit
# 启用调用跟踪
if [[ "${ORANGEPI_ENABLE_CALL_TRACING}" == "yes" ]]; then
set -T # inherit return/debug traps
mkdir -p "${SRC}"/output/debug
echo -n "" > "${SRC}"/output/debug/calls.txt
trap 'echo "${BASH_LINENO[@]}|${BASH_SOURCE[@]}|${FUNCNAME[@]}" >> ${SRC}/output/debug/calls.txt ;' RETURN
fi
# 执行./script/general.sh脚本
if [[ -f "${SRC}"/scripts/general.sh ]]; then
# shellcheck source=scripts/general.sh
source "${SRC}"/scripts/general.sh
else
echo "Error: missing build directory structure"
echo "Please clone the full repository by https://github.com/orangepi-xunlong/orangepi-build"
exit 255
fi
# 校验第一个参数
if [[ "${EUID}" == "0" ]] || [[ "${1}" == "vagrant" ]]; then
:
elif [[ "${1}" == docker || "${1}" == dockerpurge || "${1}" == docker-shell ]] && grep -q "$(whoami)" <(getent group docker); then
:
else
# 以root身份执行脚本
display_alert "This script requires root privileges, trying to use sudo" "" "wrn"
sudo "${SRC}/build.sh" "$@"
exit $?
fi
# 走else分支，为宿主机ubuntu 22.04系统安装基础包，比如dialog、uuid、uuid-runtime等
if [ "$OFFLINE_WORK" == "yes" ]; then
echo -e "\n"
display_alert "* " "You are working offline."
display_alert "* " "Sources, time and host will not be checked"
echo -e "\n"
sleep 3s
else
# check and install the basic utilities here
prepare_host_basic
fi
EXTER="${SRC}/external"
# Create userpatches directory if not exists
mkdir -p "${SRC}"/userpatches
# Create example configs if none found in userpatches
if ! ls "${SRC}"/userpatches/{config-example.conf,config-docker.conf,config-vagrant.conf} 1> /dev/null 2>&1; then
# Migrate old configs
if ls "${SRC}"/*.conf 1> /dev/null 2>&1; then
display_alert "Migrate config files to userpatches directory" "all *.conf" "info"
cp "${SRC}"/*.conf "${SRC}"/userpatches || exit 1
rm "${SRC}"/*.conf
[[ ! -L "${SRC}"/userpatches/config-example.conf ]] && ln -fs config-example.conf "${SRC}"/userpatches/config-default.conf || exit 1
fi
display_alert "Create example config file using template" "config-default.conf" "info"
# Create example config
if [[ ! -f "${SRC}"/userpatches/config-example.conf ]]; then
cp "${EXTER}"/config/templates/config-example.conf "${SRC}"/userpatches/config-example.conf || exit 1
ln -fs config-example.conf "${SRC}"/userpatches/config-default.conf || exit 1
fi
# Create Docker config
if [[ ! -f "${SRC}"/userpatches/config-docker.conf ]]; then
cp "${EXTER}"/config/templates/config-docker.conf "${SRC}"/userpatches/config-docker.conf || exit 1
fi
# Create Docker file
if [[ ! -f "${SRC}"/userpatches/Dockerfile ]]; then
cp "${EXTER}"/config/templates/Dockerfile "${SRC}"/userpatches/Dockerfile || exit 1
fi
# Create Vagrant config
if [[ ! -f "${SRC}"/userpatches/config-vagrant.conf ]]; then
cp "${EXTER}"/config/templates/config-vagrant.conf "${SRC}"/userpatches/config-vagrant.conf || exit 1
fi
# Create Vagrant file
if [[ ! -f "${SRC}"/userpatches/Vagrantfile ]]; then
cp "${EXTER}"/config/templates/Vagrantfile "${SRC}"/userpatches/Vagrantfile || exit 1
fi
fi
# 不会进入
if [[ -z "${CONFIG}" && -n "$1" && -f "${SRC}/userpatches/config-$1.conf" ]]; then
CONFIG="userpatches/config-$1.conf"
shift
fi
# usind default if custom not found
if [[ -z "${CONFIG}" && -f "${SRC}/userpatches/config-default.conf" ]]; then
CONFIG="userpatches/config-default.conf"
fi
# source build configuration file
CONFIG_FILE="$(realpath "${CONFIG}")"
if [[ ! -f "${CONFIG_FILE}" ]]; then
display_alert "Config file does not exist" "${CONFIG}" "error"
exit 254
fi
CONFIG_PATH=$(dirname "${CONFIG_FILE}")
# Source the extensions manager library at this point, before sourcing the config.
# This allows early calls to enable_extension(), but initialization proper is done later.
# shellcheck source=scripts/extensions.sh
source "${SRC}"/scripts/extensions.sh
display_alert "Using config file" "${CONFIG_FILE}" "info"
pushd "${CONFIG_PATH}" > /dev/null || exit
# shellcheck source=/dev/null
source "${CONFIG_FILE}"
popd > /dev/null || exit
[[ -z "${USERPATCHES_PATH}" ]] && USERPATCHES_PATH="${CONFIG_PATH}"
# Script parameters handling
while [[ "${1}" == *=* ]]; do
parameter=${1%%=*}
value=${1##*=}
shift
display_alert "Command line: setting $parameter to" "${value:-(empty)}" "info"
eval "$parameter=\"$value\""
done
if [[ "${BUILD_ALL}" == "yes" || "${BUILD_ALL}" == "demo" ]]; then
# shellcheck source=scripts/build-all-ng.sh
source "${SRC}"/scripts/build-all-ng.sh
else
# shellcheck source=scripts/main.sh
source "${SRC}"/scripts/main.sh
fi接下来我们针对该脚本内容从上往下依次分析。
1.1 开启调用追踪
如果我们需要启动调用跟踪，在执行命令时设置ORANGEPI_ENABLE_CALL_TRACING即可，比如：
ORANGEPI_ENABLE_CALL_TRACING=yes && ./build.sh如果环境变量 ORANGEPI_ENABLE_CALL_TRACING 设置为 "yes"，将启用函数调用跟踪；
if [[ "${ORANGEPI_ENABLE_CALL_TRACING}" == "yes" ]]; then
set -T # inherit return/debug traps
# 创建调试目录
mkdir -p "${SRC}"/output/debug
# 初始化一个空的calls.txt文件，用于存储调试信息
echo -n "" > "${SRC}"/output/debug/calls.txt
# 设置一个陷阱，在脚本退出时记录函数调用详情
trap 'echo "${BASH_LINENO[@]}|${BASH_SOURCE[@]}|${FUNCNAME[@]}" >> ${SRC}/output/debug/calls.txt ;' RETURN
fi1.2 执行general.sh脚本
接着是使用source命令执行general.sh脚本，该脚本位于<SDK>/scripts目录下；
if [[ -f "${SRC}"/scripts/general.sh ]]; then
source "${SRC}"/scripts/general.sh
else
echo "错误：缺少构建目录结构"
echo "请通过 https://github.com/orangepi-xunlong/orangepi-build 克隆完整的存储库"
exit 255
fi使用source命令执行脚本的一些注意事项：
- 环境变量和函数的影响：被执行的脚本可以修改当前
shell的环境变量和定义的函数，这些修改将持续影响到当前shell的会话，直到会话结束或者重新定义了这些变量和函数。 - 退出状态：被执行的脚本的退出状态(即最后一个命令的退出状态)会影响到当前
shell。可以通过$?变量来获取最近一次执行命令的退出状态； - 交互性：与直接执行脚本不同，使用
source执行脚本时，不会创建新的shell环境，因此不会有新的子shell进程。这使得它适合于需要脚本和当前shell环境之间相互影响的场景，例如定义函数或设置环境变量。
1.3 执行prepare_host_basic脚本
prepare_host_basic脚本是在general.sh中定义的，为宿主机ubuntu 22.04系统安装基础包，比如dialog、uuid 、uuid-runtime等。
1.4 创建userpatches目录
如果userpatches目录不存在则创建userpatches目录；
EXTER="${SRC}/external"
# Create userpatches directory if not exists
mkdir -p "${SRC}"/userpatches1.4.1 创建example config
接着这段脚本代码主要用于检查和创建示例配置文件和相关文件，如果在 ${SRC}/userpatches 目录下找不到特定的配置文件，则创建相应的示例配置文件和相关文件；
# Create example configs if none found in userpatches 检查是否存在示例配置文件,如果都不存在则进入
if ! ls "${SRC}"/userpatches/{config-example.conf,config-docker.conf,config-vagrant.conf} 1> /dev/null 2>&1; then
# Migrate old configs 迁移旧配置文件，不会进入
if ls "${SRC}"/*.conf 1> /dev/null 2>&1; then
display_alert "Migrate config files to userpatches directory" "all *.conf" "info"
cp "${SRC}"/*.conf "${SRC}"/userpatches || exit 1
rm "${SRC}"/*.conf
[[ ! -L "${SRC}"/userpatches/config-example.conf ]] && ln -fs config-example.conf "${SRC}"/userpatches/config-default.conf || exit 1
fi
display_alert "Create example config file using template" "config-default.conf" "info"
# Create example config
if [[ ! -f "${SRC}"/userpatches/config-example.conf ]]; then
cp "${EXTER}"/config/templates/config-example.conf "${SRC}"/userpatches/config-example.conf || exit 1
ln -fs config-example.conf "${SRC}"/userpatches/config-default.conf || exit 1
fi
# Create Docker config
if [[ ! -f "${SRC}"/userpatches/config-docker.conf ]]; then
cp "${EXTER}"/config/templates/config-docker.conf "${SRC}"/userpatches/config-docker.conf || exit 1
fi
# Create Docker file
if [[ ! -f "${SRC}"/userpatches/Dockerfile ]]; then
cp "${EXTER}"/config/templates/Dockerfile "${SRC}"/userpatches/Dockerfile || exit 1
fi
# Create Vagrant config
if [[ ! -f "${SRC}"/userpatches/config-vagrant.conf ]]; then
cp "${EXTER}"/config/templates/config-vagrant.conf "${SRC}"/userpatches/config-vagrant.conf || exit 1
fi
# Create Vagrant file
if [[ ! -f "${SRC}"/userpatches/Vagrantfile ]]; then
cp "${EXTER}"/config/templates/Vagrantfile "${SRC}"/userpatches/Vagrantfile || exit 1
fi
fi检查是否存在示例配置文件，如果都不存在：
- 迁移旧配置文件：正常不会进入该分支；
- 创建示例配置文件：如果
./userpatches/config-example.conf不存在，则从./external/config/templates/目录复制config-example.conf到./userpatches/目录，并创建一个指向config-example.conf的符号链接config-default.conf； - 创建
Docker相关文件：如果./userpatches/config-docker.conf和./userpatches/Dockerfile不存在，则分别从./external/config/templates/目录复制config-docker.conf和Dockerfile到./userpatches/目录； - 创建
Vagrant相关文件：如果./userpatches/config-vagrant.conf和./userpatches/Vagrantfile不存在，则分别从./external/config/templates/目录复制config-vagrant.conf和Vagrantfile到${SRC}/userpatches/目录。
因此执行完成后会在userpatches目录下创建config-default.conf、config-docker.conf、config-example.conf、config-vagrant.conf、Vagrantfile文件；
root@ubuntu:/work/sambashare/rk3566/orangepi-build$ ll userpatches/
lrwxrwxrwx 1 root root 19 7月 10 14:20 config-default.conf -> config-example.conf
-rw-r--r-- 1 root root 5846 7月 10 14:20 config-docker.conf
-rw-r--r-- 1 root root 1274 7月 10 17:57 config-example.conf
-rw-r--r-- 1 root root 715 7月 10 14:20 config-vagrant.conf
-rw-r--r-- 1 root root 3111 7月 10 14:20 Dockerfile
-rw-r--r-- 1 root root 1715 7月 10 14:20 Vagrantfile1.4.2 使用默认配置
确定要使用的配置文件路径，并确保该配置文件存在。如果未找到任何自定义配置文件 ($1)，则将使用默认配置文件 (config-default.conf)；
# 检查自定义配置文件的存在性，由于参数1为指定因此不会进入
if [[ -z "${CONFIG}" && -n "$1" && -f "${SRC}/userpatches/config-$1.conf" ]]; then
CONFIG="userpatches/config-$1.conf"
shift
fi
# usind default if custom not found
if [[ -z "${CONFIG}" && -f "${SRC}/userpatches/config-default.conf" ]]; then
CONFIG="userpatches/config-default.conf"
fi
# source build configuration file, 获取配置文件绝对路径，<SDK>/userpatches/config-example.conf
CONFIG_FILE="$(realpath "${CONFIG}")"
# 检查配置文件的实际存在性，由于文件的确存在因此不会进入
if [[ ! -f "${CONFIG_FILE}" ]]; then
display_alert "Config file does not exist" "${CONFIG}" "error"
exit 254
fi
# 获取配置文件所在目录，<SDK>/userpatches
CONFIG_PATH=$(dirname "${CONFIG_FILE}")1.5 执行extensions.sh脚本
接着是使用source命令执行extensions.sh脚本，该脚本位于<SDK>/scripts目录下；
# Source the extensions manager library at this point, before sourcing the config.
# This allows early calls to enable_extension(), but initialization proper is done later.
# shellcheck source=scripts/extensions.sh
source "${SRC}"/scripts/extensions.sh1.6 加载配置文件
接着是输出当前使用的配置文件夹信息，然后切换工作目录并加载配置文件：
display_alert "Using config file" "${CONFIG_FILE}" "info"
# 将当前工作目录切换到 ${CONFIG_PATH}
pushd "${CONFIG_PATH}" > /dev/null || exit
# shellcheck source=/dev/null，加载${CONFIG_FILE}中的shell脚本
source "${CONFIG_FILE}"
# 恢复之前的工作目录
popd > /dev/null || exit
# 设置USERPATCHES_PATH=${CONFIG_PATH}
[[ -z "${USERPATCHES_PATH}" ]] && USERPATCHES_PATH="${CONFIG_PATH}"
# Script parameters handling，由于未指定参数1因此不会进入
while [[ "${1}" == *=* ]]; do
parameter=${1%%=*}
value=${1##*=}
shift
display_alert "Command line: setting $parameter to" "${value:-(empty)}" "info"
eval "$parameter=\"$value\""
done1.6.1 config-example.conf
CONFIG_FILE被定义为了<SDK>/userpatches/config-example.conf，内容如下：
KERNEL_CONFIGURE="" # leave empty to select each time, set to "yes" or "no" to skip dialog prompt
CLEAN_LEVEL="debs,oldcache" # comma-separated list of clean targets: "make" = make clean for selected kernel and u-boot,
# "debs" = delete packages in "./output/debs" for current branch and family,
# "alldebs" = delete all packages in "./output/debs", "images" = delete "./output/images",
# "cache" = delete "./output/cache", "sources" = delete "./sources"
# "oldcache" = remove old cached rootfs except for the newest 8 files
DEST_LANG="en_US.UTF-8" # sl_SI.UTF-8, en_US.UTF-8
# advanced
EXTERNAL_NEW="prebuilt" # compile and install or install prebuilt additional packages
INSTALL_HEADERS="" # install kernel headers package
LIB_TAG="master" # change to "branchname" to use any branch currently available.
USE_TORRENT="yes" # use torrent network for faster toolchain and cache download
DOWNLOAD_MIRROR="china" # set to "china" to use mirrors.tuna.tsinghua.edu.cn
BOARD=""
BRANCH=""
RELEASE=""
WIREGUARD="no"
BUILD_KSRC="no"
INSTALL_KSRC="no"
IGNORE_UPDATES="yes"
COMPRESS_OUTPUTIMAGE="no"
NO_APT_CACHER="yes"
#install_balena_etcher="yes"
#install_zfs="yes"
#install_docker="yes"
#install_chromium="yes"
#install_firefox="yes"该脚本中定义的一些变量将会被加载到当前shell中。
1.7 进入main.sh
脚本的最后使用source命令执行main.sh脚本；
if [[ "${BUILD_ALL}" == "yes" || "${BUILD_ALL}" == "demo" ]]; then
# shellcheck source=scripts/build-all-ng.sh
source "${SRC}"/scripts/build-all-ng.sh
else
# shellcheck source=scripts/main.sh
source "${SRC}"/scripts/main.sh
fi二、general.sh分析
general.sh是一个通用脚本，该脚本位于<SDK>/scripts目录下，脚本提供了通用功能；
cleaning：exit_with_error：get_package_list_hash：create_sources_list：clean_up_git：waiter_local_git：fetch_from_repo：improved_git：distro_menu：addtorepo：repo-remove-old-packages：wait_for_package_manager：install_pkg_deb：prepare_host_basic：prepare_host：webseed：download_and_verify：show_developer_warning：show_checklist_variables：
2.1 display_alert
display_alert用于在终端中显示带有不同类型标签的警告信息；
#--------------------------------------------------------------------------------------------------------------------------------
# Let's have unique way of displaying alerts
#--------------------------------------------------------------------------------------------------------------------------------
display_alert()
{
# log function parameters to install.log
[[ -n "${DEST}" ]] && echo "Displaying message: $@" >> "${DEST}"/${LOG_SUBPATH}/output.log
local tmp=""
[[ -n $2 ]] && tmp="[\e[0;33m $2 \x1B[0m]"
# 根据第三个参数 $3 的不同取值，输出不同类型的警告信息
case $3 in
err)
# 红色文字
echo -e "[\e[0;31m error \x1B[0m] $1 $tmp"
;;
wrn)
# 洋红色文字
echo -e "[\e[0;35m warn \x1B[0m] $1 $tmp"
;;
ext)
# 绿色文字
echo -e "[\e[0;32m o.k. \x1B[0m] \e[1;32m$1\x1B[0m $tmp"
;;
info)
# 加粗绿色文字
echo -e "[\e[0;32m o.k. \x1B[0m] $1 $tmp"
;;
*)
# 绿色样式(作为通用信息)
echo -e "[\e[0;32m .... \x1B[0m] $1 $tmp"
;;
esac
}2.2 prepare_host_basic
prepare_host_basic为宿主机ubuntu 22.04系统安装基础包，比如dialog、uuid 、uuid-runtime等；
# prepare_host_basic
#
# * installs only basic packages
#
prepare_host_basic()
{
# command:package1 package2 ...
# list of commands that are neeeded:packages where this command is
local check_pack install_pack
local checklist=(
"whiptail:whiptail"
"dialog:dialog"
"fuser:psmisc"
"getfacl:acl"
"uuid:uuid uuid-runtime"
"curl:curl"
"gpg:gnupg"
"gawk:gawk"
"git:git"
)
for check_pack in "${checklist[@]}"; do
# 使用which命令检查 ${check_pack%:*}是否存在，如果不存在(即返回非零退出码)，则将${check_pack#*:}添加到install_pack变量中。
# ${check_pack%:*}：删除最后一个冒号:及其右侧的部分，保留左侧的命令名称部分
# ${check_pack#*:}：删除第一个冒号:及其左侧的部分，保留右侧的软件包名称部分
if ! which ${check_pack%:*} >/dev/null; then local install_pack+=${check_pack#*:}" "; fi
done
# 不为空，则显示安装基本软件包
if [[ -n $install_pack ]]; then
display_alert "Installing basic packages" "$install_pack"
sudo bash -c "apt-get -qq update && apt-get install -qq -y --no-install-recommends $install_pack"
fi
}2.3 distros_options
distros_options函数用于获取Linux发行版的类型；
DISTRIBUTIONS_DESC_DIR="external/config/distributions"
function distro_menu ()
{
# create a select menu for choosing a distribution based EXPERT status
local distrib_dir="${1}"
# 查目录 ${distrib_dir}是否存在且包含文件${distrib_dir}/support
if [[ -d "${distrib_dir}" && -f "${distrib_dir}/support" ]]; then
# 读取 ${distrib_dir}/support文件中的支持级别
local support_level="$(cat "${distrib_dir}/support")"
# 如果分发的支持级别不是"supported"并且EXPERT不等于"yes"，则跳过该分发
if [[ "${support_level}" != "supported" && $EXPERT != "yes" ]]; then
:
else
# 读取分发的名称和全名
local distro_codename="$(basename "${distrib_dir}")"
local distro_fullname="$(cat "${distrib_dir}/name")"
local expert_infos=""
# 不会进入
[[ $EXPERT == "yes" ]] && expert_infos="(${support_level})"
# 根据BRANCH的值设置DISTRIB_TYPE变量
if [[ "${BRANCH}" == "legacy" ]]; then
DISTRIB_TYPE="${DISTRIB_TYPE_LEGACY}"
[[ -z "${DISTRIB_TYPE_LEGACY}" ]] && DISTRIB_TYPE="buster bionic focal"
elif [[ "${BRANCH}" == "current" ]]; then
DISTRIB_TYPE="${DISTRIB_TYPE_CURRENT}"
[[ -z "${DISTRIB_TYPE_CURRENT}" ]] && DISTRIB_TYPE="bullseye bookworm focal jammy"
elif [[ "${BRANCH}" == "next" ]]; then
if [[ -n "${DISTRIB_TYPE_NEXT}" ]]; then
DISTRIB_TYPE="${DISTRIB_TYPE_NEXT}"
else
DISTRIB_TYPE="${DISTRIB_TYPE_CURRENT}"
[[ -z "${DISTRIB_TYPE_CURRENT}" ]] && DISTRIB_TYPE="bullseye bookworm focal jammy"
fi
fi
if [[ "${DISTRIB_TYPE}" =~ "${distro_codename}" ]]; then
options+=("${distro_codename}" "${distro_fullname} ${expert_infos}")
fi
fi
fi
}
function distros_options() {
for distrib_dir in "${DISTRIBUTIONS_DESC_DIR}/"*; do
distro_menu "${distrib_dir}"
done
}我们查看external/config/distributions目录；
root@ubuntu:/work/sambashare/rk3566/orangepi-build$ ll external/config/distributions
drwxr-xr-x 2 root root 4096 7月 10 13:40 bionic/
drwxr-xr-x 2 root root 4096 7月 10 13:40 bookworm/
drwxr-xr-x 2 root root 4096 7月 10 13:40 bullseye/
drwxr-xr-x 2 root root 4096 7月 10 13:40 buster/
drwxr-xr-x 2 root root 4096 7月 10 13:40 focal/
drwxr-xr-x 2 root root 4096 7月 10 13:40 jammy/
drwxr-xr-x 2 root root 4096 7月 10 13:40 raspi/
-rw-r--r-- 1 root root 297 7月 10 13:40 README.md
drwxr-xr-x 2 root root 4096 7月 10 13:40 sid/
drwxr-xr-x 2 root root 4096 7月 10 13:40 stretch/
drwxr-xr-x 2 root root 4096 7月 10 13:40 xenial/以bullseye目录为例；
root@ubuntu:/work/sambashare/rk3566/orangepi-build$ ll external/config/distributions/bullseye/
-rw-r--r-- 1 root root 19 7月 10 13:40 name
-rw-r--r-- 1 root root 10 7月 10 13:40 support查看support文件内容，这里为supported，所以support_level=supported；
查看name文件内容，这里为Debian 11 Bullseye，所以distro_codename=bullseye、distro_fullname=Debian 11 Bullseye；

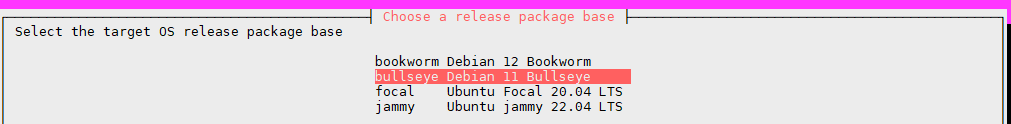

所以当BRANCH=current时，设置DISTRIB_TYPE=bullseye bookworm focal jammy；
DISTRIB_TYPE="${DISTRIB_TYPE_CURRENT}"
[[ -z "${DISTRIB_TYPE_CURRENT}" ]] && DISTRIB_TYPE="bullseye bookworm focal jammy"函数最后设置：
options+=("${distro_codename}" "${distro_fullname} ${expert_infos}")
即：
bullseye Debian 11 Bullseye三、compilation.sh分析
compilation.sh脚本位于<SDK>/scripts目录下，实现了各个功能模块源码的编译；
compile_atf；compile_uboot；compile_kernel;compile_firmware;compile_orangepi-config；compile_sunxi_tools；install_rkbin_tools；grab_version；find_toolchain；advanced_patch；process_patch_file；userpatch_create；overlayfs_wrapper；
3.1 compile_uboot
compile_uboot()
{
if [[ ${BOARDFAMILY} == "sun50iw9" && ${BRANCH} =~ legacy|current && $(dpkg --print-architecture) == arm64 ]]; then
local uboot_name=${CHOSEN_UBOOT}_${REVISION}_${ARCH}.deb
display_alert "Compile u-boot is not supported, only copy precompiled deb package" "$uboot_name" "info"
cp "${EXTER}/cache/debs/h618/$uboot_name" "${DEB_STORAGE}/u-boot/"
else
# not optimal, but extra cleaning before overlayfs_wrapper should keep sources directory clean
if [[ $CLEAN_LEVEL == *make* ]]; then
display_alert "Cleaning" "$BOOTSOURCEDIR" "info"
(cd $BOOTSOURCEDIR; make clean > /dev/null 2>&1)
fi
if [[ $USE_OVERLAYFS == yes ]]; then
local ubootdir
ubootdir=$(overlayfs_wrapper "wrap" "$BOOTSOURCEDIR" "u-boot_${LINUXFAMILY}_${BRANCH}")
else
local ubootdir="$BOOTSOURCEDIR"
fi
cd "${ubootdir}" || exit
# read uboot version
local version hash
version=$(grab_version "$ubootdir")
hash=$(improved_git --git-dir="$ubootdir"/.git rev-parse HEAD)
display_alert "Compiling u-boot" "v$version" "info"
# build aarch64
if [[ $(dpkg --print-architecture) == amd64 ]]; then
local toolchain
toolchain=$(find_toolchain "$UBOOT_COMPILER" "$UBOOT_USE_GCC")
[[ -z $toolchain ]] && exit_with_error "Could not find required toolchain" "${UBOOT_COMPILER}gcc $UBOOT_USE_GCC"
if [[ -n $UBOOT_TOOLCHAIN2 ]]; then
local toolchain2_type toolchain2_ver toolchain2
toolchain2_type=$(cut -d':' -f1 <<< "${UBOOT_TOOLCHAIN2}")
toolchain2_ver=$(cut -d':' -f2 <<< "${UBOOT_TOOLCHAIN2}")
toolchain2=$(find_toolchain "$toolchain2_type" "$toolchain2_ver")
[[ -z $toolchain2 ]] && exit_with_error "Could not find required toolchain" "${toolchain2_type}gcc $toolchain2_ver"
fi
# build aarch64
fi
display_alert "Compiler version" "${UBOOT_COMPILER}gcc $(eval env PATH="${toolchain}:${toolchain2}:${PATH}" "${UBOOT_COMPILER}gcc" -dumpversion)" "info"
[[ -n $toolchain2 ]] && display_alert "Additional compiler version" "${toolchain2_type}gcc $(eval env PATH="${toolchain}:${toolchain2}:${PATH}" "${toolchain2_type}gcc" -dumpversion)" "info"
# create directory structure for the .deb package
uboottempdir=$(mktemp -d)
chmod 700 ${uboottempdir}
trap "ret=\$?; rm -rf \"${uboottempdir}\" ; exit \$ret" 0 1 2 3 15
local uboot_name=${CHOSEN_UBOOT}_${REVISION}_${ARCH}
rm -rf $uboottempdir/$uboot_name
mkdir -p $uboottempdir/$uboot_name/usr/lib/{u-boot,$uboot_name} $uboottempdir/$uboot_name/DEBIAN
# process compilation for one or multiple targets
while read -r target; do
local target_make target_patchdir target_files
target_make=$(cut -d';' -f1 <<< "${target}")
target_patchdir=$(cut -d';' -f2 <<< "${target}")
target_files=$(cut -d';' -f3 <<< "${target}")
# needed for multiple targets and for calling compile_uboot directly
#display_alert "Checking out to clean sources"
#improved_git checkout -f -q HEAD
if [[ $CLEAN_LEVEL == *make* ]]; then
display_alert "Cleaning" "$BOOTSOURCEDIR" "info"
(cd "${BOOTSOURCEDIR}"; make clean > /dev/null 2>&1)
fi
advanced_patch "u-boot" "$BOOTPATCHDIR" "$BOARD" "$target_patchdir" "$BRANCH" "${LINUXFAMILY}-${BOARD}-${BRANCH}"
# create patch for manual source changes
[[ $CREATE_PATCHES == yes ]] && userpatch_create "u-boot"
if [[ -n $ATFSOURCE ]]; then
cp -Rv "${atftempdir}"/*.bin .
rm -rf "${atftempdir}"
fi
echo -e "\n\t== u-boot make $BOOTCONFIG ==\n" >> "${DEST}"/${LOG_SUBPATH}/compilation.log
eval CCACHE_BASEDIR="$(pwd)" env PATH="${toolchain}:${toolchain2}:${PATH}" \
'make $CTHREADS $BOOTCONFIG \
CROSS_COMPILE="$CCACHE $UBOOT_COMPILER"' 2>> "${DEST}"/${LOG_SUBPATH}/compilation.log \
${PROGRESS_LOG_TO_FILE:+' | tee -a $DEST/${LOG_SUBPATH}/compilation.log'} \
${OUTPUT_VERYSILENT:+' >/dev/null 2>/dev/null'}
if [[ "${version}" != 2014.07 ]]; then
# orangepi specifics u-boot settings
[[ -f .config ]] && sed -i 's/CONFIG_LOCALVERSION=""/CONFIG_LOCALVERSION="-orangepi"/g' .config
[[ -f .config ]] && sed -i 's/CONFIG_LOCALVERSION_AUTO=.*/# CONFIG_LOCALVERSION_AUTO is not set/g' .config
# for modern kernel and non spi targets
if [[ ${BOOTBRANCH} =~ ^tag:v201[8-9](.*) && ${target} != "spi" && -f .config ]]; then
sed -i 's/^.*CONFIG_ENV_IS_IN_FAT.*/# CONFIG_ENV_IS_IN_FAT is not set/g' .config
sed -i 's/^.*CONFIG_ENV_IS_IN_EXT4.*/CONFIG_ENV_IS_IN_EXT4=y/g' .config
sed -i 's/^.*CONFIG_ENV_IS_IN_MMC.*/# CONFIG_ENV_IS_IN_MMC is not set/g' .config
sed -i 's/^.*CONFIG_ENV_IS_NOWHERE.*/# CONFIG_ENV_IS_NOWHERE is not set/g' .config | echo \
"# CONFIG_ENV_IS_NOWHERE is not set" >> .config
echo 'CONFIG_ENV_EXT4_INTERFACE="mmc"' >> .config
echo 'CONFIG_ENV_EXT4_DEVICE_AND_PART="0:auto"' >> .config
echo 'CONFIG_ENV_EXT4_FILE="/boot/boot.env"' >> .config
fi
if [[ ${BOARDFAMILY} == "sun50iw9" && ${BRANCH} == "next" ]]; then
if [[ ${MEM_TYPE} == "1500MB" ]]; then
sed -i 's/^.*CONFIG_DRAM_SUN50I_H616_TRIM_SIZE*/CONFIG_DRAM_SUN50I_H616_TRIM_SIZE=y/g' .config
else
sed -i 's/^.*CONFIG_DRAM_SUN50I_H616_TRIM_SIZE*/# CONFIG_DRAM_SUN50I_H616_TRIM_SIZE is not set/g' .config
fi
fi
[[ -f tools/logos/udoo.bmp ]] && cp "${EXTER}"/packages/blobs/splash/udoo.bmp tools/logos/udoo.bmp
touch .scmversion
# $BOOTDELAY can be set in board family config, ensure autoboot can be stopped even if set to 0
[[ $BOOTDELAY == 0 ]] && echo -e "CONFIG_ZERO_BOOTDELAY_CHECK=y" >> .config
[[ -n $BOOTDELAY ]] && sed -i "s/^CONFIG_BOOTDELAY=.*/CONFIG_BOOTDELAY=${BOOTDELAY}/" .config || [[ -f .config ]] && echo "CONFIG_BOOTDELAY=${BOOTDELAY}" >> .config
fi
# workaround when two compilers are needed
cross_compile="CROSS_COMPILE=$CCACHE $UBOOT_COMPILER";
[[ -n $UBOOT_TOOLCHAIN2 ]] && cross_compile="ORANGEPI=foe"; # empty parameter is not allowed
echo -e "\n\t== u-boot make $target_make ==\n" >> "${DEST}"/${LOG_SUBPATH}/compilation.log
eval CCACHE_BASEDIR="$(pwd)" env PATH="${toolchain}:${toolchain2}:${PATH}" \
'make $target_make $CTHREADS \
"${cross_compile}"' 2>>"${DEST}"/${LOG_SUBPATH}/compilation.log \
${PROGRESS_LOG_TO_FILE:+' | tee -a "${DEST}"/${LOG_SUBPATH}/compilation.log'} \
${OUTPUT_DIALOG:+' | dialog --backtitle "$backtitle" --progressbox "Compiling u-boot..." $TTY_Y $TTY_X'} \
${OUTPUT_VERYSILENT:+' >/dev/null 2>/dev/null'} ';EVALPIPE=(${PIPESTATUS[@]})'
[[ ${EVALPIPE[0]} -ne 0 ]] && exit_with_error "U-boot compilation failed"
[[ $(type -t uboot_custom_postprocess) == function ]] && uboot_custom_postprocess
# copy files to build directory
for f in $target_files; do
local f_src
f_src=$(cut -d':' -f1 <<< "${f}")
if [[ $f == *:* ]]; then
local f_dst
f_dst=$(cut -d':' -f2 <<< "${f}")
else
local f_dst
f_dst=$(basename "${f_src}")
fi
[[ ! -f $f_src ]] && exit_with_error "U-boot file not found" "$(basename "${f_src}")"
if [[ "${version}" =~ 2014.07|2011.09 ]]; then
cp "${f_src}" "$uboottempdir/packout/${f_dst}"
else
cp "${f_src}" "$uboottempdir/${uboot_name}/usr/lib/${uboot_name}/${f_dst}"
fi
done
done <<< "$UBOOT_TARGET_MAP"
if [[ $PACK_UBOOT == "yes" ]];then
if [[ $BOARDFAMILY =~ sun50iw1 ]]; then
if [[ $(type -t u-boot_tweaks) == function ]]; then
u-boot_tweaks ${uboot_name}
else
exit_with_error "U-boot pack failed"
fi
else
pack_uboot
cp $uboottempdir/packout/{boot0_sdcard.fex,boot_package.fex} "${SRC}/.tmp/${uboot_name}/usr/lib/${uboot_name}/"
cp $uboottempdir/packout/dts/${BOARD}-u-boot.dts "${SRC}/.tmp/${uboot_name}/usr/lib/u-boot/"
fi
cd "${ubootdir}" || exit
fi
# declare -f on non-defined function does not do anything
cat <<-EOF > "$uboottempdir/${uboot_name}/usr/lib/u-boot/platform_install.sh"
DIR=/usr/lib/$uboot_name
$(declare -f write_uboot_platform)
$(declare -f write_uboot_platform_mtd)
$(declare -f setup_write_uboot_platform)
EOF
# set up control file
cat <<-EOF > "$uboottempdir/${uboot_name}/DEBIAN/control"
Package: linux-u-boot-${BOARD}-${BRANCH}
Version: $REVISION
Architecture: $ARCH
Maintainer: $MAINTAINER <$MAINTAINERMAIL>
Installed-Size: 1
Section: kernel
Priority: optional
Provides: orangepi-u-boot
Replaces: orangepi-u-boot
Conflicts: orangepi-u-boot, u-boot-sunxi
Description: Uboot loader $version
EOF
# copy config file to the package
# useful for FEL boot with overlayfs_wrapper
[[ -f .config && -n $BOOTCONFIG ]] && cp .config "$uboottempdir/${uboot_name}/usr/lib/u-boot/${BOOTCONFIG}"
# copy license files from typical locations
[[ -f COPYING ]] && cp COPYING "$uboottempdir/${uboot_name}/usr/lib/u-boot/LICENSE"
[[ -f Licenses/README ]] && cp Licenses/README "$uboottempdir/${uboot_name}/usr/lib/u-boot/LICENSE"
[[ -n $atftempdir && -f $atftempdir/license.md ]] && cp "${atftempdir}/license.md" "$uboottempdir/${uboot_name}/usr/lib/u-boot/LICENSE.atf"
display_alert "Building deb" "${uboot_name}.deb" "info"
fakeroot dpkg-deb -b -Z${DEB_COMPRESS} "$uboottempdir/${uboot_name}" "$uboottempdir/${uboot_name}.deb" >> "${DEST}"/${LOG_SUBPATH}/output.log 2>&1
rm -rf "$uboottempdir/${uboot_name}"
[[ -n $atftempdir ]] && rm -rf "${atftempdir}"
[[ ! -f $uboottempdir/${uboot_name}.deb ]] && exit_with_error "Building u-boot package failed"
rsync --remove-source-files -rq "$uboottempdir/${uboot_name}.deb" "${DEB_STORAGE}/u-boot/"
rm -rf "$uboottempdir"
fi
}3.2 compile_kernel
compile_kernel()
{
if [[ $CLEAN_LEVEL == *make* ]]; then
display_alert "Cleaning" "$LINUXSOURCEDIR" "info"
(cd ${LINUXSOURCEDIR}; make ARCH="${ARCHITECTURE}" clean >/dev/null 2>&1)
fi
if [[ $USE_OVERLAYFS == yes ]]; then
local kerneldir
kerneldir=$(overlayfs_wrapper "wrap" "$LINUXSOURCEDIR" "kernel_${LINUXFAMILY}_${BRANCH}")
else
local kerneldir="$LINUXSOURCEDIR"
fi
cd "${kerneldir}" || exit
rm -f localversion
# read kernel version
local version hash
version=$(grab_version "$kerneldir")
# read kernel git hash
hash=$(improved_git --git-dir="$kerneldir"/.git rev-parse HEAD)
# Apply a series of patches if a series file exists
if test -f "${EXTER}"/patch/kernel/${KERNELPATCHDIR}/series.conf; then
display_alert "series.conf file visible. Apply"
series_conf="${SRC}"/patch/kernel/${KERNELPATCHDIR}/series.conf
# apply_patch_series <target dir> <full path to series file>
apply_patch_series "${kerneldir}" "$series_conf"
fi
# build 3rd party drivers
# compilation_prepare
advanced_patch "kernel" "$KERNELPATCHDIR" "$BOARD" "" "$BRANCH" "$LINUXFAMILY-$BRANCH"
# create patch for manual source changes in debug mode
[[ $CREATE_PATCHES == yes ]] && userpatch_create "kernel"
# re-read kernel version after patching
local version
version=$(grab_version "$kerneldir")
display_alert "Compiling $BRANCH kernel" "$version" "info"
# compare with the architecture of the current Debian node
# if it matches we use the system compiler
if $(dpkg-architecture -e "${ARCH}"); then
display_alert "Native compilation"
elif [[ $(dpkg --print-architecture) == amd64 ]]; then
local toolchain
toolchain=$(find_toolchain "$KERNEL_COMPILER" "$KERNEL_USE_GCC")
[[ -z $toolchain ]] && exit_with_error "Could not find required toolchain" "${KERNEL_COMPILER}gcc $KERNEL_USE_GCC"
else
exit_with_error "Architecture [$ARCH] is not supported"
fi
display_alert "Compiler version" "${KERNEL_COMPILER}gcc $(eval env PATH="${toolchain}:${PATH}" "${KERNEL_COMPILER}gcc" -dumpversion)" "info"
# copy kernel config
if [[ $KERNEL_KEEP_CONFIG == yes && -f "${DEST}"/config/$LINUXCONFIG.config ]]; then
display_alert "Using previous kernel config" "${DEST}/config/$LINUXCONFIG.config" "info"
cp -p "${DEST}/config/${LINUXCONFIG}.config" .config
else
if [[ -f $USERPATCHES_PATH/$LINUXCONFIG.config ]]; then
display_alert "Using kernel config provided by user" "userpatches/$LINUXCONFIG.config" "info"
cp -p "${USERPATCHES_PATH}/${LINUXCONFIG}.config" .config
else
display_alert "Using kernel config file" "${EXTER}/config/kernel/$LINUXCONFIG.config" "info"
cp -p "${EXTER}/config/kernel/${LINUXCONFIG}.config" .config
fi
fi
call_extension_method "custom_kernel_config" << 'CUSTOM_KERNEL_CONFIG'
*Kernel .config is in place, still clean from git version*
Called after ${LINUXCONFIG}.config is put in place (.config).
Before any olddefconfig any Kconfig make is called.
A good place to customize the .config directly.
CUSTOM_KERNEL_CONFIG
# hack for deb builder. To pack what's missing in headers pack.
cp "$EXTER"/patch/misc/headers-debian-byteshift.patch /tmp
if [[ $KERNEL_CONFIGURE != yes ]]; then
if [[ $BRANCH == legacy && ! $BOARDFAMILY =~ "rockchip-rk3588"|"rockchip-rk356x" ]]; then
eval CCACHE_BASEDIR="$(pwd)" env PATH="${toolchain}:${PATH}" \
'make ARCH=$ARCHITECTURE CROSS_COMPILE="$CCACHE $KERNEL_COMPILER" silentoldconfig'
else
# TODO: check if required
eval CCACHE_BASEDIR="$(pwd)" env PATH="${toolchain}:${PATH}" \
'make ARCH=$ARCHITECTURE CROSS_COMPILE="$CCACHE $KERNEL_COMPILER" olddefconfig'
fi
else
eval CCACHE_BASEDIR="$(pwd)" env PATH="${toolchain}:${PATH}" \
'make $CTHREADS ARCH=$ARCHITECTURE CROSS_COMPILE="$CCACHE $KERNEL_COMPILER" oldconfig'
eval CCACHE_BASEDIR="$(pwd)" env PATH="${toolchain}:${PATH}" \
'make $CTHREADS ARCH=$ARCHITECTURE CROSS_COMPILE="$CCACHE $KERNEL_COMPILER" ${KERNEL_MENUCONFIG:-menuconfig}'
[[ ${PIPESTATUS[0]} -ne 0 ]] && exit_with_error "Error kernel menuconfig failed"
# store kernel config in easily reachable place
display_alert "Exporting new kernel config" "$DEST/config/$LINUXCONFIG.config" "info"
cp .config "${DEST}/config/${LINUXCONFIG}.config"
cp .config "${EXTER}/config/kernel/${LINUXCONFIG}.config"
# export defconfig too if requested
if [[ $KERNEL_EXPORT_DEFCONFIG == yes ]]; then
eval CCACHE_BASEDIR="$(pwd)" env PATH="${toolchain}:${PATH}" \
'make ARCH=$ARCHITECTURE CROSS_COMPILE="$CCACHE $KERNEL_COMPILER" savedefconfig'
[[ -f defconfig ]] && cp defconfig "${DEST}/config/${LINUXCONFIG}.defconfig"
fi
fi
# create linux-source package - with already patched sources
# We will build this package first and clear the memory.
if [[ $BUILD_KSRC != no ]]; then
create_linux-source_package
fi
echo -e "\n\t== kernel ==\n" >> "${DEST}"/${LOG_SUBPATH}/compilation.log
eval CCACHE_BASEDIR="$(pwd)" env PATH="${toolchain}:${PATH}" \
'make $CTHREADS ARCH=$ARCHITECTURE \
CROSS_COMPILE="$CCACHE $KERNEL_COMPILER" \
$SRC_LOADADDR \
LOCALVERSION="-$LINUXFAMILY" \
$KERNEL_IMAGE_TYPE ${KERNEL_EXTRA_TARGETS:-modules dtbs} 2>>$DEST/${LOG_SUBPATH}/compilation.log' \
${PROGRESS_LOG_TO_FILE:+' | tee -a $DEST/${LOG_SUBPATH}/compilation.log'} \
${OUTPUT_DIALOG:+' | dialog --backtitle "$backtitle" \
--progressbox "Compiling kernel..." $TTY_Y $TTY_X'} \
${OUTPUT_VERYSILENT:+' >/dev/null 2>/dev/null'}
if [[ ${PIPESTATUS[0]} -ne 0 || ! -f arch/$ARCHITECTURE/boot/$KERNEL_IMAGE_TYPE ]]; then
grep -i error $DEST/${LOG_SUBPATH}/compilation.log
exit_with_error "Kernel was not built" "@host"
fi
# different packaging for 4.3+
if linux-version compare "${version}" ge 4.3; then
local kernel_packing="bindeb-pkg"
else
local kernel_packing="deb-pkg"
fi
#if [[ $BRANCH == legacy && $LINUXFAMILY =~ sun50iw2|sun50iw6|sun50iw9 ]]; then
# make -C modules/gpu LICHEE_MOD_DIR=${SRC}/.tmp/gpu_modules_${LINUXFAMILY} LICHEE_KDIR=${kerneldir} CROSS_COMPILE=$toolchain/$KERNEL_COMPILER ARCH=$ARCHITECTURE
#fi
display_alert "Creating packages"
# produce deb packages: image, headers, firmware, dtb
echo -e "\n\t== deb packages: image, headers, firmware, dtb ==\n" >> "${DEST}"/${LOG_SUBPATH}/compilation.log
eval CCACHE_BASEDIR="$(pwd)" env PATH="${toolchain}:${PATH}" \
'make $CTHREADS $kernel_packing \
KDEB_PKGVERSION=$REVISION \
KDEB_COMPRESS=${DEB_COMPRESS} \
BRANCH=$BRANCH \
LOCALVERSION="-${LINUXFAMILY}" \
KBUILD_DEBARCH=$ARCH \
ARCH=$ARCHITECTURE \
DEBFULLNAME="$MAINTAINER" \
DEBEMAIL="$MAINTAINERMAIL" \
CROSS_COMPILE="$CCACHE $KERNEL_COMPILER" 2>>$DEST/${LOG_SUBPATH}/compilation.log' \
${PROGRESS_LOG_TO_FILE:+' | tee -a $DEST/${LOG_SUBPATH}/compilation.log'} \
${OUTPUT_DIALOG:+' | dialog --backtitle "$backtitle" --progressbox "Creating kernel packages..." $TTY_Y $TTY_X'} \
${OUTPUT_VERYSILENT:+' >/dev/null 2>/dev/null'}
cd .. || exit
# remove firmare image packages here - easier than patching ~40 packaging scripts at once
rm -f linux-firmware-image-*.deb
rsync --remove-source-files -rq ./*.deb "${DEB_STORAGE}/" || exit_with_error "Failed moving kernel DEBs"
}3.3 compile_firmware
compile_firmware()
{
display_alert "Merging and packaging linux firmware" "@host" "info"
local firmwaretempdir plugin_dir
firmwaretempdir=$(mktemp -d)
chmod 700 ${firmwaretempdir}
trap "ret=\$?; rm -rf \"${firmwaretempdir}\" ; exit \$ret" 0 1 2 3 15
plugin_dir="orangepi-firmware${FULL}"
mkdir -p "${firmwaretempdir}/${plugin_dir}/lib/firmware"
[[ $IGNORE_UPDATES != yes ]] && fetch_from_repo "https://github.com/orangepi-xunlong/firmware" "${EXTER}/cache/sources/orangepi-firmware-git" "branch:master"
if [[ -n $FULL ]]; then
[[ $IGNORE_UPDATES != yes ]] && fetch_from_repo "$MAINLINE_FIRMWARE_SOURCE" "${EXTER}/cache/sources/linux-firmware-git" "branch:master"
# cp : create hardlinks
cp -af --reflink=auto "${EXTER}"/cache/sources/linux-firmware-git/* "${firmwaretempdir}/${plugin_dir}/lib/firmware/"
fi
# overlay our firmware
# cp : create hardlinks
cp -af --reflink=auto "${EXTER}"/cache/sources/orangepi-firmware-git/* "${firmwaretempdir}/${plugin_dir}/lib/firmware/"
# cleanup what's not needed for sure
rm -rf "${firmwaretempdir}/${plugin_dir}"/lib/firmware/{amdgpu,amd-ucode,radeon,nvidia,matrox,.git}
cd "${firmwaretempdir}/${plugin_dir}" || exit
# set up control file
mkdir -p DEBIAN
cat <<-END > DEBIAN/control
Package: orangepi-firmware${FULL}
Version: $REVISION
Architecture: all
Maintainer: $MAINTAINER <$MAINTAINERMAIL>
Installed-Size: 1
Replaces: linux-firmware, firmware-brcm80211, firmware-ralink, firmware-samsung, firmware-realtek, orangepi-firmware${REPLACE}
Section: kernel
Priority: optional
Description: Linux firmware${FULL}
END
cd "${firmwaretempdir}" || exit
# pack
mv "orangepi-firmware${FULL}" "orangepi-firmware${FULL}_${REVISION}_all"
display_alert "Building firmware package" "orangepi-firmware${FULL}_${REVISION}_all" "info"
fakeroot dpkg-deb -b -Z${DEB_COMPRESS} "orangepi-firmware${FULL}_${REVISION}_all" >> "${DEST}"/${LOG_SUBPATH}/install.log 2>&1
mv "orangepi-firmware${FULL}_${REVISION}_all" "orangepi-firmware${FULL}"
rsync -rq "orangepi-firmware${FULL}_${REVISION}_all.deb" "${DEB_STORAGE}/"
# remove temp directory
rm -rf "${firmwaretempdir}"
}四、main.sh分析
main.sh脚本位于<SDK>/scripts目录下，该脚本比较重要，可以认为就是编译的主程序。
这里我们去掉一些非重点代码(比如docker)，内容如下：
点击查看代码
#!/bin/bash
#
# Copyright (c) 2013-2021 Igor Pecovnik, igor.pecovnik@gma**.com
#
# This file is licensed under the terms of the GNU General Public
# License version 2. This program is licensed "as is" without any
# warranty of any kind, whether express or implied.
#
# Main program
#
cleanup_list() {
local varname="${1}"
local list_to_clean="${!varname}"
list_to_clean="${list_to_clean#"${list_to_clean%%[![:space:]]*}"}"
list_to_clean="${list_to_clean%"${list_to_clean##*[![:space:]]}"}"
echo ${list_to_clean}
}
# default umask for root is 022 so parent directories won't be group writeable without this
# this is used instead of making the chmod in prepare_host() recursive
# 设置文件创建的默认权限
umask 002
# destination 确定目标路径
if [ -d "$CONFIG_PATH/output" ]; then
DEST="${CONFIG_PATH}"/output
else
DEST="${SRC}"/output
fi
# 进入
[[ -z $REVISION ]] && REVISION="3.0.8"
# 进入
[[ $DOWNLOAD_MIRROR == "china" ]] && NTP_SERVER="cn.pool.ntp.org"
# 进入，根据终端的当前尺寸设置 TTY_X(宽度)和 TTY_Y(高度)
if [[ $BUILD_ALL != "yes" ]]; then
# override stty size
[[ -n $COLUMNS ]] && stty cols $COLUMNS
[[ -n $LINES ]] && stty rows $LINES
TTY_X=$(($(stty size | awk '{print $2}')-6)) # determine terminal width
TTY_Y=$(($(stty size | awk '{print $1}')-6)) # determine terminal height
fi

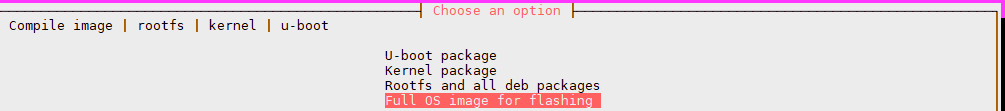

# We'll use this title on all menus 设置标题和菜单
backtitle="Orange Pi building script, http://www.orangepi.org"
titlestr="Choose an option"
# Warnings mitigation 设置语言和终端的字符集编码
[[ -z $LANGUAGE ]] && export LANGUAGE="en_US:en" # set to english if not set
[[ -z $CONSOLE_CHAR ]] && export CONSOLE_CHAR="UTF-8" # set console to UTF-8 if not set
# Libraries include
# shellcheck source=debootstrap.sh
source "${SRC}"/scripts/debootstrap.sh # system specific install
# shellcheck source=image-helpers.sh
source "${SRC}"/scripts/image-helpers.sh # helpers for OS image building
# shellcheck source=distributions.sh
source "${SRC}"/scripts/distributions.sh # system specific install
# shellcheck source=desktop.sh
source "${SRC}"/scripts/desktop.sh # desktop specific install
# shellcheck source=compilation.sh
source "${SRC}"/scripts/compilation.sh # patching and compilation of kernel, uboot, ATF
# shellcheck source=compilation-prepare.sh
#source "${SRC}"/scripts/compilation-prepare.sh # drivers that are not upstreamed
# shellcheck source=makeboarddeb.sh
source "${SRC}"/scripts/makeboarddeb.sh # board support package
# shellcheck source=general.sh
source "${SRC}"/scripts/general.sh # general functions
# shellcheck source=chroot-buildpackages.sh
source "${SRC}"/scripts/chroot-buildpackages.sh # chroot packages building
# shellcheck source=pack.sh
source "${SRC}"/scripts/pack-uboot.sh
# set log path 设置输出日志路径
LOG_SUBPATH=${LOG_SUBPATH:=debug}
# compress and remove old logs
mkdir -p "${DEST}"/${LOG_SUBPATH}
(cd "${DEST}"/${LOG_SUBPATH} && tar -czf logs-"$(<timestamp)".tgz ./*.log) > /dev/null 2>&1
rm -f "${DEST}"/${LOG_SUBPATH}/*.log > /dev/null 2>&1
date +"%d_%m_%Y-%H_%M_%S" > "${DEST}"/${LOG_SUBPATH}/timestamp
# delete compressed logs older than 7 days
(cd "${DEST}"/${LOG_SUBPATH} && find . -name '*.tgz' -mtime +7 -delete) > /dev/null
# 设置缓存目录
SHOW_WARNING=yes
if [[ $USE_CCACHE != no ]]; then
CCACHE=ccache
export PATH="/usr/lib/ccache:$PATH"
# private ccache directory to avoid permission issues when using build script with "sudo"
# see https://ccache.samba.org/manual.html#_sharing_a_cache for alternative solution
[[ $PRIVATE_CCACHE == yes ]] && export CCACHE_DIR=$EXTER/cache/ccache
else
CCACHE=""
fi
# if BUILD_OPT, KERNEL_CONFIGURE, BOARD, BRANCH or RELEASE are not set, display selection menu
# 创建了一个用户界面，用户可以从菜单中选择构建选项(u-boot、kernel、rootfs、image)
if [[ -z $BUILD_OPT ]]; then
options+=("u-boot" "U-boot package")
options+=("kernel" "Kernel package")
options+=("rootfs" "Rootfs and all deb packages")
options+=("image" "Full OS image for flashing")
menustr="Compile image | rootfs | kernel | u-boot"
BUILD_OPT=$(whiptail --title "${titlestr}" --backtitle "${backtitle}" --notags \
--menu "${menustr}" "${TTY_Y}" "${TTY_X}" $((TTY_Y - 8)) \
--cancel-button Exit --ok-button Select "${options[@]}" \
3>&1 1>&2 2>&3)
unset options
[[ -z $BUILD_OPT ]] && exit_with_error "No option selected"
[[ $BUILD_OPT == rootfs ]] && ROOT_FS_CREATE_ONLY="yes"
fi
# 如果选择了kernel或image则进入，选择内核配置
if [[ ${BUILD_OPT} =~ kernel|image ]]; then
if [[ -z $KERNEL_CONFIGURE ]]; then
options+=("no" "Do not change the kernel configuration")
options+=("yes" "Show a kernel configuration menu before compilation")
menustr="Select the kernel configuration."
KERNEL_CONFIGURE=$(whiptail --title "${titlestr}" --backtitle "$backtitle" --notags \
--menu "${menustr}" $TTY_Y $TTY_X $((TTY_Y - 8)) \
--cancel-button Exit --ok-button Select "${options[@]}" \
3>&1 1>&2 2>&3)
unset options
[[ -z $KERNEL_CONFIGURE ]] && exit_with_error "No option selected"
fi
fi
# 进入，选择开发板型号
if [[ -z $BOARD ]]; then
#options+=("orangepir1" "Allwinner H2+ quad core 256MB RAM WiFi SPI 2xETH")
#options+=("orangepizero" "Allwinner H2+ quad core 256MB/512MB RAM WiFi SPI")
#options+=("orangepipc" "Allwinner H3 quad core 1GB RAM")
#options+=("orangepipcplus" "Allwinner H3 quad core 1GB RAM WiFi eMMC")
#options+=("orangepione" "Allwinner H3 quad core 512MB RAM")
#options+=("orangepilite" "Allwinner H3 quad core 512MB RAM WiFi")
#options+=("orangepiplus" "Allwinner H3 quad core 1GB/2GB RAM WiFi GBE eMMC")
#options+=("orangepiplus2e" "Allwinner H3 quad core 2GB RAM WiFi GBE eMMC")
#options+=("orangepizeroplus2h3" "Allwinner H3 quad core 512MB RAM WiFi/BT eMMC")
#options+=("orangepipch5" "Allwinner H5 quad core 1GB RAM")
#options+=("orangepipc2" "Allwinner H5 quad core 1GB RAM GBE SPI")
#options+=("orangepioneh5" "Allwinner H5 quad core 512MB/1GB RAM")
#options+=("orangepiprime" "Allwinner H5 quad core 2GB RAM GBE WiFi/BT")
#options+=("orangepizeroplus" "Allwinner H5 quad core 512MB RAM GBE WiFi SPI")
#options+=("orangepizeroplus2h5" "Allwinner H5 quad core 512MB RAM WiFi/BT eMMC")
options+=("orangepi3" "Allwinner H6 quad core 1GB/2GB RAM GBE WiFi/BT eMMC USB3")
options+=("orangepi3-lts" "Allwinner H6 quad core 2GB RAM GBE WiFi/BT-AW859A eMMC USB3")
#options+=("orangepilite2" "Allwinner H6 quad core 1GB RAM WiFi/BT USB3")
#options+=("orangepioneplus" "Allwinner H6 quad core 1GB RAM GBE")
options+=("orangepizero2" "Allwinner H616 quad core 512MB/1GB RAM WiFi/BT GBE SPI")
#options+=("orangepizero2-b" "Allwinner H616 quad core 512MB/1GB RAM WiFi/BT GBE SPI")
#options+=("orangepizero2-lts" "Allwinner H616 quad core 1.5GB RAM WiFi/BT GBE SPI")
options+=("orangepizero3" "Allwinner H618 quad core 1GB/1.5GB/2GB/4GB RAM WiFi/BT GBE SPI")
options+=("orangepizero2w" "Allwinner H618 quad core 1GB/1.5GB/2GB/4GB RAM WiFi/BT SPI")
#options+=("orangepir1b" "Allwinner H618 quad core 1.5GB/2GB/4GB RAM WiFi/BT GBE SPI")
#options+=("orangepi400" "Allwinner H616 quad core 4GB RAM WiFi/BT GBE eMMC VGA")
options+=("orangepi4" "Rockchip RK3399 hexa core 4GB RAM GBE eMMC USB3 USB-C WiFi/BT")
options+=("orangepi4-lts" "Rockchip RK3399 hexa core 4GB RAM GBE eMMC USB3 USB-C WiFi/BT")
options+=("orangepi800" "Rockchip RK3399 hexa core 4GB RAM GBE eMMC USB3 USB-C WiFi/BT VGA")
options+=("orangepi5" "Rockchip RK3588S octa core 4-16GB RAM GBE USB3 USB-C NVMe")
options+=("orangepicm5" "Rockchip RK3588S octa core 4-16GB RAM GBE USB3 USB-C")
options+=("orangepicm5-tablet" "Rockchip RK3588S octa core 4-16GB RAM USB3 USB-C WiFi/BT")
options+=("orangepi5b" "Rockchip RK3588S octa core 4-16GB RAM GBE USB3 USB-C WiFi/BT eMMC")
#options+=("orangepitab" "Rockchip RK3588S octa core 4-16GB RAM USB-C WiFi/BT NVMe")
#options+=("orangepi900" "Rockchip RK3588 octa core 4-16GB RAM 2.5GBE USB3 USB-C WiFi/BT NVMe")
options+=("orangepi5pro" "Rockchip RK3588S octa core 4-16GB RAM GBE USB3 WiFi/BT NVMe eMMC")
options+=("orangepi5max" "Rockchip RK3588 octa core 4-16GB RAM 2.5GBE USB3 WiFi/BT NVMe eMMC")
options+=("orangepi5plus" "Rockchip RK3588 octa core 4-32GB RAM 2.5GBE USB3 USB-C WiFi/BT NVMe eMMC")
options+=("orangepicm4" "Rockchip RK3566 quad core 2-8GB RAM GBE eMMC USB3 NvMe WiFi/BT")
options+=("orangepi3b" "Rockchip RK3566 quad core 2-8GB RAM GBE eMMC USB3 NvMe WiFi/BT")
#options+=("orangepir1plus" "Rockchip RK3328 quad core 1GB RAM 2xGBE USB2 SPI")
#options+=("orangepi3plus" "Amlogic S905D3 quad core 2/4GB RAM SoC eMMC GBE USB3 SPI WiFi/BT")
menustr="Please choose a Board."
BOARD=$(whiptail --title "${titlestr}" --backtitle "${backtitle}" \
--menu "${menustr}" "${TTY_Y}" "${TTY_X}" $((TTY_Y - 8)) \
--cancel-button Exit --ok-button Select "${options[@]}" \
3>&1 1>&2 2>&3)
unset options
[[ -z $BOARD ]] && exit_with_error "No option selected"
fi
# 加载板载配置文件external/config/boards/orangepi3b.conf
BOARD_TYPE="conf"
# shellcheck source=/dev/null
source "${EXTER}/config/boards/${BOARD}.${BOARD_TYPE}"
LINUXFAMILY="${BOARDFAMILY}"
[[ -z $KERNEL_TARGET ]] && exit_with_error "Board configuration does not define valid kernel config"
# 进入，选择内核版本
if [[ -z $BRANCH ]]; then
options=()
[[ $KERNEL_TARGET == *current* ]] && options+=("current" "Recommended. Come with best support")
[[ $KERNEL_TARGET == *legacy* ]] && options+=("legacy" "Old stable / Legacy")
[[ $KERNEL_TARGET == *next* ]] && options+=("next" "Use the latest kernel")
menustr="Select the target kernel branch\nExact kernel versions depend on selected board"
# do not display selection dialog if only one kernel branch is available
if [[ "${#options[@]}" == 2 ]]; then
BRANCH="${options[0]}"
else
BRANCH=$(whiptail --title "${titlestr}" --backtitle "${backtitle}" \
--menu "${menustr}" "${TTY_Y}" "${TTY_X}" $((TTY_Y - 8)) \
--cancel-button Exit --ok-button Select "${options[@]}" \
3>&1 1>&2 2>&3)
fi
unset options
[[ -z $BRANCH ]] && exit_with_error "No kernel branch selected"
[[ $BRANCH == dev && $SHOW_WARNING == yes ]] && show_developer_warning
fi
# 如果选择了kernel或image，并且未设置RELEASE则进入选择Linux发行版的类型
if [[ $BUILD_OPT =~ rootfs|image && -z $RELEASE ]]; then
options=()
distros_options
menustr="Select the target OS release package base"
RELEASE=$(whiptail --title "Choose a release package base" --backtitle "${backtitle}" \
--menu "${menustr}" "${TTY_Y}" "${TTY_X}" $((TTY_Y - 8)) \
--cancel-button Exit --ok-button Select "${options[@]}" \
3>&1 1>&2 2>&3)
#echo "options : ${options}"
[[ -z $RELEASE ]] && exit_with_error "No release selected"
unset options
fi
# don't show desktop option if we choose minimal build，如果设置了Minimal版本版本
[[ $BUILD_MINIMAL == yes ]] && BUILD_DESKTOP=no
# 选择镜像的类型，有桌面和无桌面
if [[ $BUILD_OPT =~ rootfs|image && -z $BUILD_DESKTOP ]]; then
# read distribution support status which is written to the orangepi-release file
set_distribution_status
options=()
options+=("no" "Image with console interface (server)")
options+=("yes" "Image with desktop environment")
menustr="Select the target image type"
BUILD_DESKTOP=$(whiptail --title "Choose image type" --backtitle "${backtitle}" \
--menu "${menustr}" "${TTY_Y}" "${TTY_X}" $((TTY_Y - 8)) \
--cancel-button Exit --ok-button Select "${options[@]}" \
3>&1 1>&2 2>&3)
unset options
[[ -z $BUILD_DESKTOP ]] && exit_with_error "No option selected"
if [[ ${BUILD_DESKTOP} == "yes" ]]; then
BUILD_MINIMAL=no
SELECTED_CONFIGURATION="desktop"
fi
fi
# 对于无桌面的镜像，选择Standard版本或者Minimal版本
if [[ $BUILD_OPT =~ rootfs|image && $BUILD_DESKTOP == no && -z $BUILD_MINIMAL ]]; then
options=()
options+=("no" "Standard image with console interface")
options+=("yes" "Minimal image with console interface")
menustr="Select the target image type"
BUILD_MINIMAL=$(whiptail --title "Choose image type" --backtitle "${backtitle}" \
--menu "${menustr}" "${TTY_Y}" "${TTY_X}" $((TTY_Y - 8)) \
--cancel-button Exit --ok-button Select "${options[@]}" \
3>&1 1>&2 2>&3)
unset options
[[ -z $BUILD_MINIMAL ]] && exit_with_error "No option selected"
if [[ $BUILD_MINIMAL == "yes" ]]; then
SELECTED_CONFIGURATION="cli_minimal"
else
SELECTED_CONFIGURATION="cli_standard"
fi
fi
#prevent conflicting setup 处理冲突配置
if [[ $BUILD_DESKTOP == "yes" ]]; then
BUILD_MINIMAL=no
SELECTED_CONFIGURATION="desktop"
elif [[ $BUILD_MINIMAL != "yes" || -z "${BUILD_MINIMAL}" ]]; then
BUILD_MINIMAL=no # Just in case BUILD_MINIMAL is not defined
BUILD_DESKTOP=no
SELECTED_CONFIGURATION="cli_standard"
elif [[ $BUILD_MINIMAL == "yes" ]]; then
BUILD_DESKTOP=no
SELECTED_CONFIGURATION="cli_minimal"
fi
#shellcheck source=configuration.sh
source "${SRC}"/scripts/configuration.sh
# optimize build time with 100% CPU usage 定系统中的CPU核心数，并根据USEALLCORES的设置动态调整并行编译线程数
CPUS=$(grep -c 'processor' /proc/cpuinfo)
if [[ $USEALLCORES != no ]]; then
CTHREADS="-j$((CPUS + CPUS/2))"
else
CTHREADS="-j1"
fi
call_extension_method "post_determine_cthreads" "config_post_determine_cthreads" << 'POST_DETERMINE_CTHREADS'
*give config a chance modify CTHREADS programatically. A build server may work better with hyperthreads-1 for example.*
Called early, before any compilation work starts.
POST_DETERMINE_CTHREADS
if [[ $BETA == yes ]]; then
IMAGE_TYPE=nightly
elif [[ $BETA != "yes" && $BUILD_ALL == yes && -n $GPG_PASS ]]; then
IMAGE_TYPE=stable
else
IMAGE_TYPE=user-built # 走这里
fi
branch2dir() {
[[ "${1}" == "head" ]] && echo "HEAD" || echo "${1##*:}"
}
BOOTSOURCEDIR="${BOOTDIR}/$(branch2dir "${BOOTBRANCH}")"
LINUXSOURCEDIR="${KERNELDIR}/$(branch2dir "${KERNELBRANCH}")"
[[ -n $ATFSOURCE ]] && ATFSOURCEDIR="${ATFDIR}/$(branch2dir "${ATFBRANCH}")"
BSP_CLI_PACKAGE_NAME="orangepi-bsp-cli-${BOARD}"
BSP_CLI_PACKAGE_FULLNAME="${BSP_CLI_PACKAGE_NAME}_${REVISION}_${ARCH}"
BSP_DESKTOP_PACKAGE_NAME="orangepi-bsp-desktop-${BOARD}"
BSP_DESKTOP_PACKAGE_FULLNAME="${BSP_DESKTOP_PACKAGE_NAME}_${REVISION}_${ARCH}"
CHOSEN_UBOOT=linux-u-boot-${BRANCH}-${BOARD}
CHOSEN_KERNEL=linux-image-${BRANCH}-${LINUXFAMILY}
CHOSEN_ROOTFS=${BSP_CLI_PACKAGE_NAME}
CHOSEN_DESKTOP=orangepi-${RELEASE}-desktop-${DESKTOP_ENVIRONMENT}
CHOSEN_KSRC=linux-source-${BRANCH}-${LINUXFAMILY}
do_default() {
start=$(date +%s)
# Check and install dependencies, directory structure and settings
# The OFFLINE_WORK variable inside the function
prepare_host
[[ "${JUST_INIT}" == "yes" ]] && exit 0
[[ $CLEAN_LEVEL == *sources* ]] && cleaning "sources"
# fetch_from_repo <url> <dir> <ref> <subdir_flag>
# ignore updates help on building all images - for internal purposes
if [[ ${IGNORE_UPDATES} != yes ]]; then
display_alert "Downloading sources" "" "info"
[[ $BUILD_OPT =~ u-boot|image ]] && fetch_from_repo "$BOOTSOURCE" "$BOOTDIR" "$BOOTBRANCH" "yes"
[[ $BUILD_OPT =~ kernel|image ]] && fetch_from_repo "$KERNELSOURCE" "$KERNELDIR" "$KERNELBRANCH" "yes"
if [[ -n ${ATFSOURCE} ]]; then
[[ ${BUILD_OPT} =~ u-boot|image ]] && fetch_from_repo "$ATFSOURCE" "${EXTER}/cache/sources/$ATFDIR" "$ATFBRANCH" "yes"
fi
if [[ ${BOARDFAMILY} == "rockchip-rk356x" && $RELEASE =~ bullseye|focal|jammy|raspi ]]; then
[[ ${BUILD_OPT} == image ]] && fetch_from_repo "https://github.com/orangepi-xunlong/rk-rootfs-build.git" "${EXTER}/cache/sources/rk35xx_packages" "branch:rk35xx_packages"
fi
if [[ ${BOARD} =~ orangepi3|orangepi3-lts && $RELEASE =~ bullseye && $BRANCH == current ]]; then
[[ ${BUILD_OPT} == image ]] && fetch_from_repo "https://github.com/orangepi-xunlong/rk-rootfs-build.git" "${EXTER}/cache/sources/ffmpeg_kodi_${RELEASE}" "branch:ffmpeg_kodi_${RELEASE}"
fi
call_extension_method "fetch_sources_tools" <<- 'FETCH_SOURCES_TOOLS'
*fetch host-side sources needed for tools and build*
Run early to fetch_from_repo or otherwise obtain sources for needed tools.
FETCH_SOURCES_TOOLS
call_extension_method "build_host_tools" <<- 'BUILD_HOST_TOOLS'
*build needed tools for the build, host-side*
After sources are fetched, build host-side tools needed for the build.
BUILD_HOST_TOOLS
if [[ ${BOARDFAMILY} == "rockchip-rk3588" ]]; then
local rkbin_url="https://github.com/orangepi-xunlong/rk-rootfs-build/raw/rkbin/rk35"
wget -nc -P ${EXTER}/cache/sources/rkbin-tools/rk35/ ${rkbin_url}/rk3588_bl31_v1.45_20240422.elf
fi
fi
for option in $(tr ',' ' ' <<< "$CLEAN_LEVEL"); do
[[ $option != sources ]] && cleaning "$option"
done
# Compile u-boot if packed .deb does not exist or use the one from Orange Pi
if [[ $BUILD_OPT == u-boot || $BUILD_OPT == image ]]; then
if [[ ! -f "${DEB_STORAGE}"/u-boot/${CHOSEN_UBOOT}_${REVISION}_${ARCH}.deb ]]; then
[[ -n "${ATFSOURCE}" && "${REPOSITORY_INSTALL}" != *u-boot* ]] && compile_atf
[[ ${REPOSITORY_INSTALL} != *u-boot* ]] && compile_uboot
fi
if [[ $BUILD_OPT == "u-boot" ]]; then
unset BUILD_MINIMAL BUILD_DESKTOP COMPRESS_OUTPUTIMAGE
display_alert "U-boot build done" "@host" "info"
display_alert "Target directory" "${DEB_STORAGE}/u-boot" "info"
display_alert "File name" "${CHOSEN_UBOOT}_${REVISION}_${ARCH}.deb" "info"
fi
fi
# Compile kernel if packed .deb does not exist or use the one from Orange Pi
if [[ $BUILD_OPT == kernel || $BUILD_OPT == image ]]; then
if [[ ! -f ${DEB_STORAGE}/${CHOSEN_KERNEL}_${REVISION}_${ARCH}.deb ]]; then
KDEB_CHANGELOG_DIST=$RELEASE
[[ "${REPOSITORY_INSTALL}" != *kernel* ]] && compile_kernel
fi
if [[ $BUILD_OPT == "kernel" ]]; then
unset BUILD_MINIMAL BUILD_DESKTOP COMPRESS_OUTPUTIMAGE
display_alert "Kernel build done" "@host" "info"
display_alert "Target directory" "${DEB_STORAGE}/" "info"
display_alert "File name" "${CHOSEN_KERNEL}_${REVISION}_${ARCH}.deb" "info"
fi
fi
if [[ $BUILD_OPT == rootfs || $BUILD_OPT == image ]]; then
# Compile orangepi-config if packed .deb does not exist or use the one from Orange Pi
if [[ ! -f ${DEB_STORAGE}/orangepi-config_${REVISION}_all.deb ]]; then
[[ "${REPOSITORY_INSTALL}" != *orangepi-config* ]] && compile_orangepi-config
fi
# Compile orangepi-zsh if packed .deb does not exist or use the one from repository
if [[ ! -f ${DEB_STORAGE}/orangepi-zsh_${REVISION}_all.deb ]]; then
[[ "${REPOSITORY_INSTALL}" != *orangepi-zsh* ]] && compile_orangepi-zsh
fi
# Compile plymouth-theme-orangepi if packed .deb does not exist or use the one from repository
if [[ ! -f ${DEB_STORAGE}/plymouth-theme-orangepi_${REVISION}_all.deb ]]; then
[[ "${REPOSITORY_INSTALL}" != *plymouth-theme-orangepi* ]] && compile_plymouth-theme-orangepi
fi
# Compile orangepi-firmware if packed .deb does not exist or use the one from repository
if [[ "${REPOSITORY_INSTALL}" != *orangepi-firmware* ]]; then
if ! ls "${DEB_STORAGE}/orangepi-firmware_${REVISION}_all.deb" 1> /dev/null 2>&1; then
FULL=""
REPLACE="-full"
compile_firmware
fi
fi
overlayfs_wrapper "cleanup"
# create board support package
[[ -n $RELEASE && ! -f ${DEB_STORAGE}/$RELEASE/${BSP_CLI_PACKAGE_FULLNAME}.deb ]] && create_board_package
# create desktop package
[[ -n $RELEASE && $DESKTOP_ENVIRONMENT ]] && create_desktop_package
[[ -n $RELEASE && $DESKTOP_ENVIRONMENT ]] && create_bsp_desktop_package
# build additional packages
[[ $EXTERNAL_NEW == compile ]] && chroot_build_packages
[[ $BSP_BUILD != yes ]] && debootstrap_ng
fi
# hook for function to run after build, i.e. to change owner of $SRC
# NOTE: this will run only if there were no errors during build process
[[ $(type -t run_after_build) == function ]] && run_after_build || true
end=$(date +%s)
runtime=$(((end-start)/60))
display_alert "Runtime" "$runtime min" "info"
# Make it easy to repeat build by displaying build options used
[ "$(systemd-detect-virt)" == 'docker' ] && BUILD_CONFIG='docker'
display_alert "Repeat Build Options" "sudo ./build.sh ${BUILD_CONFIG} BOARD=${BOARD} BRANCH=${BRANCH} \
$([[ -n $BUILD_OPT ]] && echo "BUILD_OPT=${BUILD_OPT} ")\
$([[ -n $RELEASE ]] && echo "RELEASE=${RELEASE} ")\
$([[ -n $BUILD_MINIMAL ]] && echo "BUILD_MINIMAL=${BUILD_MINIMAL} ")\
$([[ -n $BUILD_DESKTOP ]] && echo "BUILD_DESKTOP=${BUILD_DESKTOP} ")\
$([[ -n $KERNEL_CONFIGURE ]] && echo "KERNEL_CONFIGURE=${KERNEL_CONFIGURE} ")\
$([[ -n $DESKTOP_ENVIRONMENT ]] && echo "DESKTOP_ENVIRONMENT=${DESKTOP_ENVIRONMENT} ")\
$([[ -n $DESKTOP_ENVIRONMENT_CONFIG_NAME ]] && echo "DESKTOP_ENVIRONMENT_CONFIG_NAME=${DESKTOP_ENVIRONMENT_CONFIG_NAME} ")\
$([[ -n $DESKTOP_APPGROUPS_SELECTED ]] && echo "DESKTOP_APPGROUPS_SELECTED=\"${DESKTOP_APPGROUPS_SELECTED}\" ")\
$([[ -n $DESKTOP_APT_FLAGS_SELECTED ]] && echo "DESKTOP_APT_FLAGS_SELECTED=\"${DESKTOP_APT_FLAGS_SELECTED}\" ")\
$([[ -n $COMPRESS_OUTPUTIMAGE ]] && echo "COMPRESS_OUTPUTIMAGE=${COMPRESS_OUTPUTIMAGE} ")\
" "ext"
} # end of do_default()
if [[ -z $1 ]]; then
do_default
else
eval "$@"
f接下来我们针对该脚本内容从上往下依次分析。
4.1 确定目标路径
确定编译输出目标路径，设置为<SDK>/output；
# destination 确定目标路径
if [ -d "$CONFIG_PATH/output" ]; then
DEST="${CONFIG_PATH}"/output
else
DEST="${SRC}"/output # 走这里
fi4.2 加载若干脚本函数
接着是使用source命令执行若干*.sh脚本，脚本均位于<SDK>/scripts目录下；
# shellcheck source=debootstrap.sh
source "${SRC}"/scripts/debootstrap.sh # system specific install
# shellcheck source=image-helpers.sh
source "${SRC}"/scripts/image-helpers.sh # helpers for OS image building
# shellcheck source=distributions.sh
source "${SRC}"/scripts/distributions.sh # system specific install
# shellcheck source=desktop.sh
source "${SRC}"/scripts/desktop.sh # desktop specific install
# shellcheck source=compilation.sh
source "${SRC}"/scripts/compilation.sh # patching and compilation of kernel, uboot, ATF
# shellcheck source=compilation-prepare.sh
#source "${SRC}"/scripts/compilation-prepare.sh # drivers that are not upstreamed
# shellcheck source=makeboarddeb.sh
source "${SRC}"/scripts/makeboarddeb.sh # board support package
# shellcheck source=general.sh
source "${SRC}"/scripts/general.sh # general functions
# shellcheck source=chroot-buildpackages.sh
source "${SRC}"/scripts/chroot-buildpackages.sh # chroot packages building
# shellcheck source=pack.sh
source "${SRC}"/scripts/pack-uboot.sh这些脚本都是定义了若干个函数，这些脚本中定义的函数将会被加载到当前shell中。
4.3 设置日志路径
接着设置日志输出路径：
# set log path
LOG_SUBPATH=${LOG_SUBPATH:=debug}
# compress and remove old logs 创建目录
mkdir -p "${DEST}"/${LOG_SUBPATH}
# 压缩并删除旧的日志文件，并将其压缩后的文件存档
(cd "${DEST}"/${LOG_SUBPATH} && tar -czf logs-"$(<timestamp)".tgz ./*.log) > /dev/null 2>&1
rm -f "${DEST}"/${LOG_SUBPATH}/*.log > /dev/null 2>&1
date +"%d_%m_%Y-%H_%M_%S" > "${DEST}"/${LOG_SUBPATH}/timestamp
# delete compressed logs older than 7 days 删除超过一周的旧日志压缩文件
(cd "${DEST}"/${LOG_SUBPATH} && find . -name '*.tgz' -mtime +7 -delete) > /dev/null日志输出路径被设置为debug，位于<SDK>/output目录下;
root@ubuntu:/work/sambashare/rk3566/orangepi-build$ ll output/debug/
-rw-rw-r-- 1 root sudo 6100 7月 10 15:24 logs-10_07_2024-14_20_17.tgz
-rw-rw-r-- 1 root sudo 246 7月 10 15:26 logs-10_07_2024-15_24_55.tgz
-rw-rw-r-- 1 root sudo 254 7月 10 15:30 logs-10_07_2024-15_26_21.tgz
-rw-rw-r-- 1 root sudo 2253 7月 10 15:42 logs-10_07_2024-15_30_06.tgz
-rw-rw-r-- 1 root sudo 6296 7月 10 16:53 logs-10_07_2024-15_42_43.tgz
-rw-rw-r-- 1 root sudo 246 7月 10 16:55 logs-10_07_2024-16_53_05.tgz
-rw-rw-r-- 1 root sudo 4630 7月 10 17:40 logs-10_07_2024-16_55_36.tgz
-rw-rw-r-- 1 root sudo 3659 7月 10 17:45 logs-10_07_2024-17_40_27.tgz
-rw-rw-r-- 1 root sudo 3714 7月 10 17:57 logs-10_07_2024-17_45_03.tgz
-rw-rw-r-- 1 root sudo 30427 7月 10 20:20 logs-10_07_2024-17_57_14.tgz
-rw-rw-r-- 1 root root 45 7月 10 14:20 logs-.tgz
-rw-rw-r-- 1 root sudo 198 7月 10 20:20 output.log
-rw-rw-r-- 1 root root 20 7月 10 20:20 timestamp在该路径下存放在一周内的编译日志。
4.4 设置缓存路径
这段脚本片段的作用是根据条件设置ccache的相关环境变量和路径：
SHOW_WARNING=yes
if [[ $USE_CCACHE != no ]]; then
CCACHE=ccache
export PATH="/usr/lib/ccache:$PATH"
# private ccache directory to avoid permission issues when using build script with "sudo"
# see https://ccache.samba.org/manual.html#_sharing_a_cache for alternative solution
[[ $PRIVATE_CCACHE == yes ]] && export CCACHE_DIR=$EXTER/cache/ccache
else
CCACHE=""
fi由于未设置USE_CCACHE，因此CCACHE=""。
4.5 选择编译选项
接着创建了一个用户界面，用户可以从菜单中选择构建选项(u-boot、kernel、rootfs、image)；
# if BUILD_OPT, KERNEL_CONFIGURE, BOARD, BRANCH or RELEASE are not set, display selection menu
if [[ -z $BUILD_OPT ]]; then
options+=("u-boot" "U-boot package")
options+=("kernel" "Kernel package")
options+=("rootfs" "Rootfs and all deb packages")
options+=("image" "Full OS image for flashing")
menustr="Compile image | rootfs | kernel | u-boot"
BUILD_OPT=$(whiptail --title "${titlestr}" --backtitle "${backtitle}" --notags \
--menu "${menustr}" "${TTY_Y}" "${TTY_X}" $((TTY_Y - 8)) \
--cancel-button Exit --ok-button Select "${options[@]}" \
3>&1 1>&2 2>&3)
unset options
# 未选择，则退出
[[ -z $BUILD_OPT ]] && exit_with_error "No option selected"
[[ $BUILD_OPT == rootfs ]] && ROOT_FS_CREATE_ONLY="yes"
fi假如我们选择了Full OS image for flashing，则会设置BUILD_OPT=image；
4.6 选择内核配置
假如上一步我们选择了Linux镜像，接下来会让我们选择内核配置；
if [[ ${BUILD_OPT} =~ kernel|image ]]; then
if [[ -z $KERNEL_CONFIGURE ]]; then
options+=("no" "Do not change the kernel configuration")
options+=("yes" "Show a kernel configuration menu before compilation")
menustr="Select the kernel configuration."
KERNEL_CONFIGURE=$(whiptail --title "${titlestr}" --backtitle "$backtitle" --notags \
--menu "${menustr}" $TTY_Y $TTY_X $((TTY_Y - 8)) \
--cancel-button Exit --ok-button Select "${options[@]}" \
3>&1 1>&2 2>&3)
unset options
[[ -z $KERNEL_CONFIGURE ]] && exit_with_error "No option selected"
fi
fi如果不需要修改内核配置，则选择第一个即可，如果需要修改内核配置，则选择第二个；
假如我们选择了第一个，那么KERNEL_CONFIGURE=no。
4.7 选择开发板型号
接着是选择开发板的型号；
if [[ -z $BOARD ]]; then
#options+=("orangepir1" "Allwinner H2+ quad core 256MB RAM WiFi SPI 2xETH")
#options+=("orangepizero" "Allwinner H2+ quad core 256MB/512MB RAM WiFi SPI")
#options+=("orangepipc" "Allwinner H3 quad core 1GB RAM")
#options+=("orangepipcplus" "Allwinner H3 quad core 1GB RAM WiFi eMMC")
#options+=("orangepione" "Allwinner H3 quad core 512MB RAM")
#options+=("orangepilite" "Allwinner H3 quad core 512MB RAM WiFi")
......
options+=("orangepi3b" "Rockchip RK3566 quad core 2-8GB RAM GBE eMMC USB3 NvMe WiFi/BT")
#options+=("orangepir1plus" "Rockchip RK3328 quad core 1GB RAM 2xGBE USB2 SPI")
#options+=("orangepi3plus" "Amlogic S905D3 quad core 2/4GB RAM SoC eMMC GBE USB3 SPI WiFi/BT")
menustr="Please choose a Board."
BOARD=$(whiptail --title "${titlestr}" --backtitle "${backtitle}" \
--menu "${menustr}" "${TTY_Y}" "${TTY_X}" $((TTY_Y - 8)) \
--cancel-button Exit --ok-button Select "${options[@]}" \
3>&1 1>&2 2>&3)
unset options
[[ -z $BOARD ]] && exit_with_error "No option selected"
fi假如我们选择了orangepi3b，那么将会设置BOARD=orangepi3b。
4.8 加载板载配置
假如我们选择的开发板型号为orangepi3b，那么将会加载板载配置文件external/config/boards/orangepi3b.conf；
BOARD_TYPE="conf"
# shellcheck source=/dev/null
source "${EXTER}/config/boards/${BOARD}.${BOARD_TYPE}"
# 设置为rockchip-rk356x
LINUXFAMILY="${BOARDFAMILY}"
# 不会进入
[[ -z $KERNEL_TARGET ]] && exit_with_error "Board configuration does not define valid kernel config"orangepi3b.conf内容如下：
# Rockchip RK3566 hexa core 4GB RAM SoC GBE eMMC USB3 USB-C WiFi/BT
BOARD_NAME="OPI 3B"
BOARDFAMILY="rockchip-rk356x"
BOOTCONFIG="orangepi-3b-rk3566_defconfig"
KERNEL_TARGET="legacy,current"
BOOT_LOGO="desktop"
BOOT_SUPPORT_SPI="yes"
DISTRIB_TYPE_LEGACY="focal jammy bullseye bookworm raspi"
BOOTFS_TYPE="fat"
IMAGE_PARTITION_TABLE="gpt"
REVISION="1.0.6"4.9 选择内核版本
接着是选择内核版本；
# 进入，选择源码分支
if [[ -z $BRANCH ]]; then
# 定义数组
options=()
# 根据支持项定义菜单选项
[[ $KERNEL_TARGET == *current* ]] && options+=("current" "Recommended. Come with best support")
[[ $KERNEL_TARGET == *legacy* ]] && options+=("legacy" "Old stable / Legacy")
[[ $KERNEL_TARGET == *next* ]] && options+=("next" "Use the latest kernel")
menustr="Select the target kernel branch\nExact kernel versions depend on selected board"
# do not display selection dialog if only one kernel branch is available
if [[ "${#options[@]}" == 2 ]]; then
BRANCH="${options[0]}"
else
BRANCH=$(whiptail --title "${titlestr}" --backtitle "${backtitle}" \
--menu "${menustr}" "${TTY_Y}" "${TTY_X}" $((TTY_Y - 8)) \
--cancel-button Exit --ok-button Select "${options[@]}" \
3>&1 1>&2 2>&3)
fi
unset options
[[ -z $BRANCH ]] && exit_with_error "No kernel branch selected"
[[ $BRANCH == dev && $SHOW_WARNING == yes ]] && show_developer_warning
fi由于KERNEL_TARGET="legacy,current"，因此支持的选项如下；
假如我们选择了current，那么BRANCH=current。
4.10 选择Linux发行版的类型
4.10.1 Linux发行版
首先是选择Linux发行版的类型；
if [[ $BUILD_OPT =~ rootfs|image && -z $RELEASE ]]; then
options=()
distros_options
menustr="Select the target OS release package base"
RELEASE=$(whiptail --title "Choose a release package base" --backtitle "${backtitle}" \
--menu "${menustr}" "${TTY_Y}" "${TTY_X}" $((TTY_Y - 8)) \
--cancel-button Exit --ok-button Select "${options[@]}" \
3>&1 1>&2 2>&3)
#echo "options : ${options}"
[[ -z $RELEASE ]] && exit_with_error "No release selected"
unset options
fidistros_options定义在general.sh中，用于获取Linux发行版的类型；
假如我们选择了bullseye Debian 11 Bullseye，那么RELEASE=bullseye 。
4.10.2 镜像类型
接着是选择镜像的类型；
if [[ $BUILD_OPT =~ rootfs|image && -z $BUILD_DESKTOP ]]; then
# read distribution support status which is written to the orangepi-release file
set_distribution_status
options=()
options+=("no" "Image with console interface (server)")
options+=("yes" "Image with desktop environment")
menustr="Select the target image type"
BUILD_DESKTOP=$(whiptail --title "Choose image type" --backtitle "${backtitle}" \
--menu "${menustr}" "${TTY_Y}" "${TTY_X}" $((TTY_Y - 8)) \
--cancel-button Exit --ok-button Select "${options[@]}" \
3>&1 1>&2 2>&3)
unset options
[[ -z $BUILD_DESKTOP ]] && exit_with_error "No option selected"
if [[ ${BUILD_DESKTOP} == "yes" ]]; then
BUILD_MINIMAL=no
SELECTED_CONFIGURATION="desktop"
fiImage with console interface (server)表示服务器版的镜像，体积比较小；
Image with desktop environmen表示带桌面的镜像，体积比较大。
如果我们选择Image with console interface (server)，BUILD_DESKTOP=no；
4.10.3 Standard/Minimal
如果是编译服务器版的镜像，还可以选择编译Standard版本或者Minimal版本，Minimal版本预装的软件会比Standard版本少很多(没特殊需求请不要选择Minimal版本，因为很多东西默认没有预装，部分功能可能用不了)；
if [[ $BUILD_OPT =~ rootfs|image && $BUILD_DESKTOP == no && -z $BUILD_MINIMAL ]]; then
options=()
options+=("no" "Standard image with console interface")
options+=("yes" "Minimal image with console interface")
menustr="Select the target image type"
BUILD_MINIMAL=$(whiptail --title "Choose image type" --backtitle "${backtitle}" \
--menu "${menustr}" "${TTY_Y}" "${TTY_X}" $((TTY_Y - 8)) \
--cancel-button Exit --ok-button Select "${options[@]}" \
3>&1 1>&2 2>&3)
unset options
[[ -z $BUILD_MINIMAL ]] && exit_with_error "No option selected"
if [[ $BUILD_MINIMAL == "yes" ]]; then
SELECTED_CONFIGURATION="cli_minimal"
else
SELECTED_CONFIGURATION="cli_standard"
fi
fi如果我们选择了Standard image with console interface，BUILD_MINIMAL=no；
4.11 加载configuration.sh
接着是使用source命令执行configuration.sh脚本，脚本位于<SDK>/scripts目录下，该脚本内容也比较多，后面我们单独介绍。
#shellcheck source=configuration.sh
source "${SRC}"/scripts/configuration.sh4.12 变量定义
接着是一些变量定义：
branch2dir() {
[[ "${1}" == "head" ]] && echo "HEAD" || echo "${1##*:}"
}
# <SDK>/u-boot/v2017.09-rk3588
BOOTSOURCEDIR="${BOOTDIR}/$(branch2dir "${BOOTBRANCH}")"
# <SDK>/u-boot/orange-pi-6.6-rk35xx
LINUXSOURCEDIR="${KERNELDIR}/$(branch2dir "${KERNELBRANCH}")"
[[ -n $ATFSOURCE ]] && ATFSOURCEDIR="${ATFDIR}/$(branch2dir "${ATFBRANCH}")"
# orangepi-bsp-cli-orangepi3b
BSP_CLI_PACKAGE_NAME="orangepi-bsp-cli-${BOARD}"
# orangepi-bsp-cli-orangepi3b_1.0.6_arm64
BSP_CLI_PACKAGE_FULLNAME="${BSP_CLI_PACKAGE_NAME}_${REVISION}_${ARCH}"
# orangepi-bsp-desktop--orangepi3b
BSP_DESKTOP_PACKAGE_NAME="orangepi-bsp-desktop-${BOARD}"
# orangepi-bsp-desktop--orangepi3b_1.0.6_arm64
BSP_DESKTOP_PACKAGE_FULLNAME="${BSP_DESKTOP_PACKAGE_NAME}_${REVISION}_${ARCH}"
# linux-u-boot-current-orangepi3b
CHOSEN_UBOOT=linux-u-boot-${BRANCH}-${BOARD}
# linux-image-current-rockchip-rk356x
CHOSEN_KERNEL=linux-image-${BRANCH}-${LINUXFAMILY}
# orangepi-bsp-cli-orangepi3b
CHOSEN_ROOTFS=${BSP_CLI_PACKAGE_NAME}
CHOSEN_DESKTOP=orangepi-${RELEASE}-desktop-${DESKTOP_ENVIRONMENT}
# linux-source-current-rockchip-rk356x
CHOSEN_KSRC=linux-source-${BRANCH}-${LINUXFAMILY}4.13 do_default
文件最后调用了do_default函数。
4.13.1 源码下载
首先是源码下载：
# fetch_from_repo <url> <dir> <ref> <subdir_flag>
# ignore updates help on building all images - for internal purposes
if [[ ${IGNORE_UPDATES} != yes ]]; then
display_alert "Downloading sources" "" "info"
[[ $BUILD_OPT =~ u-boot|image ]] && fetch_from_repo "$BOOTSOURCE" "$BOOTDIR" "$BOOTBRANCH" "yes"
[[ $BUILD_OPT =~ kernel|image ]] && fetch_from_repo "$KERNELSOURCE" "$KERNELDIR" "$KERNELBRANCH" "yes"
if [[ -n ${ATFSOURCE} ]]; then
[[ ${BUILD_OPT} =~ u-boot|image ]] && fetch_from_repo "$ATFSOURCE" "${EXTER}/cache/sources/$ATFDIR" "$ATFBRANCH" "yes"
fi
if [[ ${BOARDFAMILY} == "rockchip-rk356x" && $RELEASE =~ bullseye|focal|jammy|raspi ]]; then
[[ ${BUILD_OPT} == image ]] && fetch_from_repo "https://github.com/orangepi-xunlong/rk-rootfs-build.git" "${EXTER}/cache/sources/rk35xx_packages" "branch:rk35xx_packages"
fi
if [[ ${BOARD} =~ orangepi3|orangepi3-lts && $RELEASE =~ bullseye && $BRANCH == current ]]; then
[[ ${BUILD_OPT} == image ]] && fetch_from_repo "https://github.com/orangepi-xunlong/rk-rootfs-build.git" "${EXTER}/cache/sources/ffmpeg_kodi_${RELEASE}" "branch:ffmpeg_kodi_${RELEASE}"
fi
call_extension_method "fetch_sources_tools" <<- 'FETCH_SOURCES_TOOLS'
*fetch host-side sources needed for tools and build*
Run early to fetch_from_repo or otherwise obtain sources for needed tools.
FETCH_SOURCES_TOOLS
call_extension_method "build_host_tools" <<- 'BUILD_HOST_TOOLS'
*build needed tools for the build, host-side*
After sources are fetched, build host-side tools needed for the build.
BUILD_HOST_TOOLS
fi如果没有设置IGNORE_UPDATES="yes"，将会通过调用fetch_from_repo 依次下载：
u-boot：u-boot源码；kernel；内核源码；rootfs：从https://github.com/orangepi-xunlong/rk-rootfs-build.git下载根文件系统；
4.13.2 编译u-boot
# Compile u-boot if packed .deb does not exist or use the one from Orange Pi
if [[ $BUILD_OPT == u-boot || $BUILD_OPT == image ]]; then
if [[ ! -f "${DEB_STORAGE}"/u-boot/${CHOSEN_UBOOT}_${REVISION}_${ARCH}.deb ]]; then
[[ -n "${ATFSOURCE}" && "${REPOSITORY_INSTALL}" != *u-boot* ]] && compile_atf
[[ ${REPOSITORY_INSTALL} != *u-boot* ]] && compile_uboot
fi
if [[ $BUILD_OPT == "u-boot" ]]; then
unset BUILD_MINIMAL BUILD_DESKTOP COMPRESS_OUTPUTIMAGE
display_alert "U-boot build done" "@host" "info"
display_alert "Target directory" "${DEB_STORAGE}/u-boot" "info"
display_alert "File name" "${CHOSEN_UBOOT}_${REVISION}_${ARCH}.deb" "info"
fi
fi4.13.3 编译kernel
# Compile kernel if packed .deb does not exist or use the one from Orange Pi
if [[ $BUILD_OPT == kernel || $BUILD_OPT == image ]]; then
if [[ ! -f ${DEB_STORAGE}/${CHOSEN_KERNEL}_${REVISION}_${ARCH}.deb ]]; then
KDEB_CHANGELOG_DIST=$RELEASE
[[ "${REPOSITORY_INSTALL}" != *kernel* ]] && compile_kernel
fi
if [[ $BUILD_OPT == "kernel" ]]; then
unset BUILD_MINIMAL BUILD_DESKTOP COMPRESS_OUTPUTIMAGE
display_alert "Kernel build done" "@host" "info"
display_alert "Target directory" "${DEB_STORAGE}/" "info"
display_alert "File name" "${CHOSEN_KERNEL}_${REVISION}_${ARCH}.deb" "info"
fi
fi4.13.4 编译rootfs
if [[ $BUILD_OPT == rootfs || $BUILD_OPT == image ]]; then
# Compile orangepi-config if packed .deb does not exist or use the one from Orange Pi
if [[ ! -f ${DEB_STORAGE}/orangepi-config_${REVISION}_all.deb ]]; then
[[ "${REPOSITORY_INSTALL}" != *orangepi-config* ]] && compile_orangepi-config
fi
# Compile orangepi-zsh if packed .deb does not exist or use the one from repository
if [[ ! -f ${DEB_STORAGE}/orangepi-zsh_${REVISION}_all.deb ]]; then
[[ "${REPOSITORY_INSTALL}" != *orangepi-zsh* ]] && compile_orangepi-zsh
fi
# Compile plymouth-theme-orangepi if packed .deb does not exist or use the one from repository
if [[ ! -f ${DEB_STORAGE}/plymouth-theme-orangepi_${REVISION}_all.deb ]]; then
[[ "${REPOSITORY_INSTALL}" != *plymouth-theme-orangepi* ]] && compile_plymouth-theme-orangepi
fi
# Compile orangepi-firmware if packed .deb does not exist or use the one from repository
if [[ "${REPOSITORY_INSTALL}" != *orangepi-firmware* ]]; then
if ! ls "${DEB_STORAGE}/orangepi-firmware_${REVISION}_all.deb" 1> /dev/null 2>&1; then
FULL=""
REPLACE="-full"
compile_firmware
fi
fi
overlayfs_wrapper "cleanup"
# create board support package
[[ -n $RELEASE && ! -f ${DEB_STORAGE}/$RELEASE/${BSP_CLI_PACKAGE_FULLNAME}.deb ]] && create_board_package
# create desktop package
[[ -n $RELEASE && $DESKTOP_ENVIRONMENT ]] && create_desktop_package
[[ -n $RELEASE && $DESKTOP_ENVIRONMENT ]] && create_bsp_desktop_package
# build additional packages
[[ $EXTERNAL_NEW == compile ]] && chroot_build_packages
[[ $BSP_BUILD != yes ]] && debootstrap_ng
fi4.13.5 其它
# hook for function to run after build, i.e. to change owner of $SRC
# NOTE: this will run only if there were no errors during build process
[[ $(type -t run_after_build) == function ]] && run_after_build || true
end=$(date +%s)
runtime=$(((end-start)/60))
display_alert "Runtime" "$runtime min" "info"
# Make it easy to repeat build by displaying build options used
[ "$(systemd-detect-virt)" == 'docker' ] && BUILD_CONFIG='docker'
display_alert "Repeat Build Options" "sudo ./build.sh ${BUILD_CONFIG} BOARD=${BOARD} BRANCH=${BRANCH} \
$([[ -n $BUILD_OPT ]] && echo "BUILD_OPT=${BUILD_OPT} ")\
$([[ -n $RELEASE ]] && echo "RELEASE=${RELEASE} ")\
$([[ -n $BUILD_MINIMAL ]] && echo "BUILD_MINIMAL=${BUILD_MINIMAL} ")\
$([[ -n $BUILD_DESKTOP ]] && echo "BUILD_DESKTOP=${BUILD_DESKTOP} ")\
$([[ -n $KERNEL_CONFIGURE ]] && echo "KERNEL_CONFIGURE=${KERNEL_CONFIGURE} ")\
$([[ -n $DESKTOP_ENVIRONMENT ]] && echo "DESKTOP_ENVIRONMENT=${DESKTOP_ENVIRONMENT} ")\
$([[ -n $DESKTOP_ENVIRONMENT_CONFIG_NAME ]] && echo "DESKTOP_ENVIRONMENT_CONFIG_NAME=${DESKTOP_ENVIRONMENT_CONFIG_NAME} ")\
$([[ -n $DESKTOP_APPGROUPS_SELECTED ]] && echo "DESKTOP_APPGROUPS_SELECTED=\"${DESKTOP_APPGROUPS_SELECTED}\" ")\
$([[ -n $DESKTOP_APT_FLAGS_SELECTED ]] && echo "DESKTOP_APT_FLAGS_SELECTED=\"${DESKTOP_APT_FLAGS_SELECTED}\" ")\
$([[ -n $COMPRESS_OUTPUTIMAGE ]] && echo "COMPRESS_OUTPUTIMAGE=${COMPRESS_OUTPUTIMAGE} ")\
" "ext"4.15 变量值
按照上面的流程执行下来，其中一些变量的值如下；
DEST=<SDK>/output
CCACHE=""
BUILD_OPT="image"
KERNEL_CONFIGURE="no"
BOARD="orangepi3b"
RELEASE="bullseye"
BUILD_DESKTOP="no"
BUILD_MINIMAL="no"
扫一扫
99
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
