DocLayout-YOLO使用指南

在线体验：https://huggingface.co/spaces/opendatalab/DocLayout-YOLO

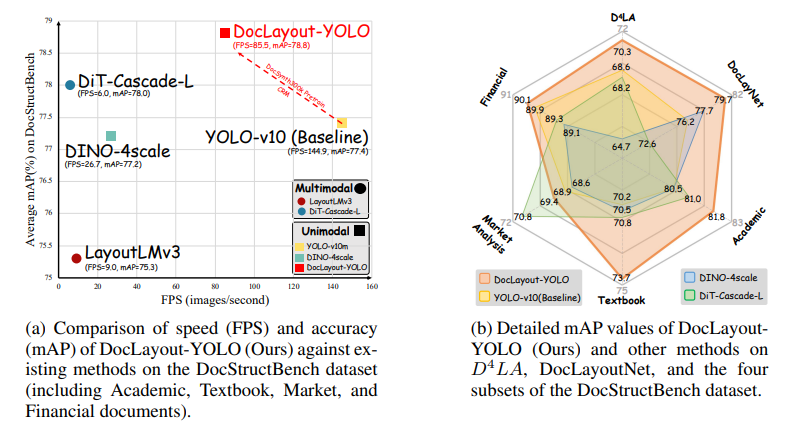

论文地址：https://arxiv.org/abs/2410.12628
代码地址：https://github.com/opendatalab/DocLayout-YOLO

一. 安装

由于我只想把DocLayout-YOLO当做工具使用，因此使用pip安装

pip install doclayout-yolo

二. 代码封装

import os
import cv2
import torch
from doclayout_yolo import YOLOv10


class DocLayoutYOLO(YOLOv10):
    def __init__(self, model_path="./doclayout_yolo_docstructbench_imgsz1024.pt"):
        super().__init__(model_path)
        self.model.names = {0: 'title', 1: 'plain text', 2: 'abandon', 3: 'figure', 4: 'figure_caption',
                      5: 'table', 6: 'table_caption', 7: 'table_footnote', 8: 'isolate_formula', 9: 'formula_caption'}
        self.model.device = 'cuda' if torch.cuda.is_available() else 'mps' if torch.backends.mps.is_available() else 'cpu'
        print(f"Using device: {self.model.device}")

    def predict(self, image_path, imgsz=1024, conf=0.5):
        results = super().predict(source=image_path, imgsz=imgsz, conf=conf, device=self.model.device)

        if results and len(results) > 0:
            result = results[0]
            boxes = result.boxes.xyxy
            cls = result.boxes.cls
            conf_scores = result.boxes.conf
            orig_img = result.orig_img

            class_names = []
            for i in range(len(boxes)):
                cls_name = self.model.names[int(cls[i])]
                class_names.append(cls_name)

            return boxes.int().tolist(), class_names, conf_scores.tolist(), orig_img
        else:
            return torch.int().empty(0, 4).tolist(), [], torch.empty(0).tolist(), None


def main():
    """
    测试示例
    """
    model = DocLayoutYOLO()
    boxes, names, conf, orig_img = model.predict("./test.jpeg")
    print(boxes)    # 框的坐标
    print(names)    # 框的类别
    print(conf)     # 框的置信度


if __name__ == "__main__":
    main()

三. 效果
