一、speaker verification简介
Speaker Verification——说话人验证属于声纹识别领域范畴——给定两个音频，判定它们是不是同一个人所说。这里有两种不同的类型，一种是基于文本有关的，一种是基于文本无关的。基于文本有关的——每次检验的是否是同一个人说话，需要受检者说出限定范围的文本；而基于文本无关的则不需要，可以随意说话。前者相对容易一点，后者相对困难一点。Speaker Verification核心之处在于模型能够提炼出不同人声音的特征，且要有很好的区分度。

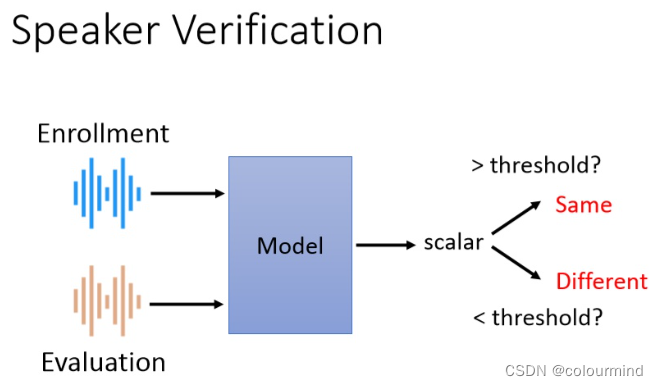

如上图所示，要判定Enrollment和Evaluation两个音频是不是同一个说话人，一般而言，可以把两个音频直接输入模型，训练一个分类模型，让模型来判定是不是同一个类别；也可以提前把Enrollment用训练好的模型提取出一个多维向量；等到Evaluation需要验证的时候，用模型同样提取响应特征向量，计算两个向量的向量度，根据阈值判定。在实际应用过程中，为了满足高效率，大多采用后者，提前把被检音频提取向量存储到对应的库中，然后检测音频实时抽取向量，计算向量，根据设定的阈值判定是否为同一个人。
在实际应用之前，需要对训练好的模型和整体的Speaker Verification系统进行评价。模型端评价根据建模的任务，一般采取F1值或者ACC、Recall等来评价。而评价实际的Speaker Verification系统，则有自己的一套评价体系和指标。主要是如下的评价指标：
FAR(False Accept Rate 错误接受率)
FRR(False Reject Rate错误拒绝率)
EER(Equal Error Rate 等错误率
FRR = Nfr/Ntarget 其中Nfr是指应该通过而被拒绝测试用例的数量，Ntarget 是指所有应该通过测试用例的总数
FAR = Nfa/Nnotarget 其中Nfa是指不应该通过也通过的测试用例的数量，Nnotarget 是指所有不应该通过测试用例的总数
EER 是指FAR==FRR时的错误率。它说话人确认系统中常用的性能评价指标
这个没有考虑错误接受以及错误拒绝不同的影响，因此为了把它们不同的影响也考虑起来，设计不同的权重，同时也把受检者是真是假的先验概率考虑进来，得到一个新的指标dcf。
PT真实说话人出现的先验概率，PI假的说话人出现的先验概率；越严格的系统PI/PT的值越大。比较常见的比值是1:99、1:999。
通过不断的调整阈值，DCF是会变化的，取最小的dcf的时候对应的阈值，会使得整个系统有最佳的表现。
二、主流方案和模型

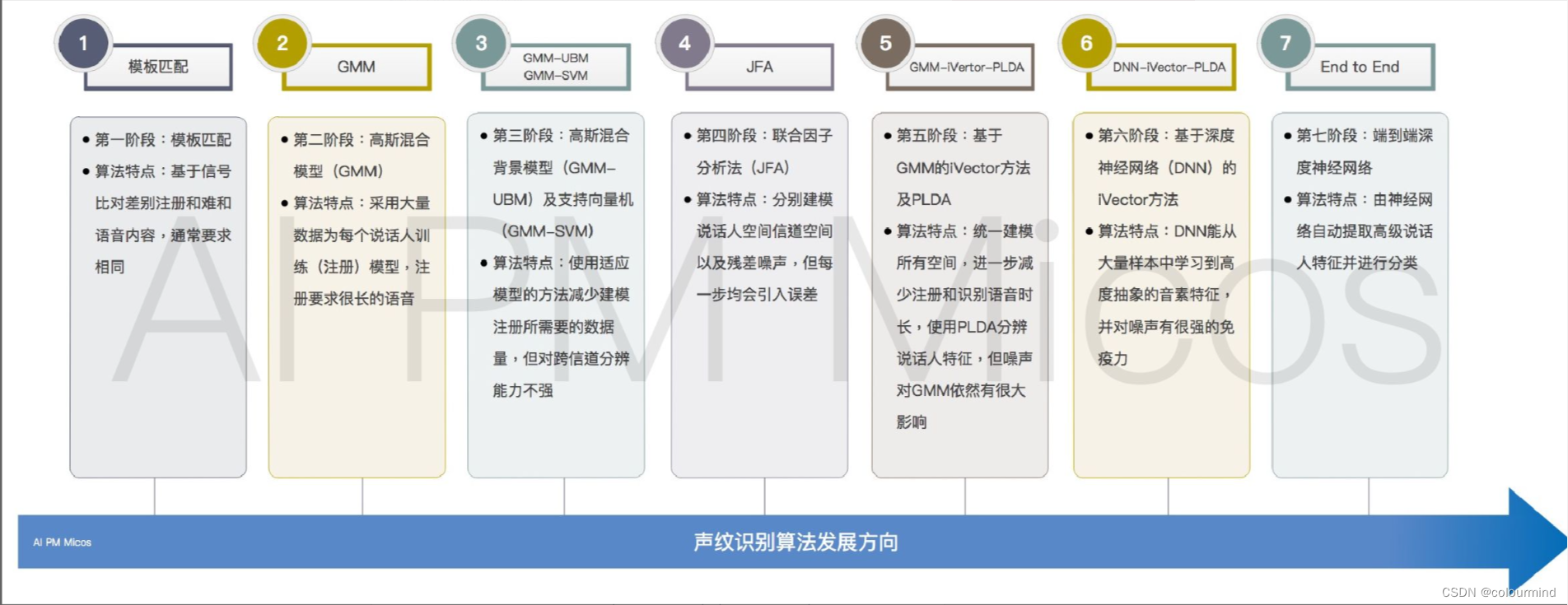

speaker verification发展了很多年，有许多的方案。传统的一些方案，主要是利用信号处理方式，把时序信号转换为频域信号，然后再通过一些手段进行区分。看一张计算方案的演进图(摘抄自知乎问答——声纹识别算法有哪几种)：
其中可能涉及到的声学特征有MFCC、FBank和Spectrogram等，以及对它的一些数据增强。时至2022年了，大家更加关注端到端的方案，使用神经网络自动提取声学特征。比较主流的是Ecapa_TDNN模型，它于2020年被提出，通过引入SE (squeeze-excitation)模块以及通道注意机制，该方案在国际声纹识别比赛（VoxSRC2020）中取得了第一名；同时在2022年的FFSVC说话人验证任务中，该模型也被作为baseline。另外就是预训练模型，在语音领域也有很多类似文本领域Bert的预训练模型，其中个人认为效果最好的就是WavLm模型。
1、Ecapa_TDNN模型

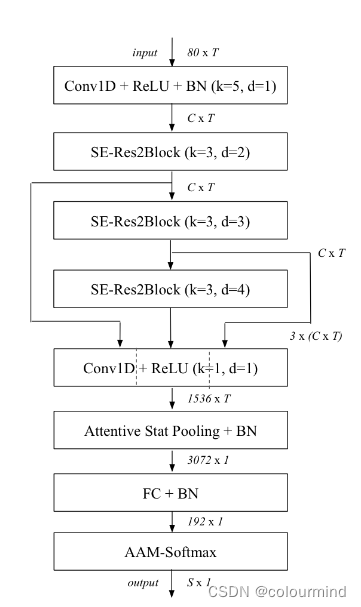

先看整体结构图：
可以看到ecapa_tdnn由conv1D+BN、SE-Res2Block、ASP+BN、FC+BN以及AAM-softmax等模块构成。其中SE-Res2Block能是模型学习到音频数据中更多的全局信息，这个比之前的d-vector效果更好。

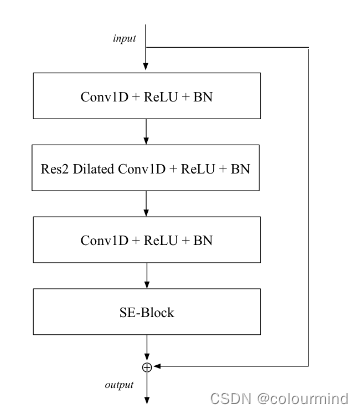

SE-Res2Block：
SE-Res2Block主要是Res2Block模块中引入了SE-Block模块——这是一个通道注意力模块，比较经典在各种网络中都表现的比较不错。
2、WavLm
它是微软亚洲研究院与微软 Azure 语音组使用Transformer模型架构和Denoising Masked Speech Modeling 框架直接对音频时序数据进行类似Bert的掩码预训练，使用了海量的音频数据进行了预训练，在语音任务上取得了很好的效果。

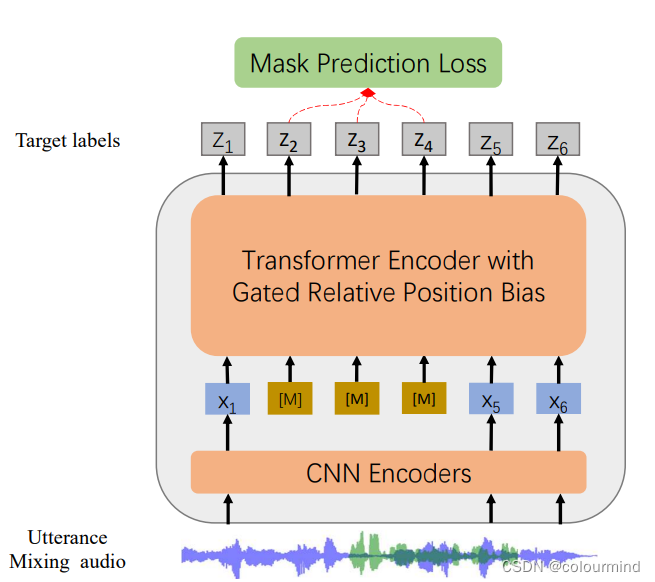

模型网络结构如图所示，特征抽取采用CNN网络层，然后特征编码采用transformer-block层，具体的模型细节这里就不分析了，可以把它看做为一个音频领域的bert，实现细节稍有不同，具体的实现可以去看huggingface的实现——WavLm和WavLmModel等。
三、代码实践
1、Ecapa_TDNN方案
a、模型结构
代码参考了百度的paddleSpeech中paddle版本和SpeechBrain中pytorch版本代码，并做了一些删减，同时也参考了一些个人的实现VoiceprintRecognition-Pytorch，对它们的代码进行了综合考量，得到下面的Ecapa_TDNN模型结构代码
import torch
import torch.nn as nn
import torch.nn.functional as F
from torch.nn import Parameter
class TDNNBlock(nn.Module):
"""An implementation of TDNN."""
def __init__(self, in_channels, out_channels, kernel_size, dilation, groups=1,padding=0):
super(TDNNBlock, self).__init__()
self.conv = nn.Conv1d(in_channels=in_channels,out_channels=out_channels,kernel_size=kernel_size, dilation=dilation,groups=groups,padding=padding)
self.activation = nn.ReLU()
self.bn = nn.BatchNorm1d(out_channels)
def forward(self,x):
x = self.conv(x)
x = self.activation(x)
x = self.bn(x)
return x
class Res2NetBlock(torch.nn.Module):
"""An implementation of Res2NetBlock w/ dilation.
Example
-------
inp_tensor = torch.rand([8, 120, 64]).transpose(1, 2)
layer = Res2NetBlock(64, 64, scale=4, dilation=3)
out_tensor = layer(inp_tensor).transpose(1, 2)
out_tensor.shape
torch.Size([8, 120, 64])
"""
def __init__(
self, in_channels, out_channels, scale=8, kernel_size=3, dilation=1,padding =0
):
super(Res2NetBlock, self).__init__()
assert in_channels % scale == 0
assert out_channels % scale == 0
in_channel = in_channels // scale
hidden_channel = out_channels // scale
self.blocks = nn.ModuleList(
[
TDNNBlock(
in_channel,
hidden_channel,
kernel_size=kernel_size,
dilation=dilation,
padding = padding
)
for i in range(scale - 1)
]
)
self.scale = scale
def forward(self, x):
y = []
for i, x_i in enumerate(torch.chunk(x, self.scale, dim=1)):
if i == 0:
y_i = x_i
elif i == 1:
y_i = self.blocks[i - 1](x_i)
else:
y_i = self.blocks[i - 1](x_i + y_i)
y.append(y_i)
y = torch.cat(y, dim=1)
return y
class SEBlock(nn.Module):
"""
省略了mask
"""
def __init__(self, in_channels, se_channels, out_channels):
super(SEBlock,self).__init__()
self.conv1 = nn.Conv1d(in_channels=in_channels, out_channels=se_channels, kernel_size=1)
self.relu = nn.ReLU(inplace=True)
self.conv2 = nn.Conv1d(in_channels=se_channels, out_channels=out_channels, kernel_size=1)
self.sigmoid = nn.Sigmoid()
def forward(self,x):
s = x.mean(dim=2, keepdim=True)
s = self.relu(self.conv1(s))
s = self.sigmoid(self.conv2(s))
out = s * x
return out
class SERes2NetBlock(nn.Module):
def __init__(self,in_channels,
out_channels,
res2net_scale=8,
se_channels=128,
kernel_size=1,
dilation=1,
groups=1,
padding = 0):
super(SERes2NetBlock, self).__init__()
self.out_channels = out_channels
self.tdnn1 = TDNNBlock(
in_channels,
out_channels,
kernel_size=1,
dilation=1,
groups=groups,
)
self.res2net_block = Res2NetBlock(
out_channels, out_channels, res2net_scale, kernel_size,padding, dilation
)
self.tdnn2 = TDNNBlock(
out_channels,
out_channels,
kernel_size=1,
dilation=1,
groups=groups,
)
self.se_block = SEBlock(out_channels, se_channels, out_channels)
self.shortcut = None
if in_channels != out_channels:
self.shortcut = nn.Conv1d(
in_channels=in_channels,
out_channels=out_channels,
kernel_size=1,
)
def forward(self, x):
""" Processes the input tensor x and returns an output tensor."""
residual = x
if self.shortcut:
residual = self.shortcut(x)
x = self.tdnn1(x)
x = self.res2net_block(x)
x = self.tdnn2(x)
x = self.se_block(x)
return x + residual
class AttentiveStatsPool(nn.Module):
def __init__(self, in_dim, bottleneck_dim):
super(AttentiveStatsPool,self).__init__()
# Use Conv1d with stride == 1 rather than Linear, then we don't need to transpose inputs.
self.linear1 = nn.Conv1d(in_dim, bottleneck_dim, kernel_size=1) # equals W and b in the paper
self.linear2 = nn.Conv1d(bottleneck_dim, in_dim, kernel_size=1) # equals V and k in the paper
def forward(self, x):
# DON'T use ReLU here! In experiments, I find ReLU hard to converge.
alpha = torch.tanh(self.linear1(x))
alpha = torch.softmax(self.linear2(alpha), dim=2)
mean = torch.sum(alpha * x, dim=2)
residuals = torch.sum(alpha * x ** 2, dim=2) - mean ** 2
std = torch.sqrt(residuals.clamp(min=1e-9))
return torch.cat([mean, std], dim=1)
class ECAPATDNN(nn.Module):
def __init__(self,
input_size,
lin_neurons=192,
channels=[512, 512, 512, 512, 1536],
kernel_sizes=[5, 3, 3, 3, 1],
dilations=[1, 2, 3, 4, 1],
attention_channels=128,
res2net_scale=8,
se_channels=128,
groups=[1, 1, 1, 1, 1],
paddings = [0,2,3,4,0]):
super(ECAPATDNN, self).__init__()
assert len(channels) == len(kernel_sizes)
assert len(channels) == len(dilations)
self.emb_size = lin_neurons
self.channels = channels
self.blocks = nn.ModuleList()
self.blocks.append(
TDNNBlock(
input_size,
channels[0],
kernel_sizes[0],
dilations[0],
groups[0]
)
)
for i in range(1,len(channels) -1):
self.blocks.append(
SERes2NetBlock(
channels[i-1],channels[i],res2net_scale, se_channels, kernel_sizes[i],dilations[i],groups[i],paddings[i]
)
)
self.mfa = TDNNBlock(
channels[-1],
channels[-1],
kernel_sizes[-1],
dilations[-1],
groups[-1]
)
self.asp = AttentiveStatsPool(channels[-1],attention_channels)
self.asp_bn = nn.BatchNorm1d(channels[-1] * 2)
self.fc = nn.Conv1d(
in_channels=channels[-1] * 2,
out_channels=lin_neurons,
kernel_size=1,
)
def forward(self,x):
xl = []
for layer in self.blocks:
x = layer(x)
xl.append(x)
# Multi-layer feature aggregation
x = torch.cat(xl[1:], dim=1)
x = x.data
x = self.mfa(x)
# Attentive Statistical Pooling
x = self.asp(x)
x = self.asp_bn(x)
x = x.unsqueeze(2)
# Final linear transformation
x = self.fc(x)
return x
class SpeakerIdentificationModel(nn.Module):
def __init__(self,backbone,num_class=1,dropout=0.1):
super(SpeakerIdentificationModel, self).__init__()
self.backbone = backbone
if dropout > 0:
self.dropout = nn.Dropout(dropout)
else:
self.dropout = None
input_size = self.backbone.emb_size
# the final layer nn.Linear 采用不同的权重初始化
self.weight = Parameter(torch.FloatTensor(num_class, input_size), requires_grad=True)
nn.init.xavier_normal_(self.weight, gain=1)
def forward(self,x):
x = self.backbone(x)
if self.dropout is not None:
x = self.dropout(x)
logits = F.linear(F.normalize(x.squeeze(2)),weight=F.normalize(self.weight,dim=-1))
return logits
b、loss
这部分代码摘抄自VoiceprintRecognition-Pytorch
Additive Angular Margin Loss（加性角度间隔损失函数）结合KLDivLoss(KL散度loss)得到最后的AAMloss
import math
import torch
import torch.nn as nn
import torch.nn.functional as F
class AdditiveAngularMargin(nn.Module):
def __init__(self, margin=0.0, scale=1.0, easy_margin=False):
"""The Implementation of Additive Angular Margin (AAM) proposed
in the following paper: '''Margin Matters: Towards More Discriminative Deep Neural Network Embeddings for Speaker Recognition'''
(https://arxiv.org/abs/1906.07317)
Args:
margin (float, optional): margin factor. Defaults to 0.0.
scale (float, optional): scale factor. Defaults to 1.0.
easy_margin (bool, optional): easy_margin flag. Defaults to False.
"""
super(AdditiveAngularMargin, self).__init__()
self.margin = margin
self.scale = scale
self.easy_margin = easy_margin
self.cos_m = math.cos(self.margin)
self.sin_m = math.sin(self.margin)
self.th = math.cos(math.pi - self.margin)
self.mm = math.sin(math.pi - self.margin) * self.margin
def forward(self, outputs, targets):
cosine = outputs.float()
sine = torch.sqrt(1.0 - torch.pow(cosine, 2))
phi = cosine * self.cos_m - sine * self.sin_m
if self.easy_margin:
phi = torch.where(cosine > 0, phi, cosine)
else:
phi = torch.where(cosine > self.th, phi, cosine - self.mm)
outputs = (targets * phi) + ((1.0 - targets) * cosine)
return self.scale * outputs
class AAMLoss(nn.Module):
def __init__(self, margin=0.2, scale=30, easy_margin=False):
super(AAMLoss, self).__init__()
self.loss_fn = AdditiveAngularMargin(margin=margin, scale=scale, easy_margin=easy_margin)
self.criterion = torch.nn.KLDivLoss(reduction="sum")
def forward(self, outputs, targets):
targets = F.one_hot(targets, outputs.shape[1]).float()
predictions = self.loss_fn(outputs, targets)
predictions = F.log_softmax(predictions, dim=1)
loss = self.criterion(predictions, targets) / targets.sum()
return lossc、数据处理
这部分代码功能是对wav或者mp3数据进行语音特征处理，比如fbank(melspectrogram)、spectrogram以及梅尔倒谱系数mffcc等等
import random
import torch
from torch.utils.data import Dataset
import torchaudio
from tqdm import tqdm
class AudioDataReader(Dataset):
def __init__(self, data_list_path,
feature_method='melspectrogram',
mode='train',
sr=16000,
chunk_duration=3,
min_duration=0.5,
label2ids = {},
augmentors=None):
super(AudioDataReader, self).__init__()
assert data_list_path is not None
with open(data_list_path,'r',encoding='utf-8') as f:
self.lines = f.readlines()[0:]
self.feature_method = feature_method
self.mode = mode
self.sr = sr
self.chunk_duration = chunk_duration
self.min_duration = min_duration
self.augmentors = augmentors
self.label2ids = label2ids
self.audiofeatures = self.getaudiofeatures()
def load_audio(self, audio_path,
feature_method='melspectrogram',
mode='train',
sr=16000,
chunk_duration=3,
min_duration=0.5,
augmentors=None):
"""
加载并预处理音频
:param audio_path: 音频路径
:param feature_method: 预处理方法melspectrogram(Fbank)梅尔频谱/MFCC梅尔倒谱系数/spectrogram声谱图
:param mode: 对数据处理的方式，包括train，eval，infer
:param sr: 采样率
:param chunk_duration: 训练或者评估使用的音频长度
:param min_duration: 最小训练或者评估的音频长度
:param augmentors: 数据增强方法
:return:
"""
wav, sample_rate = torchaudio.load(audio_path) # 加载音频返回的是张量
num_wav_samples = wav.shape[1]
# 数据太短不利于训练
if mode == 'train':
if num_wav_samples < int(min_duration * sr):
raise Exception(f'音频长度小于{min_duration}s，实际长度为：{(num_wav_samples / sr):.2f}s')
# print(f'音频长度小于{min_duration}s，实际长度为：{(num_wav_samples / sr):.2f}s')
# return None
# 对小于训练长度的复制补充
num_chunk_samples = int(chunk_duration * sr)
if num_wav_samples < num_chunk_samples:
times = int(num_chunk_samples / num_wav_samples) - 1
shortages = []
temp_num_wav_samples = num_wav_samples
shortages.append(wav)
if times >= 1:
for _ in range(times):
shortages.append(wav)
temp_num_wav_samples += num_wav_samples
shortages.append(wav[:,0:(num_chunk_samples - temp_num_wav_samples)])
else:
shortages.append(wav[:,0:(num_chunk_samples - num_wav_samples)])
wav = torch.cat(shortages, dim=1)
# 裁剪需要的数据
if mode == 'train':
# 随机裁剪
num_wav_samples = wav.shape[1]
num_chunk_samples = int(chunk_duration * sr)
if num_wav_samples > num_chunk_samples + 1:
start = random.randint(0, num_wav_samples - num_chunk_samples - 1)
end = start + num_chunk_samples
wav = wav[:,start:end]
# # 对每次都满长度的再次裁剪
# if random.random() > 0.5:
# wav[:random.randint(1, sr // 4)] = 0 #加入了静音数据
# wav = wav[:-random.randint(1, sr // 4)]
# 数据增强
if augmentors is not None:
for key, augmentor in augmentors.items():
if key == 'specaug':
continue
wav = wav.numpy()
#转换为numpy,然后做增强
wav = augmentor(wav)
wav = torch.from_numpy(wav)
elif mode == 'eval':
# 为避免显存溢出，只裁剪指定长度
num_wav_samples = wav.shape[1]
num_chunk_samples = int(chunk_duration * sr)
if num_wav_samples > num_chunk_samples + 1:
wav = wav[:,0:num_chunk_samples]
if feature_method == "melspectrogram":
# 梅尔频谱 Fbank
features = torchaudio.transforms.MelSpectrogram(sample_rate=sr, n_fft=400, n_mels=80, hop_length=160, win_length=400)(wav)
elif feature_method == "spectrogram":
# 声谱图
features = torchaudio.transforms.Spectrogram( n_fft=400, win_length=400, hop_length=160)(wav)
elif feature_method == "MFCC":
features = torchaudio.transforms.MFCC(sample_rate=sr, n_fft=400, n_mels=80, hop_length=160, win_length=400)(wav)
else:
raise Exception(f'预处理方法 {feature_method} 不存在！')
# 数据增强
if mode == 'train' and augmentors is not None:
for key, augmentor in augmentors.items():
if key == 'specaug':
features = augmentor(features)
# 需要归一化
features = torch.nn.LayerNorm(features.shape[-1])(features).squeeze(0)
return features
def getaudiofeatures(self):
res = []
for line in tqdm(self.lines,desc= self.mode + ' load all audios',ncols=100):
temp = []
try:
audio_path, label = line.replace('\n', '').split('\t')
label = self.label2ids[label]
features = self.load_audio(audio_path=audio_path, feature_method=self.feature_method, mode=self.mode,
sr=self.sr, chunk_duration=self.chunk_duration,
min_duration=self.min_duration,
augmentors=self.augmentors)
label = torch.as_tensor(label, dtype=torch.long)
temp.append(features)
temp.append(label)
res.append(temp)
except Exception as e:
print(e+',load audio data exception')
return res
@property
def input_size(self):
if self.feature_method == 'melspectrogram':
return 80
elif self.feature_method == 'spectrogram':
return 201
else:
raise Exception(f'预处理方法 {self.feature_method} 不存在！')
def __getitem__(self, item):
return self.audiofeatures[item][0], self.audiofeatures[item][1]
def __len__(self):
return len(self.audiofeatures)值得注意的是没有在__getitem__()函数中读取音频加载数据，而是直接全部加载到内存中，如果数据量过大还是要在_getitem__()函数中读取音频加载数据，减小内存消耗，当然训练速度会减慢。
d、模型训练和评估
数据集采用公共数据集：zhvoice: Chinese voice corpus中的zhstcmds数据
"zhstcmds": {
"character_W": 111.9317,
"duration_H": 74.53628,
"n_audio_per_speaker": 120.0,
"n_character_per_sentence": 10.909522417153998,
"n_minute_per_speaker": 5.230616140350877,
"n_second_per_audio": 2.6153080701754385,
"n_speaker": 855,
"sentence_W": 10.26,
"size_MB": 767.7000274658203
}总计104963条数据，随机切分，验证集10000条，训练集94963条数据。
训练代码如下
from models.loss import AAMLoss
from models.ecapa_tdnn import SpeakerIdentificationModel,ECAPATDNN
# from models.ecapa_tdnn import SpeakerIdetification,EcapaTdnn
from tools.log import Logger
from tools.progressbar import ProgressBar
from data_utils.reader import AudioDataReader
from data_utils.noise_perturb import NoisePerturbAugmentor
from data_utils.speed_perturb import SpeedPerturbAugmentor
from data_utils.volum_perturb import VolumePerturbAugmentor
from data_utils.spec_augment import SpecAugmentor
from torch.utils.data import DataLoader
import torch
import os
from torch.optim import AdamW
from torch.optim.lr_scheduler import CosineAnnealingLR
import argparse
import random
import numpy as np
from torch.utils.tensorboard import SummaryWriter
from datetime import datetime
import yaml
import torch.nn as nn
def parse_args():
parser = argparse.ArgumentParser()
parser.add_argument("--train_datas_path", type=str, default='./data/train_audio_paths.txt', help="train text file")
parser.add_argument("--val_datas_path", type=str, default='./data/val_audio_paths.txt', help="val text file")
# parser.add_argument("--train_datas_path", type=str, default='./data/train_audio_paths_small.txt', help="train text file")
# parser.add_argument("--val_datas_path", type=str, default='./data/val_audio_paths_small.txt', help="val text file")
parser.add_argument("--log_file", type=str, default="./log_output/speaker_identification.log", help="log_file")
parser.add_argument("--model_out", type=str, default="./output/", help="model output path")
parser.add_argument("--batch_size", type=int, default=64, help="batch size")
parser.add_argument("--epochs", type=int, default=30, help="epochs")
parser.add_argument("--lr", type=float, default=1e-3, help="epochs")
parser.add_argument("--random_seed", type=int, default=100, help="random_seed")
parser.add_argument("--device", type=str, default='1', help="device")
args = parser.parse_args()
return args
def training(args):
os.environ['CUDA_VISIBLE_DEVICES'] = args.device
logger = Logger(log_name='SI',log_level=10,log_file=args.log_file).logger
logger.info(args)
label2ids = {}
id = 0
with open(args.train_datas_path,'r',encoding='utf-8') as f:
lines = f.readlines()
for line in lines:
line = line.strip('\n')
if line.split('\t')[-1] not in label2ids:
label2ids[line.split('\t')[-1]] = id
id += 1
with open(args.val_datas_path,'r',encoding='utf-8') as f:
lines = f.readlines()
for line in lines:
line = line.strip('\n')
if line.split('\t')[-1] not in label2ids:
label2ids[line.split('\t')[-1]] = id
id += 1
augmentors = {}
with open("augment.ymal",'r', encoding="utf-8") as fp:
configs = yaml.load(fp, Loader=yaml.FullLoader)
augmentors['noise'] = NoisePerturbAugmentor(**configs['noise'])
augmentors['speed'] = SpeedPerturbAugmentor(**configs['speed'])
augmentors['volume'] = VolumePerturbAugmentor(**configs['volume'])
augmentors['specaug'] = SpecAugmentor(**configs['specaug'])
augmentors = None
time_srt = datetime.now().strftime('%Y-%m-%d')
save_path = os.path.join(args.model_out,time_srt)
if not os.path.exists(save_path):
os.makedirs(save_path)
logger.info(save_path)
device = "cuda:0" if torch.cuda.is_available() else "cpu"
train_dataset = AudioDataReader(feature_method='melspectrogram',data_list_path=args.train_datas_path,mode='train', label2ids=label2ids, augmentors=augmentors)
train_dataloader = DataLoader(train_dataset,shuffle=True,batch_size=args.batch_size )
val_dataset = AudioDataReader(feature_method='melspectrogram', data_list_path=args.val_datas_path, mode='eval', label2ids = label2ids,augmentors=augmentors)
val_dataloader = DataLoader(val_dataset, shuffle=True, batch_size=args.batch_size)
num_class = len(label2ids)
logger.info('num_class:%d'%num_class)
ecapa_tdnn = ECAPATDNN(input_size=train_dataset.input_size)
model = SpeakerIdentificationModel(backbone=ecapa_tdnn, num_class=num_class).to(device)
# ecapa_tdnn = EcapaTdnn(input_size=train_dataset.input_size)
# model = SpeakerIdetification(backbone=ecapa_tdnn, num_class=num_class).to(device)
# logger.info(model)
loss_function = AAMLoss()
optimizer = AdamW(lr=args.lr,params=model.parameters())
scheduler = CosineAnnealingLR(optimizer,T_max=args.epochs)
logger.info("***** Running training *****")
logger.info(" Num examples = %d" % len(train_dataloader))
logger.info(" Num Epochs = %d" % args.epochs)
writer = SummaryWriter('./runs/' + time_srt + '/')
best_acc = 0
total_step = 0
unimproving_count = 0
for epoch in range(args.epochs):
pbar = ProgressBar(n_total=len(train_dataloader), desc='Training')
model.train()
total_loss = 0
for step, batch in enumerate(train_dataloader):
batch = [t.to(device) for t in batch]
audio = batch[0]
speakers = batch[1]
output = model(audio)
loss = loss_function(output, speakers)
optimizer.zero_grad()
# loss.backward(retain_graph=True)
loss.backward()
optimizer.step()
total_step += 1
writer.add_scalar('Train/Learning loss', loss.item(), total_step)
total_loss += loss.item()
pbar(step, {'loss': loss.item()})
val_acc = evaluate(model, val_dataloader, device)
if best_acc < val_acc:
best_acc = val_acc
save_path = os.path.join(save_path,"ecapa_tdnn.bin")
torch.save(model.state_dict(),save_path)
is_improving = True
unimproving_count = 0
else:
is_improving = False
unimproving_count += 1
if is_improving:
logger.info(f"Train epoch [{epoch+1}/{args.epochs}],batch [{step+1}],Best_acc: {best_acc},Val_acc:{val_acc}, lr:{scheduler.get_lr()[0]}, total_loss:{round(total_loss,4)}. Save model!")
else:
logger.info(f"Train epoch [{epoch+1}/{args.epochs}],batch [{step+1}],Best_acc: {best_acc},Val_acc:{val_acc}, lr:{scheduler.get_lr()[0]}, total_loss:{round(total_loss,4)}.")
writer.add_scalar('Val/val_acc', val_acc, total_step)
writer.add_scalar('Val/best_acc', best_acc, total_step)
writer.add_scalar('Train/Learning rate', scheduler.get_lr()[0], total_step)
scheduler.step()
if unimproving_count >= 5:
logger.info('unimproving %d epochs, early stop!'%unimproving_count)
break
def evaluate(model,val_dataloader,device):
total = 0
correct_total = 0
model.eval()
with torch.no_grad():
pbar = ProgressBar(n_total=len(val_dataloader), desc='evaluate')
for step, batch in enumerate(val_dataloader):
batch = [t.to(device) for t in batch]
audio = batch[0]
speakers = batch[1]
output = model(audio)
total += speakers.shape[0]
preds = torch.argmax(output,dim=-1)
correct = (speakers==preds).sum().item()
pbar(step, {})
correct_total += correct
acc = correct_total/total
model.train()
return acc
def set_seed(seed):
torch.manual_seed(seed)
torch.cuda.manual_seed(seed)
np.random.seed(seed)
random.seed(seed)
torch.backends.cudnn.deterministic = True
def collate_fn(batch):
features,labels = zip(*batch)
return features
if __name__ == '__main__':
args = parse_args()
set_seed(args.random_seed)
training(args)

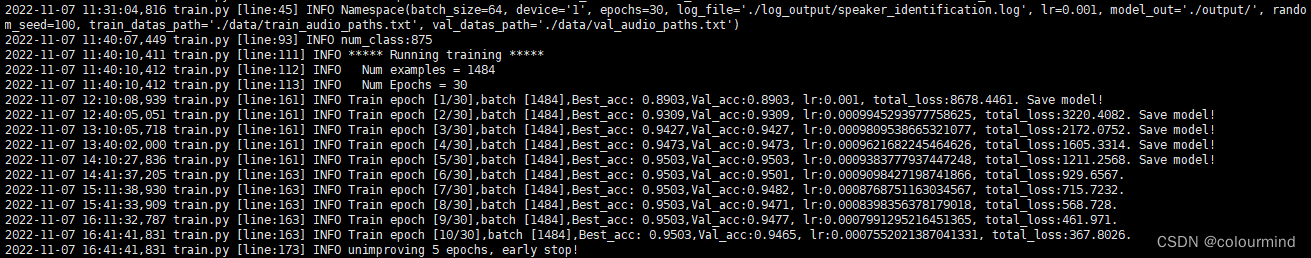

训练过程中采用的评估指标直接是分类准确率，日志如下：
验证集分类准确率是0.9503

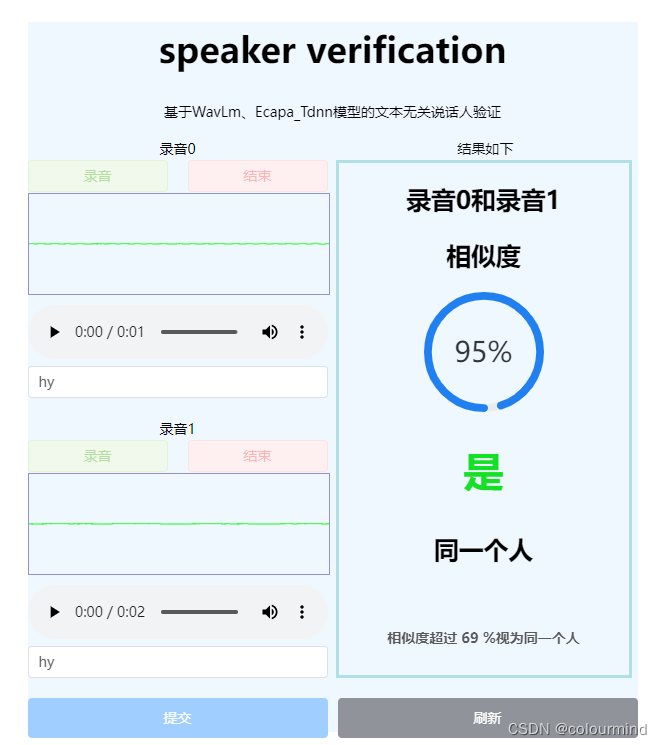

e、说话人验证推理

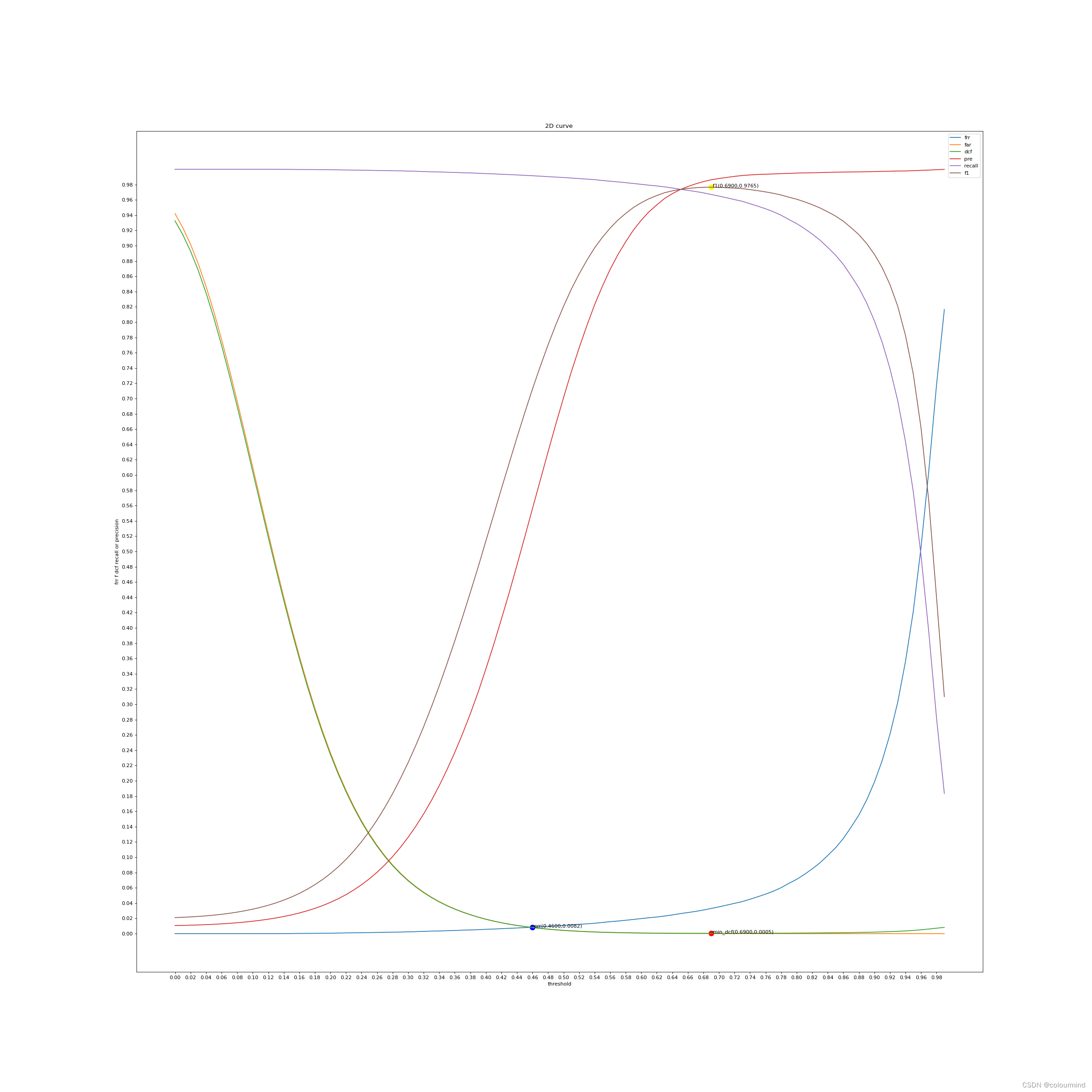

使用上述训练好的Ecapa_TDNN模型对经过数据处理后的音频数据抽取向量特征，计算相似度，通过设定的阈值来判定是否为同一个说话人，当然这里的阈值就需要经过构建的验证数据集进行搜索得到最佳阈值。
from models.ecapa_tdnn import SpeakerIdentificationModel,ECAPATDNN
from tools.log import Logger
from tools.progressbar import ProgressBar
from data_utils.reader import AudioDataReader
from data_utils.noise_perturb import NoisePerturbAugmentor
from data_utils.speed_perturb import SpeedPerturbAugmentor
from data_utils.volum_perturb import VolumePerturbAugmentor
from data_utils.spec_augment import SpecAugmentor
from torch.utils.data import DataLoader
import torch
import os
import argparse
import numpy as np
import yaml
from tqdm import tqdm
import matplotlib.pyplot as plt
import time
import random
random.seed(100)
def parse_args():
parser = argparse.ArgumentParser()
parser.add_argument("--train_datas_path", type=str, default='./data/train_audio_paths.txt', help="train text file")
parser.add_argument("--val_datas_path", type=str, default='./data/val_audio_paths.txt', help="val text file")
parser.add_argument("--log_file", type=str, default="./log_output/speaker_identification_evaluate.log", help="log_file")
parser.add_argument("--batch_size", type=int, default=64, help="batch size")
parser.add_argument("--random_seed", type=int, default=100, help="random_seed")
parser.add_argument("--device", type=str, default='0', help="device")
args = parser.parse_args()
return args
def evaluate(args):
os.environ['CUDA_VISIBLE_DEVICES'] = args.device
logger = Logger(log_name='SI',log_level=10,log_file=args.log_file).logger
logger.info(args)
label2ids = {}
id = 0
with open(args.train_datas_path,'r',encoding='utf-8') as f:
lines = f.readlines()
for line in lines:
line = line.strip('\n')
if line.split('\t')[-1] not in label2ids:
label2ids[line.split('\t')[-1]] = id
id += 1
with open(args.val_datas_path,'r',encoding='utf-8') as f:
lines = f.readlines()
for line in lines:
line = line.strip('\n')
if line.split('\t')[-1] not in label2ids:
label2ids[line.split('\t')[-1]] = id
id += 1
augmentors = {}
with open("augment.ymal",'r', encoding="utf-8") as fp:
configs = yaml.load(fp, Loader=yaml.FullLoader)
augmentors['noise'] = NoisePerturbAugmentor(**configs['noise'])
augmentors['speed'] = SpeedPerturbAugmentor(**configs['speed'])
augmentors['volume'] = VolumePerturbAugmentor(**configs['volume'])
augmentors['specaug'] = SpecAugmentor(**configs['specaug'])
augmentors = None
device = "cuda:0" if torch.cuda.is_available() else "cpu"
val_dataset = AudioDataReader(feature_method='melspectrogram', data_list_path=args.val_datas_path, mode='eval', label2ids = label2ids,augmentors=augmentors)
val_dataloader = DataLoader(val_dataset, shuffle=True, batch_size=args.batch_size)
num_class = 875
logger.info('num_class:%d'%num_class)
ecapa_tdnn = ECAPATDNN(input_size=val_dataset.input_size)
model = SpeakerIdentificationModel(backbone=ecapa_tdnn, num_class=num_class).to(device)
weights = torch.load('./output/2022-11-07/ecapa_tdnn.bin')
model.load_state_dict(weights)
model.eval()
logger.info("***** Running evaluate *****")
logger.info(" Num examples = %d" % len(val_dataset))
pbar = ProgressBar(n_total=len(val_dataloader), desc='extract features')
model.eval()
labels = []
features = []
with torch.no_grad():
for step, batch in enumerate(val_dataloader):
batch = [t.to(device) for t in batch]
audio = batch[0]
speakers = batch[1]
output = model.backbone(audio)
labels.append(speakers)
features.append(output.squeeze(2))
pbar(step,info={'step':step})
labels = torch.cat(labels)
features = torch.cat(features)
scores_pos = []
scores_neg = []
y_true_pos = []
y_true_neg = []
for i in tqdm(range(features.shape[0]),desc='两两计算相似度',ncols=100):
query = features[i]
inside = features[i:,:]
temp = (labels[i] == labels[i:]).detach().long()
pos_index = torch.nonzero(temp==1)
neg_index = torch.nonzero(temp==0)
pos_label = torch.take(temp,pos_index).squeeze(1).detach().cpu().tolist()
neg_label = torch.take(temp, neg_index).squeeze(1).detach().cpu().tolist()
cos = torch.cosine_similarity(query, inside, dim=-1)
pos_score = torch.take(cos,pos_index).squeeze(1).detach().cpu().tolist()
neg_score = torch.take(cos,neg_index).squeeze(1).detach().cpu().tolist()
y_true_pos.extend(pos_label)
y_true_neg.extend(neg_label)
scores_pos.extend(pos_score)
scores_neg.extend(neg_score)
print('len(y_true_neg)',len(y_true_neg))
print('len(y_true_pos)',len(y_true_pos))
print('len(scores_pos)', len(scores_pos))
print('len(scores_neg)', len(scores_neg))
if len(y_true_pos) * 99 < len(y_true_neg):
indexs = random.choices(list(range(len(y_true_neg))),k=len(y_true_pos)*99)
scores = scores_pos
y_true = y_true_pos
for index in indexs:
scores.append(scores_neg[index])
y_true.append(y_true_neg[index])
else:
scores = scores_pos + scores_neg
y_true = y_true_pos + y_true_neg
print('len(scores)', len(scores))
print('len(y_true)', len(y_true))
scores = torch.tensor(scores,dtype=torch.float32)
y_true = torch.tensor(y_true,dtype=torch.long)
# choice_best_threshold(scores, y_true)
choice_best_threshold_dcf(scores, y_true)
def choice_best_threshold_dcf(scores, y_true):
thresholds = []
fars = []
frrs = []
dcfs = []
precisions = []
recalls = []
f1s = []
max_precision = 0
max_recall = 0
max_f1 = 0
f1_threshold = 0
min_dcf = 1
d_threshold = 0
cfr = 1
cfa =1
err = 0.0
err_threshold = 0
diff = 1
for i in tqdm(range(100), desc='choice_best_threshold', ncols=100):
threshold = 0.01 * i
thresholds.append(threshold)
y_preds = (scores > threshold).long()
tp = ((y_true == 1) * (y_preds == 1)).sum().item()
fp = ((y_true == 0) * (y_preds == 1)).sum().item()
tn = ((y_true == 0) * (y_preds == 0)).sum().item()
fn = ((y_true == 1) * (y_preds == 0)).sum().item()
pos = tp + fn
neg = tn + fp
precision = tp / (tp + fp+1e-13)
recall = tp / (tp + fn+1e-13)
f1 = 2 * precision * recall / (precision + recall + 1e-13)
far = fp / (fp + tn + 1e-13)
frr = fn / (tp + fn + 1e-13)
dcf = cfa* far *(neg/(neg+pos)) + cfr* frr *(pos/(pos+neg))
precisions.append(precision)
recalls.append(recall)
f1s.append(f1)
fars.append(far)
frrs.append(frr)
dcfs.append(dcf)
if max_precision < precision:
max_precision = precision
if max_recall < recall:
max_recall = recall
if max_f1 < f1:
max_f1 = f1
f1_threshold = threshold
if min_dcf > dcf:
min_dcf = dcf
d_threshold = threshold
if abs(far-frr) < diff:
err = (far+frr)/2
diff = abs(far-frr)
err_threshold = threshold
print(pos + neg)
print('threshold:%.4f err:%.4f'%(err_threshold, err))
print("d_threshold:%.4f, min_dcf%.4f"%(d_threshold, min_dcf))
print("f1_threshold:%.4f, max_f1%.4f" % (f1_threshold, max_f1))
start = time.time()
plt.figure(figsize=(30,30),dpi=80)
plt.title('2D curve ')
plt.plot(thresholds, frrs, label='frr')
plt.plot(thresholds, fars, label='far')
plt.plot(thresholds, dcfs, label='dcf')
plt.plot(thresholds, precisions, label='pre')
plt.plot(thresholds, recalls, label='recall')
plt.plot(thresholds, f1s, label='f1')
plt.legend(loc=0)
plt.scatter(d_threshold, min_dcf, c='red', s=100)
plt.text(d_threshold, min_dcf, " min_dcf(%.4f,%.4f)"%(d_threshold, min_dcf))
plt.scatter(err_threshold,err,c='blue',s=100)
plt.text(err_threshold,err," err(%.4f,%.4f)"%(err_threshold,err))
plt.scatter(f1_threshold, max_f1, c='yellow', s=100)
plt.text(f1_threshold, max_f1, " f1(%.4f,%.4f)"%(f1_threshold, max_f1))
plt.xlabel('threshold')
plt.ylabel('frr f dcf recall or precision')
plt.xticks(thresholds[::2])
plt.yticks(thresholds[::2])
end = time.time()
print('plot time is', end - start)
plt.savefig('ecapatdnn_2d_curve_voiceprint_dcf.png')
plt.show()
print("finish")
def choice_best_threshold(scores,y_true):
best_precision_threshold = 0
precision_best = 0
precision_recall = 0
precision_f1 = 0
tp_1 = 0
fp_1 = 0
fn_1 = 0
tn_1 = 0
best_recall_threshold = 0
recall_best = 0
recall_precision = 0
recall_f1 = 0
tp_2 = 0
fp_2 = 0
fn_2 = 0
tn_2 = 0
best_f1_threshold = 0
f1_best = 0
f1_precision = 0
f1_recall = 0
tp_3 = 0
fp_3 = 0
fn_3 = 0
tn_3 = 0
fars = []#误接受率
frrs = []#误拒识率
far_min = 1
frr_min = 1
thresholds = []
err = None
tp_4 = 0
fp_4 = 0
fn_4 = 0
tn_4 = 0
diff = 1
for i in tqdm( range(100),desc='choice_best_threshold',ncols=100):
threshold = 0.01 * i
thresholds.append(threshold)
y_preds = (scores > threshold).long()
tp = ((y_true == 1)*(y_preds==1)).sum().item()
fp = ((y_true == 0)*(y_preds==1)).sum().item()
tn = ((y_true==0)*(y_preds==0)).sum().item()
fn = ((y_true==1)*(y_preds==0)).sum().item()
precision = tp /(tp+fp)
recall = tp/(tp+fn)
f1 = 2*precision*recall/(precision+recall + 1e-13)
far = fp/(fp+tn)
frr = fn/(tp+fn)
fars.append(far)
frrs.append(frr)
if precision > precision_best:
precision_best = precision
best_precision_threshold = threshold
precision_recall = recall
precision_f1 = f1
tp_1 = tp
fp_1 = fp
fn_1 = fn
tn_1 = tn
if recall > recall_best:
recall_best = recall
best_recall_threshold = threshold
recall_precision = precision
recall_f1 = f1
tp_2 = tp
fp_2 = fp
fn_2 = fn
tn_2 = tn
if f1 > f1_best:
f1_best = f1
f1_precision = precision
f1_recall = recall
best_f1_threshold = threshold
tp_3 = tp
fp_3 = fp
fn_3 = fn
tn_3 = tn
if abs(far-frr) < diff:
diff = abs(far-frr)
err = (far+frr)/2
far_min = far
frr_min = frr
tp_4 = tp
fp_4 = fp
fn_4 = fn
tn_4 = tn
print(f"tp:{tp_4} fp{fp_4} tn{tn_4} fn{fn_4}")
print("frr_min:%.4f,far_min:%.4f,err:%.4f"%(frr_min,far_min,err))
print("precision:%.4f recall:%.4f"%(tp_4 /(tp_4+fp_4), tp_4/(tp_4+fn_4)))
print('*'*50)
print(f"tp:{tp_1} fp{fp_1} tn{tn_1} fn{fn_1}")
print('best_precision_threshold:%.4f, precision_best:%.4f precision_recall:%.4f precision_f1:%.4f'%(best_precision_threshold,precision_best,precision_recall, precision_f1))
print('*' * 50)
print(f"tp:{tp_2} fp{fp_2} tn{tn_2} fn{fn_2}")
print('best_recall_threshold:%.4f, recall_best:%.4f recall_precision:%.4f recall_f1:%.4f' % (
best_recall_threshold, recall_best, recall_precision, recall_f1))
print('*' * 50)
print(f"tp:{tp_3} fp{fp_3} tn{tn_3} fn{fn_3}")
print("frr:%.4f,far:%.4f"%(fn_3/(fn_3+tp_3),fp_3/(fp_3+tn_3)))
print('best_f1_threshold:%.4f, f1_best:%.4f f1_precision:%.4f f1_recall:%.4f' % (
best_f1_threshold, f1_best, f1_precision, f1_recall))
print('*' * 50)
# print(fars[0],"--",frrs[0])
# print(fars[-1], "--", frrs[-1])
#
# plt.figure(figsize=(20,20),dpi=80)
# plt.title('2D curve ')
# plt.plot(fars, frrs)
# plt.plot(thresholds,thresholds)
# plt.scatter(err,err,c='red',s=100)
# plt.text(err,err,(err,err))
#
# plt.xlabel('far')
# plt.ylabel('frr')
# plt.xticks(thresholds[::2])
# plt.yticks(thresholds[::2])
# plt.show()
# plt.savefig('2d_curve_voiceprint_det.png')
def set_seed(seed):
torch.manual_seed(seed)
torch.cuda.manual_seed(seed)
np.random.seed(seed)
random.seed(seed)
torch.backends.cudnn.deterministic = True
def collate_fn(batch):
features,labels = zip(*batch)
return features
if __name__ == '__main__':
args = parse_args()
set_seed(args.random_seed)
evaluate(args)
采用far和frr以及errdct等评价指标来获取最佳threshold：
可以看到最小dcf对应的相似度阈值是0.4500。
2、WavLm预训练方案
a、模型结构和loss
from transformers import WavLMModel, WavLMPreTrainedModel
from transformers.modeling_outputs import XVectorOutput
from transformers.pytorch_utils import torch_int_div
import torch.nn as nn
import torch
from typing import Optional, Tuple, Union
_HIDDEN_STATES_START_POSITION = 2
class TDNNLayer(nn.Module):
def __init__(self, config, layer_id=0):
super().__init__()
self.in_conv_dim = config.tdnn_dim[layer_id - 1] if layer_id > 0 else config.tdnn_dim[layer_id]
self.out_conv_dim = config.tdnn_dim[layer_id]
self.kernel_size = config.tdnn_kernel[layer_id]
self.dilation = config.tdnn_dilation[layer_id]
self.kernel = nn.Linear(self.in_conv_dim * self.kernel_size, self.out_conv_dim)
self.activation = nn.ReLU()
def forward(self, hidden_states):
hidden_states = hidden_states.unsqueeze(1)
hidden_states = nn.functional.unfold(
hidden_states,
(self.kernel_size, self.in_conv_dim),
stride=(1, self.in_conv_dim),
dilation=(self.dilation, 1),
)
hidden_states = hidden_states.transpose(1, 2)
hidden_states = self.kernel(hidden_states)
hidden_states = self.activation(hidden_states)
return hidden_states
class AMSoftmaxLoss(nn.Module):
def __init__(self, input_dim, num_labels, scale=30.0, margin=0.4):
super(AMSoftmaxLoss, self).__init__()
self.scale = scale
self.margin = margin
self.num_labels = num_labels
self.weight = nn.Parameter(torch.randn(input_dim, num_labels), requires_grad=True)
self.loss = nn.CrossEntropyLoss()
def forward(self, hidden_states, labels = None):
weight = nn.functional.normalize(self.weight, dim=0)
hidden_states = nn.functional.normalize(hidden_states, dim=1)
cos_theta = torch.mm(hidden_states, weight)
if labels is not None:
psi = cos_theta - self.margin
labels = labels.flatten()
onehot = nn.functional.one_hot(labels, self.num_labels)
logits = self.scale * torch.where(onehot.bool(), psi, cos_theta)
loss = self.loss(logits, labels)
return loss,cos_theta
else:
return cos_theta
class WavLm(WavLMPreTrainedModel):
def __init__(self,config):
super(WavLm, self).__init__(config)
self.wavlm = WavLMModel(config)
num_layers = config.num_hidden_layers + 1 # transformer layers + input embeddings
if config.use_weighted_layer_sum:
self.layer_weights = nn.Parameter(torch.ones(num_layers) / num_layers)
self.projector = nn.Linear(config.hidden_size, config.tdnn_dim[0])
tdnn_layers = [TDNNLayer(config, i) for i in range(len(config.tdnn_dim))]
self.tdnn = nn.ModuleList(tdnn_layers)
self.feature_extractor = nn.Linear(config.tdnn_dim[-1] * 2, config.xvector_output_dim)
self.classifier = nn.Linear(config.xvector_output_dim, config.xvector_output_dim)
self.objective = AMSoftmaxLoss(config.xvector_output_dim, config.num_labels)
self.init_weights()
def forward(self,input_values: Optional[torch.Tensor],
attention_mask: Optional[torch.Tensor] = None,
output_attentions: Optional[bool] = None,
output_hidden_states: Optional[bool] = None,
return_dict: Optional[bool] = None,
labels: Optional[torch.Tensor] = None,):
return_dict = return_dict if return_dict is not None else self.config.use_return_dict
output_hidden_states = True if self.config.use_weighted_layer_sum else output_hidden_states
outputs = self.wavlm(
input_values,
attention_mask=attention_mask,
output_attentions=output_attentions,
output_hidden_states=output_hidden_states,
return_dict=return_dict,
)
if self.config.use_weighted_layer_sum:
hidden_states = outputs[_HIDDEN_STATES_START_POSITION]
hidden_states = torch.stack(hidden_states, dim=1)
norm_weights = nn.functional.softmax(self.layer_weights, dim=-1)
hidden_states = (hidden_states * norm_weights.view(-1, 1, 1)).sum(dim=1)
else:
hidden_states = outputs[0]
hidden_states = self.projector(hidden_states)
for tdnn_layer in self.tdnn:
hidden_states = tdnn_layer(hidden_states)
# Statistic Pooling
if attention_mask is None:
mean_features = hidden_states.mean(dim=1)
std_features = hidden_states.std(dim=1)
else:
feat_extract_output_lengths = self._get_feat_extract_output_lengths(attention_mask.sum(dim=1))
tdnn_output_lengths = self._get_tdnn_output_lengths(feat_extract_output_lengths)
mean_features = []
std_features = []
for i, length in enumerate(tdnn_output_lengths):
mean_features.append(hidden_states[i, :length].mean(dim=0))
std_features.append(hidden_states[i, :length].std(dim=0))
mean_features = torch.stack(mean_features)
std_features = torch.stack(std_features)
statistic_pooling = torch.cat([mean_features, std_features], dim=-1)
output_embeddings = self.feature_extractor(statistic_pooling)
logits = self.classifier(output_embeddings)
loss = None
if labels is not None:
loss, cos_theta = self.objective(logits, labels)
else:
cos_theta = self.objective(logits, labels)
logits = cos_theta
if not return_dict:
output = (logits, output_embeddings) + outputs[_HIDDEN_STATES_START_POSITION:]
return ((loss,) + output) if loss is not None else output
return XVectorOutput(
loss=loss,
logits=logits,
embeddings=output_embeddings,
hidden_states=outputs.hidden_states,
attentions=outputs.attentions,
)
def _get_tdnn_output_lengths(self, input_lengths: Union[torch.LongTensor, int]):
"""
Computes the output length of the TDNN layers
"""
def _conv_out_length(input_length, kernel_size, stride):
# 1D convolutional layer output length formula taken
# from https://pytorch.org/docs/stable/generated/torch.nn.Conv1d.html
return (input_length - kernel_size) // stride + 1
for kernel_size in self.config.tdnn_kernel:
input_lengths = _conv_out_length(input_lengths, kernel_size, 1)
return input_lengths
def _get_feat_extract_output_lengths(
self, input_lengths: Union[torch.LongTensor, int], add_adapter: Optional[bool] = None
):
"""
Computes the output length of the convolutional layers
"""
add_adapter = self.config.add_adapter if add_adapter is None else add_adapter
def _conv_out_length(input_length, kernel_size, stride):
# 1D convolutional layer output length formula taken
# from https://pytorch.org/docs/stable/generated/torch.nn.Conv1d.html
return torch_int_div(input_length - kernel_size, stride) + 1
for kernel_size, stride in zip(self.config.conv_kernel, self.config.conv_stride):
input_lengths = _conv_out_length(input_lengths, kernel_size, stride)
if add_adapter:
for _ in range(self.config.num_adapter_layers):
input_lengths = _conv_out_length(input_lengths, 1, self.config.adapter_stride)
return input_lengthsb、数据处理
import random
import torch
from torch.utils.data import Dataset
import torchaudio
from tqdm import tqdm
class AudioDataReader(Dataset):
def __init__(self, data_list_path,
mode='train',
sr=16000,
chunk_duration=3,
min_duration=0.5,
label2ids = {},
augmentors=None):
super(AudioDataReader, self).__init__()
assert data_list_path is not None
with open(data_list_path,'r',encoding='utf-8') as f:
self.lines = f.readlines()[0:]
self.mode = mode
self.sr = sr
self.chunk_duration = chunk_duration
self.min_duration = min_duration
self.augmentors = augmentors
self.label2ids = label2ids
self.audiofeatures = self.getaudiofeatures()
def handle_features(self,wav,sr,mode,chunk_duration,min_duration):
num_wav_samples = wav.shape[1]
# 数据太短不利于训练
if mode == 'train':
if num_wav_samples < int(min_duration * sr):
raise Exception(f'音频长度小于{min_duration}s，实际长度为：{(num_wav_samples / sr):.2f}s')
# print(f'音频长度小于{min_duration}s，实际长度为：{(num_wav_samples / sr):.2f}s')
# return None
# 对小于训练长度的复制补充
num_chunk_samples = int(chunk_duration * sr)
if num_wav_samples < num_chunk_samples:
times = int(num_chunk_samples / num_wav_samples) - 1
shortages = []
temp_num_wav_samples = num_wav_samples
shortages.append(wav)
if times >= 1:
for _ in range(times):
shortages.append(wav)
temp_num_wav_samples += num_wav_samples
shortages.append(wav[:, 0:(num_chunk_samples - temp_num_wav_samples)])
else:
shortages.append(wav[:, 0:(num_chunk_samples - num_wav_samples)])
wav = torch.cat(shortages, dim=1)
# 裁剪需要的数据
if mode == 'train':
# 随机裁剪
num_wav_samples = wav.shape[1]
num_chunk_samples = int(chunk_duration * sr)
if num_wav_samples > num_chunk_samples + 1:
start = random.randint(0, num_wav_samples - num_chunk_samples - 1)
end = start + num_chunk_samples
wav = wav[:, start:end]
# # 对每次都满长度的再次裁剪
# if random.random() > 0.5:
# wav[:random.randint(1, sr // 4)] = 0 #加入了静音数据
# wav = wav[:-random.randint(1, sr // 4)]
elif mode == 'eval':
# 为避免显存溢出，只裁剪指定长度
num_wav_samples = wav.shape[1]
num_chunk_samples = int(chunk_duration * sr)
if num_wav_samples > num_chunk_samples + 1:
wav = wav[:, 0:num_chunk_samples]
return wav
def getaudiofeatures(self):
res = []
for line in tqdm(self.lines,desc= self.mode + ' load all audios',ncols=100):
temp = []
try:
audio_path, label = line.replace('\n', '').split('\t')
label = self.label2ids[label]
wav, sample_rate = torchaudio.load(audio_path) # 加载音频返回的是张量
wav = self.handle_features(wav,sr=self.sr,mode=self.mode,chunk_duration=self.chunk_duration,min_duration=self.min_duration)
features = wav[:,0:self.sr*self.chunk_duration].squeeze(0)
attention_mask = torch.ones_like(features,dtype=torch.long)
label = torch.as_tensor(label, dtype=torch.long)
temp.append(features)
temp.append(attention_mask)
temp.append(label)
res.append(temp)
except Exception as e:
print(e+',load audio data exception')
return res
def __getitem__(self, item):
return self.audiofeatures[item][0], self.audiofeatures[item][1], self.audiofeatures[item][2]
def __len__(self):
return len(self.audiofeatures)和Ecapa_TDNN的不同就是直接采用时域数据而不是采用语音特征分析后的频域信息，代码就是训练和验证样本的长度进行了控制，比较简单。
c、模型训练
from transformers import Wav2Vec2Config
from models.wavlm import WavLm
from tools.log import Logger
from tools.progressbar import ProgressBar
from data_utils.wavlm_reader import AudioDataReader
from torch.utils.data import DataLoader
import torch
import os
from torch.optim import AdamW
from torch.optim.lr_scheduler import CosineAnnealingLR
import argparse
import random
import numpy as np
from torch.utils.tensorboard import SummaryWriter
from datetime import datetime
from torch.nn.utils.rnn import pad_sequence
def parse_args():
parser = argparse.ArgumentParser()
parser.add_argument("--train_datas_path", type=str, default='./data/train_audio_paths.txt', help="train text file")
parser.add_argument("--val_datas_path", type=str, default='./data/val_audio_paths.txt', help="val text file")
# parser.add_argument("--train_datas_path", type=str, default='./data/train_audio_paths_small.txt', help="train text file")
# parser.add_argument("--val_datas_path", type=str, default='./data/val_audio_paths_small.txt', help="val text file")
parser.add_argument("--log_file", type=str, default="./log_output/speaker_identification_wavlm.log", help="log_file")
parser.add_argument("--model_out", type=str, default="./output/wavlm/", help="model output path")
parser.add_argument("--batch_size", type=int, default=32, help="batch size")
parser.add_argument("--epochs", type=int, default=30, help="epochs")
parser.add_argument("--lr", type=float, default=1e-5, help="epochs")
parser.add_argument("--random_seed", type=int, default=100, help="random_seed")
parser.add_argument("--device", type=str, default='0', help="device")
args = parser.parse_args()
return args
def training(args):
os.environ['CUDA_VISIBLE_DEVICES'] = args.device
logger = Logger(log_name='SI',log_level=10,log_file=args.log_file).logger
logger.info(args)
label2ids = {}
config = Wav2Vec2Config.from_pretrained('./pretrained_models/torch/wavlm-base-plus-sv/')
id = 0
with open(args.train_datas_path,'r',encoding='utf-8') as f:
lines = f.readlines()
for line in lines:
line = line.strip('\n')
if line.split('\t')[-1] not in label2ids:
label2ids[line.split('\t')[-1]] = id
id += 1
with open(args.val_datas_path,'r',encoding='utf-8') as f:
lines = f.readlines()
for line in lines:
line = line.strip('\n')
if line.split('\t')[-1] not in label2ids:
label2ids[line.split('\t')[-1]] = id
id += 1
time_srt = datetime.now().strftime('%Y-%m-%d')
save_path = os.path.join(args.model_out,time_srt)
if not os.path.exists(save_path):
os.makedirs(save_path)
logger.info(save_path)
device = "cuda:0" if torch.cuda.is_available() else "cpu"
train_dataset = AudioDataReader(data_list_path=args.train_datas_path,mode='train', label2ids=label2ids)
train_dataloader = DataLoader(train_dataset,shuffle=True,batch_size=args.batch_size, collate_fn=collate_fn)
val_dataset = AudioDataReader(data_list_path=args.val_datas_path, mode='eval', label2ids = label2ids)
val_dataloader = DataLoader(val_dataset, shuffle=True, batch_size=args.batch_size, collate_fn=collate_fn)
num_class = len(label2ids)
logger.info('num_class:%d'%num_class)
config.num_labels = num_class
model = WavLm.from_pretrained('./pretrained_models/torch/wavlm-base-plus-sv/', config=config, ignore_mismatched_sizes=True).to(device)
model.eval()
# ecapa_tdnn = EcapaTdnn(input_size=train_dataset.input_size)
# model = SpeakerIdetification(backbone=ecapa_tdnn, num_class=num_class).to(device)
# logger.info(model)
optimizer = AdamW(lr=args.lr,params=model.parameters())
scheduler = CosineAnnealingLR(optimizer,T_max=args.epochs)
logger.info("***** Running training *****")
logger.info(" Num examples = %d" % len(train_dataloader))
logger.info(" Num Epochs = %d" % args.epochs)
writer = SummaryWriter('./runs/' + time_srt + '/')
best_acc = 0
total_step = 0
unimproving_count = 0
for epoch in range(args.epochs):
pbar = ProgressBar(n_total=len(train_dataloader), desc='Training')
model.train()
total_loss = 0
for step, batch in enumerate(train_dataloader):
batch = [t.to(device) for t in batch]
wav = batch[0]
mask = batch[1]
speakers = batch[2]
inputs = {
"input_values": wav,
"attention_mask": mask
}
output = model(**inputs,labels=speakers)
loss = output.loss
optimizer.zero_grad()
# loss.backward(retain_graph=True)
loss.backward()
optimizer.step()
total_step += 1
writer.add_scalar('Train/Learning loss', loss.item(), total_step)
total_loss += loss.item()
pbar(step, {'loss': loss.item()})
val_acc = evaluate(model, val_dataloader, device)
if best_acc < val_acc:
best_acc = val_acc
model.save_pretrained(save_path)
is_improving = True
unimproving_count = 0
else:
is_improving = False
unimproving_count += 1
if is_improving:
logger.info(f"Train epoch [{epoch+1}/{args.epochs}],batch [{step+1}],Best_acc: {best_acc},Val_acc:{val_acc}, lr:{scheduler.get_last_lr()[0]}, total_loss:{round(total_loss,4)}. Save model!")
else:
logger.info(f"Train epoch [{epoch+1}/{args.epochs}],batch [{step+1}],Best_acc: {best_acc},Val_acc:{val_acc}, lr:{scheduler.get_last_lr()[0]}, total_loss:{round(total_loss,4)}.")
writer.add_scalar('Val/val_acc', val_acc, total_step)
writer.add_scalar('Val/best_acc', best_acc, total_step)
# writer.add_scalar('Train/Learning rate', scheduler.get_lr()[0], total_step)
writer.add_scalar('Train/Learning rate', scheduler.get_last_lr()[0], total_step)
scheduler.step()
if unimproving_count >= 5:
logger.info('unimproving %d epochs, early stop!'%unimproving_count)
break
def evaluate(model,val_dataloader,device):
total = 0
correct_total = 0
model.eval()
with torch.no_grad():
pbar = ProgressBar(n_total=len(val_dataloader), desc='evaluate')
for step, batch in enumerate(val_dataloader):
batch = [t.to(device) for t in batch]
wav = batch[0]
mask = batch[1]
speakers = batch[2]
inputs = {
"input_values": wav,
"attention_mask": mask
}
output = model(**inputs)
logits = output.logits
total += speakers.shape[0]
preds = torch.argmax(logits,dim=-1)
correct = (speakers==preds).sum().item()
pbar(step, {})
correct_total += correct
acc = correct_total/total
return acc
def set_seed(seed):
torch.manual_seed(seed)
torch.cuda.manual_seed(seed)
np.random.seed(seed)
random.seed(seed)
torch.backends.cudnn.deterministic = True
def collate_fn(batch):
features, attention_mask, labels = zip(*batch)
features = pad_sequence(features, batch_first=True, padding_value=0.0)
attention_mask = pad_sequence(attention_mask, batch_first=True, padding_value=0)
labels = torch.stack(labels, dim=-1)
return features, attention_mask, labels
if __name__ == '__main__':
args = parse_args()
set_seed(args.random_seed)
training(args)
结果如下：
分类准确率：0.9684
d、推理和评估
同样采用far frr err dcf 以及f1 recall和precision等指标来评估
from transformers import WavLMForXVector
from tools.log import Logger
from tools.progressbar import ProgressBar
from data_utils.wavlm_reader import AudioDataReader
from torch.utils.data import DataLoader
import torch
import os
import argparse
import random
import numpy as np
from tqdm import tqdm
import matplotlib.pyplot as plt
from torch.nn.utils.rnn import pad_sequence
import time
def parse_args():
parser = argparse.ArgumentParser()
parser.add_argument("--train_datas_path", type=str, default='./data/train_audio_paths.txt', help="train text file")
parser.add_argument("--val_datas_path", type=str, default='./data/val_audio_paths.txt', help="val text file")
# parser.add_argument("--train_datas_path", type=str, default='./data/train_audio_paths_small.txt', help="train text file")
# parser.add_argument("--val_datas_path", type=str, default='./data/val_audio_paths_small.txt', help="val text file")
parser.add_argument("--log_file", type=str, default="./log_output/speaker_identification_evaluate.log", help="log_file")
parser.add_argument("--batch_size", type=int, default=64, help="batch size")
parser.add_argument("--random_seed", type=int, default=100, help="random_seed")
parser.add_argument("--device", type=str, default='0', help="device")
args = parser.parse_args()
return args
def evaluate(args):
os.environ['CUDA_VISIBLE_DEVICES'] = args.device
logger = Logger(log_name='SI',log_level=10,log_file=args.log_file).logger
logger.info(args)
label2ids = {}
id = 0
with open(args.train_datas_path,'r',encoding='utf-8') as f:
lines = f.readlines()
for line in lines:
line = line.strip('\n')
if line.split('\t')[-1] not in label2ids:
label2ids[line.split('\t')[-1]] = id
id += 1
with open(args.val_datas_path,'r',encoding='utf-8') as f:
lines = f.readlines()
for line in lines:
line = line.strip('\n')
if line.split('\t')[-1] not in label2ids:
label2ids[line.split('\t')[-1]] = id
id += 1
device = "cuda:0" if torch.cuda.is_available() else "cpu"
val_dataset = AudioDataReader( data_list_path=args.val_datas_path, mode='eval', label2ids = label2ids)
val_dataloader = DataLoader(val_dataset, shuffle=True, batch_size=args.batch_size,collate_fn=collate_fn)
num_class = 875
logger.info('num_class:%d'%num_class)
model = WavLMForXVector.from_pretrained('./output/wavlm/2022-11-11/').to(device)
model.eval()
logger.info("***** Running evaluate *****")
logger.info(" Num examples = %d" % len(val_dataset))
pbar = ProgressBar(n_total=len(val_dataloader), desc='extract features')
model.eval()
labels = []
features = []
with torch.no_grad():
for step, batch in enumerate(val_dataloader):
batch = [t.to(device) for t in batch]
wav = batch[0]
mask = batch[1]
speakers = batch[2]
inputs = {
"input_values": wav,
"attention_mask": mask
}
output = model(**inputs)
labels.append(speakers)
features.append(output.embeddings)
pbar(step,info={'step':step})
labels = torch.cat(labels)
features = torch.cat(features)
scores_pos = []
scores_neg = []
y_true_pos = []
y_true_neg = []
for i in tqdm(range(features.shape[0]), desc='两两计算相似度', ncols=100):
query = features[i]
inside = features[i:, :]
temp = (labels[i] == labels[i:]).detach().long()
pos_index = torch.nonzero(temp == 1)
neg_index = torch.nonzero(temp == 0)
pos_label = torch.take(temp, pos_index).squeeze(1).detach().cpu().tolist()
neg_label = torch.take(temp, neg_index).squeeze(1).detach().cpu().tolist()
cos = torch.cosine_similarity(query, inside, dim=-1)
pos_score = torch.take(cos, pos_index).squeeze(1).detach().cpu().tolist()
neg_score = torch.take(cos, neg_index).squeeze(1).detach().cpu().tolist()
y_true_pos.extend(pos_label)
y_true_neg.extend(neg_label)
scores_pos.extend(pos_score)
scores_neg.extend(neg_score)
print('len(y_true_neg)', len(y_true_neg))
print('len(y_true_pos)', len(y_true_pos))
print('len(scores_pos)', len(scores_pos))
print('len(scores_neg)', len(scores_neg))
if len(y_true_pos) * 99 < len(y_true_neg):
indexs = random.choices(list(range(len(y_true_neg))), k=len(y_true_pos) * 99)
scores = scores_pos
y_true = y_true_pos
for index in indexs:
scores.append(scores_neg[index])
y_true.append(y_true_neg[index])
else:
scores = scores_pos + scores_neg
y_true = y_true_pos + y_true_neg
print('len(scores)', len(scores))
print('len(y_true)', len(y_true))
scores = torch.tensor(scores,dtype=torch.float32)
y_true = torch.tensor(y_true,dtype=torch.long)
choice_best_threshold_dcf(scores, y_true)
def choice_best_threshold_dcf(scores, y_true):
thresholds = []
fars = []
frrs = []
dcfs = []
precisions = []
recalls = []
f1s = []
max_precision = 0
max_recall = 0
max_f1 = 0
f1_threshold = 0
min_dcf = 1
d_threshold = 0
cfr = 1
cfa =1
err = 0.0
err_threshold = 0
diff = 1
for i in tqdm(range(100), desc='choice_best_threshold', ncols=100):
threshold = 0.01 * i
thresholds.append(threshold)
y_preds = (scores > threshold).long()
tp = ((y_true == 1) * (y_preds == 1)).sum().item()
fp = ((y_true == 0) * (y_preds == 1)).sum().item()
tn = ((y_true == 0) * (y_preds == 0)).sum().item()
fn = ((y_true == 1) * (y_preds == 0)).sum().item()
pos = tp + fn
neg = tn + fp
precision = tp / (tp + fp+1e-13)
recall = tp / (tp + fn+1e-13)
f1 = 2 * precision * recall / (precision + recall + 1e-13)
far = fp / (fp + tn + 1e-13)
frr = fn / (tp + fn + 1e-13)
dcf = cfa* far *(neg/(neg+pos)) + cfr* frr *(pos/(pos+neg))
precisions.append(precision)
recalls.append(recall)
f1s.append(f1)
fars.append(far)
frrs.append(frr)
dcfs.append(dcf)
if max_precision < precision:
max_precision = precision
if max_recall < recall:
max_recall = recall
if max_f1 < f1:
max_f1 = f1
f1_threshold = threshold
if min_dcf > dcf:
min_dcf = dcf
d_threshold = threshold
if abs(far-frr) < diff:
err = (far+frr)/2
diff = abs(far-frr)
err_threshold = threshold
print(pos + neg)
print('threshold:%.4f err:%.4f'%(err_threshold, err))
print("d_threshold:%.4f, min_dcf%.4f"%(d_threshold, min_dcf))
print("f1_threshold:%.4f, max_f1%.4f" % (f1_threshold, max_f1))
start = time.time()
plt.figure(figsize=(30,30),dpi=80)
plt.title('2D curve ')
plt.plot(thresholds, frrs, label='frr')
plt.plot(thresholds, fars, label='far')
plt.plot(thresholds, dcfs, label='dcf')
plt.plot(thresholds, precisions, label='pre')
plt.plot(thresholds, recalls, label='recall')
plt.plot(thresholds, f1s, label='f1')
plt.legend(loc=0)
plt.scatter(d_threshold, min_dcf, c='red', s=100)
plt.text(d_threshold, min_dcf, " min_dcf(%.4f,%.4f)"%(d_threshold, min_dcf))
plt.scatter(err_threshold,err,c='blue',s=100)
plt.text(err_threshold,err," err(%.4f,%.4f)"%(err_threshold,err))
plt.scatter(f1_threshold, max_f1, c='yellow', s=100)
plt.text(f1_threshold, max_f1, " f1(%.4f,%.4f)"%(f1_threshold, max_f1))
plt.xlabel('threshold')
plt.ylabel('frr f dcf recall or precision')
plt.xticks(thresholds[::2])
plt.yticks(thresholds[::2])
end = time.time()
print('plot time is', end - start)
plt.savefig('wavlm_2d_curve_voiceprint_dcf.png')
plt.show()
print("finish")
def set_seed(seed):
torch.manual_seed(seed)
torch.cuda.manual_seed(seed)
np.random.seed(seed)
random.seed(seed)
torch.backends.cudnn.deterministic = True
def collate_fn(batch):
features,attention_mask,labels = zip(*batch)
features = pad_sequence(features,batch_first=True,padding_value=0.0)
attention_mask = pad_sequence(attention_mask, batch_first=True, padding_value=0)
labels = torch.stack(labels,dim=-1)
return features, attention_mask, labels
if __name__ == '__main__':
args = parse_args()
set_seed(args.random_seed)
evaluate(args)
结果如下
threshold=0.69 dcf 和f1值都处于最佳状态 而且f1=0.9765 err和dcf值都非常低，明显wavLm模型在该数据集上的效果要优于Ecapa_TDNN。
四、demo演示
花了接近两周下班后的时间以及周末可以去学习了一下vue2.0和vue3.0，看的是b站尚硅谷的视频，做了一个speaker verification的前端demo(vue3.0)。先看看整体页面效果：
大体上说说demo的实现方案：
1、后端直接使用python+flask非常简单。
2、前端采用vue3.0+html+css做一些简单的页面也非常容易(不过完全不懂前端的话学习起来还是需要一点时间的)。
3、算法端python+torch，模型使用了WavLm和Ecapa_TdNN模型。
五、总结
关于这个声纹识别，本文章只是简单的做了一个尝试和验证一下主流的模型方案的效果。并没有考虑实际业务场景，比方说音频的背景是否有噪声、跨设备、跨距离、录音代替真人实时说话问题、以及如何优化、上线需要注意那些问题都没有讨论。这里面还有很多值得学习的地方，本人水平有限，后续再来学习。
关于预训练模型WavLM和CNN组网模型，个人认为WavLm应该是更加主流，个人更看好WavLm，如果有相应的音频数据，继续预训练+微调应该能解决一些特定领域的问题，前提是要有大规模的数据。
参考文章：
WavLM: Large-Scale Self-Supervised Pre-Training for Full Stack Speech Processing
510
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
