1.1 核心思想

Fork/Join框架是Java7提供了的一个用于并行执行任务的框架，是一个把大任务分割成若干个小任务，最终汇总每个小任务结果后得到大任务结果的框架，其实现思想与MapReduce有异曲同工之妙。

Fork就是把一个大任务切分为若干子任务并行的执行，Join就是合并这些子任务的执行结果，最后得到这个大任务的结果。比如计算1+2+…＋10000，可以分割成10个子任务，每个子任务分别对1000个数进行求和，最终汇总这10个子任务的结果。Fork/Join的运行流程图如下：

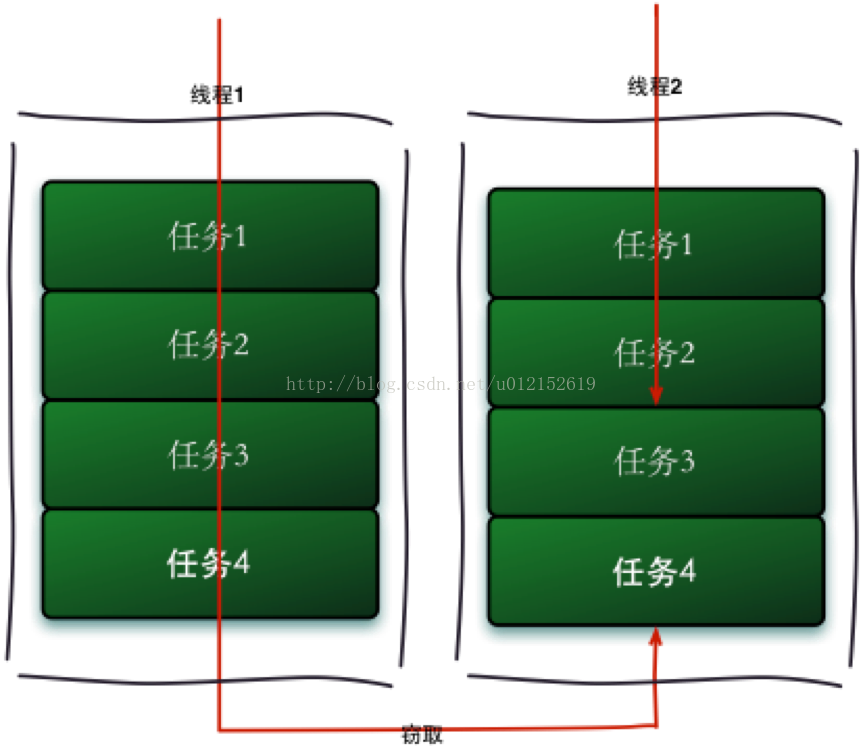

Fork/Join框架使用一个巧妙的算法来平衡线程的负载，称为工作窃取（work-stealing）算法。工作窃取的运行流程图如下：

假如我们需要做一个比较大的任务，我们可以把这个任务分割为若干互不依赖的子任务，为了减少线程间的竞争，于是把这些子任务分别放到不同的队列里，并为每个队列创建一个单独的线程来执行队列里的任务，线程和队列一一对应，比如A线程负责处理A队列里的任务。但是有的线程会先把自己队列里的任务干完，而其他线程对应的队列里还有任务等待处理。干完活的线程与其等着，不如去帮其他线程干活，于是它就去其他线程的队列里窃取一个任务来执行。而在这时它们会访问同一个队列，所以为了减少窃取任务线程和被窃取任务线程之间的竞争，通常会使用双端队列，被窃取任务线程永远从双端队列的头部拿任务执行，而窃取任务的线程永远从双端队列的尾部拿任务执行。

工作窃取算法的优点是充分利用线程进行并行计算，并减少了线程间的竞争，其缺点是在某些情况下还是存在竞争，比如双端队列里只有一个任务时。并且消耗了更多的系统资源，比如创建多个线程和多个双端队列。

1.2 应用实例

Fork/Join框架主要由两部分组成：

第一步分割任务。首先我们需要有一个fork类来把大任务分割成子任务，有可能子任务还是很大，所以还需要不停的分割，直到分割出的子任务足够小。

第二步执行任务并合并结果。分割的子任务分别放在双端队列里，然后几个启动线程分别从双端队列里获取任务执行。子任务执行完的结果都统一放在一个队列里，启动一个线程从队列里拿数据，然后合并这些数据。

Fork/Join使用两个类来完成以上两件事情：

l ForkJoinTask：我们要使用ForkJoin框架，必须首先创建一个ForkJoin任务。它提供在任务中执行fork()和join()操作的机制，通常情况下我们不需要直接继承ForkJoinTask类，而只需要继承它的子类，Fork/Join框架提供了以下两个子类：

u RecursiveAction：用于没有返回结果的任务。

u RecursiveTask ：用于有返回结果的任务。

l ForkJoinPool ：ForkJoinTask需要通过ForkJoinPool来执行，任务分割出的子任务会添加到当前工作线程所维护的双端队列中，进入队列的头部。当一个工作线程的队列里暂时没有任务时，它会随机从其他工作线程的队列的尾部获取一个任务。

让我们通过一个简单的需求来使用下Fork／Join框架，需求是：计算1~8的累加结果。

使用Fork／Join框架首先要考虑到的是如何分割任务，如果我们希望每个子任务最多执行两个数的相加，那么设置分割的阈值是2，由于是8个数字相加，所以Fork／Join框架会把这个任务fork成两个子任务，子任务一负责计算1+2+3+4，子任务二负责计算3+4+5+6，然后子任务会继续分隔，直到累加的数字将为两个，最后逐层join子任务的结果。

[java] view plain copy
print ?

import java.util.concurrent.ExecutionException;
import java.util.concurrent.ForkJoinPool;
import java.util.concurrent.Future;
import java.util.concurrent.RecursiveTask;

public class CountTask extends RecursiveTask<Integer> {

 private static final int THRESHHOLD = 2;
 private int start;
 private int end;

 public CountTask(int start, int end) {
 this.start = start;
 this.end = end;
 }

 @Override
 protected Integer compute() {
 System.out.println(start + ” -“ + end + “ begin”);
 int sum = 0;
 boolean canCompute = (end - start)<= THRESHHOLD;
 if (canCompute) { // 达到了计算条件，则直接执行
 for (int i = start; i <= end;i++) {
 sum += i;
 }
 } else { // 不满足计算条件，则分割任务
 int middle = (start + end) / 2;

 CountTask leftTask = new CountTask(start, middle);
 CountTask rightTask = new CountTask(middle + 1, end);

 leftTask.fork(); // 执行子任务
 rightTask.fork();
 int leftResult = leftTask.join();// 等待子任务执行完毕
 int rightResult = rightTask.join();

 sum = leftResult + rightResult; // 合并子任务的计算结果
 }
 System.out.println(start + ” -“ + end + “ end”);
 return sum;
 }

 public static void main(String[] args)throws InterruptedException, ExecutionException {
 ForkJoinPool pool = new ForkJoinPool();
 CountTask task = new CountTask(1, 8);
 Future<Integer> future =pool.submit(task);
 if (task.isCompletedAbnormally()) {
 System.out.println(task.getException());
 } else {
 System.out.println(”result:” + future.get());
 }

 }

}
import java.util.concurrent.ExecutionException;
import java.util.concurrent.ForkJoinPool;
import java.util.concurrent.Future;
import java.util.concurrent.RecursiveTask;

public class CountTask extends RecursiveTask<Integer> {

 private static final int THRESHHOLD = 2;
 private int start;
 private int end;

 public CountTask(int start, int end) {
 this.start = start;
 this.end = end;
 }

 @Override
 protected Integer compute() {
 System.out.println(start + " -" + end + " begin");
 int sum = 0;
 boolean canCompute = (end - start)<= THRESHHOLD;
 if (canCompute) { // 达到了计算条件，则直接执行
 for (int i = start; i <= end;i++) {
 sum += i;
 }
 } else { // 不满足计算条件，则分割任务
 int middle = (start + end) / 2;

 CountTask leftTask = new CountTask(start, middle);
 CountTask rightTask = new CountTask(middle + 1, end);

 leftTask.fork(); // 执行子任务
 rightTask.fork();
 int leftResult = leftTask.join();// 等待子任务执行完毕
 int rightResult = rightTask.join();

 sum = leftResult + rightResult; // 合并子任务的计算结果
 }
 System.out.println(start + " -" + end + " end");
 return sum;
 }

 public static void main(String[] args)throws InterruptedException, ExecutionException {
 ForkJoinPool pool = new ForkJoinPool();
 CountTask task = new CountTask(1, 8);
 Future<Integer> future =pool.submit(task);
 if (task.isCompletedAbnormally()) {
 System.out.println(task.getException());
 } else {
 System.out.println("result:" + future.get());
 }

 }

}
打印结果：

1 - 8 begin

1 - 4 begin

5 - 8 begin

5 - 6 begin

5 - 6 end

1 - 2 begin

1 - 2 end

3 - 4 begin

3 - 4 end

7 - 8 begin

7 - 8 end

5 - 8 end

1 - 4 end

1 - 8 end

result: 36

由于每个任务是由线程池执行的，每次的执行顺序会有不同，但是，父任务肯定在所有子任务之后完成，比如1-8的计算肯定在子任务1-4、5-8之后完成，但是1-4、5-8的完成顺序是不确定的。

ForkJoinTask在执行的时候可能会抛出异常，但是我们没办法在主线程里直接捕获异常，所以ForkJoinTask提供了isCompletedAbnormally()方法来检查任务是否已经抛出异常或已经被取消了，并且可以通过ForkJoinTask的getException方法获取异常。

getException方法返回Throwable对象，如果任务被取消了则返回CancellationException。如果任务没有完成或者没有抛出异常则返回null。

1.3 源码解读

1.3.1 ForkJoinPool

ForkJoinTask代表一个需要执行的任务，真正执行这些任务的线程放在一个ForkJoinPool里面。ForkJoinPool是一个可以执行ForkJoinTask的ExcuteService，与ExcuteService不同的是它采用了work-stealing模式：所有在池中的空闲线程尝试去执行其他线程创建的子任务，这样就很少有线程处于空闲状态，非常高效。

池中维护着ForkJoinWorkerThread对象数组:

[java] view plain copy
print ?

/**
* Array holding all worker threads in the pool. Initialized upon
* construction. Array size must be a power of two. Updates and
* replacements are protected by scanGuard,but the array is
* always kept in a consistent enough state to be randomly
* accessed without locking by workers performing work-stealing,
* as well as other traversal-based methods in this class, so long
* as reads memory-acquire by first reading ctl. All readers must
* tolerate that some array slots may be null.
*/
ForkJoinWorkerThread[] workers;
 /**
 * Array holding all worker threads in the pool. Initialized upon
 * construction. Array size must be a power of two. Updates and
 * replacements are protected by scanGuard,but the array is
 * always kept in a consistent enough state to be randomly
 * accessed without locking by workers performing work-stealing,
 * as well as other traversal-based methods in this class, so long
 * as reads memory-acquire by first reading ctl. All readers must
 * tolerate that some array slots may be null.
 */
 ForkJoinWorkerThread[] workers;
ForkJoinWorkerThread为认为的执行线程，workers数组在构造方法中初始化，其大小必须为2的n次方（方便将取模转换为移位运算）。

ForkJoinPool初始化方法：

[java] view plain copy
print ?

// initialize workers array with room for 2*parallelism if possible
 int n = parallelism << 1;
 if (n >= MAX_ID)
 n = MAX_ID;
 else { // See Hackers Delight, sec 3.2,where n < (1 << 16)
 n |= n >>> 1; n |= n>>> 2; n |= n >>> 4; n |= n >>> 8;
 }
 workers = new ForkJoinWorkerThread[n +1];
// initialize workers array with room for 2*parallelism if possible
 int n = parallelism << 1;
 if (n >= MAX_ID)
 n = MAX_ID;
 else { // See Hackers Delight, sec 3.2,where n < (1 << 16)
 n |= n >>> 1; n |= n>>> 2; n |= n >>> 4; n |= n >>> 8;
 }
 workers = new ForkJoinWorkerThread[n +1];
可见，workers数组大小由parallelism属性决定，parallelism默认为处理器个数，workers数组默认大小为处理器数量*2，但是不能超过MAX_ID

[java] view plain copy
print ?

private static final int MAX_ID = 0x7fff; // max poolIndex
private static final int MAX_ID = 0x7fff; // max poolIndex
什么情况下需要添加线程呢？当新的任务到来，线程池会通知其他线程前去处理，如果这时没有处于等待的线程或者处于活动的线程非常少（这是通过ctl属性来判断的），就会往线程池中添加线程：

[java] view plain copy
print ?

/**
* Tries to create and start a worker;minimally rolls back counts
* on failure.
*/
private void addWorker() {
 Throwable ex = null;
 ForkJoinWorkerThread t = null;
 try {
 t = factory.newThread(this);
 } catch (Throwable e) {
 ex = e;
 }
 if (t == null) { // null or exceptional factory return
 long c; // adjust counts
 do {} while(!UNSAFE.compareAndSwapLong
 (this, ctlOffset, c =ctl,
 (((c - AC_UNIT) &AC_MASK) |
 ((c - TC_UNIT) &TC_MASK) |
 (c &~(AC_MASK|TC_MASK)))));
 // Propagate exception iforiginating from an external caller
 if (!tryTerminate(false) &&ex != null &&
 !(Thread.currentThread()instanceof ForkJoinWorkerThread))
 UNSAFE.throwException(ex);
 }
 else
 t.start();
}
 /**
 * Tries to create and start a worker;minimally rolls back counts
 * on failure.
 */
 private void addWorker() {
 Throwable ex = null;
 ForkJoinWorkerThread t = null;
 try {
 t = factory.newThread(this);
 } catch (Throwable e) {
 ex = e;
 }
 if (t == null) { // null or exceptional factory return
 long c; // adjust counts
 do {} while(!UNSAFE.compareAndSwapLong
 (this, ctlOffset, c =ctl,
 (((c - AC_UNIT) &AC_MASK) |
 ((c - TC_UNIT) &TC_MASK) |
 (c &~(AC_MASK|TC_MASK)))));
 // Propagate exception iforiginating from an external caller
 if (!tryTerminate(false) &&ex != null &&
 !(Thread.currentThread()instanceof ForkJoinWorkerThread))
 UNSAFE.throwException(ex);
 }
 else
 t.start();
 }
增加线程通过ForkJoinWorkerThreadFactory来实现，底层实现方法为：

[java] view plain copy
print ?

/**
* Creates a ForkJoinWorkerThread operatingin the given pool.
*
* @param pool the pool this thread worksin
* @throws NullPointerException if pool isnull
*/
protected ForkJoinWorkerThread(ForkJoinPool pool) {
 super(pool.nextWorkerName());
 this.pool = pool;
 int k = pool.registerWorker(this);
 poolIndex = k;
 eventCount = ~k & SMASK; // clear wait count
 locallyFifo = pool.locallyFifo;
 Thread.UncaughtExceptionHandler ueh =pool.ueh;
 if (ueh != null)
 setUncaughtExceptionHandler(ueh);
 setDaemon(true);
}
 /**
 * Creates a ForkJoinWorkerThread operatingin the given pool.
 *
 * @param pool the pool this thread worksin
 * @throws NullPointerException if pool isnull
 */
 protected ForkJoinWorkerThread(ForkJoinPool pool) {
 super(pool.nextWorkerName());
 this.pool = pool;
 int k = pool.registerWorker(this);
 poolIndex = k;
 eventCount = ~k & SMASK; // clear wait count
 locallyFifo = pool.locallyFifo;
 Thread.UncaughtExceptionHandler ueh =pool.ueh;
 if (ueh != null)
 setUncaughtExceptionHandler(ueh);
 setDaemon(true);
 }
可见，该线程生成后需要回调ForkJoinPool.registerWorker在线程池中完成注册：

[java] view plain copy
print ?

/**
* Callback from ForkJoinWorkerThread constructor to
* determine its poolIndex and record in workers array.
*
* @param w the worker
* @return the worker’s pool index
*/
final intregisterWorker(ForkJoinWorkerThread w) {
 /*
 * In the typical case, a new worker acquires the lock, uses
 * next available index and returns quickly. Since we should
 * not block callers (ultimately from signalWork or
 * tryPreBlock) waiting for the lock needed to do this, we
 * instead help release other workers while waiting for the
 * lock.
 */
 for (int g;;) {
 ForkJoinWorkerThread[] ws;
 if (((g = scanGuard) & SG_UNIT) == 0&&
 UNSAFE.compareAndSwapInt(this,scanGuardOffset,
 g, g |SG_UNIT)) {
 int k = nextWorkerIndex;
 try {
 if ((ws = workers) != null){ // ignore on shutdown
 int n = ws.length;
 if (k < 0 || k >=n || ws[k] != null) {
 for (k = 0; k <n && ws[k] != null; ++k)
 ;
 if (k == n)
 ws = workers =Arrays.copyOf(ws, n << 1);
 }
 ws[k] = w;
 nextWorkerIndex = k +1;
 int m = g & SMASK;
 g = (k > m) ? ((m<< 1) + 1) & SMASK : g + (SG_UNIT<<1);
 }
 } finally {
 scanGuard = g;
 }
 return k;
 }
 else if ((ws = workers) != null) {// help release others
 for (ForkJoinWorkerThread u :ws) {
 if (u != null &&u.queueBase != u.queueTop) {
 if (tryReleaseWaiter())
 break;
 }
 }
 }
 }
}
 /**
 * Callback from ForkJoinWorkerThread constructor to
 * determine its poolIndex and record in workers array.
 *
 * @param w the worker
 * @return the worker's pool index
 */
 final intregisterWorker(ForkJoinWorkerThread w) {
 /*
 * In the typical case, a new worker acquires the lock, uses
 * next available index and returns quickly. Since we should
 * not block callers (ultimately from signalWork or
 * tryPreBlock) waiting for the lock needed to do this, we
 * instead help release other workers while waiting for the
 * lock.
 */
 for (int g;;) {
 ForkJoinWorkerThread[] ws;
 if (((g = scanGuard) & SG_UNIT) == 0&&
 UNSAFE.compareAndSwapInt(this,scanGuardOffset,
 g, g |SG_UNIT)) {
 int k = nextWorkerIndex;
 try {
 if ((ws = workers) != null){ // ignore on shutdown
 int n = ws.length;
 if (k < 0 || k >=n || ws[k] != null) {
 for (k = 0; k <n && ws[k] != null; ++k)
 ;
 if (k == n)
 ws = workers =Arrays.copyOf(ws, n << 1);
 }
 ws[k] = w;
 nextWorkerIndex = k +1;
 int m = g & SMASK;
 g = (k > m) ? ((m<< 1) + 1) & SMASK : g + (SG_UNIT<<1);
 }
 } finally {
 scanGuard = g;
 }
 return k;
 }
 else if ((ws = workers) != null) {// help release others
 for (ForkJoinWorkerThread u :ws) {
 if (u != null &&u.queueBase != u.queueTop) {
 if (tryReleaseWaiter())
 break;
 }
 }
 }
 }
 }
整个框架大量采用顺序锁，好处是不用阻塞，不好的地方是会有额外的循环。这里也是通过循环来注册这个线程，在循环的过程中有两种情况发生：

1、compareAndSwapInt操作成功，扫描workers数组，找到一个为空的项，并把新创建的线程放在这个位置；如果没有找到，表示数组大小不够，则将数组扩大2倍；

2、compareAndSwapInt操作失败，需要循环重新尝试直接成功为止，从代码中可以看出，即使是失败了，也不忘做一些额外的事：通知其他线程去执行没有完成的任务

ForkJoinPool可以通过execute提交ForkJoinTask任务，然后通过ForkJoinWorkerThread. pushTask实现。

[java] view plain copy
print ?

 /**
* Unless terminating, forks task if within an ongoing FJ
* computation in the current pool, else submits as external task.
*/
private <T> void forkOrSubmit(ForkJoinTask<T> task) {
 ForkJoinWorkerThread w;
 Thread t = Thread.currentThread();
 if (shutdown)
 throw newRejectedExecutionException();
 if ((t instanceof ForkJoinWorkerThread)&&
 (w = (ForkJoinWorkerThread)t).pool== this)
 w.pushTask(task);
 else
 addSubmission(task);
}

/**
* Arranges for (asynchronous) execution of the given task.
*
* @param task the task
* @throws NullPointerException if the task is null
* @throws RejectedExecutionException if the task cannot be
* scheduled for execution
*/
public void execute(ForkJoinTask<?>task) {
 if (task == null)
 throw new NullPointerException();
 forkOrSubmit(task);
}
 /**
 * Unless terminating, forks task if within an ongoing FJ
 * computation in the current pool, else submits as external task.
 */
 private <T> void forkOrSubmit(ForkJoinTask<T> task) {
 ForkJoinWorkerThread w;
 Thread t = Thread.currentThread();
 if (shutdown)
 throw newRejectedExecutionException();
 if ((t instanceof ForkJoinWorkerThread)&&
 (w = (ForkJoinWorkerThread)t).pool== this)
 w.pushTask(task);
 else
 addSubmission(task);
 }

 /**
 * Arranges for (asynchronous) execution of the given task.
 *
 * @param task the task
 * @throws NullPointerException if the task is null
 * @throws RejectedExecutionException if the task cannot be
 * scheduled for execution
 */
 public void execute(ForkJoinTask<?>task) {
 if (task == null)
 throw new NullPointerException();
 forkOrSubmit(task);
 }
除此之外，ForkJoinPool还覆盖并重载了从ExecutorService继承过来的execute和submit方法外，可以接受Runnable与Callable 类型的任务。

和ExecutorService一样，ForkJoinPool可以调用shutdown()和 shutdownNow()来终止线程，会先设置每个线程的任务状态为CANCELLED，然后调用Thread的interrupt方法来终止每个线程。

与ExcuteService不同的是，ForkJoinPool除了可以执行Runnable任务外，还可以执行ForkJoinTask任务； ExcuteService中处于后面的任务需要等待前面任务执行后才有机会执行，而ForkJoinPool会采用work-stealing模式帮助其他线程执行任务，即ExcuteService解决的是并发问题，而ForkJoinPool解决的是并行问题。

1.3.2 ForkJoinWorkerThread

ForkJoinWorkerThread继承自Thread，受ForkJoinPool支配用以执行ForkJoinTask。

该类中有几个重要的域：

[java] view plain copy
print ?

/**
* Capacity of work-stealing queue arra yupon initialization.
* Must be a power of two. Initial size must be at least 4, but is
* padded to minimize cache effects.
*/
private static final intINITIAL_QUEUE_CAPACITY = 1 << 13;

/**
* Maximum size for queue array. Must be a power of two
* less than or equal to 1 << (31 -width of array entry) to
* ensure lack of index wraparound, but is capped at a lower
* value to help users trap run away computations.
*/
private static final intMAXIMUM_QUEUE_CAPACITY = 1 << 24; // 16M

/**
* The work-stealing queue array. Size must be a power of two.
* Initialized when started (as oposed to when constructed), to
* improve memory locality.
*/
ForkJoinTask<?>[] queue;

/**
* The pool this thread works in. Accessed directly by ForkJoinTask.
*/
final ForkJoinPool pool;

/**
* Index (mod queue.length) of next queue slot to push to or pop
* from. It is written only by owner thread, and accessed by other
* threads only after reading (volatile)queueBase. Both queueTop
* and queueBase are allowed to wrap around on overflow, but
* (queueTop - queueBase) still estimates size.
*/
int queueTop;

/**
* Index (mod queue.length) of least valid queue slot, which is
* always the next position to steal from if nonempty.
*/
volatile int queueBase;

/**
* The index of most recent stealer, used as a hint to avoid
* traversal in method helpJoinTask. This is only a hint because a
* worker might have had multiple steals and this only holds one
* of them (usually the most current). Declared non-volatile,
* relying on other prevailing sync to keep reasonably current.
*/
int stealHint;
 /**
 * Capacity of work-stealing queue arra yupon initialization.
 * Must be a power of two. Initial size must be at least 4, but is
 * padded to minimize cache effects.
 */
 private static final intINITIAL_QUEUE_CAPACITY = 1 << 13;

 /**
 * Maximum size for queue array. Must be a power of two
 * less than or equal to 1 << (31 -width of array entry) to
 * ensure lack of index wraparound, but is capped at a lower
 * value to help users trap run away computations.
 */
 private static final intMAXIMUM_QUEUE_CAPACITY = 1 << 24; // 16M

 /**
 * The work-stealing queue array. Size must be a power of two.
 * Initialized when started (as oposed to when constructed), to
 * improve memory locality.
 */
 ForkJoinTask<?>[] queue;

 /**
 * The pool this thread works in. Accessed directly by ForkJoinTask.
 */
 final ForkJoinPool pool;

 /**
 * Index (mod queue.length) of next queue slot to push to or pop
 * from. It is written only by owner thread, and accessed by other
 * threads only after reading (volatile)queueBase. Both queueTop
 * and queueBase are allowed to wrap around on overflow, but
 * (queueTop - queueBase) still estimates size.
 */
 int queueTop;

 /**
 * Index (mod queue.length) of least valid queue slot, which is
 * always the next position to steal from if nonempty.
 */
 volatile int queueBase;

 /**
 * The index of most recent stealer, used as a hint to avoid
 * traversal in method helpJoinTask. This is only a hint because a
 * worker might have had multiple steals and this only holds one
 * of them (usually the most current). Declared non-volatile,
 * relying on other prevailing sync to keep reasonably current.
 */
 int stealHint;
ForkJoinWorkerThread使用数组实现双端队列，用来盛放ForkJoinTask，queueTop指向对头，queueBase指向队尾。本地线程插入任务、获取任务都在队头进行，其他线程“窃取”任务则在队尾进行。

poolIndex本线程在ForkJoinPool中工作线程数组中的下标，stealHint保存了最近的窃取者(来窃取任务的工作线程)的下标(poolIndex)。注意这个值不准确，因为可能同时有很多窃取者来窃取任务，这个值只能记录其中之一。

添加任务：

[java] view plain copy
print ?

/**
* Pushes a task. Call only from this thread.
*
* @param t the task. Caller must ensure non-null.
*/
final void pushTask(ForkJoinTask<?>t) {
 ForkJoinTask<?>[] q; int s, m;
 if ((q = queue) != null) { // ignore if queue removed
 long u = (((s = queueTop) & (m= q.length - 1)) << ASHIFT) + ABASE;
 UNSAFE.putOrderedObject(q, u, t);
 queueTop = s + 1; // or use putOrderedInt
 if ((s -= queueBase) <= 2)
 pool.signalWork();
 else if (s == m)
 growQueue();
 }
}
 /**
 * Pushes a task. Call only from this thread.
 *
 * @param t the task. Caller must ensure non-null.
 */
 final void pushTask(ForkJoinTask<?>t) {
 ForkJoinTask<?>[] q; int s, m;
 if ((q = queue) != null) { // ignore if queue removed
 long u = (((s = queueTop) & (m= q.length - 1)) << ASHIFT) + ABASE;
 UNSAFE.putOrderedObject(q, u, t);
 queueTop = s + 1; // or use putOrderedInt
 if ((s -= queueBase) <= 2)
 pool.signalWork();
 else if (s == m)
 growQueue();
 }
 }
首先将任务放在queueTop指向的队列位置，再将queueTop加1。

然后分析队列容量情况，当数组元素比较少时（1或者2），就调用signalWork()方法。signalWork（）方法做了两件事：

1、唤醒当前线程;

2、当没有活动线程时或者线程数较少时，添加新的线程。

else if 部分表示队列已满（队头指针=队列长度减1），调用growQueue()扩容。

join任务:

[java] view plain copy
print ?

/**
* Possibly runs some tasks and/or blocks,until joinMe is done.
*
* @param joinMe the task to join
* @return completion status on exit
*/
final int joinTask(ForkJoinTask<?>joinMe) {
 ForkJoinTask<?> prevJoin =currentJoin;
 currentJoin = joinMe;
 for (int s, retries = MAX_HELP;;) {
 if ((s = joinMe.status) < 0) {
 currentJoin = prevJoin;
 return s;
 }
 if (retries > 0) {
 if (queueTop != queueBase) {
 if (!localHelpJoinTask(joinMe))
 retries = 0; // cannot help
 }
 else if (retries == MAX_HELP>>> 1) {
 –retries; // check uncommon case
 if (tryDeqAndExec(joinMe)>= 0)
 Thread.yield(); // for politeness
 }
 else
 retries =helpJoinTask(joinMe) ? MAX_HELP : retries - 1;
 }
 else {
 retries = MAX_HELP; // restart if not done
 pool.tryAwaitJoin(joinMe);
 }
 }
}
 /**
 * Possibly runs some tasks and/or blocks,until joinMe is done.
 *
 * @param joinMe the task to join
 * @return completion status on exit
 */
 final int joinTask(ForkJoinTask<?>joinMe) {
 ForkJoinTask<?> prevJoin =currentJoin;
 currentJoin = joinMe;
 for (int s, retries = MAX_HELP;;) {
 if ((s = joinMe.status) < 0) {
 currentJoin = prevJoin;
 return s;
 }
 if (retries > 0) {
 if (queueTop != queueBase) {
 if (!localHelpJoinTask(joinMe))
 retries = 0; // cannot help
 }
 else if (retries == MAX_HELP>>> 1) {
 --retries; // check uncommon case
 if (tryDeqAndExec(joinMe)>= 0)
 Thread.yield(); // for politeness
 }
 else
 retries =helpJoinTask(joinMe) ? MAX_HELP : retries - 1;
 }
 else {
 retries = MAX_HELP; // restart if not done
 pool.tryAwaitJoin(joinMe);
 }
 }
 }
join操作类似插队，确保入参joinMe执行完毕后再进行后续操作。

这里面有个变量retries，表示可以重试的次数，最大值为MAX_HELP=16。重试的过程如下：

1、判断joinMe是否已完成（joinMe.status < 0），如果是，则直接返回。

2、判断retries是否用完了，如果是，则调用pool.tryAwaitJoin()阻塞当前新城，等待joinMe完成

3、retries大于0，首先判断当前线程的任务队列queue是否为空（queueTop != queueBase），如果不为空，调用localHelpJoinTask()方法，判断joinMe任务是否在自己的queue的队首位置，如果正好在，执行该任务；同时，由于queue不为空，则证明自己并不是没事干，无法帮助别的线程干活（工作窃取），retries置零

4、如果自己的queue为空了，调用helpJoinTask()方法进行工作窃取，帮助其他线程干活，反正闲着也是闲着。

5、帮别人干活也不是每次都能成功，如果连续8次都失败了（retries == MAX_HELP >>> 1），说明人品不行，自己还是歇会吧，调用Thread.yield()让权。不过，让权之前还会做最有一次努力，调用tryDeqAndExec()，看看自己在等的任务是否在某个线程的队尾，在的话偷过来执行掉。

1.3.3 ForkJoinTask

当我们调用ForkJoinTask的fork方法时，程序会调用ForkJoinWorkerThread的pushTask方法异步的执行这个任务，然后立即返回结果。

[java] view plain copy
print ?

/**
* Arranges to asynchronously execute this task. While it is not
* necessarily enforced, it is a usage error to fork a task more
* than once unless it has completed and been reinitialized.
* Subsequent modifications to the state of this task or any data
* it operates on are not necessarily consistently observable by
* any thread other than the one executing it unless preceded by a
* call to {@link #join} or related methods, or a call to {@link
* #isDone} returning {@code true}.
*
* This method may be invoked only from within {@code
* ForkJoinPool} computations (as may be determined using method
* {@link #inForkJoinPool}). Attempts to invoke in other contexts
* result in exceptions or errors, possibly including {@code
* ClassCastException}.
*
* @return {@code this}, to simplify usage
*/
public final ForkJoinTask<V> fork() {
 ((ForkJoinWorkerThread)Thread.currentThread())
 .pushTask(this);
 return this;
}
 /**
 * Arranges to asynchronously execute this task. While it is not
 * necessarily enforced, it is a usage error to fork a task more
 * than once unless it has completed and been reinitialized.
 * Subsequent modifications to the state of this task or any data
 * it operates on are not necessarily consistently observable by
 * any thread other than the one executing it unless preceded by a
 * call to {@link #join} or related methods, or a call to {@link
 * #isDone} returning {@code true}.
 *
 * This method may be invoked only from within {@code
 * ForkJoinPool} computations (as may be determined using method
 * {@link #inForkJoinPool}). Attempts to invoke in other contexts
 * result in exceptions or errors, possibly including {@code
 * ClassCastException}.
 *
 * @return {@code this}, to simplify usage
 */
 public final ForkJoinTask<V> fork() {
 ((ForkJoinWorkerThread)Thread.currentThread())
 .pushTask(this);
 return this;
 }
可见，fork()操作是通过调用ForkJoinWorkerThread.pushTask()实现的。该方法在上面已做分析，不再赘述。

join方法的主要作用是阻塞当前线程并等待获取结果。代码如下：

[java] view plain copy
print ?

/**
* Returns the result of the computationwhen it {@link #isDone is
* done}. This method differs from {@link #get()} in that
* abnormal completion results in {@codeRuntimeException} or
* {@code Error}, not {@codeExecutionException}, and that
* interrupts of the calling thread donot cause the
* method to abruptly return by throwing{@code
* InterruptedException}.
*
* @return the computed result
*/
public final V join() {
 if (doJoin() != NORMAL)
 return reportResult();
 else
 return getRawResult();
}

/**
* Report the result of invoke or join;called only upon
* non-normal return of internal versions.
*/
private V reportResult() {
 int s; Throwable ex;
 if ((s = status) == CANCELLED)
 throw new CancellationException();
 if (s == EXCEPTIONAL && (ex =getThrowableException()) != null)
 UNSAFE.throwException(ex);
 return getRawResult();
}
 /**
 * Returns the result of the computationwhen it {@link #isDone is
 * done}. This method differs from {@link #get()} in that
 * abnormal completion results in {@codeRuntimeException} or
 * {@code Error}, not {@codeExecutionException}, and that
 * interrupts of the calling thread donot cause the
 * method to abruptly return by throwing{@code
 * InterruptedException}.
 *
 * @return the computed result
 */
 public final V join() {
 if (doJoin() != NORMAL)
 return reportResult();
 else
 return getRawResult();
 }

 /**
 * Report the result of invoke or join;called only upon
 * non-normal return of internal versions.
 */
 private V reportResult() {
 int s; Throwable ex;
 if ((s = status) == CANCELLED)
 throw new CancellationException();
 if (s == EXCEPTIONAL && (ex =getThrowableException()) != null)
 UNSAFE.throwException(ex);
 return getRawResult();
 }
首先，它调用了doJoin()方法，通过doJoin()方法得到当前任务的状态来判断返回什么结果，任务状态有四种：

[java] view plain copy
print ?

private static final int NORMAL = -1;
private static final int CANCELLED = -2;
private static final int EXCEPTIONAL = -3;
private static final int SIGNAL = 1;
 private static final int NORMAL = -1;
 private static final int CANCELLED = -2;
 private static final int EXCEPTIONAL = -3;
 private static final int SIGNAL = 1;
如果任务状态是已完成，则直接返回任务结果。

如果任务状态是被取消，则直接抛出CancellationException。

如果任务状态是抛出异常，则直接抛出对应的异常。

再来看doJoin方法：

[java] view plain copy
print ?

doJoin() {
 Thread t; ForkJoinWorkerThread w; ints; boolean completed;
 if ((t = Thread.currentThread())instanceof ForkJoinWorkerThread) {
 if ((s = status) < 0)
 return s;
 if ((w =(ForkJoinWorkerThread)t).unpushTask(this)) {
 try {
 completed = exec();
 } catch (Throwable rex) {
 return setExceptionalCompletion(rex);
 }
 if (completed)
 returnsetCompletion(NORMAL);
 }
 return w.joinTask(this);
 }
 else
 return externalAwaitDone();
 }
doJoin() {
 Thread t; ForkJoinWorkerThread w; ints; boolean completed;
 if ((t = Thread.currentThread())instanceof ForkJoinWorkerThread) {
 if ((s = status) < 0)
 return s;
 if ((w =(ForkJoinWorkerThread)t).unpushTask(this)) {
 try {
 completed = exec();
 } catch (Throwable rex) {
 return setExceptionalCompletion(rex);
 }
 if (completed)
 returnsetCompletion(NORMAL);
 }
 return w.joinTask(this);
 }
 else
 return externalAwaitDone();
 }
在doJoin()方法里，首先通过查看任务的状态，看任务是否已经执行完了，如果执行完了，则直接返回任务状态；如果没有执行完，判断该任务是在queue的队首（unpushTask方法），如果正好在，则取出来执行掉；否则，调用joinTask方法处理。

光与热

关注

0
点赞
踩
0

收藏

觉得还不错? 一键收藏
0
评论
Fork Join框架

1.1 核心思想Fork/Join框架是Java7提供了的一个用于并行执行任务的框架，是一个把大任务分割成若干个小任务，最终汇总每个小任务结果后得到大任务结果的框架，其实现思想与MapReduce有异曲同工之妙。Fork就是把一个大任务切分为若干子任务并行的执行，Join就是合并这些子任务的执行结果，最后得到这个大任务的结果。比如计算1+2+…＋10000，可以分割成10个子任务，每个子任务分别
复制链接

扫一扫

专栏目录
