OOALV 事件的使用

首先，各位ABAPer程序猿们，节日快乐鸭。
进入正题
上一篇文介绍了 OOALV的报表实现，基础中的基础运用
前面介绍使用类CL_GUI_DOCKING_CONTAINER生成容器，使用类CL_GUI_ALV_GRID生成alv输出。如果说这两个类是OOALV的灵魂，那事件就相当于是OOALV的躯干。

下面先贴上相关代码：

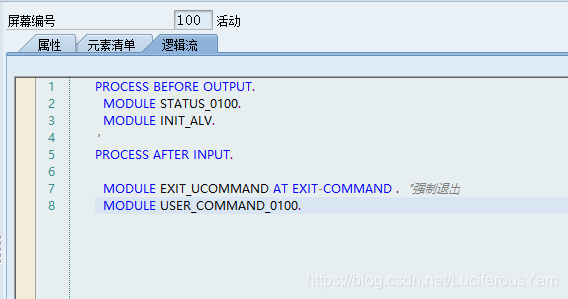

1、100屏幕

2、GUI状态

3、代码

TABLES: SFLIGHT.

"输出结构
TYPES: BEGIN OF TY_OUTPUT.
    INCLUDE STRUCTURE SFLIGHT.
TYPES: ZBOX       TYPE C,
       SEATSOCC_O TYPE SFLIGHT-SEATSOCC, "经济舱剩余座位
       ZSTYLE     TYPE LVC_T_STYL. "编辑状态字段
TYPES: END OF TY_OUTPUT.

DATA: GT_OUTPUT TYPE TABLE OF TY_OUTPUT. "输出内表
DATA: GS_OUTPUT TYPE TY_OUTPUT. "输出工作区

DATA: GS_LAYOUT TYPE LVC_S_LAYO. "布局
DATA: GT_FIELDCAT TYPE LVC_T_FCAT. "字段属性内表
DATA: GS_FIELDCAT TYPE LVC_S_FCAT. "
DATA: GV_COL TYPE I.

"隐藏工具栏图标
DATA: GS_UI_FUNC TYPE UI_FUNC.
DATA: GT_UI_FUNC TYPE UI_FUNCTIONS.

DATA: OK_CODE TYPE SY-UCOMM. "用户功能码接收
DATA: SAVE_OK TYPE SY-UCOMM. "用户功能码接收

DATA: GS_ALV TYPE REF TO CL_GUI_ALV_GRID. "屏幕alv对象
*DATA: GS_CON TYPE REF TO CL_GUI_CUSTOM_CONTAINER.
DATA: GS_DOCK TYPE REF TO CL_GUI_DOCKING_CONTAINER. "屏幕容器对象

"事件接收类定义
CLASS LCL_EVENTS_RECEIVER DEFINITION.
  PUBLIC SECTION.
    "工具栏事件
    METHODS TOOLBAR FOR EVENT TOOLBAR OF CL_GUI_ALV_GRID
      IMPORTING E_OBJECT.

    "处理命令事件
    METHODS USER_COMMAND FOR EVENT USER_COMMAND OF CL_GUI_ALV_GRID
      IMPORTING E_UCOMM.

    "数据改变事件
    METHODS DATA_CHANGED FOR EVENT DATA_CHANGED OF CL_GUI_ALV_GRID
      IMPORTING ER_DATA_CHANGED.

    "单击事件
    METHODS HOTSPOT_CLICK FOR EVENT HOTSPOT_CLICK OF CL_GUI_ALV_GRID
      IMPORTING E_ROW_ID
                  E_COLUMN_ID.

    "双击事件
    METHODS DOUBLE_CLICK FOR EVENT DOUBLE_CLICK OF CL_GUI_ALV_GRID
      IMPORTING E_ROW
                  E_COLUMN.
ENDCLASS.

"事件接收类实现
CLASS LCL_EVENTS_RECEIVER IMPLEMENTATION.
  "工具栏事件实现
  METHOD TOOLBAR.
    PERFORM FRM_TOOLBAR USING E_OBJECT.
  ENDMETHOD.

  "处理命令事件实现
  METHOD USER_COMMAND.
    PERFORM FRM_USER_COMMAND USING E_UCOMM.
  ENDMETHOD.

  "数据改变事件实现
  METHOD DATA_CHANGED.
    PERFORM FRM_DATA_CHANGED USING ER_DATA_CHANGED.
  ENDMETHOD.

  "单击事件实现
  METHOD HOTSPOT_CLICK.
    PERFORM FRM_HOTSPOT_CLICK USING E_ROW_ID E_COLUMN_ID.
  ENDMETHOD.

  "双击事件
  METHOD DOUBLE_CLICK.
    PERFORM FRM_DOUBLE_CLICK USING E_ROW E_COLUMN.
  ENDMETHOD.
ENDCLASS.

"事件接收对象
DATA: GS_EVENTS_RECEIVER TYPE REF TO LCL_EVENTS_RECEIVER.


"选择屏幕
SELECTION-SCREEN BEGIN OF BLOCK BLK1 WITH FRAME.
SELECT-OPTIONS: S_CARRID FOR SFLIGHT-CARRID.
SELECTION-SCREEN END OF BLOCK BLK1 .

START-OF-SELECTION.
  "取数
  PERFORM FRM_SELECT_DATA.

END-OF-SELECTION.
  "调用100屏幕输出
  CALL SCREEN 0100.


*&---------------------------------------------------------------------*
*& Module STATUS_0100 OUTPUT
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
MODULE STATUS_0100 OUTPUT.
  SET PF-STATUS 'ZSTATUS_0100'.
  SET TITLEBAR 'ZTITLE_0100'.
ENDMODULE.
*&---------------------------------------------------------------------*
*&      Module  USER_COMMAND_0100  INPUT
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
MODULE USER_COMMAND_0100 INPUT.
  "赋值一份OK_CODE
  SAVE_OK = OK_CODE.
  CLEAR OK_CODE.

  CASE SAVE_OK.
    WHEN 'ZEDIT'.
      PERFORM FRM_SET_EDIT.

    WHEN OTHERS.
  ENDCASE.

ENDMODULE.
*&---------------------------------------------------------------------*
*&      Module  EXIT  INPUT
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
MODULE EXIT_UCOMMAND INPUT.

  SAVE_OK = OK_CODE.
  CLEAR OK_CODE.

  CASE SAVE_OK.
    WHEN 'ZBACK' .
      LEAVE TO SCREEN 0. "返回上一个屏幕

    WHEN 'ZCANCEL'.
      LEAVE TO SCREEN 0.

    WHEN 'EXIT'.
      LEAVE PROGRAM. "返回程序
    WHEN OTHERS.
  ENDCASE.
ENDMODULE.
*&---------------------------------------------------------------------*
*& Module INIT_ALV OUTPUT
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
MODULE INIT_ALV OUTPUT.
  IF GS_ALV IS INITIAL.
    "实例化
    PERFORM FRM_SET_GRID.
    "布局
    PERFORM FRM_SET_LAYOUT.
    "字段属性
    PERFORM FRM_SET_FIELDCAT.
    "按钮隐藏
    PERFORM FRM_UI_FUNCIONS.
    "展示数据
    PERFORM FRM_DISPLAY_ALV.
  ELSE.
    "刷新屏幕
    PERFORM FRM_REFRESH_ALV.
  ENDIF.


ENDMODULE.
*&---------------------------------------------------------------------*
*& Form FRM_SELECT_DATA
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM FRM_SELECT_DATA .
  DATA: LS_STYL TYPE LVC_S_STYL.
  DATA: LT_STYL TYPE LVC_T_STYL.

  SELECT *
    FROM SFLIGHT
    INTO CORRESPONDING FIELDS OF TABLE GT_OUTPUT
    WHERE CARRID IN S_CARRID.

  "数据处理
  LOOP AT GT_OUTPUT ASSIGNING FIELD-SYMBOL(<FW_OUTPUT>).

    <FW_OUTPUT>-SEATSOCC_O = <FW_OUTPUT>-SEATSMAX - <FW_OUTPUT>-SEATSOCC.

    LS_STYL-FIELDNAME = 'SEATSMAX'.
    LS_STYL-STYLE = CL_GUI_ALV_GRID=>MC_STYLE_DISABLED.
    APPEND LS_STYL TO <FW_OUTPUT>-ZSTYLE.
  ENDLOOP.

ENDFORM.
*&---------------------------------------------------------------------*
*& Form FRM_SET_ALV
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM FRM_SET_GRID .

  "实例化屏幕容器
  CREATE OBJECT GS_DOCK
    EXPORTING
*     PARENT                      =
      REPID                       = SY-REPID                                                            "当前程序
      DYNNR                       = '0100'                                                               "屏幕编号
      SIDE                        = CL_GUI_DOCKING_CONTAINER=>DOCK_AT_LEFT   "容器吸附左侧
      EXTENSION                   = 1300                                                              "ALV的宽度
*     STYLE                       =
*     LIFETIME                    = lifetime_default
*     CAPTION                     =
      METRIC                      = 0
*     RATIO                       = 100                                                                    "ALV的比率，优先级高于上面的EXTENSION
*     NO_AUTODEF_PROGID_DYNNR     =
*     NAME                        =
    EXCEPTIONS
      CNTL_ERROR                  = 1
      CNTL_SYSTEM_ERROR           = 2
      CREATE_ERROR                = 3
      LIFETIME_ERROR              = 4
      LIFETIME_DYNPRO_DYNPRO_LINK = 5
      OTHERS                      = 6.
  IF SY-SUBRC <> 0.
*   MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
*              WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
  ENDIF.


*
*  CREATE OBJECT GS_CON
*    EXPORTING
**     PARENT                      =
*      CONTAINER_NAME              = 'GC_CON'
**     STYLE                       =
**     LIFETIME                    = lifetime_default
**      REPID                       = SY-REPID
**      DYNNR                       = '0100'
**     NO_AUTODEF_PROGID_DYNNR     =
*    EXCEPTIONS
*      CNTL_ERROR                  = 1
*      CNTL_SYSTEM_ERROR           = 2
*      CREATE_ERROR                = 3
*      LIFETIME_ERROR              = 4
*      LIFETIME_DYNPRO_DYNPRO_LINK = 5
*      OTHERS                      = 6.
*  IF SY-SUBRC <> 0.
** MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
**            WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
*  ENDIF.


  "实例化alv展示对象
  CREATE OBJECT GS_ALV
    EXPORTING
*     I_SHELLSTYLE      = 0
*     I_LIFETIME        =
      I_PARENT          = GS_DOCK
*     I_APPL_EVENTS     = space
*     I_PARENTDBG       =
*     I_APPLOGPARENT    =
*     I_GRAPHICSPARENT  =
*     I_NAME            =
*     I_FCAT_COMPLETE   = SPACE
    EXCEPTIONS
      ERROR_CNTL_CREATE = 1
      ERROR_CNTL_INIT   = 2
      ERROR_CNTL_LINK   = 3
      ERROR_DP_CREATE   = 4
      OTHERS            = 5.
  IF SY-SUBRC <> 0.
* MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
*            WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
  ENDIF.

  "注入数据变化方法
  CALL METHOD GS_ALV->REGISTER_EDIT_EVENT
    EXPORTING
      I_EVENT_ID = CL_GUI_ALV_GRID=>MC_EVT_MODIFIED
*     I_EVENT_ID = CL_GUI_ALV_GRID=>MC_EVT_ENTER
    EXCEPTIONS
      ERROR      = 1
      OTHERS     = 2.
  IF SY-SUBRC <> 0.
*   Implement suitable error handling here
  ENDIF.

  "实例化接收类
  CREATE OBJECT GS_EVENTS_RECEIVER.

  "为alv注入事件
  SET HANDLER GS_EVENTS_RECEIVER->TOOLBAR FOR GS_ALV.
  SET HANDLER GS_EVENTS_RECEIVER->USER_COMMAND FOR GS_ALV.
  SET HANDLER GS_EVENTS_RECEIVER->DATA_CHANGED FOR GS_ALV.
  SET HANDLER GS_EVENTS_RECEIVER->HOTSPOT_CLICK FOR GS_ALV.
  SET HANDLER GS_EVENTS_RECEIVER->DOUBLE_CLICK FOR GS_ALV.


ENDFORM.
*&---------------------------------------------------------------------*
*& Form FRM_SET_LAYOUT
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM FRM_SET_LAYOUT .
  CLEAR: GS_LAYOUT.
  GS_LAYOUT-CWIDTH_OPT = 'X'. "自动列宽
  GS_LAYOUT-ZEBRA = 'X'. "斑马纹
  GS_LAYOUT-BOX_FNAME = 'ZBOX'. "选择块
  GS_LAYOUT-SEL_MODE = 'A'. "显示选择块
*  GS_LAYOUT-EDIT = 'X'.
  GS_LAYOUT-DETAILINIT = 'X'.
  GS_LAYOUT-DETAILTITL = '详细信息'.

  GS_LAYOUT-STYLEFNAME = 'ZSTYLE'. "用于改变字段属性
ENDFORM.
*&---------------------------------------------------------------------*
*& Form FRM_SET_FIELDCAT
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM FRM_SET_FIELDCAT .
  DEFINE M_FIELDCAT.
    CLEAR GS_FIELDCAT.
    GS_FIELDCAT-FIELDNAME = &1.
    GS_FIELDCAT-REF_TABLE = &2.
    GS_FIELDCAT-REF_FIELD = &3.
    GS_FIELDCAT-SCRTEXT_L = &4.
    GV_COL = GV_COL + 1.
    GS_FIELDCAT-COL_POS = GV_COL.

    IF &1 EQ 'SEATSMAX'.
      GS_FIELDCAT-EDIT = 'X'.
    ENDIF.

    IF &1 EQ 'CARRID'.
      GS_FIELDCAT-HOTSPOT = 'X'.
    ENDIF.
    APPEND GS_FIELDCAT TO GT_FIELDCAT.
  END-OF-DEFINITION.

  REFRESH GT_FIELDCAT.
  CLEAR GV_COL.

  M_FIELDCAT 'CARRID' 'SFLIGHT' 'CARRID' '航线'.
  M_FIELDCAT 'CONNID' 'SFLIGHT' 'CONNID' '航班'.
  M_FIELDCAT 'FLDATE' 'SFLIGHT' 'FLDATE' '航班日期'.
  M_FIELDCAT 'PRICE' 'SFLIGHT' 'PRICE' '航空运费'.
  M_FIELDCAT 'CURRENCY' 'SFLIGHT' 'CURRENCY' '价格'.
  M_FIELDCAT 'PLANETYPE' 'SFLIGHT' 'PLANETYPE' '飞机类型'.
  M_FIELDCAT 'SEATSMAX' 'SFLIGHT' 'SEATSMAX' '经济舱位'.
  M_FIELDCAT 'SEATSOCC' 'SFLIGHT' 'SEATSOCC' '经济舱占据位'.
  M_FIELDCAT 'SEATSOCC_O' 'SFLIGHT' 'SEATSOCC' '经济舱剩余位'.
  M_FIELDCAT 'PAYMENTSUM' 'SFLIGHT' 'PAYMENTSUM' '当前预定总数'.
  M_FIELDCAT 'SEATSMAX_B' 'SFLIGHT' 'SEATSMAX_B' '商务舱位'.
  M_FIELDCAT 'SEATSOCC_B' 'SFLIGHT' 'SEATSOCC_B' '商务舱占据位'.
  M_FIELDCAT 'SEATSMAX_F' 'SFLIGHT' 'SEATSMAX_F' '头等舱位'.
  M_FIELDCAT 'SEATSOCC_F' 'SFLIGHT' 'SEATSOCC_F' '头等舱占据位'.


ENDFORM.
*&---------------------------------------------------------------------*
*& Form FRM_DISPLAY_ALV
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM FRM_DISPLAY_ALV .

  "调用方法生成alv
  CALL METHOD GS_ALV->SET_TABLE_FOR_FIRST_DISPLAY
    EXPORTING
*     I_BUFFER_ACTIVE               =
*     I_BYPASSING_BUFFER            =
*     I_CONSISTENCY_CHECK           =
*     I_STRUCTURE_NAME              =
*     IS_VARIANT                    =
      I_SAVE                        = 'A'
      I_DEFAULT                     = 'X'
      IS_LAYOUT                     = GS_LAYOUT
*     IS_PRINT                      =
*     IT_SPECIAL_GROUPS             =
      IT_TOOLBAR_EXCLUDING          = GT_UI_FUNC
*     IT_HYPERLINK                  =
*     IT_ALV_GRAPHICS               =
*     IT_EXCEPT_QINFO               =
*     IR_SALV_ADAPTER               =
    CHANGING
      IT_OUTTAB                     = GT_OUTPUT
      IT_FIELDCATALOG               = GT_FIELDCAT
*     IT_SORT                       =
*     IT_FILTER                     =
    EXCEPTIONS
      INVALID_PARAMETER_COMBINATION = 1
      PROGRAM_ERROR                 = 2
      TOO_MANY_LINES                = 3
      OTHERS                        = 4.
  IF SY-SUBRC <> 0.
* Implement suitable error handling here
  ENDIF.

ENDFORM.
*&---------------------------------------------------------------------*
*& Form FRM_UI_FUNCIONS
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM FRM_UI_FUNCIONS .

  CLEAR GS_UI_FUNC.
  GS_UI_FUNC = CL_GUI_ALV_GRID=>MC_FC_LOC_APPEND_ROW. "附加行
  APPEND GS_UI_FUNC TO GT_UI_FUNC.

  CLEAR GS_UI_FUNC.
  GS_UI_FUNC = CL_GUI_ALV_GRID=>MC_FC_LOC_INSERT_ROW."插入行
  APPEND GS_UI_FUNC TO GT_UI_FUNC.

  CLEAR GS_UI_FUNC.
  GS_UI_FUNC = CL_GUI_ALV_GRID=>MC_FC_LOC_DELETE_ROW."删除行
  APPEND GS_UI_FUNC TO GT_UI_FUNC.

  CLEAR GS_UI_FUNC.
  GS_UI_FUNC = CL_GUI_ALV_GRID=>MC_FC_LOC_COPY_ROW."复制行
  APPEND GS_UI_FUNC TO GT_UI_FUNC.

  CLEAR GS_UI_FUNC.
  GS_UI_FUNC = CL_GUI_ALV_GRID=>MC_FC_INFO. "文本信息
  APPEND GS_UI_FUNC TO GT_UI_FUNC.
*
*CLEAR GS_UI_FUNC.
*GS_UI_FUNC = CL_GUI_ALV_GRID=>MC_FC_LOC_APPEND_ROW.
*APPEND GS_UI_FUNC TO GT_UI_FUNC.
*
*CLEAR GS_UI_FUNC.
*GS_UI_FUNC = CL_GUI_ALV_GRID=>MC_FC_LOC_APPEND_ROW.
*APPEND GS_UI_FUNC TO GT_UI_FUNC.

ENDFORM.
*&---------------------------------------------------------------------*
*& Form FRM_TOOLBAR
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM FRM_TOOLBAR USING P_OBJECT TYPE REF TO CL_ALV_EVENT_TOOLBAR_SET.
  DATA: LS_TOOLBAR TYPE STB_BUTTON.

  "插入分隔符
  CLEAR LS_TOOLBAR.
  LS_TOOLBAR-BUTN_TYPE = 3.
  APPEND LS_TOOLBAR TO P_OBJECT->MT_TOOLBAR.

  CLEAR LS_TOOLBAR.
  LS_TOOLBAR-FUNCTION = 'EDIT'. "function code
*  LS_TOOLBAR-ICON = ICON_EXPORT. "按钮图标
  LS_TOOLBAR-QUICKINFO = '可编辑'. "按钮信息   鼠标停在按钮上显示的信息
  LS_TOOLBAR-BUTN_TYPE = 0. "按钮类型
  LS_TOOLBAR-DISABLED = ''.   "按钮是否可用 空或者X
  LS_TOOLBAR-TEXT = '可编辑'. "按钮名称
*  LS_TOOLBAR-CHECKED = ''.
  APPEND LS_TOOLBAR TO P_OBJECT->MT_TOOLBAR.


ENDFORM.
*&---------------------------------------------------------------------*
*& Form FRM_USER_COMMAND
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*&      --> E_UCOMM
*&---------------------------------------------------------------------*
FORM FRM_USER_COMMAND  USING    P_UCOMM.
  CASE P_UCOMM.
    WHEN 'EDIT'.
      "设置按钮功能
      PERFORM FRM_SET_EDIT.

    WHEN OTHERS.
  ENDCASE.
ENDFORM.

*&---------------------------------------------------------------------*
*& Form FRM_SET_EDIT
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM FRM_SET_EDIT .
  DATA: LT_ROWS TYPE LVC_T_ROW.
  DATA: LS_STYL TYPE LVC_S_STYL.
  DATA: LT_STYL TYPE LVC_T_STYL.

  "取出选中行的行相关信息
  CALL METHOD GS_ALV->GET_SELECTED_ROWS
    IMPORTING
      ET_INDEX_ROWS = LT_ROWS
*     ET_ROW_NO     =
    .

  LOOP AT LT_ROWS ASSIGNING FIELD-SYMBOL(<LW_ROWS>).
    READ TABLE GT_OUTPUT INTO GS_OUTPUT INDEX <LW_ROWS>-INDEX.
    IF SY-SUBRC EQ 0.
      LS_STYL-FIELDNAME = 'SEATSMAX'.
      "将该行的SEATSMAX字段变为可编辑
      LS_STYL-STYLE = CL_GUI_ALV_GRID=>MC_STYLE_ENABLED.

      APPEND LS_STYL TO LT_STYL.
      "将属性表赋值到工作区字段中
      GS_OUTPUT-ZSTYLE = LT_STYL.
      "更新内表 注意：因为用的是read，所以这里更新内表时要根据行号去更新
      MODIFY GT_OUTPUT FROM GS_OUTPUT INDEX <LW_ROWS>-INDEX.
    ENDIF.
  ENDLOOP.

  "最后，刷新alv，显示效果
  PERFORM FRM_REFRESH_ALV.

ENDFORM.
*&---------------------------------------------------------------------*
*& Form FRM_REFRESH_ALV
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM FRM_REFRESH_ALV .
  DATA: LS_STABLE TYPE LVC_S_STBL.

  LS_STABLE-COL = 'X'.
  LS_STABLE-ROW = 'X'.

  CALL METHOD GS_ALV->REFRESH_TABLE_DISPLAY
    EXPORTING
      IS_STABLE = LS_STABLE
*     I_SOFT_REFRESH =
    EXCEPTIONS
      FINISHED  = 1
      OTHERS    = 2.
  IF SY-SUBRC <> 0.
* Implement suitable error handling here
  ENDIF.

ENDFORM.
*&---------------------------------------------------------------------*
*& Form FRM_DATA_CHANGED
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM FRM_DATA_CHANGED USING PR_DATA_CHANGED TYPE REF TO CL_ALV_CHANGED_DATA_PROTOCOL.

  DATA: LS_MODI TYPE LVC_S_MODI.

  LOOP AT PR_DATA_CHANGED->MT_MOD_CELLS INTO LS_MODI.
    IF LS_MODI-FIELDNAME EQ 'SEATSMAX'.
      READ TABLE GT_OUTPUT INTO GS_OUTPUT INDEX LS_MODI-ROW_ID.
      IF SY-SUBRC EQ 0.
        GS_OUTPUT-SEATSMAX = LS_MODI-VALUE.
        GS_OUTPUT-SEATSOCC_O = GS_OUTPUT-SEATSMAX - GS_OUTPUT-SEATSOCC.

        MODIFY GT_OUTPUT FROM GS_OUTPUT INDEX LS_MODI-ROW_ID.
      ENDIF.
    ENDIF.
  ENDLOOP.


  PERFORM FRM_REFRESH_ALV.
ENDFORM.
*&---------------------------------------------------------------------*
*& Form FRM_HOTSPOT_CLICK
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM FRM_HOTSPOT_CLICK USING P_ROW_ID TYPE LVC_S_ROW
                                                      P_COLUMN_ID TYPE LVC_S_COL.

  DATA: LV_STR TYPE STRING.

  READ TABLE GT_OUTPUT INTO GS_OUTPUT INDEX P_ROW_ID-INDEX.
  IF SY-SUBRC EQ 0.
    IF P_COLUMN_ID-FIELDNAME EQ 'CARRID'.
      CONCATENATE '您点击了' GS_OUTPUT-CARRID '航线' GS_OUTPUT-CONNID '航班' INTO LV_STR SEPARATED BY SPACE.
      MESSAGE LV_STR TYPE 'S' ."DISPLAY LIKE 'E'.
    ENDIF.
  ENDIF.

ENDFORM.
*&---------------------------------------------------------------------*
*& Form FRM_DOUBLE_CLICK
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*&      --> E_ROW
*&      --> E_COLUMN
*&---------------------------------------------------------------------*
FORM FRM_DOUBLE_CLICK  USING    P_ROW TYPE LVC_S_ROW
                                P_COLUMN TYPE LVC_S_COL.

  DATA: LV_STR TYPE STRING.

  READ TABLE GT_OUTPUT INTO GS_OUTPUT INDEX P_ROW-INDEX.
  IF SY-SUBRC EQ 0.
    CONCATENATE '您双击了' P_ROW-INDEX '行' P_COLUMN-FIELDNAME '列' INTO LV_STR SEPARATED BY SPACE .
    MESSAGE LV_STR TYPE 'S' ."DISPLAY LIKE 'E'.
  ENDIF.

ENDFORM.

事件有很多，这里只列举了几个，其中TOOLBAR和USER_COMMAND事件是基础的，另外DATA_CHANGED事件是个人认为比较重要的。

事件的实现步骤大致可以分为以下几步：
1、创建事件接收类(类的定义与实现)

"事件接收类定义
CLASS LCL_EVENTS_RECEIVER DEFINITION.
  PUBLIC SECTION.
    "工具栏事件
    METHODS TOOLBAR FOR EVENT TOOLBAR OF CL_GUI_ALV_GRID
      IMPORTING E_OBJECT.

    "处理命令事件
    METHODS USER_COMMAND FOR EVENT USER_COMMAND OF CL_GUI_ALV_GRID
      IMPORTING E_UCOMM.

    "数据改变事件
    METHODS DATA_CHANGED FOR EVENT DATA_CHANGED OF CL_GUI_ALV_GRID
      IMPORTING ER_DATA_CHANGED.

    "单击事件
    METHODS HOTSPOT_CLICK FOR EVENT HOTSPOT_CLICK OF CL_GUI_ALV_GRID
      IMPORTING E_ROW_ID
                  E_COLUMN_ID.

    "双击事件
    METHODS DOUBLE_CLICK FOR EVENT DOUBLE_CLICK OF CL_GUI_ALV_GRID
      IMPORTING E_ROW
                  E_COLUMN.
ENDCLASS.

"事件接收类实现
CLASS LCL_EVENTS_RECEIVER IMPLEMENTATION.
  "工具栏事件实现
  METHOD TOOLBAR.
    PERFORM FRM_TOOLBAR USING E_OBJECT.
  ENDMETHOD.

  "处理命令事件实现
  METHOD USER_COMMAND.
    PERFORM FRM_USER_COMMAND USING E_UCOMM.
  ENDMETHOD.

  "数据改变事件实现
  METHOD DATA_CHANGED.
    PERFORM FRM_DATA_CHANGED USING ER_DATA_CHANGED.
  ENDMETHOD.

  "单击事件实现
  METHOD HOTSPOT_CLICK.
    PERFORM FRM_HOTSPOT_CLICK USING E_ROW_ID E_COLUMN_ID.
  ENDMETHOD.

  "双击事件
  METHOD DOUBLE_CLICK.
    PERFORM FRM_DOUBLE_CLICK USING E_ROW E_COLUMN.
  ENDMETHOD.
ENDCLASS.

2、声明事件接收类的对象

"事件接收对象
DATA: GS_EVENTS_RECEIVER TYPE REF TO LCL_EVENTS_RECEIVER.

3、实例化事件接收类的对象

  "实例化接收类
  CREATE OBJECT GS_EVENTS_RECEIVER.

4、给ALV注册事件

  "为alv注入事件
  SET HANDLER GS_EVENTS_RECEIVER->TOOLBAR FOR GS_ALV.
  SET HANDLER GS_EVENTS_RECEIVER->USER_COMMAND FOR GS_ALV.
  SET HANDLER GS_EVENTS_RECEIVER->DATA_CHANGED FOR GS_ALV.
  SET HANDLER GS_EVENTS_RECEIVER->HOTSPOT_CLICK FOR GS_ALV.
  SET HANDLER GS_EVENTS_RECEIVER->DOUBLE_CLICK FOR GS_ALV.

这里DATA_CHANGED事件比较特殊，除了上述的步骤，还需要增加一个步骤，需要用一个方法去检测ALV上的数据是否改变，方法如下：

  CALL METHOD GS_ALV->REGISTER_EDIT_EVENT
    EXPORTING
      I_EVENT_ID = CL_GUI_ALV_GRID=>MC_EVT_MODIFIED
*     I_EVENT_ID = CL_GUI_ALV_GRID=>MC_EVT_ENTER
    EXCEPTIONS
      ERROR      = 1
      OTHERS     = 2.
  IF SY-SUBRC <> 0.
*   Implement suitable error handling here
  ENDIF.

这个需要特别注意。

OVER。
