Latex数学公式渲染学习

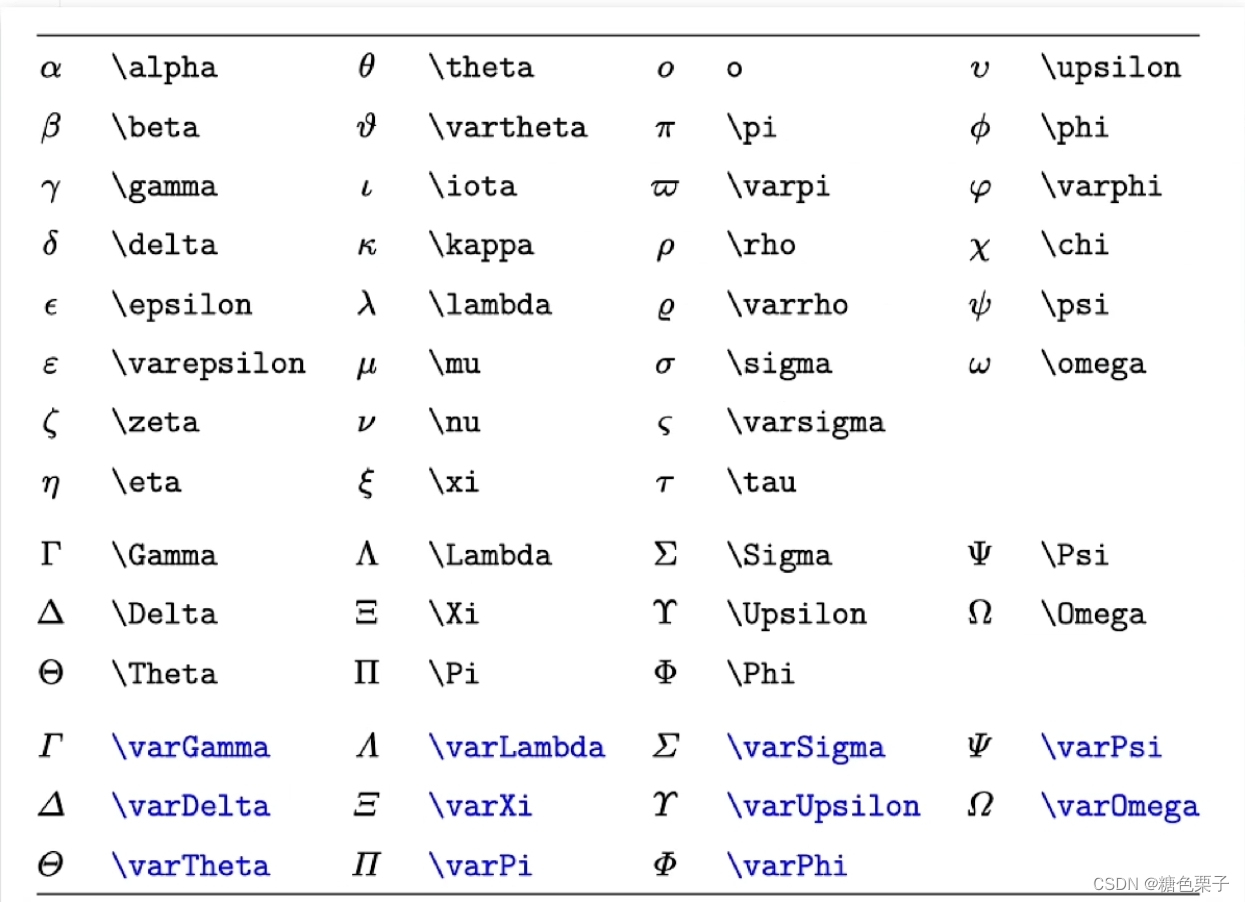

希腊字母

图片：

示例：
$$\begin{gathered} \theta ,\sigma ,\Delta ,\Lambda ,\varphi ,\phi ,\epsilon \\ \Psi ,\gamma \end{gathered}$$

上下标

$$\begin{gathered} a^2,a_1 \\ {x}^{y+z},p_{ij} \\ {x}_i,x_{\text{i}},P_{\mathrm{i}\mathrm{j}} \\ \text{A B},\mathrm{A}\mathrm{B}, \\ \text{C}\mathrm{D},\mathrm{E}\mathrm{F} \\ \text{,}\mathrm{e}, \end{gathered}$$
　　‍

分式与根式

$$\begin{gathered} \frac{1}{2},\frac{1}{x+y},\frac{1}{\frac{1}{x}+1},\frac{1}{\frac{1}{x}+1}, \\ \sqrt{2},\sqrt{x+y},\sqrt[3]{x+\frac{1}{\theta +\varphi }}\sqrt[\frac{\theta }{\gamma }+1]{x+y} \end{gathered}$$
　　‍

运算符

$$\begin{gathered} +- \\ \times ,\cdot ,\cdots \\ ÷,\pm ,\mp \\ \ge ,\le ,\gg ,\ll ,\ne ,\approx ,\equiv \\ \cup ,\cap ,\in ,\notin ,\subseteq ,⫋,\varnothing \\ \forall ,\exists ,\nexists ,{\complement }_A,\because ,\therefore \\ \mathbb{R},\mathbb{R},\mathbb{N}\mathbb{Z}\mathbb{R} \\ \mathcal{F},l \\ \mathcal{F} \\ \cdots ,⋮,\ddots \\ \infty ,\partial x,\nabla a,A\propto B \\ \frac{\partial y}{\partial x} \\ 35° \\ \ln x,\lg x,\sin x,\cosh y,{\log }_{\text{e}}\frac{x+y^{x+y}}{\sqrt[3]{x}} \\ \underset{x\to 0^{+}}{\lim }\frac{x}{\sin x} \\ \max x \\ \text{MSE}(x) \end{gathered}$$

大型运算符

$$\begin{gathered} \sum ,\prod \\ \sum _{i=0}^n{x}_i,\prod _{j=0}^m \\ \frac{{\sum }_{i=0}^n{x}_i}{{\prod }_{j=0}^m{x}_j} \\ \frac{\sum _{i=0}^n{x}_i}{\prod _{j=0}^m{x}_j} \\ \int ,\iint ,\iiint \\ \oint ,\iint ,\iiint \\ {\int }_{-\infty }^{0}f(x)\text{d}x \\ aa \\ aa \\ aa \\ aa \end{gathered}$$

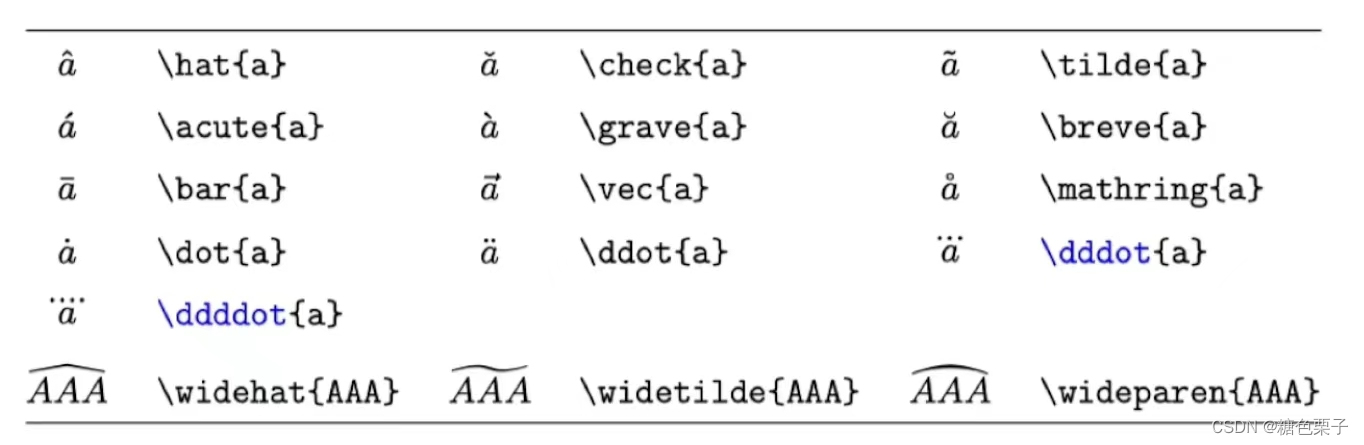

标注符号

$$\begin{gathered} \vec{x},\overrightarrow{AB} \\ \bar{x},\overline{AC} \end{gathered}$$
其他符号：
　
　​​

其他箭头：

‍

括号 定界符 标准换行

{ } ⌈ , ⌉ , ⌊ , ⌋ , ∣ ∣ ( 0 , 1 a ] ( 0 , 1 a ] ∂ f ∂ x ∣ x = 0 ∂ f ∂ x ∣ x = 0 \{\}\\ \lceil,\rceil,\lfloor,\rfloor,||\\ (0,\frac 1 a]\\ \left(0,\frac 1 a\right]\\ \frac {\partial f}{\partial x}|_{x=0}\\ \left.\frac {\partial f}{\partial x}\right|_{x=0}\\ {}⌈,⌉,⌊,⌋,∣∣(0,a1​](0,a1​]∂x∂f​∣x=0​∂x∂f​∣∣∣∣​x=0​
KaTeX parse error: No such environment: align at position 8: \begin{̲a̲l̲i̲g̲n̲}̲ a&=g+r+u\\&=i+…
　　‍

矩阵（matrix,bmatrix,pmatrix,vmatrix）

$$\begin{gathered} \begin{array}{ccccc}a& b& c& \cdots & n\\ ⋮& ⋮& ⋮& \ddots & ⋮\\ h& i& j& \cdots & m\end{array} \\ \left[\begin{array}{ccccc}a& b& c& \cdots & n\\ ⋮& ⋮& ⋮& \ddots & ⋮\\ h& i& j& \cdots & m\end{array}\right] \\ \left(\begin{array}{ccccc}a& b& c& \cdots & n\\ ⋮& ⋮& ⋮& \ddots & ⋮\\ h& i& j& \cdots & m\end{array}\right) \\ \left|\begin{array}{ccccc}a& b& c& \cdots & n\\ ⋮& ⋮& ⋮& \ddots & ⋮\\ h& i& j& \cdots & m\end{array}\right| \\ \mathbf{A},{\mathbf{B}}^{\mathrm{T}} \end{gathered}$$

源代码
本篇内容源码（使用SiYuan笔记导出）
提取码：eyh7
　　‍
