如何基于 ESP-IDF SDK 为应用工程添加自定义的 menuconfig 编译条件设置？

• 在工程的 main 目录下添加 Kconfig.projbuild 文件
• 对需要添加自定义设置的参数进行定义
• 在应用代码中使用自定义设置的参数
• 编写 Kconfig.projbuild 文件

---

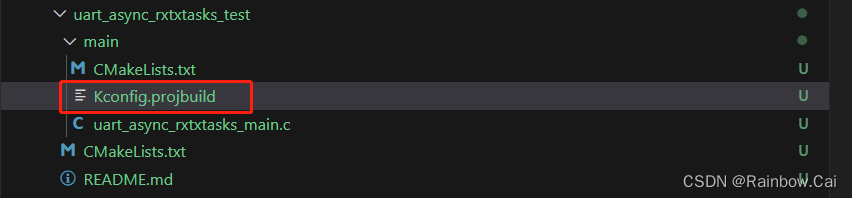

在工程的 main 目录下添加 Kconfig.projbuild 文件

接下来会基于 esp-idf/examples/peripherals/uart/uart_async_rxtxtasks/main 例程来进行测试

• 可参考 esp-idf/examples/peripherals/uart/uart_echo/main/Kconfig.projbuild
• 可以直接复制 esp-idf/examples/peripherals/uart/uart_echo/main/Kconfig.projbuild 文件到 esp-idf/examples/peripherals/uart/uart_async_rxtxtasks/main 目录下


---

对需要添加自定义设置的参数进行定义

我们以 esp-idf/examples/peripherals/uart/uart_async_rxtxtasks 例程为例，来进行编写测试

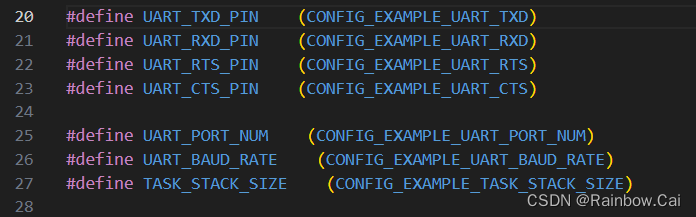

• 需要先在 main.c 文件中对待设置的参数进行定义，例如

#define UART_TXD_PIN    (CONFIG_EXAMPLE_UART_TXD)
#define UART_RXD_PIN    (CONFIG_EXAMPLE_UART_RXD)
#define UART_RTS_PIN    (CONFIG_EXAMPLE_UART_RTS)
#define UART_CTS_PIN    (CONFIG_EXAMPLE_UART_CTS)

#define UART_PORT_NUM    (CONFIG_EXAMPLE_UART_PORT_NUM)
#define UART_BAUD_RATE    (CONFIG_EXAMPLE_UART_BAUD_RATE)
#define TASK_STACK_SIZE    (CONFIG_EXAMPLE_TASK_STACK_SIZE)

• UART_TXD_PIN、UART_RXD_PIN、UART_RXD_PIN 、UART_RTS_PIN、UART_CTS_PIN、UART_PORT_NUM、UART_BAUD_RATE、 TASK_STACK_SIZE 为对应定义的参数

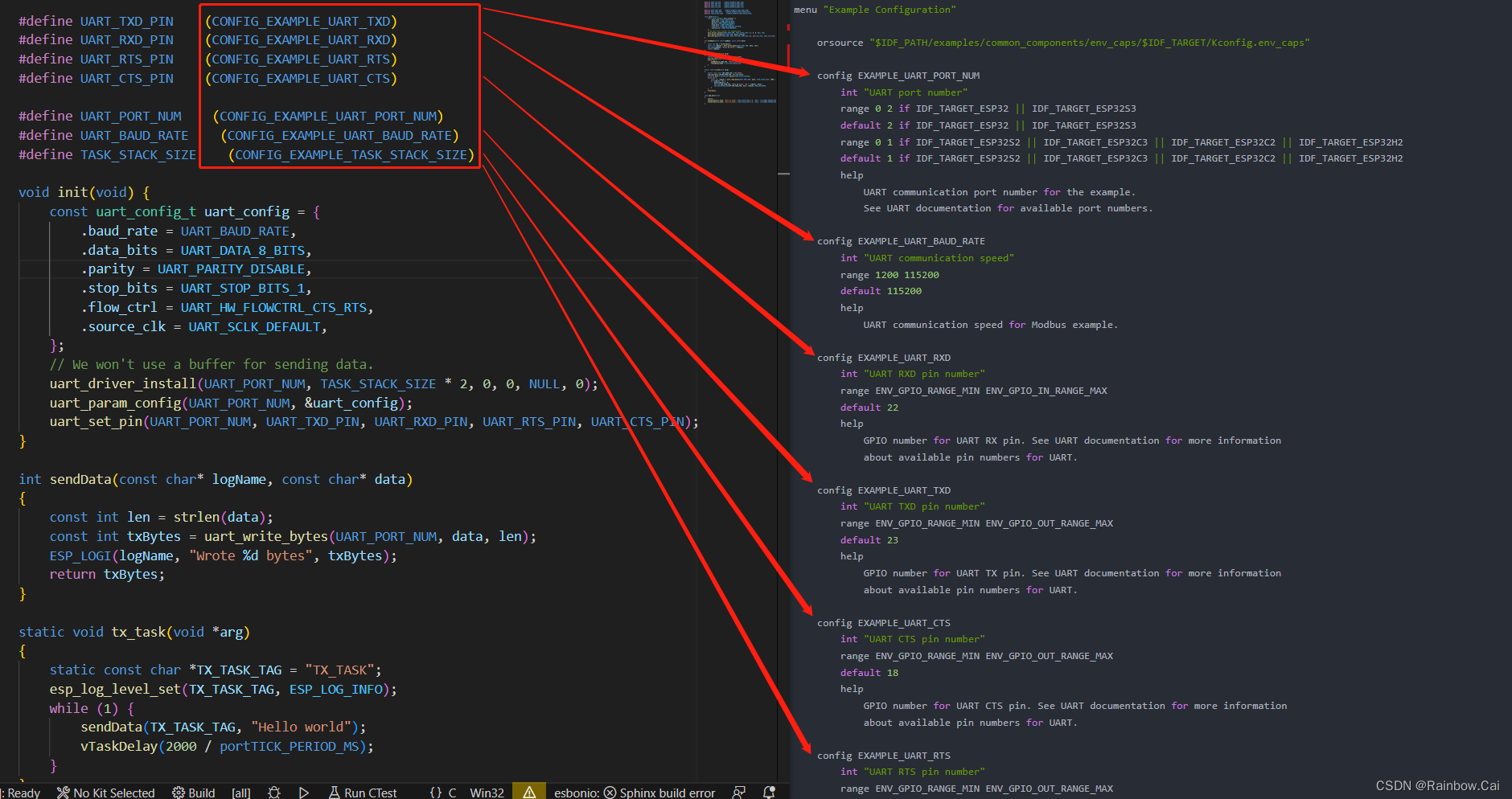

• EXAMPLE_UART_TXD、EXAMPLE_UART_RXD、EXAMPLE_UART_RTS、EXAMPLE_UART_CTS、EXAMPLE_UART_PORT_NUM、EXAMPLE_UART_BAUD_RATE、EXAMPLE_TASK_STACK_SIZE 需要与 Kconfig.projbuild 文件中参数名称对应

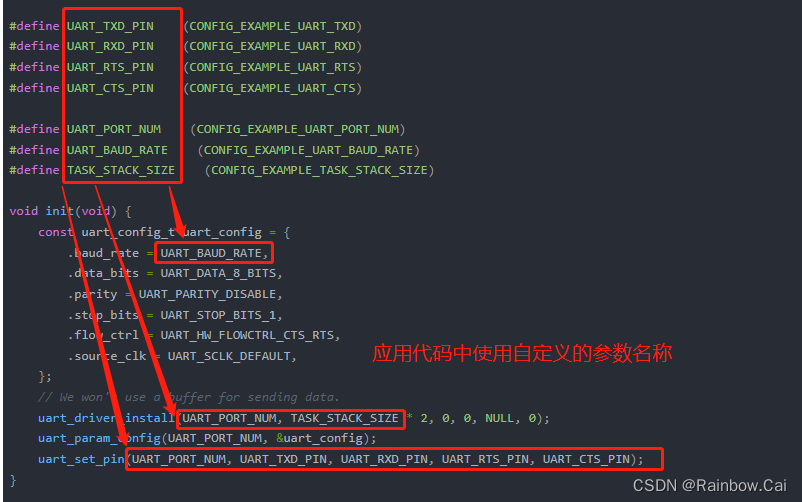

在应用代码中使用自定义设置的参数

#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "esp_system.h"
#include "esp_log.h"
#include "driver/uart.h"
#include "string.h"
#include "sdkconfig.h"
#include "driver/gpio.h"

//static const int RX_BUF_SIZE = 1024;

#define UART_TXD_PIN    (CONFIG_EXAMPLE_UART_TXD)
#define UART_RXD_PIN    (CONFIG_EXAMPLE_UART_RXD)
#define UART_RTS_PIN    (CONFIG_EXAMPLE_UART_RTS)
#define UART_CTS_PIN    (CONFIG_EXAMPLE_UART_CTS)

#define UART_PORT_NUM    (CONFIG_EXAMPLE_UART_PORT_NUM)
#define UART_BAUD_RATE    (CONFIG_EXAMPLE_UART_BAUD_RATE)
#define TASK_STACK_SIZE    (CONFIG_EXAMPLE_TASK_STACK_SIZE)

void init(void) {
    const uart_config_t uart_config = {
        .baud_rate = UART_BAUD_RATE,
        .data_bits = UART_DATA_8_BITS,
        .parity = UART_PARITY_DISABLE,
        .stop_bits = UART_STOP_BITS_1,
        .flow_ctrl = UART_HW_FLOWCTRL_CTS_RTS,
        .source_clk = UART_SCLK_DEFAULT,
    };
    // We won't use a buffer for sending data.
    uart_driver_install(UART_PORT_NUM, TASK_STACK_SIZE * 2, 0, 0, NULL, 0);
    uart_param_config(UART_PORT_NUM, &uart_config);
    uart_set_pin(UART_PORT_NUM, UART_TXD_PIN, UART_RXD_PIN, UART_RTS_PIN, UART_CTS_PIN);
}

int sendData(const char* logName, const char* data)
{
    const int len = strlen(data);
    const int txBytes = uart_write_bytes(UART_PORT_NUM, data, len);
    ESP_LOGI(logName, "Wrote %d bytes", txBytes);
    return txBytes;
}

static void tx_task(void *arg)
{
    static const char *TX_TASK_TAG = "TX_TASK";
    esp_log_level_set(TX_TASK_TAG, ESP_LOG_INFO);
    while (1) {
        sendData(TX_TASK_TAG, "Hello world");
        vTaskDelay(2000 / portTICK_PERIOD_MS);
    }
}

static void rx_task(void *arg)
{
    static const char *RX_TASK_TAG = "RX_TASK";
    esp_log_level_set(RX_TASK_TAG, ESP_LOG_INFO);
    uint8_t* data = (uint8_t*) malloc(TASK_STACK_SIZE+1);
    while (1) {
        const int rxBytes = uart_read_bytes(UART_PORT_NUM, data, TASK_STACK_SIZE, 1000 / portTICK_PERIOD_MS);
        if (rxBytes > 0) {
            data[rxBytes] = 0;
            ESP_LOGI(RX_TASK_TAG, "Read %d bytes: '%s'", rxBytes, data);
            ESP_LOG_BUFFER_HEXDUMP(RX_TASK_TAG, data, rxBytes, ESP_LOG_INFO);
        }
    }
    free(data);
}

void app_main(void)
{
    init();
    xTaskCreate(rx_task, "uart_rx_task", TASK_STACK_SIZE * 2 , NULL, configMAX_PRIORITIES, NULL);
    xTaskCreate(tx_task, "uart_tx_task", TASK_STACK_SIZE * 2 , NULL, configMAX_PRIORITIES-1, NULL);
}

---

编写 Kconfig.projbuild 文件

• 参考 esp-idf/examples/peripherals/uart/uart_echo/main/Kconfig.projbuild 文件，我们对当前 Kconfig.projbuild 文件内容进行修改

menu "Example Configuration"

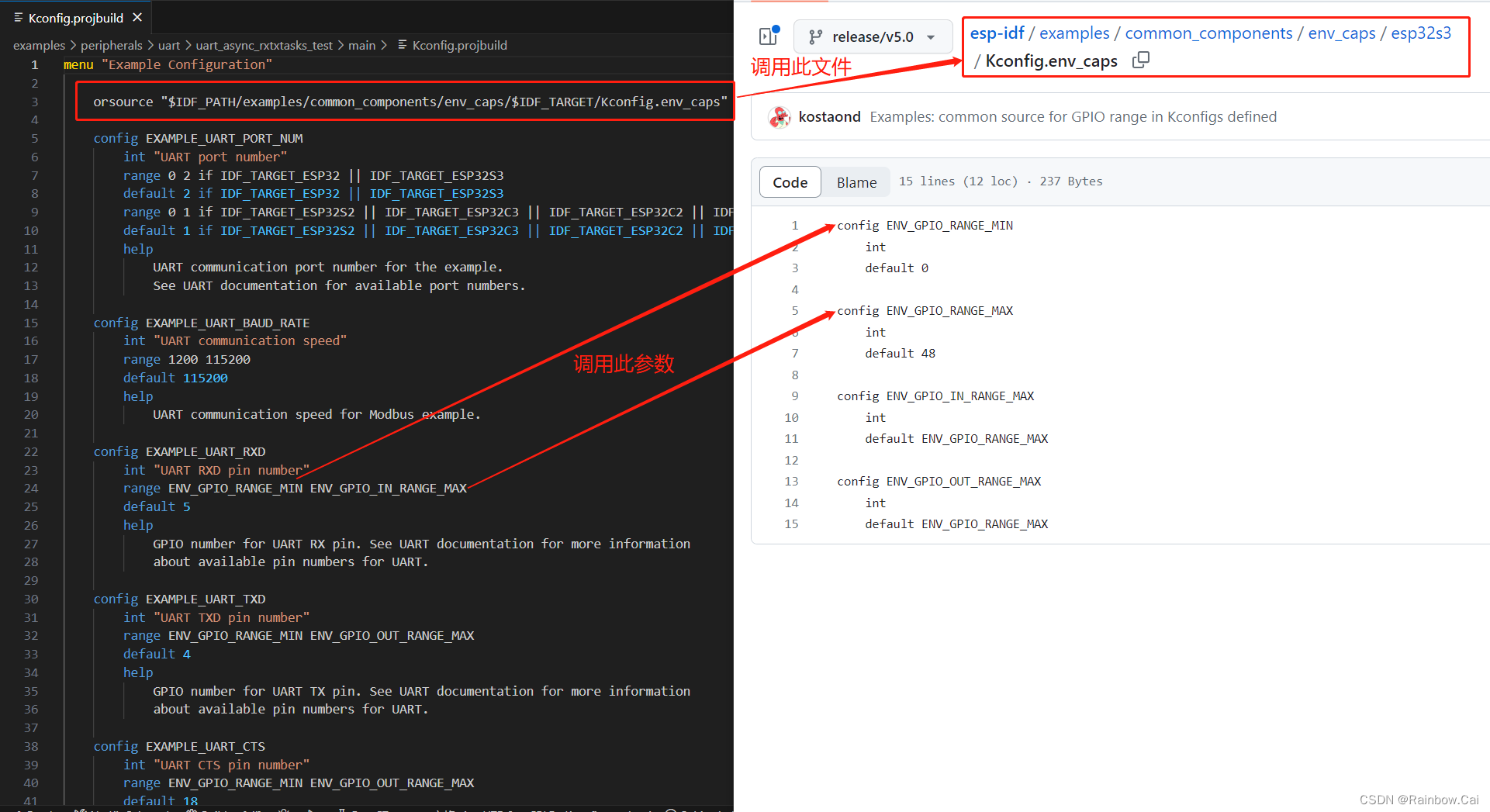

    orsource "$IDF_PATH/examples/common_components/env_caps/$IDF_TARGET/Kconfig.env_caps"

    config EXAMPLE_UART_PORT_NUM
        int "UART port number"
        range 0 2 if IDF_TARGET_ESP32 || IDF_TARGET_ESP32S3
        default 2 if IDF_TARGET_ESP32 || IDF_TARGET_ESP32S3
        range 0 1 if IDF_TARGET_ESP32S2 || IDF_TARGET_ESP32C3 || IDF_TARGET_ESP32C2 || IDF_TARGET_ESP32H2
        default 1 if IDF_TARGET_ESP32S2 || IDF_TARGET_ESP32C3 || IDF_TARGET_ESP32C2 || IDF_TARGET_ESP32H2
        help
            UART communication port number for the example.
            See UART documentation for available port numbers.

    config EXAMPLE_UART_BAUD_RATE
        int "UART communication speed"
        range 1200 115200
        default 115200
        help
            UART communication speed for Modbus example.

    config EXAMPLE_UART_RXD
        int "UART RXD pin number"
        range ENV_GPIO_RANGE_MIN ENV_GPIO_IN_RANGE_MAX
        default 22
        help
            GPIO number for UART RX pin. See UART documentation for more information
            about available pin numbers for UART.

    config EXAMPLE_UART_TXD
        int "UART TXD pin number"
        range ENV_GPIO_RANGE_MIN ENV_GPIO_OUT_RANGE_MAX
        default 23
        help
            GPIO number for UART TX pin. See UART documentation for more information
            about available pin numbers for UART.

    config EXAMPLE_UART_CTS
        int "UART CTS pin number"
        range ENV_GPIO_RANGE_MIN ENV_GPIO_OUT_RANGE_MAX
        default 18
        help
            GPIO number for UART CTS pin. See UART documentation for more information
            about available pin numbers for UART.

    config EXAMPLE_UART_RTS
        int "UART RTS pin number"
        range ENV_GPIO_RANGE_MIN ENV_GPIO_OUT_RANGE_MAX
        default 19
        help
            GPIO number for UART RTS pin. See UART documentation for more information
            about available pin numbers for UART.

    config EXAMPLE_TASK_STACK_SIZE
        int "UART example task stack size"
        range 1024 16384
        default 2048
        help
            Defines stack size for UART echo example. Insufficient stack size can cause crash.

endmenu

• config EXAMPLE_UART_PORT_NUM 对应的是 #define UART_PORT_NUM (CONFIG_EXAMPLE_UART_PORT_NUM) 的 CONFIG_EXAMPLE_UART_PORT_NUM 内容

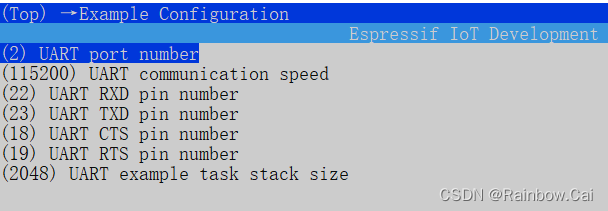

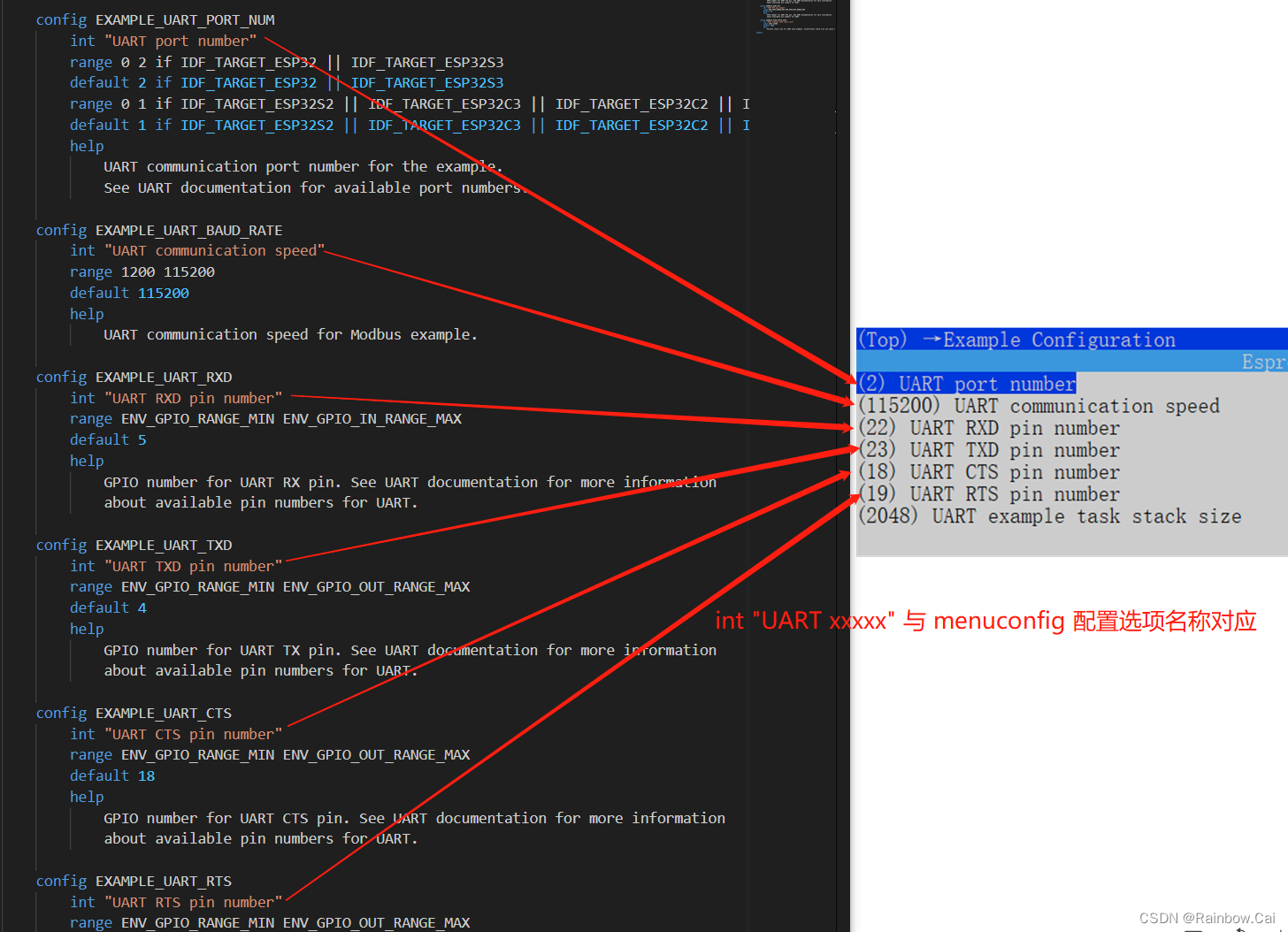

• int "UART port number" 中的 UART port number 为 menuconfig 中对应的配置选项名称，可任意自定义

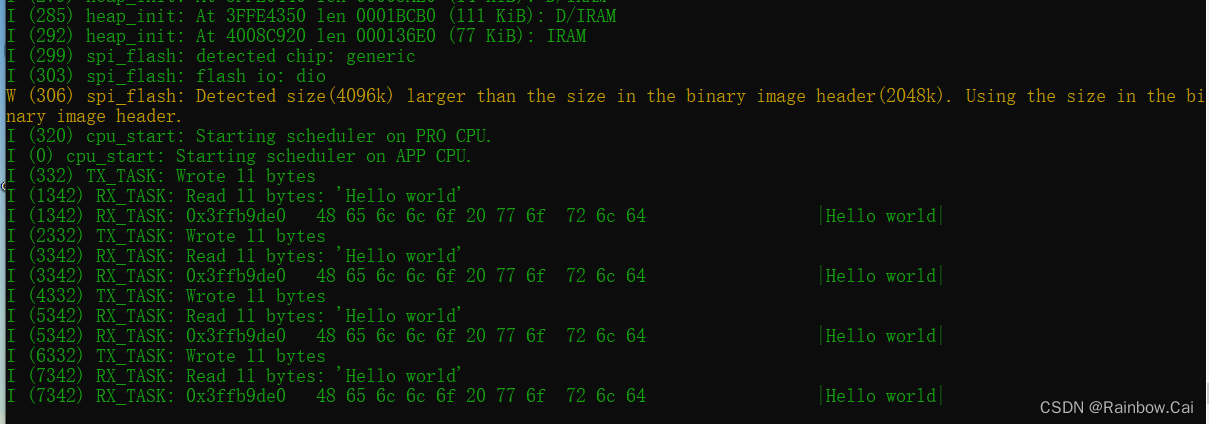

测试结果如下：

为方便测试，可将 TXD 与 RXD 短接、CTS 与 RTS 短接
