Struts2_CRUD操作实例

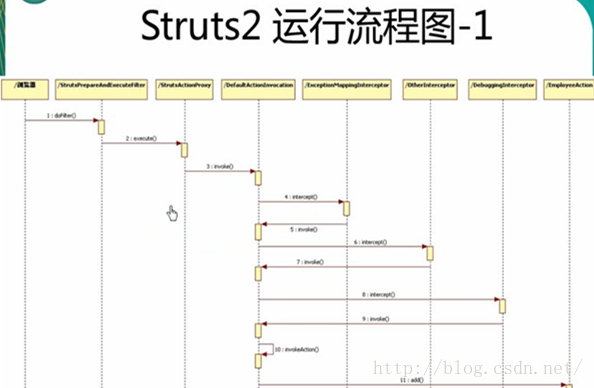

Struts2运行流程:
浏览器先发了个请求,
先会到StrutsPrepareAndExecuteFilter的doFilter方法,
然后创建了一个StrutsActionProxy(代理),调用了这个代理的execute方法,
StrutsActionProxy里有一个DefaultActionInvocation的引用,调用了DefaultActionInvocation里的invoke()方法,
接着DefaultActionInvocation去调拦截器的intercept()方法,
拦截器ExceptionMappingInterceptor接着又回调DefaultActionInvocation的invoke()方法,
DefaultActionInvocation再调下一个拦截器的intercept()方法,然后再回调,
如此往复吗,到调完最后一个拦截器再回调后,将调用自己的invokeAction(),
最终调用Action的目标方法。
先会到StrutsPrepareAndExecuteFilter的doFilter方法,
然后创建了一个StrutsActionProxy(代理),调用了这个代理的execute方法,
StrutsActionProxy里有一个DefaultActionInvocation的引用,调用了DefaultActionInvocation里的invoke()方法,
接着DefaultActionInvocation去调拦截器的intercept()方法,
拦截器ExceptionMappingInterceptor接着又回调DefaultActionInvocation的invoke()方法,
DefaultActionInvocation再调下一个拦截器的intercept()方法,然后再回调,
如此往复吗,到调完最后一个拦截器再回调后,将调用自己的invokeAction(),
最终调用Action的目标方法。
1.ActionProxy:是Action的一个代理类,也就是说Action的调用是通过ActionProxy实现的,其实就是调用了ActionProxy.execute方法,而该方法又调用了ActionInvocation.invoke()方法。负责调用目标Action方法之前的拦截器的调用。
2.ActionInvocation:就是Action的调用者。ActionInvocation在Action的执行过程中,负责Interceptor,Action和Result等一系列元素的调度。
Params拦截器
Parameters拦截器将把表单字段映射到ValueStack栈的栈顶对象的各个属性中,如果某个字段在模型里没有匹配的属性,Param拦截器将尝试ValueStack栈中的下一个对象。
默认情况下,栈顶对象就是Action。
Parameters拦截器将把表单字段映射到ValueStack栈的栈顶对象的各个属性中,如果某个字段在模型里没有匹配的属性,Param拦截器将尝试ValueStack栈中的下一个对象。
默认情况下,栈顶对象就是Action。
把Action和Model隔开
在使用Struts作为前端的企业级应用程序时把Action和Model清晰的隔离开是有必要的,有些Action类不代表任何Model对象,他们的功能仅限于提供显示服务。
如果Action类实现了ModelDriven接口,该拦截器将把ModelDriven接口的getModel()方法返回的对象置于栈顶
1.Action实现ModelDriven接口后的运行流程
1).先会执行ModelDrivenInterceptor的interceptor方法
public String intercept(ActionInvocation invocation) throws Exception {
//获取Action对象:EmployeeAction对象,此时该Action已经实现了ModelDriven接 口
Object action = invocation.getAction();
//判断action是否是ModelDriven的实例
if (action instanceof ModelDriven) {
//强制转换为ModelDriven类型
ModelDriven modelDriven = (ModelDriven) action;
//获取值栈
ValueStack stack = invocation.getStack();
//调用ModelDriven接口的getModel()方法
//即调用EmployeeAction的getModel()方法
Object model = modelDriven.getModel();
if (model != null) {
//把getModel()方法的返回值压入到值栈的栈顶,实际压入的是
//EmployeeAction的employee成员变量
stack.push(model);
}
if (refreshModelBeforeResult) {
invocation.addPreResultListener(new RefreshModelBeforeResult(modelDriven, model));
}
}
return invocation.invoke();
}
3).注意:getModel方法
public Employee getModel() {
// TODO 自动生成的方法存根
employee = new Employee();
return employee;
}
不能写成return new Employee();,这样与成员变量employee 就没有了联系,当前Action的employee成员变量是null;如下图:
ModelDriven拦截器
当用户触发add请求时,ModelDriven拦截器将调用EmployeeAction对象的getModel()方法,并把返回的模型(Employee实例)压入到ValueStack栈。
接下来Parameters拦截器将把表单字段映射到ValueStack栈的栈顶对象的各个属性中,因为此时ValueStack栈的栈顶元素则是刚被压入的模型(Employee)对象,所以该模型将被填充。如果某个字段在模型里没有匹配的属性,Param拦截器将尝试ValueStack栈中的下一个对象。
当用户触发add请求时,ModelDriven拦截器将调用EmployeeAction对象的getModel()方法,并把返回的模型(Employee实例)压入到ValueStack栈。
接下来Parameters拦截器将把表单字段映射到ValueStack栈的栈顶对象的各个属性中,因为此时ValueStack栈的栈顶元素则是刚被压入的模型(Employee)对象,所以该模型将被填充。如果某个字段在模型里没有匹配的属性,Param拦截器将尝试ValueStack栈中的下一个对象。

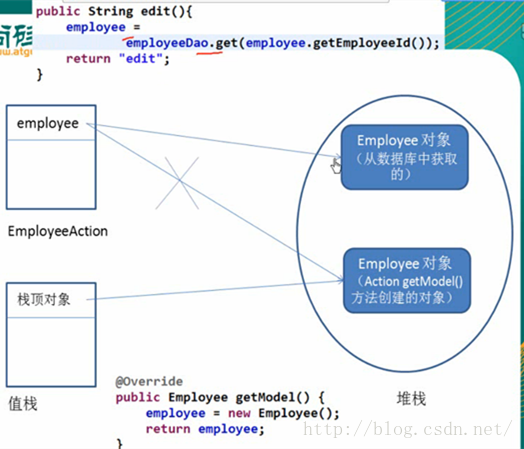

回显:
1.客户端发送请求 employee.edit
2.getModel()把employee对象置于栈顶,
此时栈顶对象为employee,所以把请求参数赋给employee的对应属性
3.public String edit()方法
1. 从数据库中获取了employeeId对应的employee对象
2.把数据库中获取的属性放入值栈属性中

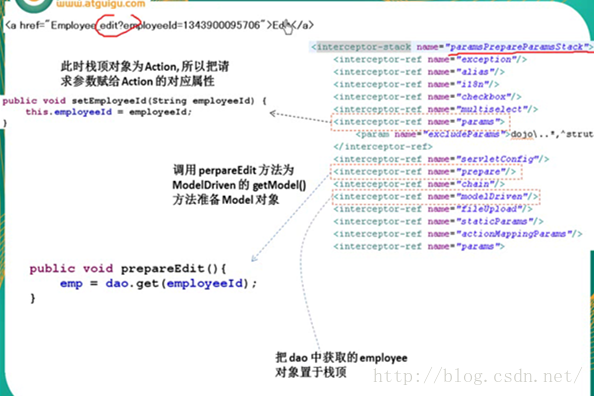

使用paramsPrepareParamsStack拦截器栈后的运行流程
1.paramsPrepareParamsStack和defaultStack一样都是拦截器栈 ,
而struts-default包默认使用的是defaultStack。
2.可以在struts配置文件中通过以下方式修改默认的拦截器栈
<default-interceptor-ref name="paramsPrepareParamsStack"></default-interceptor-ref>
3.paramsPrepareParamsStack拦截器 拦截器在于:
params --> modelDriven -->params
所以可以先把请求参数赋给Action对应的属性,再根据赋给Action的那个属性值决定压到值栈栈顶的对象,最后再为栈顶对象的属性赋值。
对于edit操作而言
I.先为EmployeeAction的employeeId赋值
II.根据employeeId从数据库中加载对应的对象,并放入到值栈的栈顶
III.再为栈顶对象的employeeId赋值(实际上此时employeeId属性值已经存在)
IV.把栈顶对象的属性回显在表单中。
1.客户端发送请求 employee.edit
2.getModel()把employee对象置于栈顶,
此时栈顶对象为employee,所以把请求参数赋给employee的对应属性
3.public String edit()方法
1. 从数据库中获取了employeeId对应的employee对象
2.把数据库中获取的属性放入值栈属性中
使用paramsPrepareParamsStack拦截器栈后的运行流程
1.paramsPrepareParamsStack和defaultStack一样都是拦截器栈 ,
而struts-default包默认使用的是defaultStack。
2.可以在struts配置文件中通过以下方式修改默认的拦截器栈
<default-interceptor-ref name="paramsPrepareParamsStack"></default-interceptor-ref>
3.paramsPrepareParamsStack拦截器 拦截器在于:
params --> modelDriven -->params
所以可以先把请求参数赋给Action对应的属性,再根据赋给Action的那个属性值决定压到值栈栈顶的对象,最后再为栈顶对象的属性赋值。
对于edit操作而言
I.先为EmployeeAction的employeeId赋值
II.根据employeeId从数据库中加载对应的对象,并放入到值栈的栈顶
III.再为栈顶对象的employeeId赋值(实际上此时employeeId属性值已经存在)
IV.把栈顶对象的属性回显在表单中。
4.关于回显:struts2表单标签会从值栈中获取对应的属性进行回显
该实例中的问题:
I.在执行删除的时候,employeeId不为空,但getModel()方法(employee = dao.get(employeeId);)却从数据库中加载了一个对象,没有必要。
II.在执行list()时,会employee = new Employee(); new了个 Employee()对象,没有必要。
解决方案:使用ParamPrepareInterceptor 的 intercept方法
该实例中的问题:
I.在执行删除的时候,employeeId不为空,但getModel()方法(employee = dao.get(employeeId);)却从数据库中加载了一个对象,没有必要。
II.在执行list()时,会employee = new Employee(); new了个 Employee()对象,没有必要。
解决方案:使用ParamPrepareInterceptor 的 intercept方法
关于PrepareInterceptor,源代码解析:
public String doIntercept(ActionInvocation invocation) throws Exception {
//获取Action实例
Object action = invocation.getAction();
//判断Action是否实现了Preparable接口
if (action instanceof Preparable) {
try {
String[] prefixes;
//根据当前拦截器的firstCallPrepareDo(默认为false)属性确定prefixes
if (firstCallPrepareDo) {
prefixes = new String[] {ALT_PREPARE_PREFIX, PREPARE_PREFIX};
} else {
prefixes = new String[] {PREPARE_PREFIX, ALT_PREPARE_PREFIX};
}
//若为false,则prefixes:prepare ,prepareDo
//调用前缀方法,
PrefixMethodInvocationUtil.invokePrefixMethod(invocation, prefixes);
}
catch (InvocationTargetException e) {
Throwable cause = e.getCause();
if (cause instanceof Exception) {
throw (Exception) cause;
} else if(cause instanceof Error) {
throw (Error) cause;
} else {
throw e;
}
}
//根据当前拦截器的alwaysInvokePrepare(默认为true)决定是否调用Action的prepare方法
if (alwaysInvokePrepare) {
((Preparable) action).prepare();
}
}
return invocation.invoke();
}
PrefixMethodInvocationUtil.invokePrefixMethod
方法:
public static void invokePrefixMethod(ActionInvocation actionInvocation, String[] prefixes) throws InvocationTargetException, IllegalAccessException {
//获取Action实例
Object action = actionInvocation.getAction();
//获取要调用的Action方法的名字(update)
String methodName = actionInvocation.getProxy().getMethod();
//如果方法是空就调用execute
if (methodName == null) {
// if null returns (possible according to the docs), use the default execute
methodName = DEFAULT_INVOCATION_METHODNAME;
}
//获取前缀方法
Method method = getPrefixedMethod(prefixes, methodName, action);
//若方法不为空,则通过反射调用前缀方法
if (method != null) {
method.invoke(action, new Object[0]);
}
}
PrefixMethodInvocationUtil.getPrefixedMethod方法:
public static Method getPrefixedMethod(String[] prefixes, String methodName, Object action) {
assert(prefixes != null);
//把方法的首字母变为大写
String capitalizedMethodName = capitalizeMethodName(methodName);
//遍历前缀数组
for (String prefixe : prefixes) {
//通过拼接的方式,得到前缀方法名:第一次prepareUpdate,第二次prepareDoUpdate
String prefixedMethodName = prefixe + capitalizedMethodName;
try {
//利用反射从action中获取对应的方法,若有直接返回,结束循环
return action.getClass().getMethod(prefixedMethodName, EMPTY_CLASS_ARRAY);
}
catch (NoSuchMethodException e) {
// hmm -- OK, try next prefix
if (LOG.isDebugEnabled()) {
LOG.debug("cannot find method [#0] in action [#1]", prefixedMethodName, action.toString());
}
}
}
return null;
}
分析后得到的结论:
若
Action
实现了
Preparable
接口,则
struts
将会尝试执行
prepare[ActionMethodName]
方法,
若 prepare[ActionMethodName] 不存在,则将尝试执行 prepareDo[ActionMethodName] 方法,
若都不存在,就都不执行。
若 ParamPrepareInterceptor 的 alwaysInvokePrepare 属性为 false ,则 Struts2 将不会调用实现了 Preparable 接口的 Action 的 prepare ()方法
解决方案:
为每一个 ActionMethod 准备 prepare[ActionMethodName] 方法,而抛弃掉原来的 prepare ()方法
将 ParamPrepareInterceptor 的 alwaysInvokePrepare 属性置为 false ,以避免 Struts2 框架再调用 prepare ()方法
如何在 配置文件中把拦截器栈的属性赋值:参看文档
使用 paramsPrepareParamsStack
paramsPrepareStack 从字面上理解来说,这个 stack 的拦截器调用的顺序为:首先 params ,然后 prepare ,接下来 modelDriven ,最后 params 。
struts2 的设计上要求 modelDriven 在 params 之前调用,而业务中 prepare 要负责准备 model ,准备 model 又需要参数,这就需要在 prepare 之前运行 params 拦截器设置相关参数,这个也就是创建 paramsPrepareParamsStack 的原因。
流程如下:
1.params 拦截器首先给 action 中的相关参数赋值,如 id
2.prepare 拦截器执行 prepare 方法, prepare 方法会根据参数,如 id ,去调用业务逻辑,设置 model 对象
若 prepare[ActionMethodName] 不存在,则将尝试执行 prepareDo[ActionMethodName] 方法,
若都不存在,就都不执行。
若 ParamPrepareInterceptor 的 alwaysInvokePrepare 属性为 false ,则 Struts2 将不会调用实现了 Preparable 接口的 Action 的 prepare ()方法
解决方案:
为每一个 ActionMethod 准备 prepare[ActionMethodName] 方法,而抛弃掉原来的 prepare ()方法
将 ParamPrepareInterceptor 的 alwaysInvokePrepare 属性置为 false ,以避免 Struts2 框架再调用 prepare ()方法
如何在 配置文件中把拦截器栈的属性赋值:参看文档
使用 paramsPrepareParamsStack
paramsPrepareStack 从字面上理解来说,这个 stack 的拦截器调用的顺序为:首先 params ,然后 prepare ,接下来 modelDriven ,最后 params 。
struts2 的设计上要求 modelDriven 在 params 之前调用,而业务中 prepare 要负责准备 model ,准备 model 又需要参数,这就需要在 prepare 之前运行 params 拦截器设置相关参数,这个也就是创建 paramsPrepareParamsStack 的原因。
流程如下:
1.params 拦截器首先给 action 中的相关参数赋值,如 id
2.prepare 拦截器执行 prepare 方法, prepare 方法会根据参数,如 id ,去调用业务逻辑,设置 model 对象
3.modelDriven拦截器将model对象压入ValueStack,这里的model对象就是在prepare中创建的
4.params拦截器再次将参数赋值给model对象
5.action的业务逻辑执行
下面给出完整范例:
struts.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.3//EN"
"http://struts.apache.org/dtds/struts-2.3.dtd">
<struts>
<package name="wul" namespace="/" extends="struts-default">
<!--配置使用paramsPrepareParamsStack作为默认的拦截器栈
<default-interceptor-ref name="paramsPrepareParamsStack"></default-interceptor-ref>
-->
<!--修改ParamPrepareInterceptor中alwaysInvokePrepare的属性值为false -->
<interceptors>
<interceptor-stack name="wulstack">
<interceptor-ref name="paramsPrepareParamsStack">
<param name="prepare.alwaysInvokePrepare">false</param>
</interceptor-ref>
</interceptor-stack>
</interceptors>
<default-interceptor-ref name="wulstack"></default-interceptor-ref>
<action name="emp-*" class="com.wul.app.EmployeeAction"
method="{1}">
<result name="{1}">/emp-{1}.jsp</result>
<result name="success" type="redirectAction">emp-list</result>
</action>
</package>
</struts>
注意:
<interceptors>
<interceptor-stack name="wulstack">
<interceptor-ref name="paramsPrepareParamsStack">
<param name="prepare.alwaysInvokePrepare">false</param>
</interceptor-ref>
</interceptor-stack>
</interceptors>
要在<default-interceptor-ref name="wulstack"></default-interceptor-ref>前
index.jsp
<%@ page language="java" contentType="text/html; charset=utf-8" pageEncoding="utf-8"%>
<%@ taglib prefix="s" uri="/struts-tags"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
<title>Insert title here</title>
</head>
<body>
<a href="emp-list.action">List All Employees</a>
</body>
</html>
emp-list.jsp
<%@ page language="java" contentType="text/html; charset=utf-8" pageEncoding="utf-8"%>
<%@ taglib prefix="s" uri="/struts-tags"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
<title>Insert title here</title>
</head>
<body>
<s:form action="emp-save">
<s:textfield name="firstName" label="FirstName"></s:textfield>
<s:textfield name="lastName" label="LastName"></s:textfield>
<s:textfield name="email" label="Email"></s:textfield>
<s:submit></s:submit>
</s:form>
<table cellpadding="10" cellspacing="0" border="1">
<thead>
<tr>
<td>ID</td>
<td>FirstName</td>
<td>LastName</td>
<td>Email</td>
<td>Edit</td>
<td>Delete</td>
</tr>
</thead>
<tbody>
<s:iterator value="#request.emps">
<tr>
<td>${employeeId }</td>
<td>${firstName }</td>
<td>${lastName }</td>
<td>${email }</td>
<td><a href="emp-edit?employeeId=${employeeId}">Edit</a></td>
<td><a href="emp-delete?employeeId=${employeeId}">Delete</a></td>
</tr>
</s:iterator>
</tbody>
</table>
</body>
</html>
emp-edit.jsp
<%@ page language="java" contentType="text/html; charset=utf-8" pageEncoding="utf-8"%>
<%@ taglib prefix="s" uri="/struts-tags"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
<title>Insert title here</title>
</head>
<body>
<s:debug></s:debug>
<s:form action="emp-update">
<s:hidden name="employeeId"></s:hidden>
<s:textfield name="firstName" label="FirstName"></s:textfield>
<s:textfield name="lastName" label="LastName"></s:textfield>
<s:textfield name="email" label="Email"></s:textfield>
<s:submit></s:submit>
</s:form>
</body>
</html>
Employee.java
package com.wul.app;
public class Employee {
private Integer employeeId;
private String firstName;
private String lastName;
private String email;
public Integer getEmployeeId() {
return employeeId;
}
public void setEmployeeId(Integer employeeId) {
this.employeeId = employeeId;
}
public String getFirstName() {
return firstName;
}
public void setFirstName(String firstName) {
this.firstName = firstName;
}
public String getLastName() {
return lastName;
}
public void setLastName(String lastName) {
this.lastName = lastName;
}
public String getEmail() {
return email;
}
public void setEmail(String email) {
this.email = email;
}
public Employee() {
super();
}
public Employee(Integer employeeId, String firstName, String lastName,
String email) {
super();
this.employeeId = employeeId;
this.firstName = firstName;
this.lastName = lastName;
this.email = email;
}
}
Dao.java
package com.wul.app;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.LinkedHashMap;
import java.util.List;
import java.util.Map;
public class Dao {
private static Map<Integer,Employee> emps = new LinkedHashMap<Integer,Employee>();
static{
emps.put(1001, new Employee(1001,"AA","aa","aa@xinlin.com"));
emps.put(1002, new Employee(1002,"BB","bb","bb@xinlin.com"));
emps.put(1003, new Employee(1003,"CC","cc","cc@xinlin.com"));
emps.put(1004, new Employee(1004,"DD","dd","dd@xinlin.com"));
emps.put(1005, new Employee(1005,"EE","ee","ee@xinlin.com"));
}
public List<Employee> getEmployee(){
return new ArrayList<>(emps.values());
}
public void delete(Integer empId){
emps.remove(empId);
}
public void save(Employee emp){
long time =System.currentTimeMillis();
emp.setEmployeeId((int)time);
emps.put(emp.getEmployeeId(), emp);
}
public Employee get(Integer empId){
return emps.get(empId);
}
public void update(Employee emp){
emps.put(emp.getEmployeeId(), emp);
}
}
EmployeeAction.java
package com.wul.app;
import java.sql.PreparedStatement;
import java.util.Map;
import org.apache.struts2.interceptor.RequestAware;
import com.opensymphony.xwork2.ActionContext;
import com.opensymphony.xwork2.ModelDriven;
import com.opensymphony.xwork2.Preparable;
public class EmployeeAction implements RequestAware,ModelDriven<Employee>,Preparable{
private Dao dao = new Dao();
private Employee employee;
public String save(){
dao.save(employee);
return "success";
}
public void prepareSave(){
employee = new Employee();
}
public String delete(){
dao.delete(employeeId);
return "success";
}
public void prepareEdit(){
employee = dao.get(employeeId);
}
public String edit(){
//1.获取传入的employeeId:employee.getEmployeeId()
//2.根据employee获取Employee对象
// Employee emp = dao.get(employee.getEmployeeId());
//3.把栈顶对象的属性装配好
//目前的employee对象只有employeeId属性,其他属性为null
/*
Struts2表单回显时:从值栈栈顶开始查找匹配的属性,若找到就添加
到value属性中。
*/
// employee.setEmail(emp.getEmail());
// employee.setFirstName(emp.getFirstName());
// employee.setLastName(emp.getLastName());
// employee = dao.get(employee.getEmployeeId());不行,经过重写赋值的employee对象已经不再是栈顶对象了
//手动的把从数据库中获取的Employee对象放到值栈的栈顶
//但此时值栈栈顶及第二个对象均为Employee对象,有浪费
// ActionContext.getContext().getValueStack().push(dao.get(employee.getEmployeeId()));
return "edit";
}
public void prepareUpdate(){
employee = new Employee();
}
public String update(){
dao.update(employee);
return "success";
}
// //需要在当前的Employee中定义employeeId属性。
// //以接受请求参数
// private Integer employeeId;
//
// public void setEmployeeId(Integer employeeId) {
// this.employeeId = employeeId;
// }
//
// public String delete(){
// dao.delete(employeeId);
// //返回结果的类型应为:redirectAction
// //也可以是chain:实际上chain是没有必要的,因为不需要在下一个Action中
// //保留当前Action的状态
// //还有,若使用chain,则达到目标页面后,地址栏显示的依然是删除的那个连接,刷屏时会有重复提交
//
// return "success";
// }
//
public String list(){
request.put("emps", dao.getEmployee());
return "list";
}
//
// private String firstName;
// private String lastName;
// private String email;
//
// public String getFirstName() {
// return firstName;
// }
//
// public void setFirstName(String firstName) {
// this.firstName = firstName;
// }
//
// public String getLastName() {
// return lastName;
// }
//
// public void setLastName(String lastName) {
// this.lastName = lastName;
// }
//
// public String getEmail() {
// return email;
// }
//
// public void setEmail(String email) {
// this.email = email;
// }
//
// public String save(){
// //1.获取请求参数:通过定义对应属性的方式
// Employee employee = new Employee(null,firstName,lastName,email);
// //2.调用Dao的save方法
// dao.save(employee);
//
// //3.通过redirectAction的方式反应结果给emp-list
// return "success";
// }
//
private Map<String,Object> request = null;
@Override
public void setRequest(Map<String, Object> arg0) {
// TODO 自动生成的方法存根
this.request = arg0;
}
private Integer employeeId;
public void setEmployeeId(Integer employeeId) {
this.employeeId = employeeId;
}
@Override
public Employee getModel() {
// TODO 自动生成的方法存根
//判读是Create还是Edit。
//若为Create,则employee = new Employee();
//若为Edit,则employee = dao.get(employeeId);
//判定标准为是否有employeeId这个请求参数,若有该参数,则视为Edit,若没有该参数,则视为Create
//若通过employeeId来判断,则需要在ModelDriven拦截器之前先执行一个params拦截器
//而这可以通过使用paramsPrepareParams拦截器栈来实现
//需要在struts.xml文件中配置使用paramsPrepareParams作为默认的拦截器栈。
// if(employeeId==null)
// employee = new Employee();
// else
// employee = dao.get(employeeId);
return employee;
}
//prepare方法的主要作用:为getModel()方法准备model的。
@Override
public void prepare() throws Exception {
// // TODO 自动生成的方法存根
// if(employeeId==null)
// employee = new Employee();
// else
// employee = dao.get(employeeId);
System.out.println("prepare...");
}
}
web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" id="WebApp_ID" version="3.0">
<display-name>struts2_2</display-name>
<filter>
<filter-name>struts2</filter-name>
<filter-class>org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter</filter-class>
</filter>
<filter-mapping>
<filter-name>struts2</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
</web-app>
`
