• Linux是什么
– Linux是一套开源的类Unix操作系统,是一个多用户、多任务、支持多线程和多CPU的操
作系统。
• Linux特点
– 一切都是文件
– 模块化程度高、源码公开、安全性高、可靠性好、多任务多用户、相对资源消耗较低
• 发行版
– Red Hat Enterprise Linux
– SUSE Linux Enterprise
– Ubuntu
– CentOS
• 预备知识
• 文件系统目录结构
– /: 根目录,所有其他目录都由根目录衍生出来
– bin/sbin: 系统命令目录,如cat,chmod,chown,mv
– dev: 设备文件目录,如磁盘,U盘,光驱
– etc : 系统主要的配置文件,如/etc/hosts、/etc/passwd
– home : 用户主文件夹,”/home/用户名”为非root用户登录后的默认主目录
– mnt : 挂载目录,通常在此目录下挂载额外设备
– root: 系统管理员(root)的主文件夹
– tmp : 暂存目录,会定时清理,任何人都能访问
– usr : 操作系统软件资源目录,类似windows下的”C:\Windows\”和”C:\Program files\”
– var : 缓存、日志文件,某些软件运行产生的文件
– lost+found: 此目录的目的在于当文件系统发生错误时,将一些丢失的片段放置到这个目
录下
– proc: 此目录的数据都放置在内存中,不占用任何磁盘空间。存放如系统内核、进程、外
部设备的状态及网络状态
– sys: 跟/proc类似,主要也是记录与内核相关的信息
• 挂载点
– linux、unix这类操作系统将系统中的一切都作为文件来管理。在windows中我们常见的硬
件设备、磁盘分区等,在linux、unix中都被视作文件,对设备、分区的访问就是读写对
应的文件。
– 挂载点实际上就是linux中的磁盘文件系统的入口目录,类似于windows中的用来访问不同
分区的C:、D:、E:等盘符。
‼ 如将磁盘/dev/sda1挂载到根目录/下,磁盘/dev/sdb1挂载到/mnt/disk1目录下
• 磁盘阵列(RAID)
– 磁盘阵列是由很多价格较便宜的磁盘,组合成一个容量巨大的磁盘组,利用个别磁盘ᨀ
供数据所产生加成效果ᨀ升整个磁盘系统效能。
**– RAID 0:**N块同样的硬盘通过磁盘控制器串联在一起。容量ᨀ高N倍,读写速度ᨀ高N倍。
任何一块硬盘出现故障,整个系统将会受到破坏,可靠性仅为1/N
**– RAID 1:**把一个磁盘的数据镜像到另一个磁盘上。具备很好的磁盘冗余能力,但是磁盘
利用率为50%
‼ 现在的很多服务器只能识别RAID,不支持裸盘
• 交换分区SWAP
– Linux中Swap(即:交换分区),类似于Windows的虚拟内存,就是当内存不足的时候,
把一部分硬盘空间虚拟成内存使用,从而解决内存容量不足的情况。
– 它和Windows系统的交换文件作用类似,但是它是一段连续的磁盘空间,并且对用户不
可见
– SWAP的大小一般为内存的1~2倍
• 绝对路径与相对路径
– “.”与”…”
. :代表当前的目录,也可以使用./来表示
… :代表上一层目录,也可以…/来表示
**– 绝对路径:**由根目录(/)开始写起的文件名或目录名称。如/home/dmtsai/passwd
**– 相对路径:**相对于目前路径的文件名写法。如./dmtsai/passwd或…/home/dmtsai/passwd
‼ pwd:用于查看用户现在的当前路径
• 基础命令
• 如何了解一个陌生的命令
– which :在默认路径中搜索命令,返回该命令的绝对路
– whereis :在相对比较大的范围搜索命令,返回该命令的绝对路
– whatis:用很简短的一句话来介绍命令
– man :查询一个命令的帮助手册
‼ 各发行版的命令会有些区别,可以通过man手册或者–help选项去查找对应命令的具体使 用方式
• ls – list directory contents
-a :do not ignore entries starting with.
-d :list directory entries instead of contents, and do not
dereference symbolic links
-l :use a long listing format16/11/27
• cd – change working directory
Ø change to the home directory of the user fred:
cd ~fred
Ø change to the directory lib that is a sibling directory of the current
one:
cd …/lib
• mkdir – make directories
Ø -p :no error if existing, make parent directories as needed
Ø -v :print a message for each created directory
• cat – concatenate files and print on the
standard output
Ø -E :display $ at end of each line
Ø -n :number all output lines
Ø with no FILE, or when FILE is -, read standard input
• mv – move (rename) files
Ø -f :do not prompt before overwriting
Ø -i :prompt before overwrite
Ø -u :move only when the SOURCE file is newer than the destination
file or when the destination file is missing
• cp – copy files and directories
Ø -f : if an existing destination file cannot be opened, remove it and
try again
Ø -i :prompt before overwrite
Ø -n :do not overwrite an existing file
• rm – remove files or directories
Ø -f :ignore nonexistent files, never prompt
Ø -i :prompt before every removal
Ø -r :remove directories and their contents recursively
‼ 删除文件时,务必使用此格式
‼ rm /etc/Hadoop/conf –rf
参数放在最后避免误操作
• echo – display a line of text
Ø -n :do not output the trailing newline
Ø -e :enable interpretation of backslash escapes
• 其他命令
– date
– reboot
– shutdown
– touch
– file
– du
– wc
– ln
– ……
• 服务器信息收集
Ø lsb_release -a :prints certain linux standard base and distribution information
Ø uname –a :print system information
Ø hostname :show or set the system’s host name
Ø cat /proc/cpuinfo
Ø cat /proc/meminfo
Ø cat /proc/swaps
Ø free –g :display amount of free and used memory in the system
Ø df –hT :report file system disk space usage
Ø ifconfig :configure a network interface
• 用户管理命令
– useradd :create a new user account
– groupadd :create a new group entry
– passwd :change user password
– userdel :delete an user account
• useradd
Ø -d :This option specifies the users home directory
Ø -G :With this option a list of supplementary groups can be specified, which the
user should become a member of.
Ø -g :The group name or number of the user’s main group.
Ø -u :Force the new userid to be the given number. This value must be positive
and unique.
Ø -m :Create home directory for new user account.
Ø -p :Encrypted password as returned by crypt for the new account. The default
is to disable the account.
• groupadd
Ø -g :Force the new group ID to be the given number. This value must
be positive and unique.
Ø -p :Encrypted password as returned by crypt for the new account.
The default is to disable the account.
• 用户信息路径
– /etc/passwd :用户信息
• 注册名:口令:用户标识号:组标识号:用户注释:用户主目录:命令解释程序
• root❌0:0:root:/root:/bin/bash
– /etc/shadow :存放用户密码
• /etc/shadow 由pwconv命令根据/etc/passwd中的数据自动产生的
– /etc/group :组信息
• 组名:口令:组标识号:组内用户列表
• root❌0:
• 文件权限
– linux中每个文件有所有者、所在组、其他组三个类别
– 每个类别有读®、写(w)、执行(x)三个权限,权值分别为4,2,1
– 如:-rw-r–r-- 1 root root 2009 Mar 10 14:51 /etc/passwd
• rw- :文件所有者root有读写权限
• r– :文件所在组只读权限
• r– :其他用户也是只读权限
• x:代表此文件可以作为shell被执行,文件目录必须有x权限才可以访问
• chown – change file owner and group
Ø -R :operate on files and directories recursively
Ø 如 chown –R root:root /etc/passwd
• chmod – change file mode bits
Ø -R :operate on files and directories recursively
Ø 如 chmod –R 755 /etc/passwd
• tar – The GNU version of the tar archiving
utility
Ø -c :create a new archive
Ø -x :extract files from an archive
Ø -f :use archive file or device ARCHIVE
Ø -j :filter the archive through bzip2
Ø -z :filter the archive through gzip
Ø -v :verbosely list files processed
Ø 如tar –xzvf file, tar –xjvf file
• 高级命令
• 磁盘分区、格式化、挂载命令
– fdisk :partition table manipulator for linux (<2TB)
– parted :a partition manipulation program (>=2TB)
– mkfs :build a linux file system
– mount :mount a filesystem
• fdisk
– fdisk –l :lists partition layout on all block devices
– fdisk /dev/sda :对sda磁盘做分区操作
• m :for help
• n : add a new partition
– primary / extended partition
– partition number
– first cylinder
– last cylinder
• w :write table to disk and exit
• parted
– parted –l :lists partition layout on all block devices
– parted /dev/sda :对sda磁盘做分区操作
• help :for help
• mkpart PART-TYPE [FS-TYPE] START END :make a partition
• mkpartfs PART-TYPE FS-TYPE START END :make a partition with a file
system
• quit :exit program
• mkfs
– ext4兼容ext3
– ext3支持最大16TB文件系统和最大2TB文件,ext4支持1EB的文件系统和
16TB的文件
– ext3支持32000个子目录,而ext4支持无限数量的子目录
– ext4支持快速fsck
– mkfs.ext3 :create an ext3 filesystem
– mkfs.ext4 :create an ext4 filesystem
• mount
– mount device dir :将分区文件系统挂载到指定文件夹下
– /etc/fstab :该文件包含了你的电脑上的存储设备及其文件系统的信息
• device mount point filesystem
parameters
dump
check
• /dev/sda1 swap swap
defaults 0 0
• /dev/sdb1 /mnt/disk1 ext4 defaults 0 0
– mount –a :mount all stuff from /etc/fstab
• fsck – check and repair a linux system
Ø -A :walk through the /etc/fstab file and try to check all file systems in one run
Ø -p :automatic repair (no questions)
Ø -f :force checking even if filesystem is marked clean
• sudo – execute a command as another user
Ø sudo allow a permitted user to execute a command as the superuser or
another user, as specified in the sudoers file
Ø -u :the –u option causes sudo to run the specified command as a user ither
than root
• su – run a shell with substitute user and group IDs
Ø - :make the shell a login shell
• find – search for files in a directory hierarchy
Ø -depth :process each directory’s contents before the directory itself
Ø maxdepth、mindepth
Ø -name :指定搜索符合名称规范的文件
Ø -type :指定搜索符合类型要求的文件
Ø -perm :指定搜索符合权限的文件
Ø find –name *.jar /usr
• iconv – perform character set conversion
Ø -f :encoding of original text
Ø -t :encoding for output
Ø -o :output file
Ø -l :list all know coded character sets
Ø find –name *.jar /usr

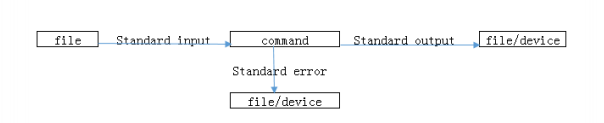

• 数据流重定向
– 我们执行一个命令的时候,这个命令可能会由文件读入数据,经过处理之
后,再将数据输出到屏幕上。standard output与standard error分别代表”标
准输出”与”标准错误”,这两个命令默认都是输出到屏幕上
– 标准输入:使用<或<<
– 标准输出:使用>或>>
– 标准错误输出:使用2>或2>>
– ls /root > /home/dir
– ls /root >> /home/dir
– wc –l < /home/dir
– >每一次操作会覆盖文件,>>为追加写入

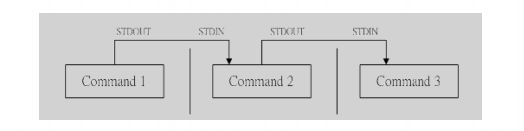

• 管道命令
– 管道”|”把上一个命令的标准输出,作为下一个命令的标准输入传入
– 管道命令仅会处理standard output,对于standard error output会予以忽略
– ps –ef |grep “java”
*– find –name .jar / | jar -tf
• vim – Vi IMproved, aprogrammerstext editor
– 一般模式:默认模式,可以进行移动、删除、复制、粘贴
– 编辑模式:按下”i,I,o,O,a,A,r,R”等任一个字母进入,可以对文档
进行编辑
– 命令行模式:输入”:,/,?”3个中任一个进入,ᨀ供数据从的查找、
读取、保存、替换等操作
– ESC键从其他模式回到一般模式
• vim – 一般模式
– 上下左右箭头移动光标
– G :移动到这个文件的最后一行
– nG :n为数字,移动到这个文件的第n行
– gg :移动到这个文件的第一行
– dd :删除光标所在的那一整行
– ndd :删除光标所在的向下n行
– yy :复制光标所在的那一行
– nyy :复制光标所在的向下n行
– p :将已复制的数据在光标下一行粘贴
– u :复原前一个操作
• vim – 进入编辑模式
– i,I :i为从目前光标所在处插入,I为在目前所在行的第一个非空格符处插入
– a,A :a为从目前光标所在的下一个字符处开始插入,A为从光标所在行的最后一
个字符处插入
– o,O :o为在目前光标所在的下一行插入新的一行,O为在目前光标所在处的上
一行插入新的一行
– r,R :r只会替换光标所在的那一个字符一次,R会一直替换光标所在的文字,直
到按下ESC为止
• vim – 命令模式
– :w :将编辑的数据写入硬盘文件中
– :q :离开vi
– ! :强制执行命令
– ? :从文档当前行向前查找关键字(n,N进行切换)
– / :从文档当前行向后查找关键字(n,N进行切换)
– %s/{old}/{new}/g :全文替换指定字符串,{old}代表要被替换的字符串,
{new}代表要替换成的字符串
• 诊断命令
• 进程管理
– ps :report a snapshot of the current processes
– top :display linux tasks
– kill :send signals to processes, or list signals
‼ grep :print lines matching a pattern
• ps
Ø ps –ef :see every process on the system using standard syntax
Ø ps aux :see every process on the system using BSD syntax
Ø 用户
进程ID
上级父进程ID
cpu使用
cpu使用时间
终端机
具体指令
Ø UID PID PPID C STIME TTY TIME CMD
Ø root 1 0 0 Feb16 ? 00:00:29 init[5]
• top

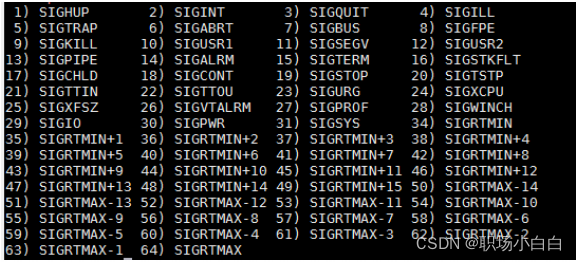

• kill
Ø -s :specify the name or number of the signal to be sent
Ø -l :list signal names, or convert signal names to/from numbers
• netstat
– print network connections, routing tables, interface statistics, masquerade connections,
and ,ulticast memberships
Ø -a :show both listening and non-listening sockets
Ø -l :show only listening sockets
Ø -n :show numerical addresses instead of trying to determine symbolic hosts, port or user
names
Ø -p :show the PID and name of the program to which each socket belongs
Ø -t :tcp
Ø -u :udp

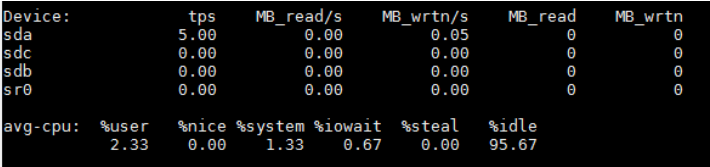

• iostat
– report Central Processing Unit (CPU) statistics and input/output statistics for devices,
partitions and network filesystems

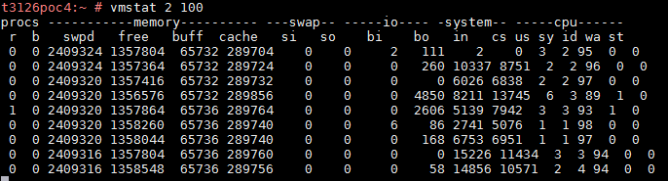

• vmstat
– Report virtual memory statistics
r表示运行队列,b表示阻塞进程
swpd虚拟内存使用大小,free物理内存剩余大小
• sar
– Collect, report, or save system activity information
– -b :report I/O and transfer rate statistics
– -n {keyword} :report net work statistics. keywords are DEV,TCP,UDP,IP,IP6…
– -r :report memory utilization statistics
– -u report CPU utilization
– RHEL iso自带,yum install sar即可安装
• 其他命令
– perf/top/netstat/pidstat/mpstat/dstat/free/sar/blktrace/iostat.strace/tcpdump/nicstat
• Shell
• 什么是Shell
– shell是用户和Linux操作系统之间的接口。Linux中有多种shell,其中缺省使
用的是Bash。
– Linux系统的shell作为操作系统的外壳,为用户ᨀ供使用操作系统的接口。
它是命令语言、命令解释程序及程序设计语言的统称。
• 注意事项
– 命令的执行是从上而下、从左到右地分析与执行
– 命令、参数间的多个空白都会被忽略掉
– 空白行也将被忽略
– 如果读到一个Enter符号,就尝试开始执行该行命令
– 至于如果一行的内容太多,则可以使用”\”来扩展至下一行
– “#”可作为批注。任何加在#后面的数据将全部被视为批注文字而被忽略
– shell.sh文件必须具备可读与可执行(rx)权限
– 第一行#!/bin/bash声明这个脚本使用的shell名称
• 示例
#!/bin/bash
#Program:
#
This program shows “Hello World!” in your screen.
PATH=/bin:/sbin:/user/bin:/usr/sbin:/usr/local/bin:/usr/local/sbin:~/bin
export PATH
echo –e “Hello World! \a \n”
exit0
• test
• if … then
if [条件判断式一]; then
当条件判断式一成立时,可以进行的命令工作内容
elif [条件判断式二]; then
当条件判断式二成立时,可以进行的命令工作内容
else
当条件判断式都不成立时,可以进行的命令工作内容
fi
• while do done
while [ condition ] <==中括号内为判断式
do <==循环的开始
程序段落
…
…
done <==循环的结束
• for … do … done
for var in con1 con2 con3 …
do <==循环的开始
程序段落
…
…
done <==循环的结束
• for … do … done
for ((初始值;限制值;执行步长))
do <==循环的开始
程序段落
…
…
done <==循环的结束
• 常用服务
• 网络服务
– /etc/init.d/network start 启动服务
– /etc/init.d/network stop 停止服务
– /etc/init.d/network restart
重启服务
– /etc/init.d/network status
查看服务状态
– /etc/sysconfig/network
hostname配置文件
– /etc/hosts
主机名及其ip
– /etc/resolv.conf
DNS解析文件
– /etc/sysconfig/network-scripts/ifcfg-eth0
网卡配置文件
– /etc/sysconfig/network
hostname配置文件
– NETWORKING=yes 设置linux网络是否运行
– HOSTNAME=WY
主机的名称
– GATEWAY=192.168.1.2
网关的IP
– /etc/hosts
主机名及其ip
– 一般情况下HOSTS文件的每行每一个主机,每行由三部分组成,每个部分由空格隔开
– 第一部分:网络IP地址
– 第二部分:主机名或域名
– 第三部分:主机别名
– 每行也可以是两部分,即主机IP地址和主机名
– 192.168.1.1
myhost
– /etc/resolv.conf
DNS解析文件
– 每行以一个关键字开头,后接配置参数
– nameserver 定义DNS服务器的IP地址
– domain
定义本地域名
– search
定义域名的搜索列表
– sortlist
对返回的域名进行排序
/etc/sysconfig/network-scripts/ifcfg-eth0
网卡配置文件
– DEVICE=eth0
网卡设备名称
– ONBOOT=yes
启动是否激活
– BOOTPROTO=static
协议类型:DHCP static none
– IPADDR=192.168.1.90
网络IP
– NETMASK=255.255.255.0
网络子网地址
– GATEWAY=192.168.1.1
网关地址
– TYPE=Ethernet
网卡类型为以太网
– ethtool device_name
• 检查网络设备的带宽情况
– ifconfig –a
• 查看网络接口信息

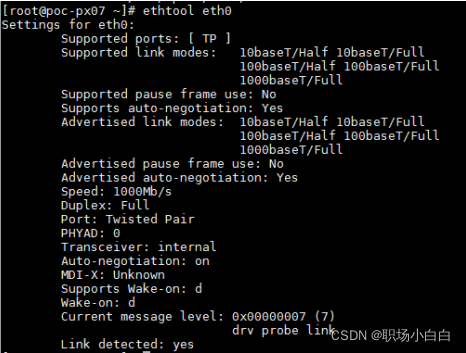

• ethtool
Speed:1000Mb/s
目前工作在千兆网状态下
Duplex:Full
工作模式是否是全双工
Link detected: yes 网卡是否处于激活状态
• tcpdump
– dump traffic on a network
– -i :Listen on interface. If unspecified, tcpdump searches the system interface
list for the lowest numbered, configured up interface.
– -w :Write the raw packets to file rather than parsing and printing them out.
– examples:
– tcpdump host sundown
– tcpdump tcp port 23 hosts 172.16.2.1
– tcpdump udp port 123
• telnet
– user interface to the TELNET protocol
– The telnet command is used to communicate with another ost using the
TELNET protocol
– examples:
– telnet [host] [port]
– telnet 172.16.2.1 22
• iptables防火墙
– administration tool for IPv4 packet filtering and NAT
– iptables –I input –p tcp --dport –j accept 80
– 80端口允许任何ip访问
– service iptablesstop
– 关闭防火墙
– iptables –f
清楚所有规则
• RedHat Package Manager
– rpm -ivh:安装显示安装进度
– rpm - Uvh:升级软件包
– rpm - qpl:列出RPM软件包内的文件信息
– rpm - qpi:列出RPM软件包的᧿述信息
– rpm - e:删除包
– 默认安装路径:/usr/bin,/usr/lib/usr/share/doc,/usr/share/man
– 安装包存在依赖关系,而rpm命令不能自动解决依赖
• cpio
– copy files to and from archives
– GNU cpio is a tool for creating and extracting archives, or copying files from
one place to another.
• rpm2cpio
– extract cpio archive from RPM Package Manager package
– 组合使用rpm2cpio {rpm包名} | cpio –ivd
– 将rpm包转换成
• Yellow dog Updater,Modified
– 基于rpm包管理,能够从指定的服务器自动下载包并且安装,可以自动处
理依赖关系
– yum install 安装
– yum update 更新
– yum list 显示安装包
– yum remove 删除程序
– yum search 查找软件包
– 源配置文件/etc/yum.repos.d/CentOS-Base.repo
[base] : 独一无二的名称
name=baserepo :对repo的描述
baseurl=ftp://172.16.1.1/pub :repo源的获取地址
gpgcheck=0 :是否进行校验
enabled=1 :是否ᨀ供源服务
• Create repomd repository
– -o:optional output directory
– -d:Generate sqlite databases for use with yum
– -p:Output xml files in pretty format
– createrepo –p –d –o yum/centos/6/x86_64/new yum/centos/6/x86_64/old
– rpm - qpi:列出RPM软件包的᧿述信息
– rpm - e:删除包
– 默认安装路径:/usr/bin,/usr/lib/usr/share/doc,/usr/share/man
– 安装包存在依赖关系,而rpm命令不能自动解决依赖
• cpio
– copy files to and from archives
– GNU cpio is a tool for creating and extracting archives, or copying files from
one place to another.
• rpm2cpio
– extract cpio archive from RPM Package Manager package
– 组合使用rpm2cpio {rpm包名} | cpio –ivd
– 将rpm包转换成
• Yellow dog Updater,Modified
– 基于rpm包管理,能够从指定的服务器自动下载包并且安装,可以自动处
理依赖关系
– yum install 安装
– yum update 更新
– yum list 显示安装包
– yum remove 删除程序
– yum search 查找软件包
– 源配置文件/etc/yum.repos.d/CentOS-Base.repo
[base] : 独一无二的名称
name=baserepo :对repo的描述
baseurl=ftp://172.16.1.1/pub :repo源的获取地址
gpgcheck=0 :是否进行校验
enabled=1 :是否ᨀ供源服务
• Create repomd repository
– -o:optional output directory
– -d:Generate sqlite databases for use with yum
– -p:Output xml files in pretty format
– createrepo –p –d –o yum/centos/6/x86_64/new yum/centos/6/x86_64/old
