需求分析

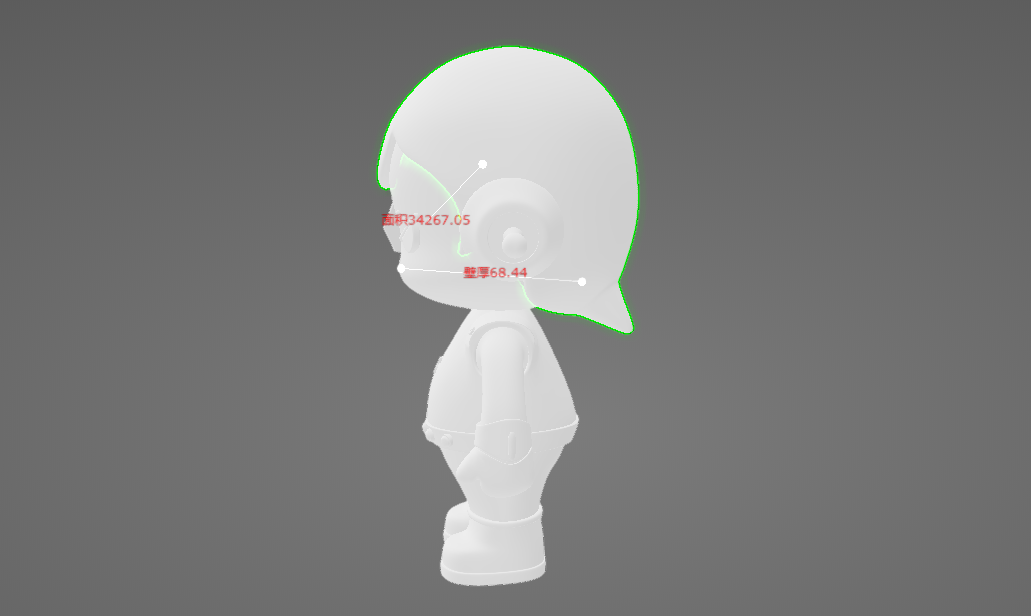

实现模型的3维测量工作，包括体积、表面积、壁厚等

代码实现（当前threejs版本 r139）

1、体积的测量

function getVolume(geometry) {
  if (!geometry.index) return;
  if (!geometry.isBufferGeometry) {
    console.log("'geometry' must be an indexed or non-indexed buffer geometry");
    return 0;
  }
  const isIndexed = geometry.index !== null;
  const position = geometry.attributes.position;
  let sum = 0;
  const p1 = new THREE.Vector3(),
    p2 = new THREE.Vector3(),
    p3 = new THREE.Vector3();
  if (!isIndexed) {
    const faces = position.count / 3;
    for (let i = 0; i < faces; i++) {
      p1.fromBufferAttribute(position, i * 3 + 0);
      p2.fromBufferAttribute(position, i * 3 + 1);
      p3.fromBufferAttribute(position, i * 3 + 2);
      sum += signedVolumeOfTriangle(p1, p2, p3);
    }
  } else {
    const index = geometry.index;
    const faces = index.count / 3;
    for (let i = 0; i < faces; i++) {
      p1.fromBufferAttribute(position, index.array[i * 3 + 0]);
      p2.fromBufferAttribute(position, index.array[i * 3 + 1]);
      p3.fromBufferAttribute(position, index.array[i * 3 + 2]);
      sum += signedVolumeOfTriangle(p1, p2, p3);
    }
  }
  return sum > 0 ? sum : 0;
}

function signedVolumeOfTriangle(p1: THREE.Vector3, p2: THREE.Vector3, p3: THREE.Vector3) {
  return p1.dot(p2.cross(p3)) / 6.0;
}

2、表面积的测量

// 计算geometry面积
function getArea(geometry) {
  let area = 0;
  if (!geometry.index) return;
  if (!geometry.isBufferGeometry) {
    return 0;
  }
  const isIndexed = geometry.index !== null;
  const position = geometry.attributes.position;
  const p1 = new THREE.Vector3(),
    p2 = new THREE.Vector3(),
    p3 = new THREE.Vector3();
  if (!isIndexed) {
    const faces = position.count / 3;
    for (let i = 0; i < faces; i++) {
      p1.fromBufferAttribute(position, i * 3 + 0);
      p2.fromBufferAttribute(position, i * 3 + 1);
      p3.fromBufferAttribute(position, i * 3 + 2);
      area += areaOfTriangle(p1, p2, p3);
    }
  } else {
    const index = geometry.index;
    const faces = index.count / 3;
    for (let i = 0; i < faces; i++) {
      p1.fromBufferAttribute(position, index.array[i * 3 + 0]);
      p2.fromBufferAttribute(position, index.array[i * 3 + 1]);
      p3.fromBufferAttribute(position, index.array[i * 3 + 2]);
      area += areaOfTriangle(p1, p2, p3);
    }
  }
  return area;
}

// 计算三角形面积
function areaOfTriangle(p1: THREE.Vector3, p2: THREE.Vector3, p3: THREE.Vector3) {
  const v1 = new THREE.Triangle(p1, p2, p3);
  return v1.getArea();
}

3、壁厚的测量

// 获取壁厚
/*
 * originPoint 射线的原点
 * direction 射线的方向
 * geometry 模型的geometry数据
 */
export function getThickness(originPoint: THREE.Vector3, direction: THREE.Vector3, geometry) {
  const points1 = getIntersectionPoints(originPoint, direction, geometry);
  const points2 = getIntersectionPoints(
    originPoint,
    new THREE.Vector3(-direction.x, -direction.y, -direction.z),
    geometry
  );
  const points = [...points1, ...points2];
  points.sort((a, b) => {
    return a.distanceTo(originPoint) - b.distanceTo(originPoint);
  });
  if (points.length >= 2) {
    return {
      allPoints: points,
      distance: points[0].distanceTo(points[1]),
    };
  }
  return {
    allPoints: [],
    distance: 0,
  };
}

/*
 * originPoint 射线的原点
 * dir 射线的方向
 * geometry 模型的geometry数据
 */
export function getIntersectionPoints(
  originPoint: THREE.Vector3,
  dir: THREE.Vector3,
  geometry
): THREE.Vector3[] {
  const res: THREE.Vector3[] = [];
  if (!geometry.index) return [];
  if (!geometry.isBufferGeometry) {
    console.log("'geometry' must be an indexed or non-indexed buffer geometry");
    return [];
  }
  const isIndexed = geometry.index !== null;
  const position = geometry.attributes.position;
  const p1 = new THREE.Vector3(),
    p2 = new THREE.Vector3(),
    p3 = new THREE.Vector3();
  if (!isIndexed) {
    const faces = position.count / 3;
    for (let i = 0; i < faces; i++) {
      p1.fromBufferAttribute(position, i * 3 + 0);
      p2.fromBufferAttribute(position, i * 3 + 1);
      p3.fromBufferAttribute(position, i * 3 + 2);
      const pointOfIntersection = intersectionTriangle(
        p1,
        p2,
        p3,
        originPoint,
        new THREE.Vector3(-dir.x, -dir.y, -dir.z),
        'doubleSide'
      );
      if (pointOfIntersection) {
        res.push(pointOfIntersection);
      }
    }
  } else {
    const index = geometry.index;
    const faces = index.count / 3;
    for (let i = 0; i < faces; i++) {
      p1.fromBufferAttribute(position, index.array[i * 3 + 0]);
      p2.fromBufferAttribute(position, index.array[i * 3 + 1]);
      p3.fromBufferAttribute(position, index.array[i * 3 + 2]);
      const pointOfIntersection = intersectionTriangle(
        p1,
        p2,
        p3,
        originPoint,
        new THREE.Vector3(-dir.x, -dir.y, -dir.z),
        'doubleSide'
      );
      if (pointOfIntersection) {
        res.push(pointOfIntersection);
      }
    }
  }
  // console.log(res)

  return res;
}

// 检测一条射线和三角形是否相交
/*
 * pointA 三角形的点A
 * pointB 三角形的点B
 * pointC 三角形的点C
 * originPoint 射线的原点
 * dir 射线的方向
 * side 'front' | 'back' | 'doubleSide' 默认只检测正面
 */
export function intersectionTriangle(
  pointA: THREE.Vector3,
  pointB: THREE.Vector3,
  pointC: THREE.Vector3,
  originPoint: THREE.Vector3,
  dir: THREE.Vector3,
  side = 'front'
): THREE.Vector3 | null {
  switch (side) {
    case 'front':
      return _checkFront(pointA, pointB, pointC, originPoint, dir);
    case 'back':
      return _checkBack(pointA, pointB, pointC, originPoint, dir);
    case 'doubleSide':
      return (
        _checkFront(pointA, pointB, pointC, originPoint, dir) ||
        _checkBack(pointA, pointB, pointC, originPoint, dir)
      );
    default:
      return null;
  }
}

// 正面相交检测
function _checkFront(
  pointA: THREE.Vector3,
  pointB: THREE.Vector3,
  pointC: THREE.Vector3,
  originPoint: THREE.Vector3,
  dir: THREE.Vector3
) {
  const E1 = pointB.clone().sub(pointA);
  const E2 = pointC.clone().sub(pointA);
  const N = new THREE.Vector3().crossVectors(E1, E2);

  const det = -dir.dot(N);
  const invertDet = 1 / det;
  const AO = originPoint.clone().sub(pointA);
  const DAO = new THREE.Vector3().crossVectors(AO, dir);
  const u = E2.dot(DAO) * invertDet;
  const v = E1.dot(DAO) * invertDet * -1;
  const t = AO.dot(N) * invertDet;
  const flag = det <= 1e-6 && t >= 0 && u >= 0 && v >= 0 && u + v <= 1;
  if (flag) {
    return originPoint.clone().add(dir.clone().multiplyScalar(t));
  } else {
    return null;
  }
}

// 反面相交检测
function _checkBack(
  pointA: THREE.Vector3,
  pointB: THREE.Vector3,
  pointC: THREE.Vector3,
  originPoint: THREE.Vector3,
  dir: THREE.Vector3
) {
  const E1 = pointC.clone().sub(pointA);
  const E2 = pointB.clone().sub(pointA);
  const N = new THREE.Vector3().crossVectors(E1, E2);

  const det = -dir.dot(N);
  const invertDet = 1 / det;
  const AO = originPoint.clone().sub(pointA);
  const DAO = new THREE.Vector3().crossVectors(AO, dir);
  const u = E2.dot(DAO) * invertDet;
  const v = E1.dot(DAO) * invertDet * -1;
  const t = AO.dot(N) * invertDet;
  const flag = det <= 1e-6 && t >= 0 && u >= 0 && v >= 0 && u + v <= 1;
  if (flag) {
    return originPoint.clone().add(dir.clone().multiplyScalar(t));
  } else {
    return null;
  }
}
