Linux终端命令行图形化Modbus调试工具

前言

之前经常使用mbpoll在Linux命令行下调试modbus，用久了发现其实并不方便，因为每次携带的参数太多，使用的时候老是忘记怎么使用，经常需要去翻笔记，于是决定自己开发一款Linux命令行版本的Modbus调试工具，方便调试。

项目开源地址：https://gitee.com/chen-dongyu123/modbus_tools

Linux终端命令行图形化Modbus调试助手

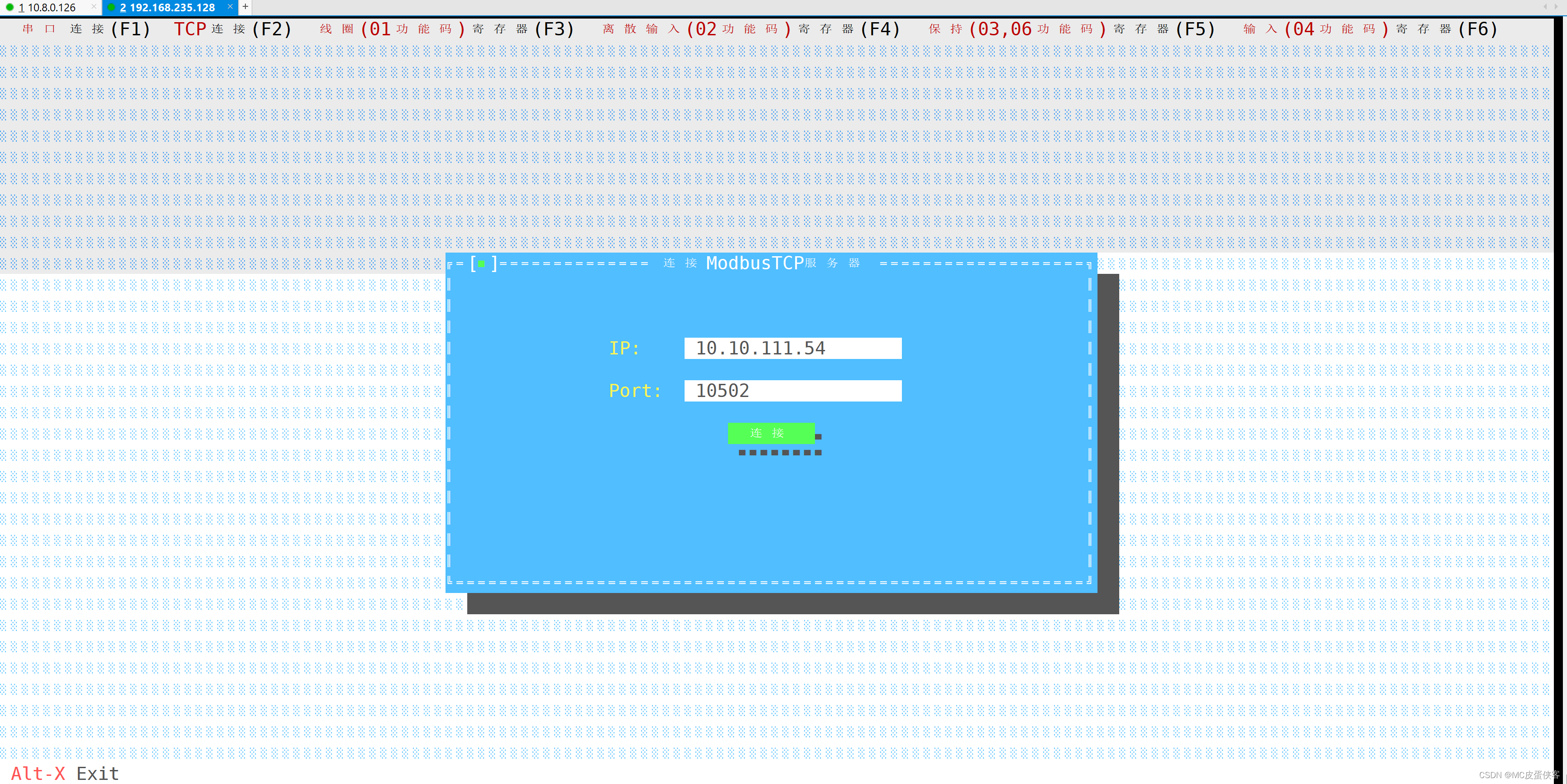

1. 连接ModbusTcp服务器


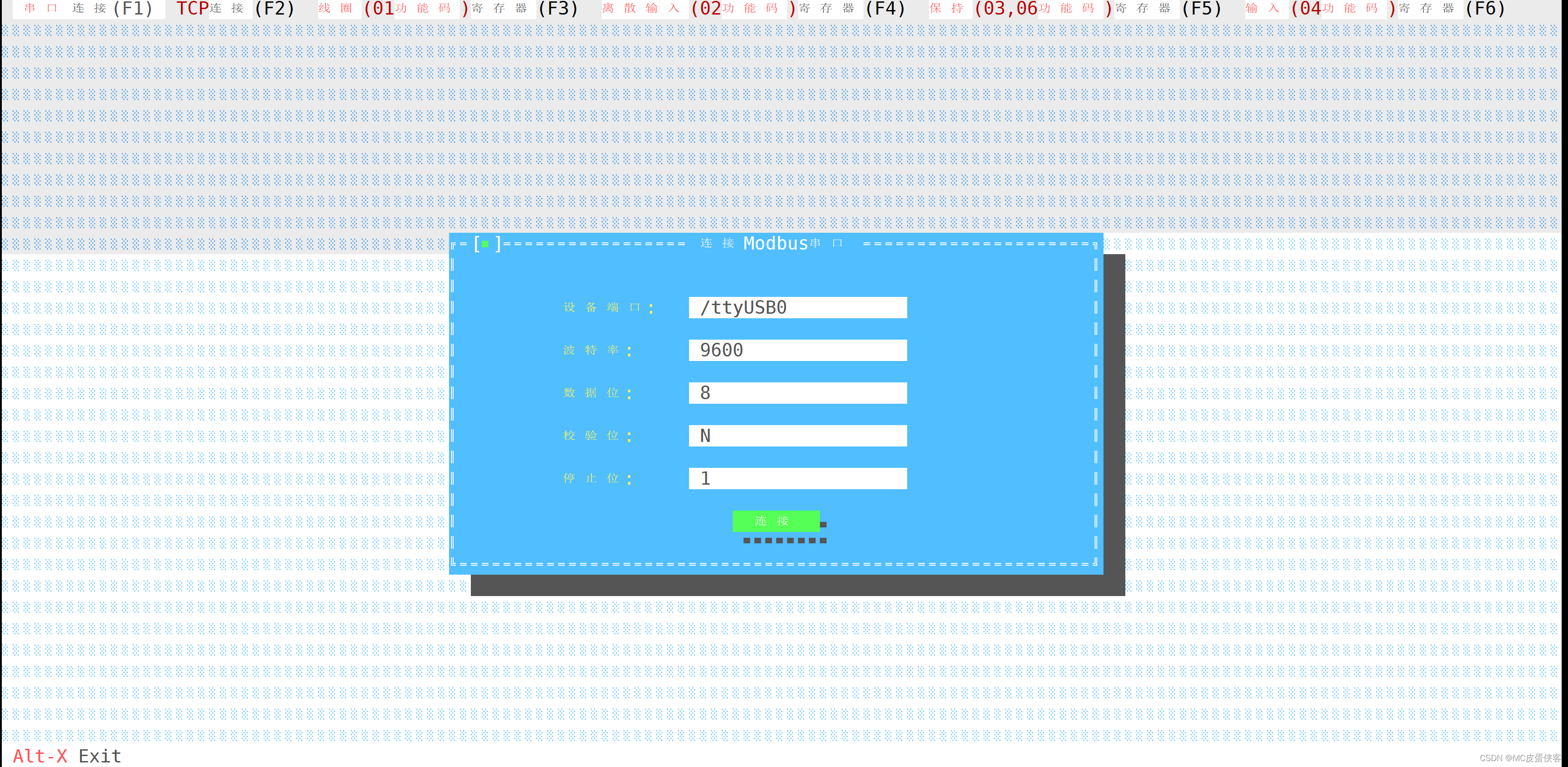

2. 连接Modbus串口



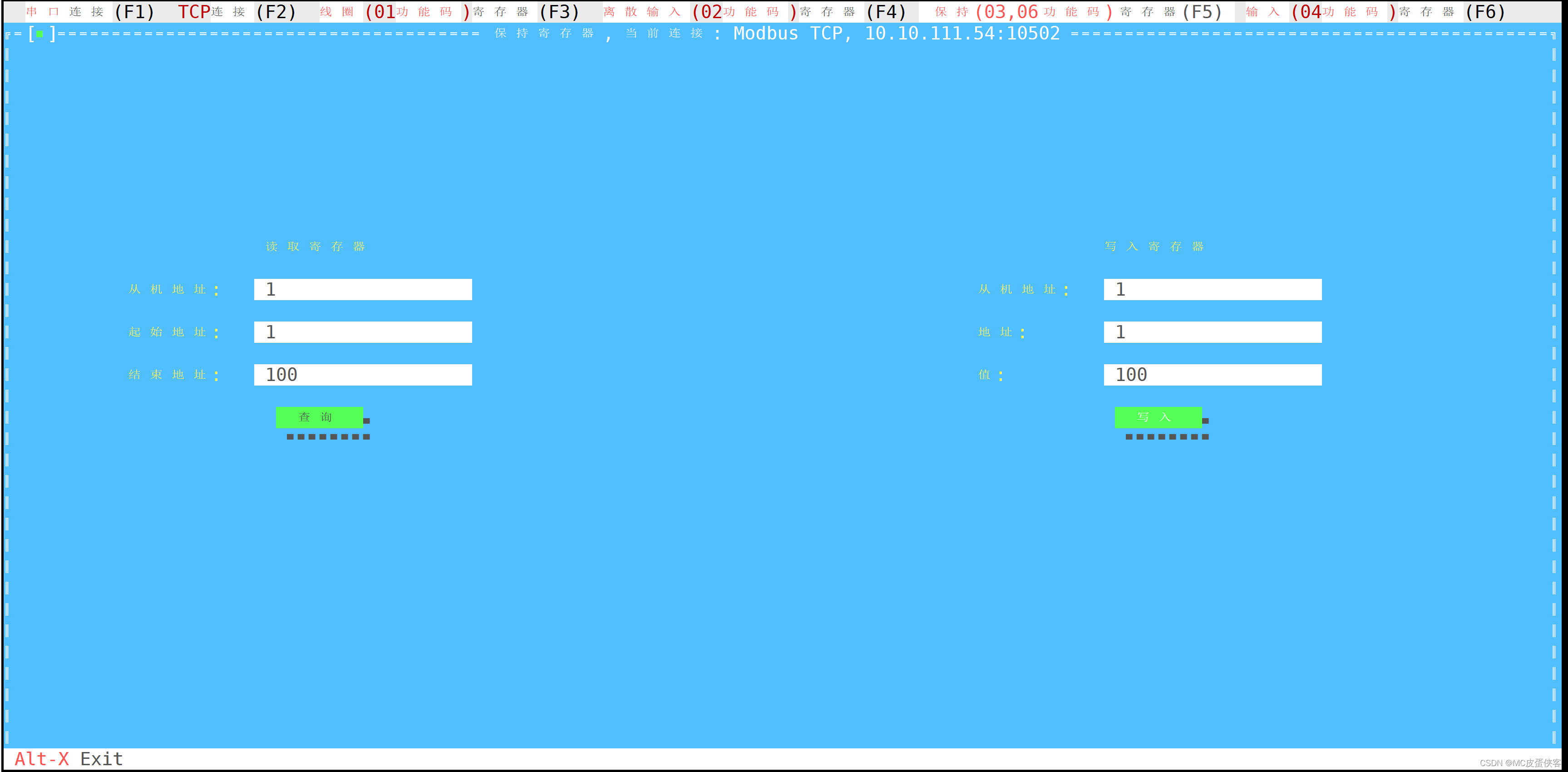

3. 查询和写入寄存器，先在菜单栏上选择寄存器类型，然后可以根据从机地址，起始寄存器地址，结束寄存器地址读取范围类的寄存器数据，支持单个数据写入寄存器



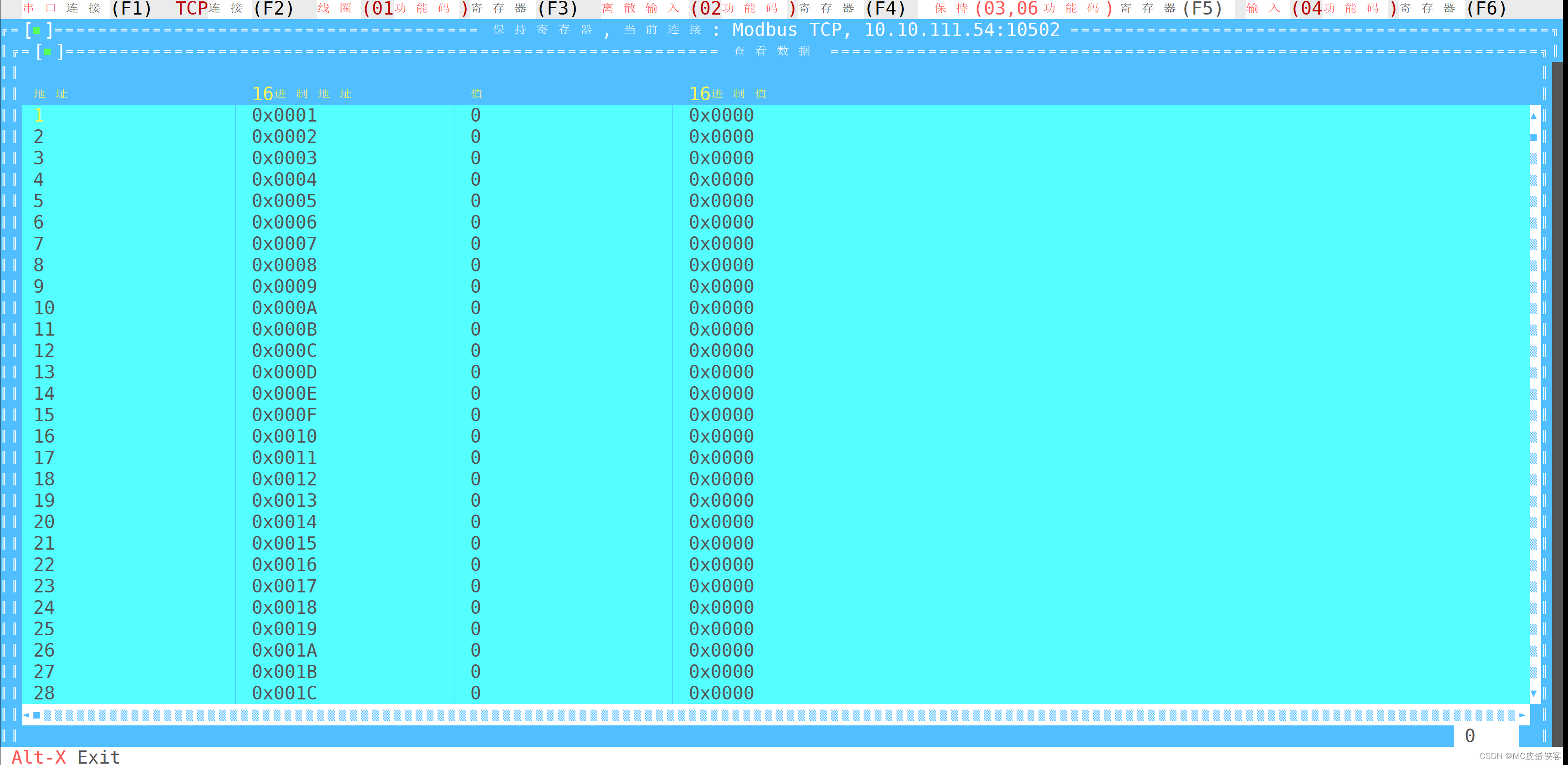

4. 查询结果


   该工具完全支持无鼠标键盘操作，Esc可以关闭页面，Tab键切换输入框，上下左右键可用来上下滚动表格。

Modbus客户端重点代码实现

1. 创建客户端基类，主要有以下几个方法

   #pragma once
   #include <vector>
   #include <string>
   #include "libmodbus/src/modbus.h"

   class ModbusBaseClient
   {
   public:
       ModbusBaseClient() = default;
       ~ModbusBaseClient();

       bool isConnected();
       // 线圈寄存器(功能码0x01,可读可写)
       std::vector<int> readCoilValues(int slaveId, int addr, int cnt);
       bool writeCoilValue(int slaveId, int addr, int value);
       // 离散输入寄存器(功能码0x02,只读)
       std::vector<int> readDiscreteInputValues(int slaveId, int addr, int cnt);
       // 保持寄存器(功能码0x03,可读可写)
       std::vector<int> readHoldRegisterValues(int slaveId, int addr, int cnt);
       bool writeHoldRegisterValue(int slaveId, int addr, int value);
       // 输入寄存器(功能码0x04,只读)
       std::vector<int> readInputRegisterValues(int slaveId, int addr, int cnt);

       // 根据地址范围读取寄存器,起始地址-结束地址
       std::vector<int> readRangeCoilValues(int slaveId, int startAddr, int endAddr);
       std::vector<int> readRangeDiscreteInputValues(int slaveId, int startAddr, int endAddr);
       std::vector<int> readRangeHoldRegisterValues(int slaveId, int startAddr, int endAddr);
       std::vector<int> readRangeInputRegisterValues(int slaveId, int startAddr, int endAddr);

   protected:
       modbus_t *_ctx{nullptr};
       bool _isConnected{false};
   };


2. 客户端基类实现

   #include "modbus_base_client.h"
   #include "log.h"

   bool ModbusBaseClient::isConnected()
   {
       return _isConnected;
   }

   ModbusBaseClient::~ModbusBaseClient()
   {
       if (_ctx != nullptr)
       {
           modbus_close(_ctx);
           modbus_free(_ctx);
       }
   }

   std::vector<int> ModbusBaseClient::readCoilValues(int slaveId, int addr, int cnt)
   {
       modbus_set_slave(_ctx, slaveId);
       uint8_t dest[cnt];
       memset(dest, 0, cnt * sizeof(uint8_t));
       int rc = modbus_read_bits(_ctx, addr, cnt, dest);
       if (rc == -1)
       {
           LOG_ERROR(fmt::format("readCoilValues failed, {}", modbus_strerror(errno)));
           return {};
       }
       std::vector<int> result;
       for (const auto &val : dest)
       {
           result.push_back(static_cast<int>(val));
       }
       return result;
   }

   bool ModbusBaseClient::writeCoilValue(int slaveId, int addr, int value)
   {
       modbus_set_slave(_ctx, slaveId);
       int rc = modbus_write_bit(_ctx, addr, value);
       if (rc == -1)
       {
           LOG_ERROR(fmt::format("writeCoilValue failed, {}", modbus_strerror(errno)));
           return false;
       }
       else
       {
           return true;
       }
   }

   std::vector<int> ModbusBaseClient::readDiscreteInputValues(int slaveId, int addr, int cnt)
   {
       modbus_set_slave(_ctx, slaveId);
       uint8_t dest[cnt];
       memset(dest, 0, cnt * sizeof(uint8_t));
       int rc = modbus_read_input_bits(_ctx, addr, cnt, dest);
       if (rc == -1)
       {
           LOG_ERROR(fmt::format("readDiscreteInputValues failed, {}", modbus_strerror(errno)));
           return {};
       }
       std::vector<int> result;
       for (const auto &val : dest)
       {
           result.push_back(static_cast<int>(val));
       }
       return result;
   }

   std::vector<int> ModbusBaseClient::readHoldRegisterValues(int slaveId, int addr, int cnt)
   {
       modbus_set_slave(_ctx, slaveId);
       uint16_t dest[cnt];
       memset(dest, 0, cnt * sizeof(uint16_t));
       int rc = modbus_read_registers(_ctx, addr, cnt, dest);
       if (rc == -1)
       {
           LOG_ERROR(fmt::format("readHoldRegisterValues failed, {}", modbus_strerror(errno)));
           return {};
       }
       std::vector<int> result;
       for (const auto &val : dest)
       {
           result.push_back(static_cast<int>(val));
       }
       return result;
   }

   std::vector<int> ModbusBaseClient::readInputRegisterValues(int slaveId, int addr, int cnt)
   {
       modbus_set_slave(_ctx, slaveId);
       uint16_t dest[cnt];
       memset(dest, 0, cnt * sizeof(uint16_t));
       int rc = modbus_read_input_registers(_ctx, addr, cnt, dest);
       if (rc == -1)
       {
           LOG_ERROR(fmt::format("readInputRegisterValues failed, {}", modbus_strerror(errno)));
           return {};
       }
       std::vector<int> result;
       for (const auto &val : dest)
       {
           result.push_back(static_cast<int>(val));
       }
       return result;
   }

   bool ModbusBaseClient::writeHoldRegisterValue(int slaveId, int addr, int value)
   {
       modbus_set_slave(_ctx, slaveId);
       int rc = modbus_write_register(_ctx, addr, value);
       if (rc == -1)
       {
           LOG_ERROR(fmt::format("writeHoldRegisterValue failed, {}", modbus_strerror(errno)));
           return false;
       }
       else
       {
           return true;
       }
   }

   std::vector<int> ModbusBaseClient::readRangeCoilValues(int slaveId, int startAddr, int endAddr)
   {
       modbus_set_slave(_ctx, slaveId);
       int cnt = endAddr - startAddr + 1;
       int num = cnt % 100 == 0 ? cnt / 100 : cnt / 100 + 1;
       std::vector<int> result;
       for (int i = 0; i < num; i++)
       {
           int addr = startAddr + i * 100;
           int cnt = 100;
           if (i == num - 1)
           {
               cnt = endAddr - addr + 1;
           }
           uint8_t dest[cnt];
           memset(dest, 0, cnt * sizeof(uint8_t));
           int rc = modbus_read_bits(_ctx, addr, cnt, dest);
           if (rc == -1)
           {
               LOG_ERROR(fmt::format("readCoilValues failed, {}", modbus_strerror(errno)));
               return {};
           }
           for (const auto &val : dest)
           {
               result.push_back(static_cast<int>(val));
           }
       }
       return result;
   }
   std::vector<int> ModbusBaseClient::readRangeDiscreteInputValues(int slaveId, int startAddr, int endAddr)
   {
       modbus_set_slave(_ctx, slaveId);
       int cnt = endAddr - startAddr + 1;
       int num = cnt % 100 == 0 ? cnt / 100 : cnt / 100 + 1;
       std::vector<int> result;
       for (int i = 0; i < num; i++)
       {
           int addr = startAddr + i * 100;
           int cnt = 100;
           if (i == num - 1)
           {
               cnt = endAddr - addr + 1;
           }
           uint8_t dest[cnt];
           memset(dest, 0, cnt * sizeof(uint8_t));
           int rc = modbus_read_input_bits(_ctx, addr, cnt, dest);
           if (rc == -1)
           {
               LOG_ERROR(fmt::format("readDiscreteInputValues failed, {}", modbus_strerror(errno)));
               return {};
           }
           for (const auto &val : dest)
           {
               result.push_back(static_cast<int>(val));
           }
       }
       return result;
   }

   std::vector<int> ModbusBaseClient::readRangeHoldRegisterValues(int slaveId, int startAddr, int endAddr)
   {
       modbus_set_slave(_ctx, slaveId);
       int cnt = endAddr - startAddr + 1;
       int num = cnt % 100 == 0 ? cnt / 100 : cnt / 100 + 1;
       std::vector<int> result;
       for (int i = 0; i < num; i++)
       {
           int addr = startAddr + i * 100;
           int cnt = 100;
           if (i == num - 1)
           {
               cnt = endAddr - addr + 1;
           }
           uint16_t dest[cnt];
           memset(dest, 0, cnt * sizeof(uint16_t));
           int rc = modbus_read_registers(_ctx, addr, cnt, dest);
           if (rc == -1)
           {
               LOG_ERROR(fmt::format("readDiscreteInputValues failed, {}", modbus_strerror(errno)));
               return {};
           }
           for (const auto &val : dest)
           {
               result.push_back(static_cast<int>(val));
           }
       }
       return result;
   }

   std::vector<int> ModbusBaseClient::readRangeInputRegisterValues(int slaveId, int startAddr, int endAddr)
   {
       modbus_set_slave(_ctx, slaveId);
       int cnt = endAddr - startAddr + 1;
       int num = cnt % 100 == 0 ? cnt / 100 : cnt / 100 + 1;
       std::vector<int> result;
       for (int i = 0; i < num; i++)
       {
           int addr = startAddr + i * 100;
           int cnt = 100;
           if (i == num - 1)
           {
               cnt = endAddr - addr + 1;
           }
           uint16_t dest[cnt];
           memset(dest, 0, cnt * sizeof(uint16_t));
           int rc = modbus_read_input_registers(_ctx, addr, cnt, dest);
           if (rc == -1)
           {
               LOG_ERROR(fmt::format("readDiscreteInputValues failed, {}", modbus_strerror(errno)));
               return {};
           }
           for (const auto &val : dest)
           {
               result.push_back(static_cast<int>(val));
           }
       }
       return result;
   }


3. ModbusTcp客户端

   #pragma once
   #include <iostream>
   #include <vector>
   #include "modbus_base_client.h"
   #include "libmodbus/src/modbus-tcp.h"

   class ModbusTcpClient : public ModbusBaseClient
   {
   public:
       ModbusTcpClient(const std::string ip, int port);
       ~ModbusTcpClient() = default;

   public:
       std::string ip;
       int port;
   };


   实现

   #include "modbus_tcp_client.h"
   #include "log.h"

   ModbusTcpClient::ModbusTcpClient(const std::string ip, int port) : ip(ip), port(port)
   {
       _ctx = modbus_new_tcp(ip.c_str(), port);
       if (_ctx == nullptr)
       {
           _isConnected = false;
           LOG_ERROR("Unable to create the libmodbus context");
           return;
       }

       if (modbus_connect(_ctx) == -1)
       {
           LOG_ERROR(fmt::format("Connection failed, {}", modbus_strerror(errno)));
           modbus_free(_ctx);
           _ctx = nullptr;
           _isConnected = false;
           return;
       }
       _isConnected = true;
       LOG_INFO("Connected to Modbus Tcp server");
   }


4. Modbus串口

   #pragma once
   #include <iostream>
   #include <vector>
   #include "modbus_base_client.h"
   #include "libmodbus/src/modbus-rtu.h"

   class ModbusRtuClient : public ModbusBaseClient
   {
   public:
       ModbusRtuClient(const std::string &port, int baudRate, int byteSize, char parity, int stopBits);
       ModbusRtuClient() : ModbusRtuClient("/ttyUSB0", baudRate, byteSize, parity, stopBits){}; // 委托构造
       ~ModbusRtuClient() = default;

   public:
       std::string port{"/ttyUSB0"}; // 端口
       int baudRate{9600};           // 波特率
       int byteSize{8};              // 数据位
       char parity{'N'};             // 奇偶校验
       int stopBits{1};              // 停止位
   };


   实现

   #include "modbus_rtu_client.h"
   #include "log.h"

   ModbusRtuClient::ModbusRtuClient(const std::string &port, int baudRate, int byteSize, char parity, int stopBits) : port(port), baudRate(baudRate), byteSize(byteSize), parity(parity), stopBits(stopBits)
   {
       _ctx = modbus_new_rtu(port.c_str(), baudRate, parity, byteSize, stopBits); // 使用9600-N-8，1个停止位
       if (_ctx == nullptr)
       {
           _isConnected = false;
           LOG_ERROR("Unable to create the libmodbus context");
           return;
       }

       if (modbus_connect(_ctx) == -1)
       {
           _isConnected = false;
           LOG_ERROR(fmt::format("Connection failed: {0}", modbus_strerror(errno)));
           modbus_free(_ctx);
           _ctx = nullptr;
           return;
       }
       _isConnected = true;
       LOG_INFO("Connected to Modbus Serial server");
   }
