联邦学习在non-iid数据集上的划分和训练——从零开始实现

虽然网上已经有了很多关于Dirichlet分布进行数据划分的原理和方法介绍，但是整个完整的联邦学习过程还是少有人分享。今天就从零开始实现

加载FashionMNIST数据集

import torch
from torchvision import datasets, transforms

# 定义数据转换
transform = transforms.Compose([
    transforms.ToTensor(),
    transforms.Normalize((0.5,), (0.5,))
])

# 加载训练和测试数据集
train_dataset = datasets.FashionMNIST(root='./data', train=True, download=True, transform=transform)
test_dataset = datasets.FashionMNIST(root='./data', train=False, download=True, transform=transform)

定义Dirichlet分布的划分函数

这里的写法是其中一种，也可以参考其它大神的写法。
具体Dirichlet划分的原理也可以参考下面的博客：
联邦学习：按Dirichlet分布划分Non-IID样本 - orion-orion - 博客园 (cnblogs.com)

import numpy as np

def dirichlet_distribution_noniid(dataset, num_clients, alpha):
    # 获取每个类的索引
    class_indices = [[] for _ in range(10)]
    for idx, (image, label) in enumerate(dataset):
        class_indices[label].append(idx)

    # 使用Dirichlet分布进行数据划分
    client_indices = [[] for _ in range(num_clients)]
    for class_idx in class_indices:
        np.random.shuffle(class_idx)
        proportions = np.random.dirichlet([alpha] * num_clients)
        proportions = (np.cumsum(proportions) * len(class_idx)).astype(int)[:-1]
        client_split = np.split(class_idx, proportions)
        for client_idx, client_split_indices in enumerate(client_split):
            client_indices[client_idx].extend(client_split_indices)

    return client_indices

将数据集划分给各客户端

这里的代码操作核心在于，对数据加载器DataLoader中的Subset的理解，这个函数是根据索引将数据集划分为子数据集，以前我知道它是在做什么，但是一直不太明白用法，最终在ChatGPT的帮助下完成了：

num_clients = 10
alpha = 0.5 #non-iid程度的超参数，我喜欢用0.5和0.3
client_indices = dirichlet_distribution_noniid(train_dataset, num_clients, alpha)

# 创建客户端数据加载器
from torch.utils.data import DataLoader, Subset

client_loaders = [DataLoader(Subset(train_dataset, indices), batch_size=32, shuffle=True) for indices in client_indices]

定义模型、训练函数和测试函数

import torch.nn as nn
import torch.optim as optim
import matplotlib.pyplot as plt

class SimpleNN(nn.Module):
    def __init__(self):
        super(SimpleNN, self).__init__()
        self.flatten = nn.Flatten()
        self.fc1 = nn.Linear(28*28, 128)
        self.fc2 = nn.Linear(128, 10)

    def forward(self, x):
        x = self.flatten(x)
        x = torch.relu(self.fc1(x))
        x = self.fc2(x)
        return x

def train(model, train_loader, criterion, optimizer, device, epochs=5):
    model.train()
    model.to(device)
    for epoch in range(epochs):
        running_loss = 0.0
        for images, labels in train_loader:
            images, labels = images.to(device), labels.to(device)
            optimizer.zero_grad()
            outputs = model(images)
            loss = criterion(outputs, labels)
            loss.backward()
            optimizer.step()
            running_loss += loss.item()
        print(f"Epoch [{epoch+1}/{epochs}], Loss: {running_loss/len(train_loader):.4f}")

def test(model, test_loader, device):
    model.eval()
    model.to(device)
    correct = 0
    total = 0
    with torch.no_grad():
        for images, labels in test_loader:
            images, labels = images.to(device), labels.to(device)
            outputs = model(images)
            _, predicted = torch.max(outputs.data, 1)
            total += labels.size(0)
            correct += (predicted == labels).sum().item()
    accuracy = correct / total
    return accuracy

进行训练并记录测试准确度

# 选择设备
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')

# 创建模型和损失函数
model = SimpleNN()
criterion = nn.CrossEntropyLoss()
optimizer = optim.SGD(model.parameters(), lr=0.01)

# 训练和测试数据加载器
test_loader = DataLoader(test_dataset, batch_size=32, shuffle=False)

# 记录每轮测试准确度
test_accuracies = []

# 在每个客户端上进行训练并测试
for i, client_loader in enumerate(client_loaders):
    print(f"Training on client {i+1}")
    train(model, client_loader, criterion, optimizer, device)
    accuracy = test(model, test_loader, device)
    test_accuracies.append(accuracy)
    print(f"Test Accuracy after client {i+1}: {accuracy:.4f}")

# 绘制测试准确度变化图
plt.figure(figsize=(10, 5))
plt.plot(range(1, num_clients + 1), test_accuracies, marker='o')
plt.title('Test Accuracy after Training on Each Client')
plt.xlabel('Client')
plt.ylabel('Test Accuracy')
plt.ylim(0, 1)
plt.grid(True)
plt.show()

一些踩过的坑

Expected more than 1 value per channel when training, got input size torch.Size

解决方案

这里可能是当UE数量让数据集没法整除的时候，出现了多余的batch。
设置 batch_size>1, 且 drop_last=True

 DataLoader(train_set, batch_size=args.train_batch_size,
           num_workers=args.num_workers, shuffle=(train_sampler is None),
           drop_last=True, sampler = train_sampler)

RuntimeError: output with shape [1, 28, 28] doesn’t match the broadcast shape [3, 28, 28]

错误是因为图片格式是灰度图只有一个channel，需要变成RGB图才可以，所以需要在对图片的处理transforms里面修改：

transform = transforms.Compose([
     transforms.ToTensor(),
     transforms.Lambda(lambda x: x.repeat(3,1,1)),# 增加这一行
     transforms.Normalize(mean=(0.5, 0.5, 0.5), std=(0.5, 0.5, 0.5))
 ])

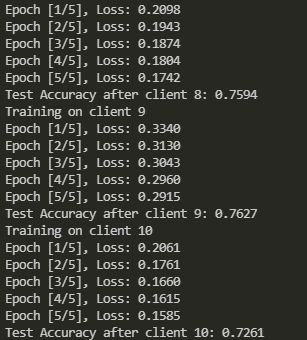

运行结果

将以上的代码拼接起来，就能够正常跑起来，我也已经在自己的电脑上验证过了。

当然了，上面画的是一次epoch的各个client的准确度，进行多次epoch的训练可以自己再修改。
