有一个新需求，需要使用Redis做为Mysql的缓存，需要做全表缓存。
Redis是K/V的简单键值对存储形式，MySQL是传统关系型数据库，是一维和二维的区别，怎么把表映射到Redis中呢。
Redis对数据结构有很丰富的支持，使用String-Map作为Redis的Key-Value是一个很好的方法，Map中的key对应Mysql中的列名，一个Map就对应Mysql中的一行数据。再使用类似「表名+ID」的形式做Redis的key, 可以实现Mysql中表数据的全表加载。
分两个步骤，第一，将Mysql中的数据加载到Redis中， 第二，从Redis中读取数据并反序列化为对象。
第一步有两个方案，一个是在应用中定时批量全表加载，考虑到表中数据超过十万条并且缓存淘汰时间比较短，无法平滑加载，放弃。一个是在服务器端通过脚本将Mysql的数据批量导入到Redis中。我采取方案二。
从Mysql查询的SQL：
SELECT CONCAT(
"*8\r\n",
'$',LENGTH(redis_cmd),'\r\n',redis_cmd,'\r\n',
'$',LENGTH(redis_key),'\r\n',redis_key,'\r\n',
'$',LENGTH(hkey1),'\r\n',hkey1,'\r\n','$',LENGTH(hval1),'\r\n',hval1,'\r\n',
'$',LENGTH(hkey2),'\r\n',hkey2,'\r\n','$',LENGTH(hval2),'\r\n',hval2,'\r\n',
'$',LENGTH(hkey3),'\r\n',hkey3,'\r\n','$',LENGTH(hval3),'\r\n',hval3,'\r\n',
)FROM(
SELECT 'HMSET' AS redis_cmd,
concat_ws(':','Device::DeviceServiceImpl:findById',dev_id) AS redis_key,
'devId' AS hkey1, dev_id AS hval1,
'creTime' AS hkey2, cre_time AS hval2,
'updTime' AS hkey3, upd_time AS hval3
From t_device
)AS t查询数据并导入Redis的脚本：
#!/bin/bash
mysql -h 127.0.0.1 -uadmin -padmin -Dtestdb --skip-column-names --raw < mysql_redis_device_findById_nokey.sql | redis-cli -h 127.0.0.1 --pipe | redis-cli -h 127.0.0.1 keys "Device::DeviceServiceImpl:findById*" | xargs -t -i redis-cli expire {} 100
echo "batchinput is over"

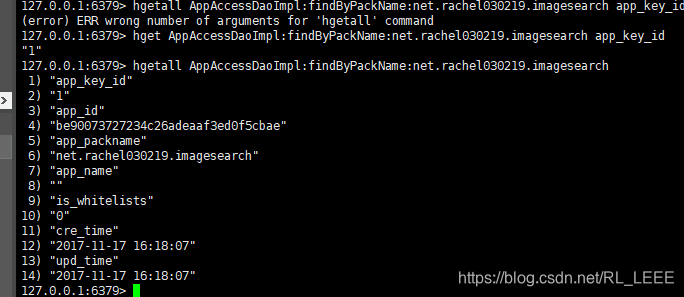

这样批量导入以后, 一行数据在redis中保存格式大概是这样的：
第一行是列名第二行是值，下面以此类推。
第一步骤完成了，下面开始第二步骤，就是在应用中存取。
Spring-data-redis基于注解的Redis缓存方案，对象的默认序列化方式是JdkSerializationRedisSerializer，使用的redis api指令是get 和 set， 我们看源码就能知道， 下面是DefaultRedisCacheWriter的实现
@Override
public void put(String name, byte[] key, byte[] value, @Nullable Duration ttl) {
Assert.notNull(name, "Name must not be null!");
Assert.notNull(key, "Key must not be null!");
Assert.notNull(value, "Value must not be null!");
execute(name, connection -> {
if (shouldExpireWithin(ttl)) {
connection.set(key, value, Expiration.from(ttl.toMillis(), TimeUnit.MILLISECONDS), SetOption.upsert());
} else {
connection.set(key, value);
}
return "OK";
});
}
/*
* (non-Javadoc)
* @see org.springframework.data.redis.cache.RedisCacheWriter#get(java.lang.String, byte[])
*/
@Override
public byte[] get(String name, byte[] key) {
Assert.notNull(name, "Name must not be null!");
Assert.notNull(key, "Key must not be null!");
return execute(name, connection -> connection.get(key));
}AOP真的是很无敌，基于注解的方法基本是靠AOP实现，所以通过追踪源码可以发现，@Cacheable等注解最终会执行DefaultRedisCacheWriter的以上两个方法。
我们的脚本是通过hset将数据写进去的，所以这里再用get，是读不出来的，就算get直接把我们刚才导入的Map读出来，会把他当做序列化以后的对象用JdkSerializationRedisSerializer去反序列化它，必然会报错。解决的思路就是改写这个DefaultRedisCacheWriter类，在get和put中对读和写出的内容进行序列化和反序列化。
我创建一个类命名为MapRedisCacheWriter,其他实现参照DefaultRedisCacheWriter拷贝就行，主要修改put和get方法
@Override
public void put(String name, byte[] key, byte[] value, @Nullable Duration ttl) {
Assert.notNull(name, "Name must not be null!");
Assert.notNull(key, "Key must not be null!");
Assert.notNull(value, "Value must not be null!");
Object entityValue = jdkSerialization.deserialize(value);
HashMapper<Object, byte[], byte[]> mapper = new ObjectHashMapper();
Map<byte[],byte[]> mapValue = mapper.toHash(entityValue);
execute(name, connection -> {
if (shouldExpireWithin(ttl)) {
// connection.set(key, value, Expiration.from(ttl.toMillis(), TimeUnit.MILLISECONDS), SetOption.upsert());
connection.hMSet(key, mapValue);
connection.expire(key, ttl.toMillis());
} else {
// connection.set(key, value);
connection.hMSet(key, mapValue);
}
return "OK";
});添加的逻辑是通过JdkSerializationRedisSerializer把原先已经序列化好的对象反序列化，还原为对象，然后使用ObjectHashMapper将对象转化为一个<byte[],byte[]>类型的Map，最后使用hMSet方法将key-Value写入Redis。
同时修改get
@Override
public byte[] get(String name, byte[] key) {
Assert.notNull(name, "Name must not be null!");
Assert.notNull(key, "Key must not be null!");
Map<byte[],byte[]> mapValue = execute(name,connection -> connection.hGetAll(key));
HashMapper<Object, byte[], byte[]> mapper = new ObjectHashMapper();
Object objectValue = mapper.fromHash(mapValue);
return jdkSerialization.serialize(objectValue);
// return execute(name, connection -> connection.get(key));
}添加的逻辑是使用hGetAll指令去获取Redis缓存的数据，再用Map<byte[], byte[]>的数据结构去接收这个数据。然后通过ObjectHashMapper将数据转化为对象，最后使用JdkSerializationRedisSerializer将对象序列化。
修改RedisCacheConfig(在我上一篇有)，使用MapRedisCacheWriter初始化cacheManager
@Bean
public CacheManager redisCacheManager(RedisConnectionFactory redisConnectionFactory) {
Map<String,RedisCacheConfiguration> initializeConfigs = initConfig();
return new RedisCacheManager(
new MapRedisCacheWriter(redisConnectionFactory),
RedisCacheConfiguration.defaultCacheConfig().entryTtl(Duration.ofSeconds(300)),
initializeConfigs
);
}这样就讲底层的<String-Object>的存储改为了<String-Map>的存取了，脚本批量导入的数据也能和应用写入的数据互通了。但是运行时报了这样的错误：
No converter found capable of converting from type [xxxxxx] to type [xxxxxx]
出现这种错误的原因大致是数据库中列的数据结构在转化为Java应用中数据结构的过程中，没有找到可以使用的converter。问题就出在Object objectValue = mapper.fromHash(mapValue);这里。我们跟踪一下ObjectHashMapper的源码：
public ObjectHashMapper(@Nullable org.springframework.data.convert.CustomConversions customConversions) {
MappingRedisConverter mappingConverter = new MappingRedisConverter(new RedisMappingContext(),
new NoOpIndexResolver(), new NoOpReferenceResolver());
mappingConverter.setCustomConversions(customConversions == null ? new RedisCustomConversions() : customConversions);
mappingConverter.afterPropertiesSet();
converter = mappingConverter;
}在构造方法中，new了一个MappingRedisConverter, 这是构造方法
public MappingRedisConverter(@Nullable RedisMappingContext mappingContext, @Nullable IndexResolver indexResolver,
@Nullable ReferenceResolver referenceResolver) {
this.mappingContext = mappingContext != null ? mappingContext : new RedisMappingContext();
this.entityInstantiators = new EntityInstantiators();
this.conversionService = new DefaultConversionService();
this.customConversions = new RedisCustomConversions();
this.typeMapper = new DefaultTypeMapper<>(new RedisTypeAliasAccessor(this.conversionService));
this.indexResolver = indexResolver != null ? indexResolver : new PathIndexResolver(this.mappingContext);
this.referenceResolver = referenceResolver;
}构造方法中new了一个DefaultConversionService()，在这个类里就包含了可以使用的converter，
public DefaultConversionService() {
addDefaultConverters(this);
}
public static void addDefaultConverters(ConverterRegistry converterRegistry) {
addScalarConverters(converterRegistry);
addCollectionConverters(converterRegistry);
converterRegistry.addConverter(new ByteBufferConverter((ConversionService) converterRegistry));
converterRegistry.addConverter(new StringToTimeZoneConverter());
converterRegistry.addConverter(new ZoneIdToTimeZoneConverter());
converterRegistry.addConverter(new ZonedDateTimeToCalendarConverter());
converterRegistry.addConverter(new ObjectToObjectConverter());
converterRegistry.addConverter(new IdToEntityConverter((ConversionService) converterRegistry));
converterRegistry.addConverter(new FallbackObjectToStringConverter());
converterRegistry.addConverter(new ObjectToOptionalConverter((ConversionService) converterRegistry));
}
public static void addCollectionConverters(ConverterRegistry converterRegistry) {
ConversionService conversionService = (ConversionService) converterRegistry;
converterRegistry.addConverter(new ArrayToCollectionConverter(conversionService));
converterRegistry.addConverter(new CollectionToArrayConverter(conversionService));
converterRegistry.addConverter(new ArrayToArrayConverter(conversionService));
converterRegistry.addConverter(new CollectionToCollectionConverter(conversionService));
converterRegistry.addConverter(new MapToMapConverter(conversionService));
converterRegistry.addConverter(new ArrayToStringConverter(conversionService));
converterRegistry.addConverter(new StringToArrayConverter(conversionService));
converterRegistry.addConverter(new ArrayToObjectConverter(conversionService));
converterRegistry.addConverter(new ObjectToArrayConverter(conversionService));
converterRegistry.addConverter(new CollectionToStringConverter(conversionService));
converterRegistry.addConverter(new StringToCollectionConverter(conversionService));
converterRegistry.addConverter(new CollectionToObjectConverter(conversionService));
converterRegistry.addConverter(new ObjectToCollectionConverter(conversionService));
converterRegistry.addConverter(new StreamConverter(conversionService));
}
private static void addScalarConverters(ConverterRegistry converterRegistry) {
converterRegistry.addConverterFactory(new NumberToNumberConverterFactory());
converterRegistry.addConverterFactory(new StringToNumberConverterFactory());
converterRegistry.addConverter(Number.class, String.class, new ObjectToStringConverter());
converterRegistry.addConverter(new StringToCharacterConverter());
converterRegistry.addConverter(Character.class, String.class, new ObjectToStringConverter());
converterRegistry.addConverter(new NumberToCharacterConverter());
converterRegistry.addConverterFactory(new CharacterToNumberFactory());
converterRegistry.addConverter(new StringToBooleanConverter());
converterRegistry.addConverter(Boolean.class, String.class, new ObjectToStringConverter());
converterRegistry.addConverterFactory(new StringToEnumConverterFactory());
converterRegistry.addConverter(new EnumToStringConverter((ConversionService) converterRegistry));
converterRegistry.addConverterFactory(new IntegerToEnumConverterFactory());
converterRegistry.addConverter(new EnumToIntegerConverter((ConversionService) converterRegistry));
converterRegistry.addConverter(new StringToLocaleConverter());
converterRegistry.addConverter(Locale.class, String.class, new ObjectToStringConverter());
converterRegistry.addConverter(new StringToCharsetConverter());
converterRegistry.addConverter(Charset.class, String.class, new ObjectToStringConverter());
converterRegistry.addConverter(new StringToCurrencyConverter());
converterRegistry.addConverter(Currency.class, String.class, new ObjectToStringConverter());
converterRegistry.addConverter(new StringToPropertiesConverter());
converterRegistry.addConverter(new PropertiesToStringConverter());
converterRegistry.addConverter(new StringToUUIDConverter());
converterRegistry.addConverter(UUID.class, String.class, new ObjectToStringConverter());
}你会发现报错的两个数据类型并没有被包含在这些Converter当中，所以报了错误。
解决办法就是重写RedisHashMapper、MappingRedisConverter和DefaultConversionService
创建RedisDefaultConversionService类，继承DefaultConversionService类
public class RedisDefaultConversionService extends DefaultConversionService {
public RedisDefaultConversionService(){
super();
addTimeBytesConverter();
}
private void addTimeBytesConverter(){
addConverter(new BytesTimeConverter());
addConverter(new TimeBytesConverter());
addConverter(new BytesDateConverter());
addConverter(new DateBytesConverter());
}
}在构造函数中添加addTimeBytesConverter(), 添加byte[]-timestamp的双向转换和byte[]-Date的双向转换。因为这两个是我的项目中缺少的，实际缺少什么就可以加什么。
其中一个的实现：
public class TimeBytesConverter implements Converter<byte[], Timestamp>{
@Override
public Timestamp convert(byte[] source) {
String timeStr = new String(source, StandardCharsets.UTF_8);
SimpleDateFormat dfs = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
Date date = new Date(Long.parseLong(timeStr));
String dateStr = dfs.format(date);
return Timestamp.valueOf(dateStr);
}
}创建TimestampMappingRedisConverter类，实现全部参照MappingRedsiConverter类，在构造函数中，使用RedisDefaultConversionService替代DefaultConversionService:
public TimestampMappingRedisConverter(@Nullable RedisMappingContext mappingContext, @Nullable IndexResolver indexResolver,
@Nullable ReferenceResolver referenceResolver) {
this.mappingContext = mappingContext != null ? mappingContext : new RedisMappingContext();
this.entityInstantiators = new EntityInstantiators();
this.conversionService = new RedisDefaultConversionService();
this.customConversions = new RedisCustomConversions();
this.typeMapper = new DefaultTypeMapper<>(new RedisTypeAliasAccessor(this.conversionService));
this.indexResolver = indexResolver != null ? indexResolver : new PathIndexResolver(this.mappingContext);
this.referenceResolver = referenceResolver;
}创建RedisHashMapper类，实现全部参照ObjectHashMapper类，在构造函数中，使用TimestampMappingRedisConverter替代MappingRedisConverter。
public RedisHashMapper(@Nullable org.springframework.data.convert.CustomConversions customConversions) {
TimestampMappingRedisConverter mappingConverter = new TimestampMappingRedisConverter(new RedisMappingContext(),
new NoOpIndexResolver(), new NoOpReferenceResolver());
mappingConverter.setCustomConversions(customConversions == null ? new RedisCustomConversions() : customConversions);
mappingConverter.afterPropertiesSet();
converter = mappingConverter;
}最后，在MapRedisCacheWriter中，将ObjectHashMapper替换掉。
HashMapper<Object, byte[], byte[]> mapper = new RedisHashMapper();
Object objectValue = mapper.fromHash(mapValue);
再次使用就不会再出现convert相关的错误了。
map来回转的性能消耗并没有做检测。
