锐文网卡10G25G40G100G在飞腾S5000C 16 core 服务器配华为openEluler 22.03的dpdk性能

锐文网卡10G25G40G100G在飞腾S5000C 16 core 服务器配华为openEluler 22.03的dpdk性能

（一）测试环境

测试	测试锐文网卡100GbE 40G 25G 10G在DPDK下测试
服务器	Phytium服务器
CPU	Phytium S5000C 16 Core
系统内存	16G*2@DDR4 5600MT/s
网卡	10G25G40G100G网卡
操作系统	openEuler 22.03 (LTS-SP1)
内核版本	Linux localhost.localdomain 5.15.0.5.15-v2-s5000c
GCC版本	gcc 版本 10.3.1 (GCC)
DPDK版本	dpdk-20.08
测试版本	Software：dpdk-20.08
测试配置	1网卡，1口,单口配4个队列， 共4个队列用4个核

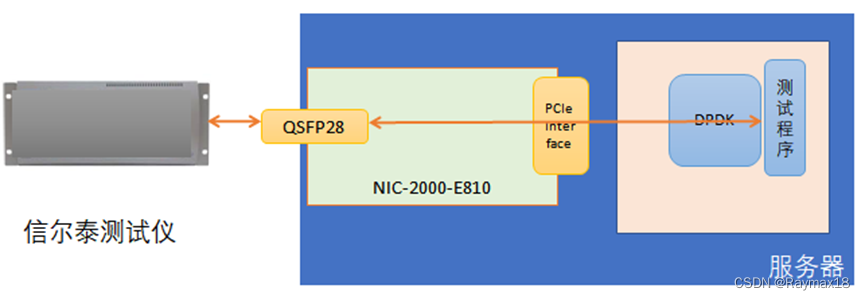

测试环境 思博伦 信而泰 锐文测试仪

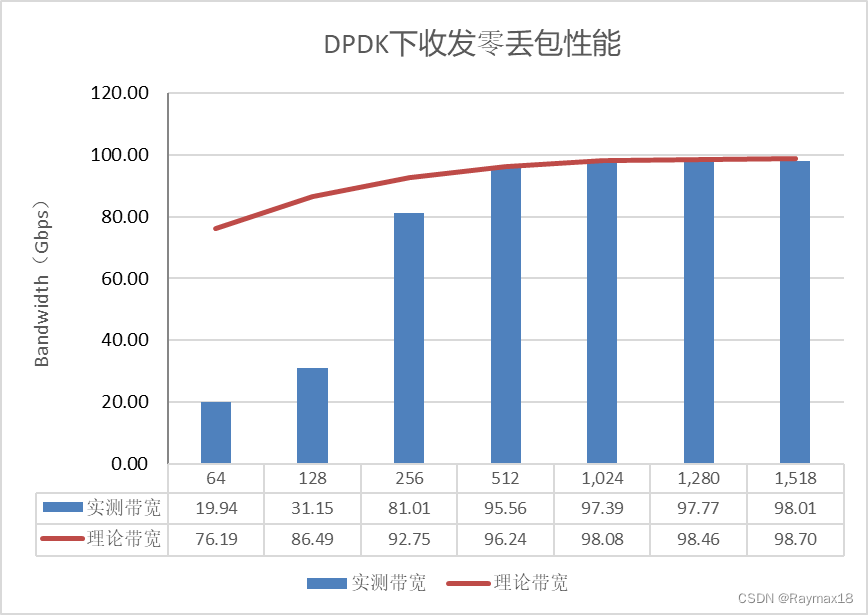

100G

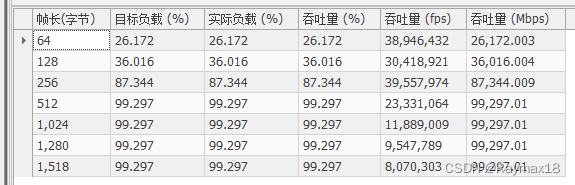

图2：测试1的测试结果

Frame Size (Bytes)	Frame Rate (pps)	L1 Throughput(Gbps)	L2 Throughput(Gbps)	Line Rate (%)
64	38,946,432	26.17	19.94	26.172
128	30,418,921	36.02	31.15	36.016
256	39,557,974	87.34	81.01	87.344
512	23,331,064	99.30	95.56	99.297
1,024	11,889,009	99.30	97.39	99.297
1,280	9,547,789	99.30	97.77	99.297
1,518	8,070,303	99.30	98.01	99.297

40G

图2：测试1的测试结果

Frame Size (Bytes)	Frame Rate (pps)	L1 Throughput(Gbps)	L2 Throughput(Gbps)	Line Rate (%)
64	17,361,111	11.67	8.89	58.333
128	13,586,956	16.09	13.91	80.435
256	8,680,555	19.18	17.78	95.833
512	4,699,248	20	19.25	100
1,024	2,394,636	20	19.62	100
1,280	1,918,687	19.84	19.65	99.185
1,518	1,623,376	19.97	19.71	99.87

25G

图5：测试3的测试结果

Frame Size (Bytes)	Frame Rate (pps)	L1 Throughput(Gbps)	L2 Throughput(Gbps)	Line Rate (%)
64	37,202,380	25	19.05	100
128	21,114,864	25	21.62	100
256	11,322,463	25	23.19	100
512	5,874,060	25	24.06	100
1,024	2,993,295	25	24.52	100
1,280	2,403,846	25	24.62	100
1,518	2,031,859	25	24.67	100

10G

图2：测试1的测试结果

Frame Size (Bytes)	Frame Rate (pps)	L1 Throughput(Gbps)	L2 Throughput(Gbps)	Line Rate (%)
64	17,361,111	11.67	8.89	58.333
128	13,586,956	16.09	13.91	80.435
256	8,680,555	19.18	17.78	95.833
512	4,699,248	20	19.25	100
1,024	2,394,636	20	19.62	100
1,280	1,918,687	19.84	19.65	99.185
1,518	1,623,376	19.97	19.71	99.87

锐文网卡10G25G40G100G在飞腾S5000C 16 core 服务器配华为openEluler 22.03的dpdk性能.
