[uOps]

Metric Description

uOp, or micro-op, is a low-level hardware operation. The CPU Front-End is responsible for fetching the program code represented in architectural instructions and decoding them into one or more uOps.

uOps

micro-ops，micro-operations，微指令，是一种底层硬件操作，CPU前端负责获取体系结构指令中表示的程序代码，并将其解码为一个或多个uops。

Pipeline Slots

Metric Description

A pipeline slot represents hardware resources needed to process one uOp.

The Top-Down Characterization assumes that for each CPU core, on each clock cycle, there are several pipeline slots available. This number is called Pipeline Width.

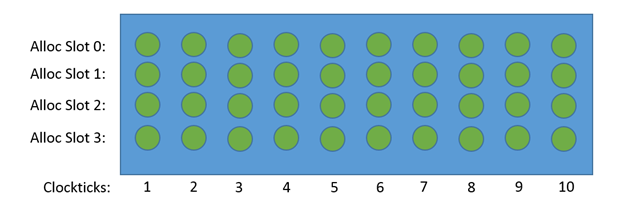

In the example below, there is a 4-wide CPU that executes code for 10 clock cycles:

In this example, there are 40 Pipeline Slots (4 * 10). If a Pipeline Slot does not retire, a uOp is attributed to a Stall.

In the next example, 20 out of 40 slots are stalled (did not retire a uOp). This means that the code efficiency from the microarchitecture perspective is only 50%:

The Top-Down metrics measured in Pipeline Slots, for example, Front-End Bound and Back-End Bound, measure a percentage of Pipeline Slots stalled due to the reason specified by the metrics such as Front-End issues and Back-End issues.

Pipeline Slots

一个pipeline slot 表示处理一个uOp需要的硬件资源。

Top-Down分析方法假定对于每个CPU核，在每个时钟周期，有多个可用的pipeline slots。这些Pipeline Slots的数量被称为Pipeline Width。
在下文的示例中，是用4-wide的CPU将代码执行10个时钟周期。

在该示例中，包含40个Pipeline Slots（4 * 10）。如果一个Pipeline Slot没有retire，则表示认为有一个uOp产生阻塞（Stall）。
在下个示例中，有20个slots产生阻塞（没有使一个uOp达到Retire）。这表示从该微架构的角度来看，代码的执行效率只有50%：

以Pipeline Slots测得的Top-Down度量，如Front-End Bound和Back-End Bound，表示因各种原因（如Front-End问题和Back-End问题）导致的Pipeline Slots 阻塞的百分比。

参考原文：
https://software.intel.com/en-us/vtune-help-uops
https://software.intel.com/en-us/vtune-help-pipeline-slots
