Android 11.0 锁屏页面时钟显示样式

一.需求分析

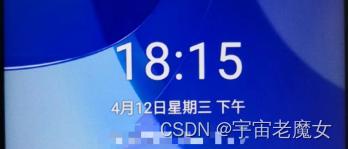

Android 11.0系统默认的锁屏时钟 年月日 显示的样式不符合需求,现在需要定制化.下图是系统默认的时间样式.

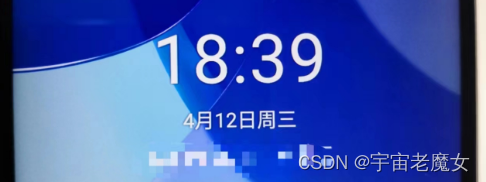

目标是改成这样:

二.核心代码路径

frameworks/base/packages/SystemUI/src/com/android/systemui/keyguard/KeyguardSliceProvider.java
framewors/base/core/res/res/values/donottranslate.xml
frameworks/base/packages/SystemUI/res/values/donottranslate.xml

三.核心代码分析

(1)frameworks/base/packages/SystemUI/src/com/android/systemui/keyguard/KeyguardSliceProvider.java 中,设置时间样式.

 public boolean onCreateSliceProvider() {
        mContextAvailableCallback.onContextAvailable(getContext());
        inject();
        synchronized (KeyguardSliceProvider.sInstanceLock) {
            KeyguardSliceProvider oldInstance = KeyguardSliceProvider.sInstance;
            if (oldInstance != null) {
                oldInstance.onDestroy();
            }
           //时间样式
            mDatePattern = getContext().getString(R.string.system_ui_aod_date_pattern);
            mPendingIntent = PendingIntent.getActivity(getContext(), 0,
                    new Intent(getContext(), KeyguardSliceProvider.class), 0);
            mMediaManager.addCallback(this);
            mStatusBarStateController.addCallback(this);
            mNextAlarmController.addCallback(this);
            mZenModeController.addCallback(this);
            KeyguardSliceProvider.sInstance = this;
            registerClockUpdate();
            updateClockLocked();
        }
        return true;
    }

(2)查看 R.string.system_ui_aod_date_pattern

frameworks/base/packages/SystemUI/res/values/donottranslate.xml

<resources xmlns:xliff="urn:oasis:names:tc:xliff:document:1.2">
    <!-- Date format for display: should match the lockscreen in /policy.  -->
    <string name="system_ui_date_pattern" translatable="false">@*android:string/system_ui_date_pattern</string>

    <!-- Date format for the always on display.  -->
    <item type="string" name="system_ui_aod_date_pattern" translatable="false">EEEMMMd</item>
</resources>

(3)查看值为 @*android:string/system_ui_date_pattern 定义的地方

framewors/base/core/res/res/values/donottranslate.xml

<resources xmlns:xliff="urn:oasis:names:tc:xliff:document:1.2">
    <!-- @hide DO NOT TRANSLATE. Workaround for resource race condition in lockscreen. -->
    <bool name="lockscreen_isPortrait">true</bool>
    <!-- @hide DO NOT TRANSLATE. Control aspect ratio of lock pattern -->
    <string name="lock_pattern_view_aspect">square</string>

    <!-- @hide DO NOT TRANSLATE. ICU pattern for "Mon, 14 January" -->
    <string name="icu_abbrev_wday_month_day_no_year">EEEMMMMd</string>

    <!-- @hide DO NOT TRANSLATE. date formatting pattern for system ui.-->
    <string name="system_ui_date_pattern">@string/icu_abbrev_wday_month_day_no_year</string>


    <!-- @hide DO NOT TRANSLATE Spans within this text are applied to style composing regions
    within an EditText widget. The text content is ignored and not used. -->
    <string name="candidates_style" translatable="false"><u>candidates</u></string>
</resources>

可以看到,

<string name="system_ui_date_pattern" translatable="false">EEEMMMMd</string>

(4) 所以,我们可以在这里修改,指定需要的格式为: a eeee MMMd

<resources xmlns:xliff="urn:oasis:names:tc:xliff:document:1.2">
    <!-- Date format for display: should match the lockscreen in /policy.  -->
    <string name="system_ui_date_pattern" translatable="false">@*android:string/system_ui_date_pattern</string>

    <!-- Date format for the always on display.  -->
-    <item type="string" name="system_ui_aod_date_pattern" translatable="false">EEEMMMd</item>

+   <item type="string" name="system_ui_aod_date_pattern" translatable="false">a eeee MMMd</item>

</resources>

其中:

eeeMMMMd:
"d" : 年月日星期几中的“日”；
“eee” : 年月日星期几中的“星期几”；
“MMMM” : 年月日星期几中的“月”；

The end!
