文章目录
①. sku在es中存储模型分析
-
①. 需求:上架的商品才可以在网站展示、上架的商品需要可以被检索
-
②. 分析:商品上架在es中是存sku还是spu?
- 检索的时候输入名字,是需要按照sku的title进行全文检索的
- 检素使用商品规格,规格是spu的公共属性,每个spu是一样的
- 按照分类id进去的都是直接列出spu的,还可以切换
- 我们如果将sku的全量信息保存到es中(包括spu属性)就太多字段了
- ③. 方案1:推荐使用
缺点:如果每个sku都存储规格参数(如尺寸、cpu等),会有冗余存储,因为每个spu对应的sku的规格参数都一样
{
skuId:1
spuId:11
skyTitile:华为xx
price:999
saleCount:99
attr:[
{尺寸:5},
{CPU:高通945},
{分辨率:全高清}
]
- ④. 方案2:假设我们有10000个sku,spu为4000个,再根据4000个spu查询对应的属性,封装了4000个id,8B*4000=32000B=32KB。如果有100万人同一时刻进行搜索,那么就有100万 * 32kb = 320G
结论:如果将规格参数单独建立索引,会出现检索时出现大量数据传输的问题,会引起网络网络
sku索引
{
spuId:1
skuId:11
}
attr索引
{
spuId:1
attr:[
{尺寸:5},
{CPU:高通945},
{分辨率:全高清}
]
}
先找到4000个符合要求的spu,再根据4000个spu查询对应的属性,封装了4000个id,long 8B*4000=32000B=32KB
1K个人检索,就是32MB
结论:如果将规格参数单独建立索引,会出现检索时出现大量数据传输的问题,会引起网络网络
②. 建立product的索引信息
-
①. { “type”: “keyword” }:保持数据精度问题,可以检索,但不分词
-
②. “analyzer”: “ik_smart” :中文分词器
-
③. “index”: false:不可被检索,不生成index
-
④. “doc_values”: false:默认为true,不可被聚合,es就不会维护一些聚合的信息
PUT product
{
"mappings":{
"properties": {
"skuId":{ "type": "long" },
"spuId":{ "type": "keyword" }, # 不可分词
"skuTitle": {
"type": "text",
"analyzer": "ik_smart" # 中文分词器
},
"skuPrice": { "type": "keyword" }, # 保证精度问题
"skuImg" : { "type": "keyword" }, # 视频中有false
"saleCount":{ "type":"long" },
"hasStock": { "type": "boolean" },
"hotScore": { "type": "long" },
"brandId": { "type": "long" },
"catalogId": { "type": "long" },
"brandName": {"type": "keyword"}, # 视频中有index=false
"brandImg":{
"type": "keyword",
"index": false, # 不可被检索,不生成index,只用做页面使用
"doc_values": false # 不可被聚合,默认为true
},
"catalogName": {"type": "keyword" }, # 视频里有index=false
"attrs": {
"type": "nested",
"properties": {
"attrId": {"type": "long" },
"attrName": {
"type": "keyword",
"index": false,
"doc_values": false
},
"attrValue": {"type": "keyword" }
}
}
}
}
}
③. nested数据类型场景
-
①. 属性是"type": “nested”,因为是内部的属性进行检索
1. 新建一个对象
PUT my-index-000001/_doc/1
{
"group" : "fans",
"user" : [
{
"first" : "John",
"last" : "Smith"
},
{
"first" : "Alice",
"last" : "White"
}
]
}
2. 结果会在es中保存为如下的方式
{
"group" : "fans",
"user.first" : [ "alice", "john" ],
"user.last" : [ "smith", "white" ]
}

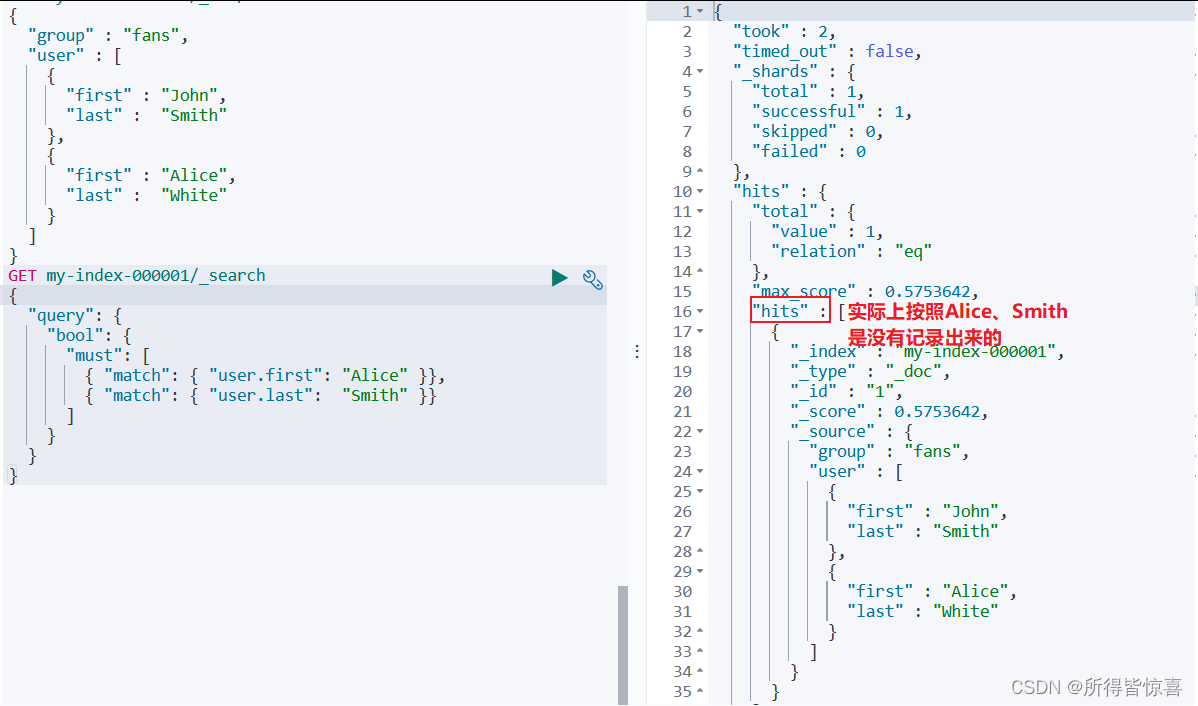

3. 进行查询,发现两条记录都能查询出来
GET my-index-000001/_search
{
"query": {
"bool": {
"must": [
{ "match": { "user.first": "Alice" }},
{ "match": { "user.last": "Smith" }}
]
}
}
}
4. 删除刚刚新建的索引
DELETE my-index-000001
5. 使用nested处理扁平化操作
PUT my-index-000001
{
"mappings": {
"properties": {
"user": {
"type": "nested"
}
}
}
}
6. 在这里进行重新插入数据
PUT my-index-000001/_doc/1
{
"group" : "fans",
"user" : [
{
"first" : "John",
"last" : "Smith"
},
{
"first" : "Alice",
"last" : "White"
}
]
}
7. 后续就会发现已经查询不记录了
GET my-index-000001/_search
{
"query": {
"bool": {
"must": [
{ "match": { "user.first": "Alice" }},
{ "match": { "user.last": "Smith" }}
]
}
}
}
④. 商品上架逻辑
-
①. 在es中创建好对应的映射关系、在前端页面点击商品上架按钮
-
②. 创建好与es对应的SkuModel
@Data
public class SkuEsModel {
private Long skuId;
private Long spuId;//keyword
private String skuTitle;
private BigDecimal skuPrice;//keyword
private String skuImg;//keyword
private Long saleCount;
private Boolean hasStock;
private Long hotScore;
private Long brandId;
private Long catalogId;
private String brandName;
private String brandImg;
private String catalogName;
private List<Attrs> attrs;
@Data
public static class Attrs{
private Long attrId;
private String attrName;//不被检索
private String attrValue;
}
}
-
③. 通过前端传递的spuId将Spu的基本信息查询出来、查询的表是pms_spu_info表,这个表中和SkuModel表字段一样的有spuId、skuId、catelogId、brandId。其他的字段如:skuPrice、skuImg、brandImg、catalogName、hasStock、hotScore需要重新查询并设置到SkuModel中去
-
④. 发送远程调用、库存系统查询是否有库存
-
⑤. 热度评分(这里设置为0L),没有进行扩展了
esModel.setHotScore(0L);
- ⑥. 获取到品牌id、获取到分类id
//TODO 3.获取到品牌id
Long brandId = sku.getBrandId();
BrandEntity brandEntity = brandService.getById(brandId);
if(brandEntity!=null){
esModel.setBrandName(brandEntity.getName());
esModel.setBrandImg(brandEntity.getLogo());
}
//TODO 4.获取到分类id
Long catalogId = sku.getCatalogId();
CategoryEntity categoryEntity = categoryService.getById(catalogId);
if(categoryEntity!=null){
esModel.setCatalogName(categoryEntity.getName());
}
- ⑦. 设置检索属性
//TODO 4. 查询当前sku的所有可以用来检索的规格参数
//4.1 根据spu_id查询出所有的ProductAttrValueEntity信息
List<ProductAttrValueEntity> baseAttrs = attrValueService.baseAttrlistforspu(spuId);
//4.2 从ProductAttrValueEntity中收集attr_id
List<Long> attrIds = baseAttrs.stream().map(item -> {
return item.getAttrId();
}).collect(Collectors.toList());
//4.3 根据attr_id查询出所有的AttrEntity对象
List<AttrEntity> attrsData = attrService.listByIds(attrIds);
List<SkuEsModel.Attrs> attrsList = attrsData.stream().filter(item -> {
return item.getSearchType() == 1;
}).map(item -> {
SkuEsModel.Attrs attrs = new SkuEsModel.Attrs();
ProductAttrValueEntity attr_id = attrValueService.getOne(new QueryWrapper<ProductAttrValueEntity>().eq("attr_id", item.getAttrId()));
BeanUtils.copyProperties(attr_id, attrs);
return attrs;
}).collect(Collectors.toList());
-
⑧. 将数据发送给es进行保存
-
⑨. 修改当前spu的状态、设置为已发布
⑤. 上架商品服务核心代码
/**
* 商品上架
* @param spuId
*/
@Transactional
@Override
public void up(Long spuId) {
//1、查出当前spuid对应的所有sku信息、品牌的名字
List<SkuInfoEntity>skus=skuInfoService.getSkuBySpuId(spuId);
//TODO 4. 查询当前sku的所有可以用来检索的规格参数
//4.1 根据spu_id查询出所有的ProductAttrValueEntity信息
List<ProductAttrValueEntity> baseAttrs = attrValueService.baseAttrlistforspu(spuId);
//4.2 从ProductAttrValueEntity中收集attr_id
List<Long> attrIds = baseAttrs.stream().map(item -> {
return item.getAttrId();
}).collect(Collectors.toList());
//4.3 根据attr_id查询出所有的AttrEntity对象
List<AttrEntity> attrsData = attrService.listByIds(attrIds);
List<SkuEsModel.Attrs> attrsList = attrsData.stream().filter(item -> {
return item.getSearchType() == 1;
}).map(item -> {
SkuEsModel.Attrs attrs = new SkuEsModel.Attrs();
ProductAttrValueEntity attr_id = attrValueService.getOne(new QueryWrapper<ProductAttrValueEntity>().eq("attr_id", item.getAttrId()));
BeanUtils.copyProperties(attr_id, attrs);
return attrs;
}).collect(Collectors.toList());

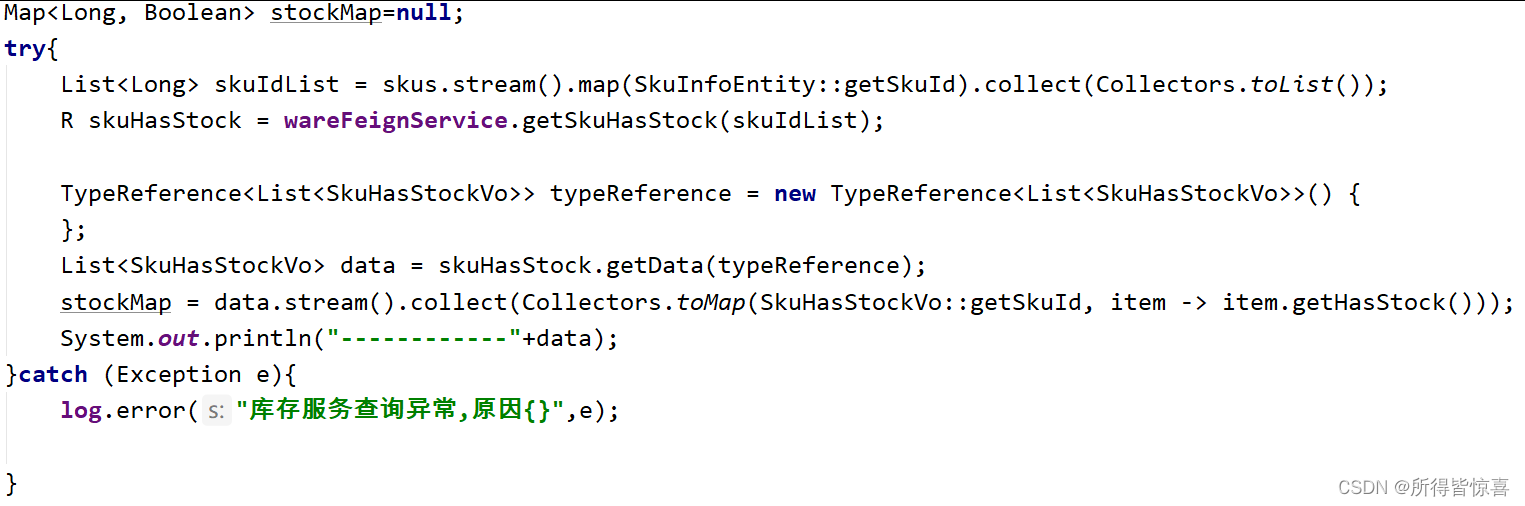

// TODO 1. 发送远程调用、库存系统查询是否有库存
Map<Long, Boolean> stockMap=null;
try{
List<Long> skuIdList = skus.stream().map(SkuInfoEntity::getSkuId).collect(Collectors.toList());
R skuHasStock = wareFeignService.getSkuHasStock(skuIdList);
TypeReference<List<SkuHasStockVo>> typeReference = new TypeReference<List<SkuHasStockVo>>() {
};
List<SkuHasStockVo> data = skuHasStock.getData(typeReference);
stockMap = data.stream().collect(Collectors.toMap(SkuHasStockVo::getSkuId, item -> item.getHasStock()));
System.out.println("------------"+data);
}catch (Exception e){
log.error("库存服务查询异常,原因{}",e);
}
Map<Long, Boolean> finalStockMap = stockMap;
List<SkuEsModel> upProducts = skus.stream().map(sku -> {
//组装需要的数据
SkuEsModel esModel = new SkuEsModel();
BeanUtils.copyProperties(sku,esModel);
//skuPrice、skuImg、、brandImg、catalogName
esModel.setSkuPrice(sku.getPrice());
esModel.setSkuImg(sku.getSkuDefaultImg());
//(hasStock、hotScore)
// TODO 1. 发送远程调用、库存系统查询是否有库存
if(finalStockMap ==null){
esModel.setHasStock(true);
}else{
esModel.setHasStock(finalStockMap.get(sku.getSkuId()));
}
// TODO 2. 热度评分
esModel.setHotScore(0L);
//TODO 3.获取到品牌id
Long brandId = sku.getBrandId();
BrandEntity brandEntity = brandService.getById(brandId);
if(brandEntity!=null){
esModel.setBrandName(brandEntity.getName());
esModel.setBrandImg(brandEntity.getLogo());
}
//TODO 4.获取到分类id
Long catalogId = sku.getCatalogId();
CategoryEntity categoryEntity = categoryService.getById(catalogId);
if(categoryEntity!=null){
esModel.setCatalogName(categoryEntity.getName());
}
//设置检索属性
esModel.setAttrs(attrsList);
return esModel;
}).collect(Collectors.toList());

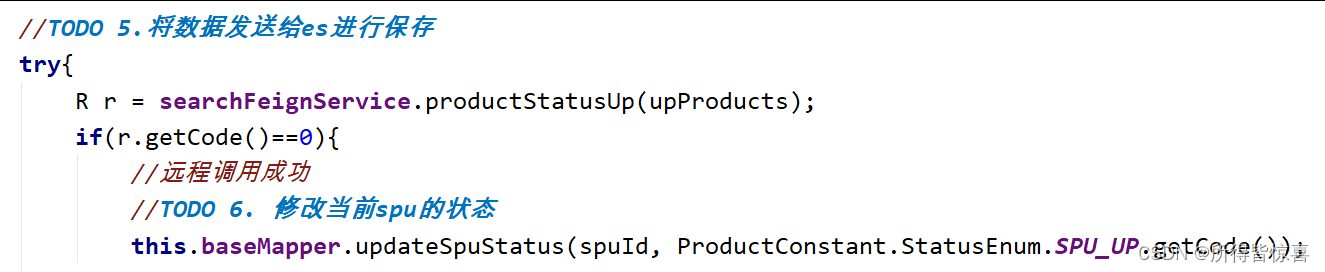

//TODO 5.将数据发送给es进行保存
try{
R r = searchFeignService.productStatusUp(upProducts);
if(r.getCode()==0){
//远程调用成功
//TODO 6. 修改当前spu的状态
this.baseMapper.updateSpuStatus(spuId, ProductConstant.StatusEnum.SPU_UP.getCode());
}else{
//远程调用失败
//TODO 7.接口幂等性?重试机制
//Feign的调用流程
/**
* 1、构造请求数据,将对象转成JSON
* RequestTemplate template=buildTemplateFromArgs.create(argv);
* 2、发送请求进行执行(执行成功会解码响应数据)
* 3、执行请求有重试机制
* while(true){
* try{
* executeAndDecode(template);
* }catch(){
* try{retryer.continueOrPropagate(e)}catch(){throws ex;}
* }
* }
*/
}
}catch (Exception e){
e.printStackTrace();
}
}
⑥. 上架库存服务核心代码
/**
* 查询sku是否有库存
* @param skuIds
* @return
*/
@PostMapping("/hasstock")
public R getSkusHasStock(@RequestBody List<Long> skuIds){
//返回当前sku的id和当前sku的库存量是多少
List<SkuHasStockVo> vos = wareSkuService.getSkuHasStock(skuIds); //查库存
return R.ok().setData(vos);
}
@Override
public List<SkuHasStockVo> getSkuHasStock(List<Long> skuIds) {
List<SkuHasStockVo> collect = skuIds.stream().map(skuId -> {
SkuHasStockVo vo = new SkuHasStockVo();
// 查询当前sku的总库存量
Long count = baseMapper.getSkuStock(skuId);
vo.setSkuId(skuId);
vo.setHasStock(count==null?false:count>0); //有库存
return vo;
}).collect(Collectors.toList());
return collect;
}
⑦. 上架检索服务核心代码
/**
* 上架商品
* @param skuEsModel
* @return
*/
@PostMapping("/product")
public R productStatusUp(@RequestBody List<SkuEsModel> skuEsModel) {
boolean b=false;
try{
b = productSaveService.productStatusUp(skuEsModel);
}catch (Exception e){
log.error("ElasticSearch商品上架错误,{}",e);
return R.error(BizCodeEnum.PRODUCT_UP_EXCEPTION.getCode(), BizCodeEnum.PRODUCT_UP_EXCEPTION.getMsg());
}
if(!b){
return R.ok();
}else {
return R.error(BizCodeEnum.PRODUCT_UP_EXCEPTION.getCode(), BizCodeEnum.PRODUCT_UP_EXCEPTION.getMsg());
}
}
@Slf4j
@Service
@SuppressWarnings("all")
public class ProductSaveServiceImpl implements ProductSaveService {
@Autowired
private RestHighLevelClient restHighLevelClient;
@Override
public Boolean productStatusUp(List<SkuEsModel> skuEsModels) throws IOException {
//数据保存到es中
//1.给es中建立一个索引。product,建立映射关系(在es中提前创建)
//2.给es中保存数据,
// BulkRequest bulkRequest, RequestOptions options
BulkRequest bulkRequest = new BulkRequest();
//构造批量操作
for (SkuEsModel model : skuEsModels) {
//构造保存的请求
IndexRequest indexRequest = new IndexRequest(EsConstant.PRODUCT_INDEX);
indexRequest.id(model.getSkuId().toString());//当前商品的sku的id
String s = JSON.toJSONString(model);
indexRequest.source(s, XContentType.JSON);
bulkRequest.add(indexRequest);
}
BulkResponse bulk = restHighLevelClient.bulk(bulkRequest, GulimallElasticSearchConfig.COMMON_OPTIONS);//批量保存数据到es
//TODO 1.如果批量错误,就可以处理错误
boolean b = bulk.hasFailures();//统计哪些商品上架失败
List<String> collect = Arrays.stream(bulk.getItems()).map(item -> {
//拿到每一个的处理结果,进行处理
return item.getId();
}).collect(Collectors.toList());
log.info("商品上架完成:{},返回数据: {}",collect,bulk.toString());
return b;
}
}
⑧. 进行上架流程图(重要)
-

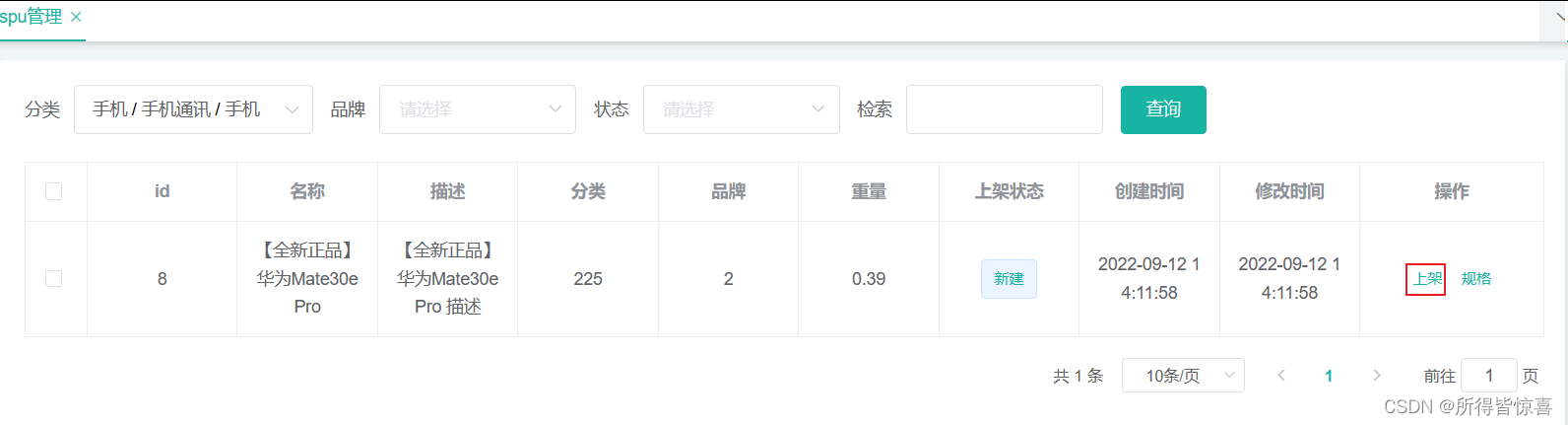

①. 点击页面上架
-

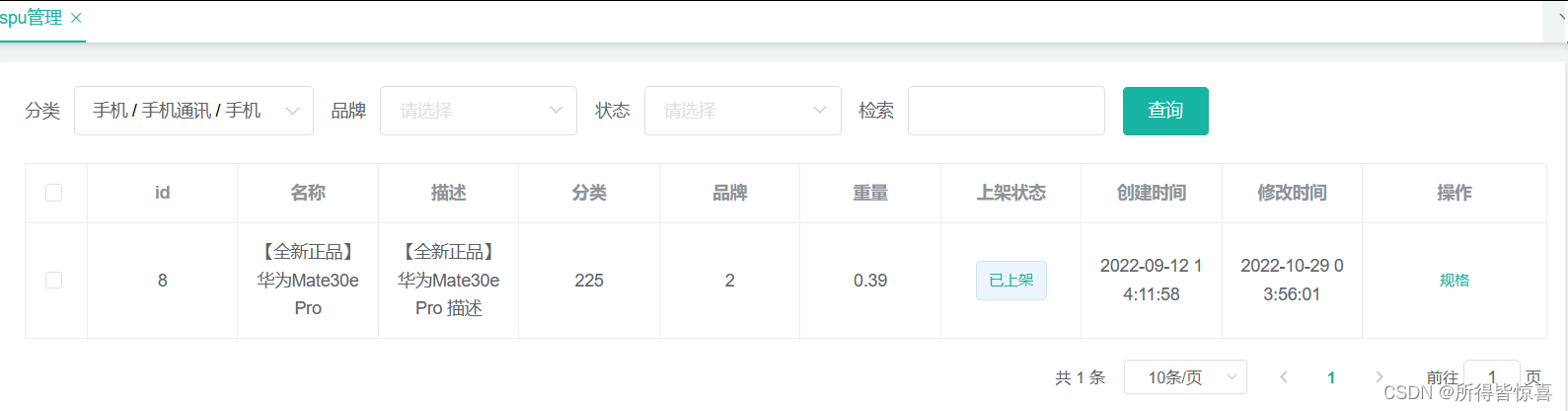

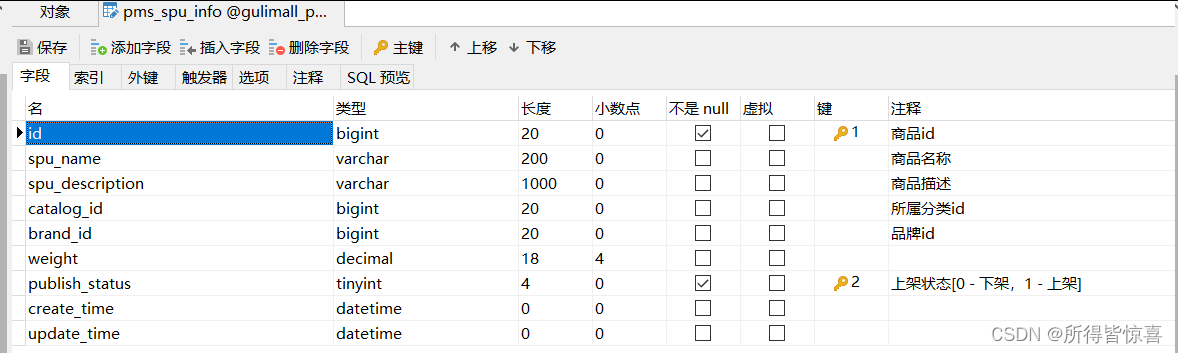

②. 上架成功后可以看到数据保存到了es、并且pms_info_spu的状态变为了上架处理
-
③. 商品上架流程图
-
④. 我们自己在es中的映射
PUT /gulimall_product
{
"mappings": {
"properties": {
"attrs": {
"type": "nested",
"properties": {
"attrId": {
"type": "long"
},
"attrName": {
"type": "keyword"
},
"attrValue": {
"type": "keyword"
}
}
},
"brandId": {
"type": "long"
},
"brandImg": {
"type": "keyword"
},
"brandName": {
"type": "keyword"
},
"catalogId": {
"type": "long"
},
"catalogName": {
"type": "keyword"
},
"hasStock": {
"type": "boolean"
},
"hotScore": {
"type": "long"
},
"saleCount": {
"type": "long"
},
"skuId": {
"type": "long"
},
"skuImg": {
"type": "keyword"
},
"skuPrice": {
"type": "keyword"
},
"skuTitle": {
"type": "text",
"analyzer": "ik_smart"
},
"spuId": {
"type": "keyword"
}
}
}
}
