华为设备配置DHCP客户端

1. 配置DHCP客户端功能
   [LSW3]vlan 10
   [LSW3-GigabitEthernet0/0/1]port link-type trunk
   [LSW3-GigabitEthernet0/0/1]port trunk allow-pass vlan 10
   [LSW3]dhcp enable
   [LSW3]int Vlanif 10
   [LSW3-Vlanif10]ip address dhcp-alloc

2. 创建DHCP服务器的全局地址池并配置网络参数
   [LSW2]dhcp enable
   [LSW2]vlan 10
   [LSW2-GigabitEthernet0/0/1]port link-type trunk
   [LSW2-GigabitEthernet0/0/1]port trunk allow-pass vlan 10
   [LSW2]int Vlanif 10
   [LSW2-Vlanif10]ip add 10.1.1.1 24
   [LSW2-Vlanif10]dhcp select global
   [LSW2]ip pool pool1
   [LSW2-ip-pool-pool1]network 10.1.1.0 mask 24
   [LSW2-ip-pool-pool1]gateway-list 10.1.1.254
   [LSW2-ip-pool-pool1]dns-list 10.1.1.2
   [LSW2-ip-pool-pool1]excluded-ip-address 10.1.1.2

3. 配置IP地址
   [AR1-GigabitEthernet0/0/0]ip add 10.1.1.254 24


4. 配置LSW1
   [LSW1]vlan 10
   [LSW1-GigabitEthernet0/0/3]port link-type trunk
   [LSW1-GigabitEthernet0/0/3]port trunk allow-pass vlan 10
   [LSW1-GigabitEthernet0/0/2]port link-type trunk
   [LSW1-GigabitEthernet0/0/2]port trunk allow-pass vlan 10

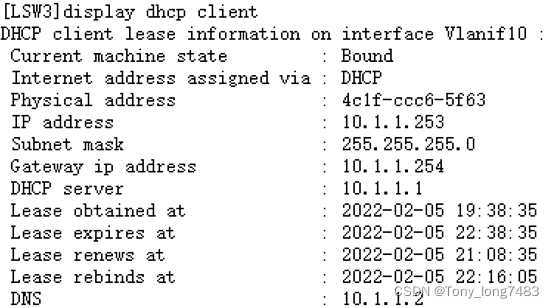

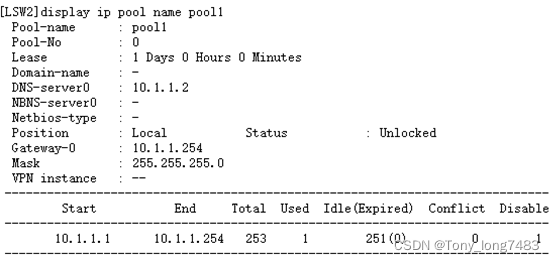

5. 验证配置
