香蕉派开发板 BPI-M1S RK3528支持4K WiFi6 lede官方支持

Banana Pi BPI-M1S utilizes the Rockchip RK3528, a new-generation intelligent set-top box and multimedia application chip. It is applicable to IPTV/OTT boxes, cloud terminals, and integrated products. It is a high-performance, low-power 4K player with decoding capability supporting up to 8K. Additionally, it also supports the AVS2 and HDR VIVID standards.

Key Parameter

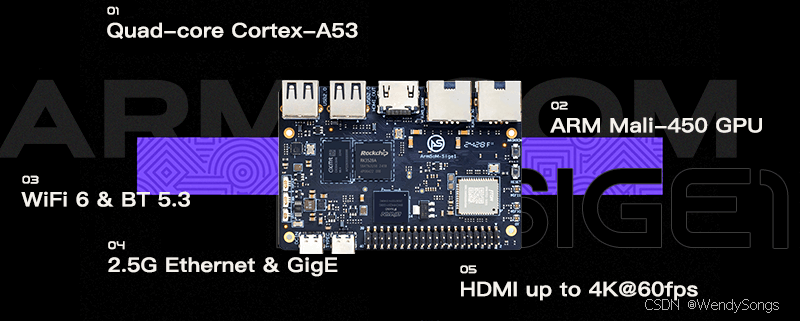

• SoC: Rockchip RK3528

• CPU: RK3528 Quad-core Cortex-A53

• GPU: ARM Mali-450 GPU

• VPU/Decoding:

  • Hardware Decoding: Supports 60fps playback of 4K ultra-high-definition video with up to 10-bit pixels. Supports video standards including H.265, H.264, AVS2, etc.

  • Hardware Encoding: Supports 60fps capture of 1080p high-definition video. Supports H.265 and H.264 encoding.

• RAM: 4GB 32-bit LPDDR4x, default 4GB (RK3528 supports maximum 4GB)

• Flash: 32GB eMMC, default eMMC 32GB

• Operating System:

  • Officially Supported by Rockchip: Android 9.0_box, Debian11, Buildroot

  • Third-party Support: Armbian

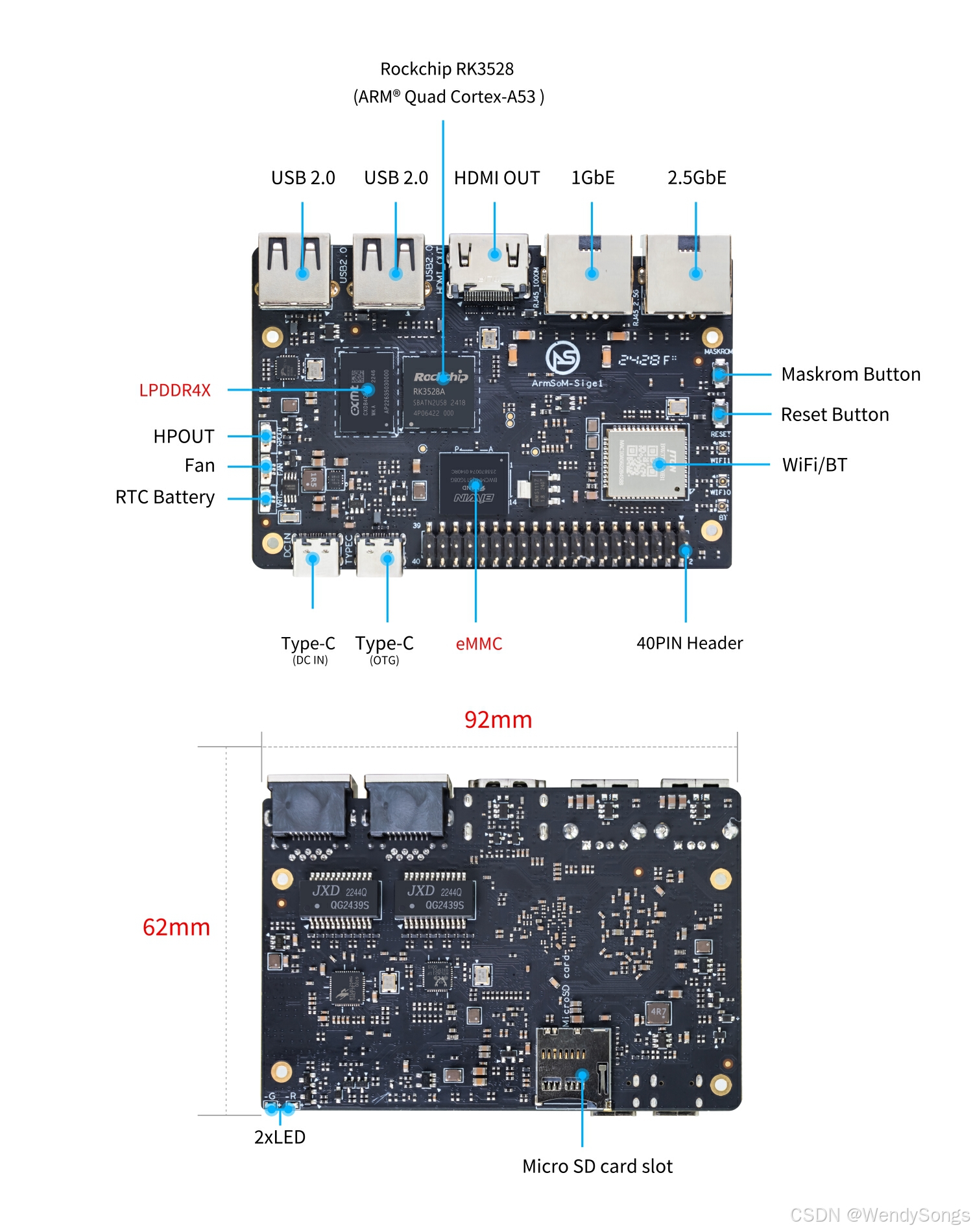

• Dimensions: 92mm × 62mm x 14.6mm
