MSPM0最小系统应用

LP-MSPM0驱动OLED屏

开发环境

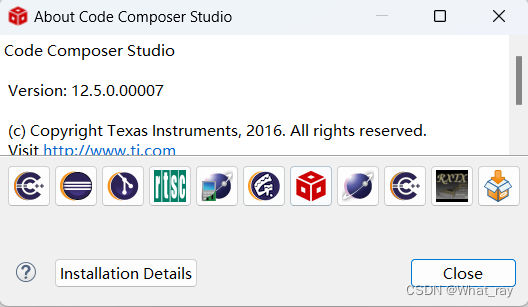

ccs12.5+sysconfig 板卡为自己设计的MSPM0G3507最小系统板 使用的是MSPM0L1306上的XDS110板载调试器

在这里插入图片描述

OLED为常用的外设,主要用于显示功能,常用接口为I2C、SPI。而I2C只需要2线就可以实现,更为常见。I2C可以用软件模拟I2C以及硬件的I2C驱动。软件I2C可以灵活选择GPIO来实现,在不同的单片机中移方便,但是速度相比硬件i2c慢,占用资源多。而硬件I2C速度快,占用资源小,但是硬件I2C需要指的IO,而且在有些单片机硬件i2c的兼容性不是很好,移植性差。IO的选取,这次移植为硬件i2c驱动OLED屏。SDA选取PA0,SCL选取PA1。

I2C驱动的配置与初始化

配置I2C的驱动IO,MSPM0G3507这款芯片,配置i2cIO在sysconfi环境下特别的方便。我在这里是在gpio_toggle_output_LP_MSPM0G3507_nortos_ticlang例程下添加的I2C的驱动。具体实现方便如下:
打开例程,后双击gpio_toggle_output_syscfg,打开sysconfig配置界面:

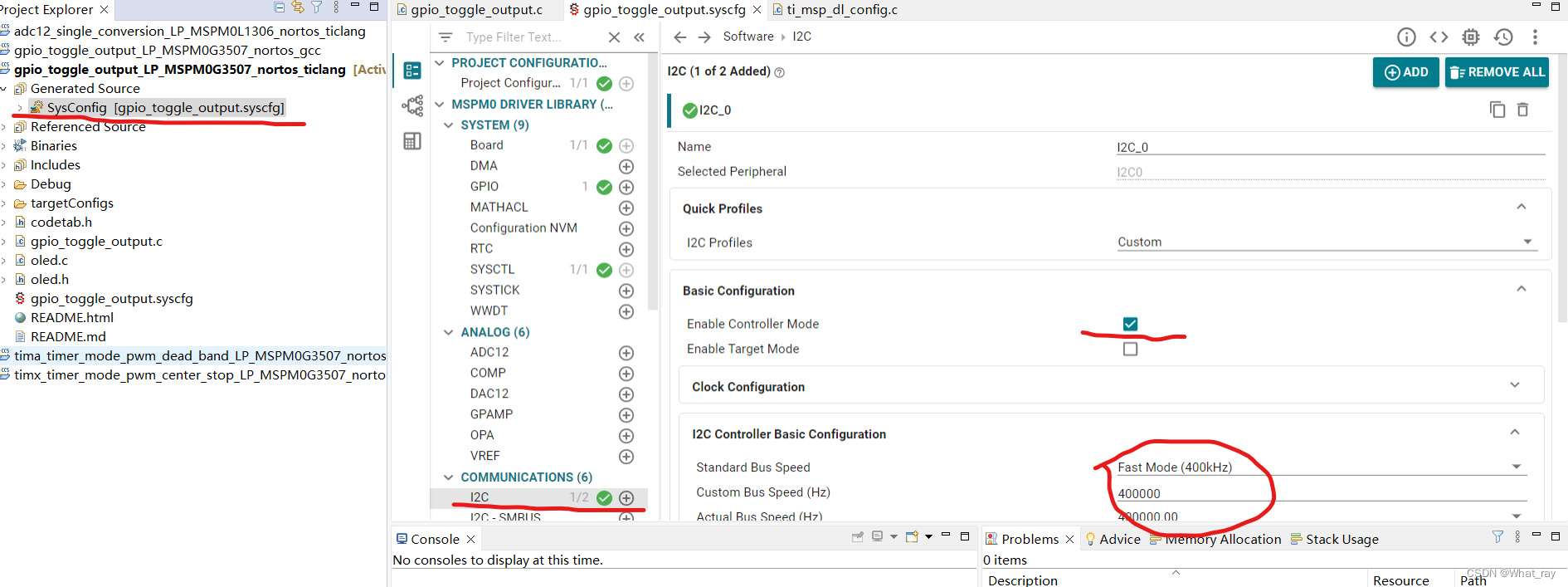

添加i2c,按如下配置速度:
在这里插入图片描述

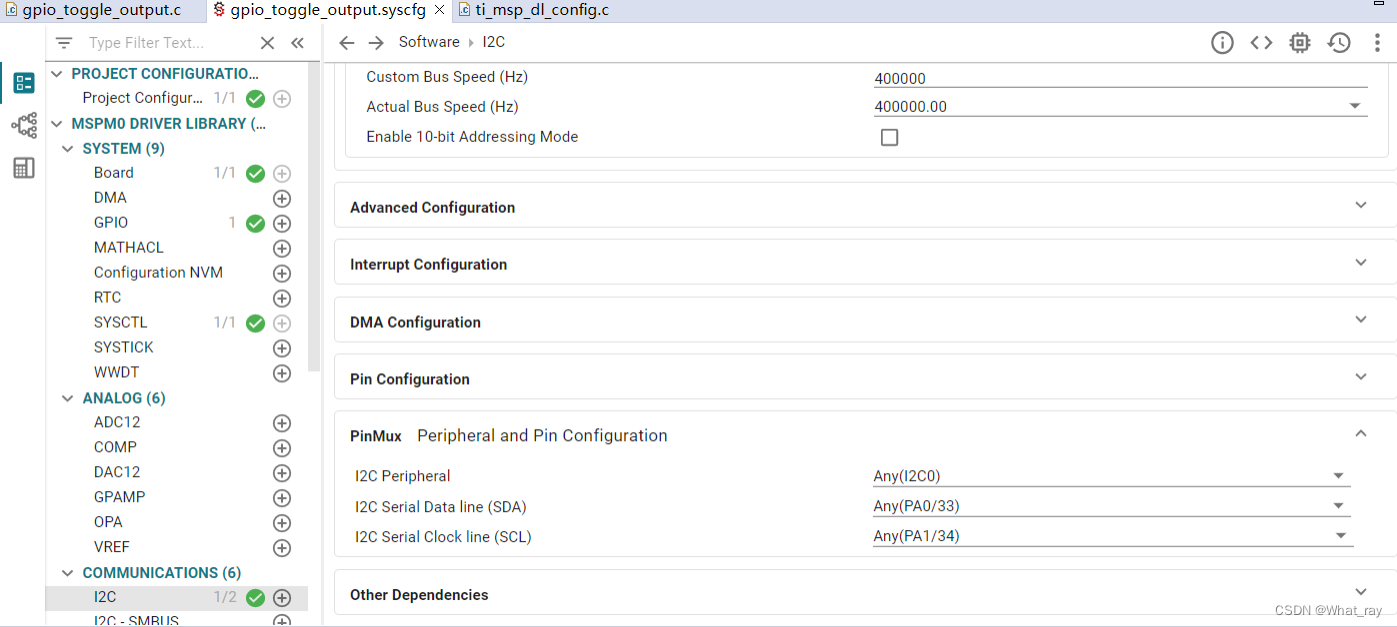

选择I2c的IO,SCL为PA1/34,SDA为PA0/33
在这里插入图片描述
保存后退出sysconfig,sysconfig自动更新了ti-msp-dl-config.h生成了I2C的宏定义:
在这里插入图片描述

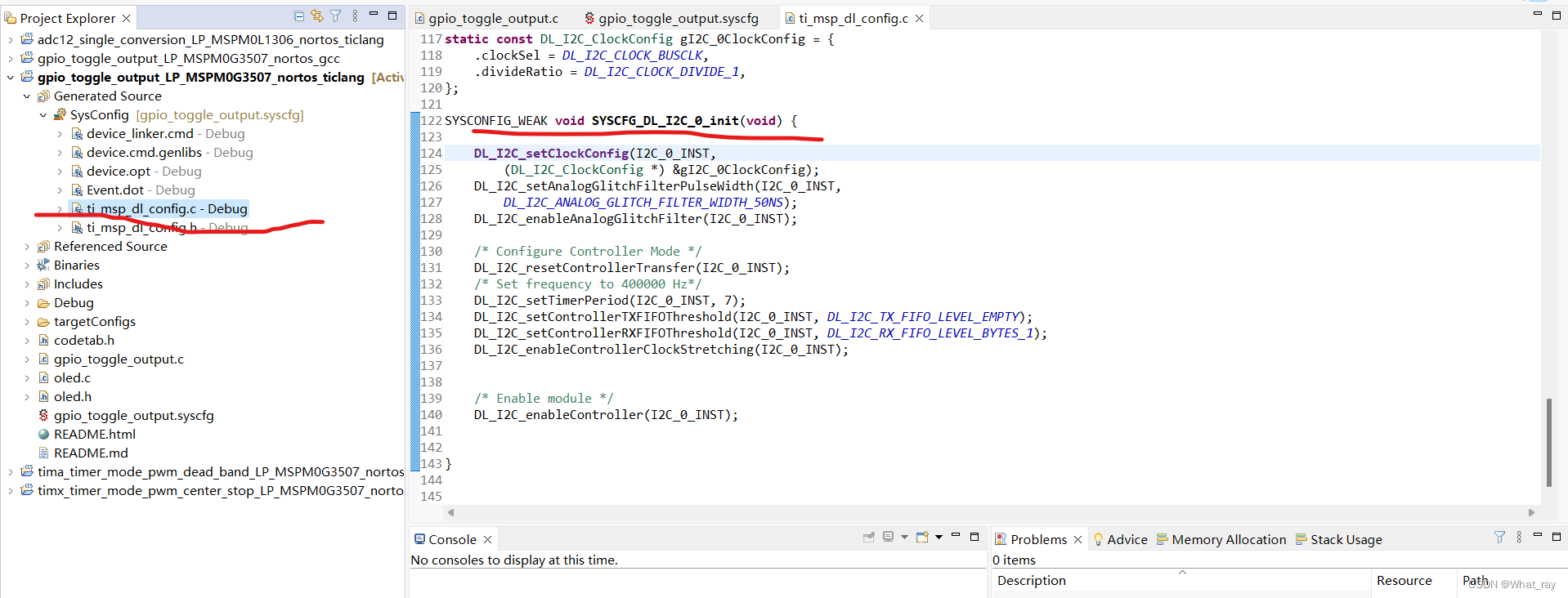

在tim-msp-dl-config.c中初始化了i2c:
在这里插入图片描述

移植OLED驱动

在上面的初始化好I2C后我们就可以移植OLED的驱动到开发板上面,具体实现步骤如下:
在工程目录下面新建oled.h、oled.c、codetab.h三个空白文件。三个文件分别为oled.h为ssd1306驱动的头文件,oled.c为ssd1306的驱动c源文件,codetab.h为字库文件。
首先复制字库文件进来,代码如下:

#ifndef __CODETAB_H__
#define __CODETAB_H__

unsigned char F16X16[] =
{
    0x00,0xFC,0x04,0x04,0xFC,0x00,0x10,0xD8,0x14,0x13,0xF0,0x14,0x18,0x30,0x00,0x00,
    0x00,0x0F,0x04,0x04,0x0F,0x08,0x0A,0x09,0x09,0x09,0xFF,0x09,0x09,0x09,0x08,0x00,//"哞",0

    0x00,0xFC,0x04,0x04,0xFC,0x00,0x10,0xD8,0x14,0x13,0xF0,0x14,0x18,0x30,0x00,0x00,
    0x00,0x0F,0x04,0x04,0x0F,0x08,0x0A,0x09,0x09,0x09,0xFF,0x09,0x09,0x09,0x08,0x00,//"哞",1
};

const unsigned char F6x8[][6] =
{
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00,// sp
    0x00, 0x00, 0x00, 0x2f, 0x00, 0x00,// !
    0x00, 0x00, 0x07, 0x00, 0x07, 0x00,// "
    0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14,// #
    0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12,// $
    0x00, 0x62, 0x64, 0x08, 0x13, 0x23,// %
    0x00, 0x36, 0x49, 0x55, 0x22, 0x50,// &
    0x00, 0x00, 0x05, 0x03, 0x00, 0x00,// '
    0x00, 0x00, 0x1c, 0x22, 0x41, 0x00,// (
    0x00, 0x00, 0x41, 0x22, 0x1c, 0x00,// )
    0x00, 0x14, 0x08, 0x3E, 0x08, 0x14,// *
    0x00, 0x08, 0x08, 0x3E, 0x08, 0x08,// +
    0x00, 0x00, 0x00, 0xA0, 0x60, 0x00,// ,
    0x00, 0x08, 0x08, 0x08, 0x08, 0x08,// -
    0x00, 0x00, 0x60, 0x60, 0x00, 0x00,// .
    0x00, 0x20, 0x10, 0x08, 0x04, 0x02,// /
    0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E,// 0
    0x00, 0x00, 0x42, 0x7F, 0x40, 0x00,// 1
    0x00, 0x42, 0x61, 0x51, 0x49, 0x46,// 2
    0x00, 0x21, 0x41, 0x45, 0x4B, 0x31,// 3
    0x00, 0x18, 0x14, 0x12, 0x7F, 0x10,// 4
    0x00, 0x27, 0x45, 0x45, 0x45, 0x39,// 5
    0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30,// 6
    0x00, 0x01, 0x71, 0x09, 0x05, 0x03,// 7
    0x00, 0x36, 0x49, 0x49, 0x49, 0x36,// 8
    0x00, 0x06, 0x49, 0x49, 0x29, 0x1E,// 9
    0x00, 0x00, 0x36, 0x36, 0x00, 0x00,// :
    0x00, 0x00, 0x56, 0x36, 0x00, 0x00,// ;
    0x00, 0x08, 0x14, 0x22, 0x41, 0x00,// <
    0x00, 0x14, 0x14, 0x14, 0x14, 0x14,// =
    0x00, 0x00, 0x41, 0x22, 0x14, 0x08,// >
    0x00, 0x02, 0x01, 0x51, 0x09, 0x06,// ?
    0x00, 0x32, 0x49, 0x59, 0x51, 0x3E,// @
    0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C,// A
    0x00, 0x7F, 0x49, 0x49, 0x49, 0x36,// B
    0x00, 0x3E, 0x41, 0x41, 0x41, 0x22,// C
    0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C,// D
    0x00, 0x7F, 0x49, 0x49, 0x49, 0x41,// E
    0x00, 0x7F, 0x09, 0x09, 0x09, 0x01,// F
    0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A,// G
    0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F,// H
    0x00, 0x00, 0x41, 0x7F, 0x41, 0x00,// I
    0x00, 0x20, 0x40, 0x41, 0x3F, 0x01,// J
    0x00, 0x7F, 0x08, 0x14, 0x22, 0x41,// K
    0x00, 0x7F, 0x40, 0x40, 0x40, 0x40,// L
    0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F,// M
    0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F,// N
    0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E,// O
    0x00, 0x7F, 0x09, 0x09, 0x09, 0x06,// P
    0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E,// Q
    0x00, 0x7F, 0x09, 0x19, 0x29, 0x46,// R
    0x00, 0x46, 0x49, 0x49, 0x49, 0x31,// S
    0x00, 0x01, 0x01, 0x7F, 0x01, 0x01,// T
    0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F,// U
    0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F,// V
    0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F,// W
    0x00, 0x63, 0x14, 0x08, 0x14, 0x63,// X
    0x00, 0x07, 0x08, 0x70, 0x08, 0x07,// Y
    0x00, 0x61, 0x51, 0x49, 0x45, 0x43,// Z
    0x00, 0x00, 0x7F, 0x41, 0x41, 0x00,// [
    0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55,// 55
    0x00, 0x00, 0x41, 0x41, 0x7F, 0x00,// ]
    0x00, 0x04, 0x02, 0x01, 0x02, 0x04,// ^
    0x00, 0x40, 0x40, 0x40, 0x40, 0x40,// _
    0x00, 0x00, 0x01, 0x02, 0x04, 0x00,// '
    0x00, 0x20, 0x54, 0x54, 0x54, 0x78,// a
    0x00, 0x7F, 0x48, 0x44, 0x44, 0x38,// b
    0x00, 0x38, 0x44, 0x44, 0x44, 0x20,// c
    0x00, 0x38, 0x44, 0x44, 0x48, 0x7F,// d
    0x00, 0x38, 0x54, 0x54, 0x54, 0x18,// e
    0x00, 0x08, 0x7E, 0x09, 0x01, 0x02,// f
    0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C,// g
    0x00, 0x7F, 0x08, 0x04, 0x04, 0x78,// h
    0x00, 0x00, 0x44, 0x7D, 0x40, 0x00,// i
    0x00, 0x40, 0x80, 0x84, 0x7D, 0x00,// j
    0x00, 0x7F, 0x10, 0x28, 0x44, 0x00,// k
    0x00, 0x00, 0x41, 0x7F, 0x40, 0x00,// l
    0x00, 0x7C, 0x04, 0x18, 0x04, 0x78,// m
    0x00, 0x7C, 0x08, 0x04, 0x04, 0x78,// n
    0x00, 0x38, 0x44, 0x44, 0x44, 0x38,// o
    0x00, 0xFC, 0x24, 0x24, 0x24, 0x18,// p
    0x00, 0x18, 0x24, 0x24, 0x18, 0xFC,// q
    0x00, 0x7C, 0x08, 0x04, 0x04, 0x08,// r
    0x00, 0x48, 0x54, 0x54, 0x54, 0x20,// s
    0x00, 0x04, 0x3F, 0x44, 0x40, 0x20,// t
    0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C,// u
    0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C,// v
    0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C,// w
    0x00, 0x44, 0x28, 0x10, 0x28, 0x44,// x
    0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C,// y
    0x00, 0x44, 0x64, 0x54, 0x4C, 0x44,// z
    0x14, 0x14, 0x14, 0x14, 0x14, 0x14,// horiz lines
};
const unsigned char F8X16[]=
{
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,// 0
  0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00,//! 1
  0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//" 2
  0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00,//# 3
  0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00,//$ 4
  0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00,//% 5
  0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10,//& 6
  0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//' 7
  0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00,//( 8
  0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00,//) 9
  0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00,//* 10
  0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00,//+ 11
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00,//, 12
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,//- 13
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,//. 14
  0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00,/// 15
  0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00,//0 16
  0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//1 17
  0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00,//2 18
  0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00,//3 19
  0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00,//4 20
  0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00,//5 21
  0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00,//6 22
  0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,//7 23
  0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00,//8 24
  0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00,//9 25
  0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,//: 26
  0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00,//; 27
  0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00,//< 28
  0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00,//= 29
  0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00,//> 30
  0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00,//? 31
  0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00,//[url=home.php?mod=space&uid=72445]@[/url] 32
  0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20,//A 33
  0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00,//B 34
  0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00,//C 35
  0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00,//D 36
  0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00,//E 37
  0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00,//F 38
  0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00,//G 39
  0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20,//H 40
  0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//I 41
  0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00,//J 42
  0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00,//K 43
  0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00,//L 44
  0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00,//M 45
  0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00,//N 46
  0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00,//O 47
  0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00,//P 48
  0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00,//Q 49
  0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20,//R 50
  0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00,//S 51
  0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//T 52
  0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//U 53
  0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00,//V 54
  0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00,//W 55
  0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20,//X 56
  0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//Y 57
  0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00,//Z 58
  0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00,//[ 59
  0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00,//\ 60
  0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,//] 61
  0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//^ 62
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,//_ 63
  0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//` 64
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20,//a 65
  0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00,//b 66
  0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00,//c 67
  0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20,//d 68
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00,//e 69
  0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//f 70
  0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00,//g 71
  0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//h 72
  0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//i 73
  0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,//j 74
  0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00,//k 75
  0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//l 76
  0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F,//m 77
  0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//n 78
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//o 79
  0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00,//p 80
  0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80,//q 81
  0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00,//r 82
  0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00,//s 83
  0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00,//t 84
  0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20,//u 85
  0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00,//v 86
  0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00,//w 87
  0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00,//x 88
  0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00,//y 89
  0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00,//z 90
  0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,//{ 91
  0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,//| 92
  0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00,//} 93
  0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//~ 94
};

unsigned char BMP1[] =
{
     0X22,0X01,0X80,0X00,0X2F,0X00,
0XFE,0XFE,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFE,0XFE,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFB,0XFB,0X7B,0X9B,0XF7,0XF7,
0XFF,0XFF,0XEF,0XEF,0XF7,0XD7,0XFF,0XBF,0X6F,0XFF,0XFF,0XDF,0XFF,0XBF,0XFF,0XFF,
0XBF,0XFF,0XBF,0XBF,0XBF,0XFF,0XDF,0XDF,0XDF,0X9F,0XAF,0XBF,0XB7,0XBF,0XFF,0XEF,
0X2F,0XF7,0XFB,0XFF,0XFD,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF7,0XC1,0XBF,0XFF,0X7F,0XFF,
0XFF,0X7F,0X7F,0XEF,0XD7,0XAF,0XD7,0XF3,0XF3,0XF6,0XF9,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFE,0XFC,0XFE,0XFF,0XFF,0XFD,0XF8,0X0C,0XF6,0XFE,0XFE,0XF5,0XED,0XDF,0XE7,
0XF7,0XFB,0XF6,0XFF,0XD9,0XED,0XE9,0X1B,0X6F,0X9F,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0X7F,0X7F,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XF3,0XF5,0XF7,0XF7,
0XF7,0XF7,0XFF,0XEF,0XEF,0XFF,0XFF,0XDF,0XBF,0XBF,0X7F,0XFF,0XFF,0XC7,0X7B,0XFB,
0XFB,0XF6,0XF6,0X0F,0X87,0X85,0X07,0X11,0X1A,0X3B,0X3F,0X79,0X7A,0XFB,0XFC,0XF7,
0XA7,0XA7,0X6B,0XAF,0XEB,0XFA,0X94,0XE3,0XF6,0XB7,0XC7,0XD7,0X57,0X77,0XFF,0X7F,
0XFF,0XBF,0X7F,0XF7,0X27,0XF3,0X17,0XD5,0X8F,0XCF,0X9A,0X3C,0XFE,0XFF,0XFE,0XF7,
0XFF,0XFF,0XDF,0XDD,0XED,0XED,0XFB,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFE,0XFF,0XFD,0XFC,
0XFD,0XFF,0XFB,0XFB,0XFE,0XFD,0XF5,0XF7,0XF7,0XF4,0XFA,0XFB,0XFF,0XFD,0XFD,0XFF,
0XFE,0XFE,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFE,0XFE,0XD7,0XFF,0XFF,
0XF0,0XF6,0XFF,0XFF,0XFE,0XFE,0XF9,0XFF,0XFB,0XF9,0XF1,0XE2,0XFD,0XFF,0XF7,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,0XFF,
0X3F,0X3F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,
0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,
0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,
0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,
0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,
0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,
0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,
0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X7F,0X3F,0X3F,
};

#endif

创建oled.h头文件,在头文件中我们需要先引用ti_msp_dl_config.h这个文件,然后声明oled.c的相关功能软件,其内容如下:

#ifndef __OLED_H__

#define __OLED_H__

#include"ti_msp_dl_config.h"

void OLED_I2C_Init(void);

int I2C_WriteByte(uint8_t addr,uint8_t data);

void WriteCmd(unsigned char I2C_Command);

void WriteData(unsigned char I2C_Data);

void OLED_Init(void);

void OLED_SetPos(unsigned char x,unsigned char y);

void OLED_Fill(unsigned char Fill_Data);

void OLED_CLS(void);

void OLED_ON(void);

void OLED_OFF(void);

void OLED_ShowStr(unsigned char x,unsigned char y,unsigned char ch[],unsigned char TextSize);

void OLED_ShowCN(unsigned char x,unsigned char y,unsigned char N);

void OLED_ShowBMP(unsigned char x0,unsigned char y0,unsigned char x1,unsigned char y1,unsigned char BMP[]);

#endif

ssd1306的向寄存器写入一个byte的功能,首先我们声明I2C从机(oled)地址,特别注意的是,这里我们要声明为0x3C(这里有个大坑,有些单片机,他send7bitaddress 时需要定义为0x78),这次我移植时先定义了0x78结果发出的地址信息为0xF0后面调整为0x3c才正常。

#define OLED_ADDR 0x3C

然后我们构建writeByte函数。我们使用的i2c传输函数为fifo发送,其函数原型为:

uint16_t DL_I2C_fillControllerTXFIFO(

I2C_Regs *i2c, uint8_t *buffer, uint16_t count);

所以我们在向ssd1306写入一个byte的函数中首先要组建一个数组buff用于组装fifo

uint8_t buff[2] = {0};

buff[0] = addr;

buff[1] = data;

然后发送时,先判断I2C是否为空闲状态:

/* Wait for I2C to be Idle */

while (!(

DL_I2C_getControllerStatus(I2C_0_INST) & DL_I2C_CONTROLLER_STATUS_IDLE))

;

然后我们向总线发送从机地址:

/* Send the packet to the controller.

* This function will send Start + Stop automatically.

*/

DL_I2C_startControllerTransfer(I2C_0_INST, OLED_ADDR,

DL_I2C_CONTROLLER_DIRECTION_TX, 2);

再次我们发送一个数组:

DL_I2C_fillControllerTXFIFO(I2C_0_INST, &buff[0], 2);

然后等待发送完成:

/* Poll until the Controller writes all bytes */

while (DL_I2C_getControllerStatus(I2C_0_INST) &

DL_I2C_CONTROLLER_STATUS_BUSY_BUS)

;

最后我们判断是否有错误发生:

/* Trap if there was an error */

if (DL_I2C_getControllerStatus(I2C_0_INST) &

DL_I2C_CONTROLLER_STATUS_ERROR) {

/* LED will remain high if there is an error */

__BKPT(0);

}

至此我们完成了向ssd1306指定寄存器地址发送一个byte的功能,后面的函数就不需要修改,其完整代码如下:

#include "oled.h"
#include "ti_msp_dl_config.h"
#include "codetab.h"

#define OLED_ADDR   0x3C

void OLED_I2C_Init(void)
{

}

//向OLED寄存器地址写一个byte的数据
int I2C_WriteByte(uint8_t addr,uint8_t data)
{
  uint8_t buff[2] = {0};
  buff[0] = addr;
  buff[1] = data;
  /* Wait for I2C to be Idle */
  while (!(
            DL_I2C_getControllerStatus(I2C_0_INST) & DL_I2C_CONTROLLER_STATUS_IDLE))
            ;

        /* Send the packet to the controller.
         * This function will send Start + Stop automatically.
         */
        DL_I2C_startControllerTransfer(I2C_0_INST, OLED_ADDR,
            DL_I2C_CONTROLLER_DIRECTION_TX, 2);
        DL_I2C_fillControllerTXFIFO(I2C_0_INST, &buff[0], 2);
      /* Poll until the Controller writes all bytes */
      while (DL_I2C_getControllerStatus(I2C_0_INST) &
                     DL_I2C_CONTROLLER_STATUS_BUSY_BUS)
                  ;

      /* Trap if there was an error */
      if (DL_I2C_getControllerStatus(I2C_0_INST) &
          DL_I2C_CONTROLLER_STATUS_ERROR) {
          /* LED will remain high if there is an error */
          __BKPT(0);
      }
    return 0;
}



//写指令
void WriteCmd(unsigned char I2C_Command)
{
        I2C_WriteByte(0x00,I2C_Command);
}

//写数据
void WriteData(unsigned char I2C_Data)
{
        I2C_WriteByte(0x40,I2C_Data);
}

//厂家初始化代码
void OLED_Init(void)
{
    OLED_I2C_Init();
        delay_cycles(16000000);
        WriteCmd(0xAE); //display off
        WriteCmd(0x20); //Set Memory Addressing Mode
        WriteCmd(0x10); //00,Horizontal Addressing Mode;01,Vertical Addressing Mode;10,Page Addressing Mode (RESET);11,Invalid
        WriteCmd(0xb0); //Set Page Start Address for Page Addressing Mode,0-7
        WriteCmd(0xc8); //Set COM Output Scan Direction
        WriteCmd(0x00); //---set low column address
        WriteCmd(0x10); //---set high column address
        WriteCmd(0x40); //--set start line address
        WriteCmd(0x81); //--set contrast control register
        WriteCmd(0xff); //áá?èμ÷?ú 0x00~0xff
        WriteCmd(0xa1); //--set segment re-map 0 to 127
        WriteCmd(0xa6); //--set normal display
        WriteCmd(0xa8); //--set multiplex ratio(1 to 64)
        WriteCmd(0x3F); //
        WriteCmd(0xa4); //0xa4,Output follows RAM content;0xa5,Output ignores RAM content
        WriteCmd(0xd3); //-set display offset
        WriteCmd(0x00); //-not offset
        WriteCmd(0xd5); //--set display clock divide ratio/oscillator frequency
        WriteCmd(0xf0); //--set divide ratio
        WriteCmd(0xd9); //--set pre-charge period
        WriteCmd(0x22); //
        WriteCmd(0xda); //--set com pins hardware configuration
        WriteCmd(0x12);
        WriteCmd(0xdb); //--set vcomh
        WriteCmd(0x20); //0x20,0.77xVcc
        WriteCmd(0x8d); //--set DC-DC enable
        WriteCmd(0x14); //
        WriteCmd(0xaf); //--turn on oled panel

}

//设置光标起始坐标(x,y)
void OLED_SetPos(unsigned char x,unsigned char y)
{
        WriteCmd(0xb0+y);
        WriteCmd( (x & 0xf0) >> 4 | 0x10 );
        WriteCmd( (x & 0x0f) | 0x01 );
}

//填充整个屏幕
void OLED_Fill(unsigned char Fill_Data)
{
        unsigned char m,n;

        for(m=0;m<8;m++)
        {
                WriteCmd(0xb0+m);
                WriteCmd(0x00);
                WriteCmd(0x10);

                for(n=0;n<128;n++)
                {
                        WriteData(Fill_Data);
                }
        }
}

//清屏
void OLED_CLS(void)
{
        OLED_Fill(0x00);
}

//将OLED从休眠中唤醒
void OLED_ON(void)
{
        WriteCmd(0xAF);
        WriteCmd(0x8D);
        WriteCmd(0x14);
}

//让OLED休眠 -- 休眠模式下,OLED功耗不到10uA
void OLED_OFF(void)
{
        WriteCmd(0xAE);
        WriteCmd(0x8D);
        WriteCmd(0x10);
}

void OLED_ShowStr(unsigned char x,unsigned char y,unsigned char ch[],unsigned char TextSize)
{
        unsigned char c = 0,i = 0,j = 0;

        switch(TextSize)
        {
            case 1:
            {
                    while(ch[j] != '\0')
                    {
                            c = ch[j] - 32;
                            if(x>126)
                            {
                                    x = 0;
                                    y++;
                            }

                            OLED_SetPos(x,y);

                            for(i=0;i<6;i++)
                            {
                                    WriteData(F6x8[c][i]);
                            }
                            x+=6;
                            j++;
                    }
            }
            break;

            case 2:
            {
                    while(ch[j] != '\0')
                    {
                            c = ch[j] - 32;

                            if(x>120)
                            {
                                    x = 0;
                                    y++;
                            }

                            OLED_SetPos(x,y);

                            for(i=0;i<8;i++)
                            {
                                    WriteData(F8X16[c*16+i]);
                            }

                            OLED_SetPos(x,y+1);

                            for(i=0;i<8;i++)
                            {
                                    WriteData(F8X16[c*16+i+8]);
                            }
                            x+=8;
                            j++;
                    }
            }
            break;
        }
}

void OLED_ShowCN(unsigned char x,unsigned char y,unsigned char N)
{
        unsigned char i = 0;
        unsigned char addr = 32*N;

        OLED_SetPos(x,y);

        for(i=0;i<16;i++)
        {
                WriteData(F16X16[addr]);
                addr += 1;
        }

        OLED_SetPos(x,y+1);

        for(i=0;i<16;i++)
        {
                WriteData(F16X16[addr]);
                addr += 1;
        }
}

void OLED_ShowBMP(unsigned char x0,unsigned char y0,unsigned char x1,unsigned char y1,unsigned char BMP[])
{
        unsigned char x,y;
        unsigned int j = 0;

        if(y1 % 8 == 0)
        {
                y = y1 / 8;
        }
        else
        {
                y = y1 / 8+1;
        }

        for(y=y0;y<y1;y++)
        {
                OLED_SetPos(x0,y);

                for(x=x0;x<x1;x++)
                {
                        WriteData(BMP1[j++]);
                }
        }
}





在主函数主我们先添加oled.h的引用然后初始化OLED,清屏后向OLED写入helloworld的字符串

 #include "ti_msp_dl_config.h"
#include "oled.h"//SCL PA1 SDA PA0
 int main(void)
{
    /* Power on GPIO, initialize pins as digital outputs */
    SYSCFG_DL_init();
    OLED_Init();
    OLED_CLS();
    OLED_ShowStr(10,0,(unsigned char*) "HELLO WORLD",2);
    OLED_ShowStr(4,2,(unsigned char*) "LP-MSPM0G3507",2);
    OLED_ShowStr(0,4,(unsigned char*) "DATE 2024-4-14",2);

    /* Default: LED1 and LED3 ON, LED2 OFF */
    DL_GPIO_clearPins(GPIO_LEDS_PORT, GPIO_LEDS_USER_LED_2_PIN);
    DL_GPIO_setPins(GPIO_LEDS_PORT, GPIO_LEDS_USER_LED_1_PIN |
                                        GPIO_LEDS_USER_LED_3_PIN |
                                        GPIO_LEDS_USER_TEST_PIN);

    while (1) {
        /*
         * Call togglePins API to flip the current value of LEDs 1-3. This
         * API causes the corresponding HW bits to be flipped by the GPIO HW
         * without need for additional R-M-W cycles by the processor.
         */
        delay_cycles(DELAY);
        DL_GPIO_togglePins(GPIO_LEDS_PORT,
            GPIO_LEDS_USER_LED_1_PIN | GPIO_LEDS_USER_LED_2_PIN |
                GPIO_LEDS_USER_LED_3_PIN | GPIO_LEDS_USER_TEST_PIN);
    }
}

效果

在这里插入图片描述

视频链接

最后大家需要整个工程文件可以在视频简介下载。

  • 39
    点赞
  • 27
    收藏
    觉得还不错? 一键收藏
  • 7
    评论

“相关推荐”对你有帮助么?

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论 7
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
