华为-ssh远程登录aaa认证模式

一、配置ssh远程登录

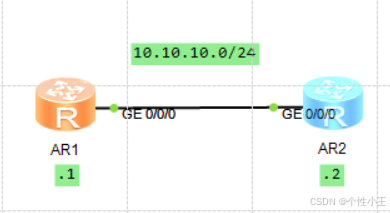

1.拓扑图

2.配置接口IP，保障网络的通信

R1:
<Huawei>sys	# 进入系统视图
[Huawei]sysname R1	# 命名
[R1]int g0/0/0	# 进入接口g0/0/0
[R1-GigabitEthernet0/0/0]ip add 10.10.10.1 24	# 配置接口IP地址
[R1-GigabitEthernet0/0/0]q

R2:
<Huawei>sys	# 进入系统视图
[Huawei]sysname R2	# 命名
[R2]int g0/0/0	# 进入接口g0/0/0
[R2-GigabitEthernet0/0/0]ip add 10.10.10.2 24	# 配置接口IP地址
[R2-GigabitEthernet0/0/0]q	# 退出

3.在R1上配置ssh远程登录，认证方式为aaa

[R1]aaa	# 配置aaa认证
[R1-aaa]local-user huawei password cipher huawei@123	# 配置用户名密码
Info: Add a new user.	# 添加成功
[R1-aaa]local-user huawei pri lev 3	# 设置用户等级
[R1-aaa]local-user huawei service-type ssh # 设置远程登录模式为ssh
[R1-aaa]q		# 退出
[R1]stelnet server enable 	# 开启ssh远程登录服务
Info: Succeeded in starting the STELNET server.	# 显示Succeeded为成功
[R1]user-interface vty 0 4	# 配置ssh
[R1-ui-vty0-4]authentication-mode aaa	# 设置认证模式为aaa
[R1-ui-vty0-4]protocol in ssh	# 开启ssh模式
[R1-ui-vty0-4]q	# 退出
[R1]ssh client first-time enable		# 首次认证
[R1]rsa local-key-pair create		# 生成秘钥
The key name will be: Host
% RSA keys defined for Host already exist.
Confirm to replace them? (y/n)[n]:y		# 输入y为yes
The range of public key size is (512 ~ 2048).
NOTES: If the key modulus is greater than 512,
       It will take a few minutes.
Input the bits in the modulus[default = 512]:1024	# 设置为1024
Generating keys...
...........++++++
.....................++++++
......++++++++
.................................++++++++

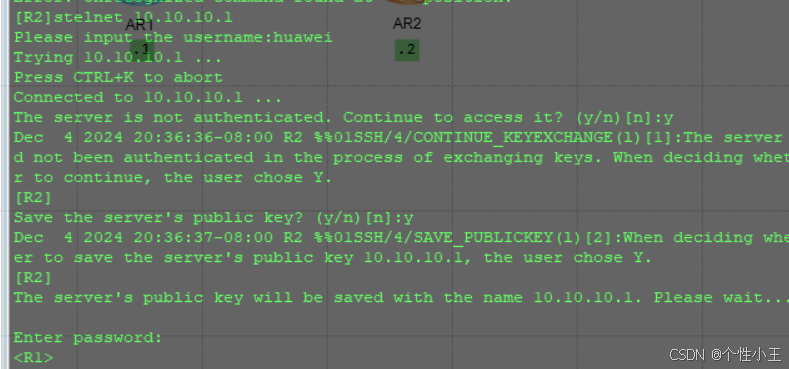

4.在R2上测试是否配置成功

[R2]ssh client first-time enable		# 首次认证
[R2]stelnet 10.10.10.1	# 登录ssh

显示R1即为成功
