tf2_object_detection

To visualize the images with the proper detected boxes, keypoints and segmentation, we will use the TensorFlow Object Detection API

Load label map data (for plotting):
Label maps correspond index numbers to category names, so that when our convolution network predicts 5, we know that this corresponds airplane. Here we use internal utility functions, but anything that returns a dictionary mapping integers to appropriate string labels would be fine

Things you can try:

  • Print out result[‘detection_boxes’] and try to match the box locations to the boxes in the image. Notice that coordinates are given in normalized form(in the interval [0,1])
  • inspect other output keys present in the result. A full documentation can be seen on the models documentation page (pointing your browser to the model handle printed earlier)

Here you can, for example, set min_score_thresh to other values (between 0 and 1) to allow more detections in or to filter out more detections

Among the available object detection models there’s Mask R-CNN and the output of this model allows instance segmentation

To visualize it we will use the same method we did before but adding an additional parameter: instance_masks=output_dict.get(‘detection_masks_reframed’, None)

import os
import pathlib

import matplotlib
import matplotlib.pyplot as plt

import io
import scipy.misc
import numpy as np
from six import BytesIO
from PIL import Image, ImageDraw, ImageFont
from six.moves.urllib.request import urlopen

import tensorflow as tf
import tensorflow_hub as hub
import sys

sys.path.append('/home/csdn/Downloads/models/research')
from object_detection.utils import label_map_util
from object_detection.utils import visualization_utils as viz_utils
from object_detection.utils import ops as utils_ops

tf.get_logger().setLevel('ERROR')


def load_image_into_numpy_array(path):
    """Load an image from file into a numpy array.

  Puts image into numpy array to feed into tensorflow graph.
  Note that by convention we put it into a numpy array with shape
  (height, width, channels), where channels=3 for RGB.

  Args:
    path: the file path to the image

  Returns:
    uint8 numpy array with shape (img_height, img_width, 3)
  """
    image = None
    if (path.startswith('http')):
        response = urlopen(path)
        image_data = response.read()
        image_data = BytesIO(image_data)
        image = Image.open(image_data)
    else:
        image_data = tf.io.gfile.GFile(path, 'rb').read()
        image = Image.open(BytesIO(image_data))

    print(image.size)
    (im_width, im_height) = image.size
    return np.array(image.getdata()).reshape(
        (1, im_height, im_width, 3)).astype(np.uint8)


ALL_MODELS = {
    'CenterNet HourGlass104 512x512': 'https://tfhub.dev/tensorflow/centernet/hourglass_512x512/1',
    'CenterNet HourGlass104 Keypoints 512x512': 'https://tfhub.dev/tensorflow/centernet/hourglass_512x512_kpts/1',
    'CenterNet HourGlass104 1024x1024': 'https://tfhub.dev/tensorflow/centernet/hourglass_1024x1024/1',
    'CenterNet HourGlass104 Keypoints 1024x1024': 'https://tfhub.dev/tensorflow/centernet/hourglass_1024x1024_kpts/1',
    'CenterNet Resnet50 V1 FPN 512x512': 'https://tfhub.dev/tensorflow/centernet/resnet50v1_fpn_512x512/1',
    'CenterNet Resnet50 V1 FPN Keypoints 512x512': 'https://tfhub.dev/tensorflow/centernet/resnet50v1_fpn_512x512_kpts/1',
    'CenterNet Resnet101 V1 FPN 512x512': 'https://tfhub.dev/tensorflow/centernet/resnet101v1_fpn_512x512/1',
    'CenterNet Resnet50 V2 512x512': 'https://tfhub.dev/tensorflow/centernet/resnet50v2_512x512/1',
    'CenterNet Resnet50 V2 Keypoints 512x512': 'https://tfhub.dev/tensorflow/centernet/resnet50v2_512x512_kpts/1',
    'EfficientDet D0 512x512': 'https://tfhub.dev/tensorflow/efficientdet/d0/1',
    'EfficientDet D1 640x640': 'https://tfhub.dev/tensorflow/efficientdet/d1/1',
    'EfficientDet D2 768x768': 'https://tfhub.dev/tensorflow/efficientdet/d2/1',
    'EfficientDet D3 896x896': 'https://tfhub.dev/tensorflow/efficientdet/d3/1',
    'EfficientDet D4 1024x1024': 'https://tfhub.dev/tensorflow/efficientdet/d4/1',
    'EfficientDet D5 1280x1280': 'https://tfhub.dev/tensorflow/efficientdet/d5/1',
    'EfficientDet D6 1280x1280': 'https://tfhub.dev/tensorflow/efficientdet/d6/1',
    'EfficientDet D7 1536x1536': 'https://tfhub.dev/tensorflow/efficientdet/d7/1',
    'SSD MobileNet v2 320x320': 'https://tfhub.dev/tensorflow/ssd_mobilenet_v2/2',
    'SSD MobileNet V1 FPN 640x640': 'https://tfhub.dev/tensorflow/ssd_mobilenet_v1/fpn_640x640/1',
    'SSD MobileNet V2 FPNLite 320x320': 'https://tfhub.dev/tensorflow/ssd_mobilenet_v2/fpnlite_320x320/1',
    'SSD MobileNet V2 FPNLite 640x640': 'https://tfhub.dev/tensorflow/ssd_mobilenet_v2/fpnlite_640x640/1',
    'SSD ResNet50 V1 FPN 640x640 (RetinaNet50)': 'https://tfhub.dev/tensorflow/retinanet/resnet50_v1_fpn_640x640/1',
    'SSD ResNet50 V1 FPN 1024x1024 (RetinaNet50)': 'https://tfhub.dev/tensorflow/retinanet/resnet50_v1_fpn_1024x1024/1',
    'SSD ResNet101 V1 FPN 640x640 (RetinaNet101)': 'https://tfhub.dev/tensorflow/retinanet/resnet101_v1_fpn_640x640/1',
    'SSD ResNet101 V1 FPN 1024x1024 (RetinaNet101)': 'https://tfhub.dev/tensorflow/retinanet/resnet101_v1_fpn_1024x1024/1',
    'SSD ResNet152 V1 FPN 640x640 (RetinaNet152)': 'https://tfhub.dev/tensorflow/retinanet/resnet152_v1_fpn_640x640/1',
    'SSD ResNet152 V1 FPN 1024x1024 (RetinaNet152)': 'https://tfhub.dev/tensorflow/retinanet/resnet152_v1_fpn_1024x1024/1',
    'Faster R-CNN ResNet50 V1 640x640': 'https://tfhub.dev/tensorflow/faster_rcnn/resnet50_v1_640x640/1',
    'Faster R-CNN ResNet50 V1 1024x1024': 'https://tfhub.dev/tensorflow/faster_rcnn/resnet50_v1_1024x1024/1',
    'Faster R-CNN ResNet50 V1 800x1333': 'https://tfhub.dev/tensorflow/faster_rcnn/resnet50_v1_800x1333/1',
    'Faster R-CNN ResNet101 V1 640x640': 'https://tfhub.dev/tensorflow/faster_rcnn/resnet101_v1_640x640/1',
    'Faster R-CNN ResNet101 V1 1024x1024': 'https://tfhub.dev/tensorflow/faster_rcnn/resnet101_v1_1024x1024/1',
    'Faster R-CNN ResNet101 V1 800x1333': 'https://tfhub.dev/tensorflow/faster_rcnn/resnet101_v1_800x1333/1',
    'Faster R-CNN ResNet152 V1 640x640': 'https://tfhub.dev/tensorflow/faster_rcnn/resnet152_v1_640x640/1',
    'Faster R-CNN ResNet152 V1 1024x1024': 'https://tfhub.dev/tensorflow/faster_rcnn/resnet152_v1_1024x1024/1',
    'Faster R-CNN ResNet152 V1 800x1333': 'https://tfhub.dev/tensorflow/faster_rcnn/resnet152_v1_800x1333/1',
    'Faster R-CNN Inception ResNet V2 640x640': 'https://tfhub.dev/tensorflow/faster_rcnn/inception_resnet_v2_640x640/1',
    'Faster R-CNN Inception ResNet V2 1024x1024': 'https://tfhub.dev/tensorflow/faster_rcnn/inception_resnet_v2_1024x1024/1',
    'Mask R-CNN Inception ResNet V2 1024x1024': 'https://tfhub.dev/tensorflow/mask_rcnn/inception_resnet_v2_1024x1024/1'
}

IMAGES_FOR_TEST = {
    'Beach': '/home/csdn/Downloads/models/research/object_detection/test_images/image2.jpg',
    'Dogs': '/home/csdn/Downloads/models/research/object_detection/test_images/image1.jpg',
    # By Heiko Gorski, Source: https://commons.wikimedia.org/wiki/File:Naxos_Taverna.jpg
    'Naxos Taverna': 'https://upload.wikimedia.org/wikipedia/commons/6/60/Naxos_Taverna.jpg',
    # Source: https://commons.wikimedia.org/wiki/File:The_Coleoptera_of_the_British_islands_(Plate_125)_(8592917784).jpg
    'Beatles': 'https://upload.wikimedia.org/wikipedia/commons/1/1b/The_Coleoptera_of_the_British_islands_%28Plate_125%29_%288592917784%29.jpg',
    # By Américo Toledano, Source: https://commons.wikimedia.org/wiki/File:Biblioteca_Maim%C3%B3nides,_Campus_Universitario_de_Rabanales_007.jpg
    'Phones': 'https://upload.wikimedia.org/wikipedia/commons/thumb/0/0d/Biblioteca_Maim%C3%B3nides%2C_Campus_Universitario_de_Rabanales_007.jpg/1024px-Biblioteca_Maim%C3%B3nides%2C_Campus_Universitario_de_Rabanales_007.jpg',
    # Source: https://commons.wikimedia.org/wiki/File:The_smaller_British_birds_(8053836633).jpg
    'Birds': 'https://upload.wikimedia.org/wikipedia/commons/0/09/The_smaller_British_birds_%288053836633%29.jpg',
}

COCO17_HUMAN_POSE_KEYPOINTS = [(0, 1),
                               (0, 2),
                               (1, 3),
                               (2, 4),
                               (0, 5),
                               (0, 6),
                               (5, 7),
                               (7, 9),
                               (6, 8),
                               (8, 10),
                               (5, 6),
                               (5, 11),
                               (6, 12),
                               (11, 12),
                               (11, 13),
                               (13, 15),
                               (12, 14),
                               (14, 16)]

PATH_TO_LABELS = '/home/csdn/Downloads/models/research/object_detection/data/mscoco_label_map.pbtxt'
category_index = label_map_util.create_category_index_from_labelmap(PATH_TO_LABELS, use_display_name=True)

model_display_name = 'Mask R-CNN Inception ResNet V2 1024x1024'  # @param ['CenterNet HourGlass104 512x512','CenterNet HourGlass104 Keypoints 512x512','CenterNet HourGlass104 1024x1024','CenterNet HourGlass104 Keypoints 1024x1024','CenterNet Resnet50 V1 FPN 512x512','CenterNet Resnet50 V1 FPN Keypoints 512x512','CenterNet Resnet101 V1 FPN 512x512','CenterNet Resnet50 V2 512x512','CenterNet Resnet50 V2 Keypoints 512x512','EfficientDet D0 512x512','EfficientDet D1 640x640','EfficientDet D2 768x768','EfficientDet D3 896x896','EfficientDet D4 1024x1024','EfficientDet D5 1280x1280','EfficientDet D6 1280x1280','EfficientDet D7 1536x1536','SSD MobileNet v2 320x320','SSD MobileNet V1 FPN 640x640','SSD MobileNet V2 FPNLite 320x320','SSD MobileNet V2 FPNLite 640x640','SSD ResNet50 V1 FPN 640x640 (RetinaNet50)','SSD ResNet50 V1 FPN 1024x1024 (RetinaNet50)','SSD ResNet101 V1 FPN 640x640 (RetinaNet101)','SSD ResNet101 V1 FPN 1024x1024 (RetinaNet101)','SSD ResNet152 V1 FPN 640x640 (RetinaNet152)','SSD ResNet152 V1 FPN 1024x1024 (RetinaNet152)','Faster R-CNN ResNet50 V1 640x640','Faster R-CNN ResNet50 V1 1024x1024','Faster R-CNN ResNet50 V1 800x1333','Faster R-CNN ResNet101 V1 640x640','Faster R-CNN ResNet101 V1 1024x1024','Faster R-CNN ResNet101 V1 800x1333','Faster R-CNN ResNet152 V1 640x640','Faster R-CNN ResNet152 V1 1024x1024','Faster R-CNN ResNet152 V1 800x1333','Faster R-CNN Inception ResNet V2 640x640','Faster R-CNN Inception ResNet V2 1024x1024','Mask R-CNN Inception ResNet V2 1024x1024']
model_handle = ALL_MODELS[model_display_name]

print('Selected model:' + model_display_name)
print('Model Handle at TensorFlow Hub: {}'.format(model_handle))

print('loading model...')
hub_model = hub.load(model_handle)
print('model loaded!')

selected_image = 'Dogs'  # @param ['Beach', 'Dogs', 'Naxos Taverna', 'Beatles', 'Phones', 'Birds']
flip_image_horizontally = False
convert_image_to_grayscale = False

image_path = IMAGES_FOR_TEST[selected_image]
image_np = load_image_into_numpy_array(image_path)

# Flip horizontally
if (flip_image_horizontally):
    image_np[0] = np.fliplr(image_np[0]).copy()

# Convert image to grayscale
if (convert_image_to_grayscale):
    image_np[0] = np.tile(
        np.mean(image_np[0], 2, keepdims=True), (1, 1, 3)).astype(np.uint8)

plt.figure(figsize=(24, 32))
plt.imshow(image_np[0])
plt.savefig('image_np.png')

# running inference
results = hub_model(image_np)

# different object detection models have additional results
# all of them are explained in the documentation
result = {key: value.numpy() for key, value in results.items()}
print(result.keys())

label_id_offset = 0
image_np_with_detections = image_np.copy()

# Use keypoints if available in detections
keypoints, keypoint_scores = None, None
if 'detection_keypoints' in result:
    keypoints = result['detection_keypoints'][0]
    keypoint_scores = result['detection_keypoint_scores'][0]

viz_utils.visualize_boxes_and_labels_on_image_array(
    image_np_with_detections[0],
    result['detection_boxes'][0],
    (result['detection_classes'][0] + label_id_offset).astype(int),
    result['detection_scores'][0],
    category_index,
    use_normalized_coordinates=True,
    max_boxes_to_draw=200,
    min_score_thresh=.30,
    agnostic_mode=False,
    keypoints=keypoints,
    keypoint_scores=keypoint_scores,
    keypoint_edges=COCO17_HUMAN_POSE_KEYPOINTS)

plt.figure(figsize=(24, 32))
plt.imshow(image_np_with_detections[0])
plt.savefig('image_np_with_detections.png')

# Handle models with masks:
image_np_with_mask = image_np.copy()

if 'detection_masks' in result:
    # we need to convert np.arrays to tensors
    detection_masks = tf.convert_to_tensor(result['detection_masks'][0])
    detection_boxes = tf.convert_to_tensor(result['detection_boxes'][0])

    # Reframe the the bbox mask to the image size.
    detection_masks_reframed = utils_ops.reframe_box_masks_to_image_masks(
        detection_masks, detection_boxes,
        image_np.shape[1], image_np.shape[2])
    detection_masks_reframed = tf.cast(detection_masks_reframed > 0.5,
                                       tf.uint8)
    result['detection_masks_reframed'] = detection_masks_reframed.numpy()

viz_utils.visualize_boxes_and_labels_on_image_array(
    image_np_with_mask[0],
    result['detection_boxes'][0],
    (result['detection_classes'][0] + label_id_offset).astype(int),
    result['detection_scores'][0],
    category_index,
    use_normalized_coordinates=True,
    max_boxes_to_draw=200,
    min_score_thresh=.30,
    agnostic_mode=False,
    instance_masks=result.get('detection_masks_reframed', None),
    line_thickness=8)

plt.figure(figsize=(24, 32))
plt.imshow(image_np_with_mask[0])
plt.savefig("image_np_with_mask.png")

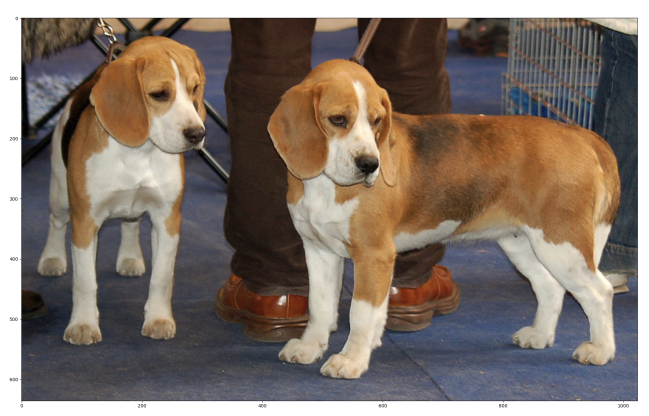

输出的是 image_np.png

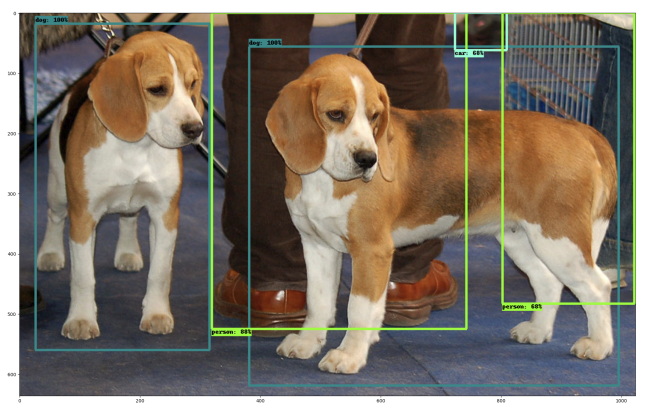

输出的是 image_np_with_detections.png

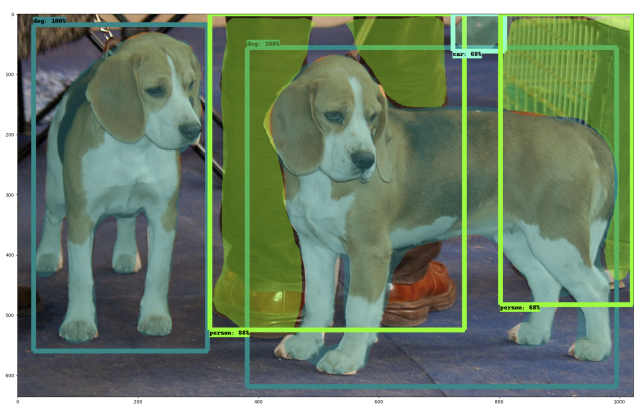

输出的是 image_np_with_mask.png
