ScottPlot.WPF布局

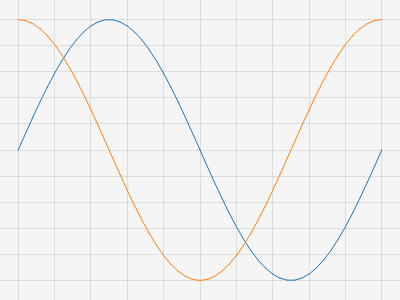

无框图

如何创建仅包含数据区而不包含坐标区的绘图。



LayoutRecipes.cs

WpfPlot1.Plot.Add.Signal(Generate.Sin(51));
WpfPlot1.Plot.Add.Signal(Generate.Cos(51));

// make the data area cover the full figure
WpfPlot1.Plot.Layout.Frameless();

// set the data area background so we can observe its size
WpfPlot1.Plot.DataBackground.Color = Colors.WhiteSmoke;

WpfPlot1.Refresh();

---

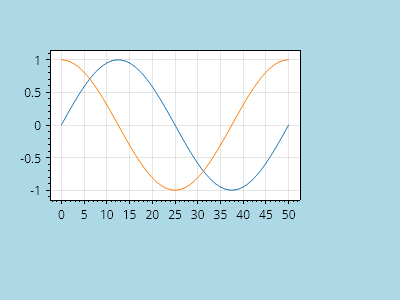

固定填充

可以安排绘图，以便在数据区域的每一侧实现固定数量的填充



LayoutRecipes.cs

// add sample data to the plot
WpfPlot1.Plot.Add.Signal(Generate.Sin(51));
WpfPlot1.Plot.Add.Signal(Generate.Cos(51));

// use a fixed amount of of pixel padding on each side
PixelPadding padding = new(100, 50, 100, 50);
WpfPlot1.Plot.Layout.Fixed(padding);

// darken the figure background so we can observe its dimensions
WpfPlot1.Plot.FigureBackground.Color = Colors.LightBlue;
WpfPlot1.Plot.DataBackground.Color = Colors.White;

WpfPlot1.Refresh();

---

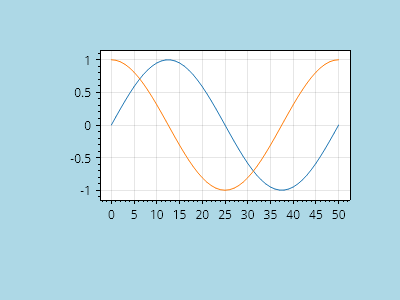

固定矩形

可以安排绘图，以便将数据绘制在以像素单位定义的固定矩形内



LayoutRecipes.cs

// add sample data to the plot
WpfPlot1.Plot.Add.Signal(Generate.Sin(51));
WpfPlot1.Plot.Add.Signal(Generate.Cos(51));

// set the data area to render inside a fixed rectangle
PixelSize size = new(300, 200);
Pixel offset = new(50, 50);
PixelRect rect = new(size, offset);
WpfPlot1.Plot.Layout.Fixed(rect);

// darken the figure background so we can observe its dimensions
WpfPlot1.Plot.FigureBackground.Color = Colors.LightBlue;
WpfPlot1.Plot.DataBackground.Color = Colors.White;

WpfPlot1.Refresh();
