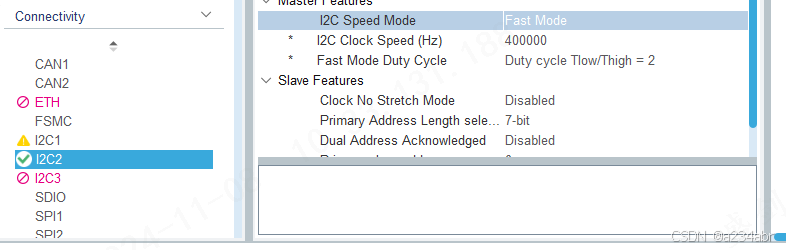

cubemx进行IIC的配置即可

直接在将HAL库的I2C发送函数放在要封装的OLED写数据函数和写命令函数里即可。

初始化的话建议对照一下买设备商家所给的程序里的初始化顺序

12864.c文件

#include "main.h"
#include "12864.h"
#include "i2c.h"
#include "font.h"
/**
  * @brief 向 oled 写入命令
  */
void OLED_Write_Cmd(uint8_t cmd)
{
    uint8_t temp = cmd;
			HAL_I2C_Mem_Write(&I2C_X, OLED_ADDR, CMD_CTRL, I2C_MEMADD_SIZE_8BIT, &temp, 1,0xffff);
}

/**
  * @brief 向 oled 写入数据
  */
void OLED_Write_Data(uint8_t data)
{
    uint8_t temp = data;
    HAL_I2C_Mem_Write(&I2C_X, OLED_ADDR, DATA_CTRL, I2C_MEMADD_SIZE_8BIT, &temp, 1, 0xFFFF);
}

/**
  * @brief 设置 oled 写入坐标
  * @param x    列坐标：0 ~ 127
  * @param y    行坐标：0 ~ 63
  */
void OLED_Set_Pos(uint8_t x, uint8_t y)
{
    OLED_Write_Cmd(0xb0 + y);                 // 写入页地址
    OLED_Write_Cmd((x & 0x0f));               // 写入列的地址 (低半字节)
    OLED_Write_Cmd(((x & 0xf0) >> 4) | 0x10); // 写入列的地址(高半字节)
}

/**
  * @brief oled 清屏
  */
void OLED_Clear(void)
{
    unsigned char page, row;
    for (page = 0; page < 8; page++)
    {
        OLED_Write_Cmd(0xb0 + page); // 从0 ~ 7页依次写入
        OLED_Write_Cmd(0x00);        // 低位列地址
        OLED_Write_Cmd(0x10);        // 高位列地址
        for (row = 0; row < 128; row++)
        {
            OLED_Write_Data(0X00);
        }
    }
}
 void OLED_full(void)
{
    unsigned char page, row;
    for (page = 0; page < 8; page++)
    {
        OLED_Write_Cmd(0xb0 + page); // 从0 ~ 7页依次写入
        OLED_Write_Cmd(0x00);        // 低位列地址
        OLED_Write_Cmd(0x10);        // 高位列地址
        for (row = 0; row < 128; row++)
        {
            OLED_Write_Data(0XFF);
        }
    }
}


const unsigned char  OLED_init_cmd[25]=
{

      0xAE,//关闭显示

       0xD5,//设置时钟分频因子,震荡频率
       0x80,  //[3:0],分频因子;[7:4],震荡频率

       0xA8,//设置驱动路数
       0X3F,//默认(1/64)

       0xD3,//设置显示偏移
       0X00,//默认为0

       0x40,//设置显示开始行 [5:0],行数.

       0x8D,//电荷泵设置
       0x10,//bit2，开启/关闭
       0x20,//设置内存地址模式
       0x02,//[1:0],00，列地址模式;01，行地址模式;10,页地址模式;默认10;
       0xA1,//段重定义设置,bit0:0,0->0;1,0->127;  A1

       0xC8,//设置COM扫描方向;bit3:0,普通模式;1,重定义模式 COM[N-1]->COM0;N:驱动路数 (C0 翻转显示) C8

       0xDA,//设置COM硬件引脚配置
       0x12,//[5:4]配置

       0x81,//对比度设置
       0xf0,//1~255;默认0X7F (亮度设置,越大越亮)

       0xD9,//设置预充电周期
       0x71,//[3:0],PHASE 1;[7:4],PHASE 2;

       0xDB,//设置VCOMH 电压倍率
       0x00,//[6:4] 000,0.65*vcc;001,0.77*vcc;011,0.83*vcc;

       0xA4,//全局显示开启;bit0:1,开启;0,关闭;(白屏/黑屏)

       0xA6,//设置显示方式;bit0:1,反相显示;0,正常显示

       0xAF,//开启显示
};

void OLED_Init(void)
  {
		HAL_Delay(100);
    unsigned char i;
    for(i=0;i<25;i++)
      {
        OLED_Write_Cmd(OLED_init_cmd[i]);
      }
  }

/**
  * @brief 将 OLED 从休眠中唤醒
  */
void OLED_ON(void)
{
    OLED_Write_Cmd(0X8D); // 设置电荷泵
    OLED_Write_Cmd(0X14); // 开启电荷泵
    OLED_Write_Cmd(0XAF); // OLED 唤醒
}

/**
  * @brief 让OLED休眠
  */
void OLED_OFF(void)
{
    OLED_Write_Cmd(0X8D); // 设置电荷泵
    OLED_Write_Cmd(0X10); // 关闭电荷泵
    OLED_Write_Cmd(0XAE); // OLED 休眠
}

/**
  * @brief 显示 bsp_font.h 中的ASCII字符 字体为 Consolas
  * @param x：  起始点列坐标：0 ~ 127
  *        y:   起始点页坐标：0 ~ 7
  * @param *ch：要显示的字符串
  */

void OLED_ShowStr(unsigned char x,unsigned y,unsigned char ch[],unsigned TextSize)
{
    unsigned char c = 0,i = 0,j = 0;
	  switch(TextSize)
		{
			case 1://显示的大小为6*8
			{
				while(ch[j] != '\0')
				{
				   c = ch[j] - 32;//大小写之间的转化
					if(x>126)
					{
					    x= 0;
						  y++;

					}
					OLED_Set_Pos(x,y);
					for(i=0;i<6;i++)
           OLED_Write_Data( F6x8[c][i] );
					x+=6 ;
					j++;

					}

				}break;
			case 2://显示的大小为8*16
			{
			   while(ch[j] !='\0')
				 {
						 c= ch[j] - 32;
					 if(x >120)
					 {
							 x = 0;
							 y++ ;
					 }
					 OLED_Set_Pos(x,y);
					 for(i = 0;i<8;i++)			//这里分两次循环显示
					 OLED_Write_Data( F8X16[c*16+i] ); //比如这是显示H的上半部分
					 OLED_Set_Pos(x,y+1);
					 for(i = 0;i<8;i++)			//这是显示H的下半部分
					 OLED_Write_Data( F8X16[c*16+i+8] );
					 x+=8;//跳转到下一页
					 j++;
			 }

		}break;

		}
}

12864.h文件

需要注意的是:我所使用的是 IIC2

还有从设备的地址我的是0X78,写命令是从0X00开始，写数据是从0x40开始(内部芯片是SSD1309)

#ifndef __BSP_12864_H
#define __BSP_12864_H

#include "i2c.h"

#define I2C_X           hi2c2

#define OLED_ADDR       0x78
#define CMD_CTRL        0X00
#define DATA_CTRL       0X40

void OLED_Write_Cmd(uint8_t cmd);
void OLED_Write_Data(uint8_t data);
void OLED_Init(void);
void OLED_Clear(void);
void OLED_ON(void);
void OLED_OFF(void);
void OLED_full(void);
void OLED_Set_Pos(uint8_t x, uint8_t y);
void OLED_ShowStr(unsigned char x,unsigned y,unsigned char ch[],unsigned TextSize);
#endif /* __BSP_12864_H */
