dbus 信号和方法测试

代码下载地址

http://download.csdn.net/detail/a624731186/7680405

#Client.c

#include <glib.h>
#include <dbus/dbus.h>
#include <stdbool.h>
#include <unistd.h>
#include <stdio.h>
#include <stdlib.h>
#include <dbus/dbus-glib.h>
#include <pthread.h>

static DBusConnection *connect;

static gpointer mainloop(gpointer user_data);
static DBusHandlerResult filter_func (DBusConnection *connection, DBusMessage *message, void *user_data) ;
static int method_get(DBusConnection *dbconn,int a,int b);

int main(int argc, char **argv)
{
    DBusError dberr;
    DBusConnection *dbconn;
    DBusMessage *msg;
    DBusMessageIter args;
    int ret;
    pthread_t tid;

    pthread_create(&tid,NULL,mainloop,NULL);
    dbus_error_init (&dberr);
    connect = dbconn = dbus_bus_get (DBUS_BUS_SESSION, &dberr);

    if (dbus_error_is_set (&dberr)){
        printf ("getting session bus failed: %s\n", dberr.message);
        dbus_error_free (&dberr);
        return EXIT_FAILURE;
    }

    if(connect == NULL){
        printf ("connect bus failed: %s\n", dberr.message);
        return EXIT_FAILURE;
    }

    ret = dbus_bus_request_name (dbconn, "com.wq.test.client",DBUS_NAME_FLAG_REPLACE_EXISTING, &dberr);

    if (dbus_error_is_set (&dberr)){
        printf ("requesting name failed: %s\n", dberr.message);
        dbus_error_free (&dberr);
        return EXIT_FAILURE;
    }

    if(ret != DBUS_REQUEST_NAME_REPLY_PRIMARY_OWNER){
        printf ("request name failed: %s\n", dberr.message);
        return EXIT_FAILURE;
    }

    dbus_bus_add_match(dbconn,"type='signal',interface='com.wq.test'",&dberr);

    while(1){
        dbus_connection_read_write (dbconn,0);
        msg = dbus_connection_pop_message (dbconn);
        if(msg == NULL){
            usleep(1000);
            continue;
        }

        filter_func (dbconn,msg,NULL);
        dbus_message_unref(msg);

    }

    return EXIT_SUCCESS;
}


static int method_get(DBusConnection *dbconn,int a,int b)
{
    DBusMessage *msg;
    DBusMessageIter arg;
    DBusPendingCall *pending;
    DBusMessage *reply;
    int result;
    DBusError dberr;

    dbus_error_init(&dberr);
    msg = dbus_message_new_method_call ("com.wq.test", "/com/wq/test","com.wq.test", "METHODTEST");

    if(msg == NULL){
        printf("Message NULL\n");
        return;
    }

    dbus_message_append_args ( msg, DBUS_TYPE_INT32, &a, DBUS_TYPE_INT32, &b, DBUS_TYPE_INVALID);
    reply = dbus_connection_send_with_reply_and_block (dbconn, msg, -1, &dberr);

    if (!reply){
        printf("couldn't send message: %s\n", dberr.message);
    }

    dbus_message_unref (msg);

    if (!dbus_message_get_args (reply, &dberr, DBUS_TYPE_INT32, &result, DBUS_TYPE_INVALID)){
        return 0;
    }

    /*dbus_message_iter_init_append(msg, &arg);
    if(!dbus_message_iter_append_basic (&arg, DBUS_TYPE_INT32,&a)){
        printf("client Out of Memory1!\n");
        return 0;
    }

    if(!dbus_message_iter_append_basic (&arg, DBUS_TYPE_INT32,&b)){
        printf("client Out of Memory2!\n");
        return 0;
    }

    if(!dbus_connection_send_with_reply (dbconn, msg,&pending, -1)){
        printf("client Out of Memory3!\n");
        return 0;
    }

    if(pending == NULL){
        printf("Pending Call NULL: connection is disconnected \n");
        dbus_message_unref(msg);
        return 0;
    }

    dbus_connection_flush(dbconn);
    dbus_message_unref(msg);
    dbus_pending_call_block (pending);
    msg = dbus_pending_call_steal_reply (pending);

    if (msg == NULL) {
        printf("Reply Null\n");
        return 0;
    }

    dbus_pending_call_unref(pending);

    if (!dbus_message_iter_init(msg, &arg))
        fprintf(stderr, "Message has no arguments!\n");
    else if ( dbus_message_iter_get_arg_type (&arg) != DBUS_TYPE_INT32)
        fprintf(stderr, "Argument is not boolean!\n");
    else
        dbus_message_iter_get_basic (&arg, &result);

    dbus_message_unref(msg); */

    return result;
}


static DBusHandlerResult filter_func (DBusConnection *connection, DBusMessage *message,void *user_data)
{
    if (dbus_message_is_signal (message, "com.wq.test", "TESTSINGAL")) {
        DBusError error;
        char *s;
        dbus_error_init (&error);

        if (dbus_message_get_args(message, &error, DBUS_TYPE_STRING, &s, DBUS_TYPE_INVALID)) {
            printf("client received singal: %s\n", s);
        }else {
            printf("client received, but error getting message: %s\n", error.message);
            dbus_error_free (&error);
        }

        return DBUS_HANDLER_RESULT_HANDLED;
    }

    return DBUS_HANDLER_RESULT_NOT_YET_HANDLED;
}



static gpointer mainloop(gpointer user_data)
{
    char input[256];
    printf("enter 'm' to test method:");
    while(1){
        if(fgets(input, sizeof(input), stdin)){
            if(input[0] == 'm'){
                printf("please enter two number:\n");
                int a;
                int b;
                scanf("%d %d",&a,&b);
                int result = method_get(connect,a,b);
                printf("result : %d\n",result);
            }
        }
    }
}

#Service.c

#include <dbus/dbus.h>
#include <unistd.h>
#include <stdlib.h>
#include <stdio.h>
#include <dbus/dbus-glib.h>
#include <stdbool.h>
#include <pthread.h>

static DBusConnection *connect;

static gpointer mainloop(gpointer user_data);
static void send_singal(DBusConnection *dbconn,char *buf);
static DBusHandlerResult filter_session_message (DBusConnection *connection,DBusMessage *message,void  *user_data);

int main(int argc ,char **argv)
{
    DBusError dberr;
    DBusConnection *dbconn;
    DBusMessage *msg;
    pthread_t tid;

    dbus_error_init (&dberr);
    pthread_create(&tid,NULL,mainloop,NULL);
    connect = dbconn = dbus_bus_get (DBUS_BUS_SESSION, &dberr);
    dbus_bus_request_name (dbconn, "com.wq.test",DBUS_NAME_FLAG_REPLACE_EXISTING, &dberr);


    if (dbus_error_is_set (&dberr)){
        printf ("getting session bus failed: %s\n", dberr.message);
        dbus_error_free (&dberr);
        return -1;
    }

    while(1){
        dbus_connection_read_write (dbconn,0);
        msg = dbus_connection_pop_message (dbconn);

        if(msg == NULL){
            usleep(1000);
            continue;
        }

        filter_session_message (dbconn,msg,NULL);
        dbus_message_unref(msg);
    }

    return 1;
}

static gpointer mainloop(gpointer user_data)
{
    char input[256];
	printf("enter 's' to test singal:");

    while(1){
        if(fgets(input, sizeof(input), stdin)){
            if(input[0] == 's'){
                printf("please enter a string:\n");
                char send[256];
                scanf("%s", send);
                send_singal(connect,send);
            }
        }
    }
}


static void send_singal(DBusConnection *dbconn,char *buf)
{
    DBusMessage *dbmsg;
    dbmsg = dbus_message_new_signal ("/com/wq/test","com.wq.test","TESTSINGAL");

    if (!dbmsg){
        printf ("Could not create a new signal\n");
        return;
    }

    if (!dbus_message_append_args ( dbmsg, DBUS_TYPE_STRING, &buf, DBUS_TYPE_INVALID)){
        printf("Out Of Memory!\n");
        return;
    }

    if (!dbus_connection_send (dbconn, dbmsg, NULL)){
        printf("Out Of Memory!\n");
        return;
    }
    dbus_connection_flush(dbconn);
}


static DBusHandlerResult filter_session_message (DBusConnection *connection,DBusMessage *message,void  *user_data)
{
    int a = 0;
    int b = 0;
    int c = 0;

    if (dbus_message_is_method_call (message,"com.wq.test","METHODTEST")){
        dbus_message_get_args(message, NULL, DBUS_TYPE_INT32, &a, DBUS_TYPE_INT32,&b,DBUS_TYPE_INVALID);
        printf("service get tow number: %d %d\n",a,b);
        c = a + b;
        DBusMessage *reply;
        reply = dbus_message_new_method_return (message);
        dbus_message_append_args (reply, DBUS_TYPE_INT32,&c, DBUS_TYPE_INVALID);
        dbus_connection_send (connection, reply, NULL);
        dbus_message_unref (reply);
        return DBUS_HANDLER_RESULT_HANDLED;
    }

    return DBUS_HANDLER_RESULT_NOT_YET_HANDLED;
}

#makefile

All:
    gcc  -o service service.c -pthread `pkg-config --cflags --libs dbus-1 glib-2.0 dbus-glib-1 `
    gcc  -o client client.c -pthread `pkg-config --cflags --libs dbus-1 glib-2.0 dbus-glib-1 `

编译过程中可能会提示没有dbus-1 glib-2.0 dbus-glib-1库
下面安装

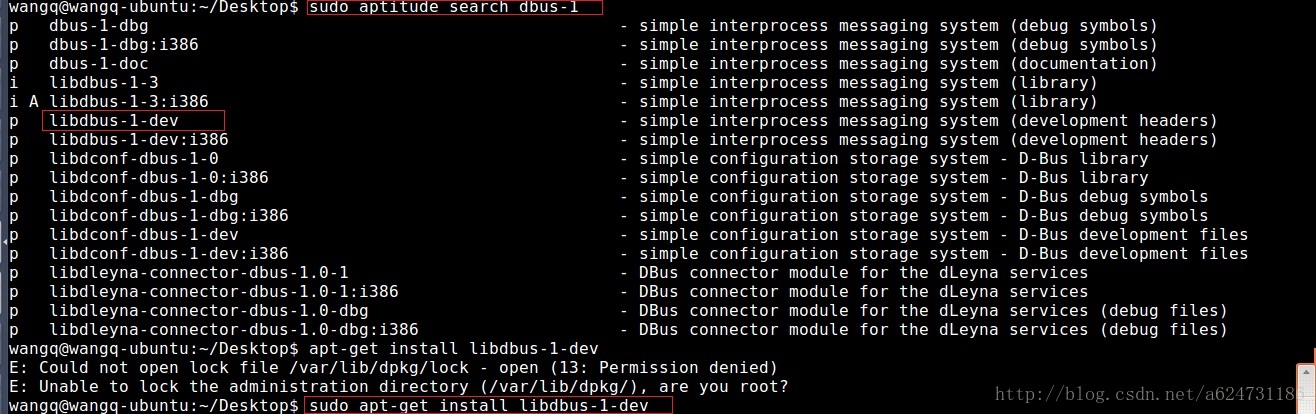

1:dbus-1，如下图，我的是64位系统，下载了64位的库

2:glib-2.0，如下图，我的是64位系统，下载了64位的库

3:dbus-glib-1，如下图，我的是64位系统，下载了64位的库

编译后运行：
